15" Touch Screen
Chiller
Hand Held Remote
Ethernet
USB
Flash Rom Port
Fire Extinguisher
Probing Functions

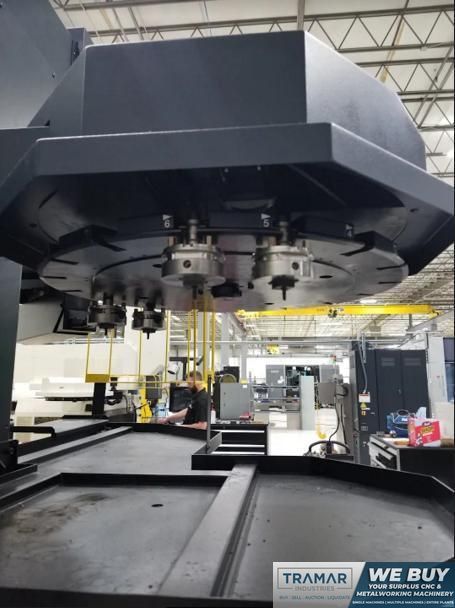

16 Position Tool Changer
Rigid machine construction with massive castings and Class V ball screws
• 60 Amp Power Supply (80 Peak Amps)
• Automatic Air Operated Chuck
(Erowa ITS or System 3R Macro)
• Adaptive Control Technologies:
SuperSpark4
SuperSpark-Graphite
SuperSurface
ArcFree
IES (Intelligent Expert System)
• MF4 Circuit for general machining
• DD-Circuit for large area electrodes
• MPG (Makino Program Generator)
• Model Plan Programming
• MGH-6 Windows CE? control with 15”
Touch Screen interface
• Hand Held Full-Function Remote Control
with Magnetic Base and LCD Display
• High Accuracy Program/Display Resolution
(5-Place Inch / 4 Place Metric Decimal)
• Carbide Machining Circuit

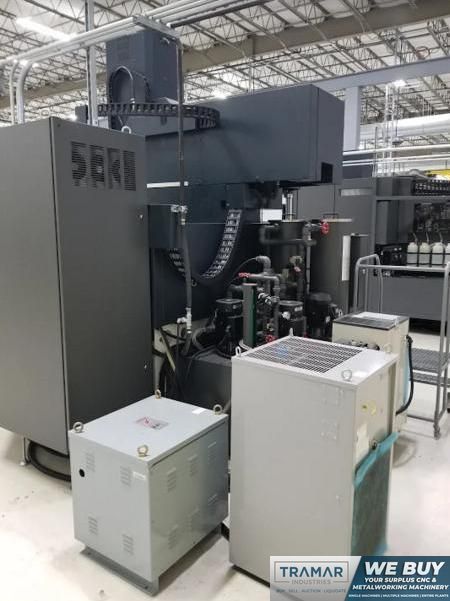

• Automatic Dielectric Chiller Unit
• Flash ROM, Ethernet Port, USB Port
• Exclusive Complex Orbiting Routines
• Power Driven 3 Sided Programmable Rise
and Fall Work Tank
• U/V Flame Sensor
• Operator friendly Lite Oil Fire Extinguisher
• Multi-Tap Line Transformer and Power
Supply Line Filter
• Automatic Measurement and Probing
Functions
• Set of 3 Pick Up Probes
• Basic Tool Kit and Flush Nozzle Kit
• EDM Surface Roughness Gauge
• Work light and 100V AC Outlet
• On-board training system (e-Learning)
• On-board electronic manuals (s-Manuals)
Optional Features
MR Head
Factory Order Only. Built-in `C` Axis (MR) Workhead with 0-10 RPM spinning
capability. Set up with Erowa. The maximum amperage capacity for the MR
type C-axis is 120 amperes in stationary position and 60 amperes maximum limit
during live rotation.
HS-Rib
Factory Order Only. High Speed Head with 20m/min jumping speed and 1,5g
acceleration. Include Z axis stroke of 500mm and Z-axis stabilizer which consist in
a core cooling ball screw with controller oil temperature. MA/MR or Mi Head are
not included in this option.
HQSF-FACTORY ORDER OPTION ONLY
Option includes HQSF components, HQSF Standard Supplies Set, and HQSF
Running Set. Supplied with Type 1 µSC Additive. (No Sludge Separator)
EDNC 85 Retrofit 16 Position ATC
EDNC85 ATC16 HS-RIB COMMONEDNC85 ATC16 EROWA ITS
Additional Specs:
Table Load Capacity............... 4,400 lbs
Tank Size..................................... 55.1" x 35.4" x 19.7"

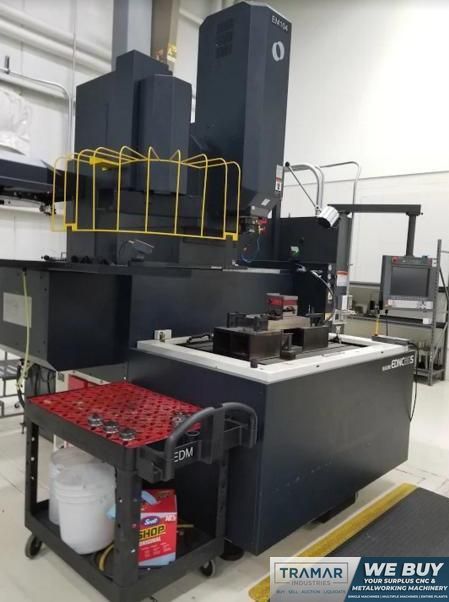

The Makino EDNC 85S is an exclusive part of our EDM Sinkers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
