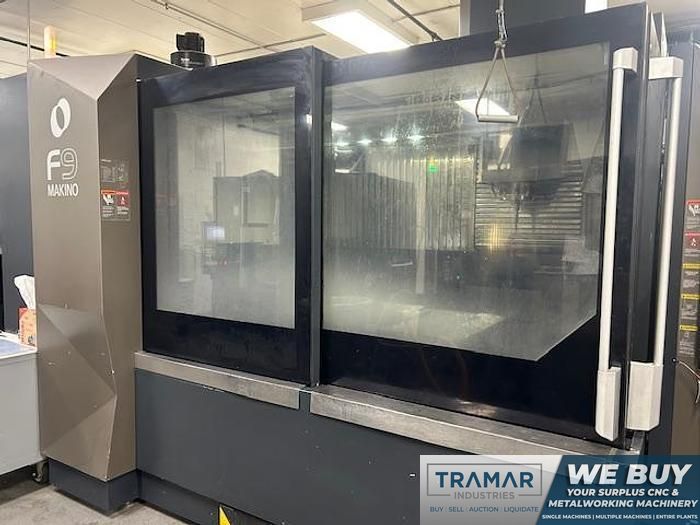

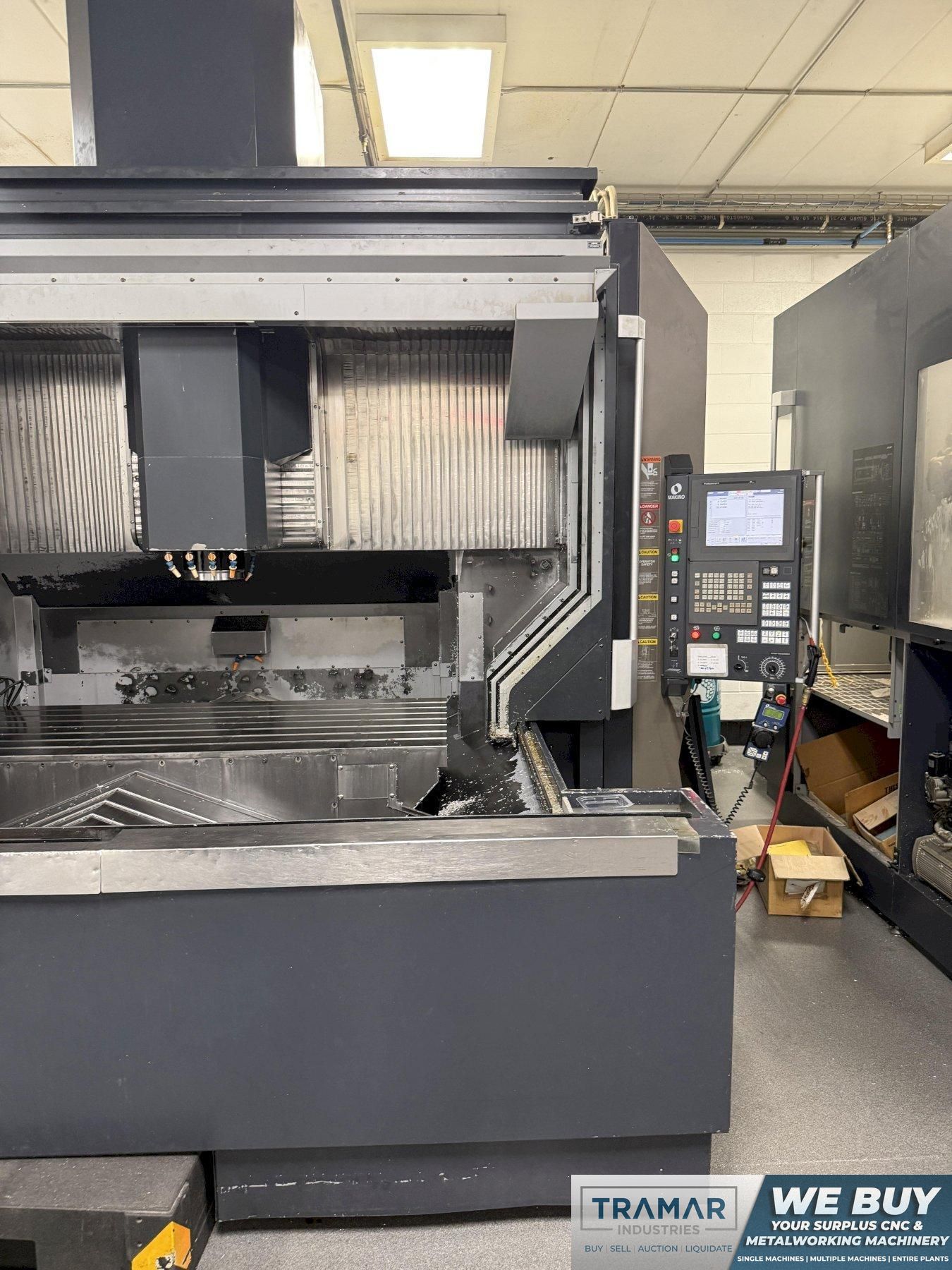

Makino F9 - Vertical Machining Centers

Request Quote
Share Machine
Specifications Print Specs
Model: F9
Year: 2015
Stock #: 15151
Highlights:
Pro 5 CNC Control
Table: 72.8" x 31.5" | 5511 lbs
Travels: X-63"/ Y-31.5"/ Z-25.6"

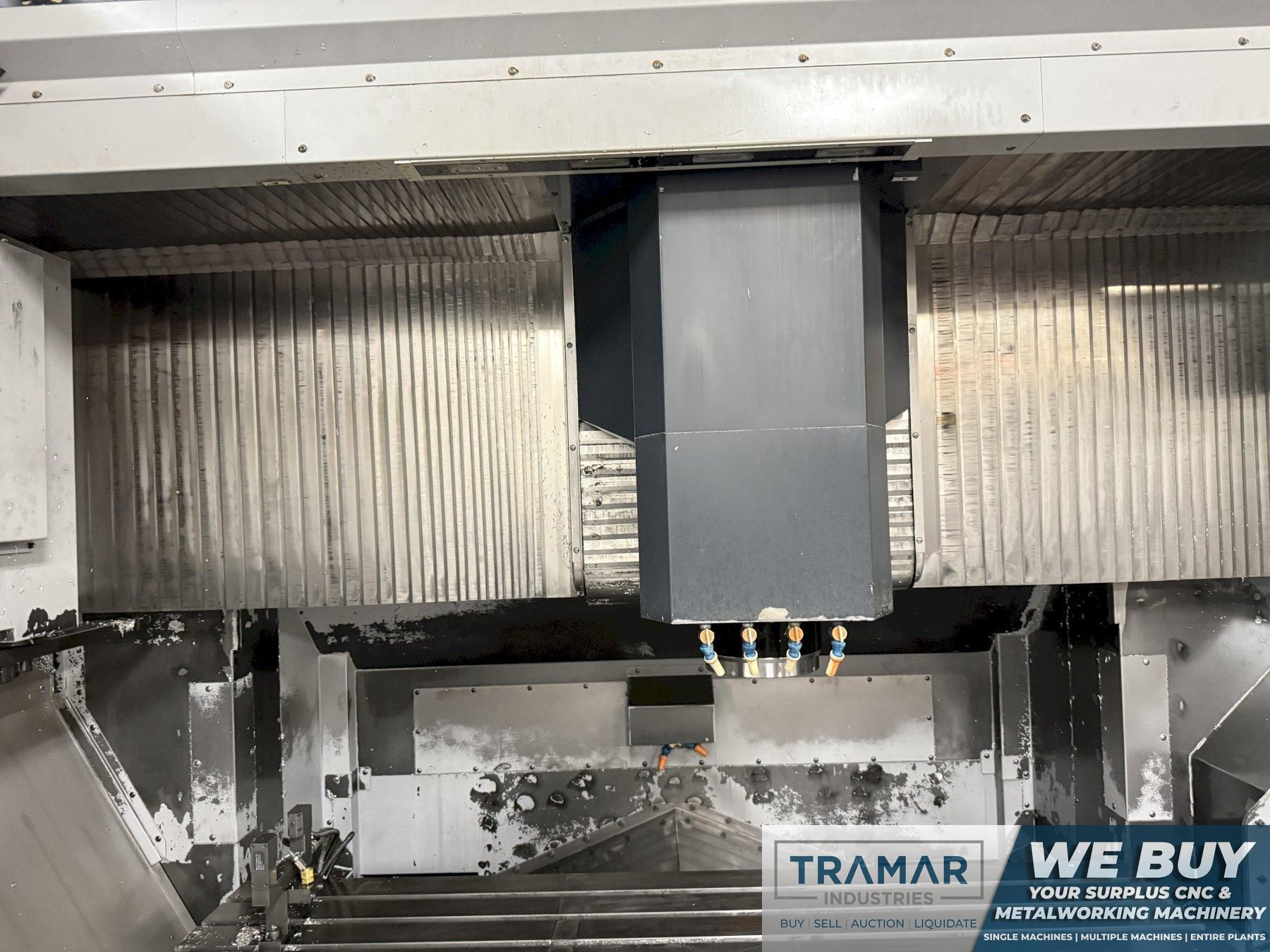

20,000 rpm, HSK-A63, 40 hp

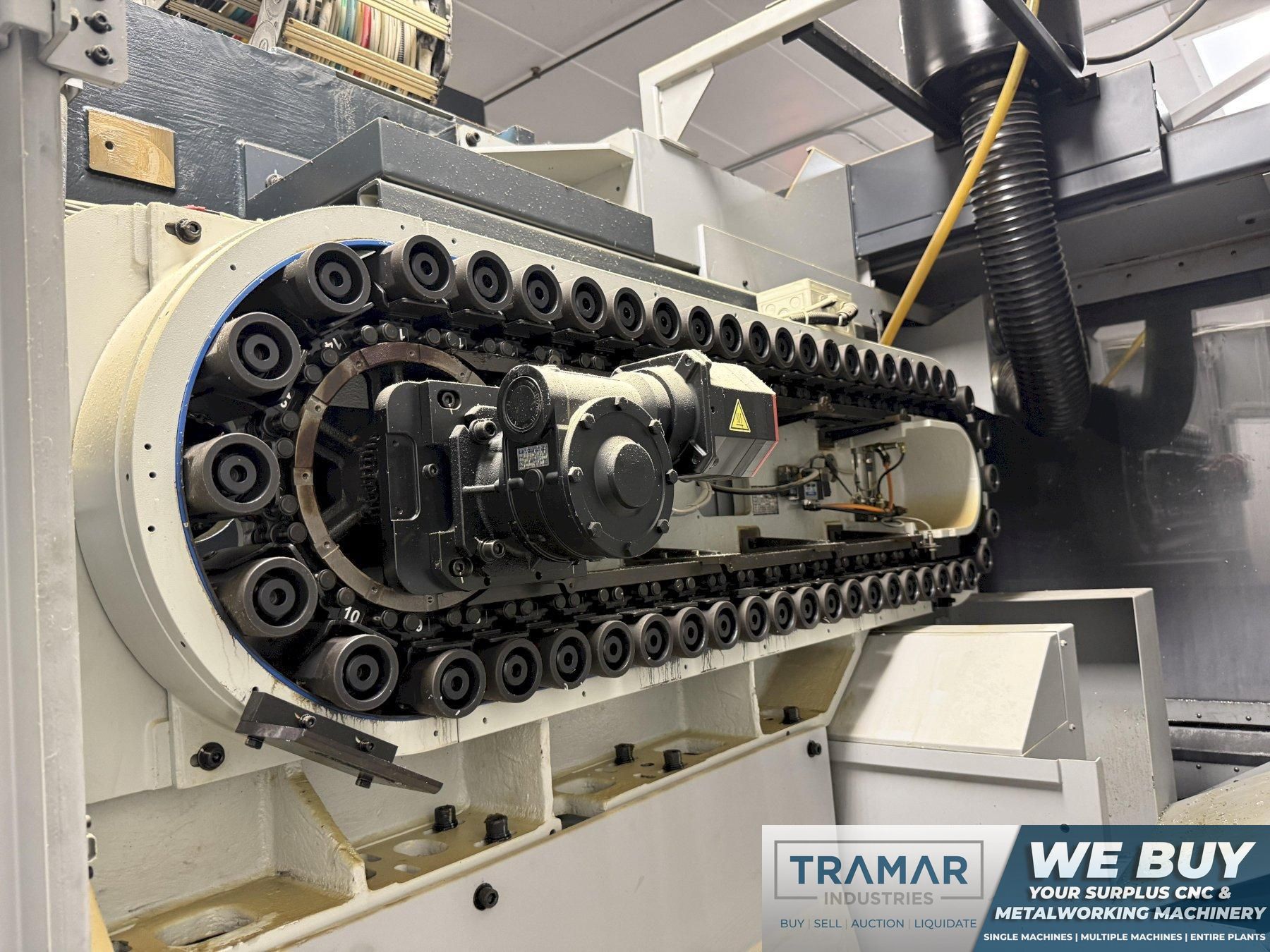

48 Station ATC

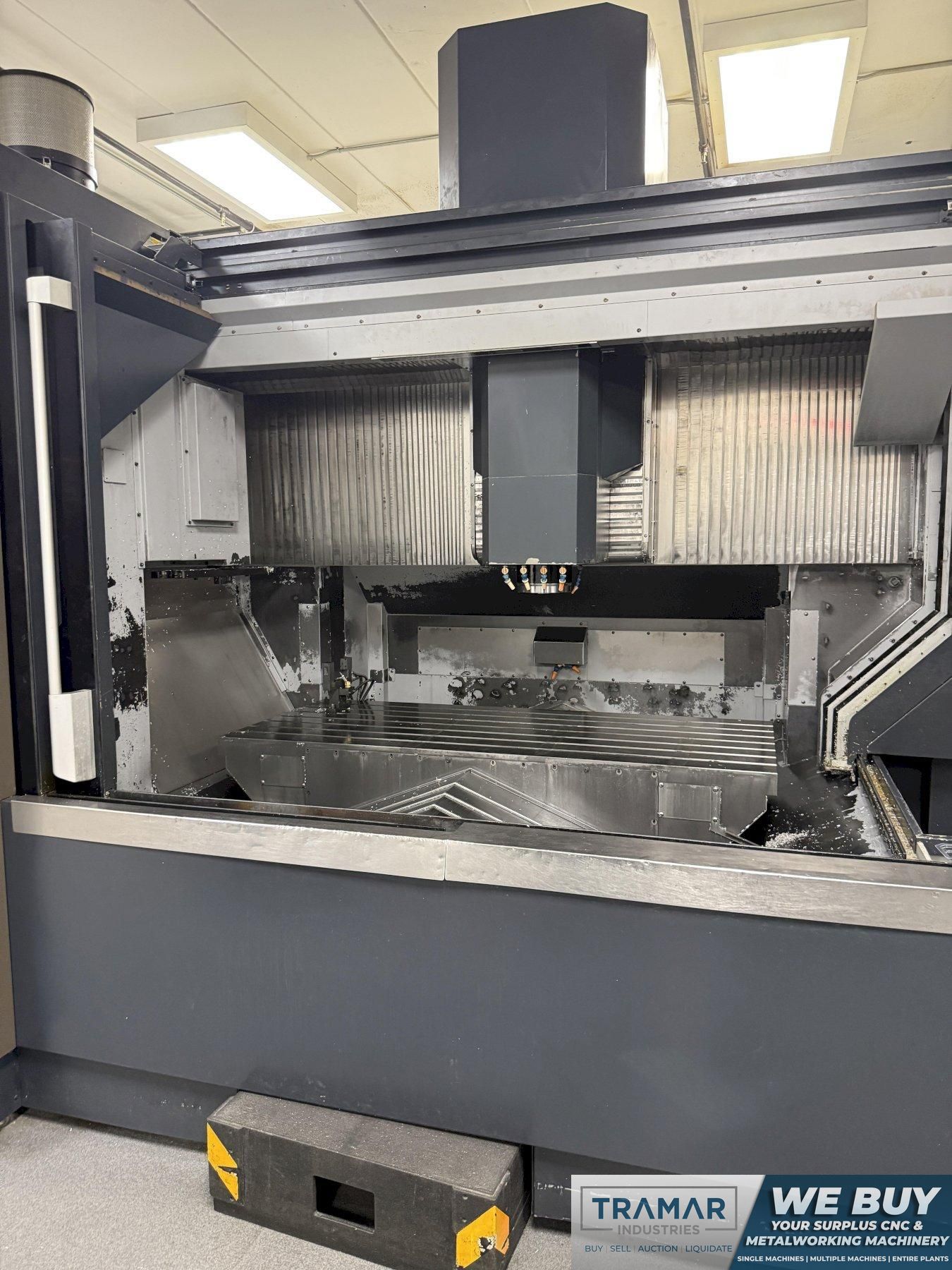

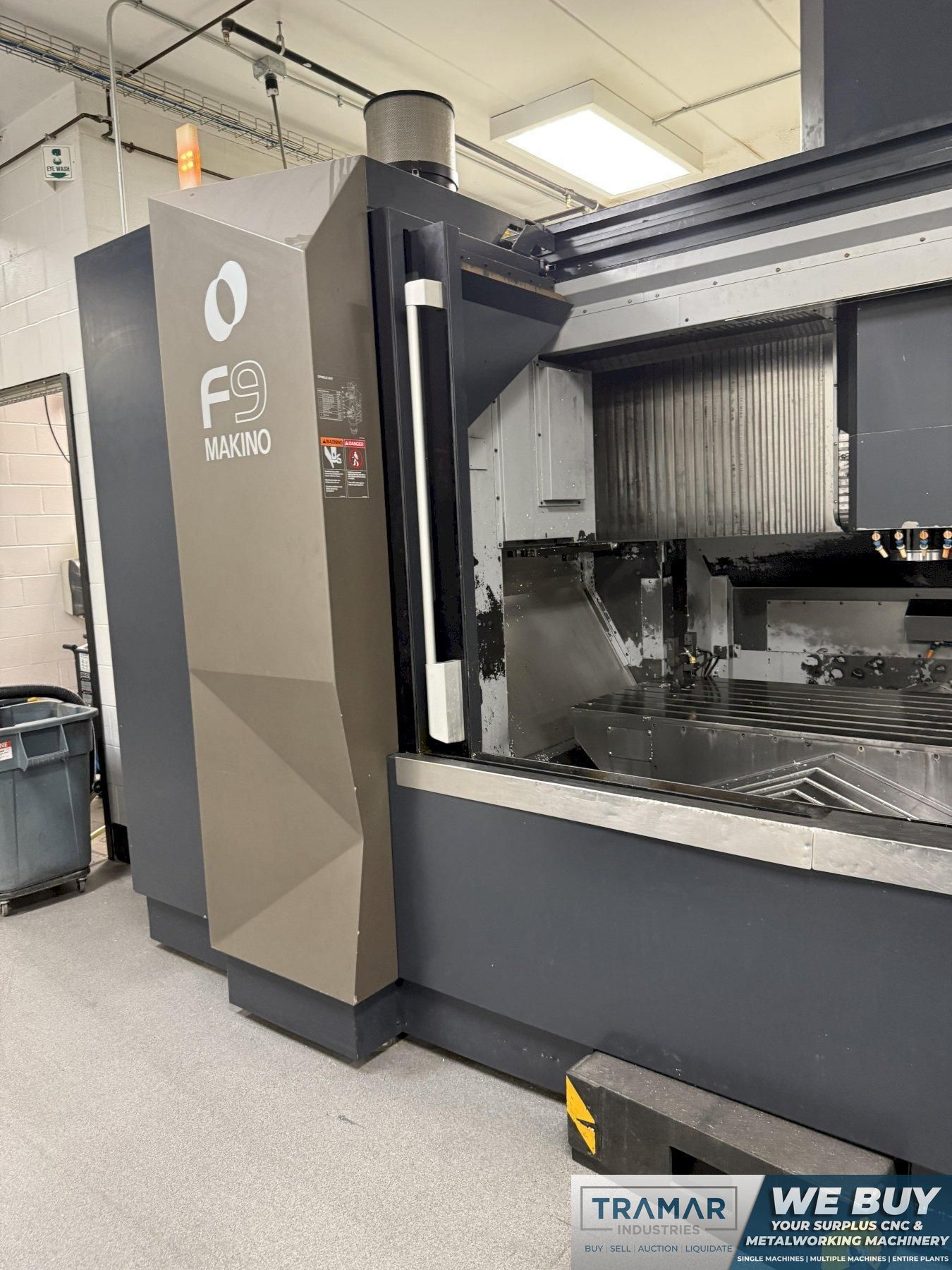

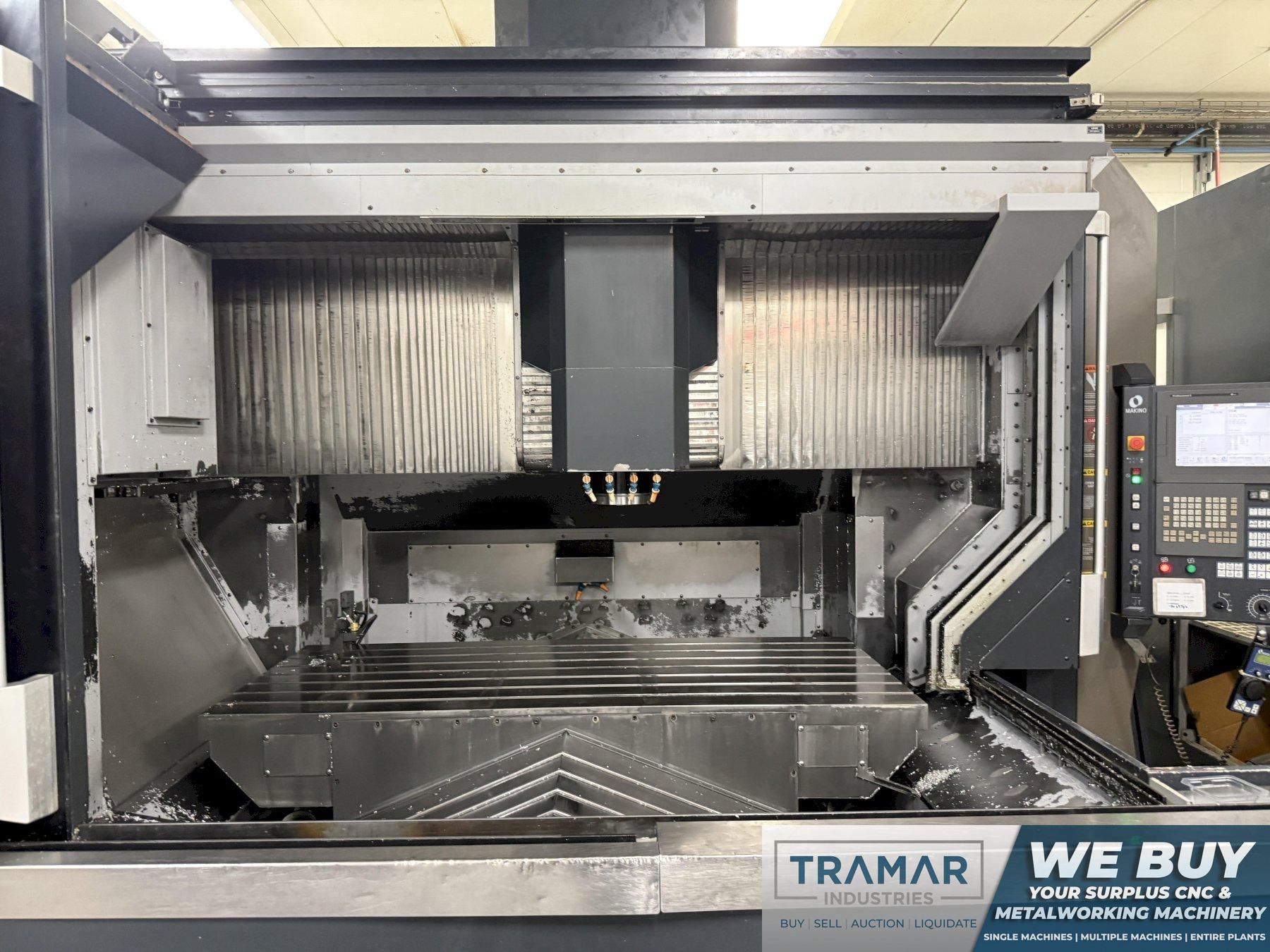

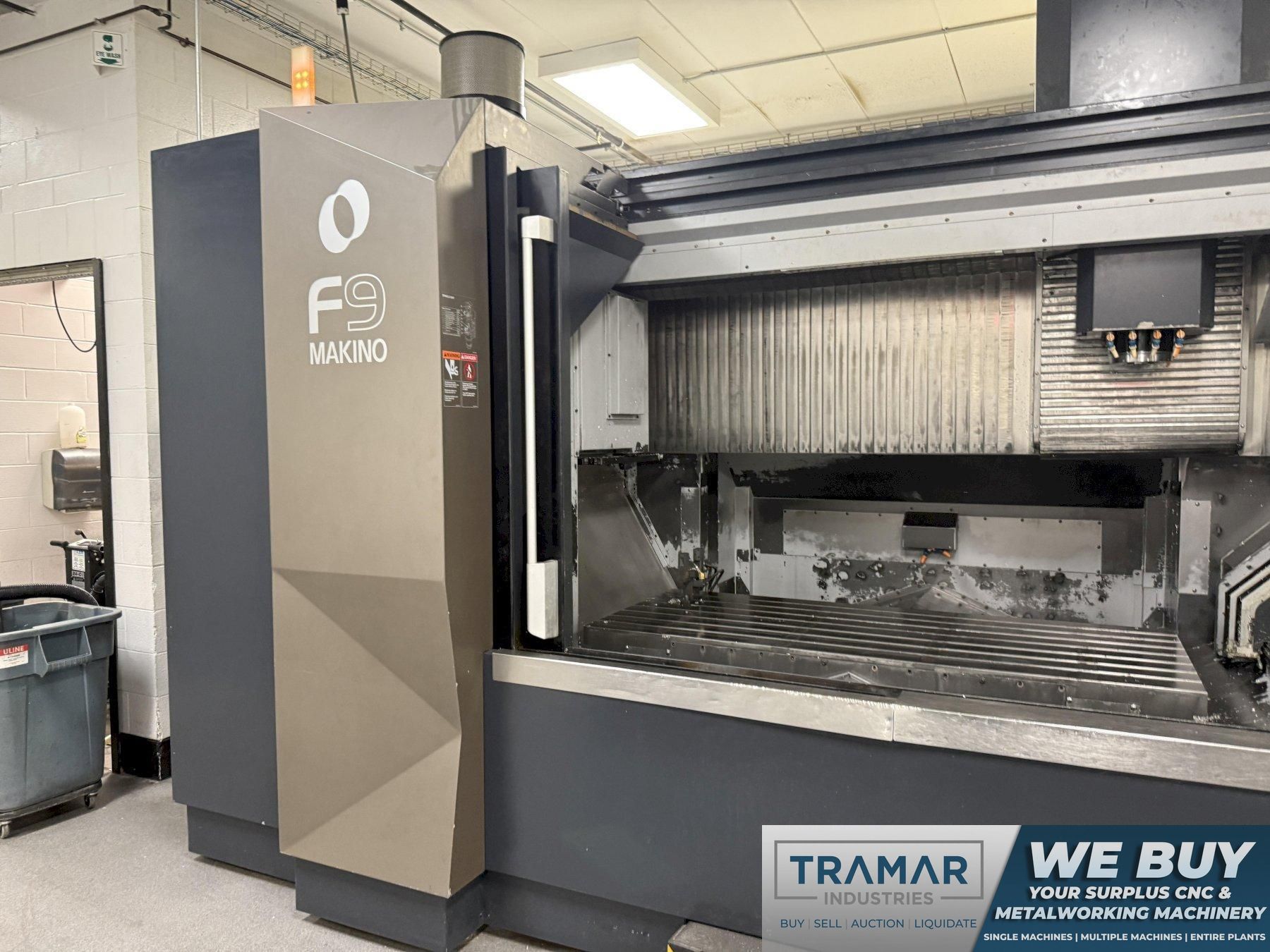

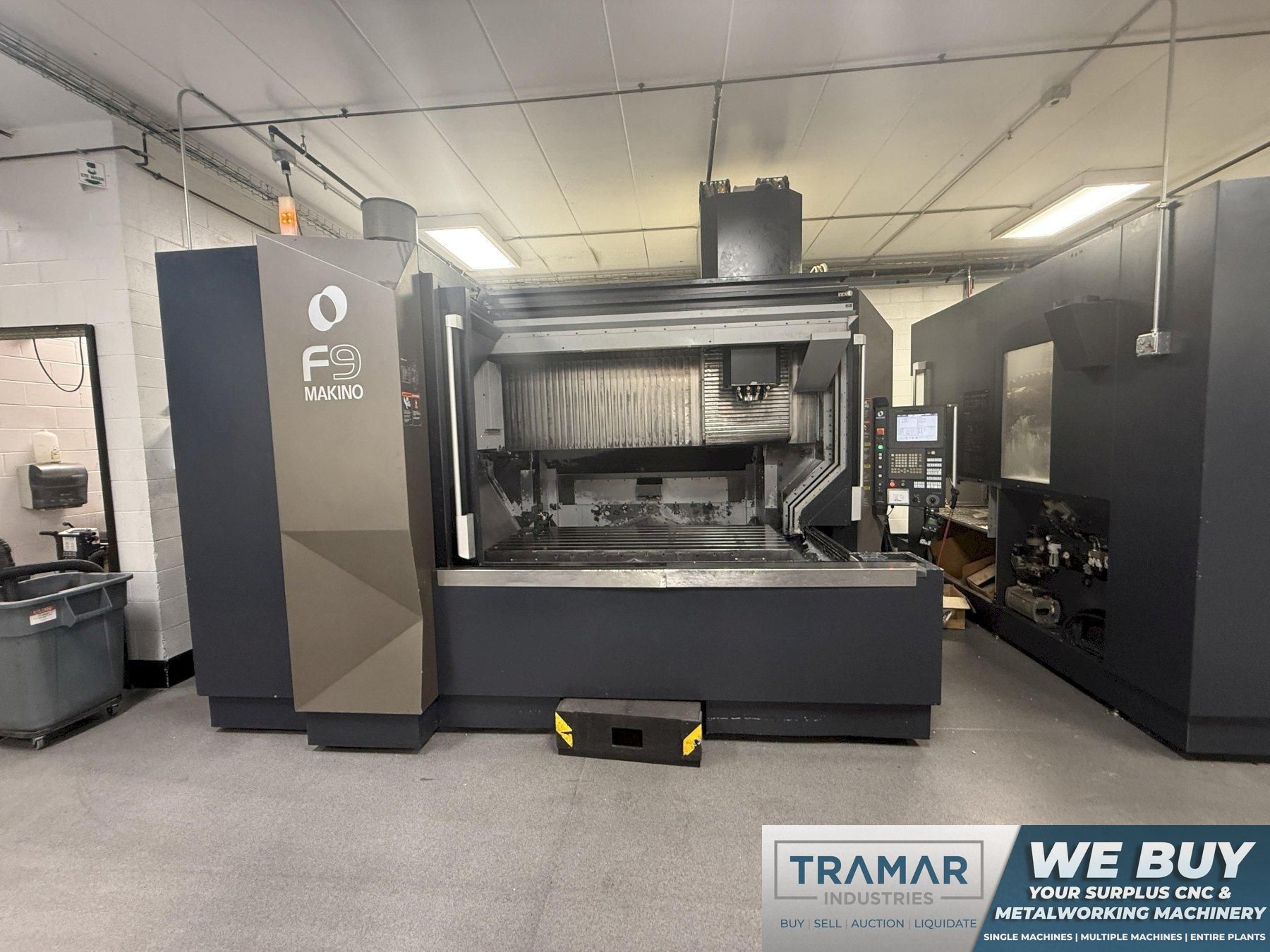

Makino F9 CNC Vertical Machining Center For Sale - 2015
Machine Specifications
CNC Control
yes
Control Type
Professional 5
# Axis
3

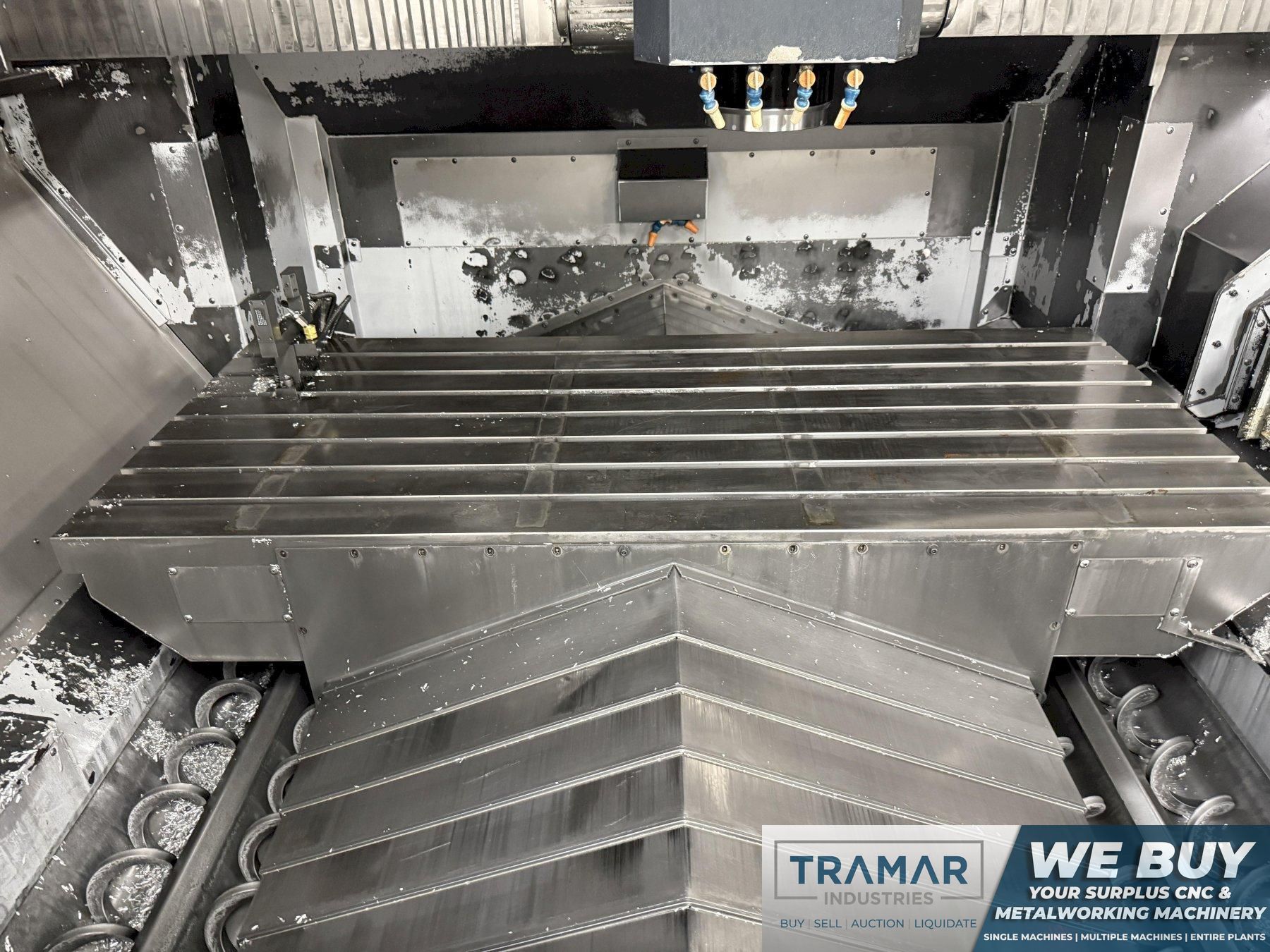

Table Size
72.8" x 31.5"
Table Capacity
5,510 pounds
X-Axis Travel
63"
Y-Axis Travel
31.5"
Z-Axis Travel
25.6"
Rapid Traverse Rate (X/Y/Z)
945 ipm
Spindle Taper
HSK-A63
Spindle Speed
20,000 rpm
Main Motor
40 hp
Tool Changer Capacity
48
Coolant Thru Spindle
no
Machine Dimensions
170" x 122" x 140"
Machine Weight
37,500 pounds

Equipped With:

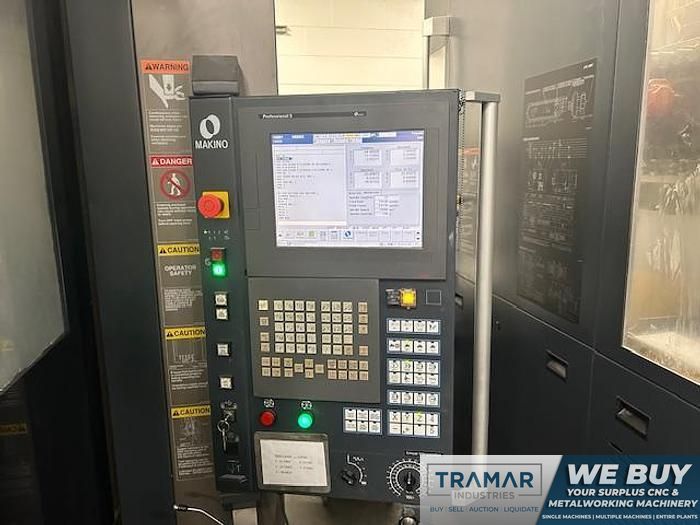

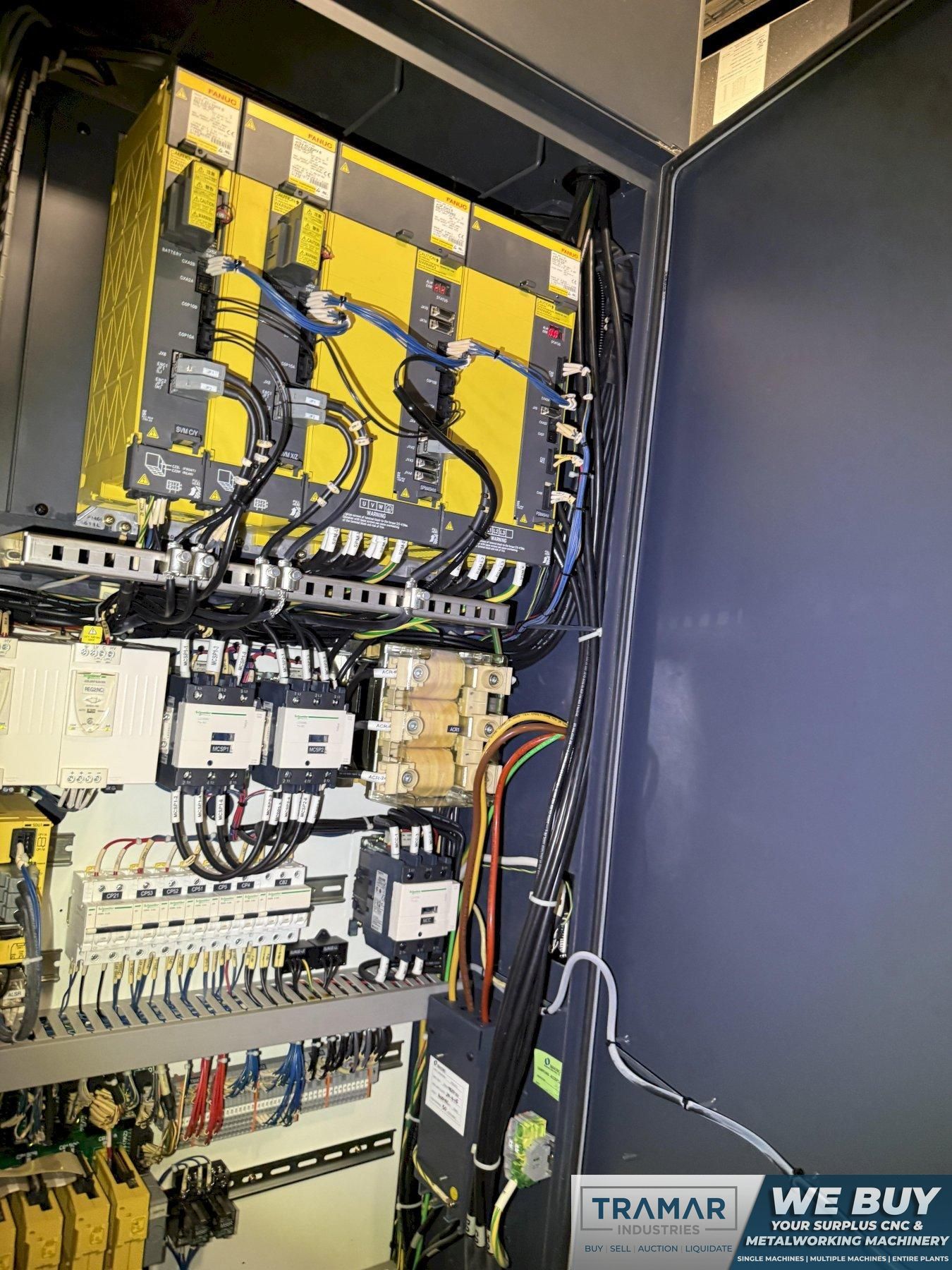

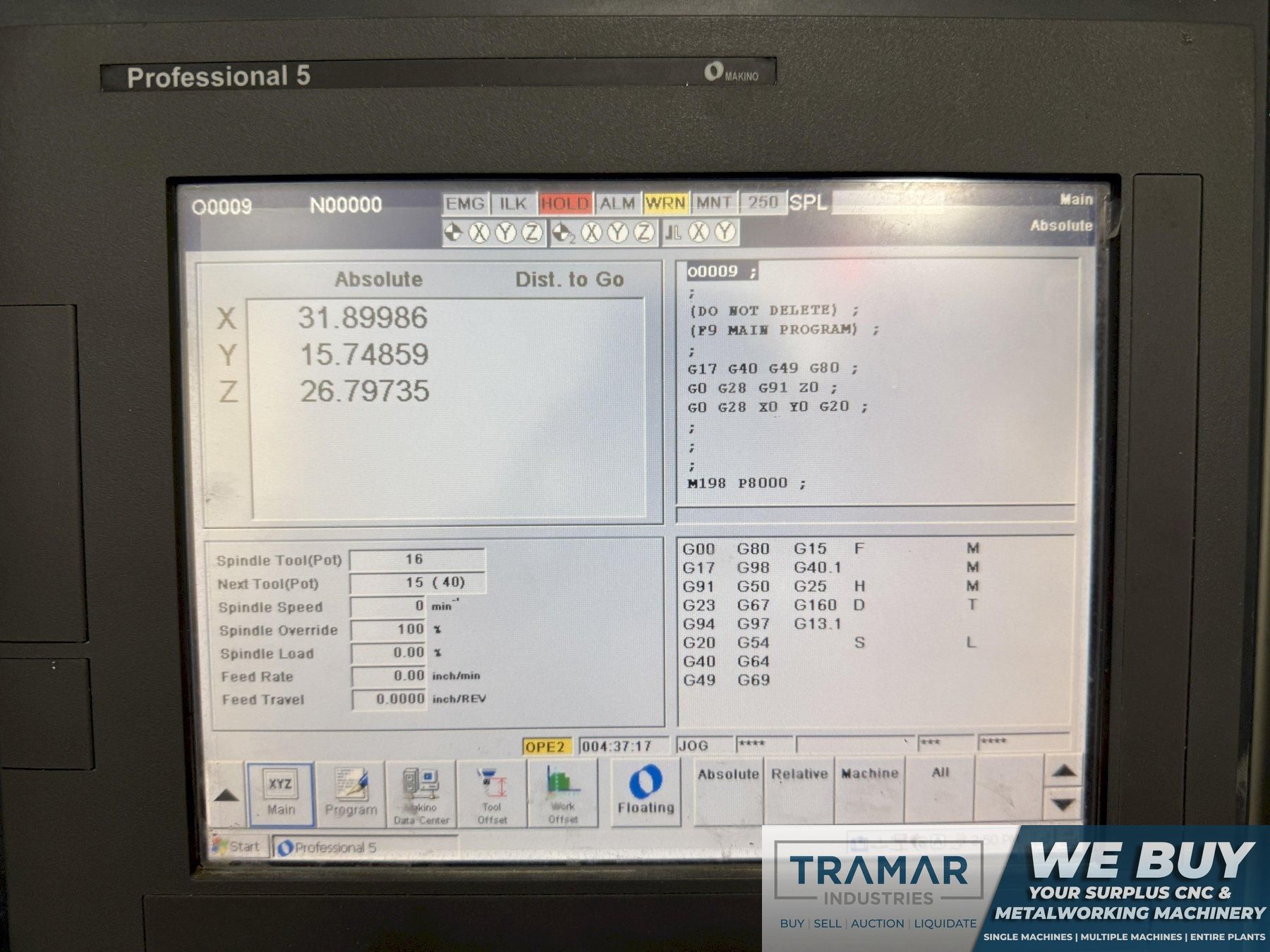

- Professional 5 CNC Control (Fanuc 31i)

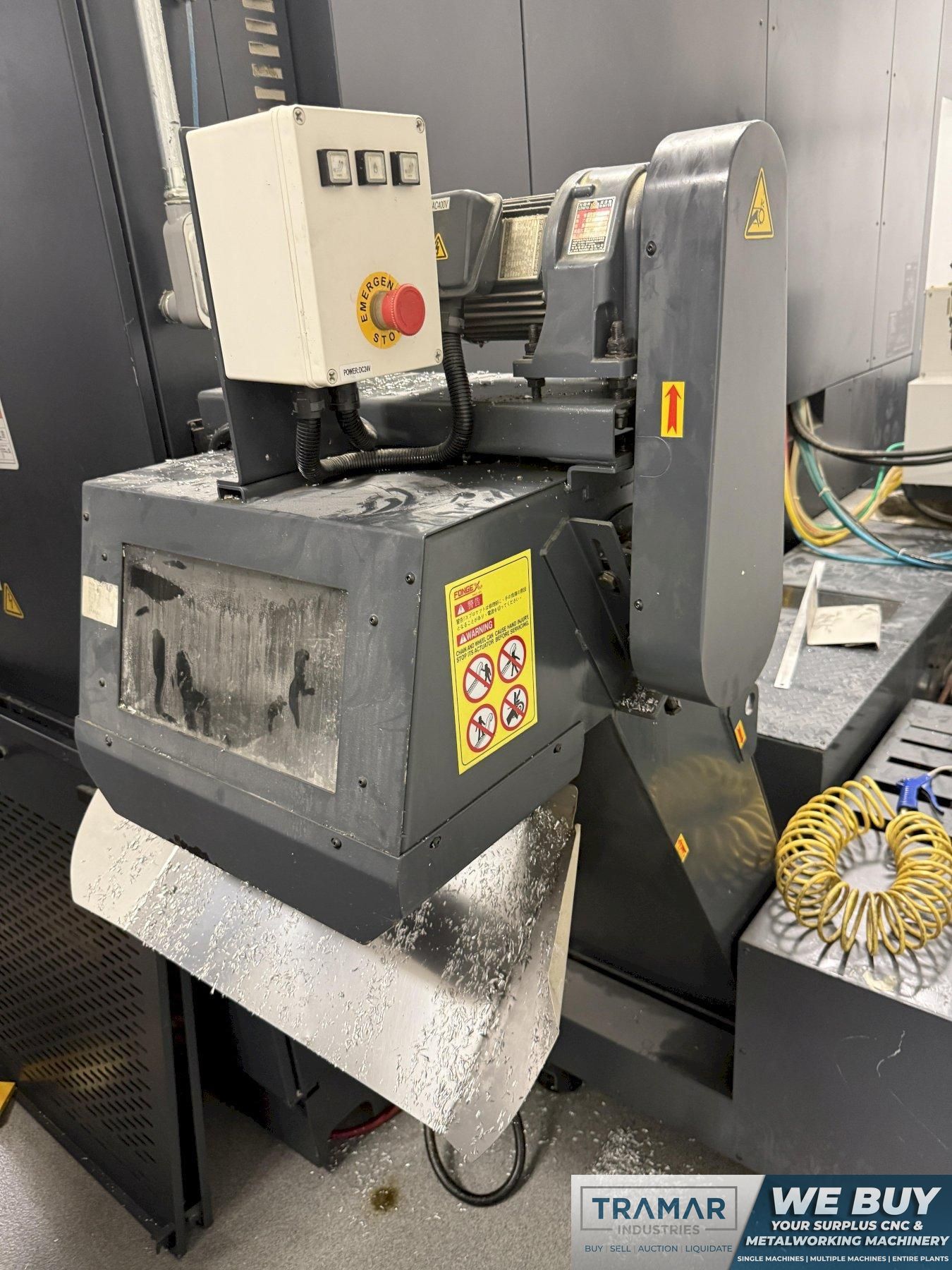

- Chip Conveyor
- Coolant Tank & Pump
- Blum ATLM Laser Type
- Super GI.4

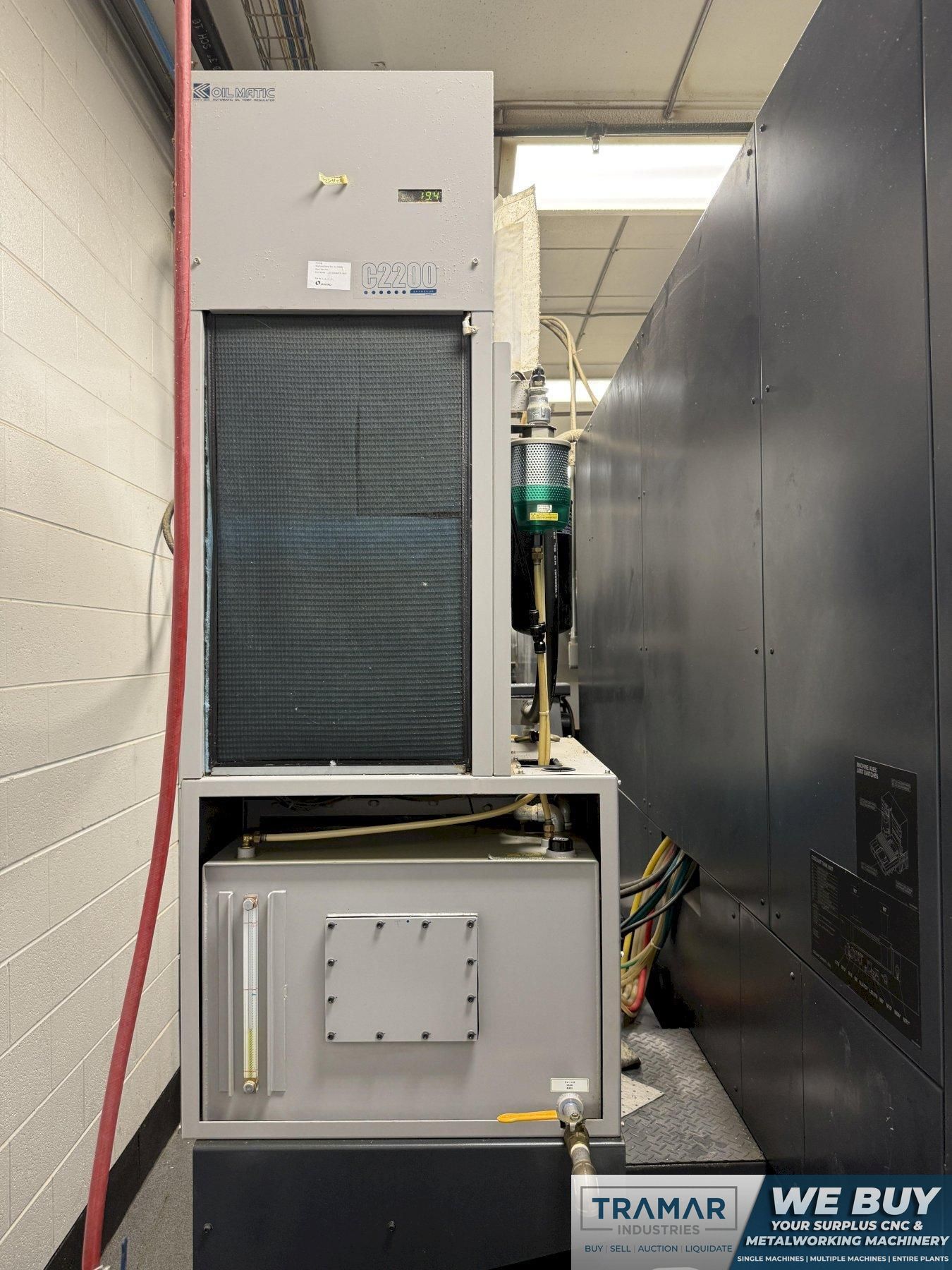

- Spindle Chiller

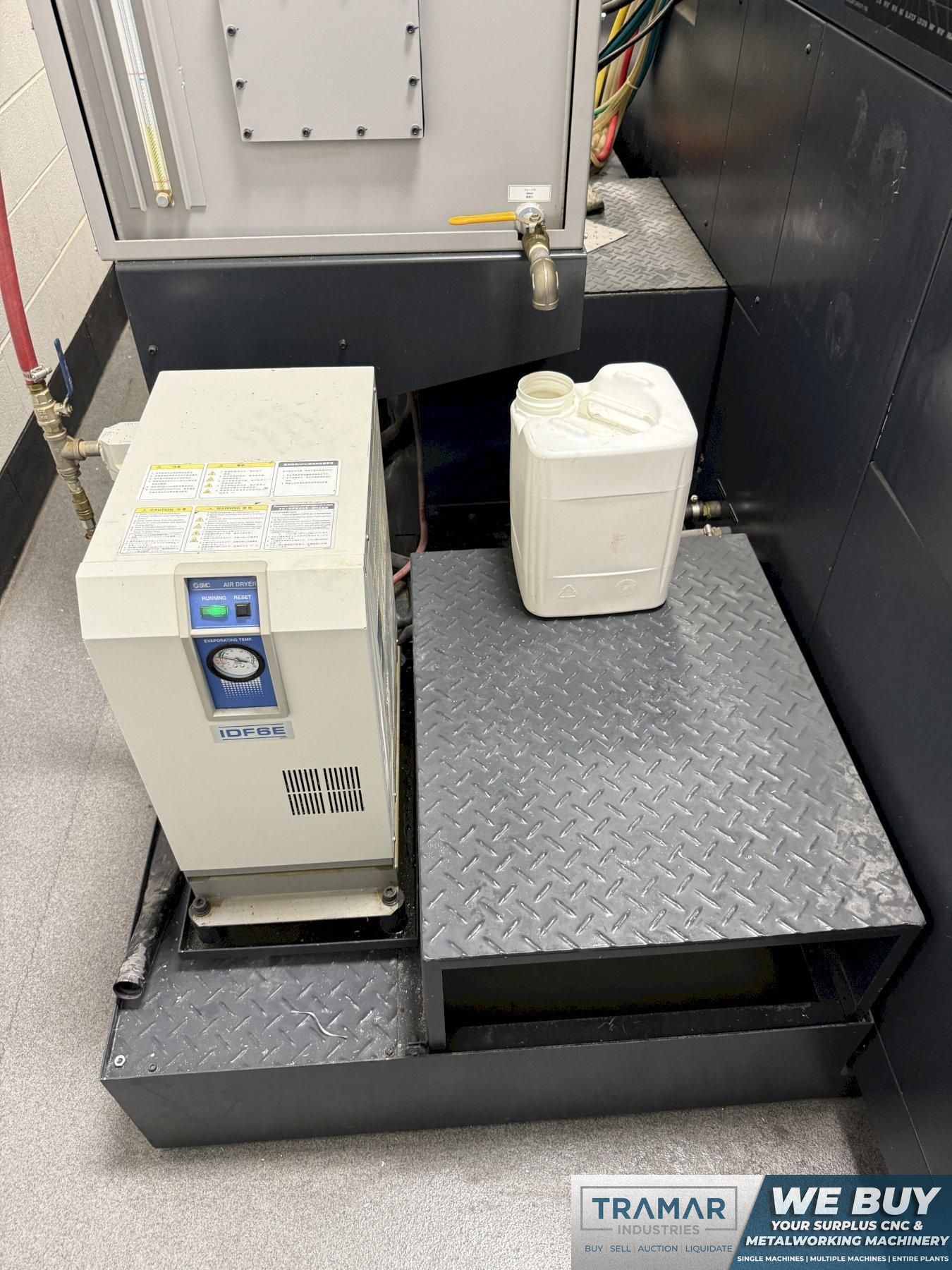

- Air Dryer
- High Speed Skip
- Mist Collector
- Data Center B 400MB
- Heidenhain Scales X/Y/Z Axes
- Thru Spindle Air
- Nozzle Coolant
- Flush Coolant
- Mist Collector
- Jerk Control
- AI Contour Control II
- High Speed Processing

The Makino F9 is an exclusive part of our Vertical Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
