Makino PS 95 - Vertical Machining Centers

Share Machine
Specifications Print Specs

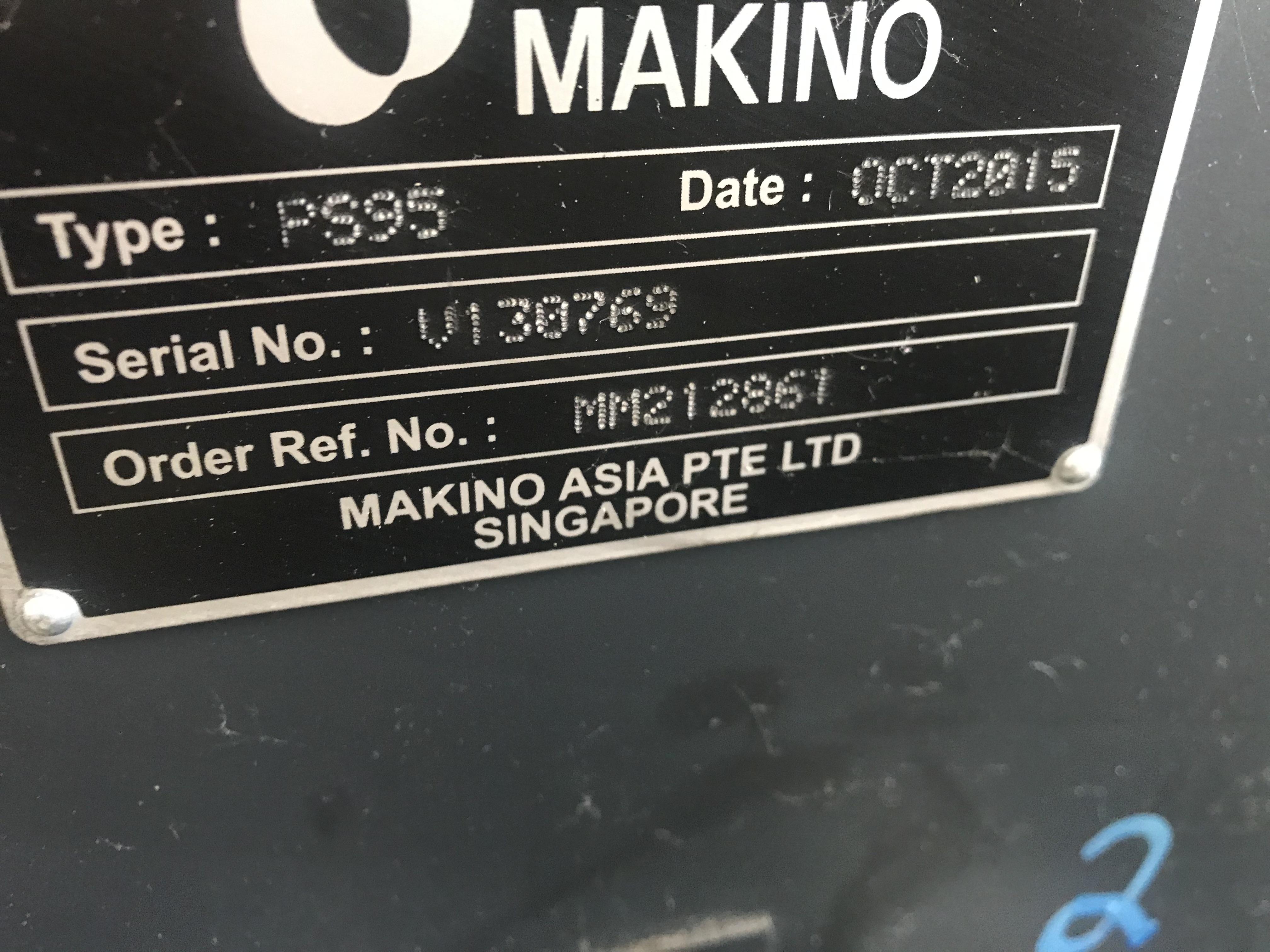

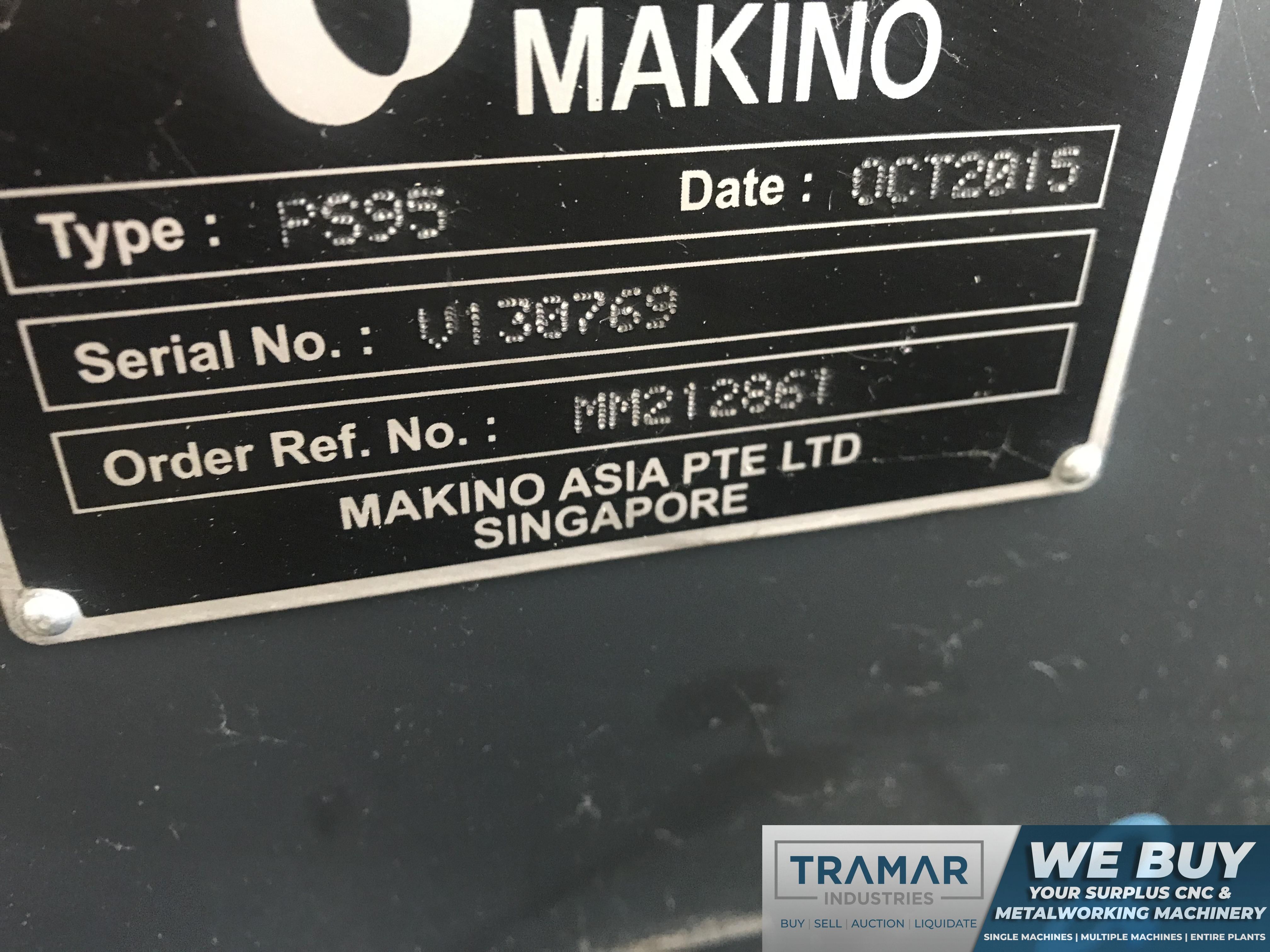

Model: PS 95
Year: 2015
Stock #: 3828 Sold
Highlights:

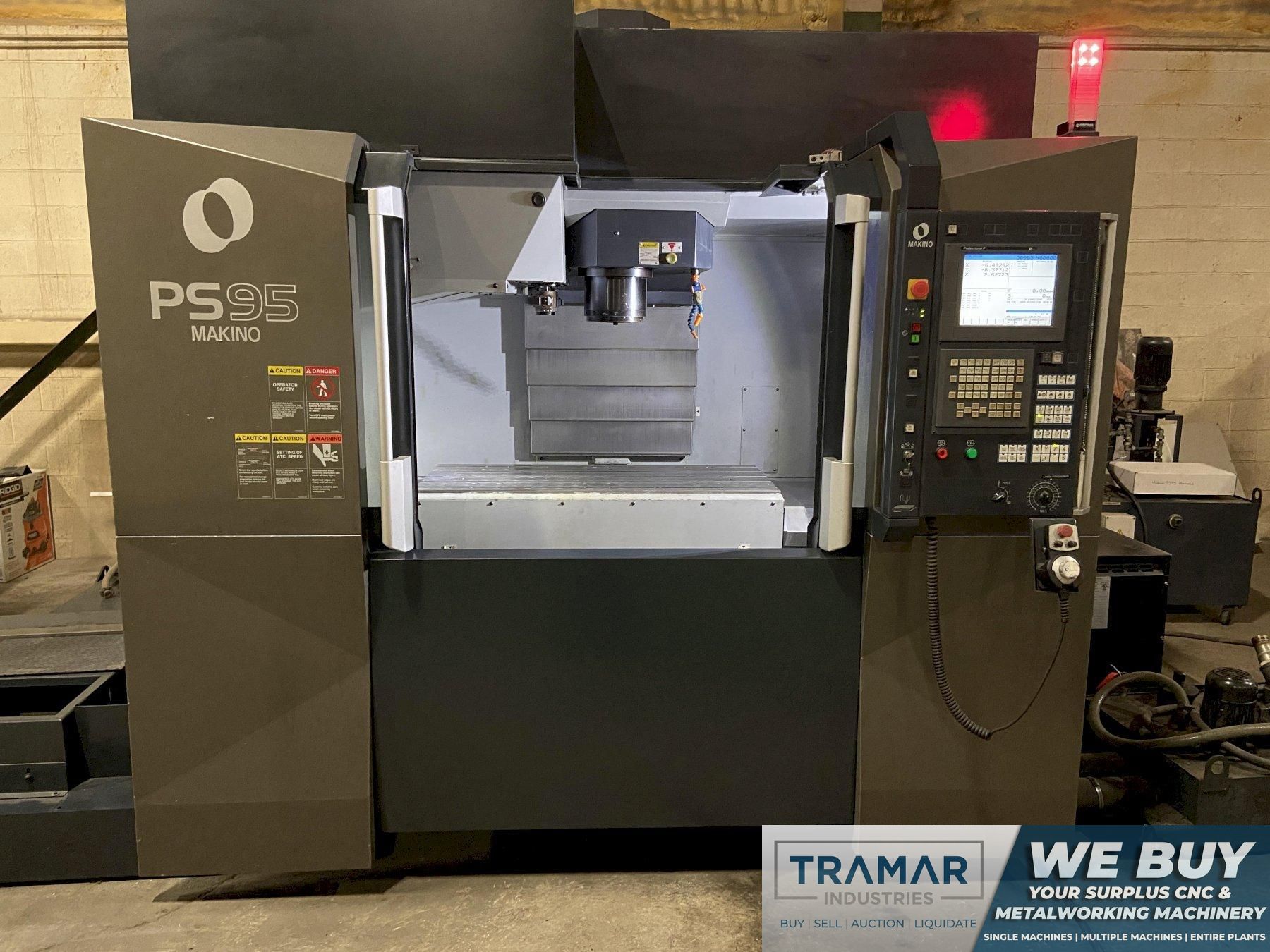

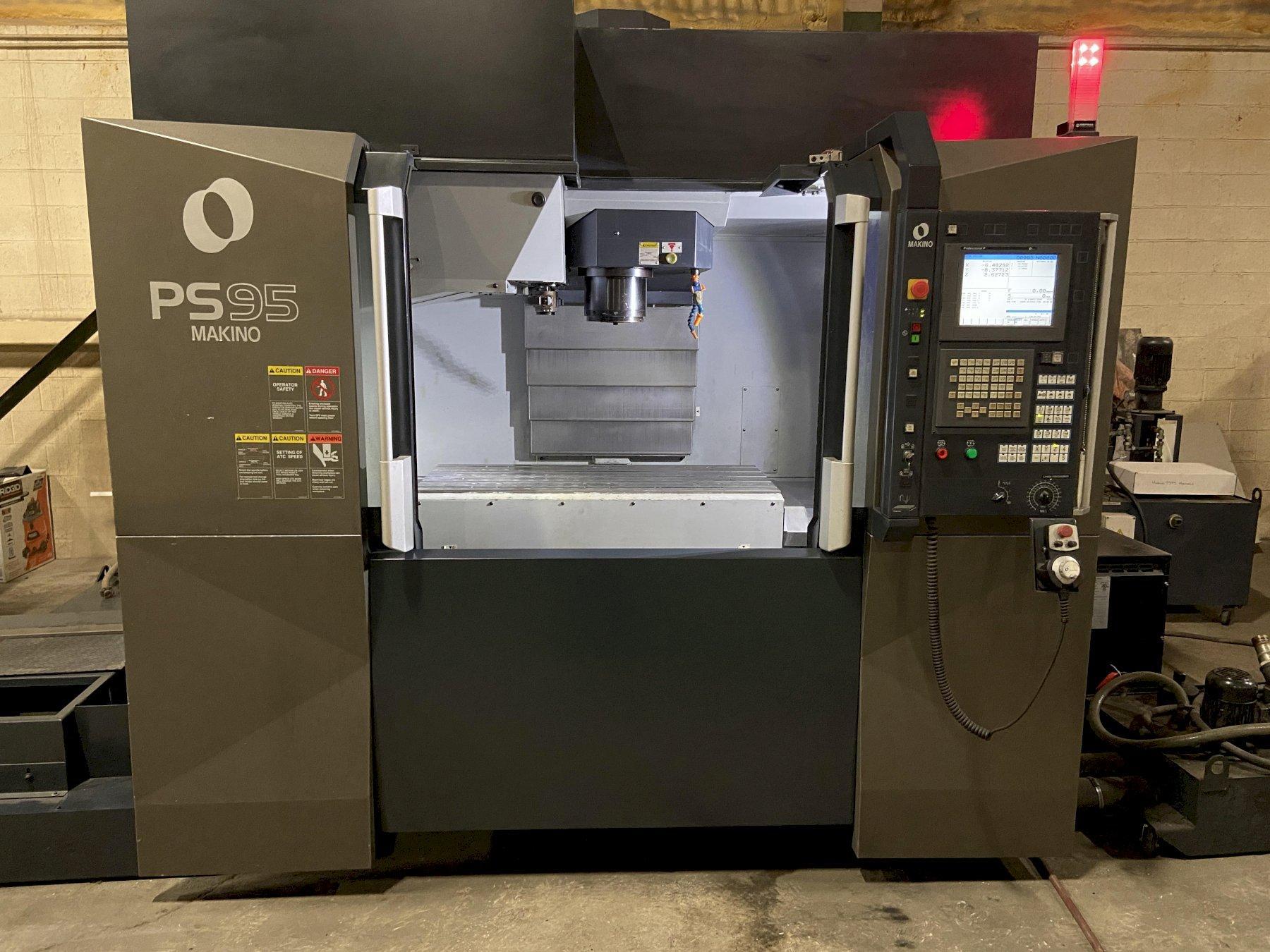

Makino PS95 CNC Vertical Machining Center, Fanuc Pro P Control, 36
Machine Specifications
CNC Control
yes
# Axis
3

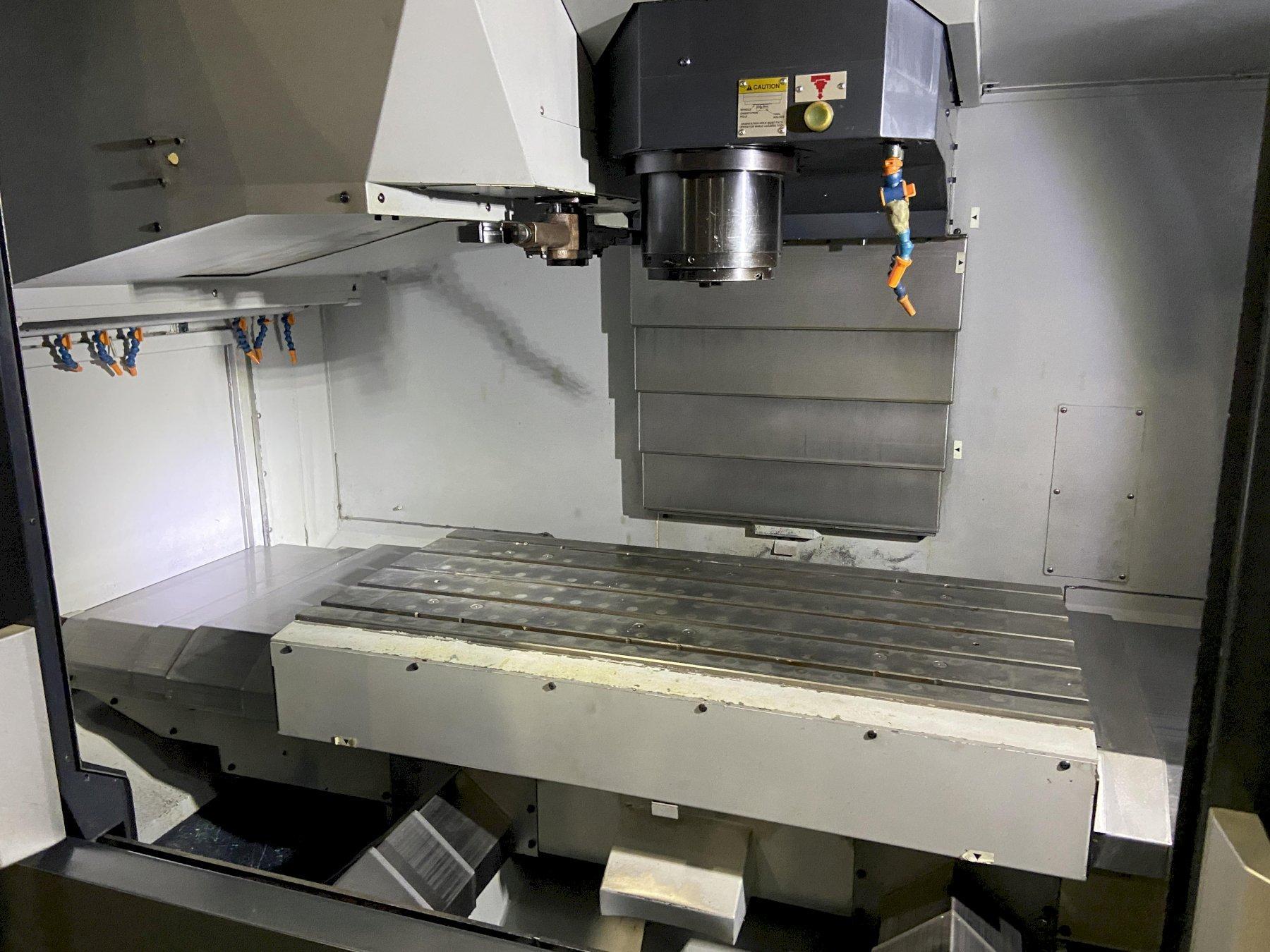

Table Size
46" x 20"
Table Capacity
1,763 pounds
X-Axis Travel
36.2"
Y-Axis Travel
20"
Z-Axis Travel
18.1"
Spindle Speed
14,000
Spindle Taper
Cat 40
Main Motor
33 Horsepower

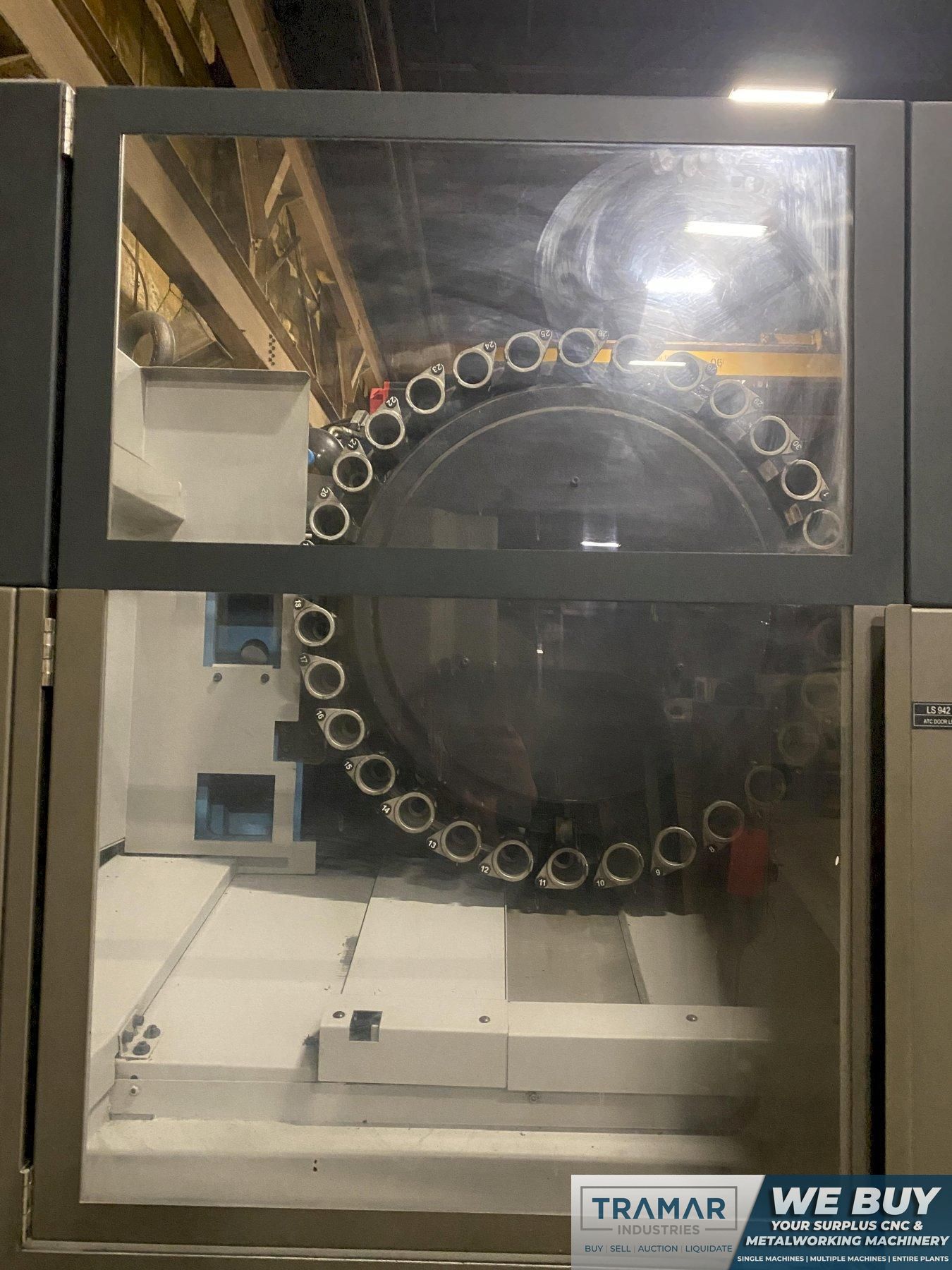

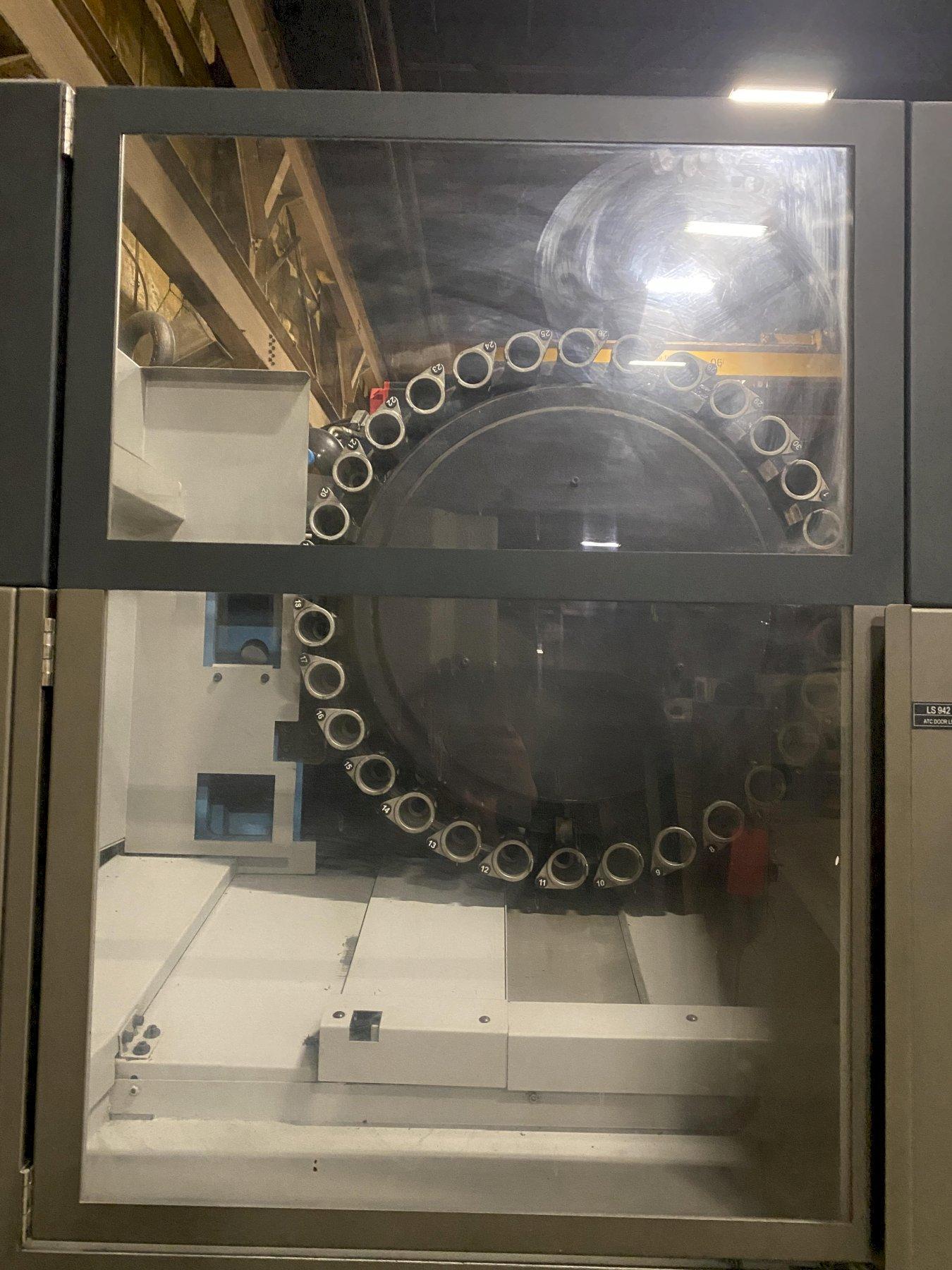

Tool Changer Capacity
30
X-Axis Rapid Traverse Rate
1,147
Y-Axis Rapid Traverse Rate
1,147
Z-Axis Rapid Traverse Rate
1,181
Coolant Thru Spindle
yes
Machine Hours
1,483
Weight
19,000 pounds

Equipped With:

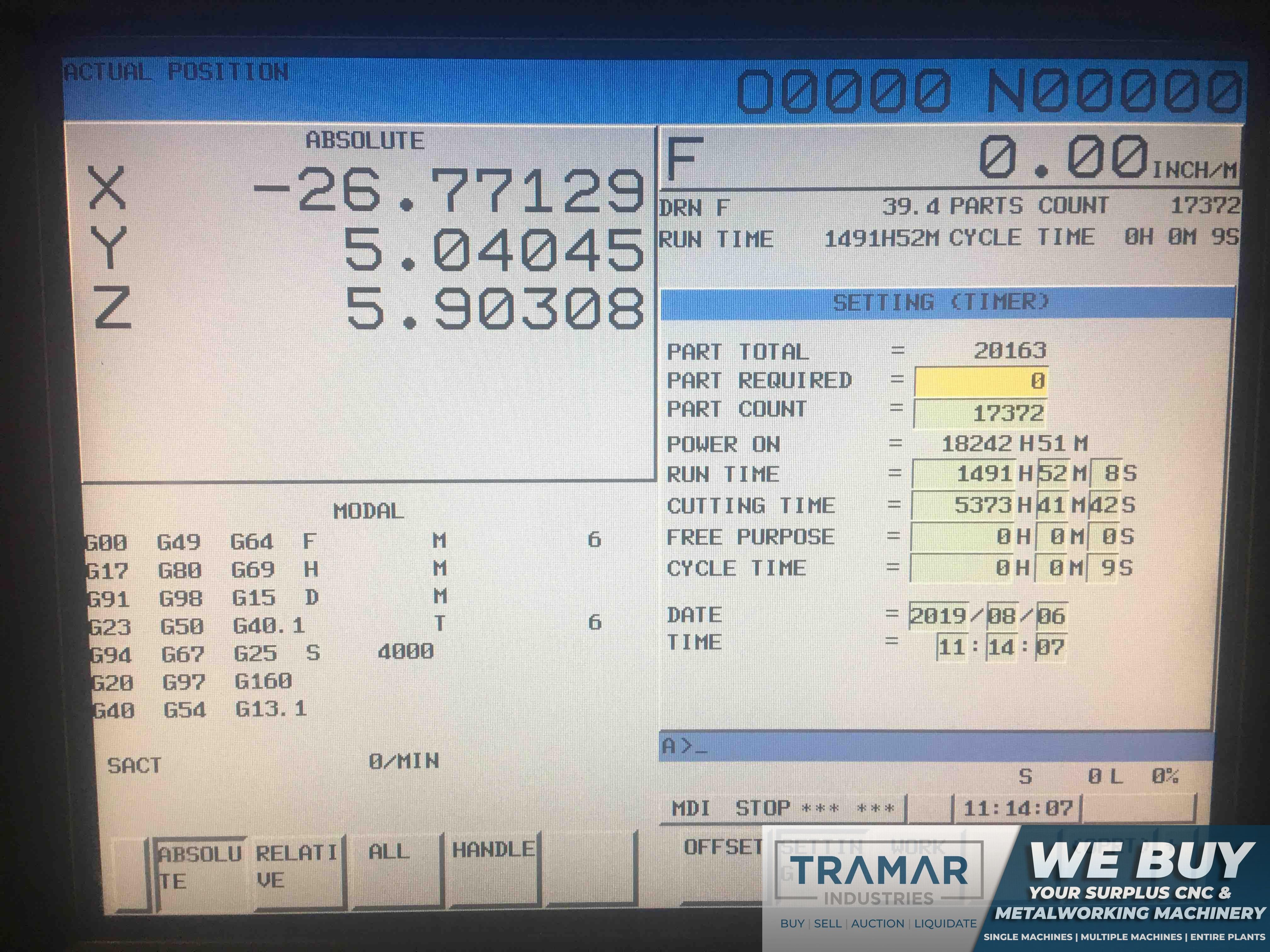

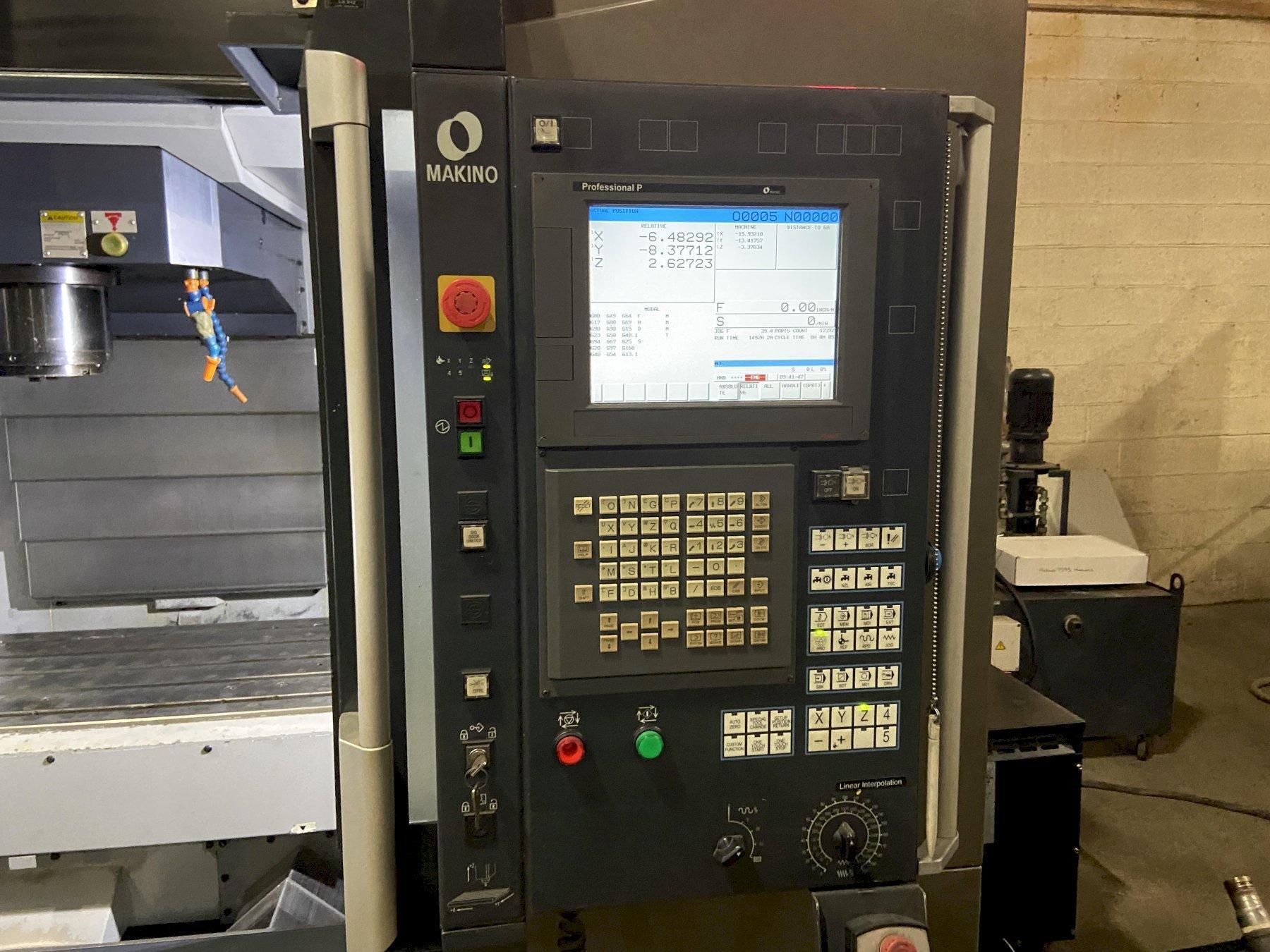

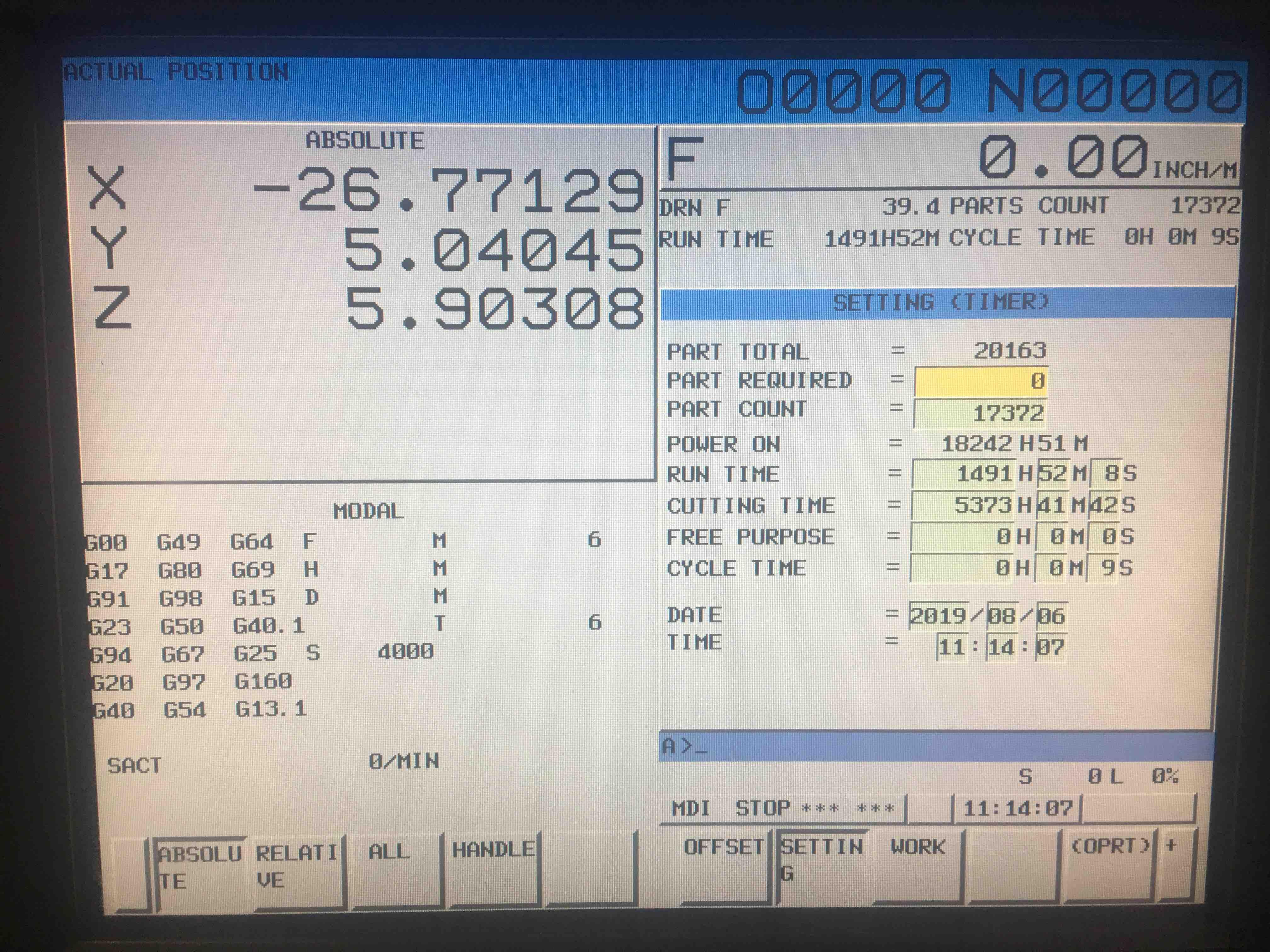

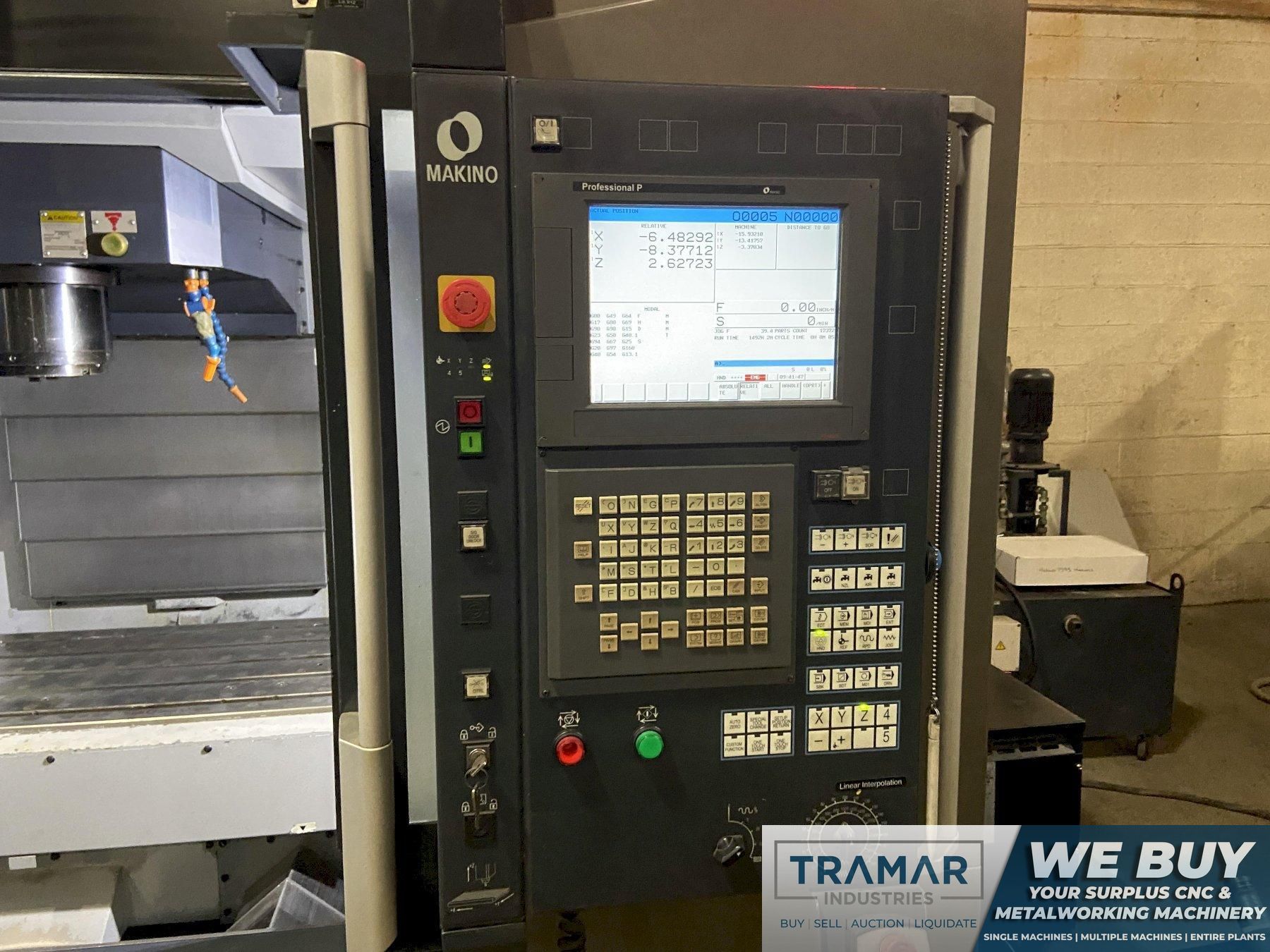

Makino Pro P CNC Control (Fanuc)
Data Server (1GB)  $4,500 option
Helical Interpolation
Portable MPG

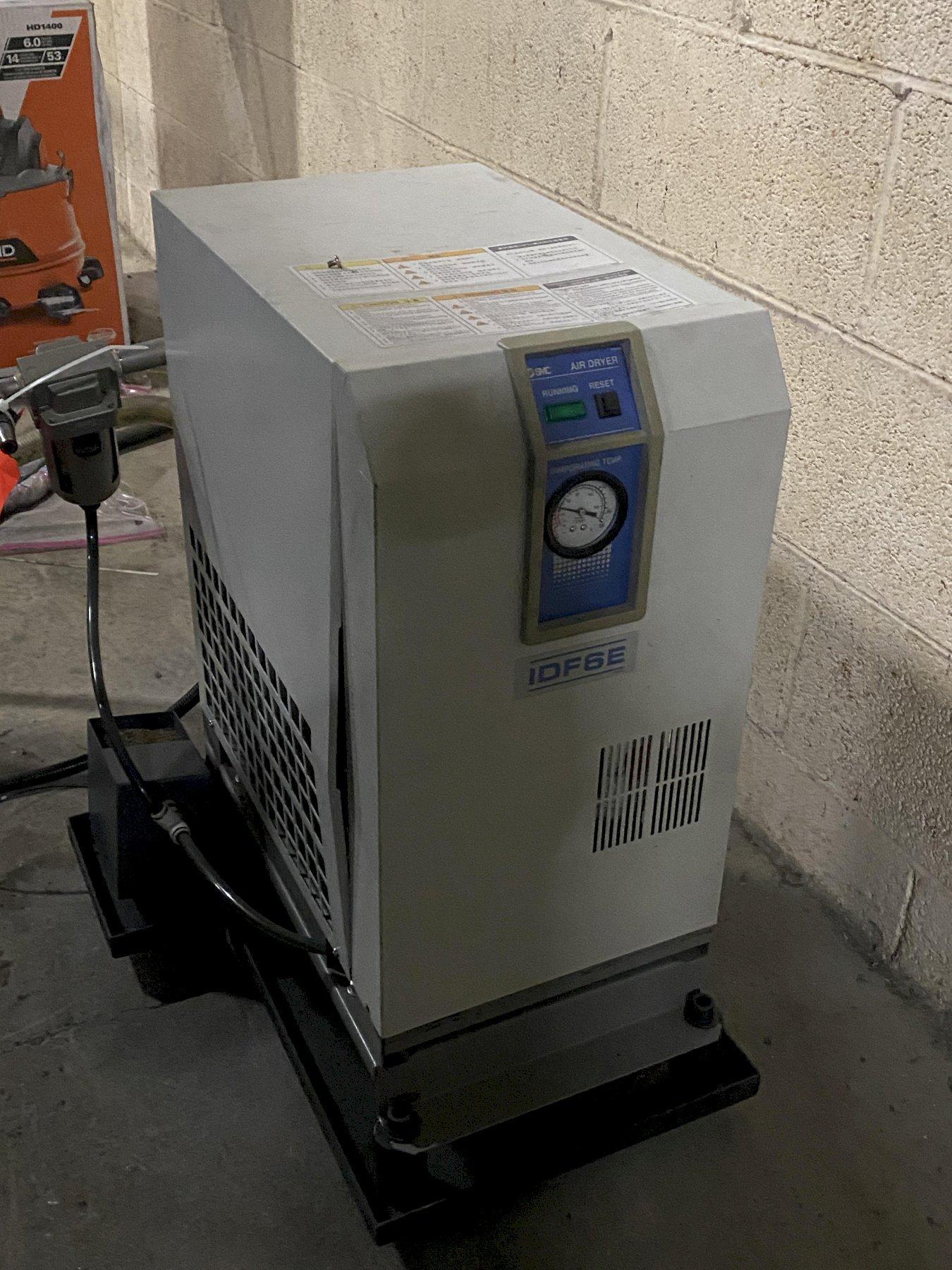

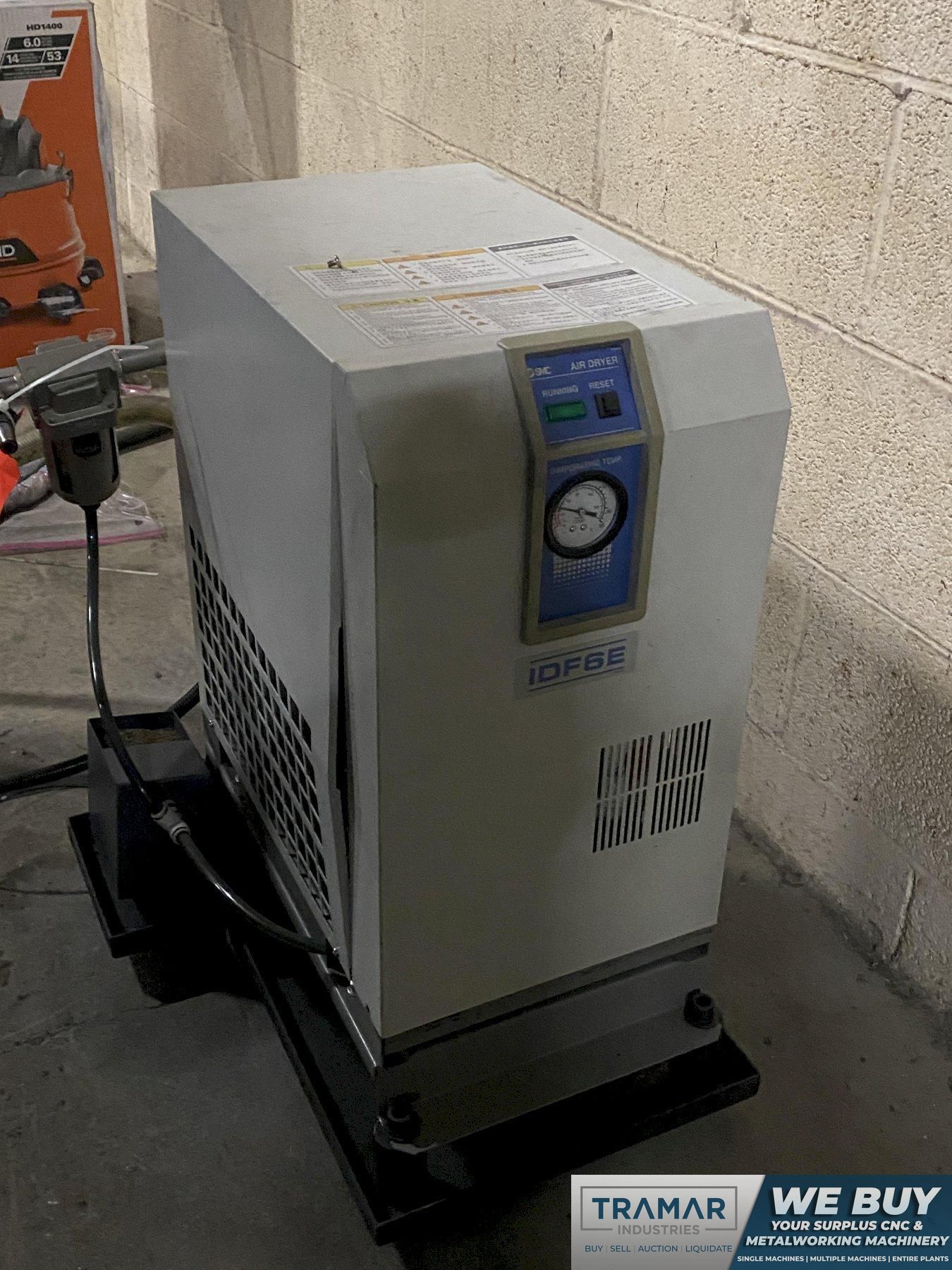

Air Dryer
AICC II (High Speed/High Accuracy Machining) $3,500 option
Custom Macro B
Rigid Tapping
Ethernet

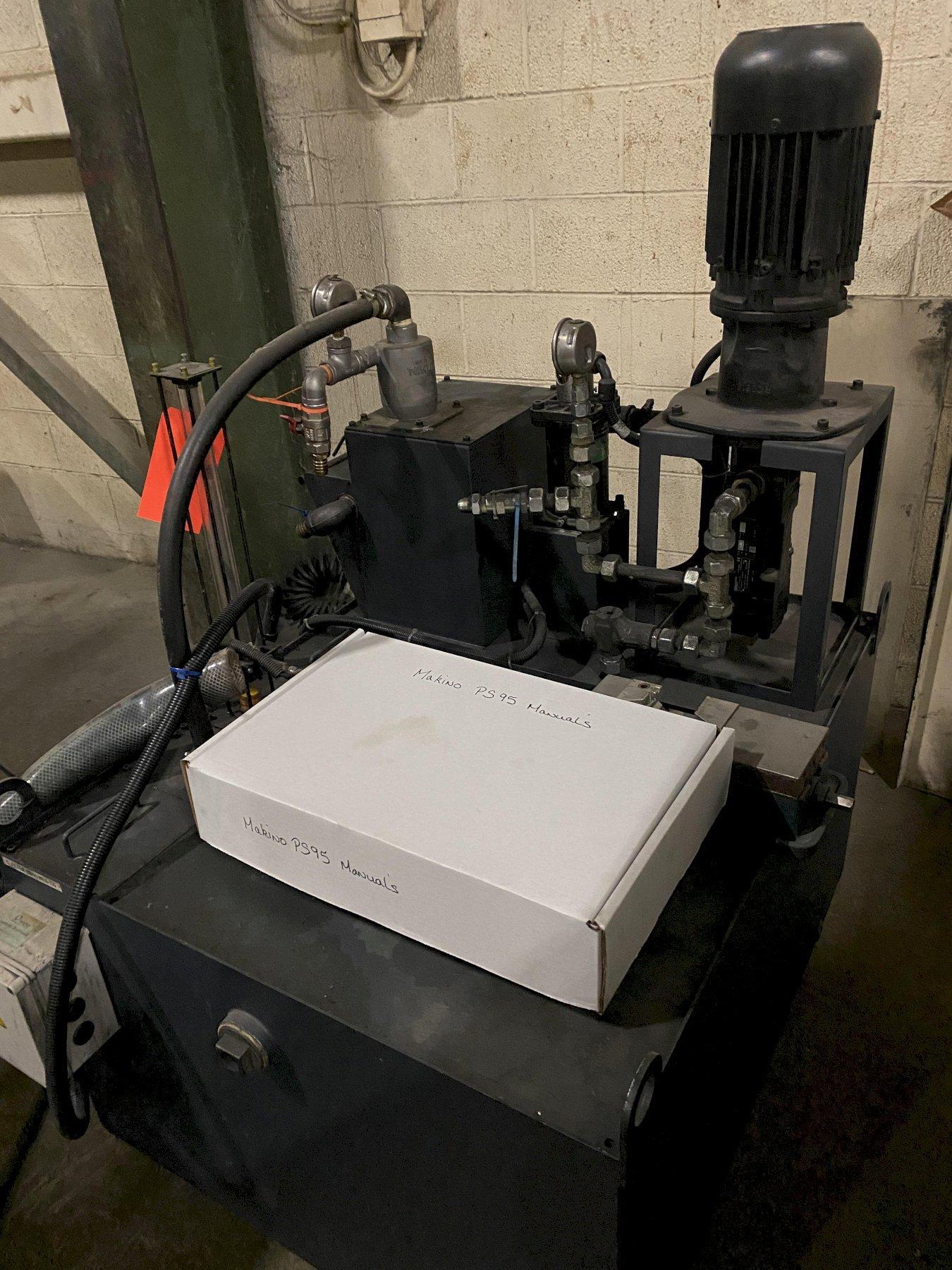

High-Pressure Coolant Thru Spindle Wih Filtration (435 PSI)
Flush and Shower Coolant

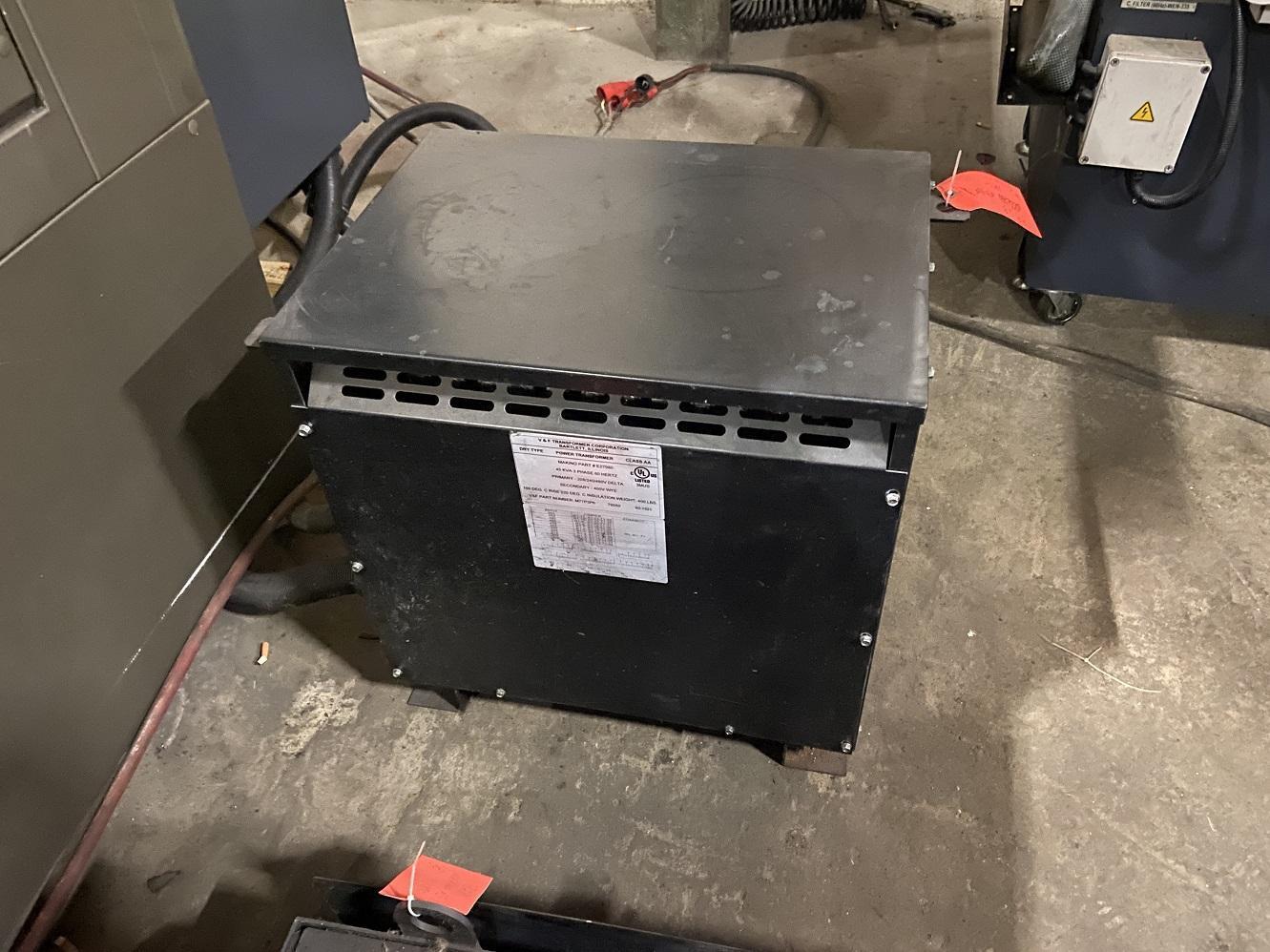

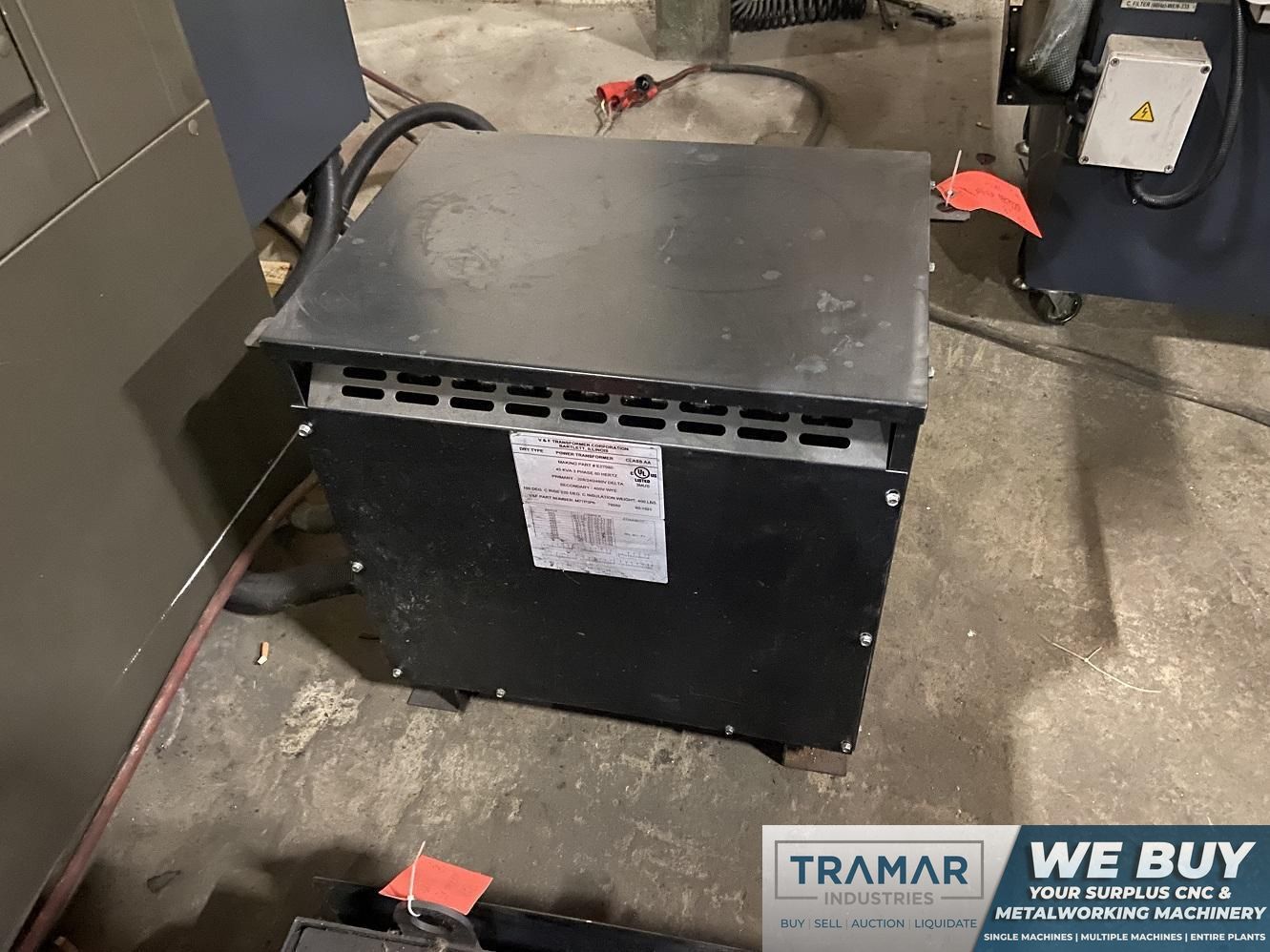

Transformer

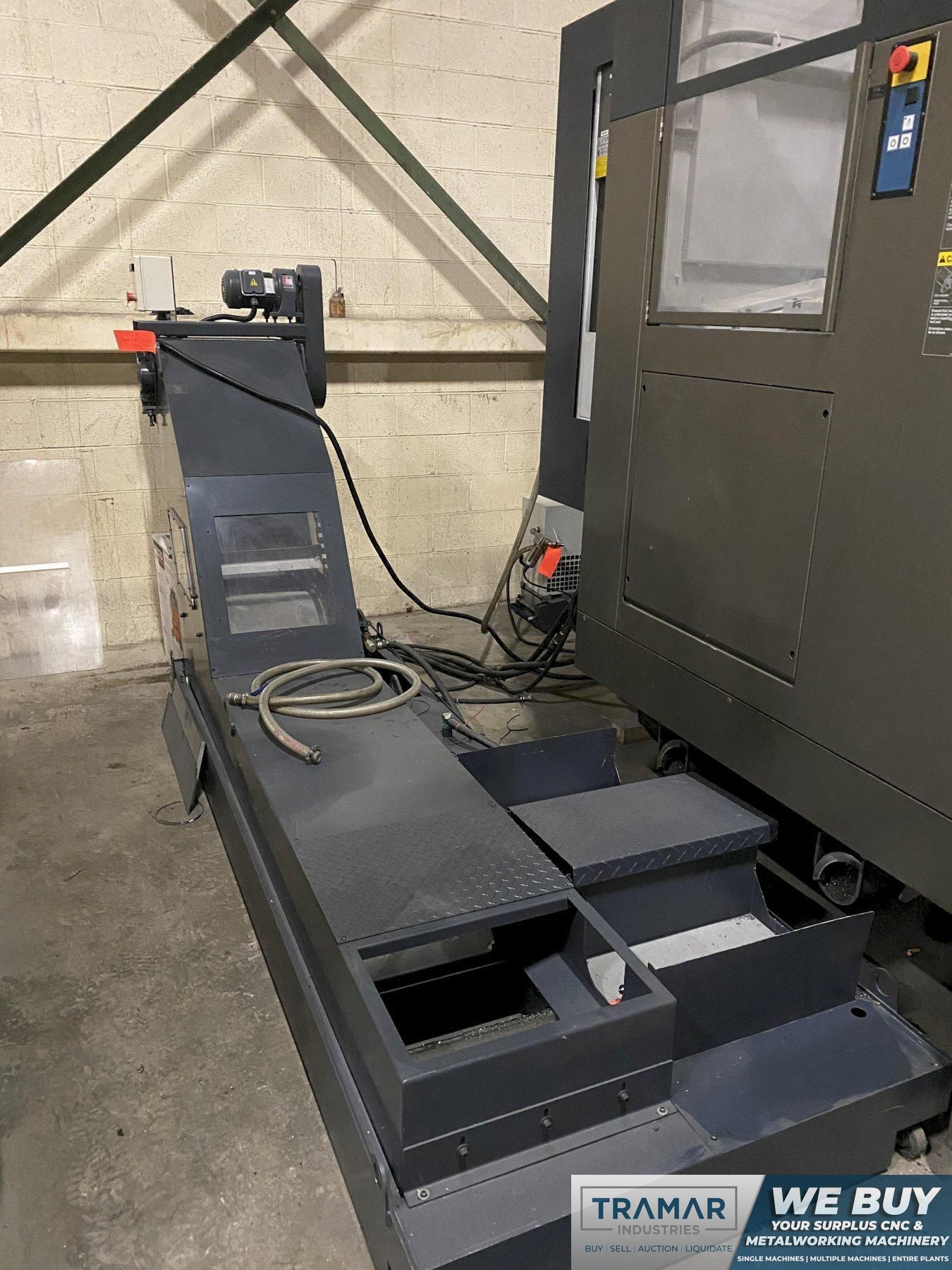

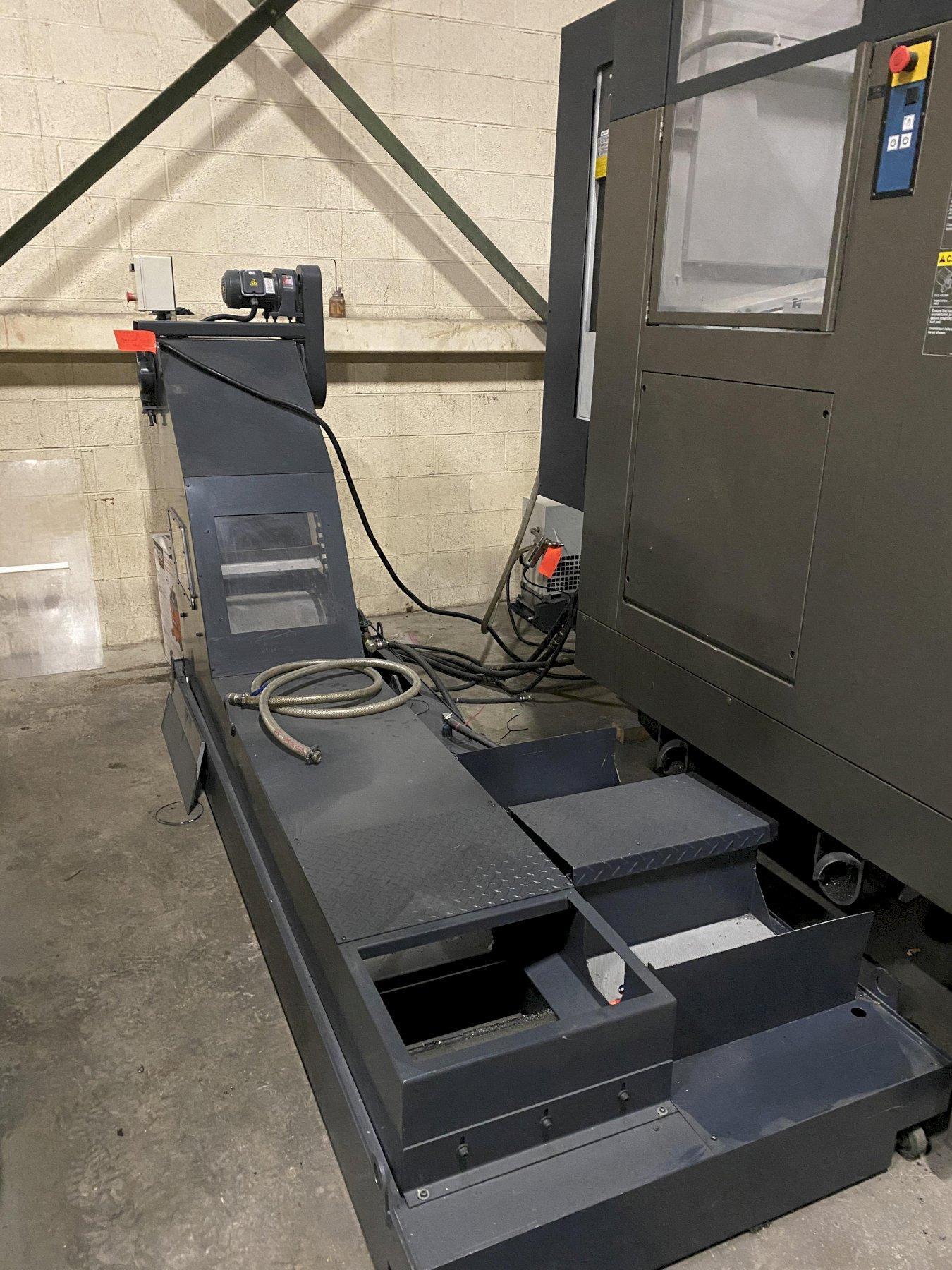

Chip Conveyor

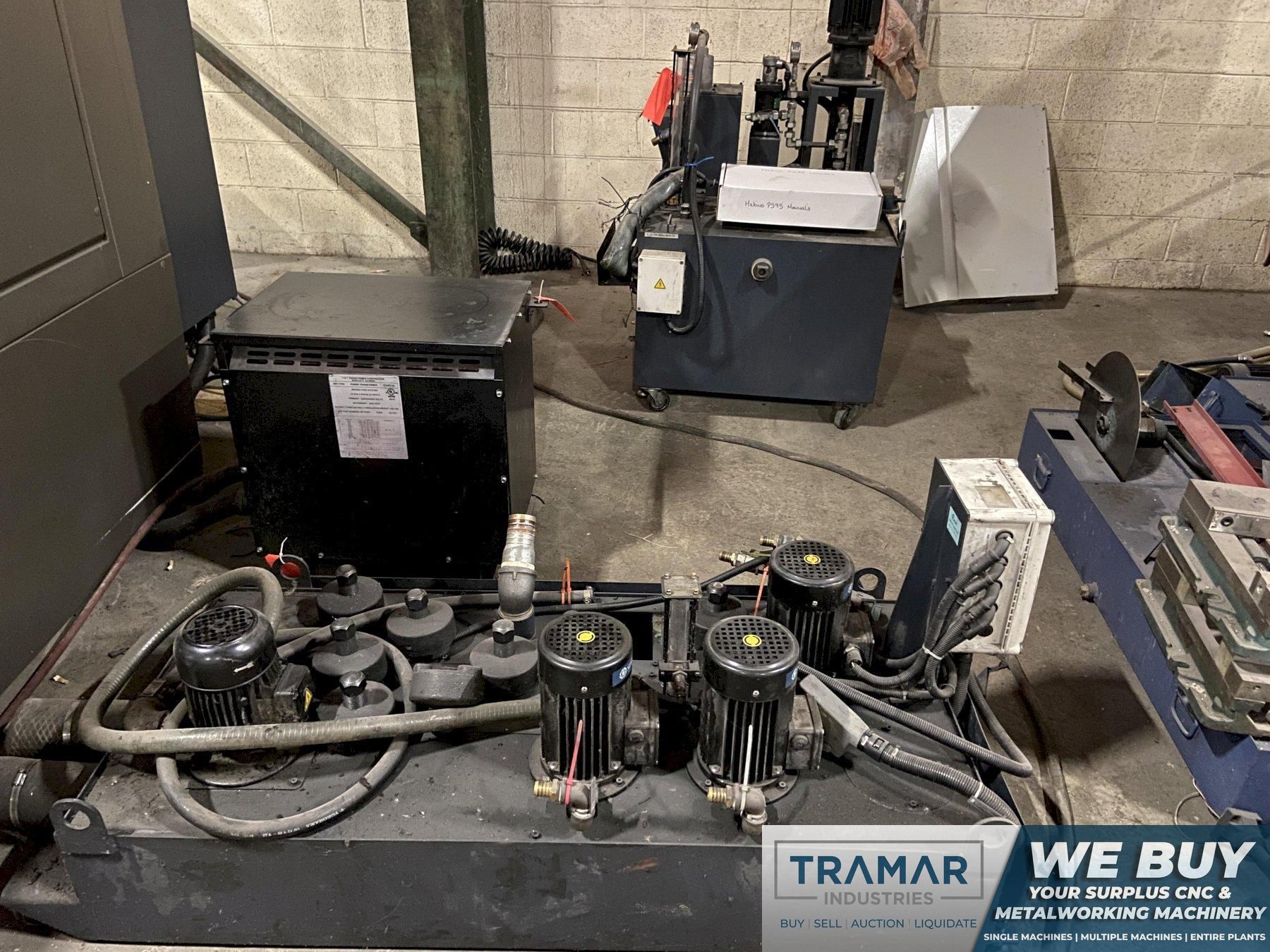

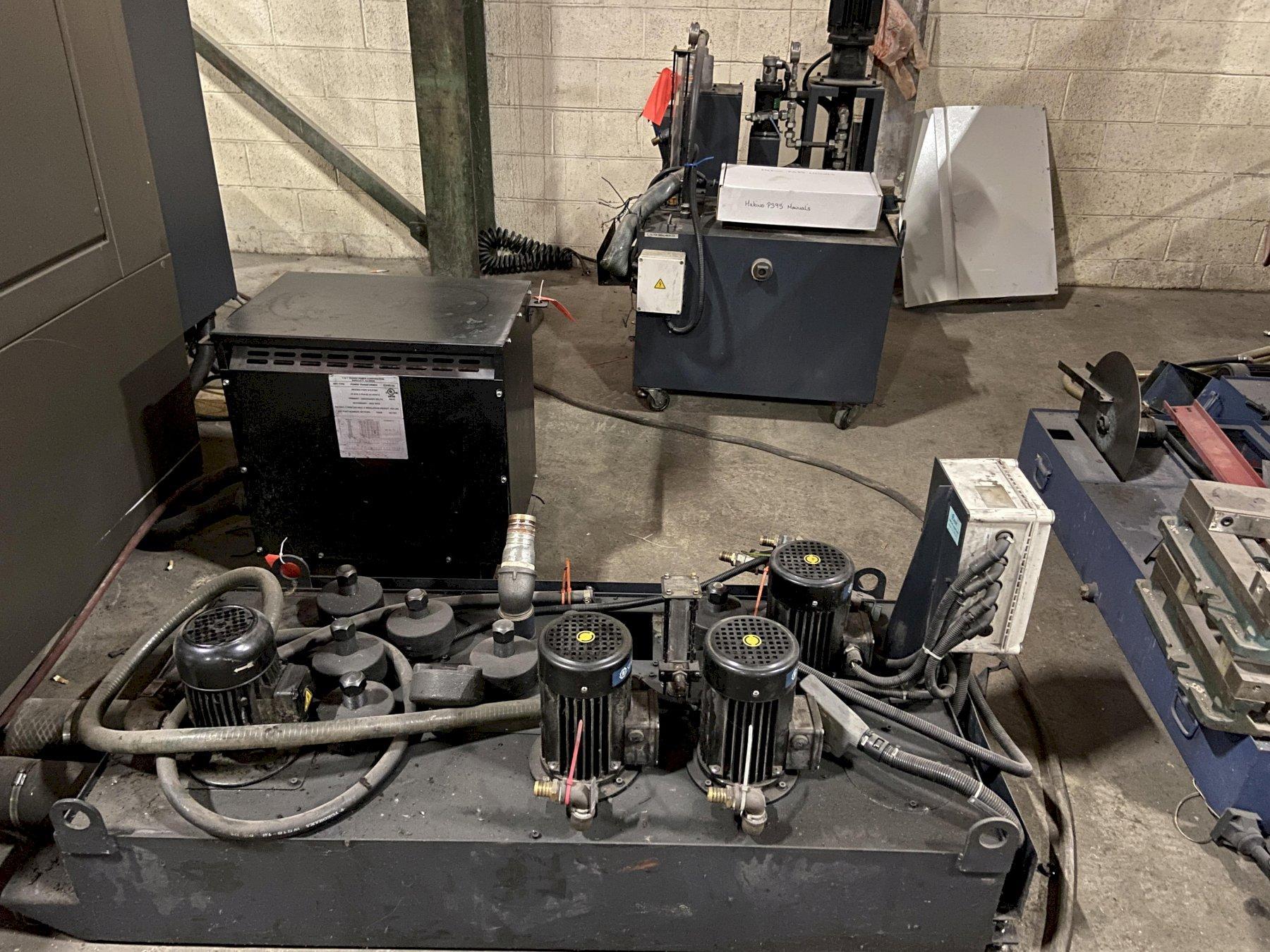

Coolant Tank & Pumps

The Makino PS 95 is an exclusive part of our Vertical Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
