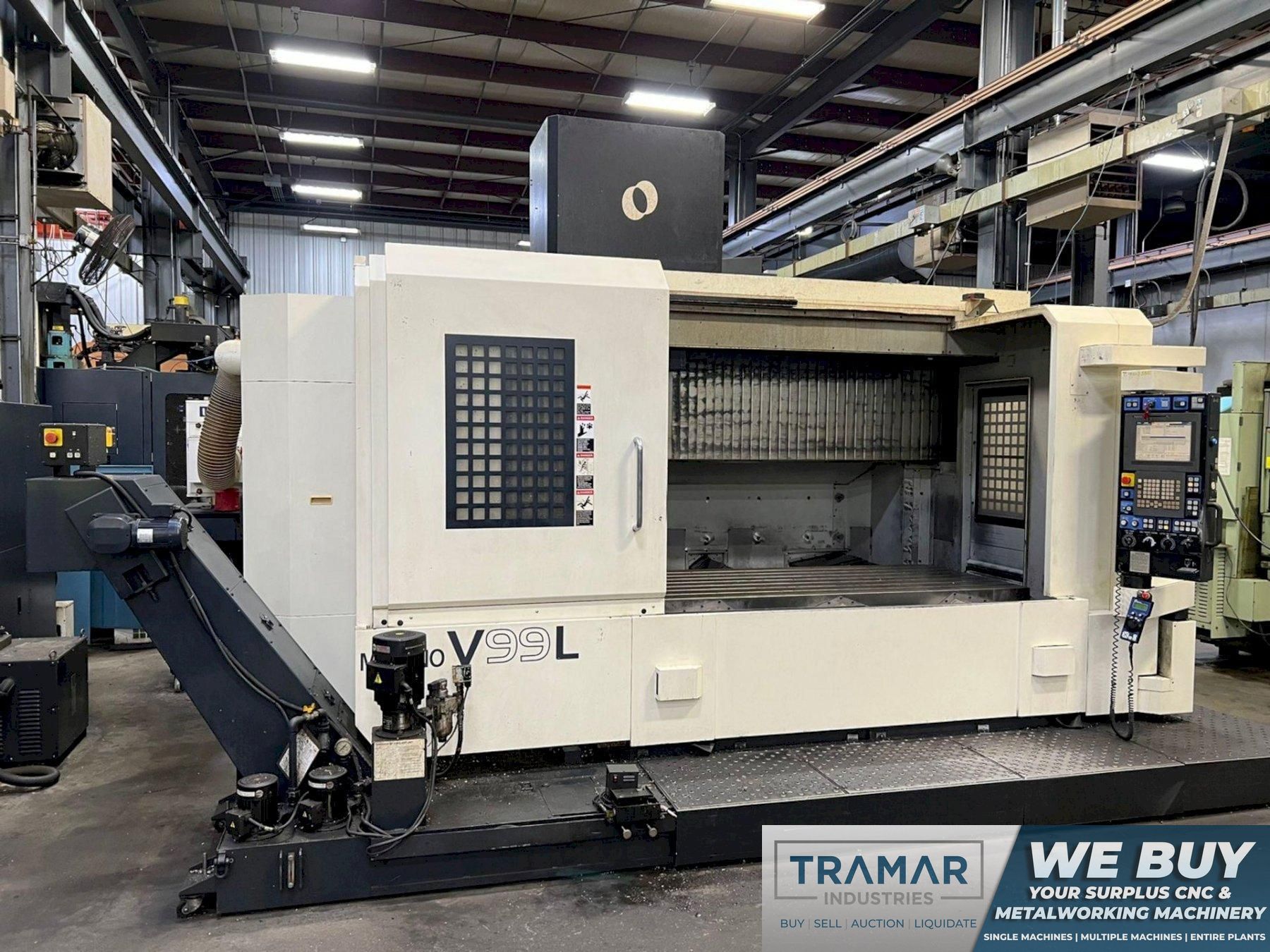

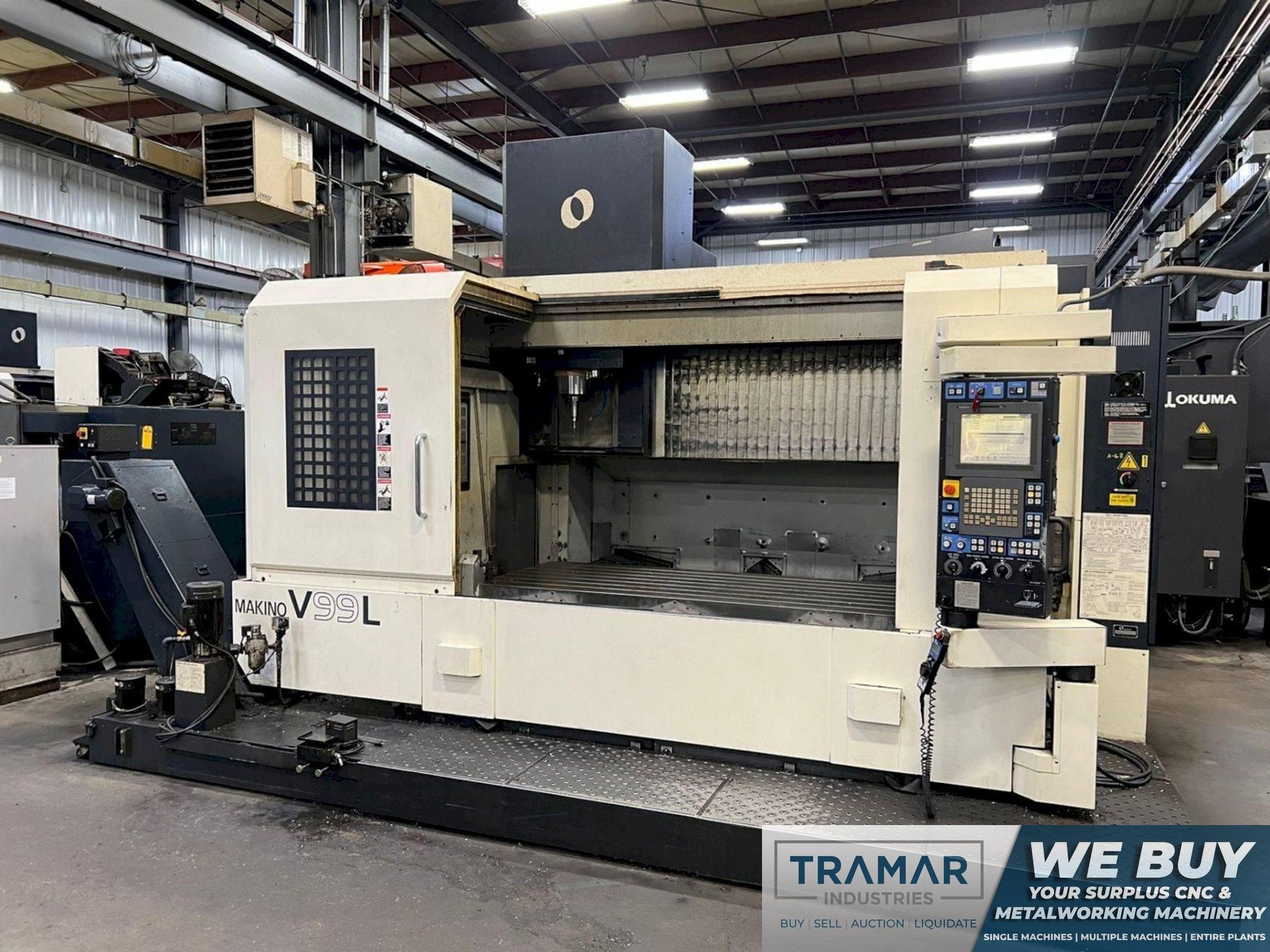

Makino V99L - Vertical Machining Centers

Share Machine

Specifications Print Specs

Model: V99L

Year: 2008

Stock #: 13994 Sold

Type: Vertical Machining Centers

Manufacturer: Used Makino Machines

Highlights:
Professional 5 CNC Control
Table Size: 90.6" x 39.4" | 8,000lbs Max Load
Travels (X/Y/Z): 78" x 34" x 31"
HSK-A100 | 18,000 rpm | 30 Station ATC

Makino V99L Used CNC Vertical Machining Center For Sale - 2008

Equipped With:

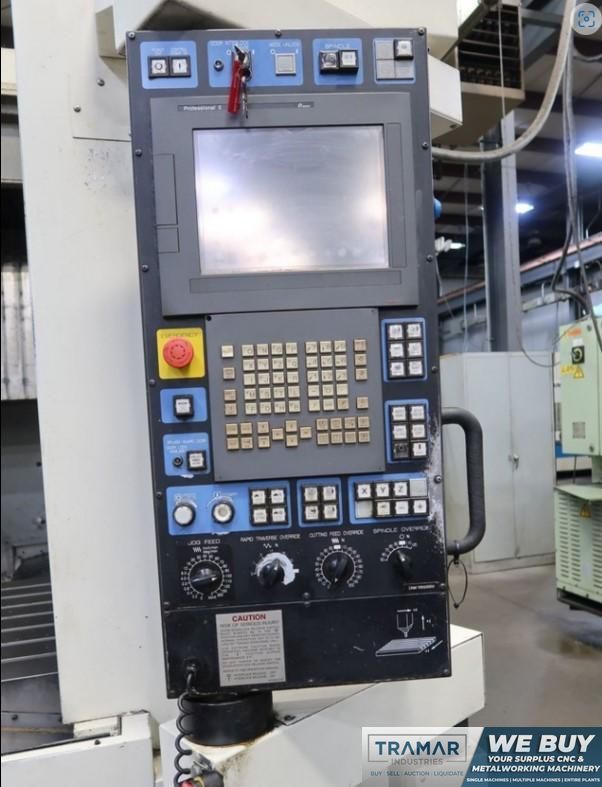

- Makino Professional 5 CNC Control
- Coolant Thru Spindle

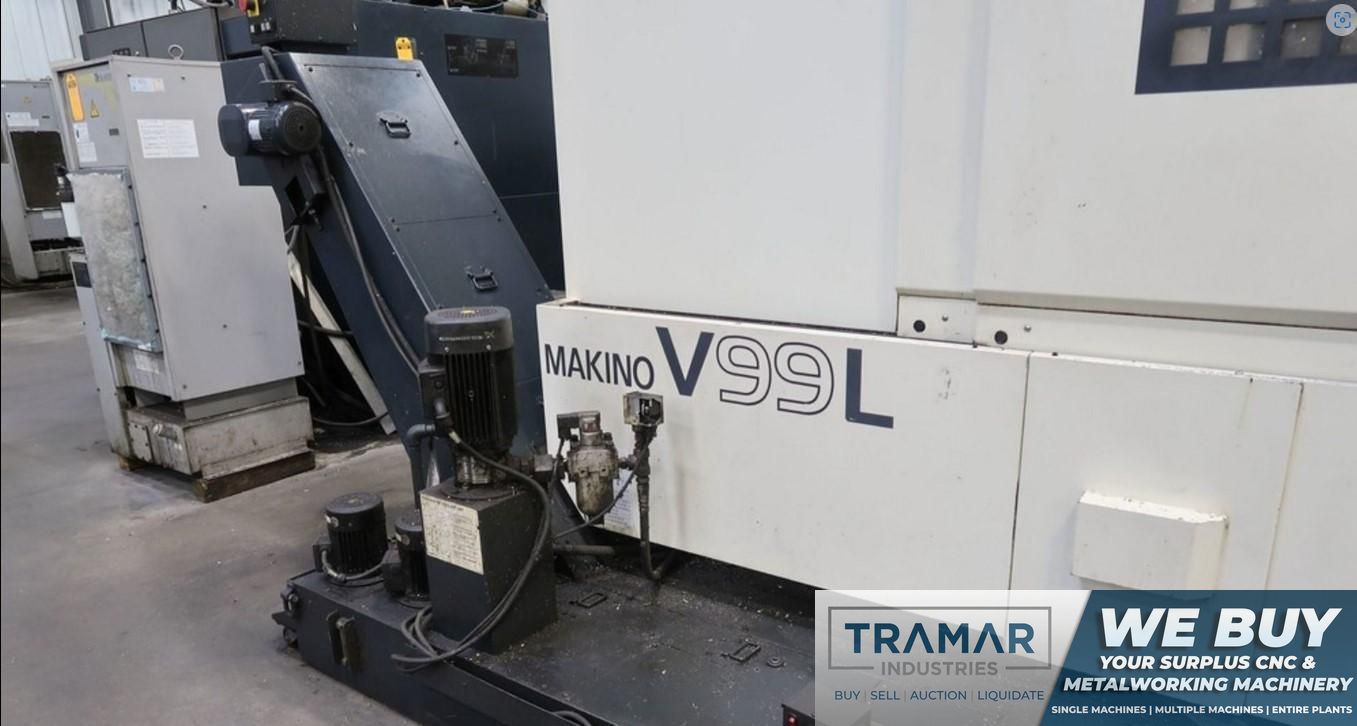

- Chip Conveyor
- Coolant Tank
- 18,000 rpm Spindle (Option)
- Spindle Chiller
- Air Dryer

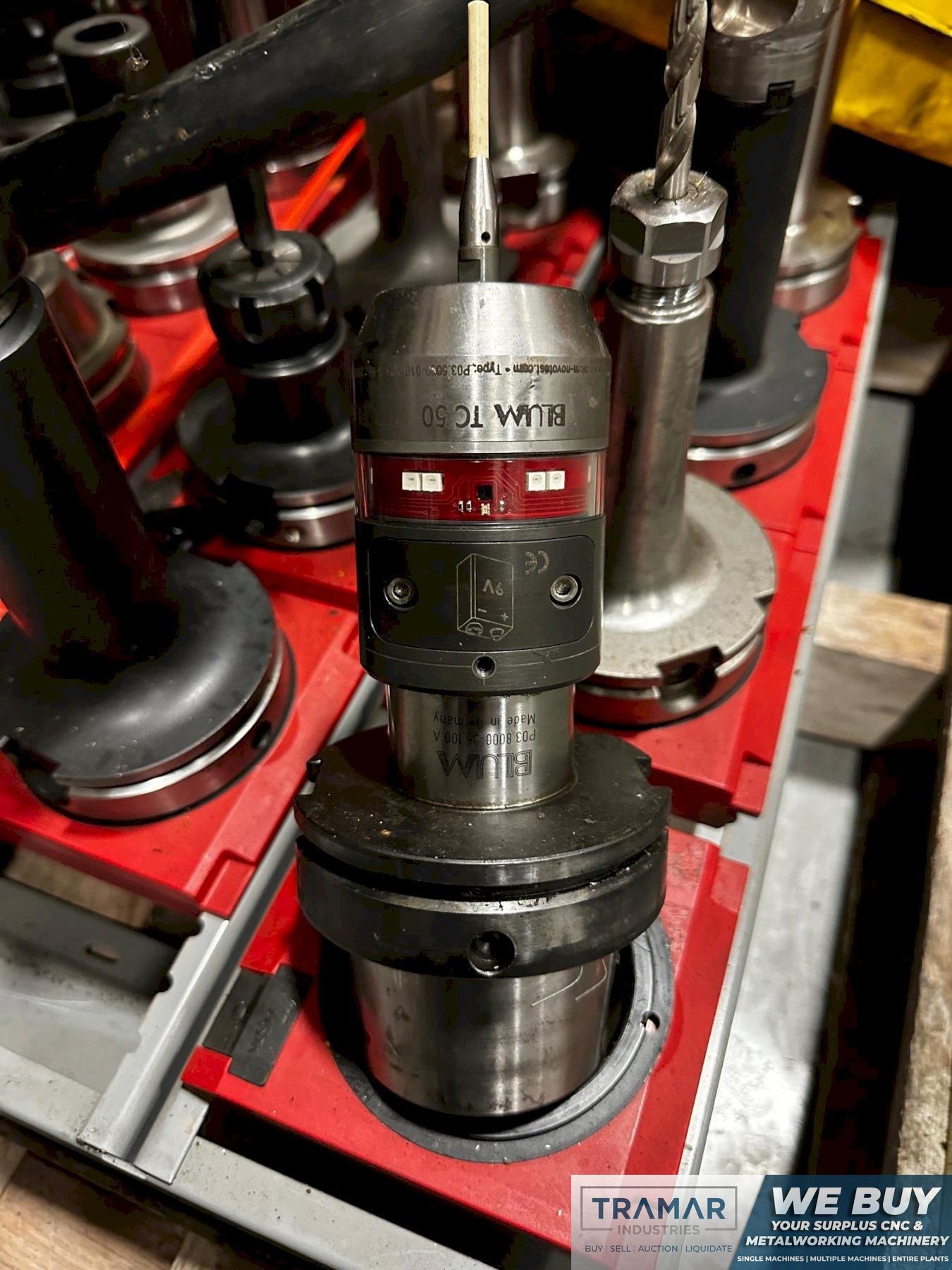

- Probing

Machine Specifications

Inch

Metric

Machine Specifications:

CNC Control

yes

Control Type

Professional 5

# Axis

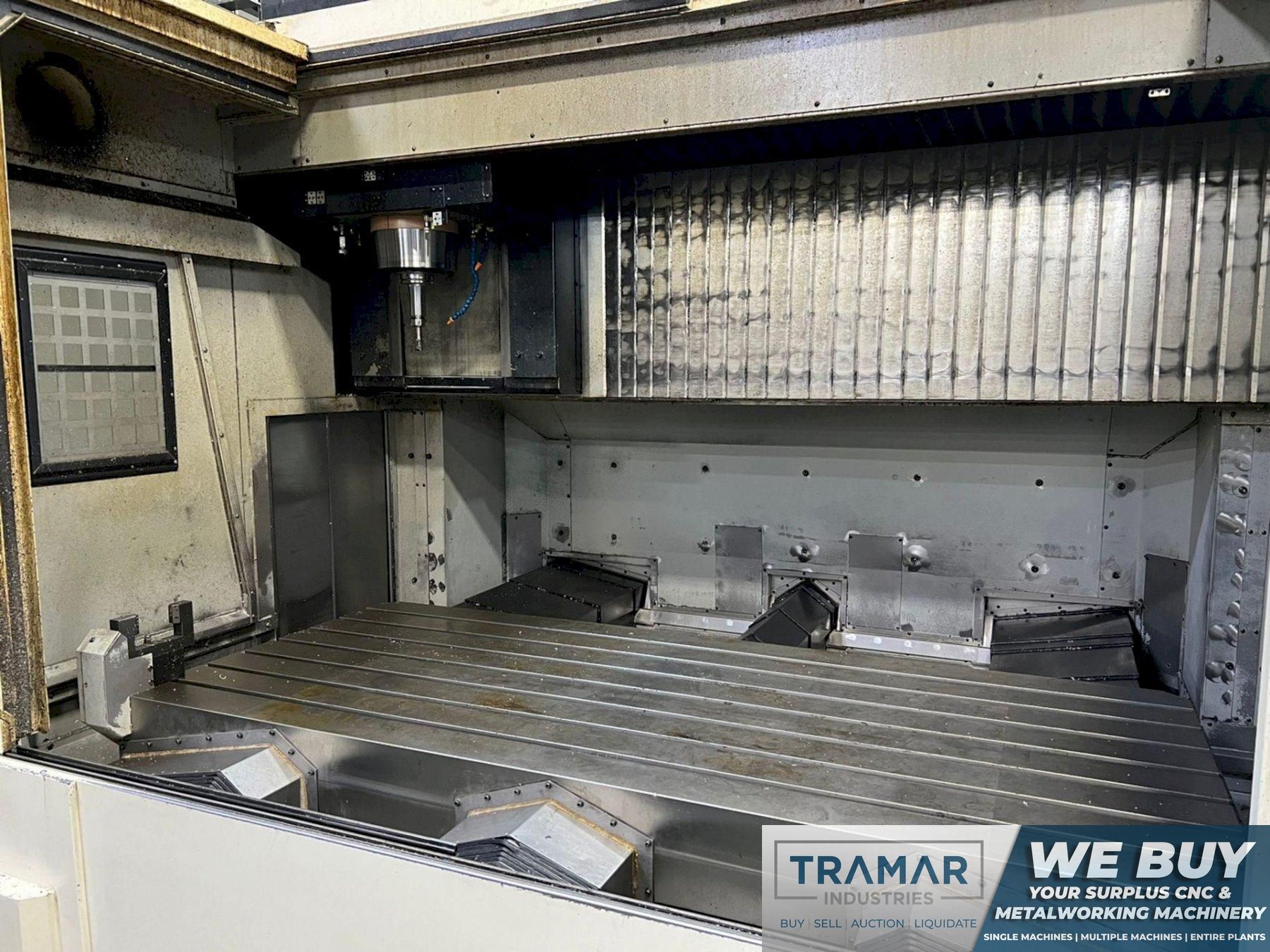

Table Size

90.6" x 39.4"

Table Capacity

8,816 pounds

X-Axis Travel

78.74"

Y-Axis Travel

39.37"

Z-Axis Travel

31.49"

Rapid Traverse Rate (X/Y/Z)

787 ipm

Spindle Taper

HSK-A100

Spindle Speed

18,000 rpm

Main Motor

30 hp

Tool Changer Capacity

Coolant Thru Spindle

yes

Machine Dimensions

205" x 161" x 138" - Floor Space

Machine Weight

58,000 pounds

Equipped With:

- Makino Professional 5 CNC Control
- Coolant Thru Spindle
- Chip Conveyor
- Coolant Tank
- 18,000 rpm Spindle (Option)
- Spindle Chiller
- Air Dryer
- Probing

The Makino V99L is an exclusive part of our Vertical Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
