Matsuura VX-1000 - Vertical Machining Centers

Request Quote
Share Machine
Specifications Print Specs
Model: VX-1000
Year: 2019
Stock #: MC17046
Highlights:

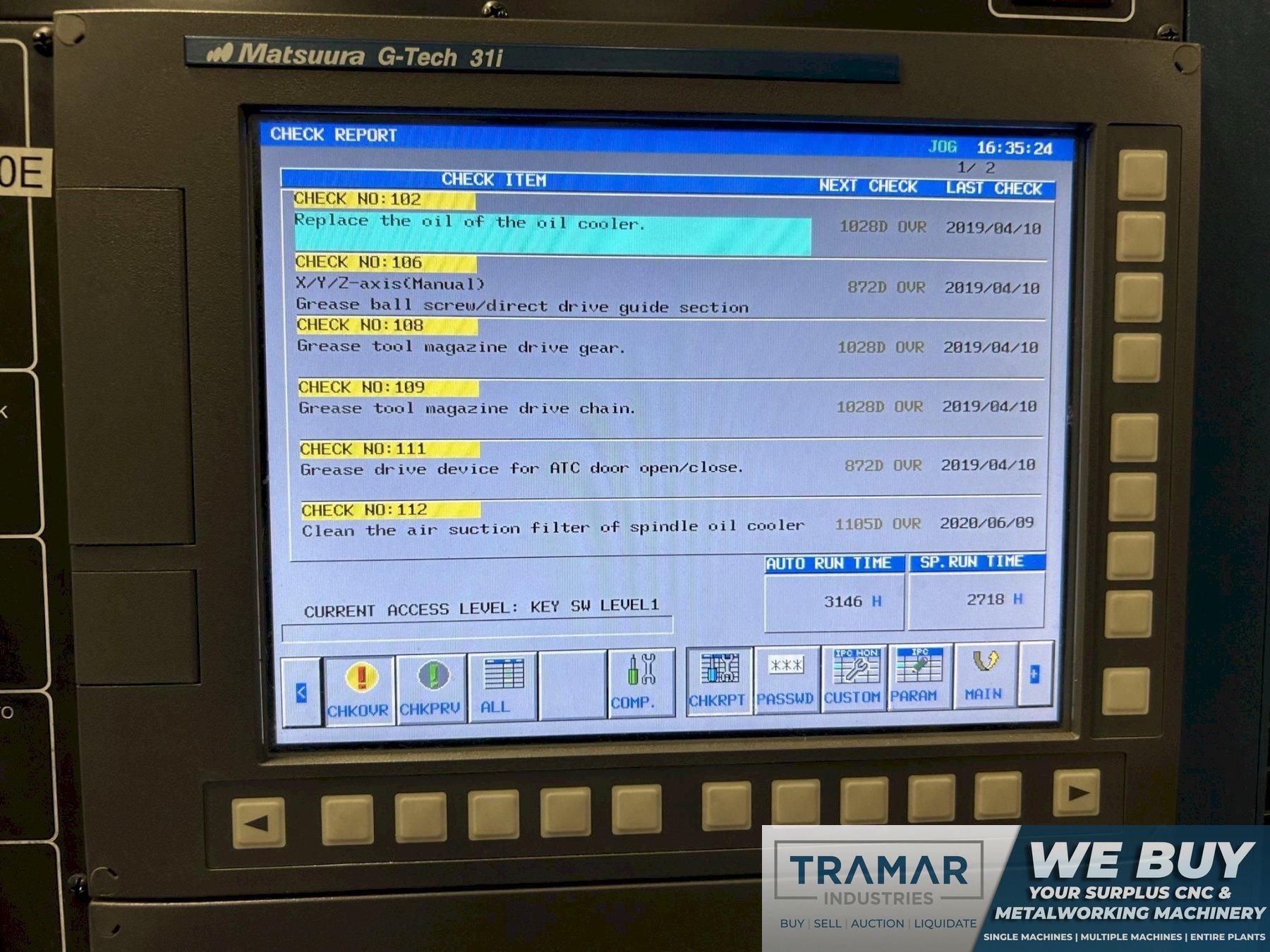

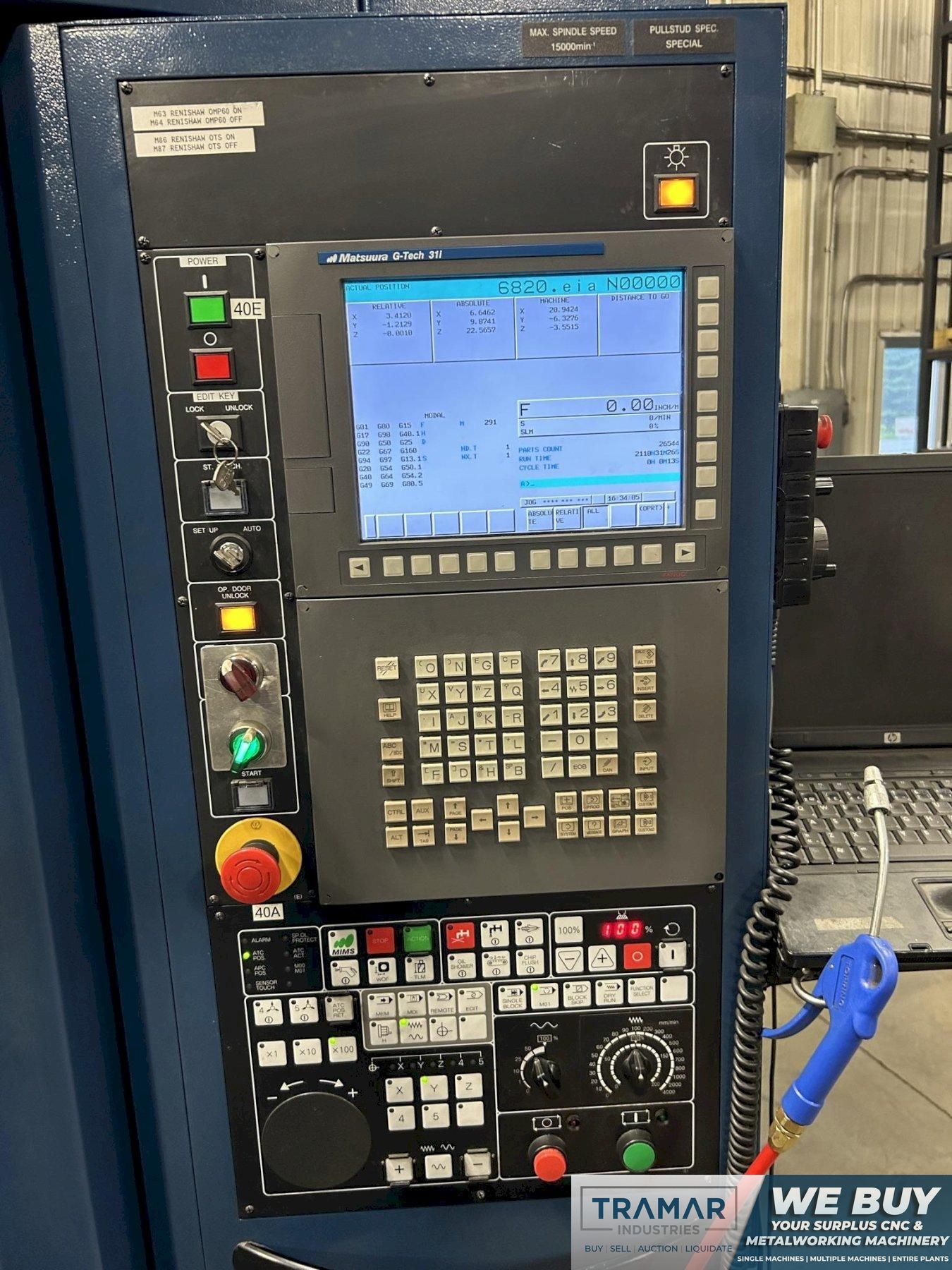

Fanuc 31i (G-Tech)
Renishaw Probing
Coolant Thru Spindle 300 psi

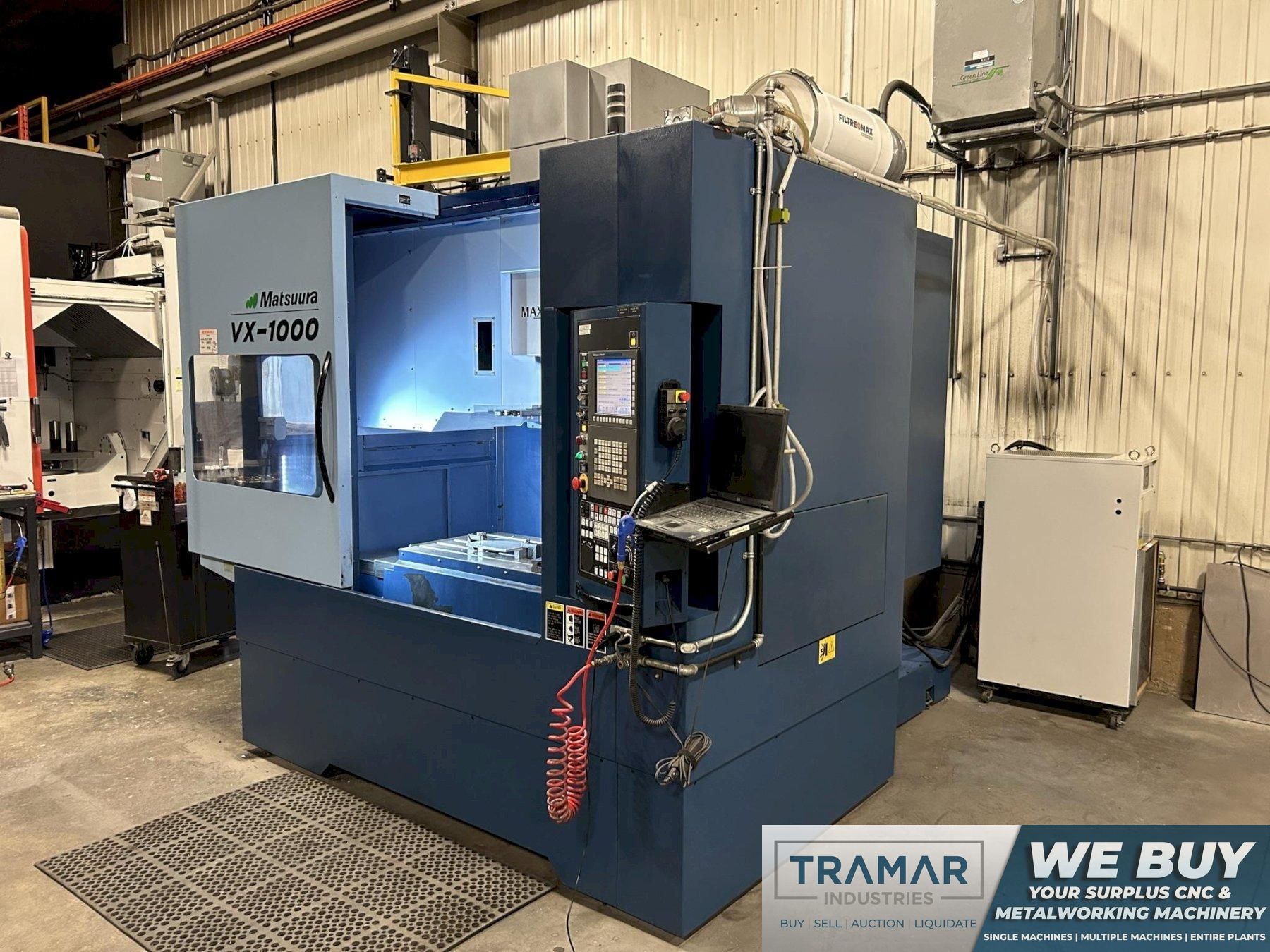

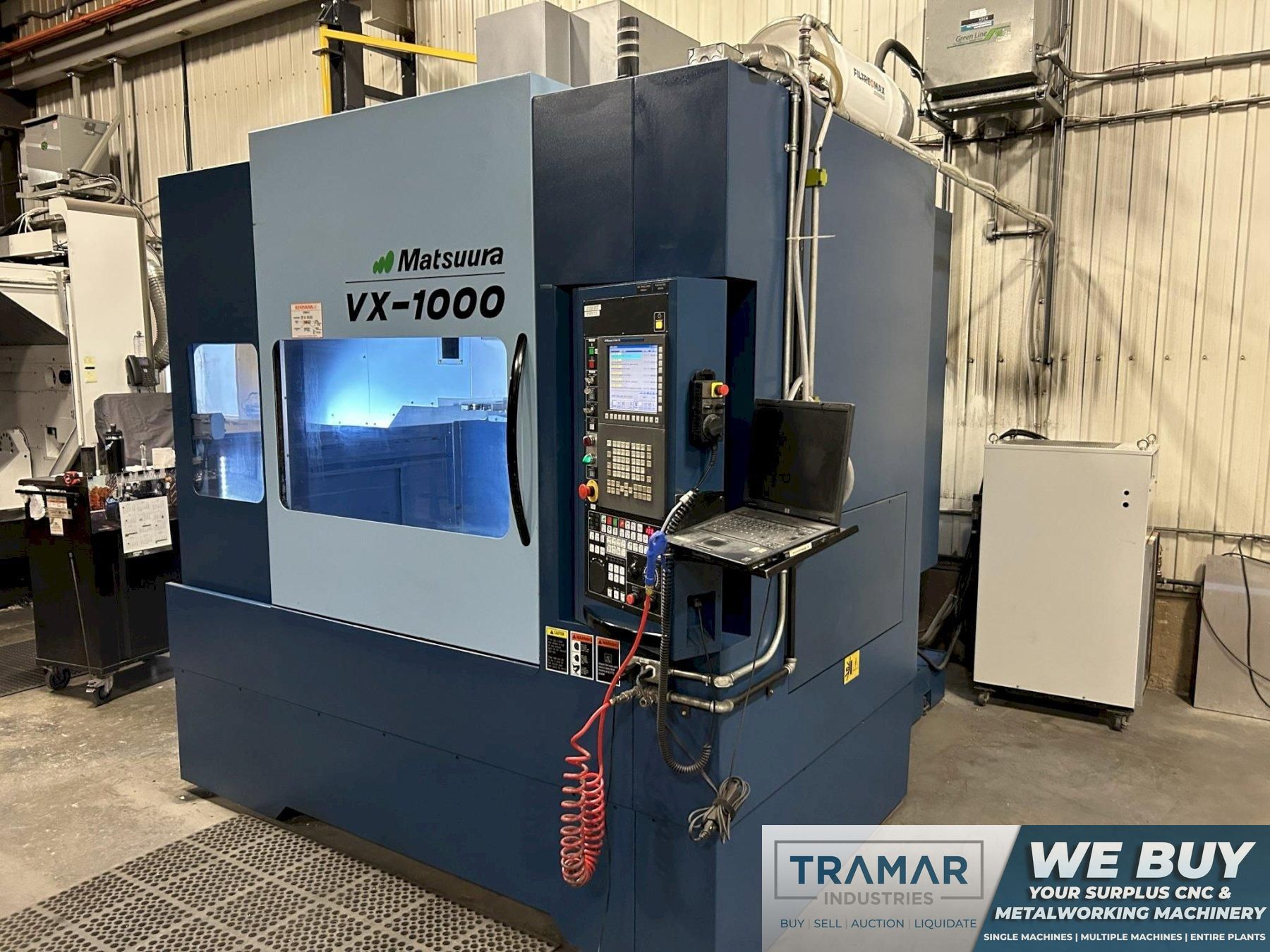

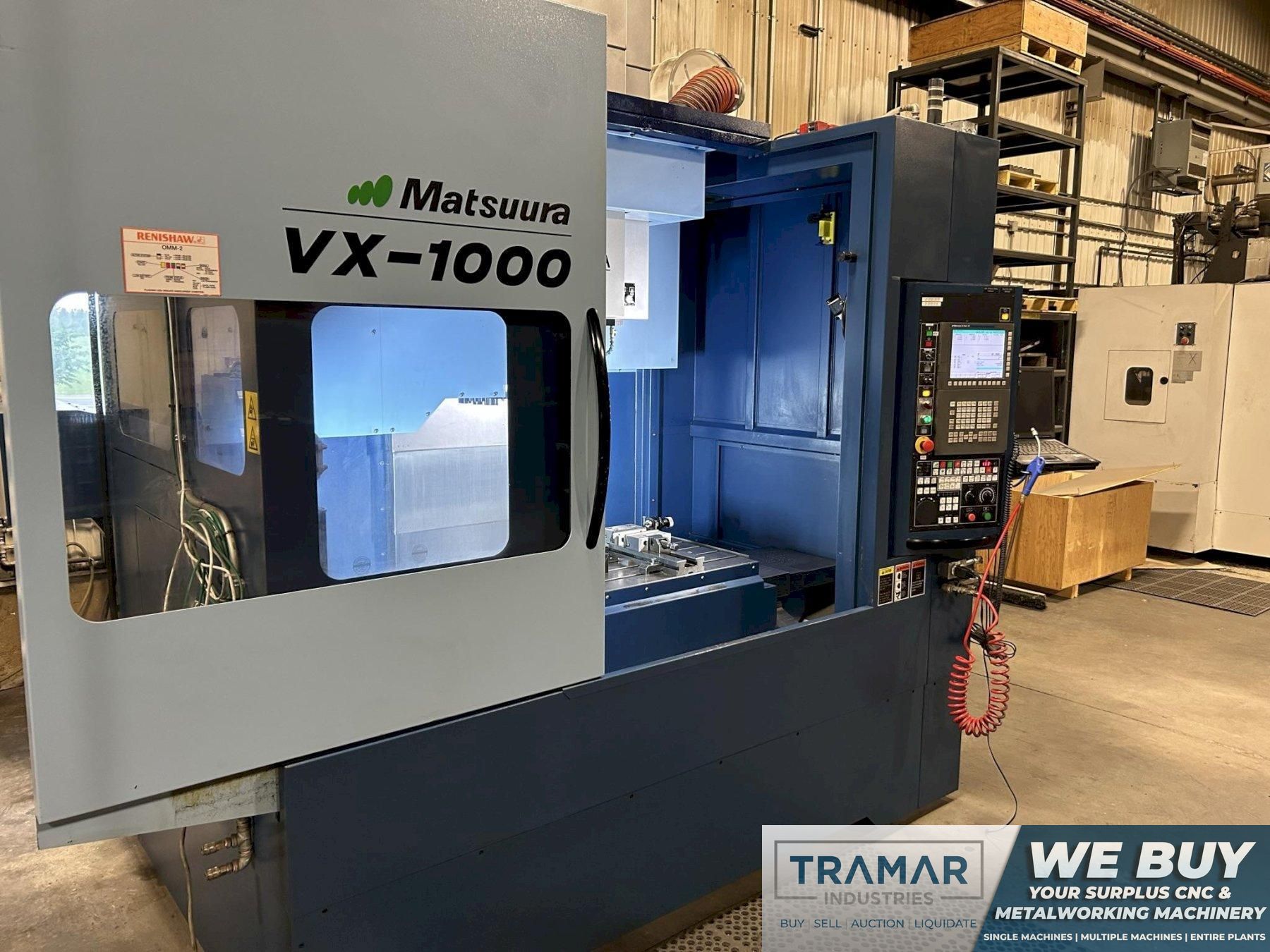

Matsuura VX-1000 CNC Vertical Machining Center For Sale - 2019
Machine Specifications
CNC Control
yes
Control Type
Fanuc 31i (G-Tech)
# Axis
3

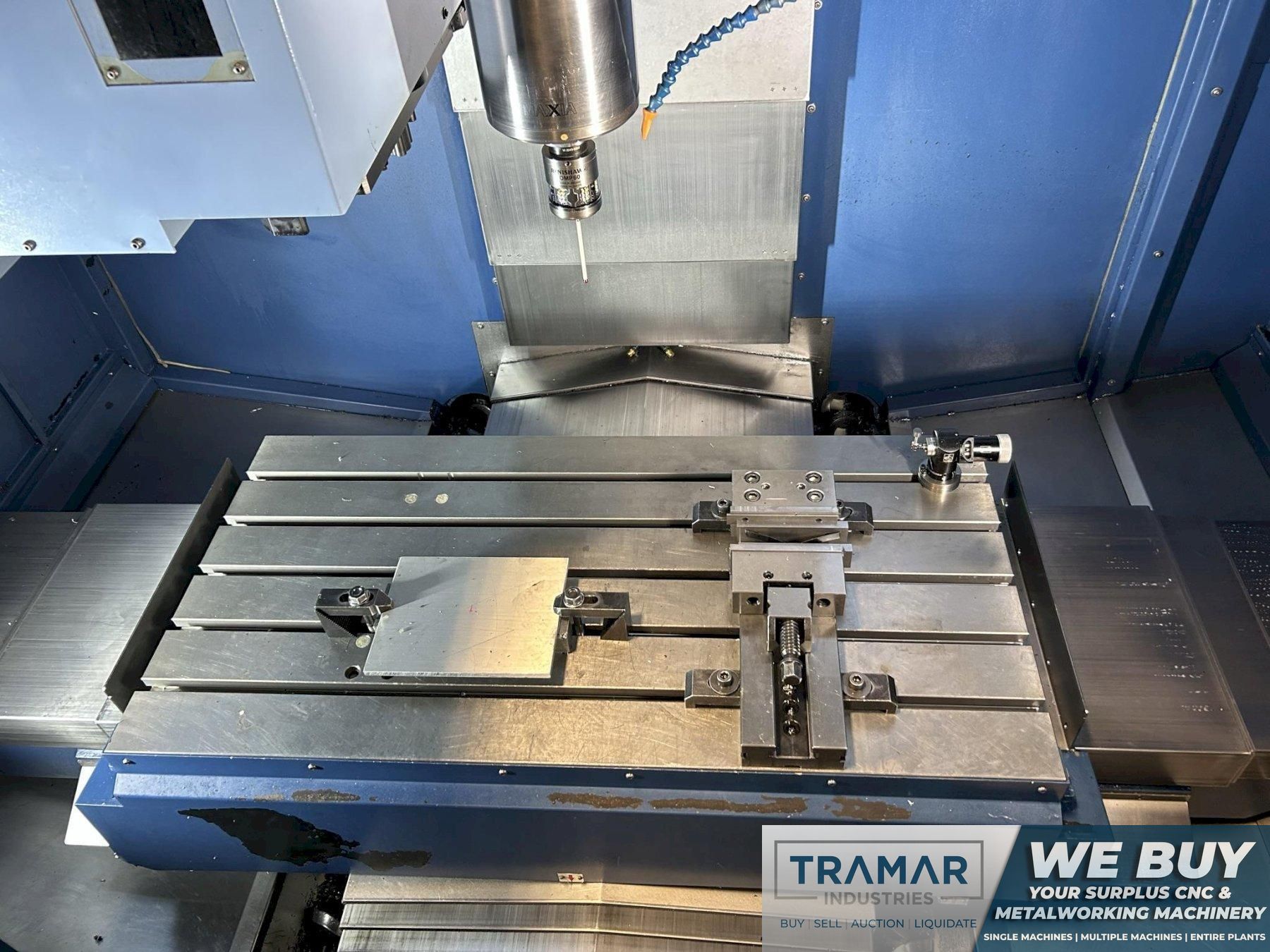

Table Size
47.24" x 23.62"
Table Capacity
1,100 pounds
X-Axis Travel
40.15"
Y-Axis Travel
24"
Z-Axis Travel
24"
Rapid Traverse Rate (X/Y/Z)
1,574/1,574/1,417 ipm
Spindle Taper
CAT 40
Spindle Speed
15,000 rpm
Main Motor
30 hp
Tool Changer Capacity
48
Coolant Thru Spindle
yes

Equipped With:

- Fanuc 31i (G-Tech)
- Chip Conveyor
- Fanuc High Speed Package (AICC II with Data Server and Ethernet)

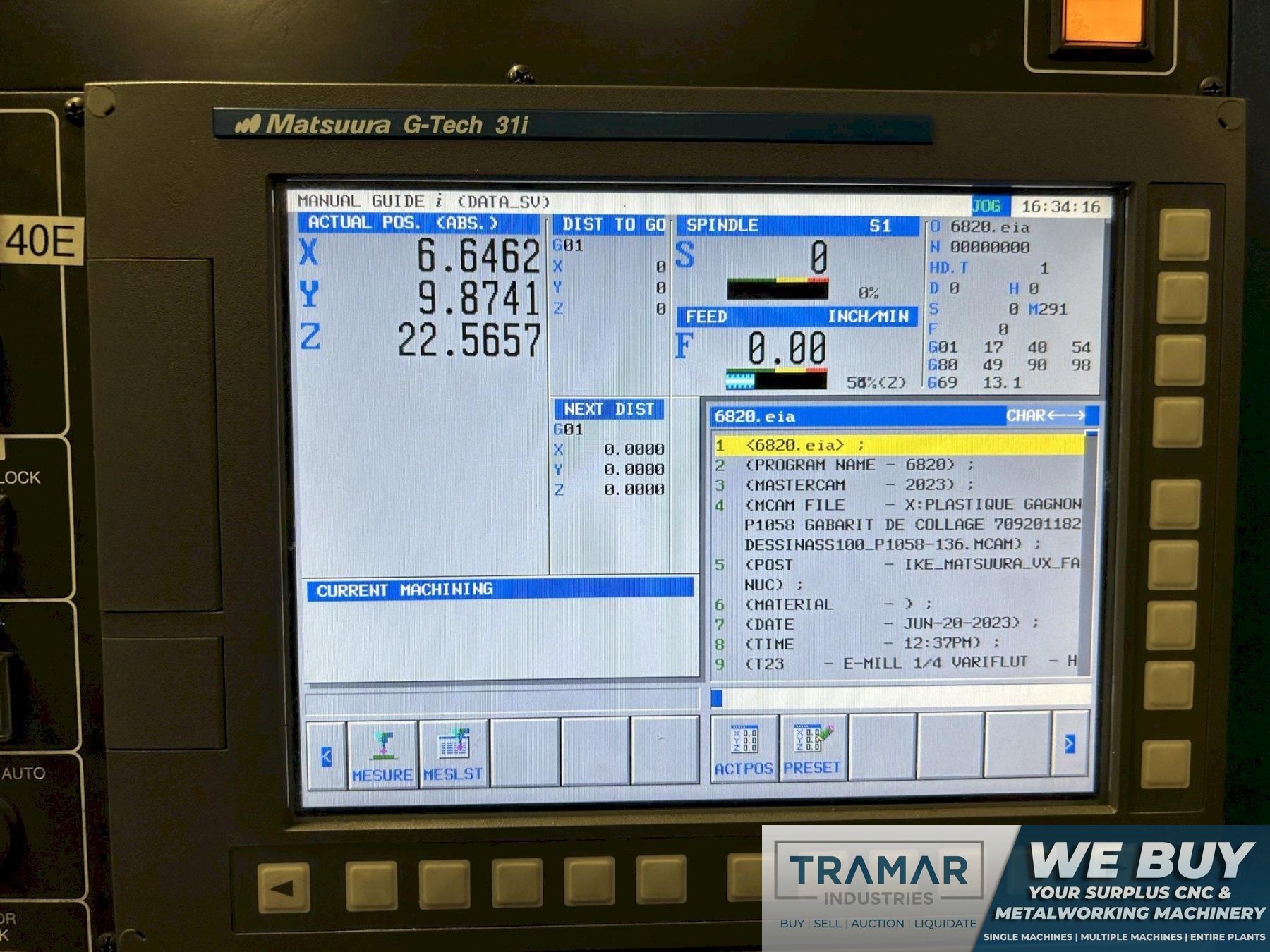

- Manual Guide i (Conversational Programming)

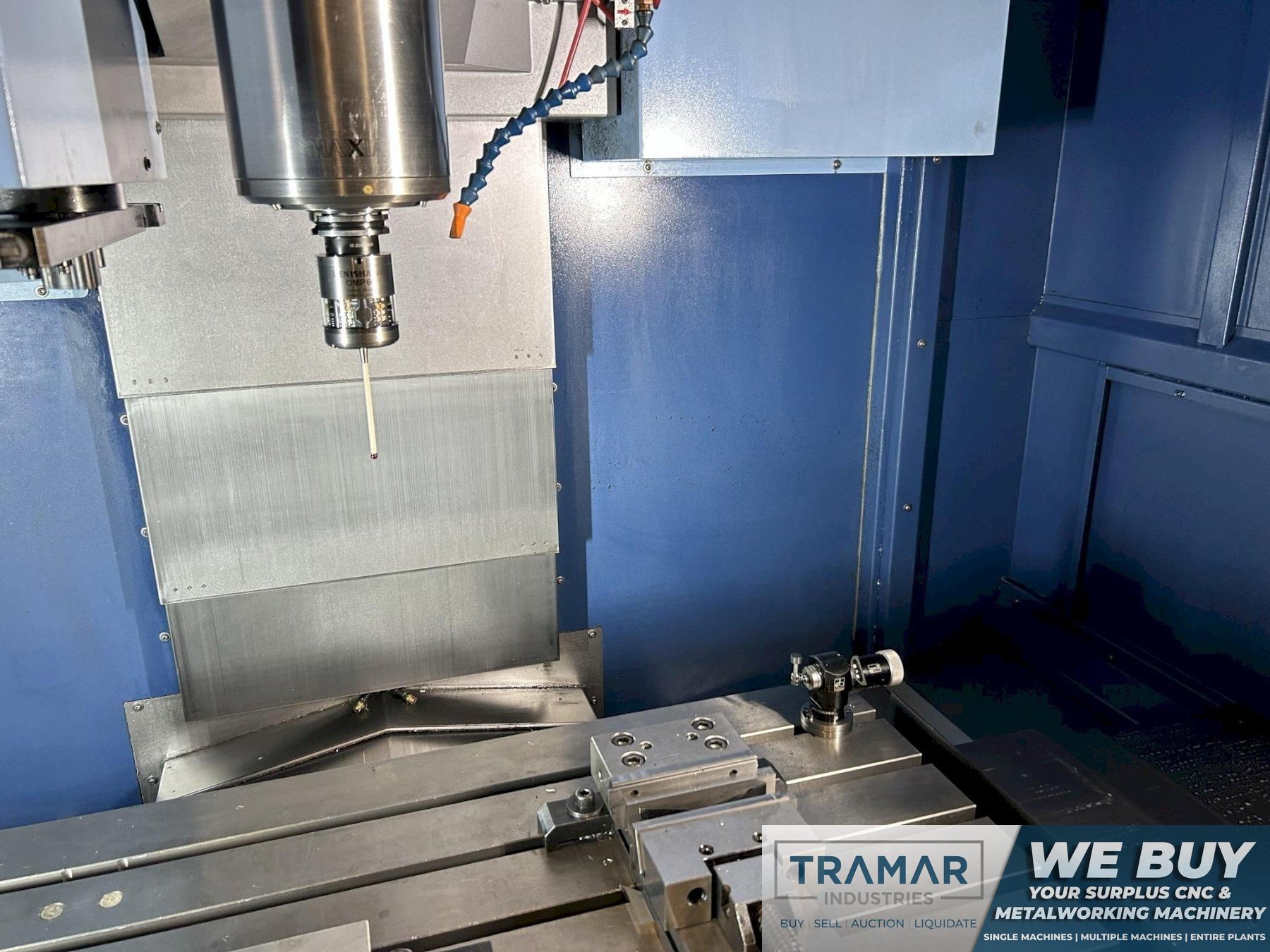

- Renishaw OTS-AA Tool Setter
- Renishaw OMP60 in Process Measuring System
- Coolant Thru Spindle - 300 psi
- Spindle Chiller

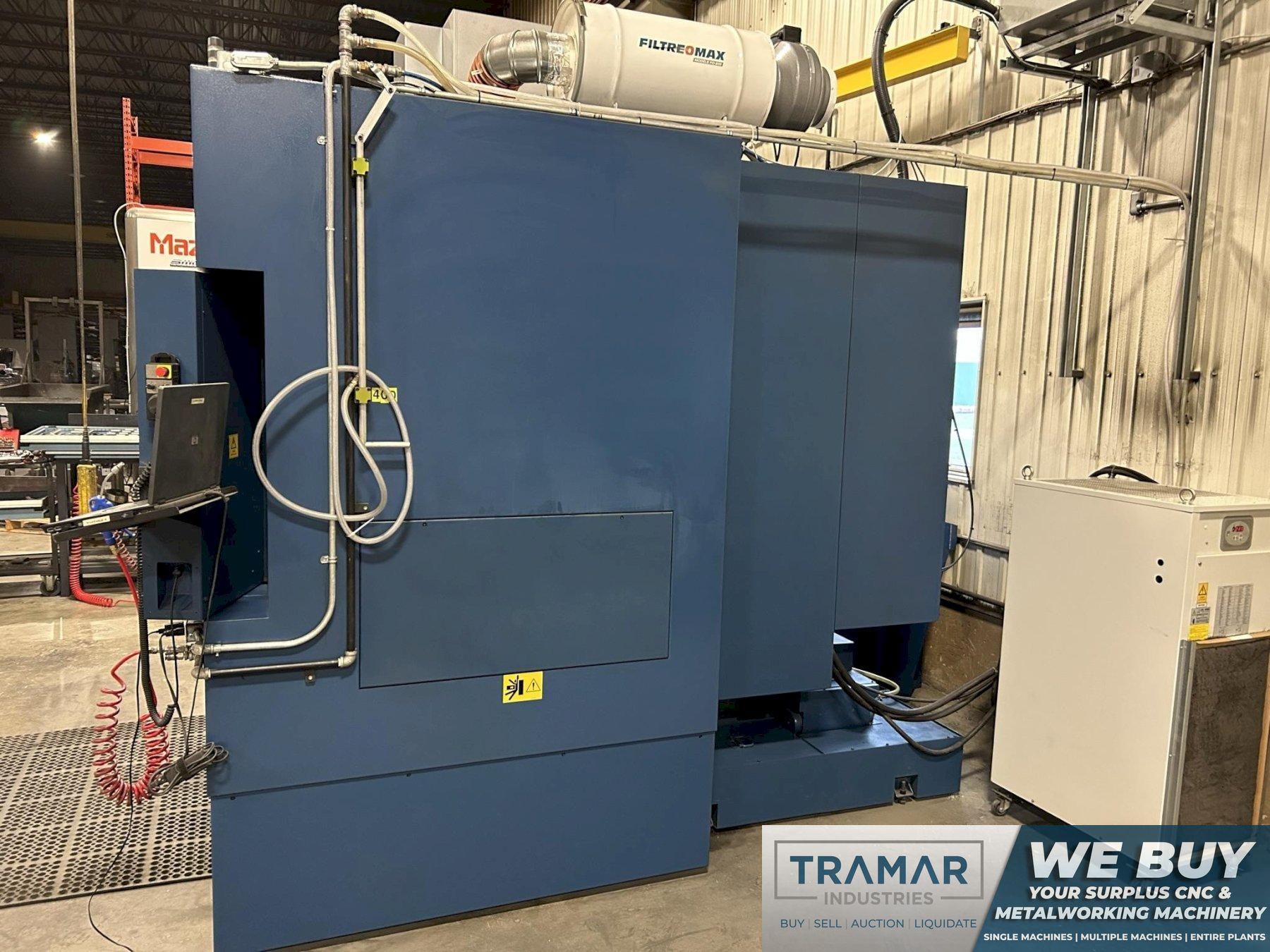

- Mist Collector

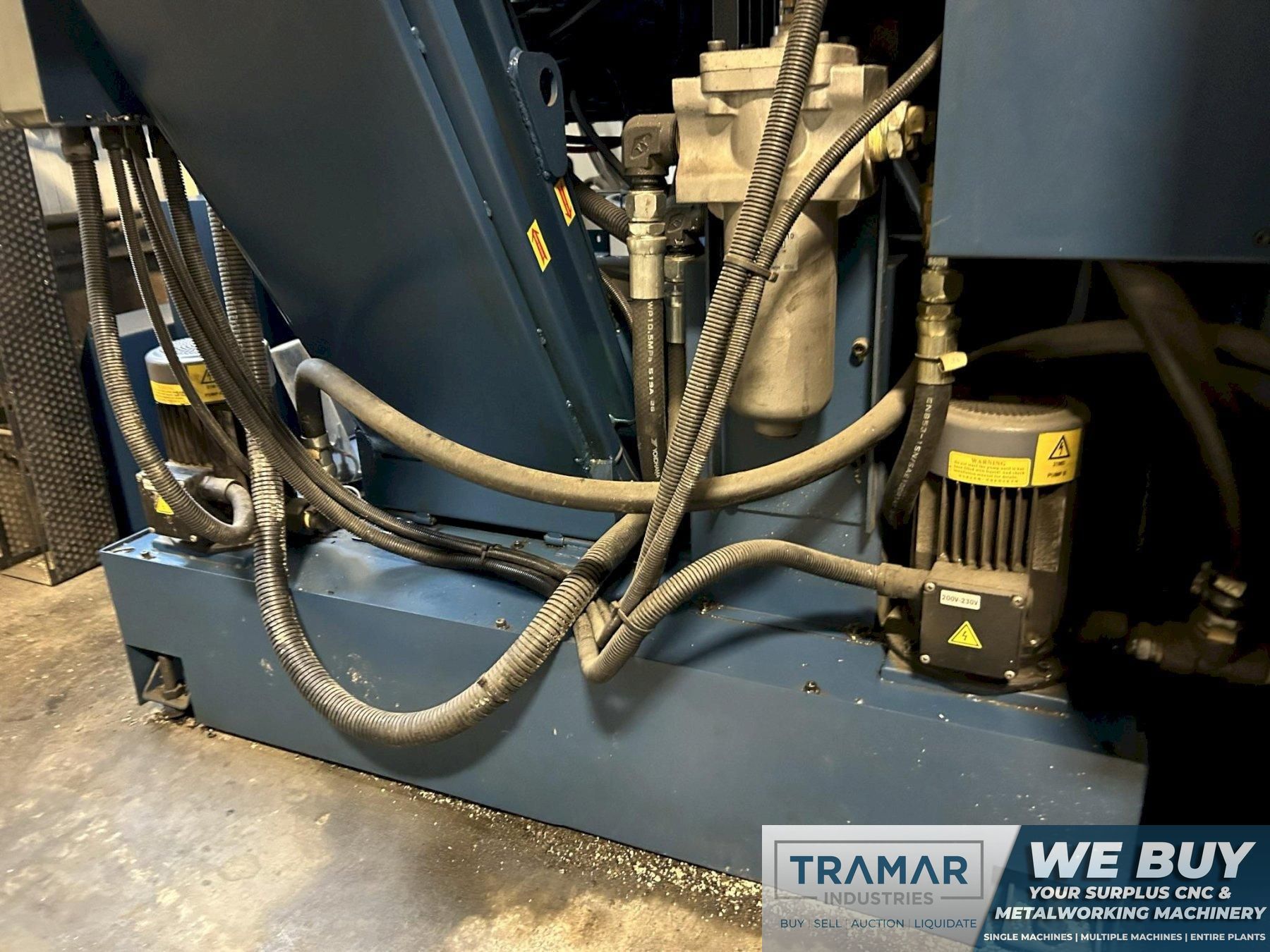

- Coolant Tank & Pumps

The Matsuura VX-1000 is an exclusive part of our Vertical Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
