Mazak FH6800 - Horizontal Machining Centers

Share Machine
Specifications Print Specs
Model: FH6800
Year: 2004
Stock #: BR15894 Sold
Yes
Highlights:

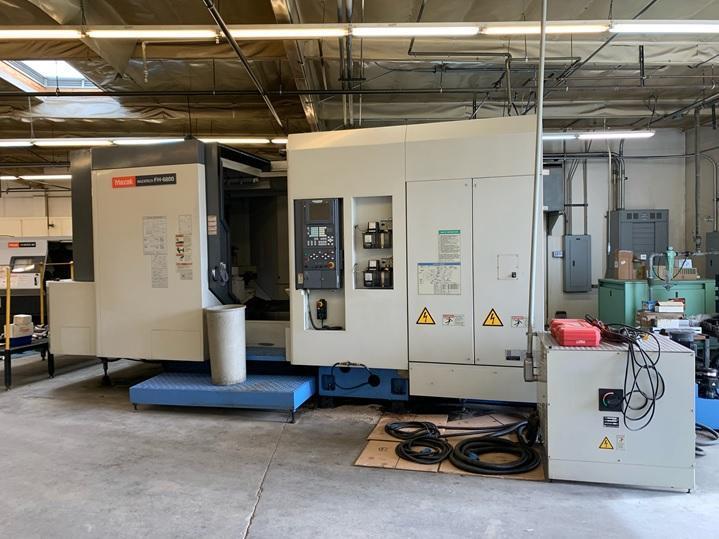

Mazak FH6800 CNC Horizontal Machining Center
Machine Specifications
Control Type
Mazatrol Fusion 640M
# Axis
4
Pallet-W
24.8"
Pallet-L
24.8"
Pallet Indexing (B-Axis)
Full 4th
Pallet Capacity
3,315 pounds
X
41.3"
Y
31.5"
Z
34.6"
X-Axis Rapid Feedrate
1,575 IPM
Y-Axis Rapid Feedrate
1,575 IPM
Z-Axis Rapid Feedrate
1,575 IPM
Main Motor
40 Horsepower
Spindle Taper
50
Spindle Speed
7,000
Coolant Through Spindle
yes
Tool Changer Capacity
80
Dimensions
146" x 250" x 125"
Weight
41,900 pounds

Equipped With:

  • MAZATROL FUSION 640M
  • HIGH PRESSURE COOLANT THRU SPINDLE 213/71 PSI
  • ADDITIONAL M CODES FOR HIGH/LOW COOLANT
  • ADDITIONAL M CODES FOR TO SLOW DOWN PALLET CHANGER IF SO DESIRED
  • NC ROTARY TABLE 360,000 POS.

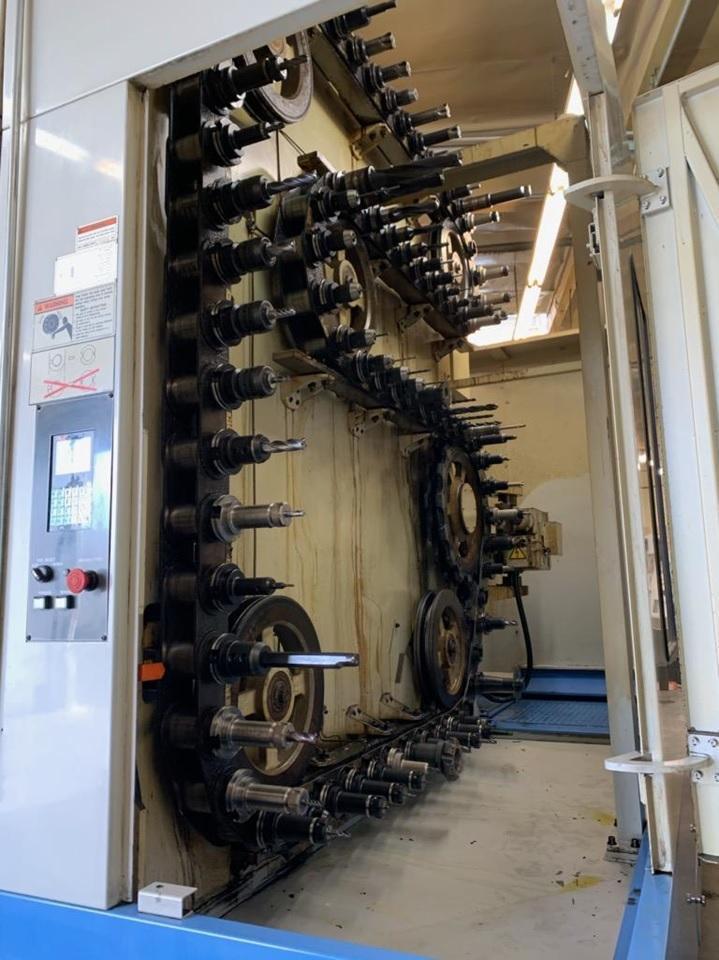

  • 80 TOOL ATC
  • PREP FOR MMS-B OPTICAL-TYPE PROBE MP 10
  • AUTO PECKING CYCLE W/LOAD DETECTION
  • MULTI-TAP TRANSFORMER
  • CHIP CONVEYOR
  • ALL AVAILABLE MANUALS

The Mazak FH6800 is an exclusive part of our Horizontal Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
