Mazak HCN-5000 II - Horizontal Machining Centers

Share Machine
Specifications Print Specs
Model: HCN-5000 II
Year: 2008
Stock #: 209175 Sold
Highlights:

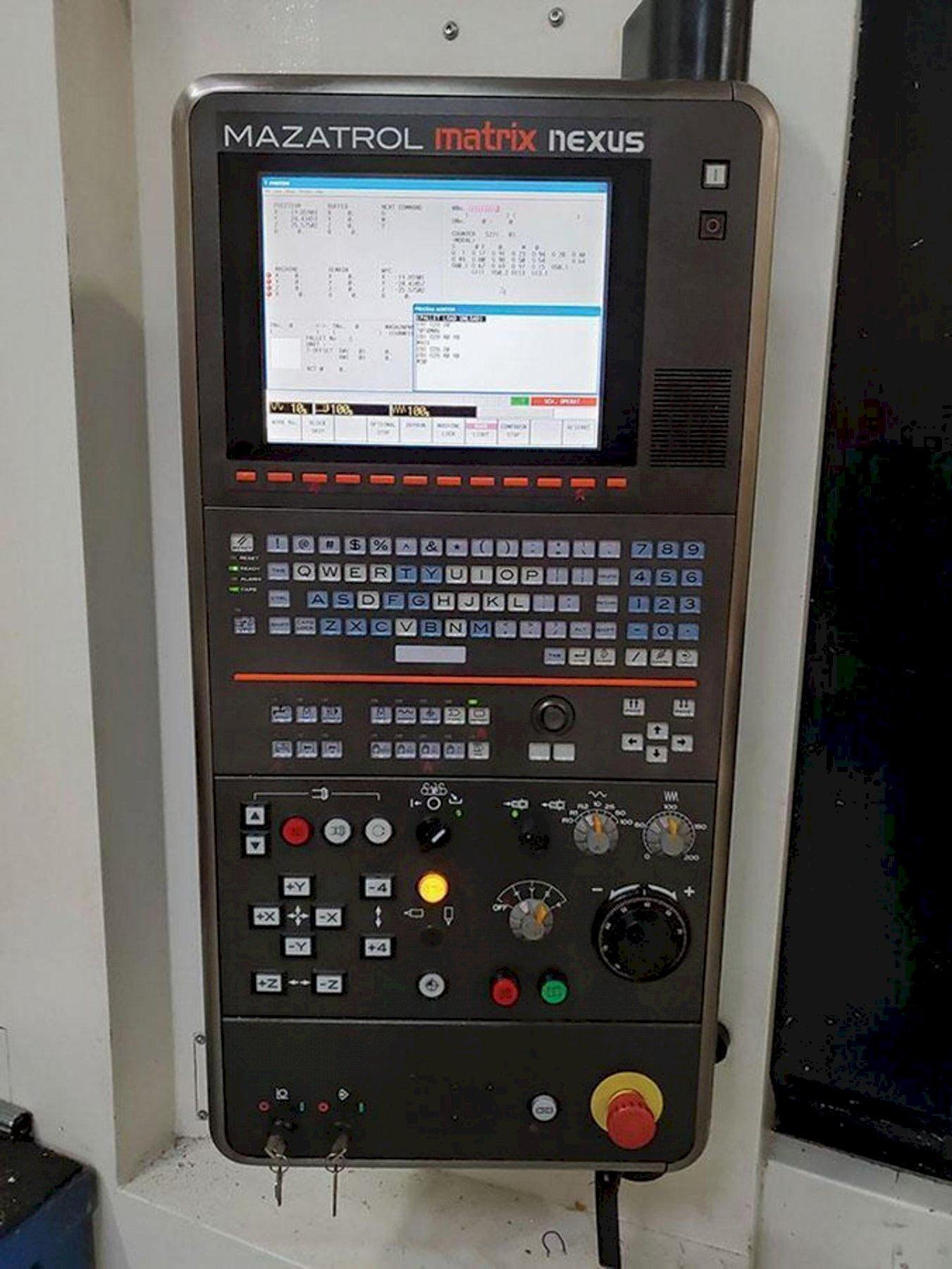

Mazatrol Matrix Nexus Control
Hi-Pressure Coolant Thru Spindle
Pallet Size: 19.7" x 19.7" | Full 4th Axis
Travels (X/Y/Z): 28.74" / 28.74" / 29.13"

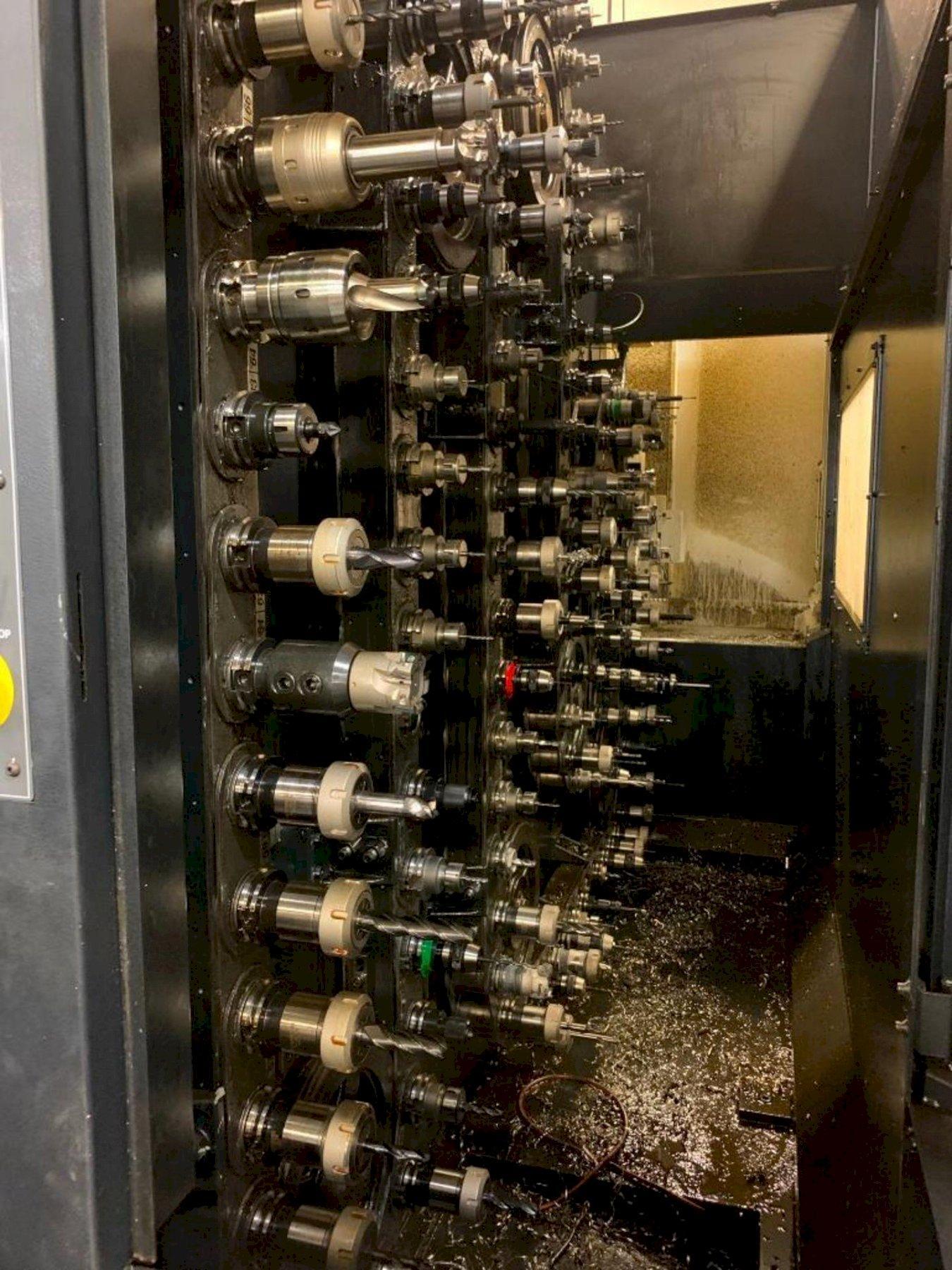

CAT 40 | 12,000 rpm | 120 Station ATC
(18) Station Mazak Palletech Machining Cell

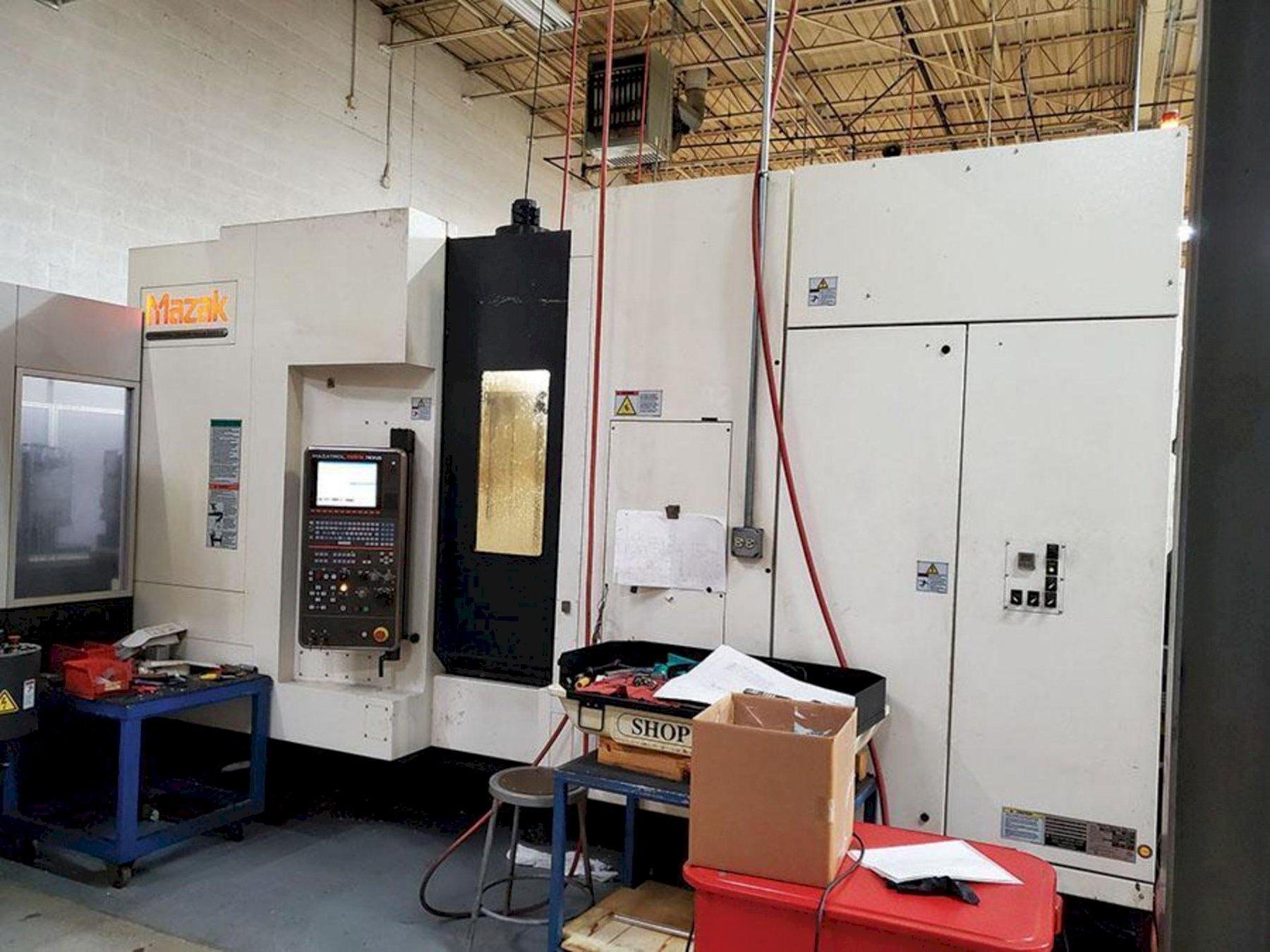

Mazak HCN-5000 II CNC Horizontal Machining Center
Machine Specifications
CNC Control
yes
Control Type
Mazatrol Matrix Nexus
# Axis
4
Pallet Length
19.7"
Pallet Width
19.7"
Pallet Load Capacity
1,543 ounces

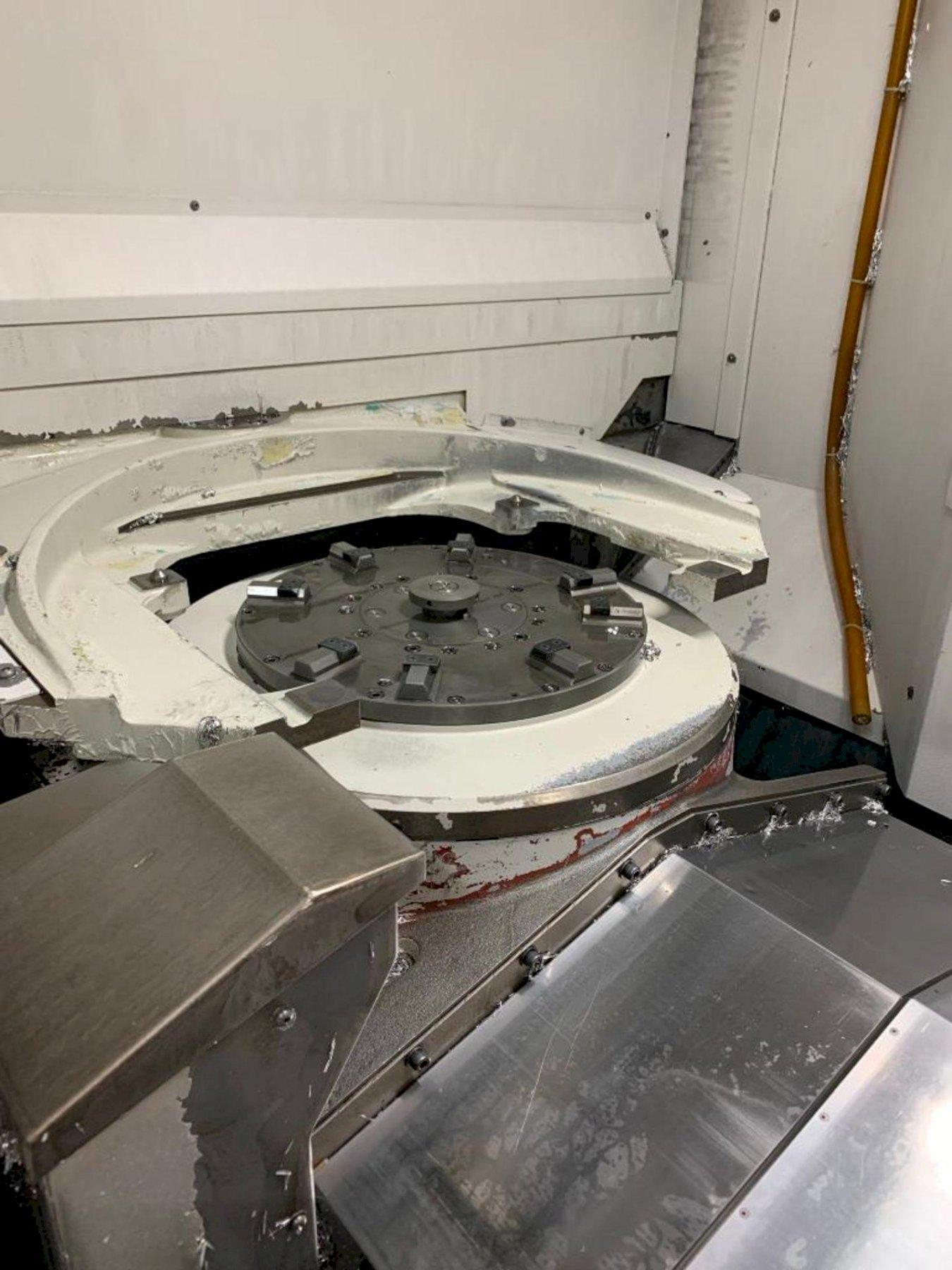

Pallet Indexing (B-Axis)
0.001°
X-Axis Travel
28.74"
Y-Axis Travel
28.74"
Z-Axis Travel
29.13"
Rapid Traverse Rate (X/Y/Z)
2,362 ipm
Spindle Taper
CAT 40
Spindle Speed
12,000 rpm
Spindle Motor (HP)
40 hp
Tool Changer Capacity
120
Coolant Through Spindle
yes
Machine Weight
25,000 pounds

Equipped With:

- (2) Mazak HCN-5000 II (2008) & (2011)
     * 2008 Machine is 360,000 Positioning B axis
     * 2011 Machine is Full 0.001° B Axis
- Mazak Palletech Manufacturing Cell
- (18) Station Pallet System
- (3) Loading/Unloading Stations

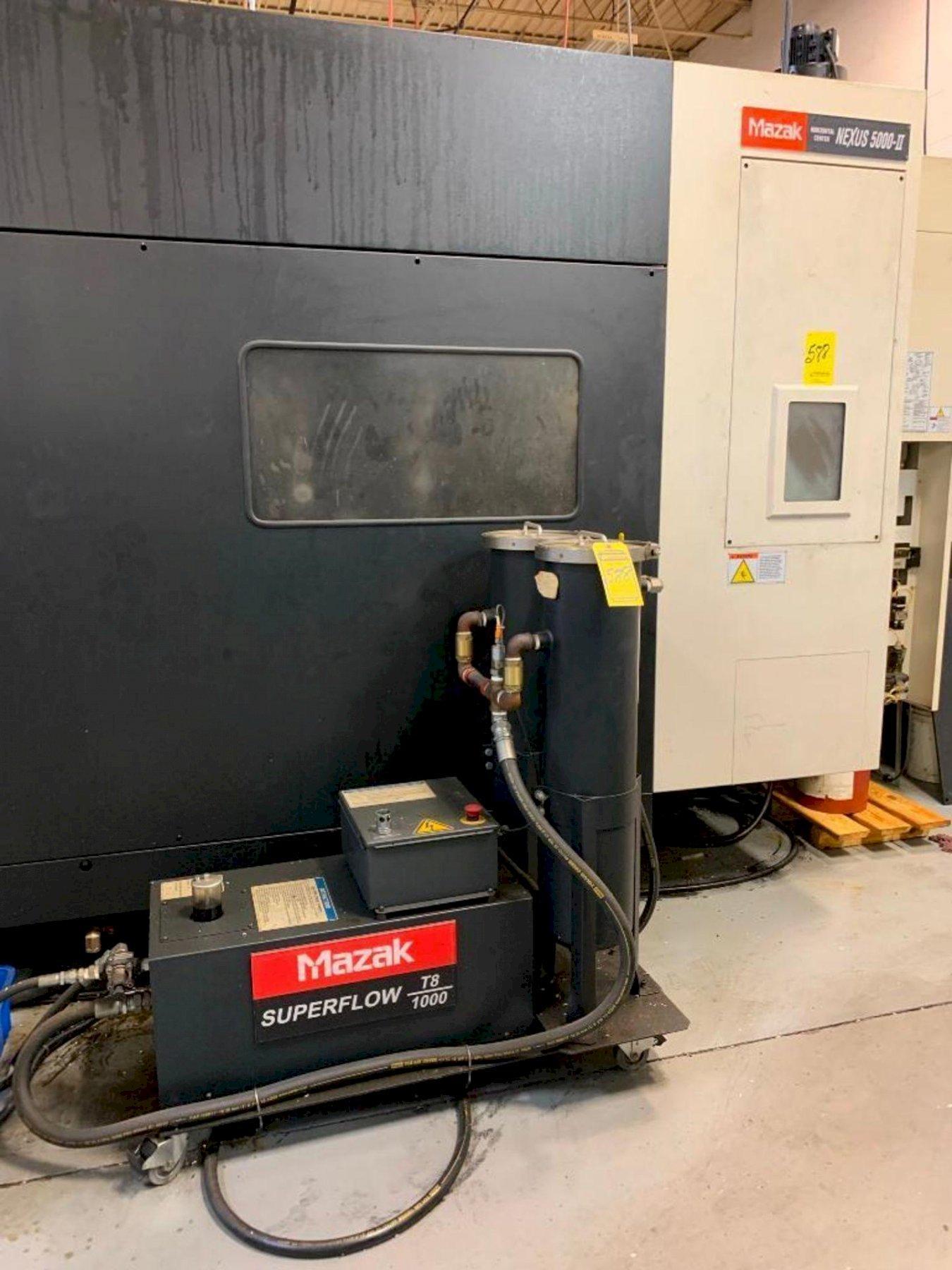

- Hi-Pressure Coolant Thru (Mazak Superflow T8/1000)

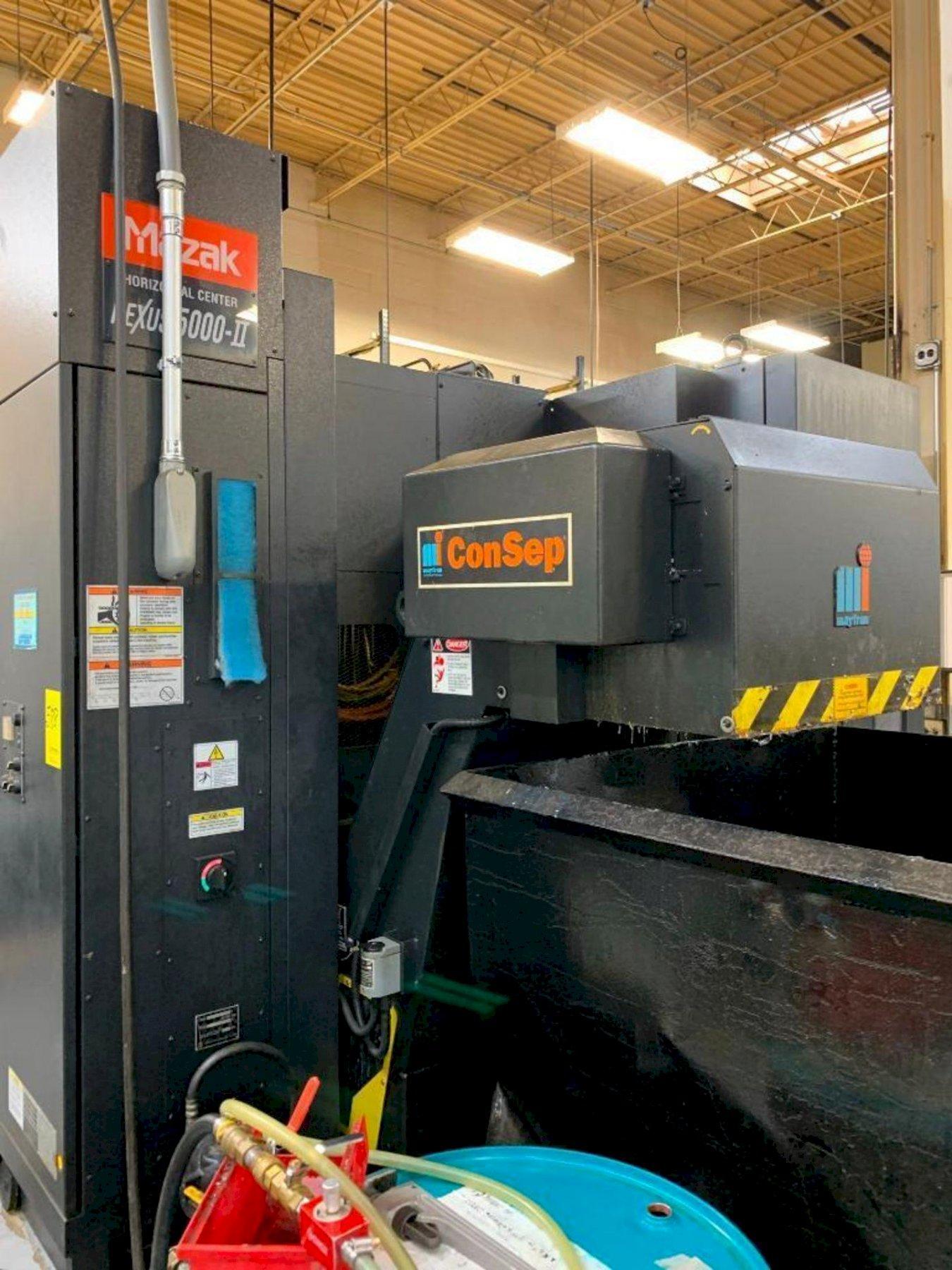

- Chip Conveyor
- Coolant Tank & Pumps
- Spindle Chiller
- Tombstones Available At Additional Cost
- No Tooling Comes With Machines/Cell

The Mazak HCN-5000 II is an exclusive part of our Horizontal Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
