Mazak Integrex 200-III - Lathes (3-Axis or More)

Share Machine

Specifications Print Specs

Model: Integrex 200-III

Year: 2005

Stock #: 14114 Sold

Type: Lathes (3-Axis or More)

Manufacturer: Used Mazak Machines

Highlights:

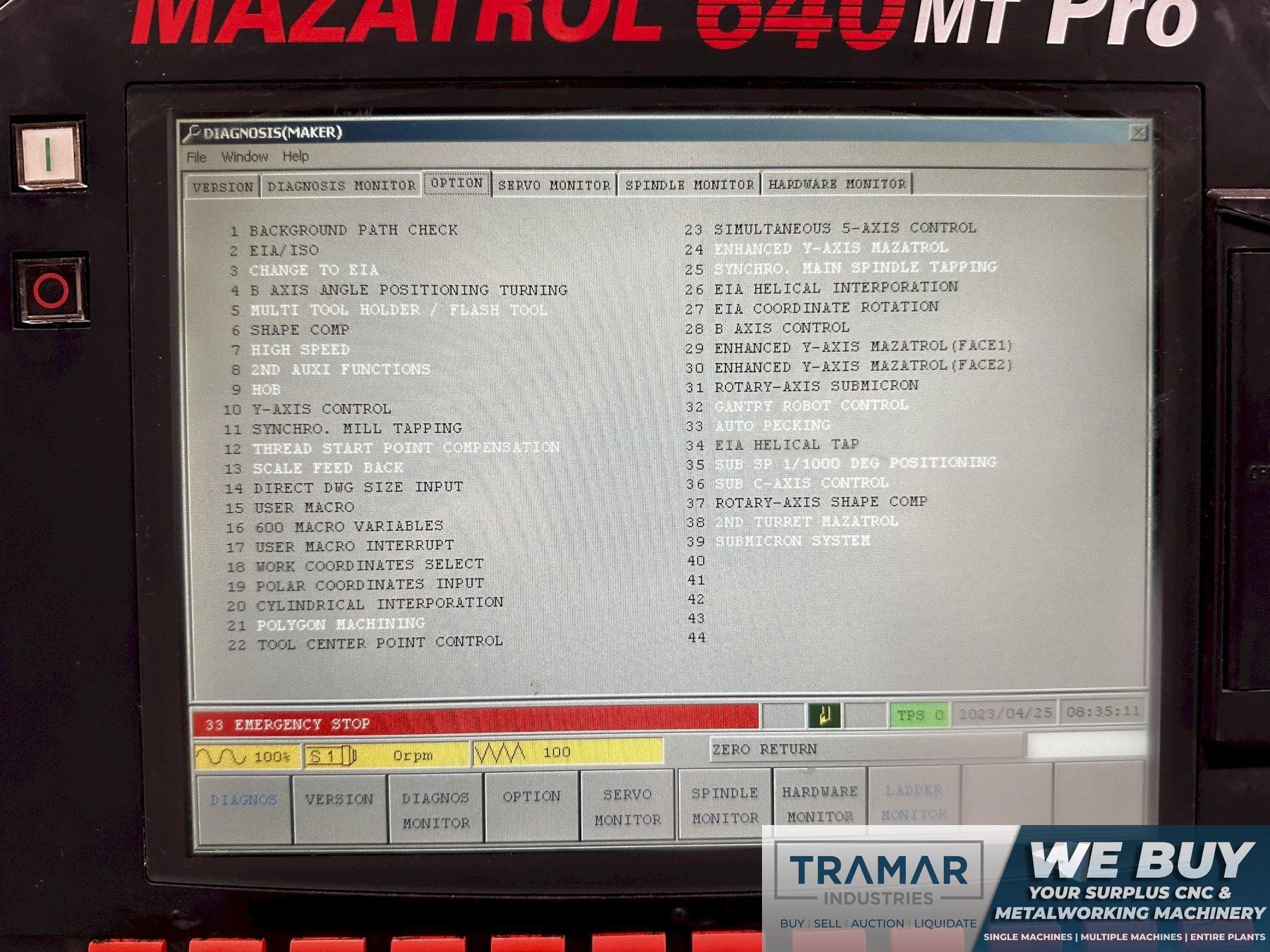

Mazatrol 640MT Pro Control
Tailstock
Tool Presetter

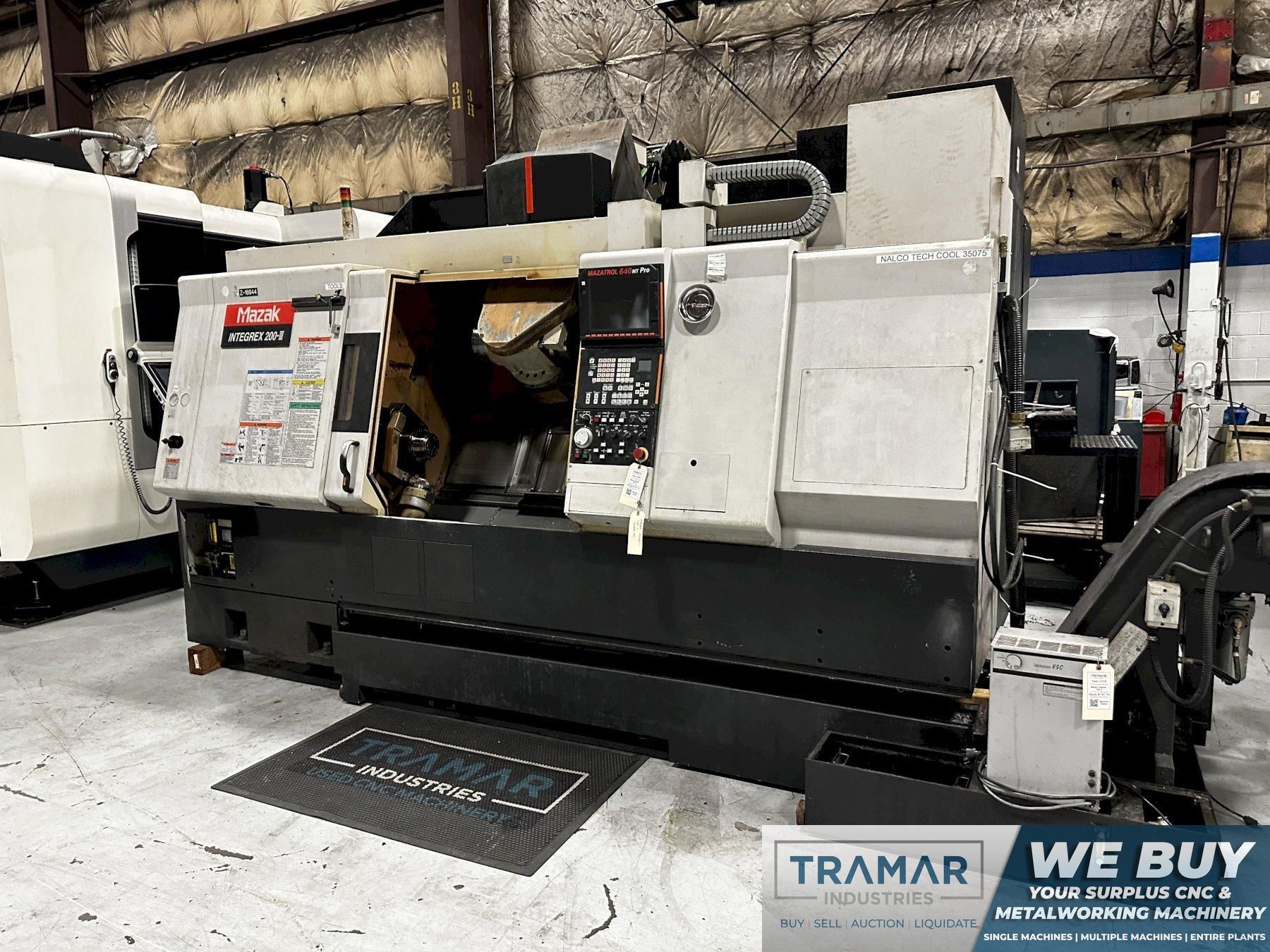

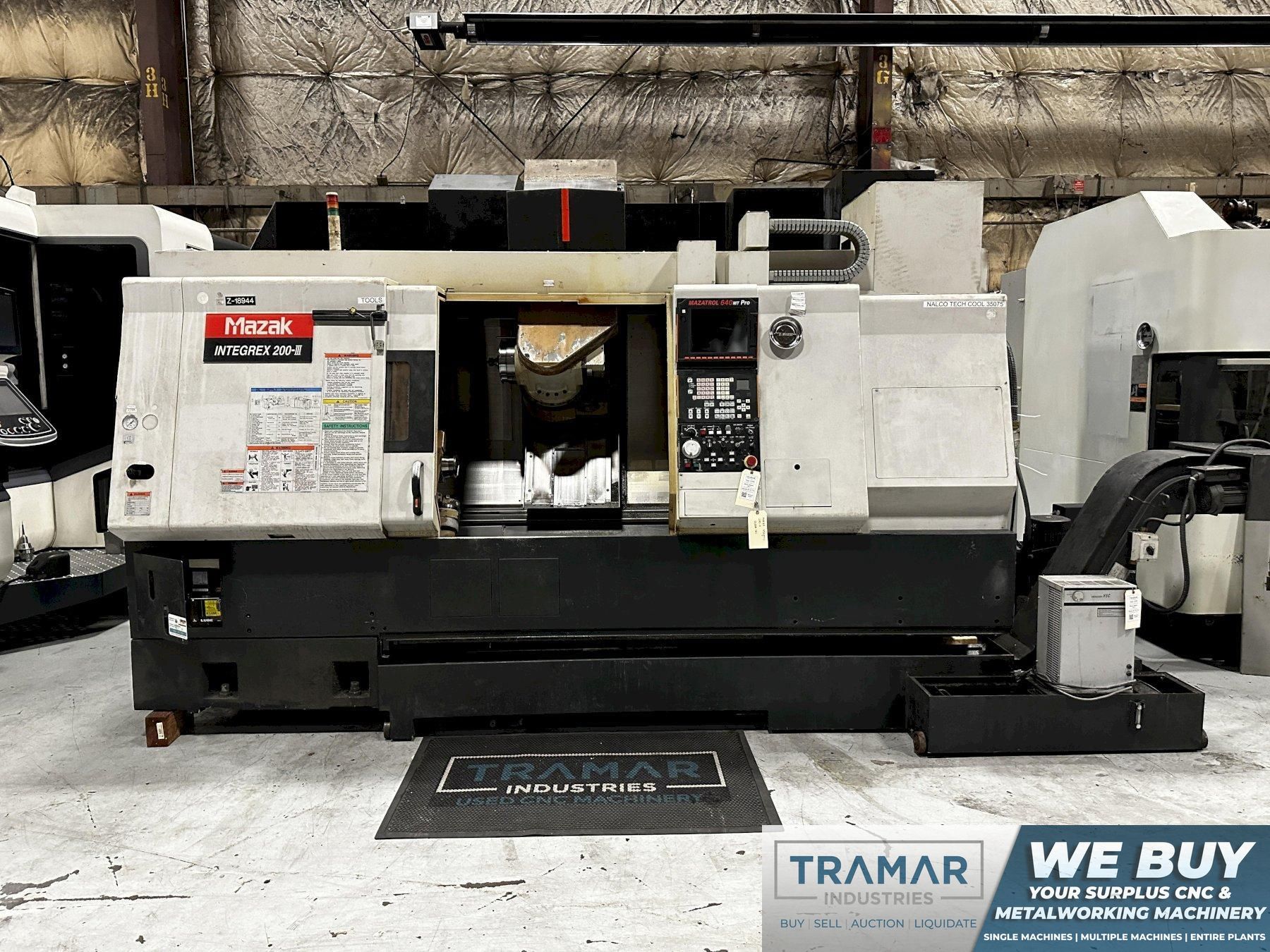

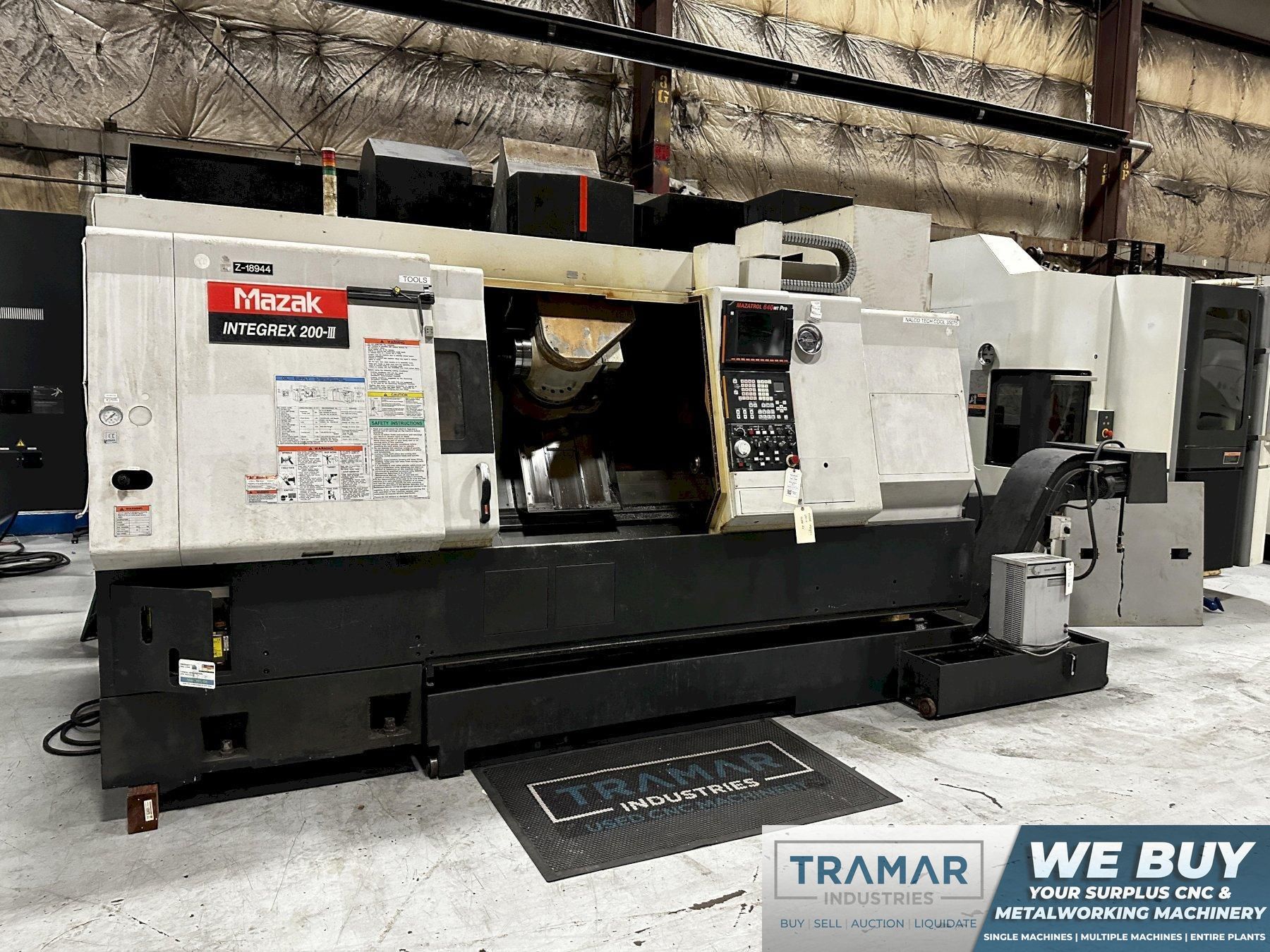

Mazak Integrex 200-III Used CNC Lathe For Sale - 2005

Equipped With:

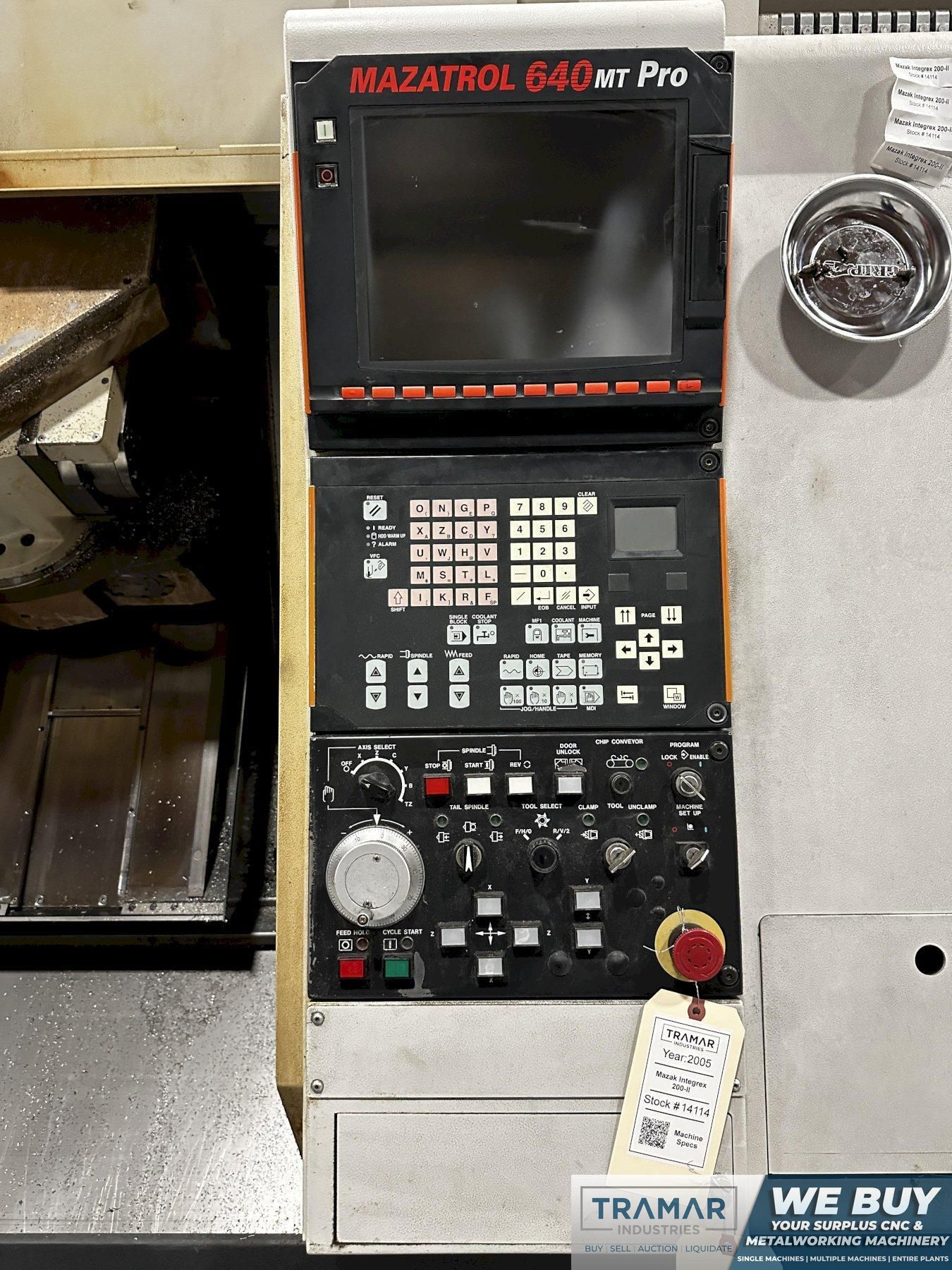

- Mazatrol 640MT Pro CNC Control
- Tool Presetter
- Tailstock

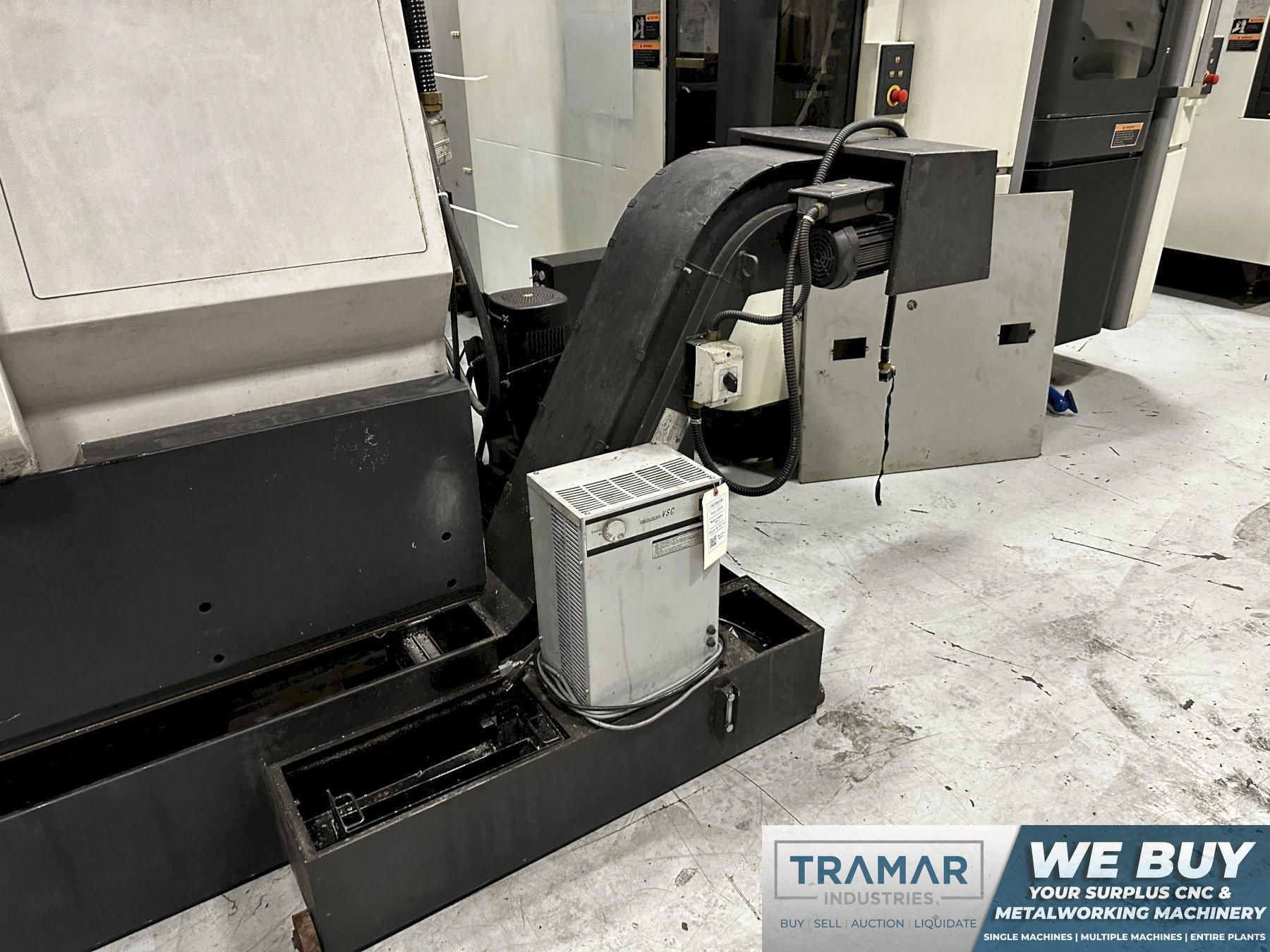

- Chip Conveyor
- Coolant Tank & Pumps
- Collet Chuck on Main Spindle
- KM63 Milling Spindle Taper
- Simultaneaous 5-Axis Control

Machine Specifications

Inch

Metric

Machine Specifications:

CNC Control

yes

Control Type

Mazatrol 640 MT Pro

# Axis

Chuck Size

10"

Swing

26"

Turning Diameter

26"

Center Distance

40"

Spindle Bore

X Axis Travel

22.83"

Y Axis Travel

6.3"

Z Axis Travel

41.14"

B Axis Head Tilt

225°

C Axis Index

0.001°

Y Axis (Yes / No)

yes

X Axis Rapid Feedrate

1,496 inches-per-minute

Z Axis Rapid Feedrate

1,496 inches-per-minute

Spindle Speed

5,000 rpm

Main Motor

30 hp

Live Tooling

yes

Live Tooling Spindle Taper

KM-63

Live Tooling Speed

12,000 rpm

Live Tooling Motor

25 hp

ATC Capacity

40 Station Tool Changer

Tailstock (Yes/No)

yes

Dimensions

151" x 90" x 103"

Weight

19,500 pounds

Equipped With:

- Mazatrol 640MT Pro CNC Control
- Tool Presetter
- Tailstock
- Chip Conveyor
- Coolant Tank & Pumps
- Collet Chuck on Main Spindle
- KM63 Milling Spindle Taper
- Simultaneaous 5-Axis Control

The Mazak Integrex 200-III is an exclusive part of our Lathes (3-Axis or More) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
