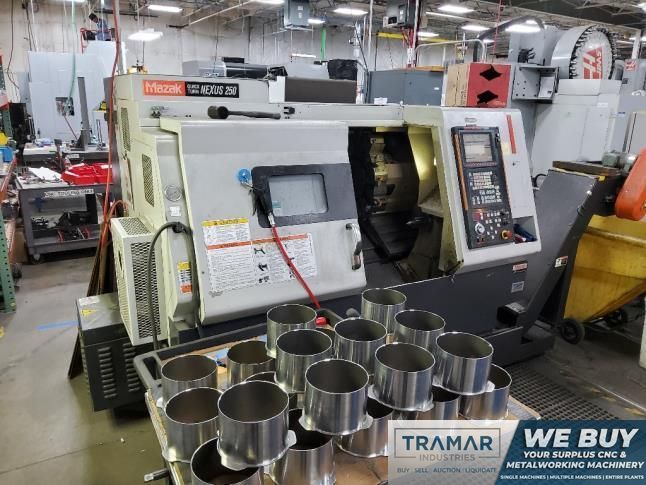

Mazak QTN-250 - Horizontal Lathes

Share Machine
Specifications Print Specs
Model: QTN-250
Year: 2006
Stock #: 13982 Sold
Highlights:

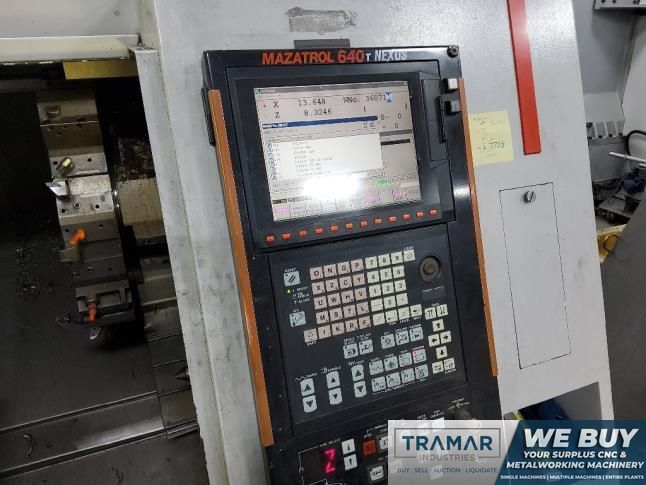

- Mazatrol 640T Nexus CNC Control
- Tailstock

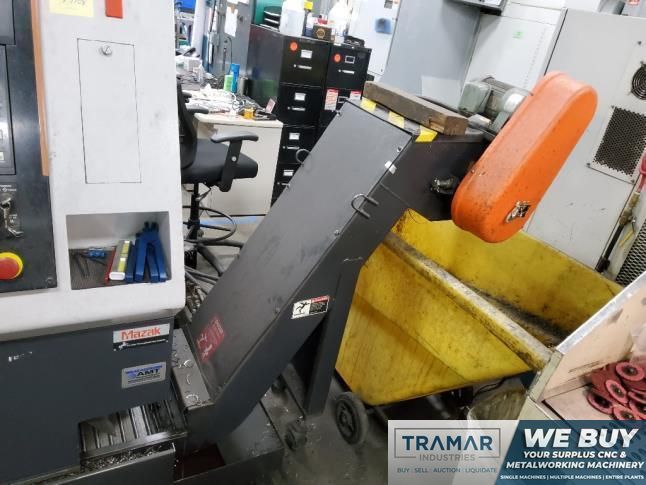

- Chip Conveyor
- Coolant Tank

Mazak QTN-250 CNC Lathe For Sale - 2006
Machine Specifications
CNC Control
yes
CNC Control
Mazatrol 640T Nexus
# Axis
2
Swing
26.4"
Turning Diameter
14.75"
Center Distance
30"
Chuck Size
10"
Bar Capacity
3"
X Axis Travel
9.05"
Z Axis Travel
22.63"
Rapid Traverse (X/Z)
1,181 ipm
Spindle Nose
A2-8
Spindle Speed
4,000 rpm
Main Motor
30 hp
Live Tooling
no
Tailstock
yes
Y Axis
no
Sub Spindle
no
Turret Capacity
12
Machine Dimensions
99" x 70" x 73"
Machine Weight
11,000 pounds

Equipped With:

- Mazatrol 640T Nexus CNC Control
- Tailstock
- Chip Conveyor
- Coolant Tank

The Mazak QTN-250 is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
