Mazak QTN-450II - Horizontal Lathes

Request Quote
Specifications Print Specs
Model: QTN-450II
Year: 2014
Stock #: 13491
Highlights:

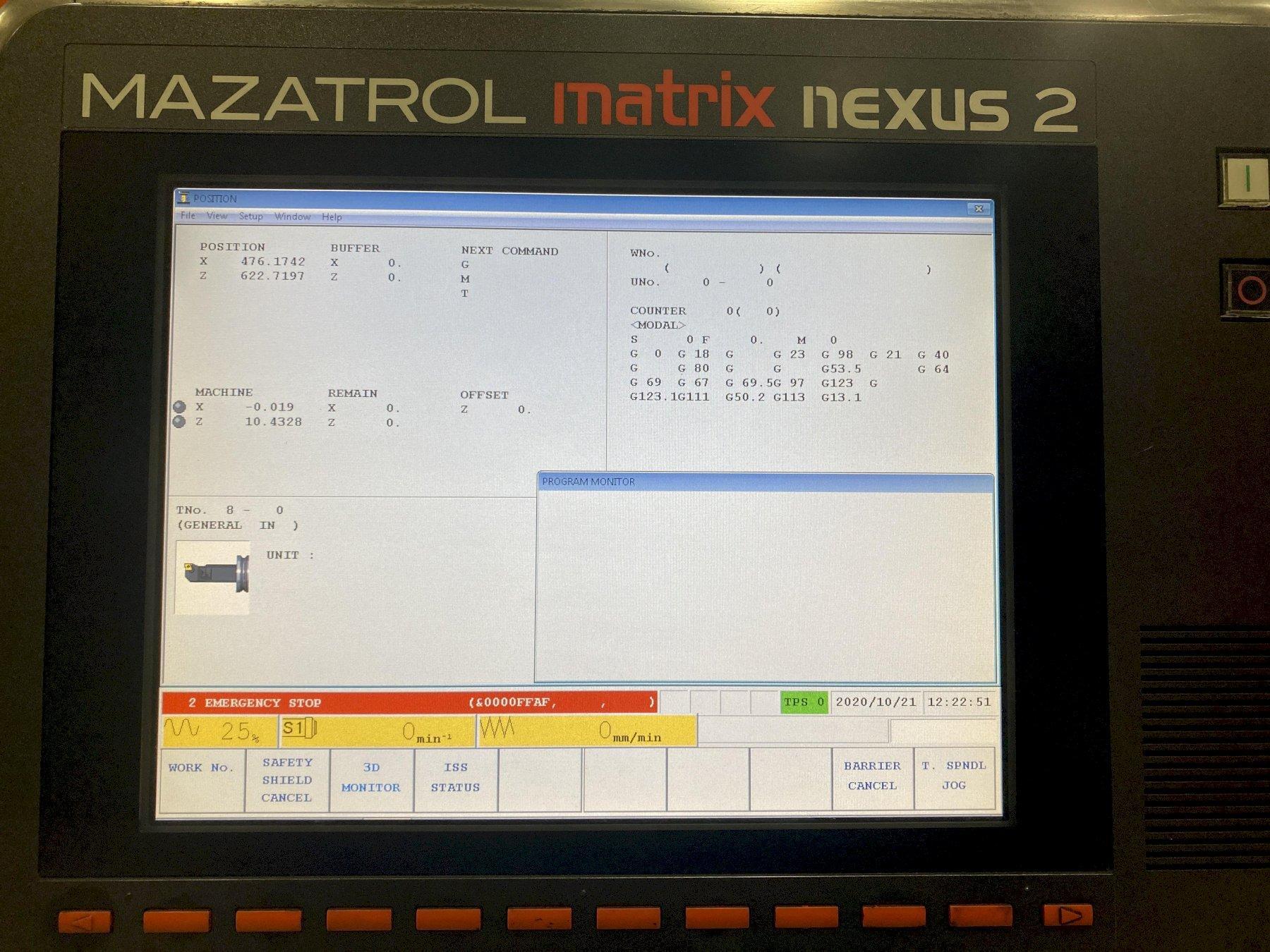

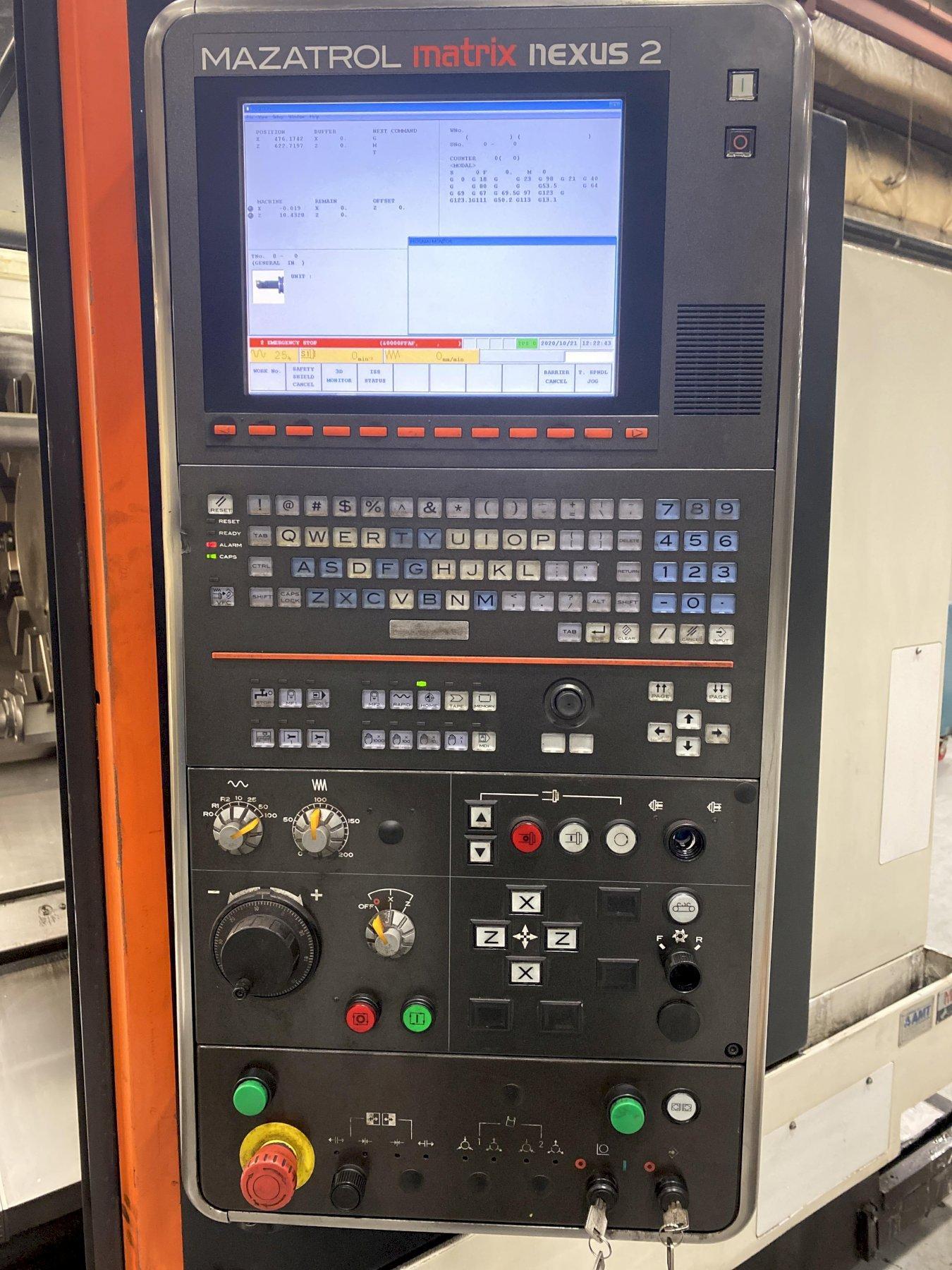

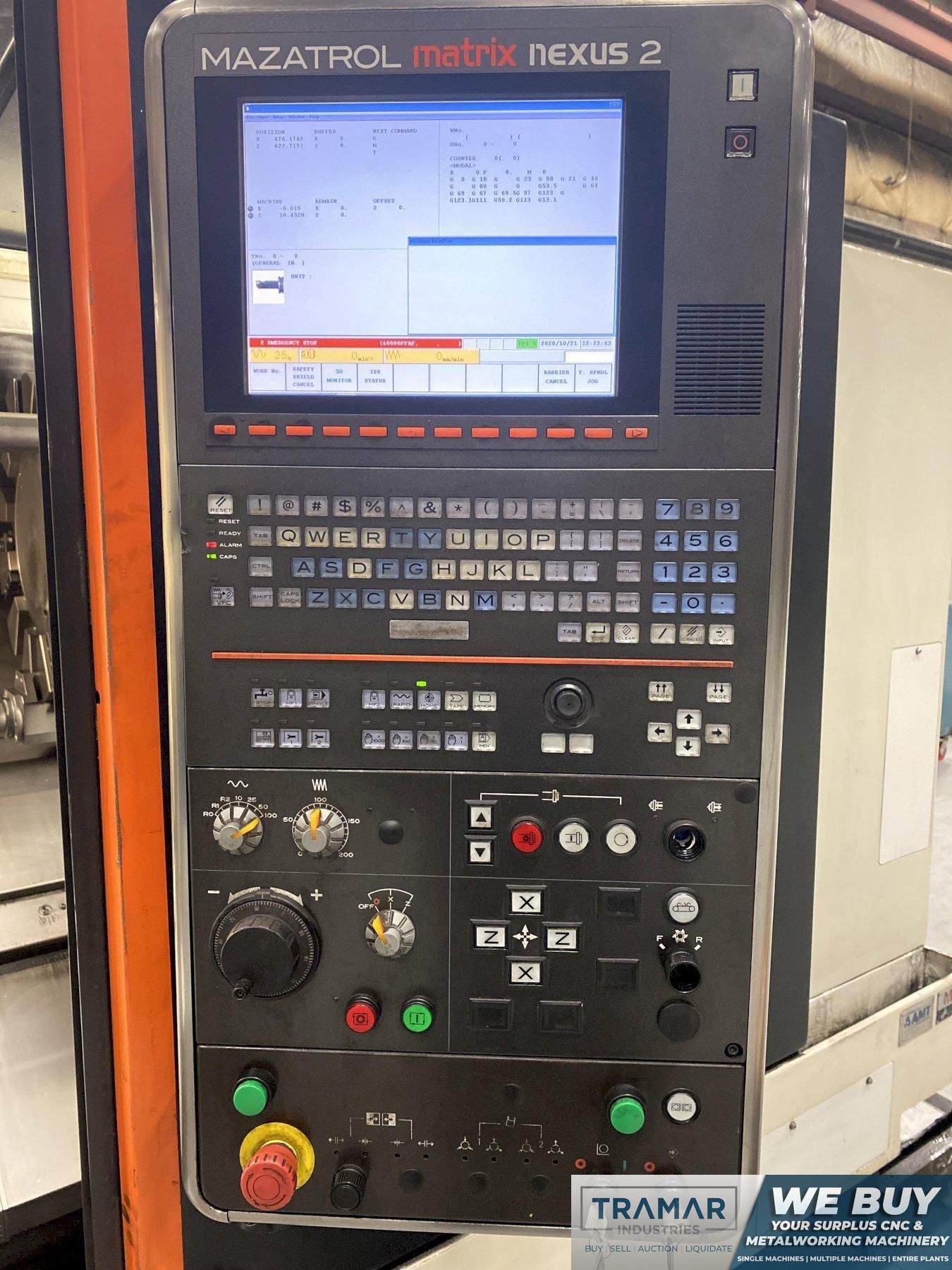

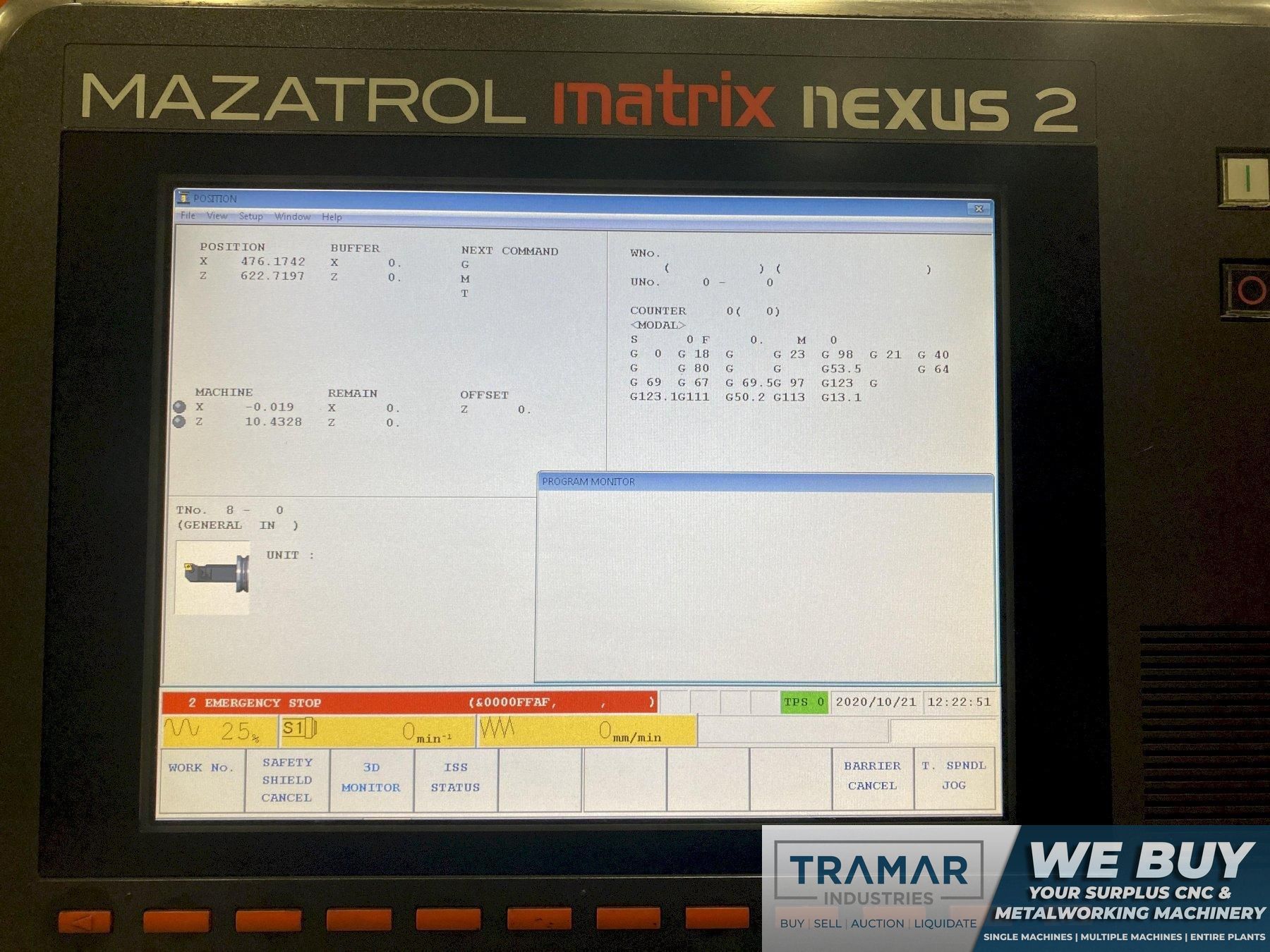

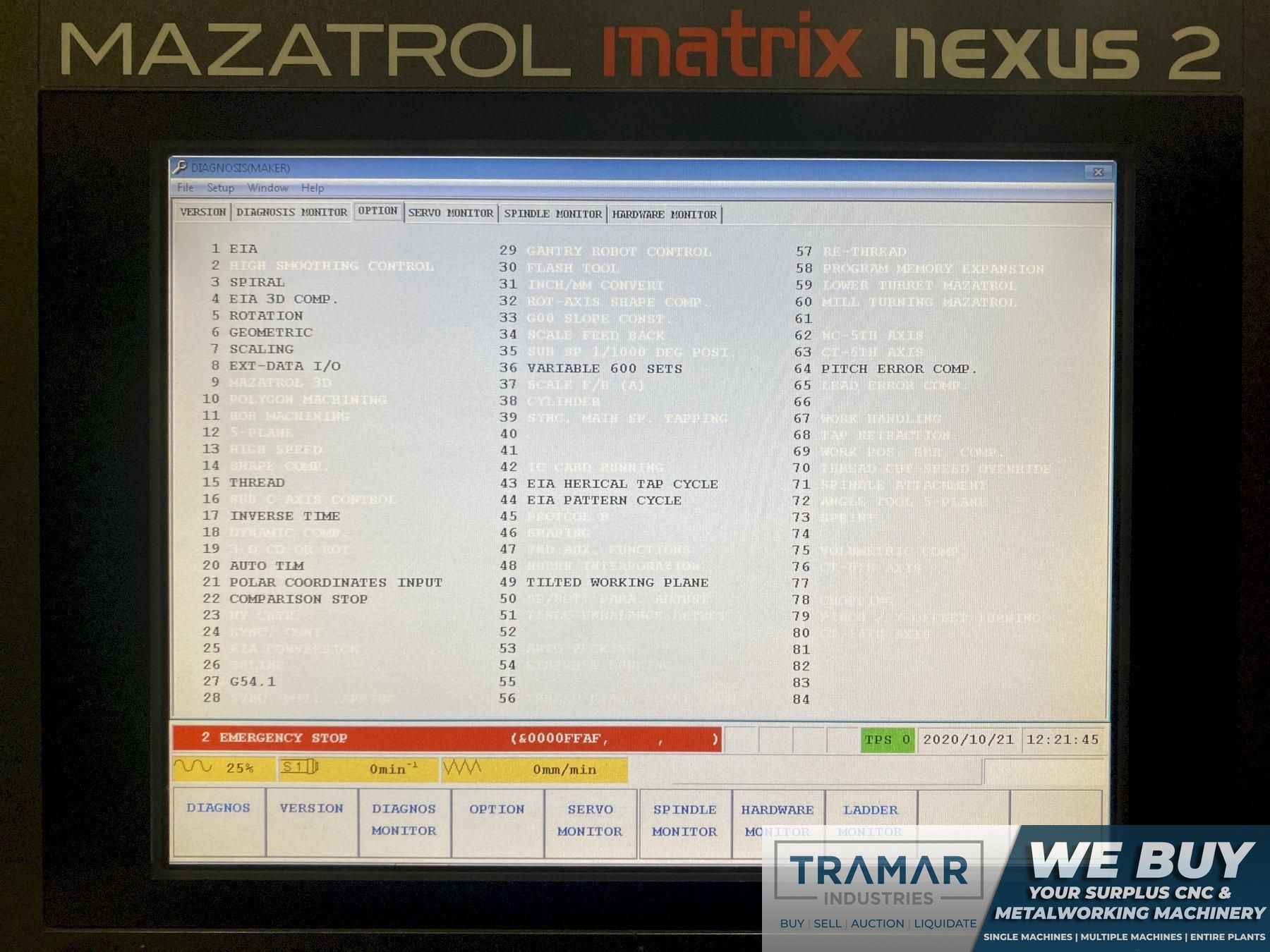

Mazatrol Matrix Nexus 2 Control
Big Bore - 6.7" Bar Capacity
33" Swing | 40" Center Distance
NC Programmable Tailstock

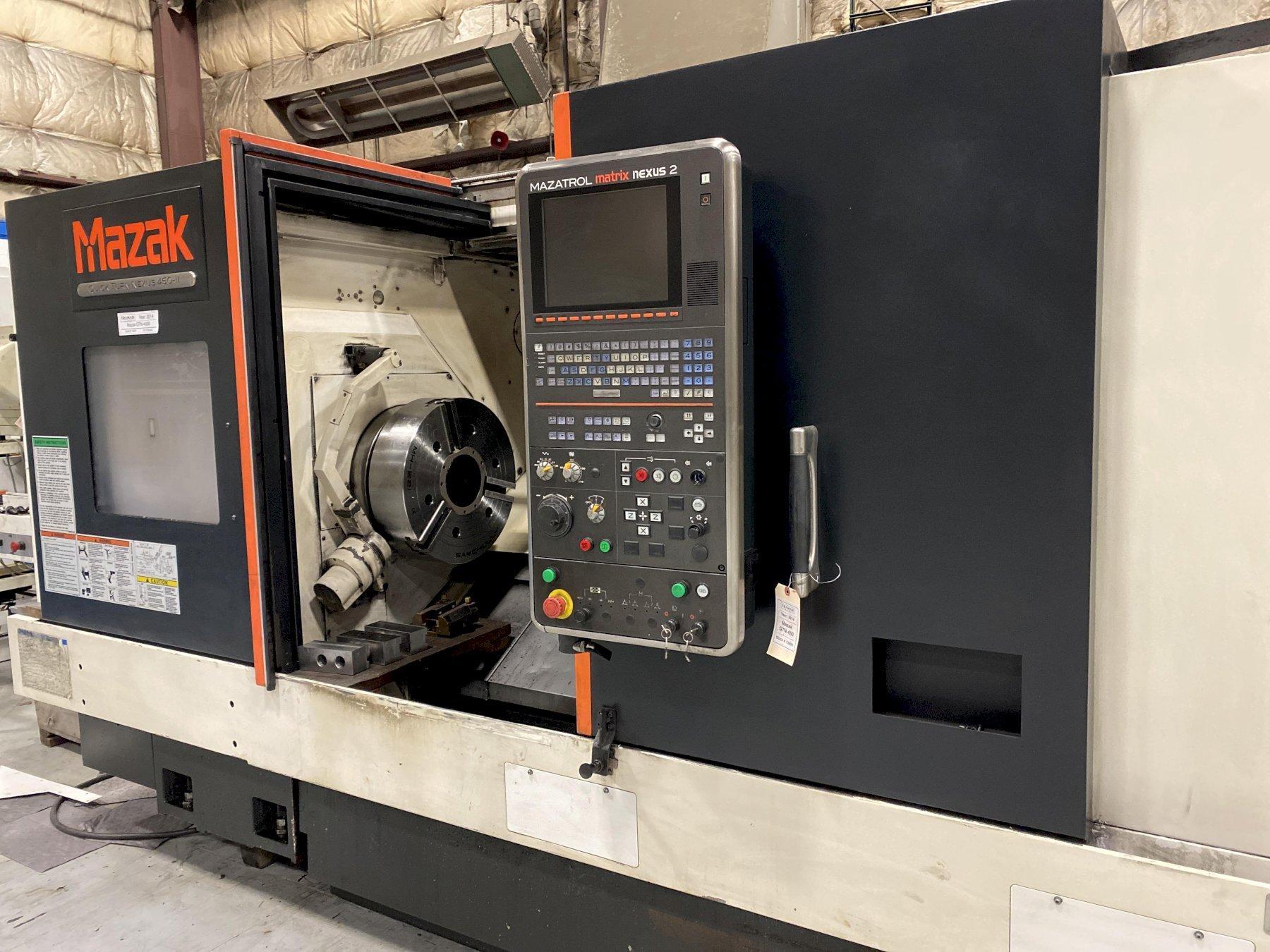

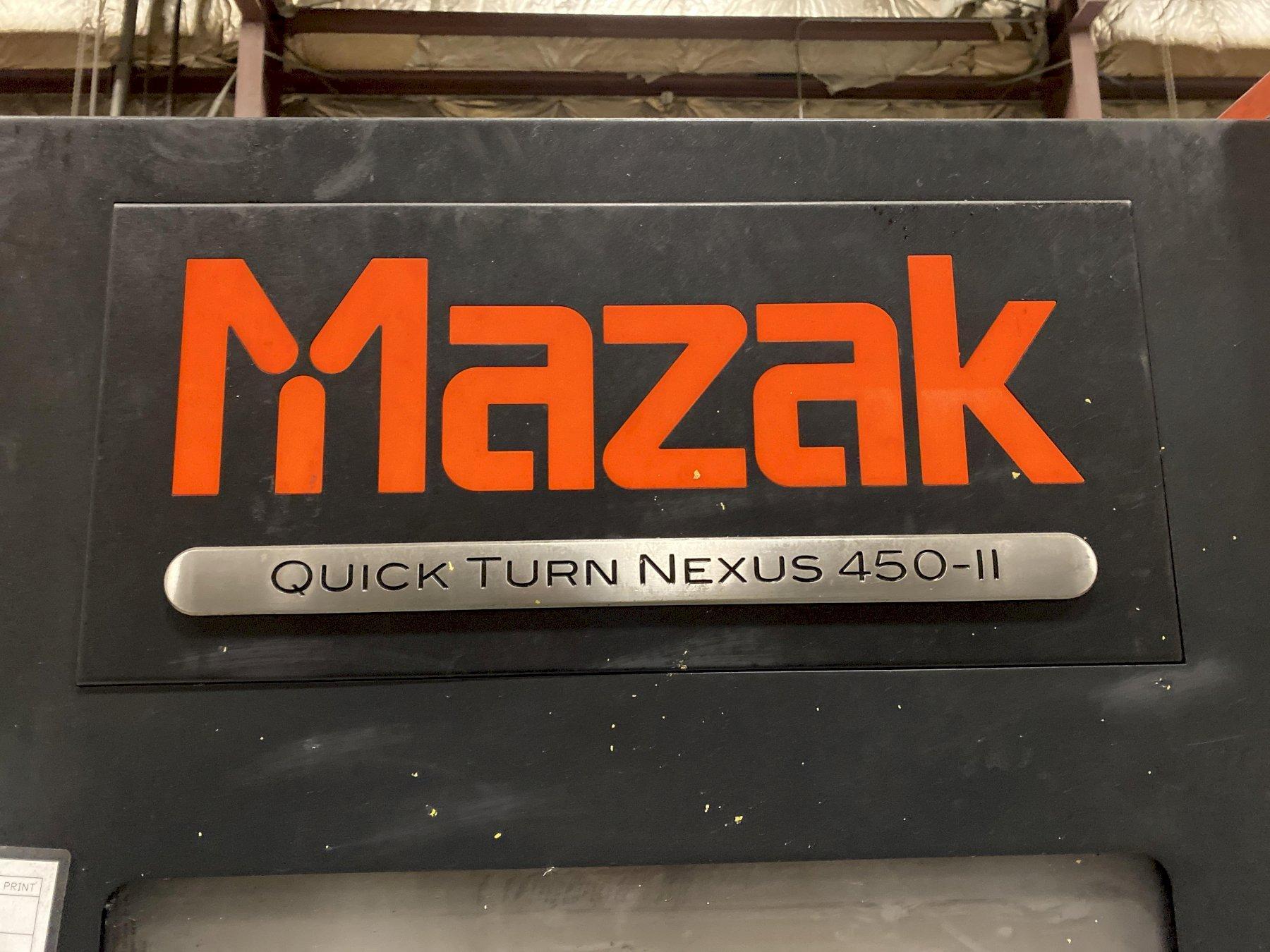

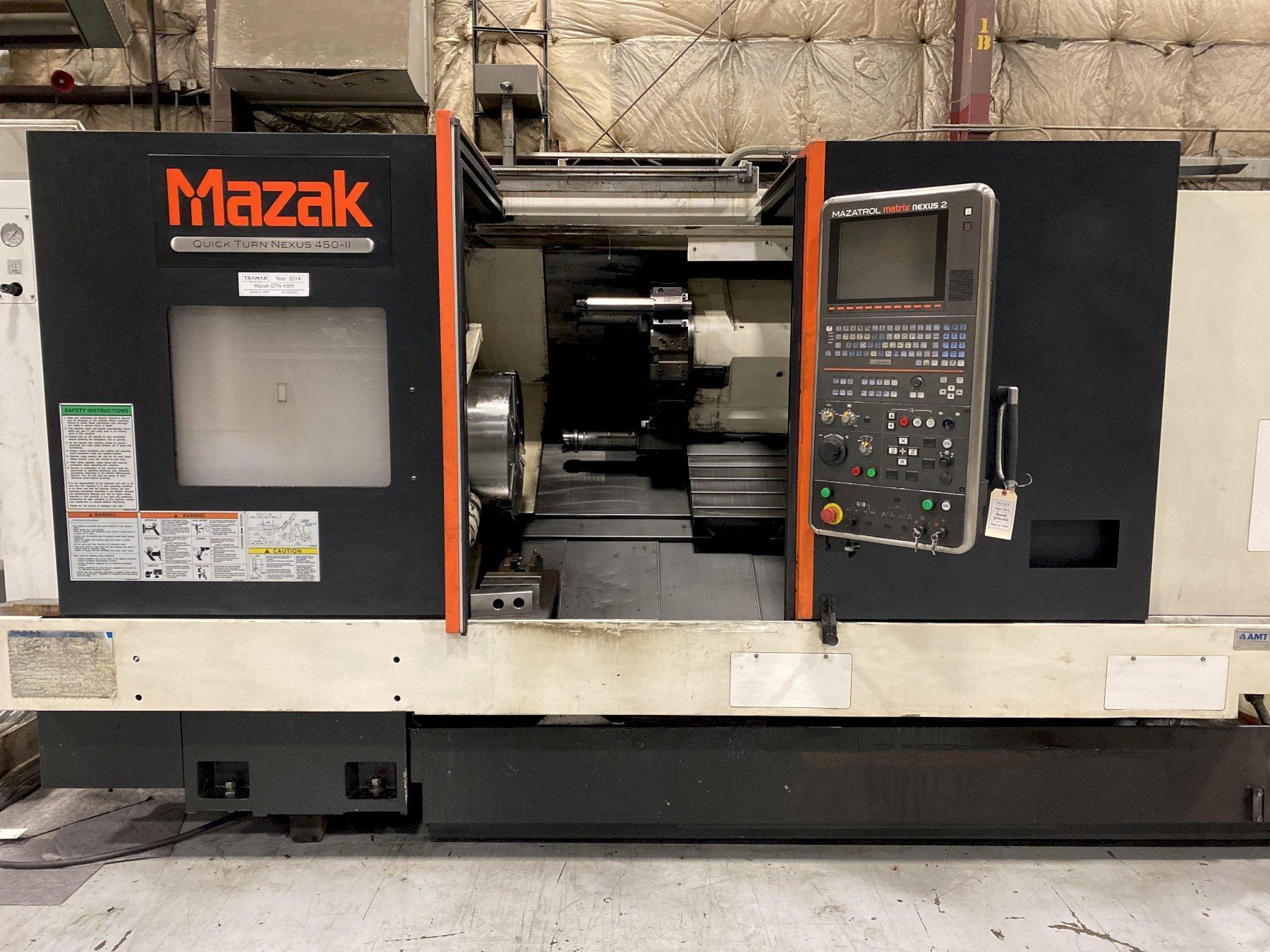

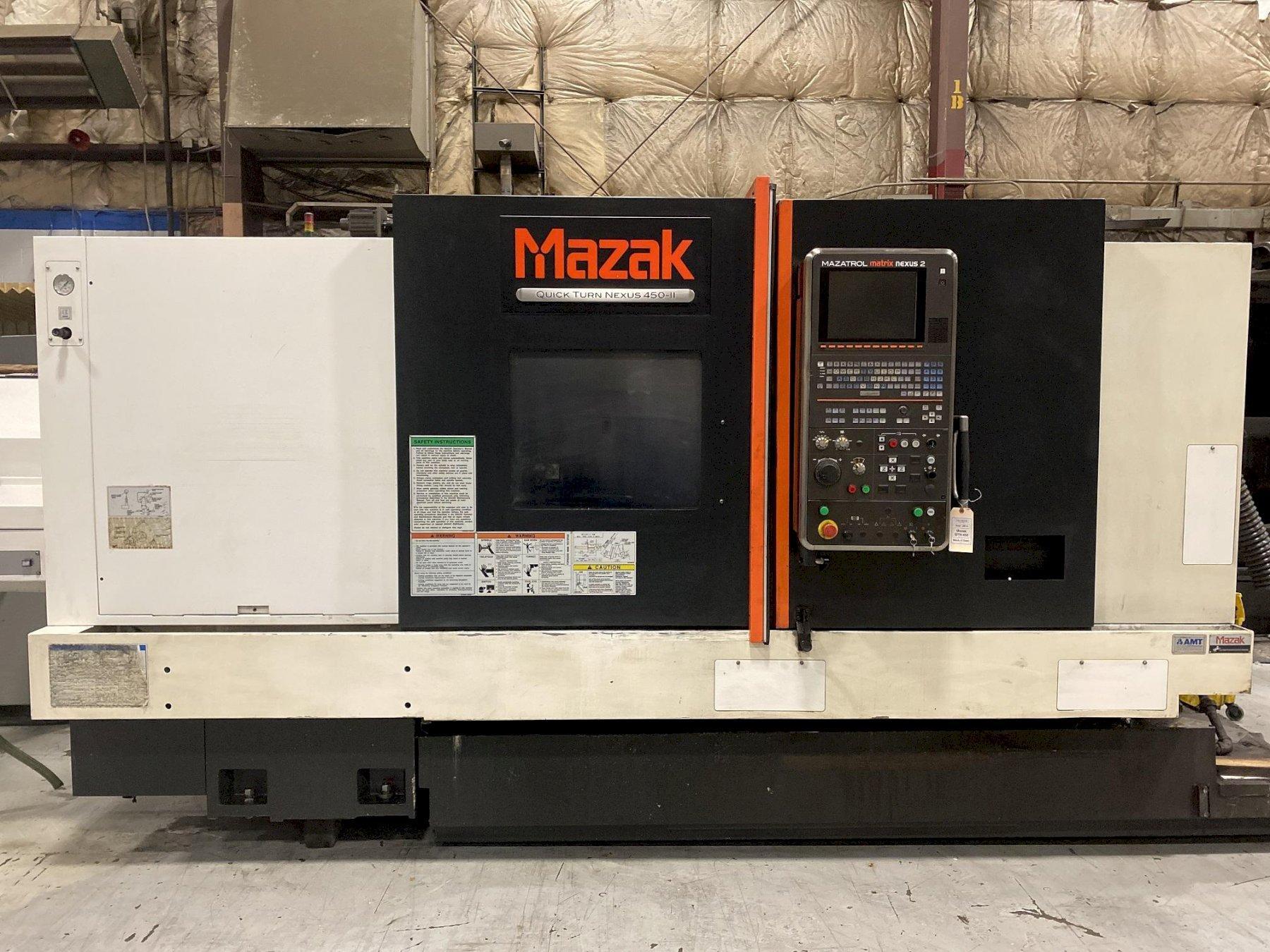

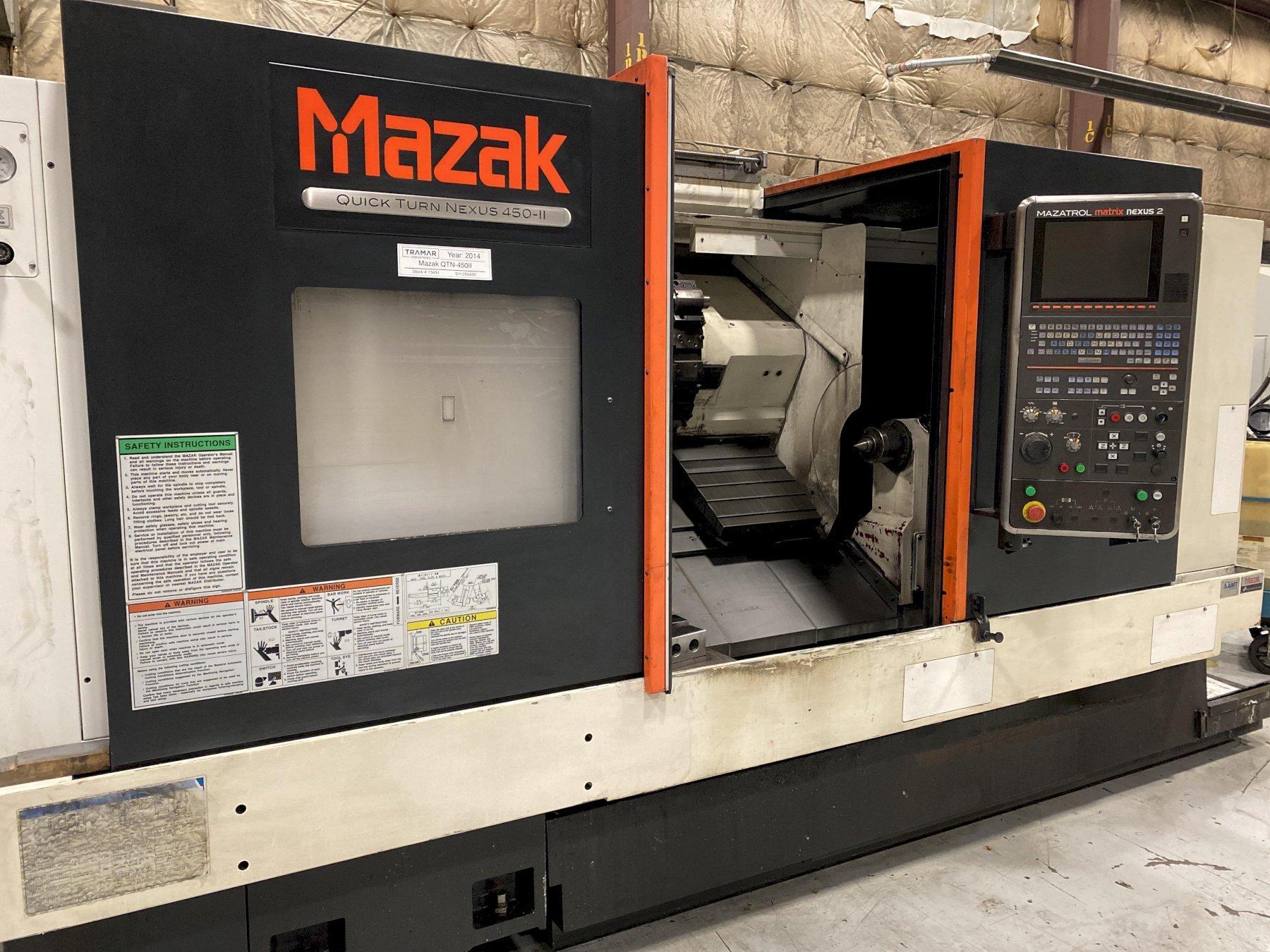

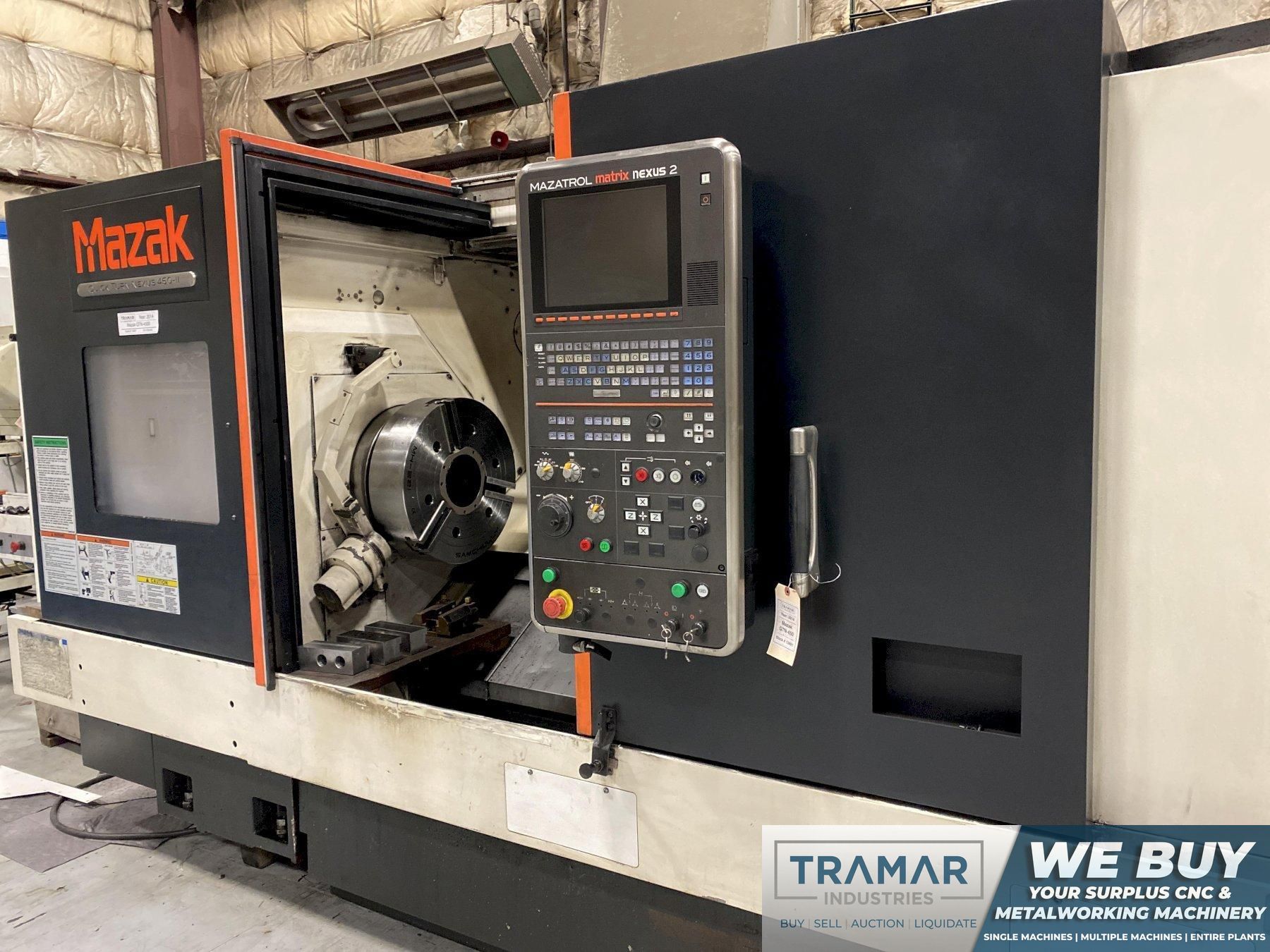

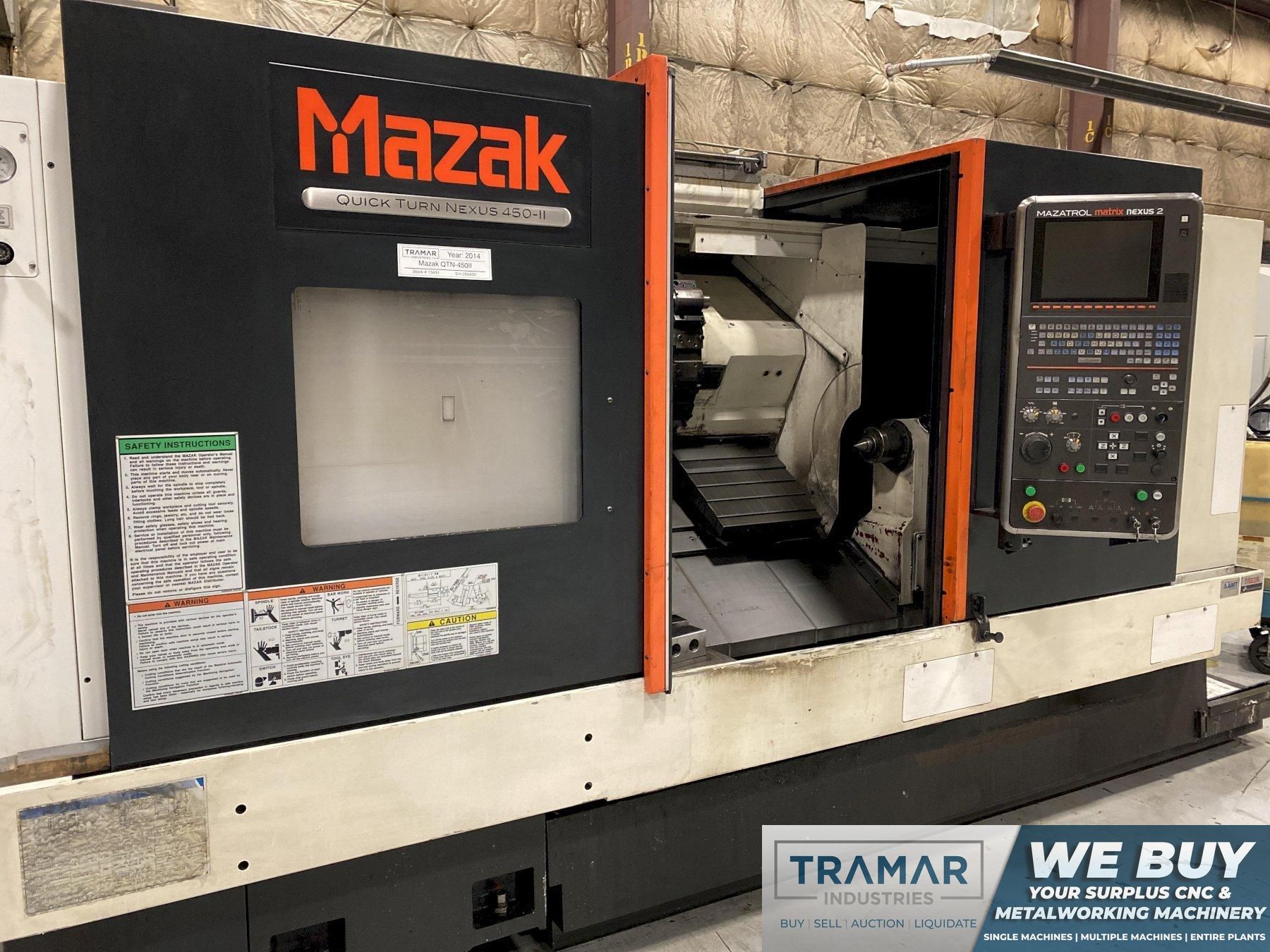

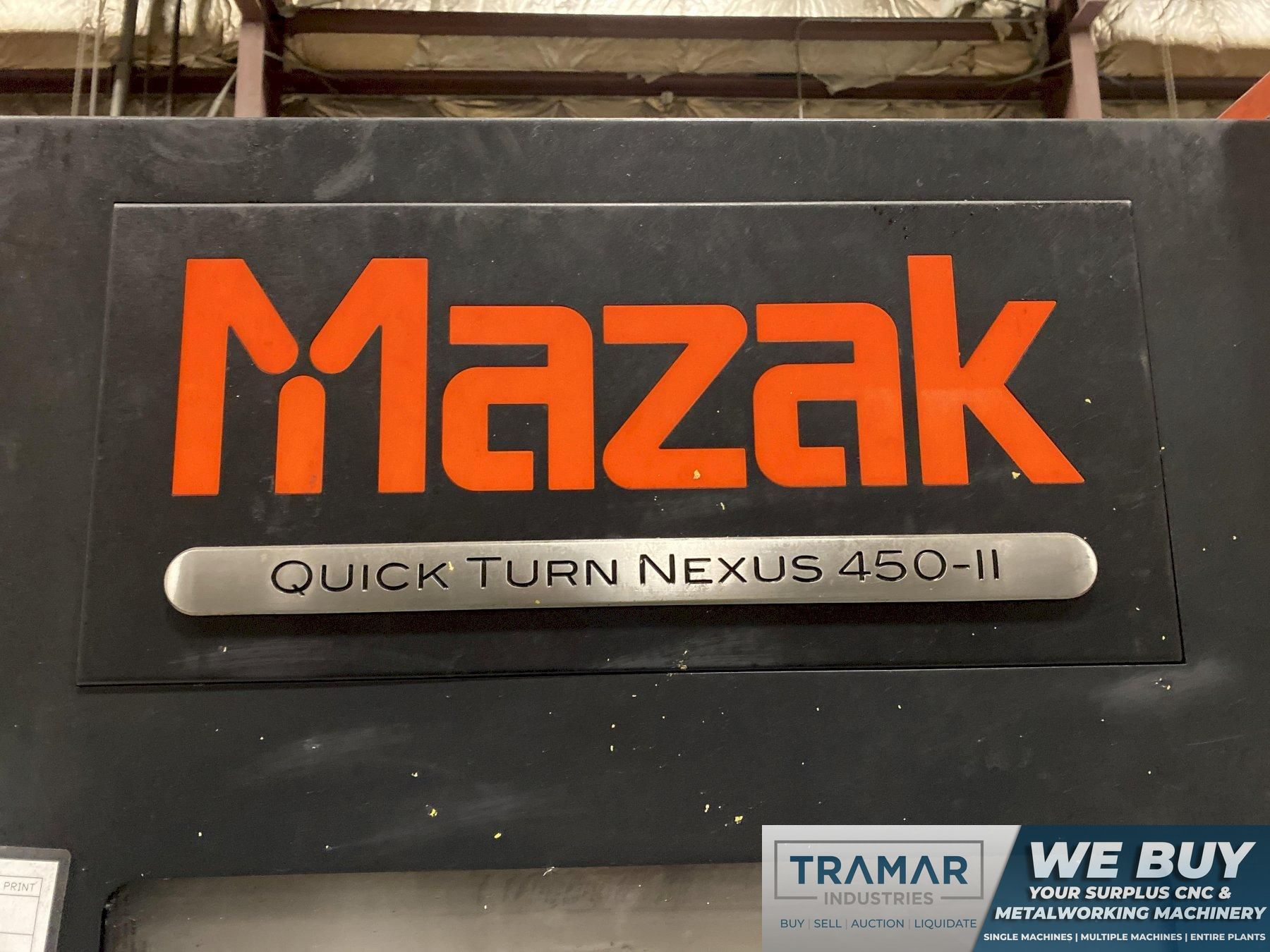

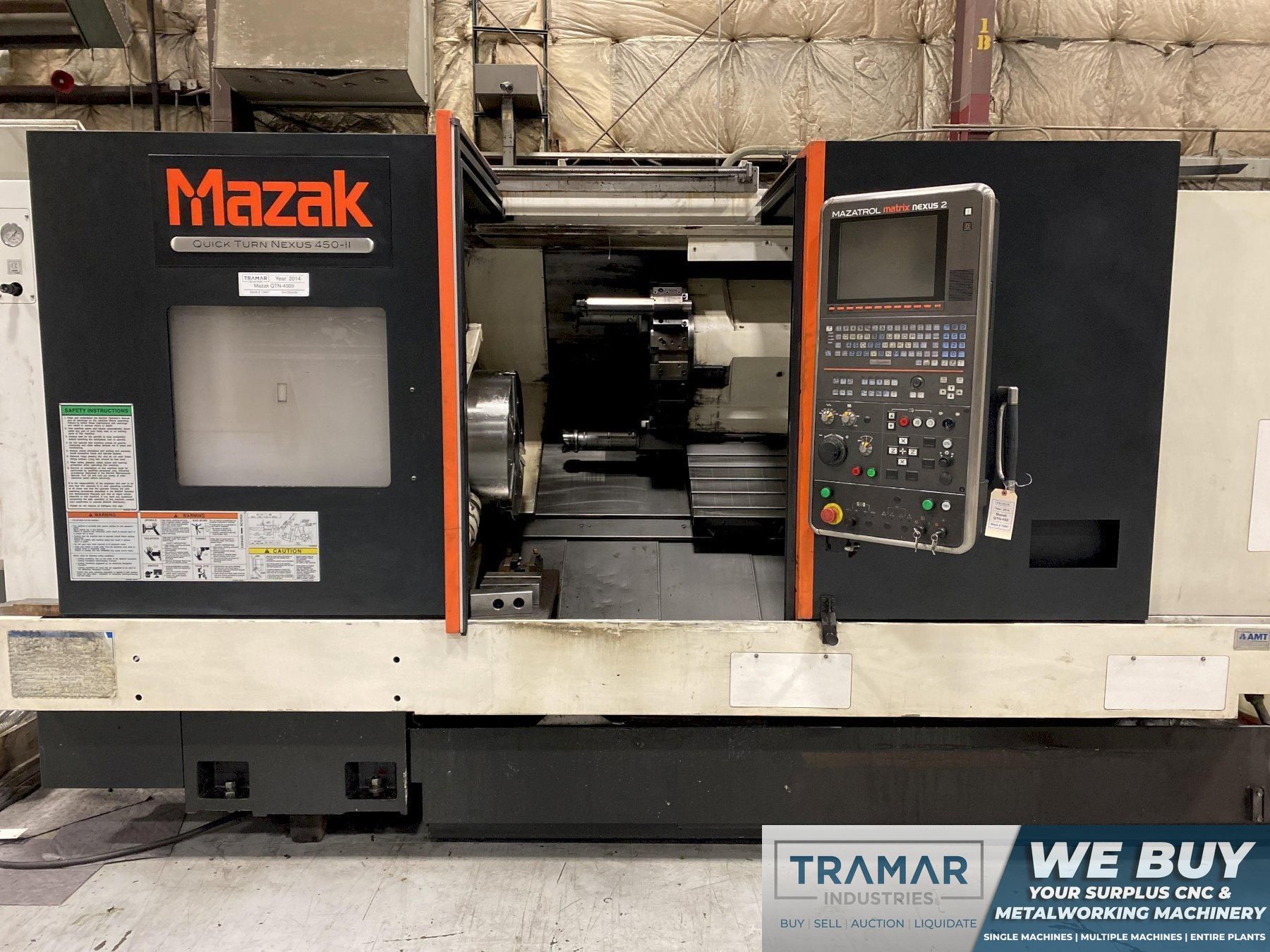

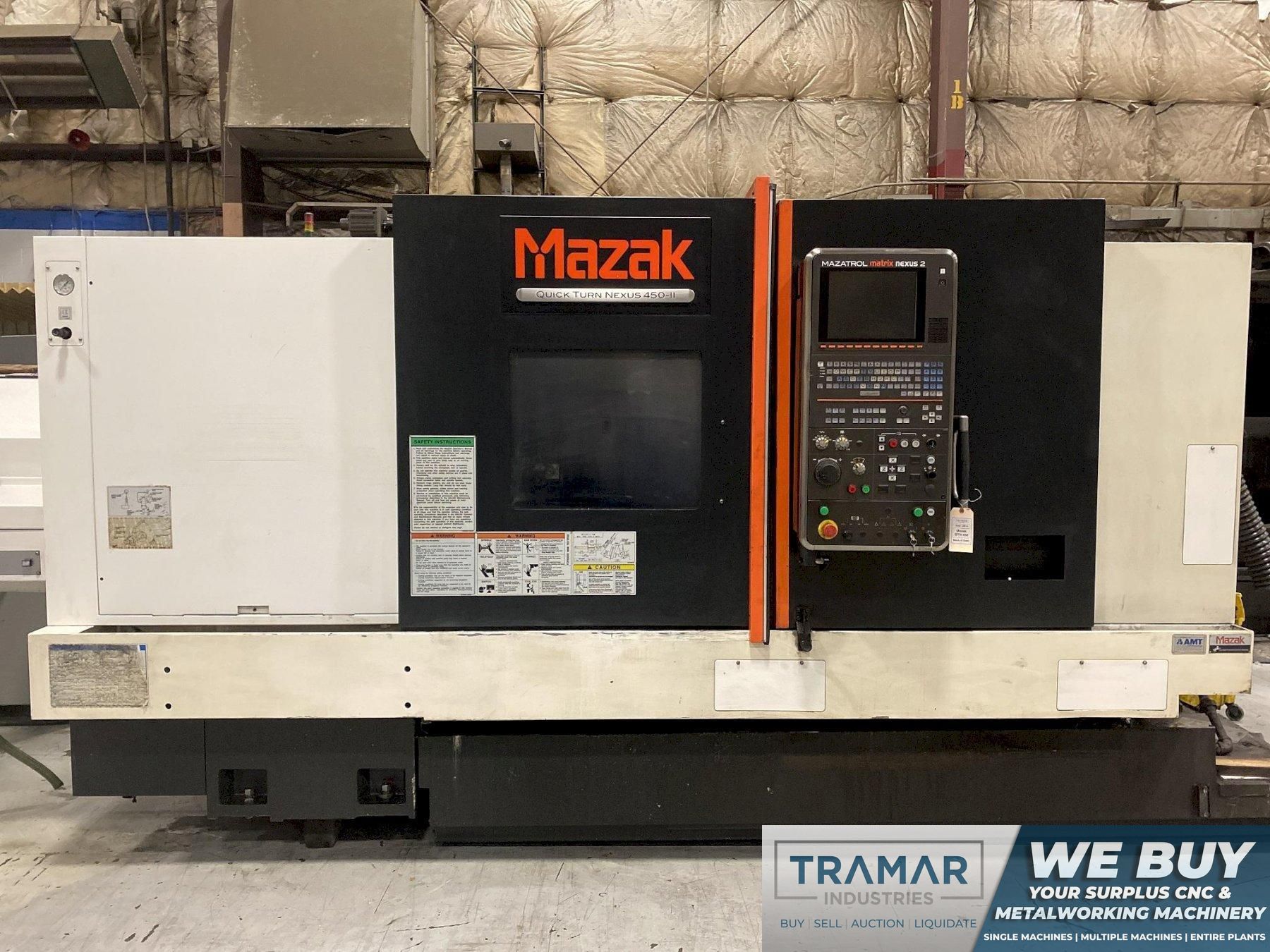

Mazak QTN-450II Horizontal CNC Lathe 2014
Machine Specifications
Year
2014
# Axis
2
Swing
33.27"
Turning Diameter
23"
Center Distance
38.69"

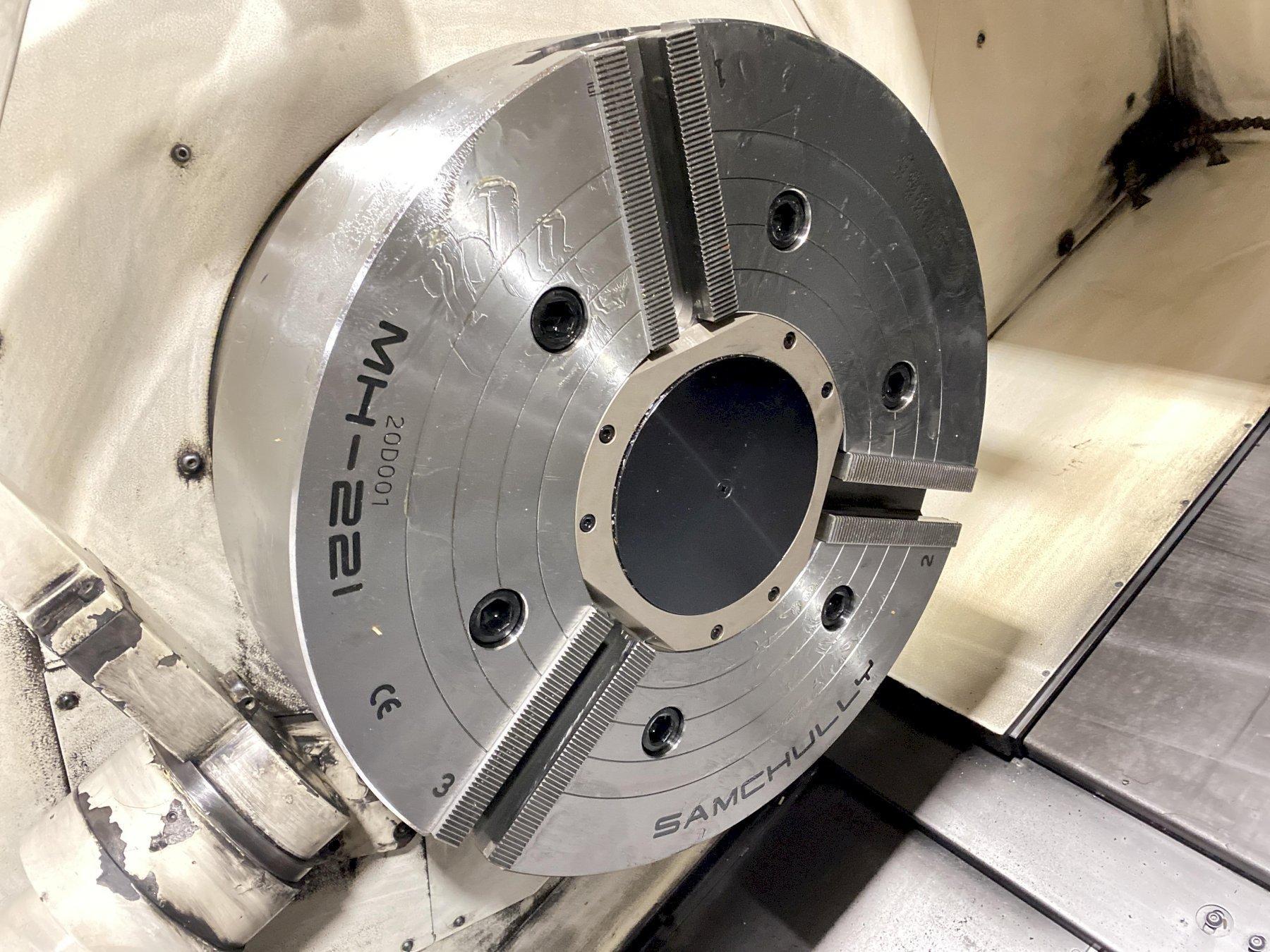

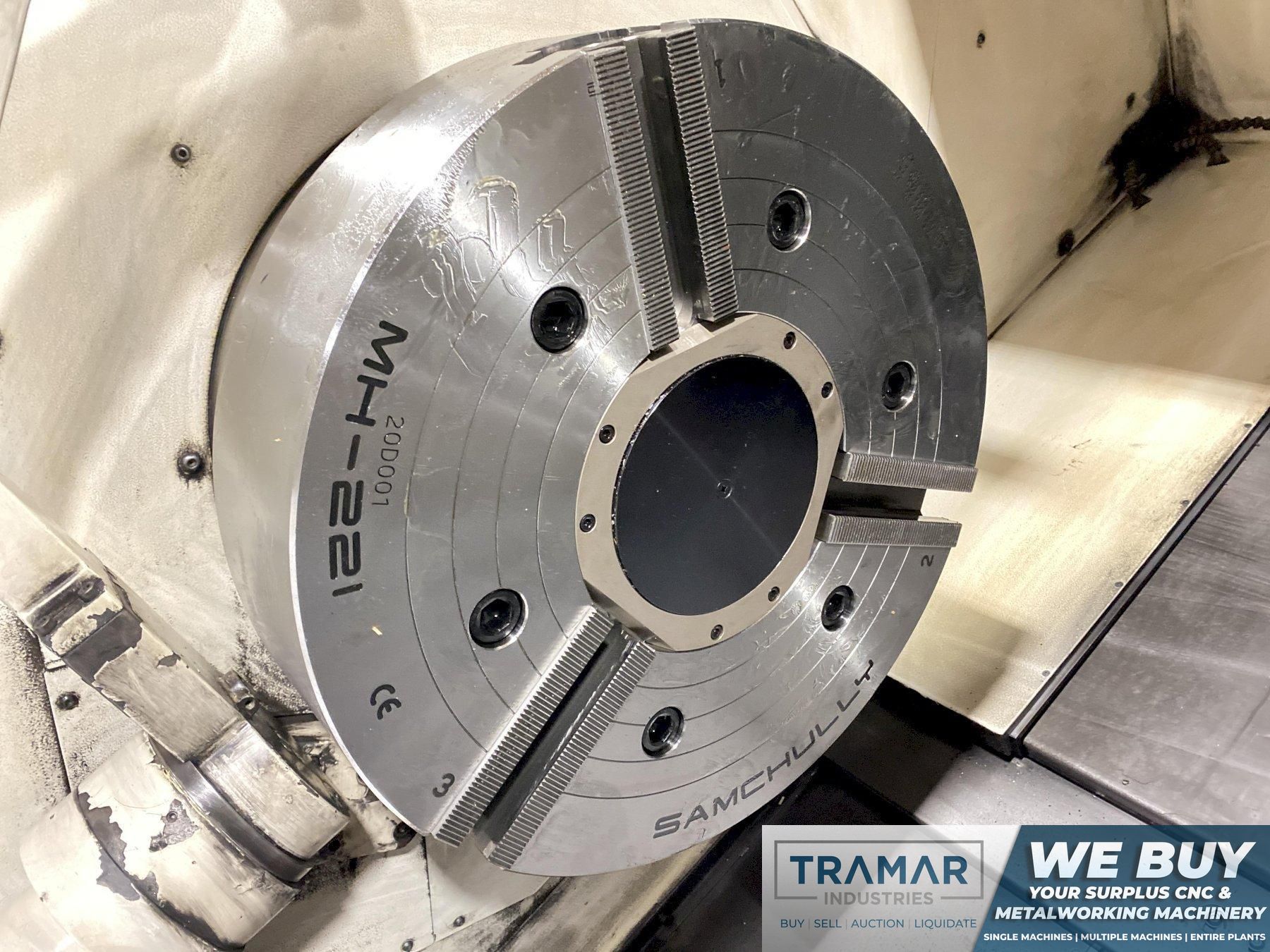

Chuck Size
21"
Bar Capacity
6.7"
X Axis Travel
12.13"
Z Axis Travel
42.13"
Rapid Traverse (X/Z)
1,181/1,299 ipm
Spindle Nose
A2-15
Spindle Speed
2,000 rpm
Main Motor
50 hp
Live Tooling
no
Tailstock
yes
Y Axis
no
Sub Spindle
no

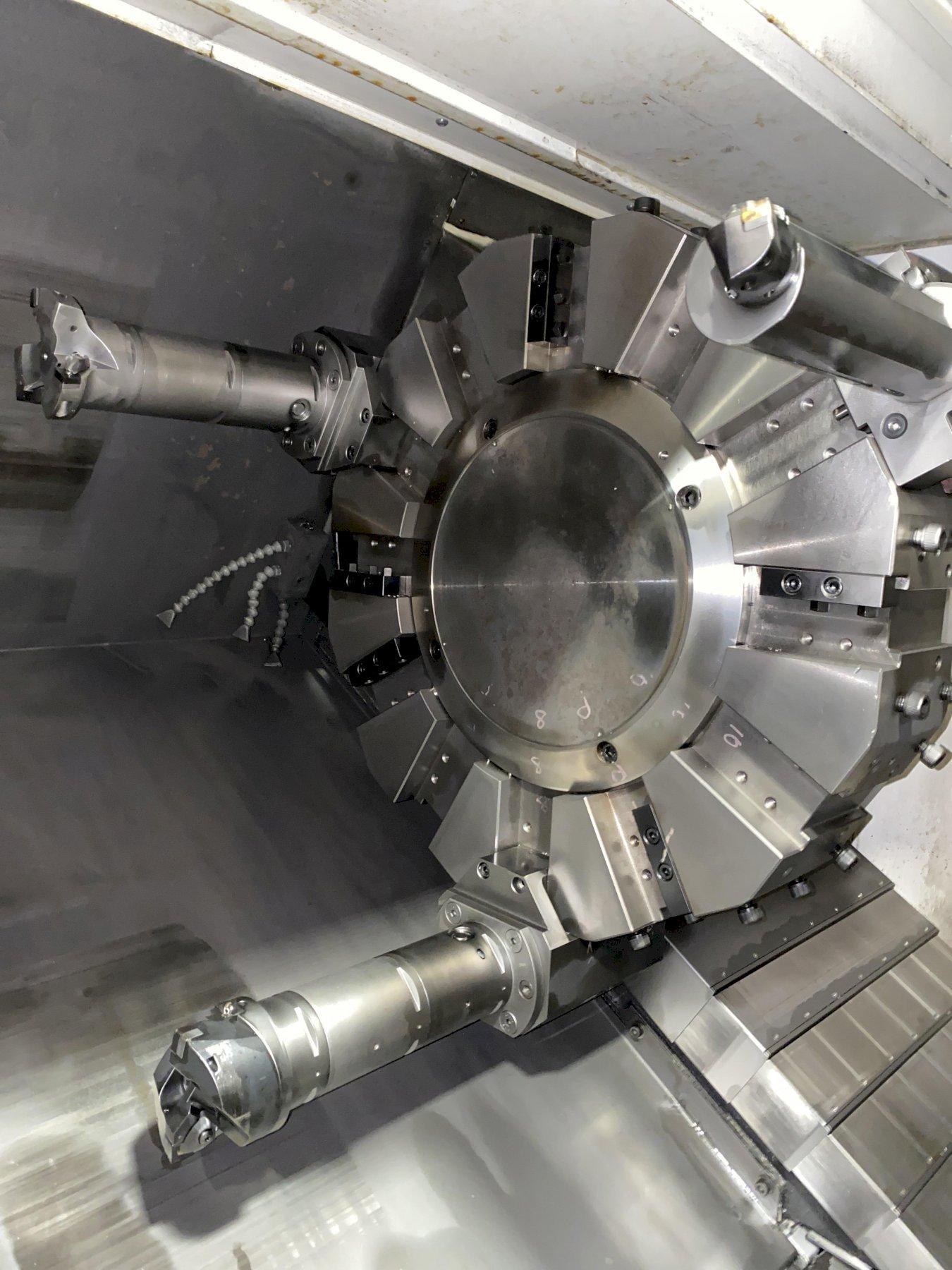

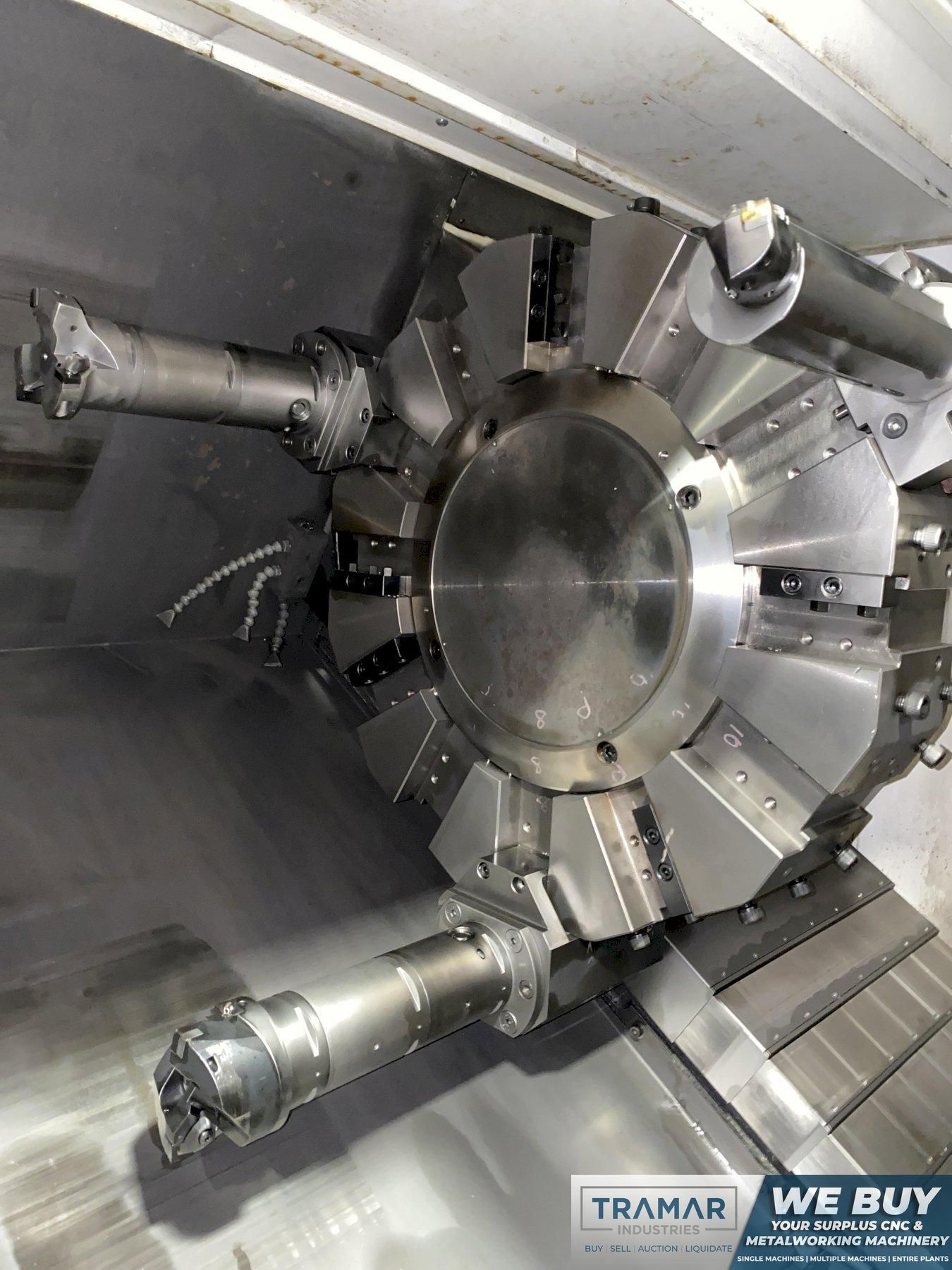

Turret Capacity
12
Machine Dimensions
178" x 99" x 84"
Machine Weight
19,000 pounds

Equipped With:

- Mazatrol Matrix Nexus 2 Control
- NC Programmable Tailstock
- EIA
- Auto Tool Length Measurement
- Coolant Tank
- Chip Conveyor

The Mazak QTN-450II is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
