Mazak Quick Turn 250 - Horizontal Lathes

Request Quote
Share Machine
Specifications Print Specs
Model: Quick Turn 250
Year: 2001
Stock #: 13581
Highlights:

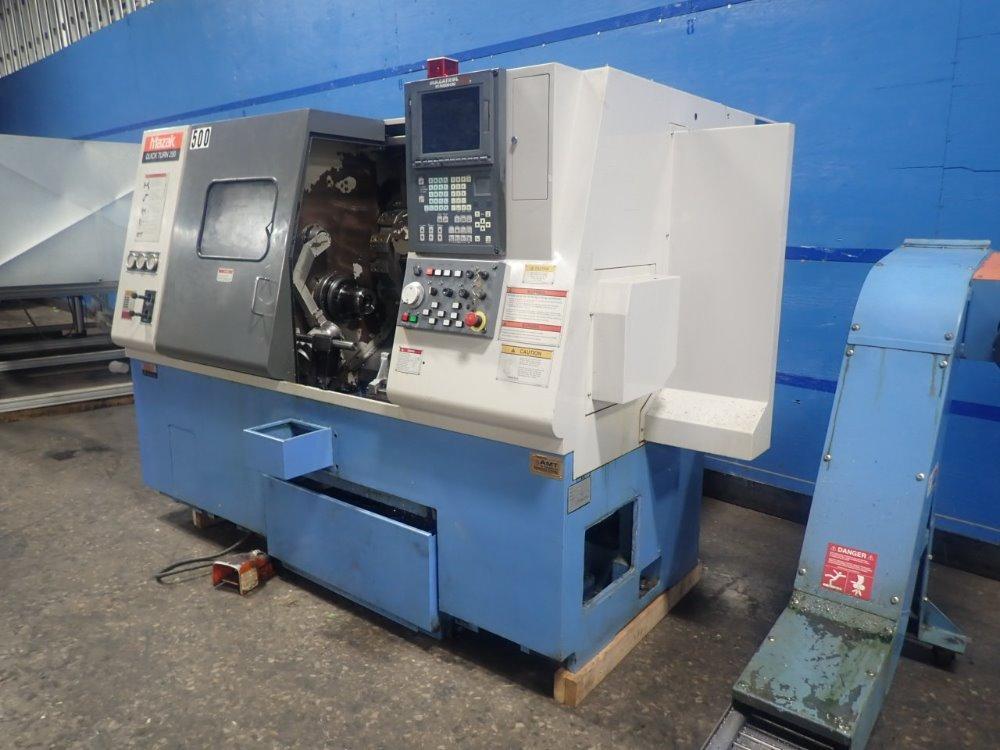

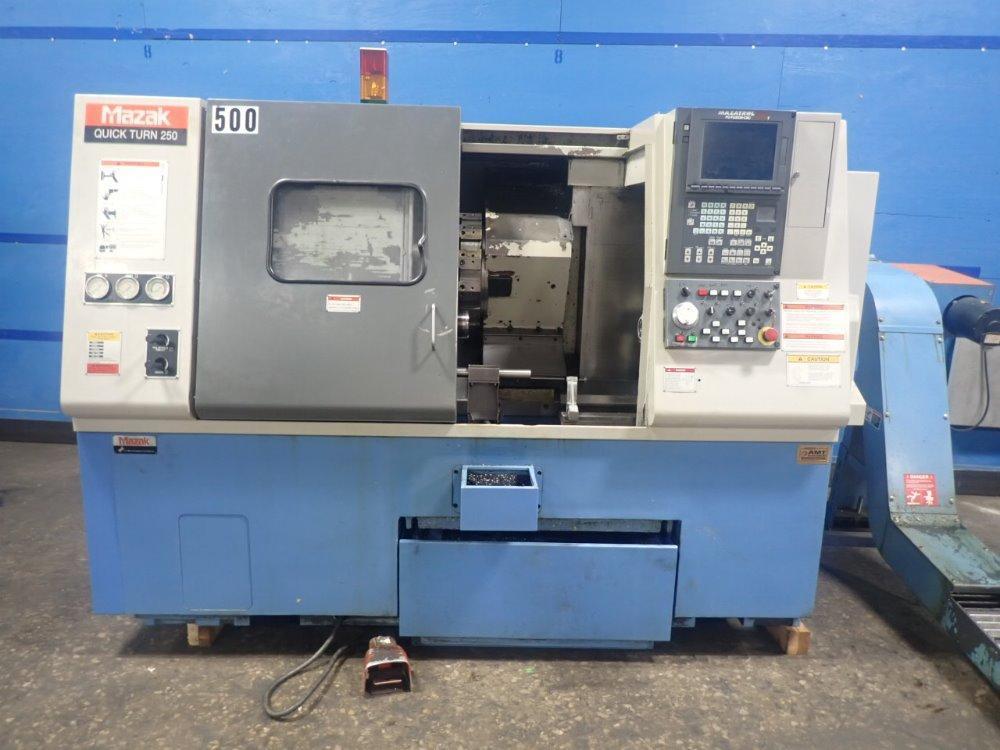

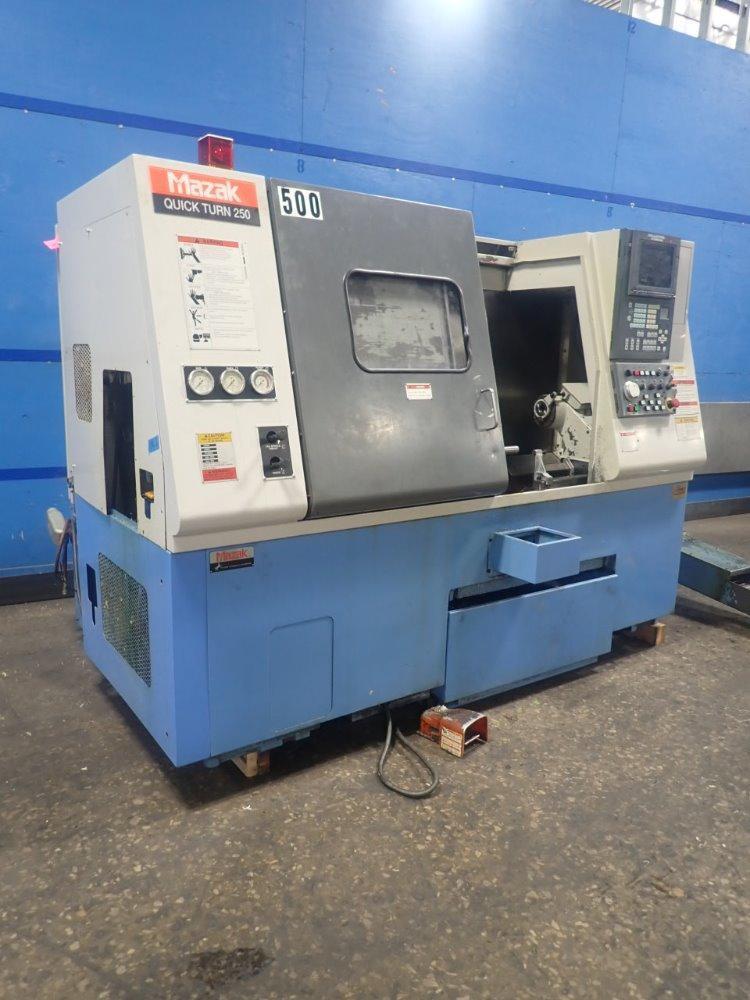

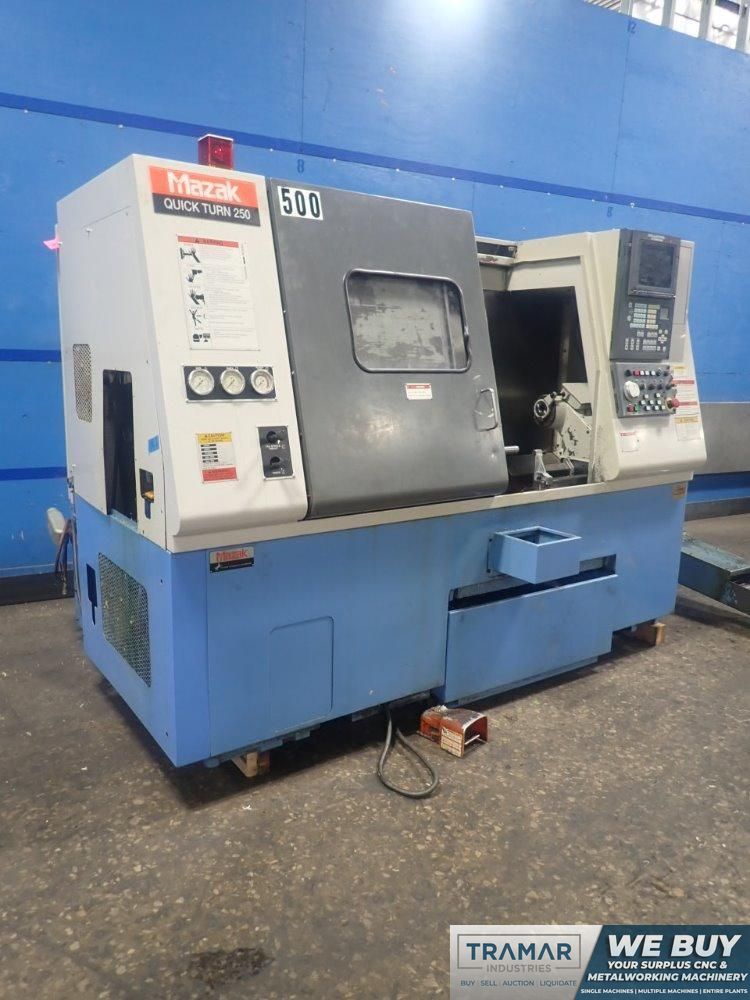

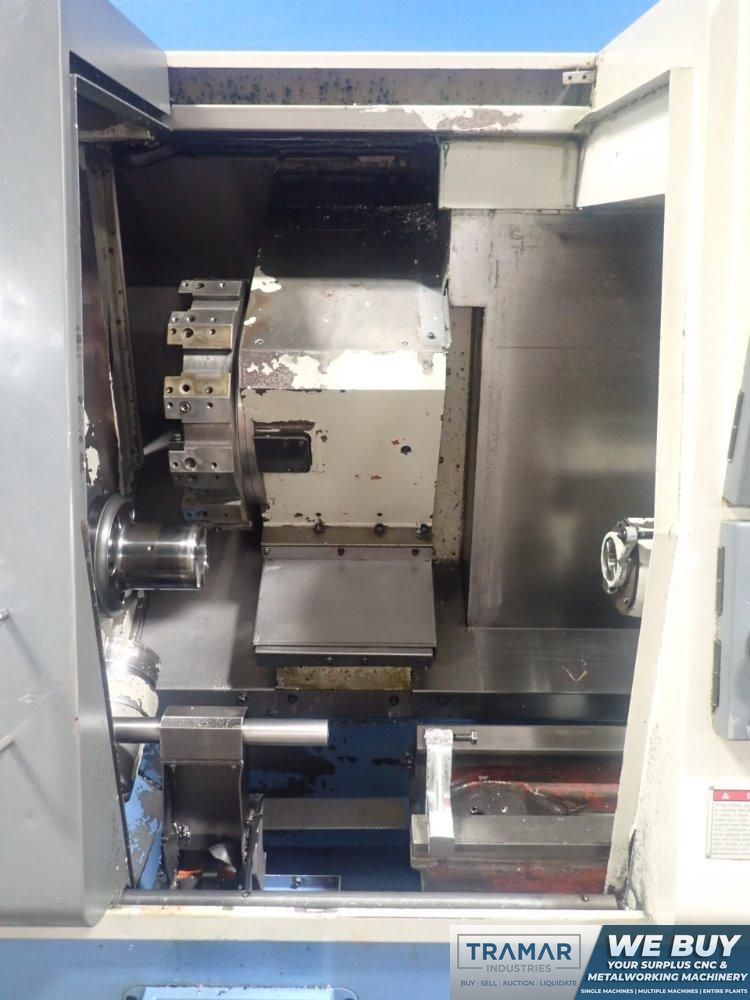

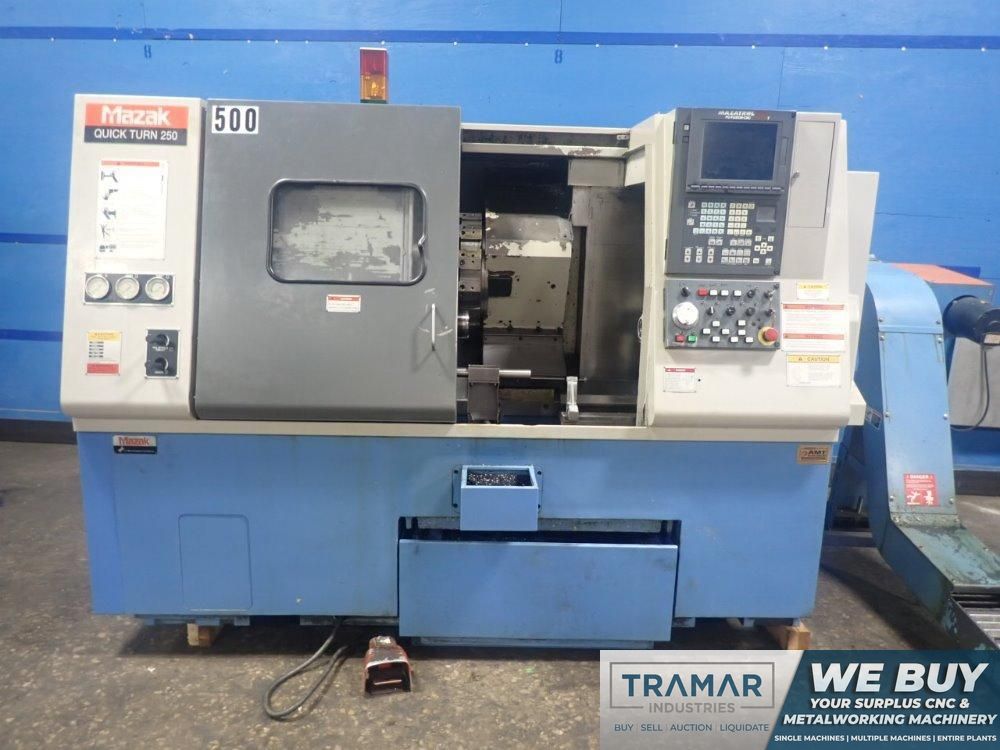

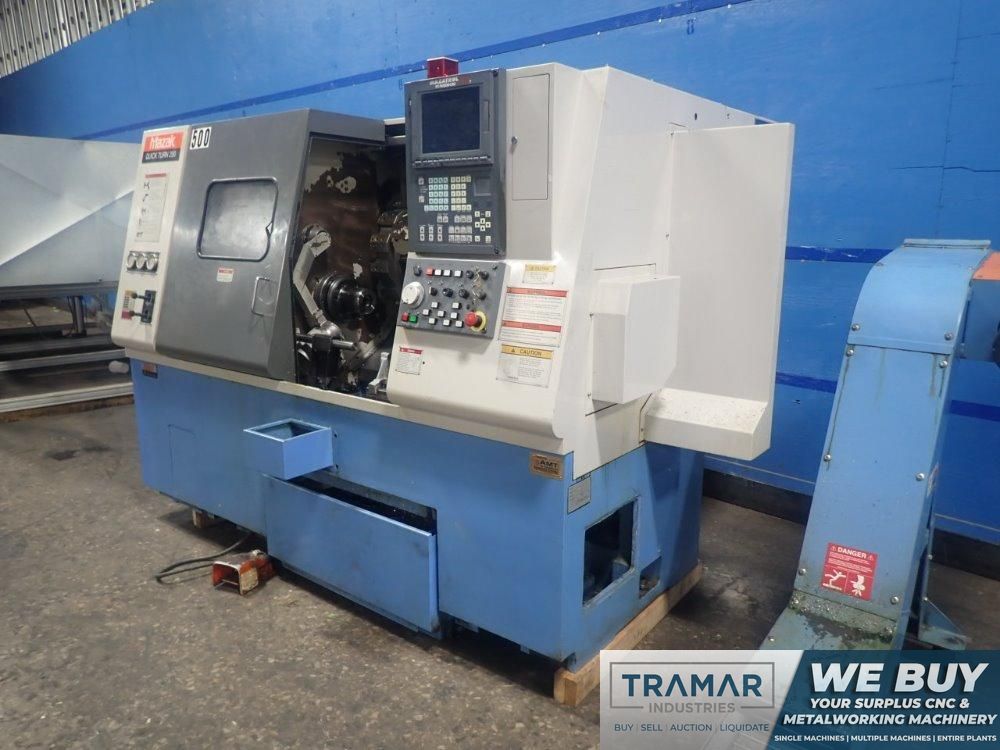

Mazak Quick Turn 250 CNC Lathe
Machine Specifications
Year
2001
# Axis
2
Swing
23.6"
Turning Diameter
15.7"
Center Distance
24.6"
Chuck Size
8"
Bar Capacity
2.05"
X Axis Travel
8.5"
Z Axis Travel
20.1"

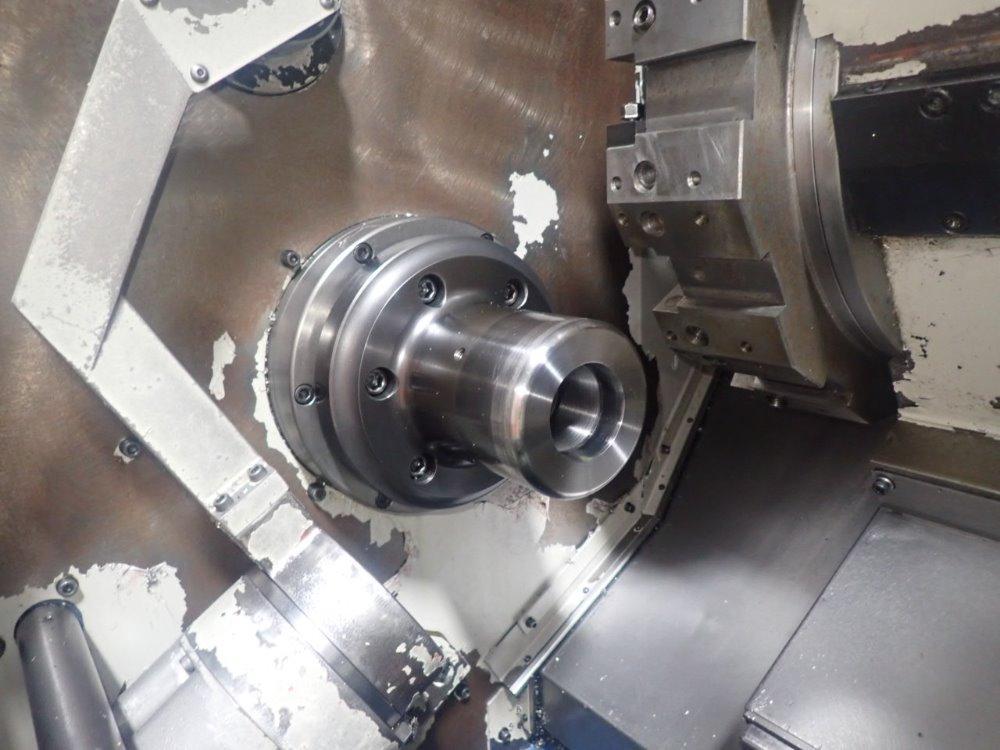

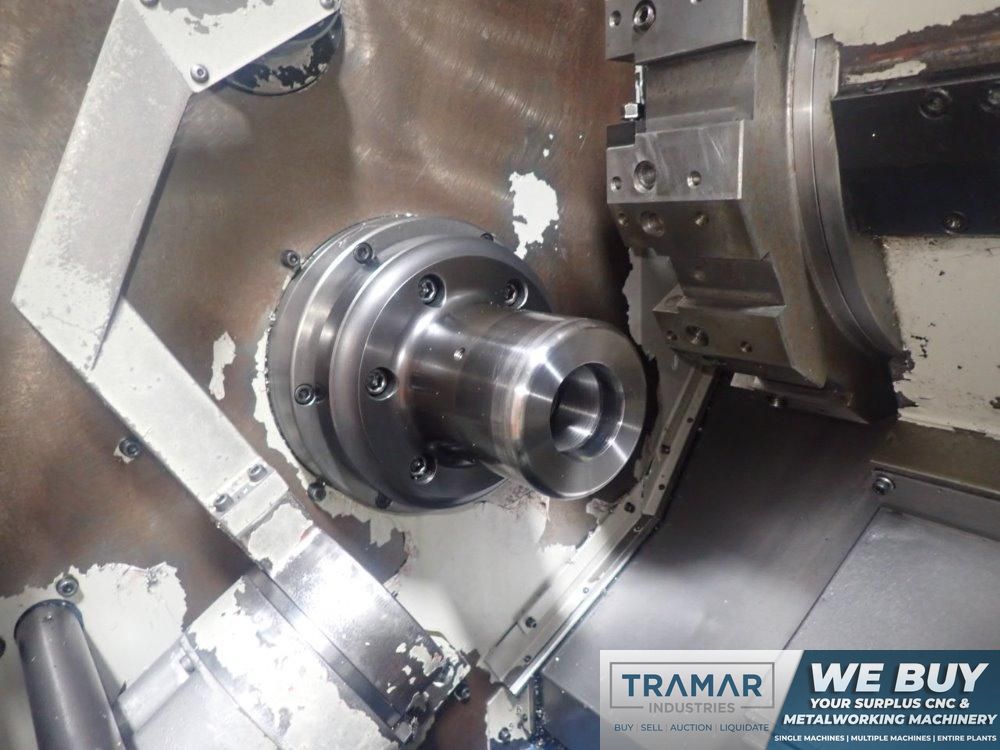

Spindle Nose
A2-6
Spindle Speed
4,000 rpm
Main Motor
20 hp
Live Tooling
no

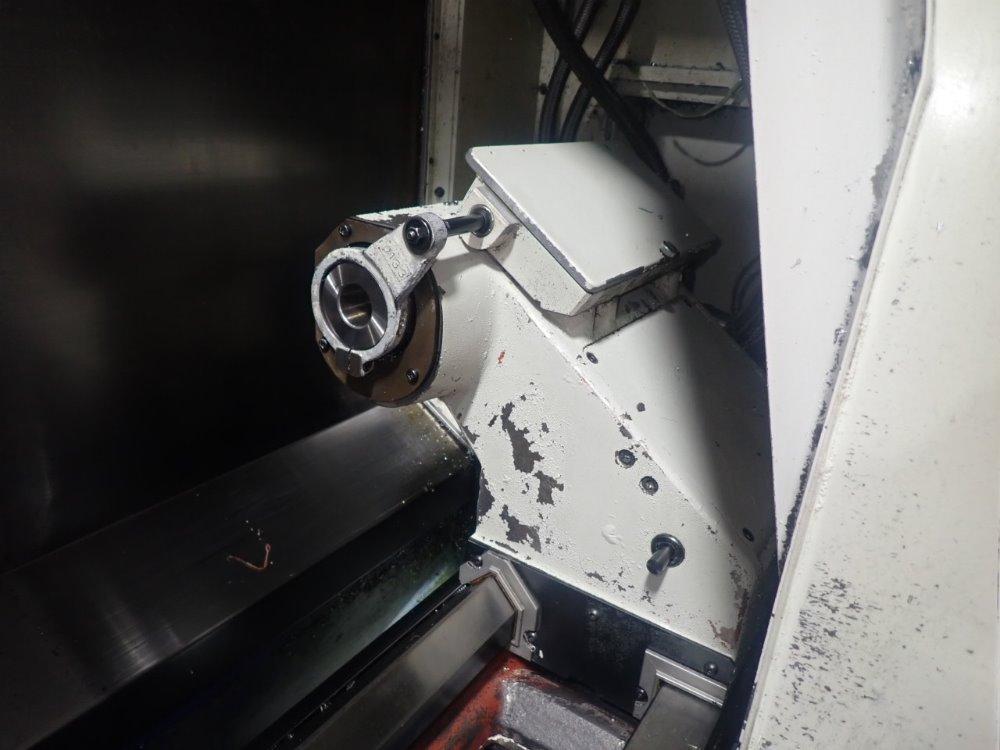

Tailstock
yes
Y Axis
no
Sub Spindle
no

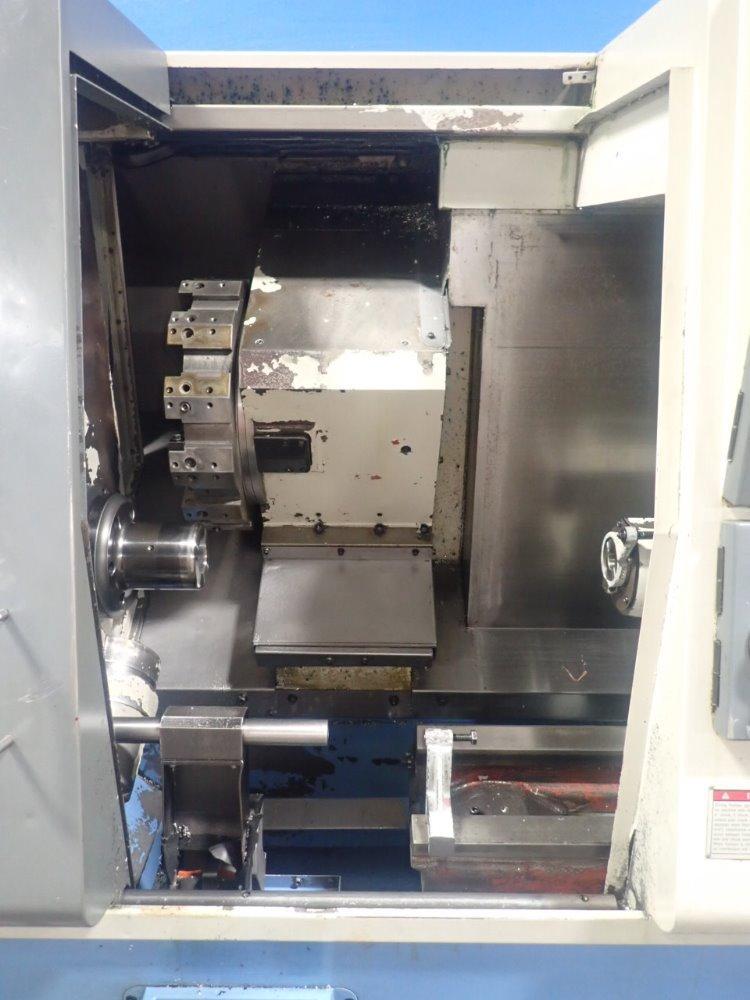

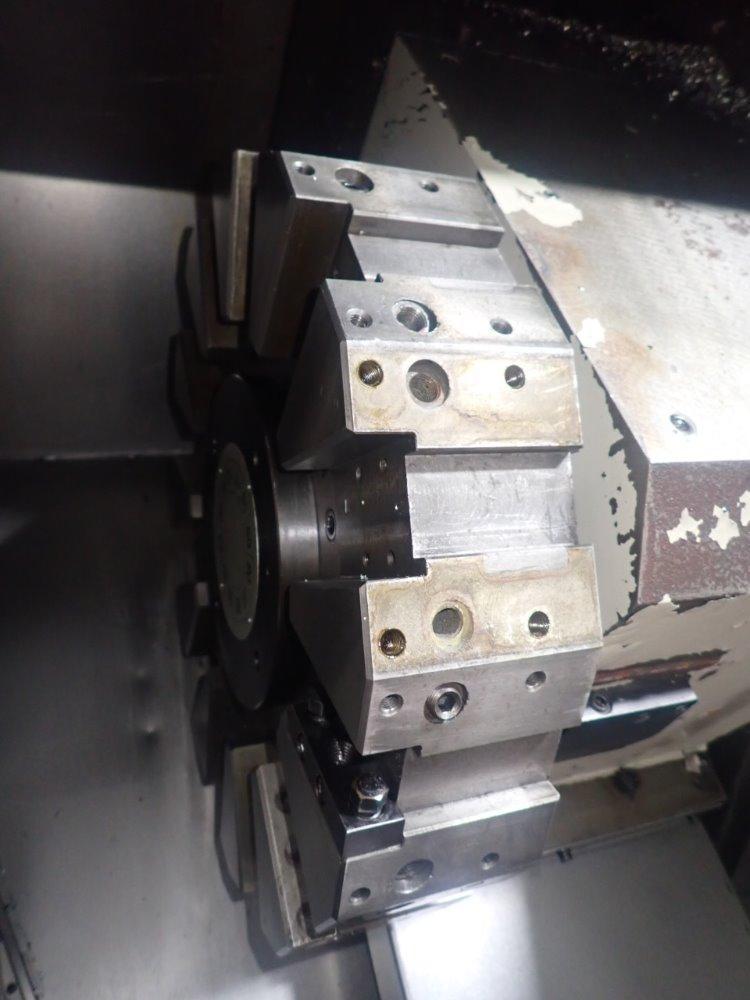

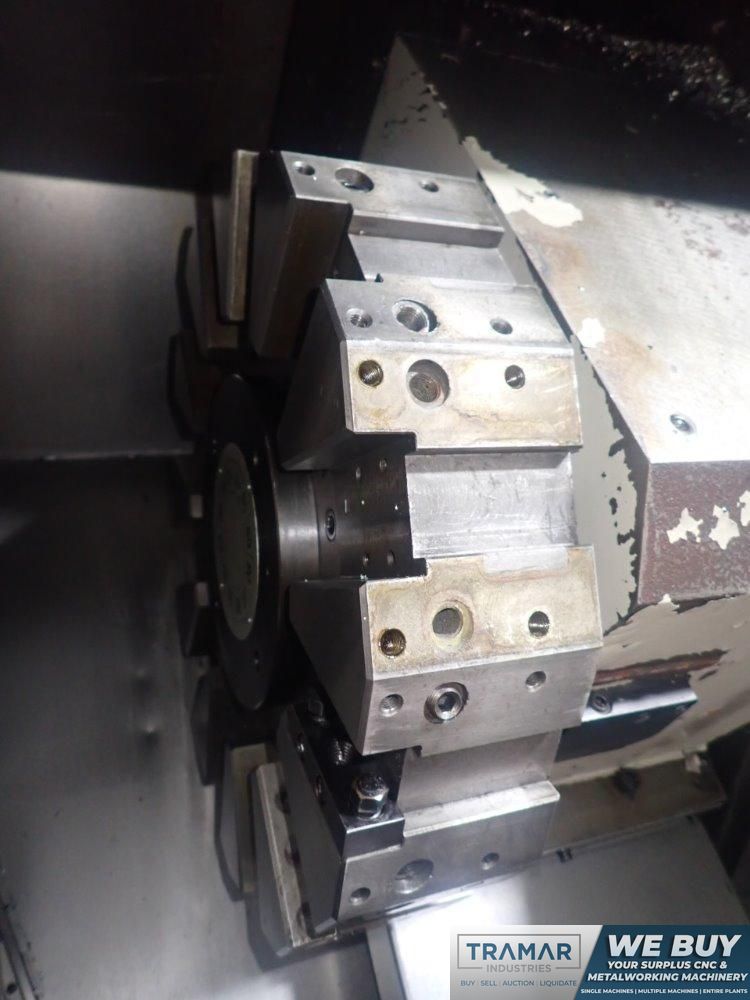

Turret Capacity
12
Machine Dimensions
110" x 68" x 80"
Machine Weight
9,900 pounds

Equipped With:

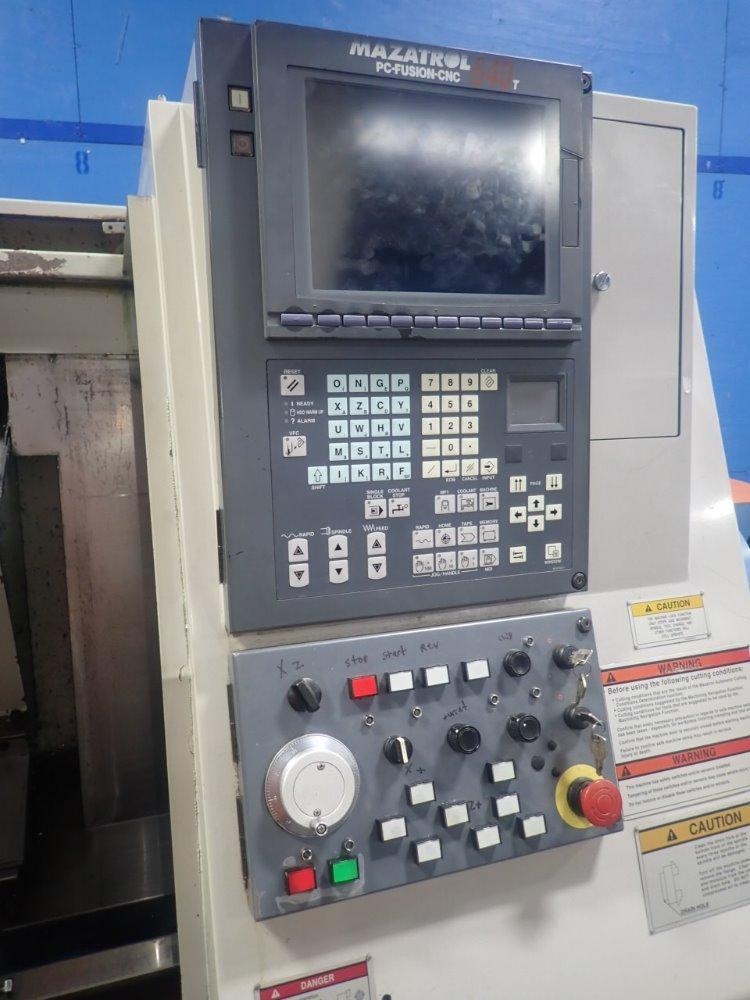

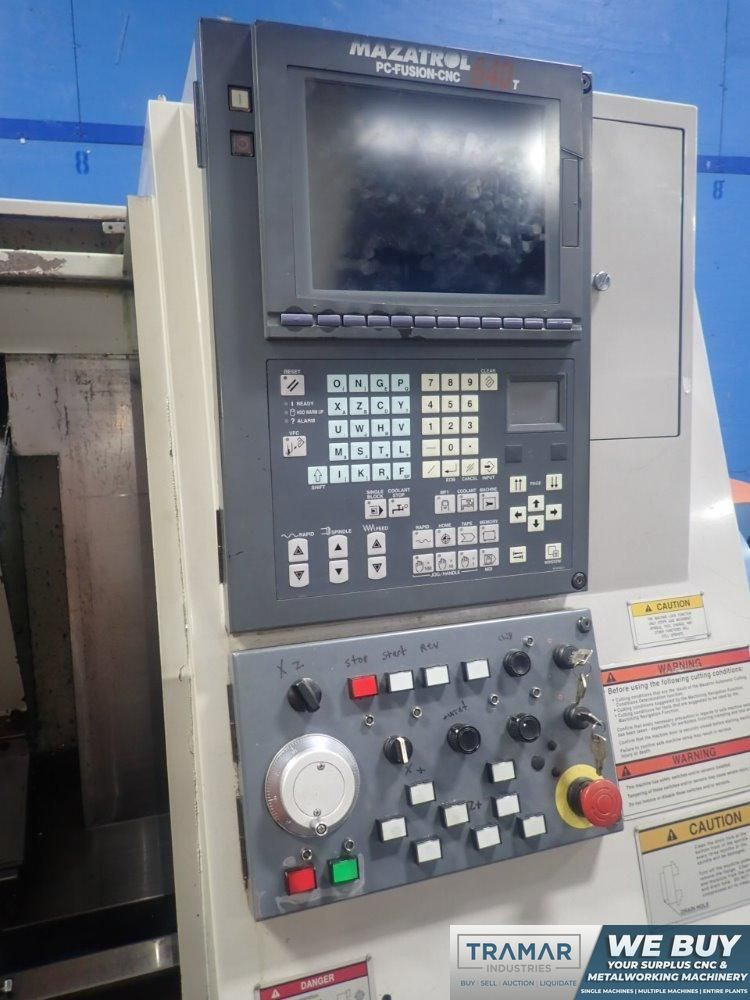

- Mazatrol Fusion 640T Control
- Chip Conveyor
- Coolant Tank
- Tool Presetter

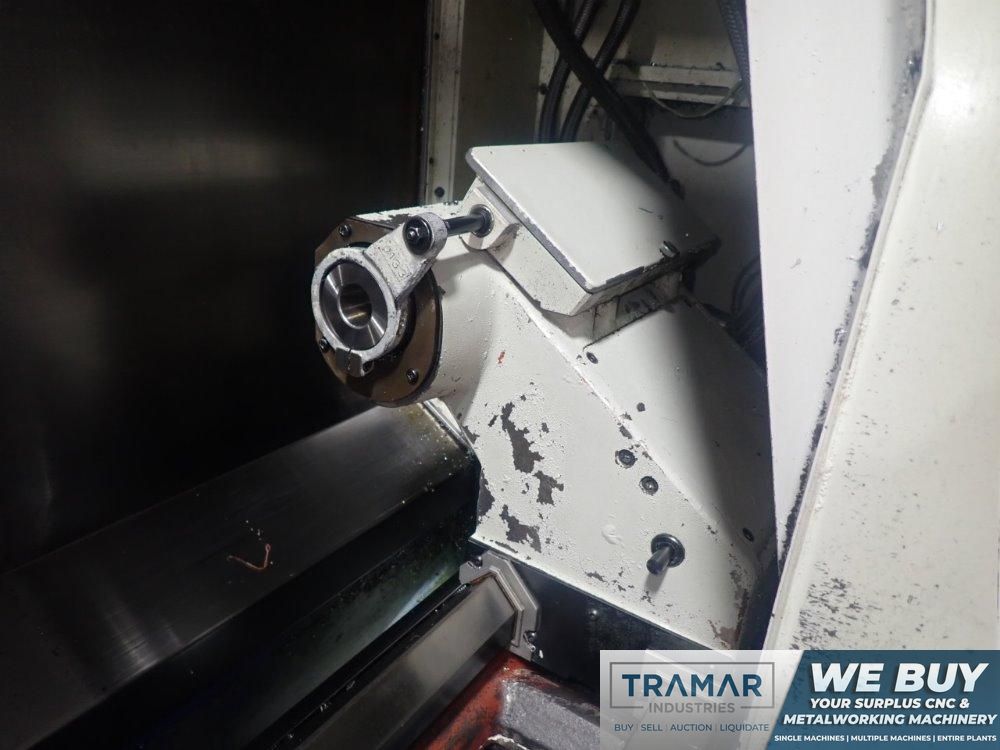

- Tailstock

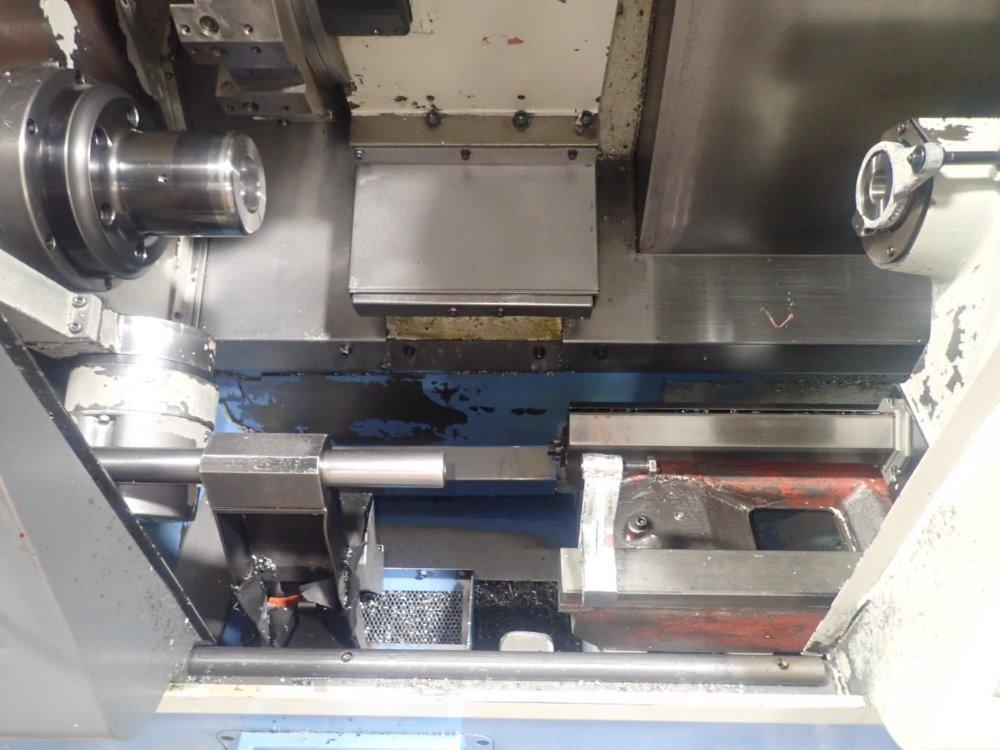

- Parts Catcher

The Mazak Quick Turn 250 is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
