Mazak Slant Turn 80N - Horizontal Lathes

Request Quote
Specifications Print Specs
Model: Slant Turn 80N
Year: 2000
Stock #: 13419
Highlights:
Mazatrol Fusion 640T Control
32" 3-Jaw Chuck
42" Swing | 73.8" Center Distance
1,000 rpm | 60 hp Spindle

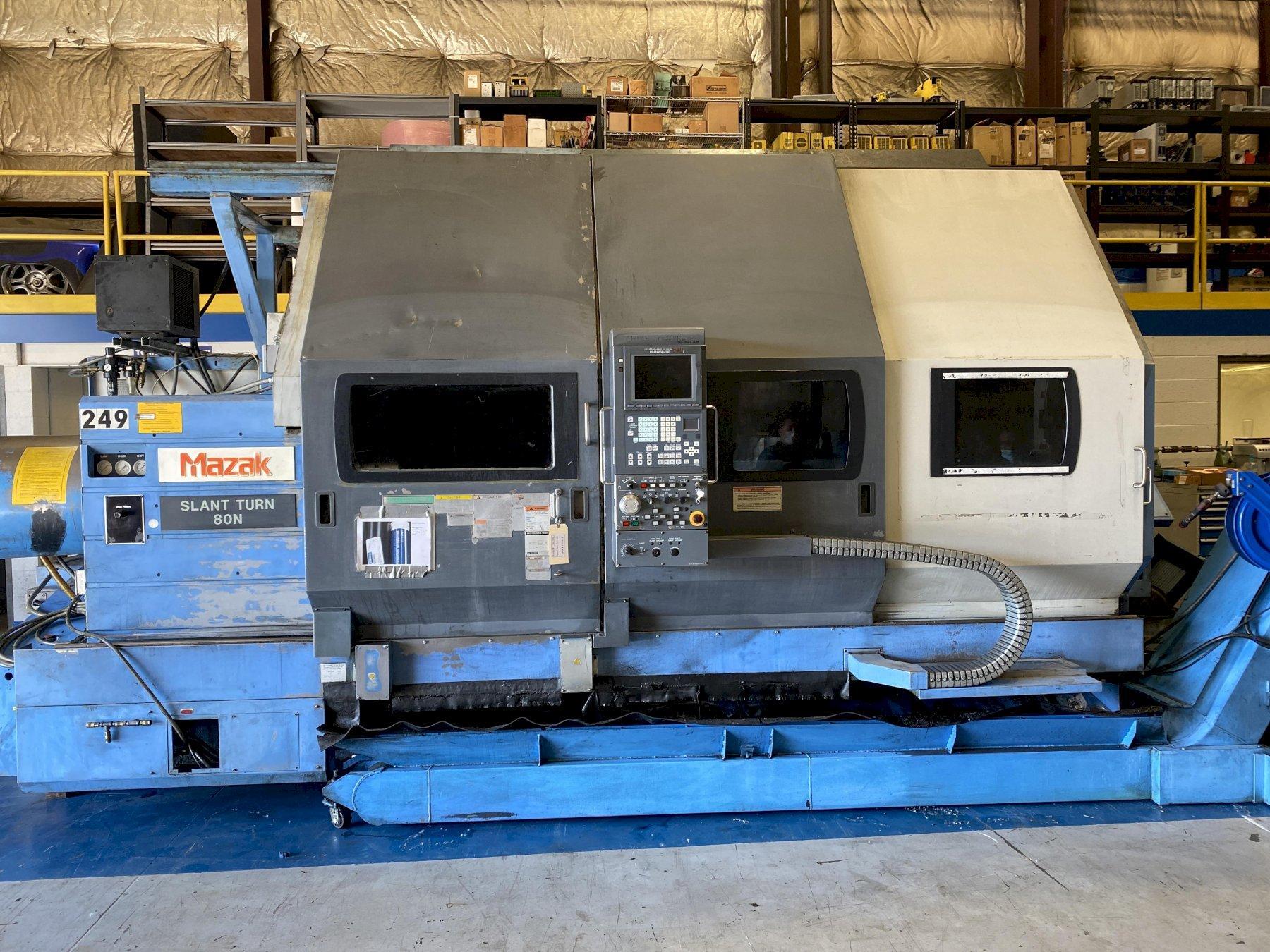

Mazak Slant Turn 80N/2000 Horizontal CNC Lathe
Machine Specifications
Year
2000
Control Type
Mazatrol Fusion 640T
# Axis
2
Swing
42"
Turning Diameter
32"
Center Distance
73.8"
Chuck Size
32"
Bar Capacity
6.3"
X Axis Travel
27.5"
Z Axis Travel
80.1"
Rapid Traverse (X/Z)
475/640 ipm
Spindle Speed (RPM)
1,000
Main Motor
60 hp
Tailstock
yes
Tailstock Travel
70"
Live Tooling
no
Sub Spindle
no
Y Axis
no
Turret Capacity
10
Dimensions
320" x 162" x 122"
Weight
38,280 pounds

Equipped With:

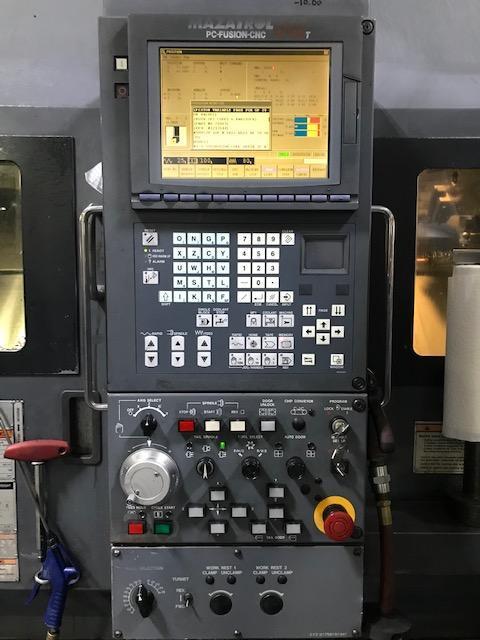

- Mazatrol Fusion 640T Control
- Chip Conveyor

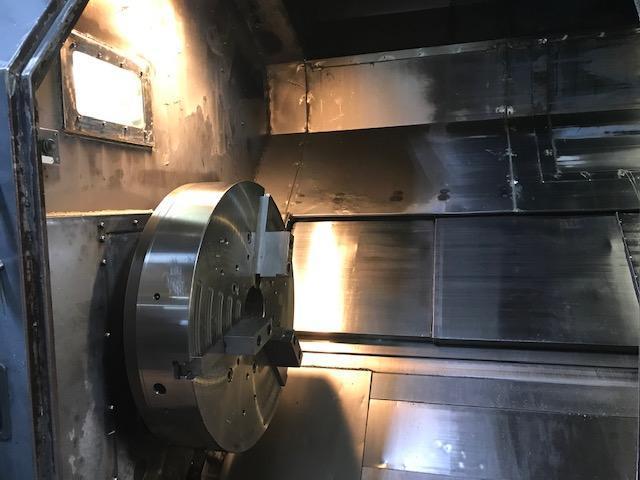

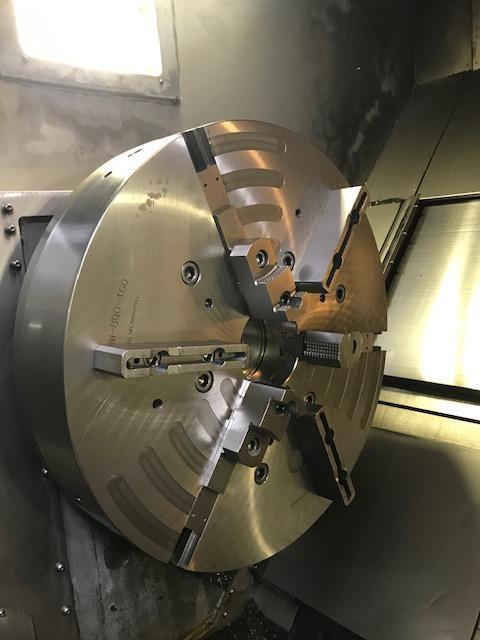

- 32" 3-Jaw Chuck

The Mazak Slant Turn 80N is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
