Mighty Viper VTL-20/24M - Vertical Lathes

Share Machine
Specifications Print Specs
Model: VTL-20/24M
Year: 2014
Stock #: 63328 Sold
Highlights:

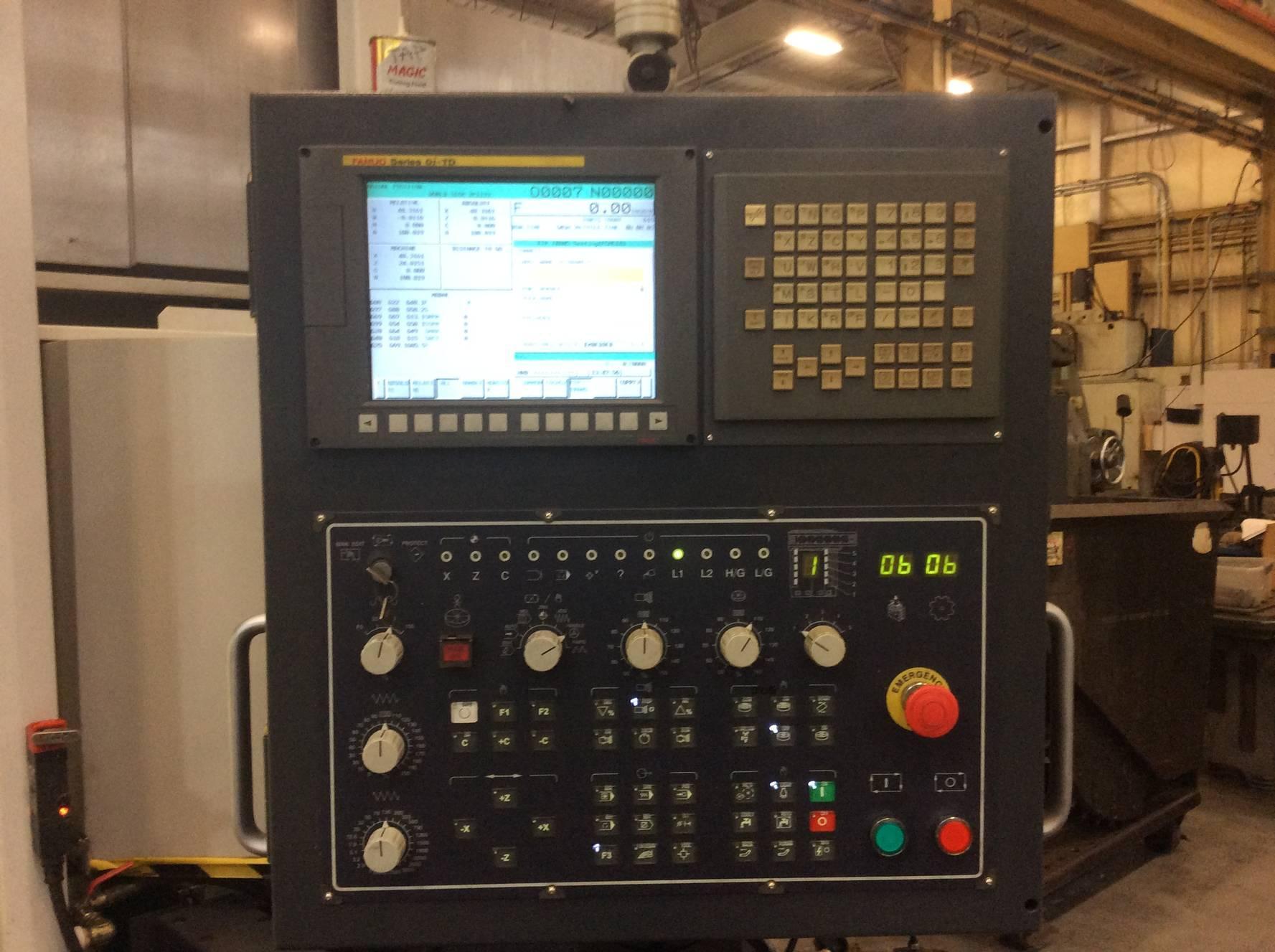

Fanuc 0i-TD Control
Live Tooling Spindle
78" Table Diameter
94.5" Swing/Turning Diameter
44,000 lbs Max Table Load

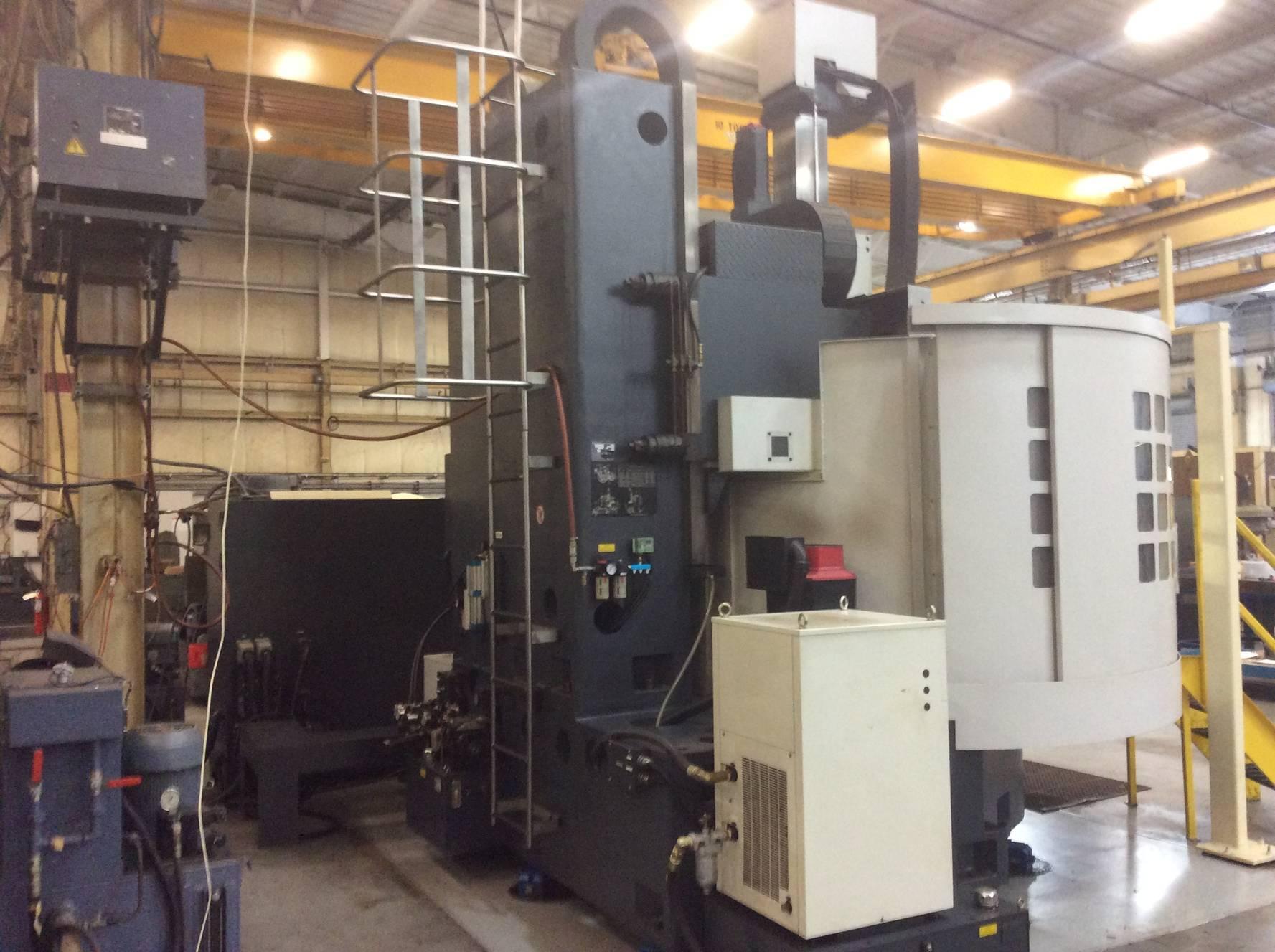

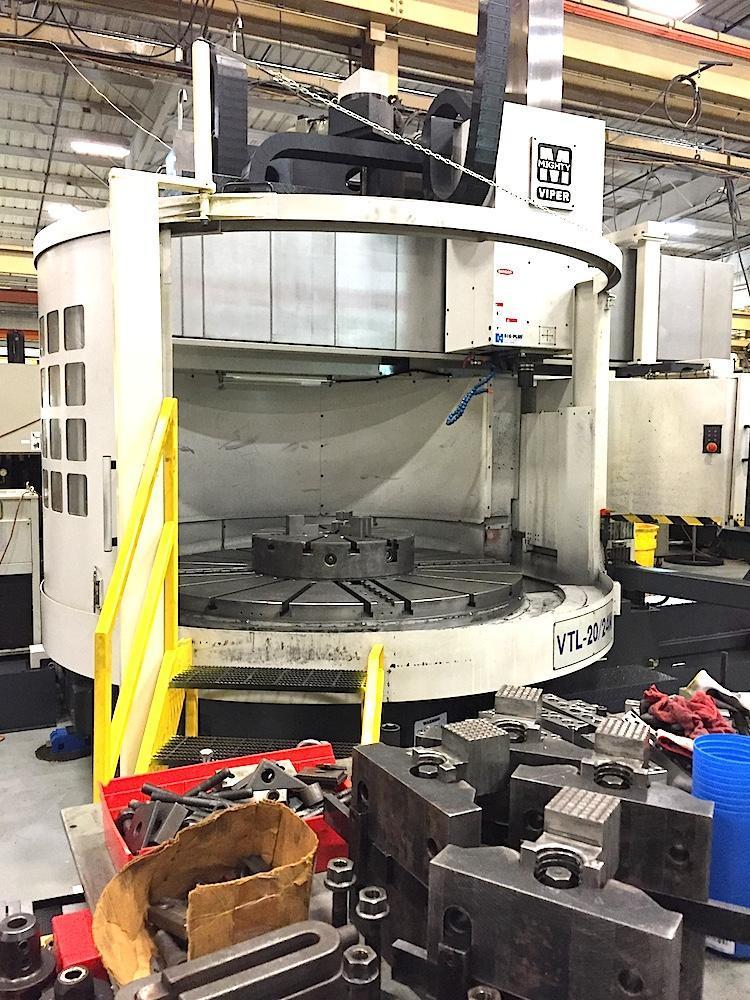

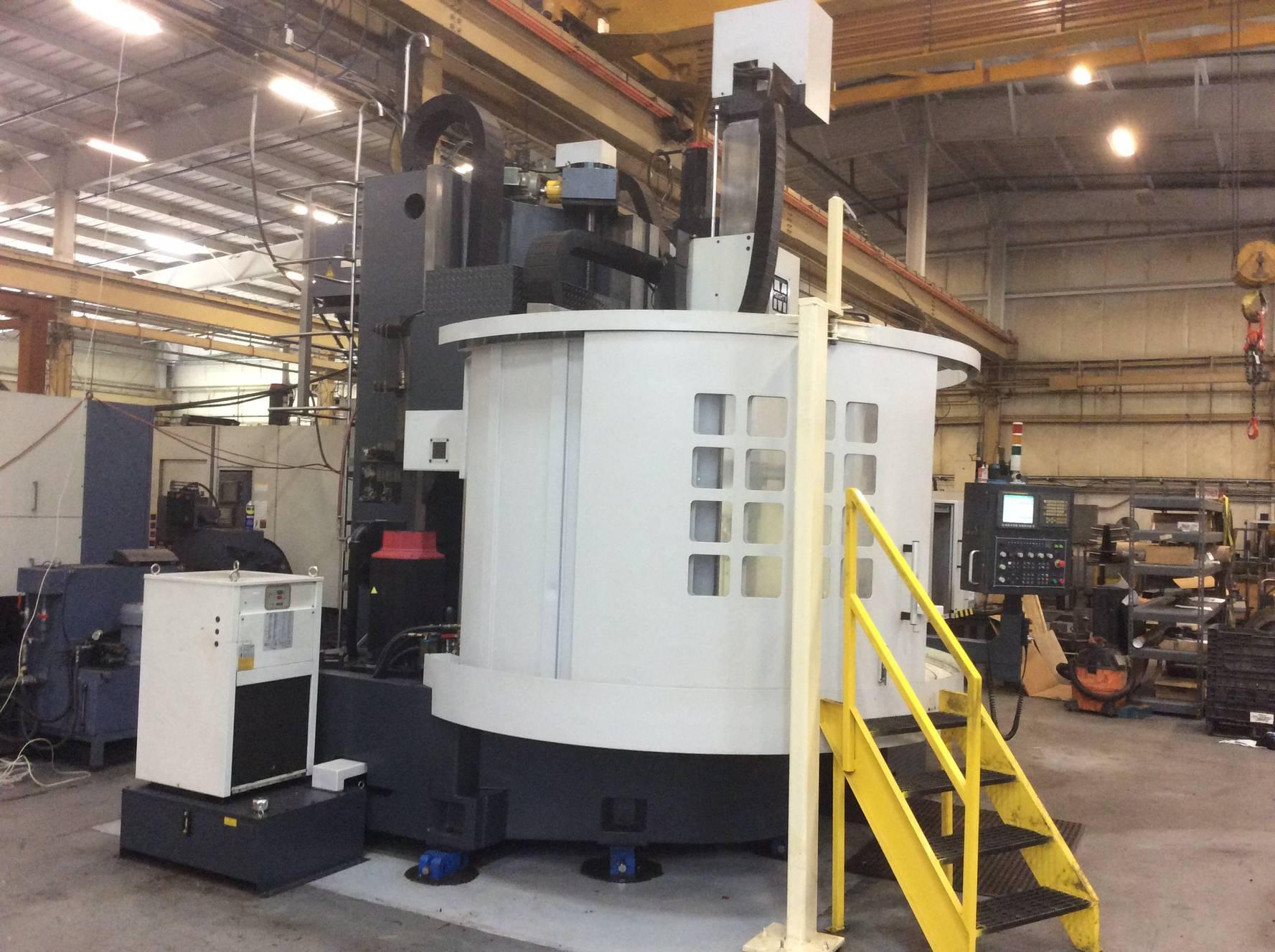

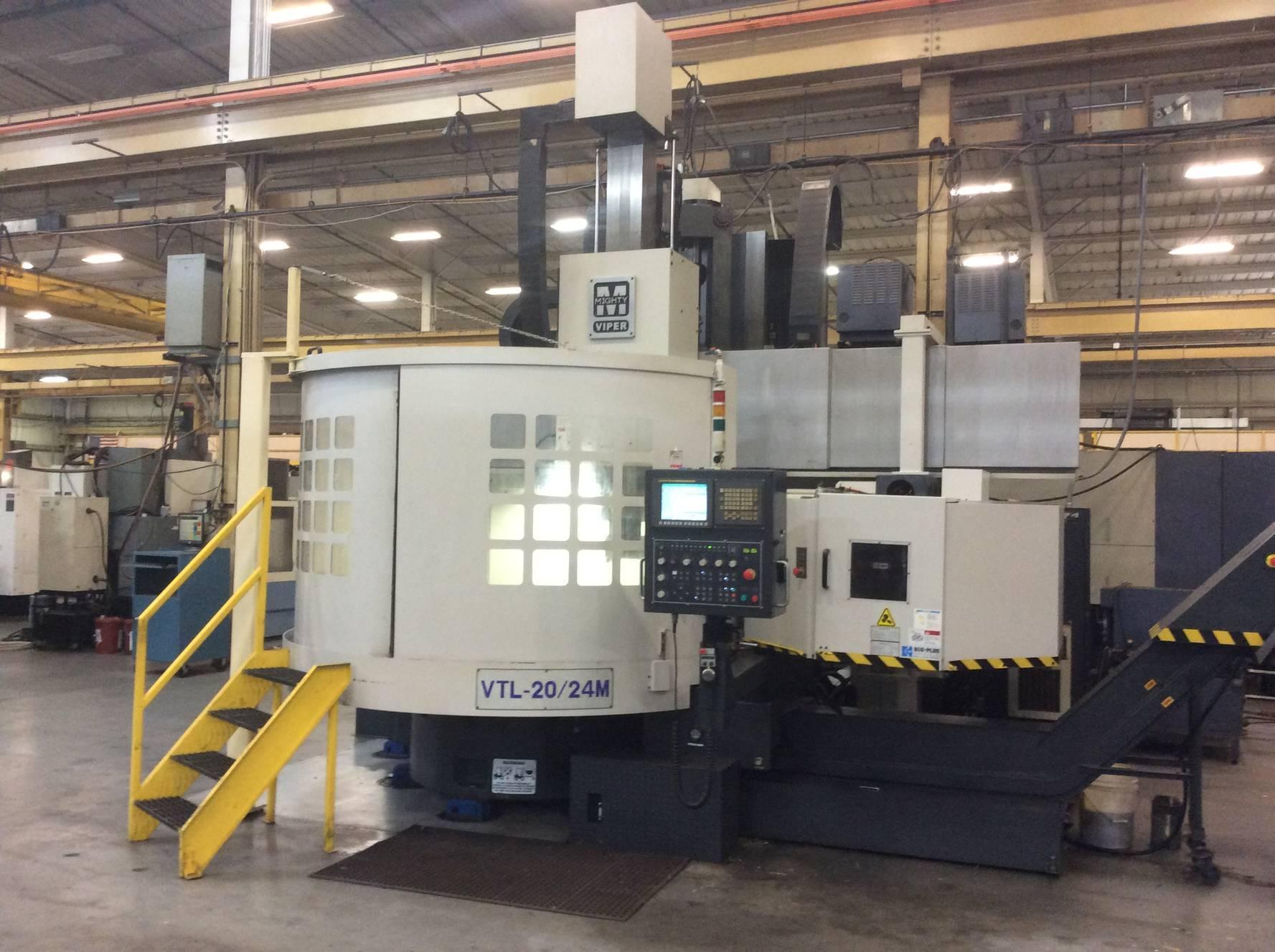

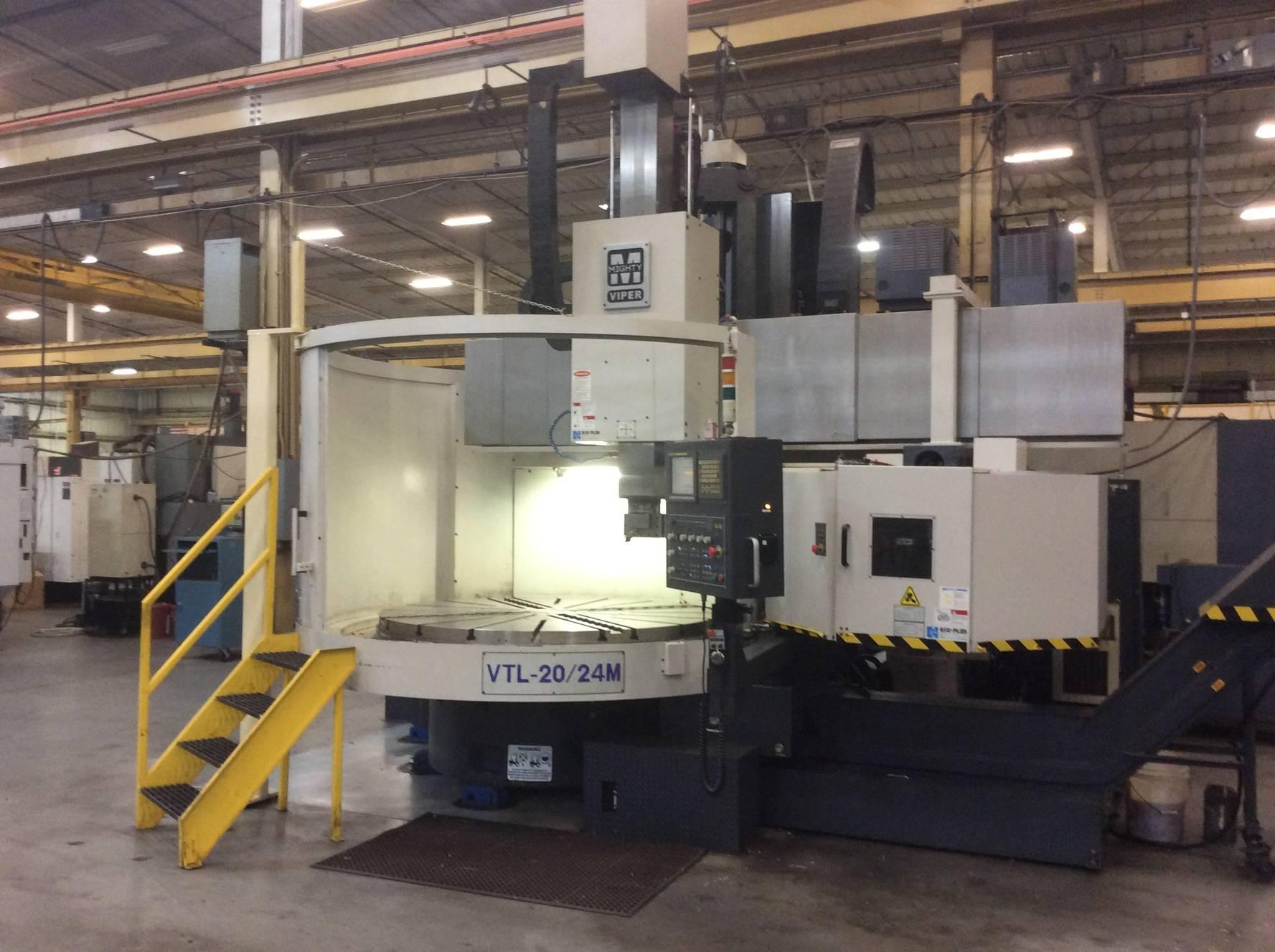

Mighty Viper VTL-20/24M CNC Vertical Lathe
Machine Specifications
CNC Control
yes
Control Type
Fanuc 0i-TD

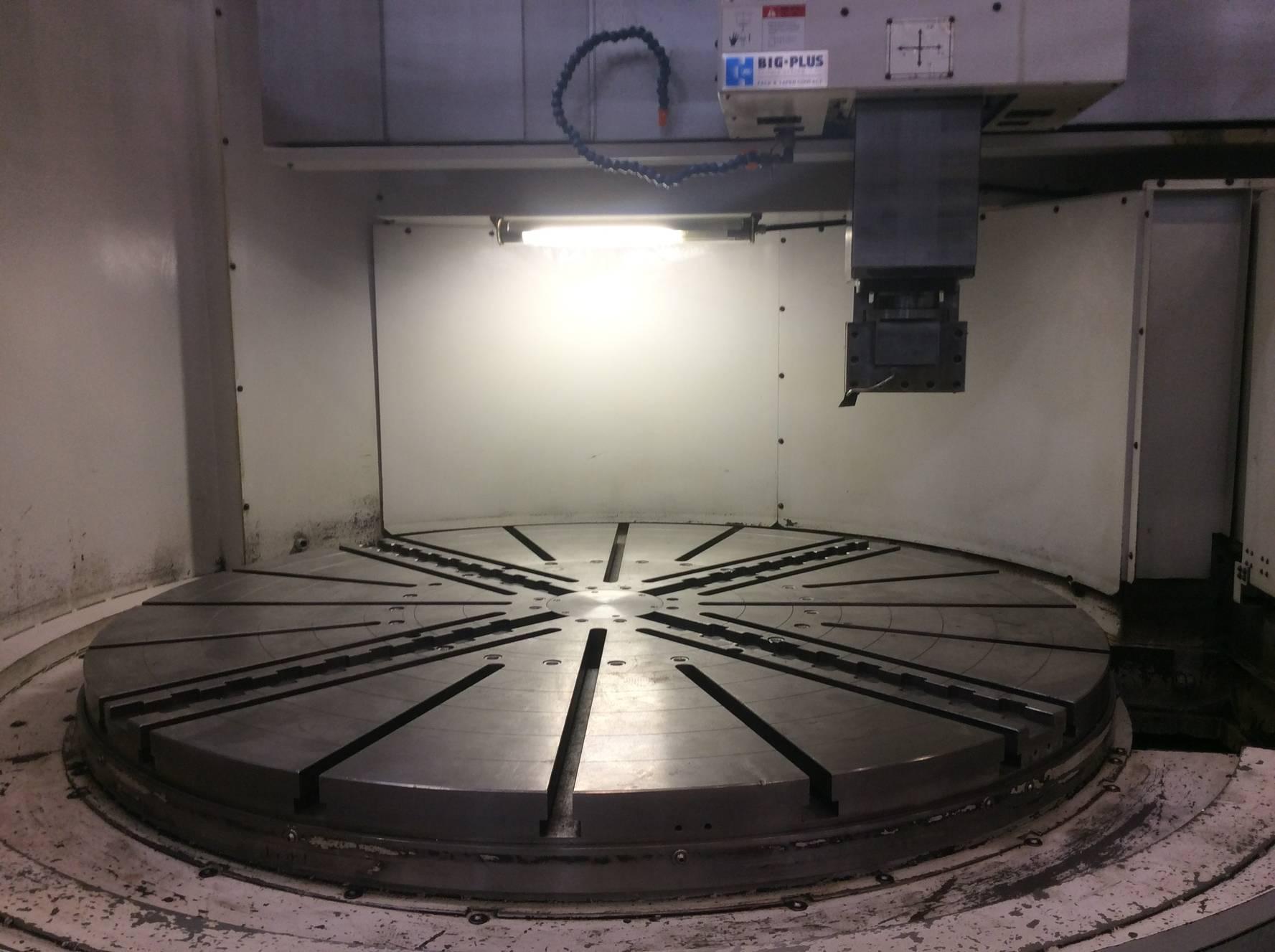

Table Diameter
78.75"
Max Table Load
44,000 pounds
Swing
94.5"
Turning Diameter
94.5"
Max Turning Height
59.06"
Ram Size
9.06" x 9.06"
X-Axis Travel
72.75"
Z-Axis Travel
39.37"
Spindle Speed
1-73 rpm & 65-200 rpm
Power
60 horsepower
Live Tooling
yes
Live Tooling Spindle Taper
CAT 50 Big Plus
Live Tooling Speed
2,000 rpm
Live Tooling Motor
20/15 hp

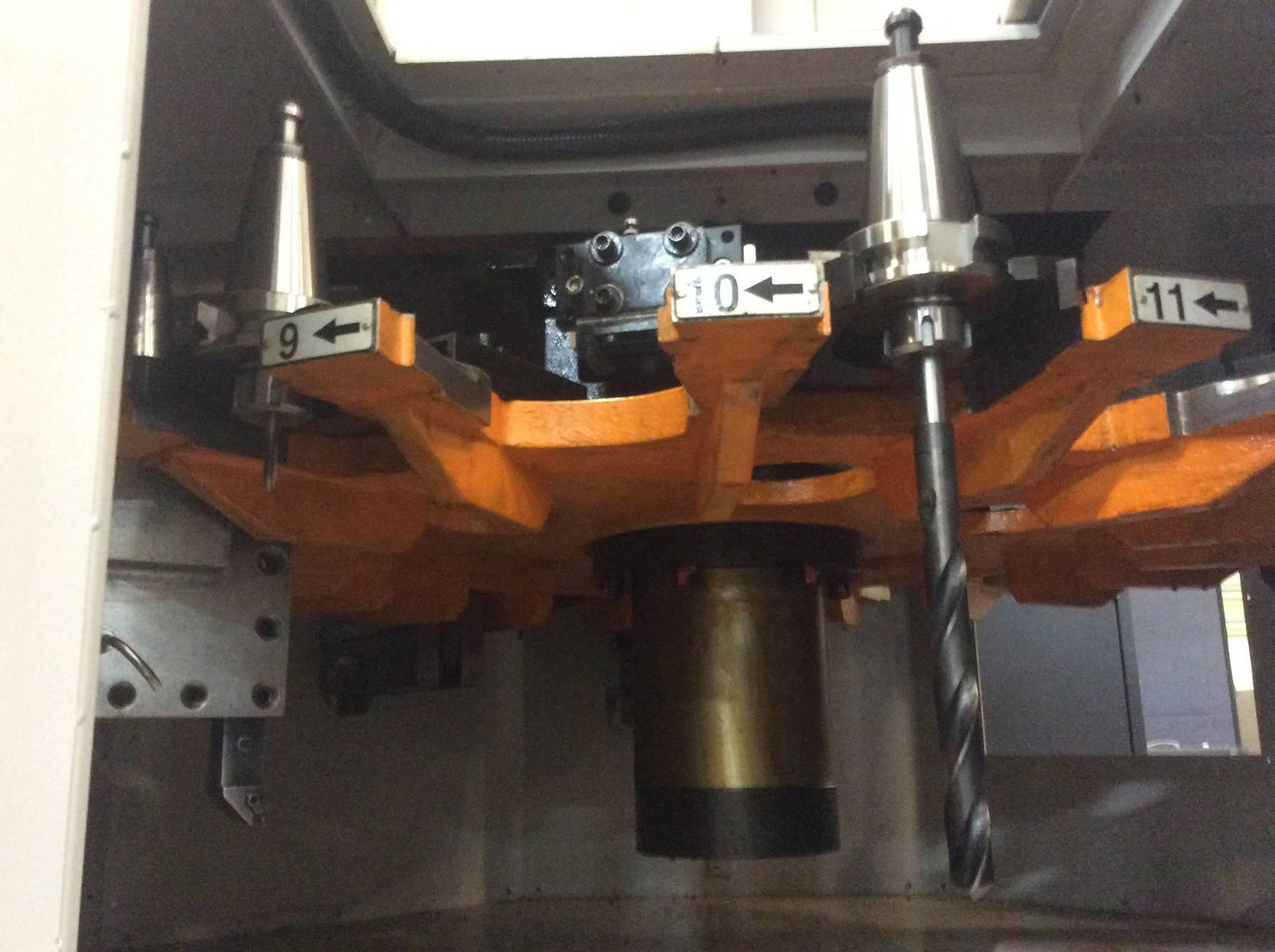

ATC Stations
(9) Live Tooling / (9) Turning
Weight
84,000 ounces

Equipped With:

- Fanuc 0i-TD Control
- Live Tooling Capable
- Chip Conveyor
- Coolant Tank & Pump
- Chiller

The Mighty Viper VTL-20/24M is an exclusive part of our Vertical Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
