Millutensil mil 163 - Presses, Die Tryout & Spotting

Share Machine
Specifications Print Specs
Model: mil 163
Year: 1998
Stock #: BR15912 Sold
Yes
Highlights:

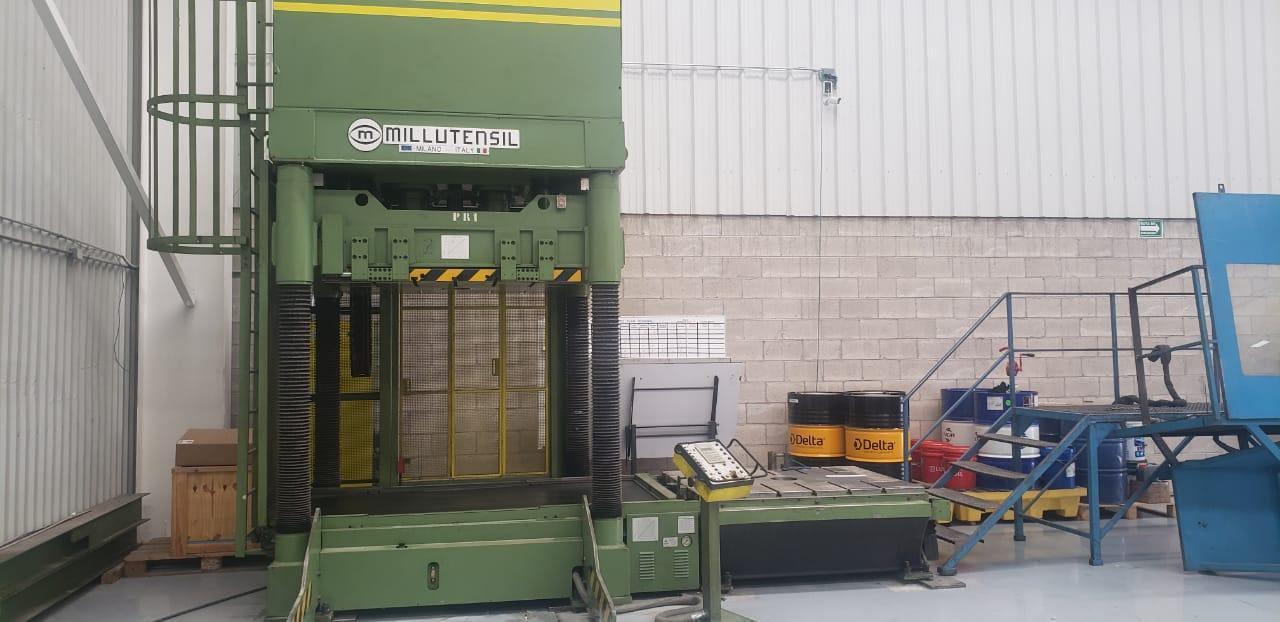

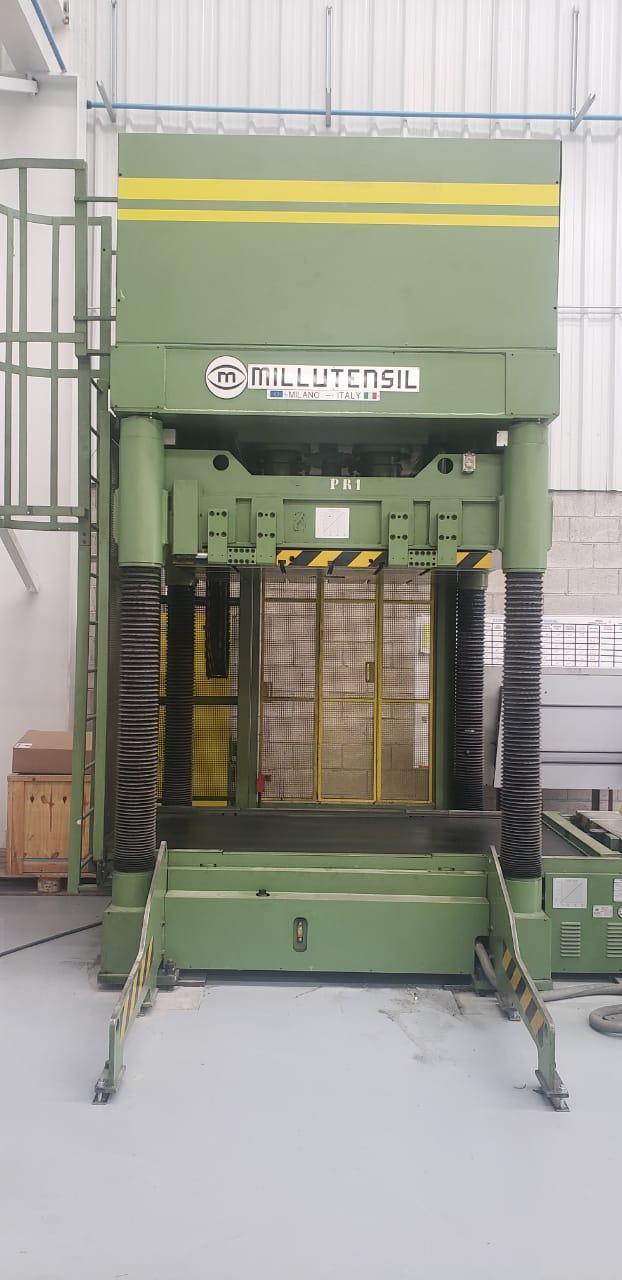

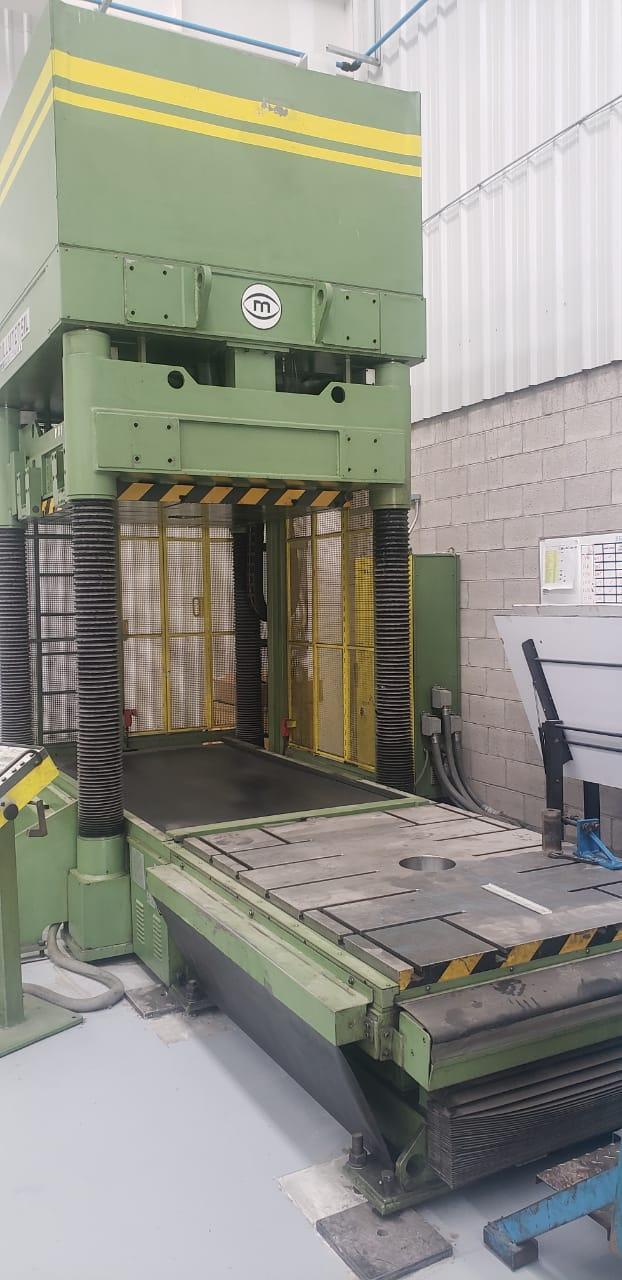

Millutensil MIL163 150 Ton Hydraulic Spotting Press, 39.37
Machine Specifications
Tonnage
150 tons
Max Opening Force
30 Tons
Stroke
39.37"
Control Type
Siemens PLC
Daylight
15.75" - 55.5"
Bed Size
54" x 68"
Distance Between Tie Bars
51" x 63"
Vertical Stroke
39.37"
Max Load Capacity (Upper Platten)
17,600 pounds
Max Load Capacity (Lower Platten)
35,000 lbs
Upper Platen Rotation
100 Degrees
Weight
41,800 pounds

Equipped With:

  • Siemens PLC Controls
  • Upper Platen Parallel (Avoids Damage to Molds in Upper Platen due to Molds Being Unbalanced)
  • Hydro-Mechanical Safety Device (Stops Accidental Fall of Upper Platen)
  • Swing Down Platen
  • Rolling Bolster

The Millutensil mil 163 is an exclusive part of our Presses, Die Tryout & Spotting inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
