Mori Seiki NL2500MC/700 - Horizontal Lathes

Share Machine
Specifications Print Specs
Model: NL2500MC/700
Year: 2008
Stock #: 13534 Sold
Highlights:
- MSX-850II Control
- Live Tooling
- Programmable Tailstock

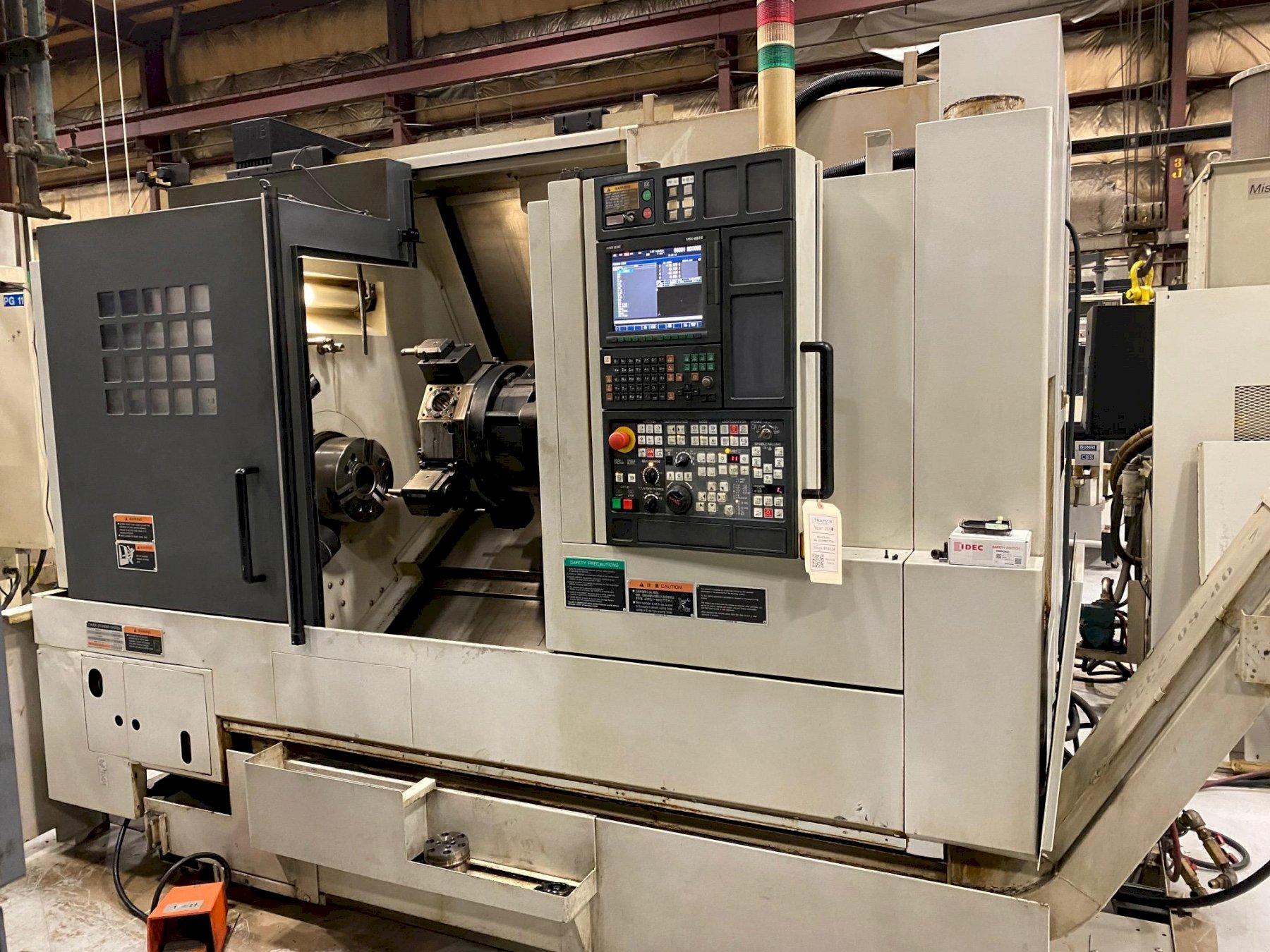

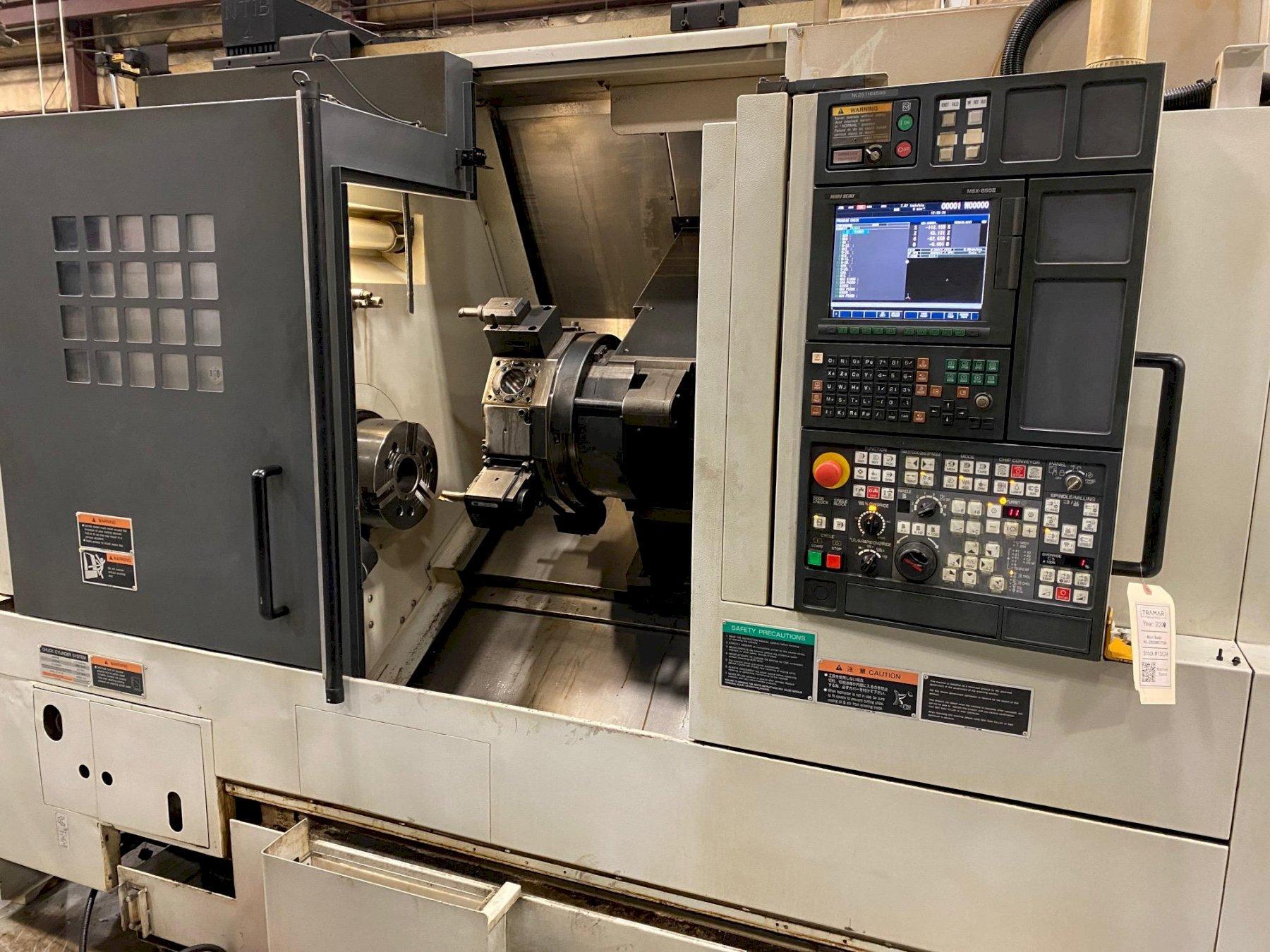

2008 Mori Seiki NL2500MC/700 CNC Horizontal Lathe
Machine Specifications
CNC Control
yes

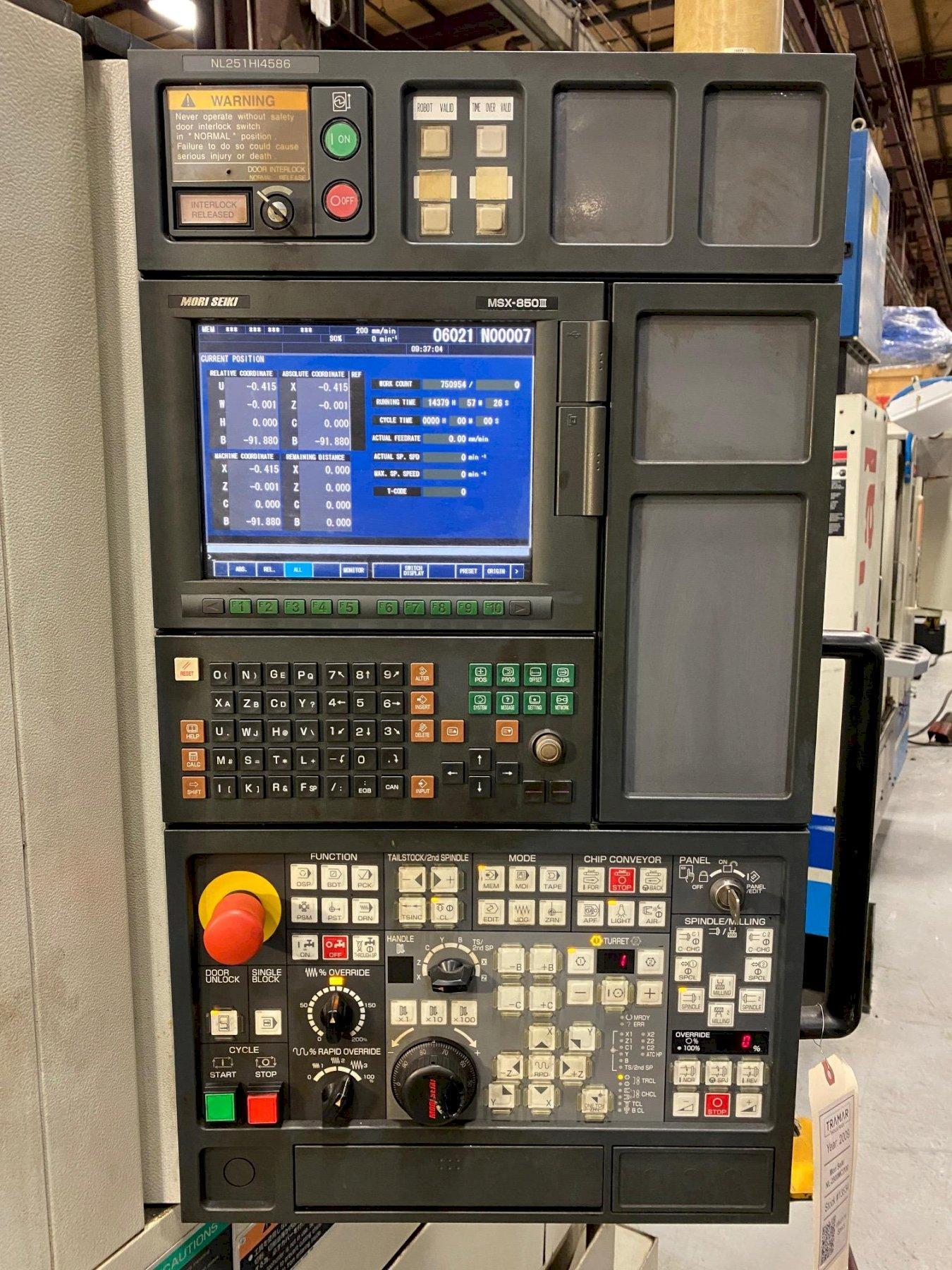

CNC Control
MSX-850II
# Axis
3
Swing
36.4"
Swing Over Cross Slide
29.7"
Turning Diameter
14"
Center Distance
27.7"

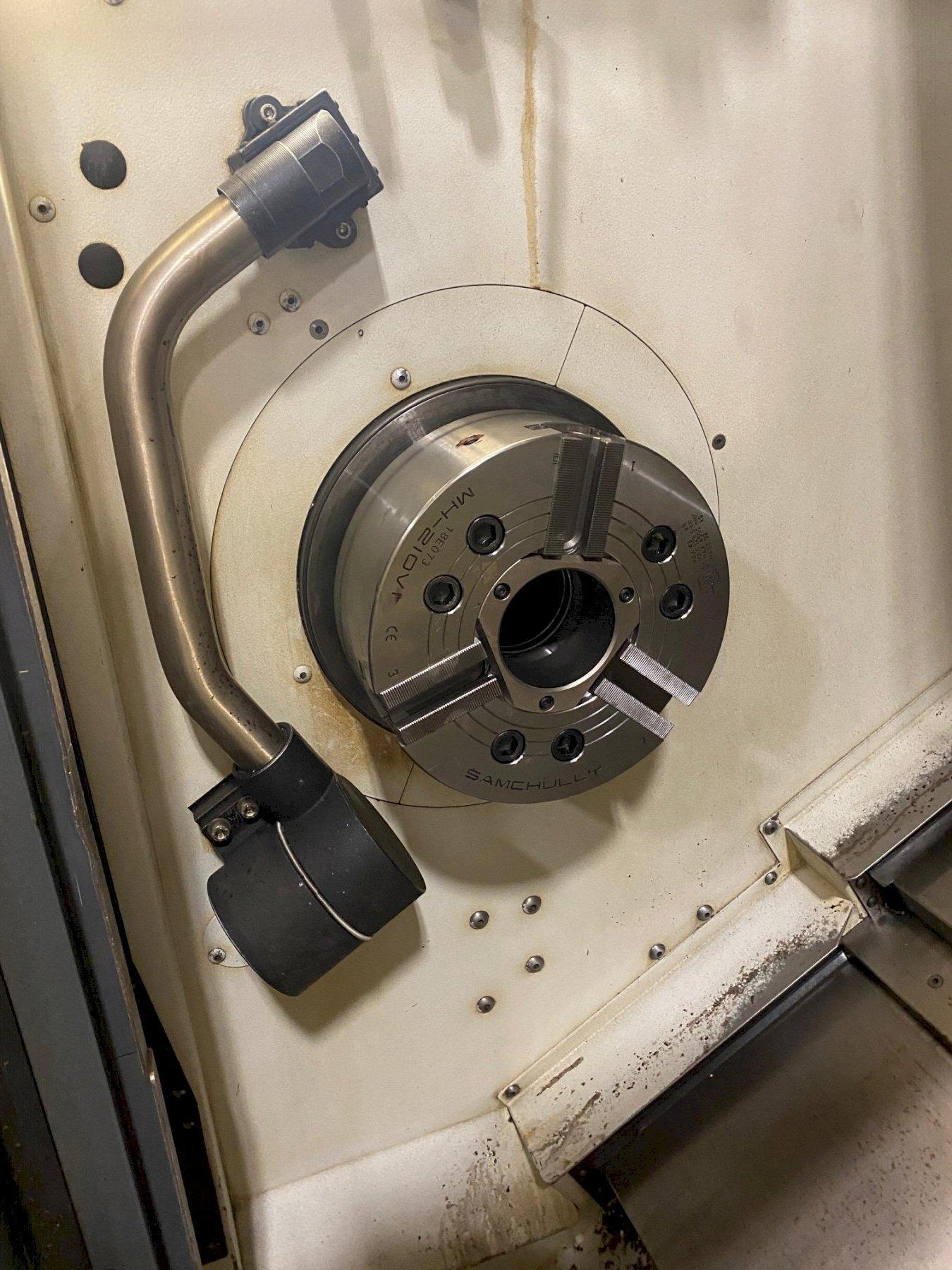

Chuck Size
10"
Bar Capacity
3.1"
X Axis Travel
10.2"
Z Axis Travel
31.3"
C Axis Index
0.001°
Rapid Traverse (X/Z)
1,181 ipm
Spindle Nose
A2-8
Spindle Speed (RPM)
4,000
Main Motor
25 hp
Live Tooling
yes
Live Tooling Speed
6,000 rpm
Live Tooling Motor
7.5 hp
Turret Capacity
12
Y Axis
no

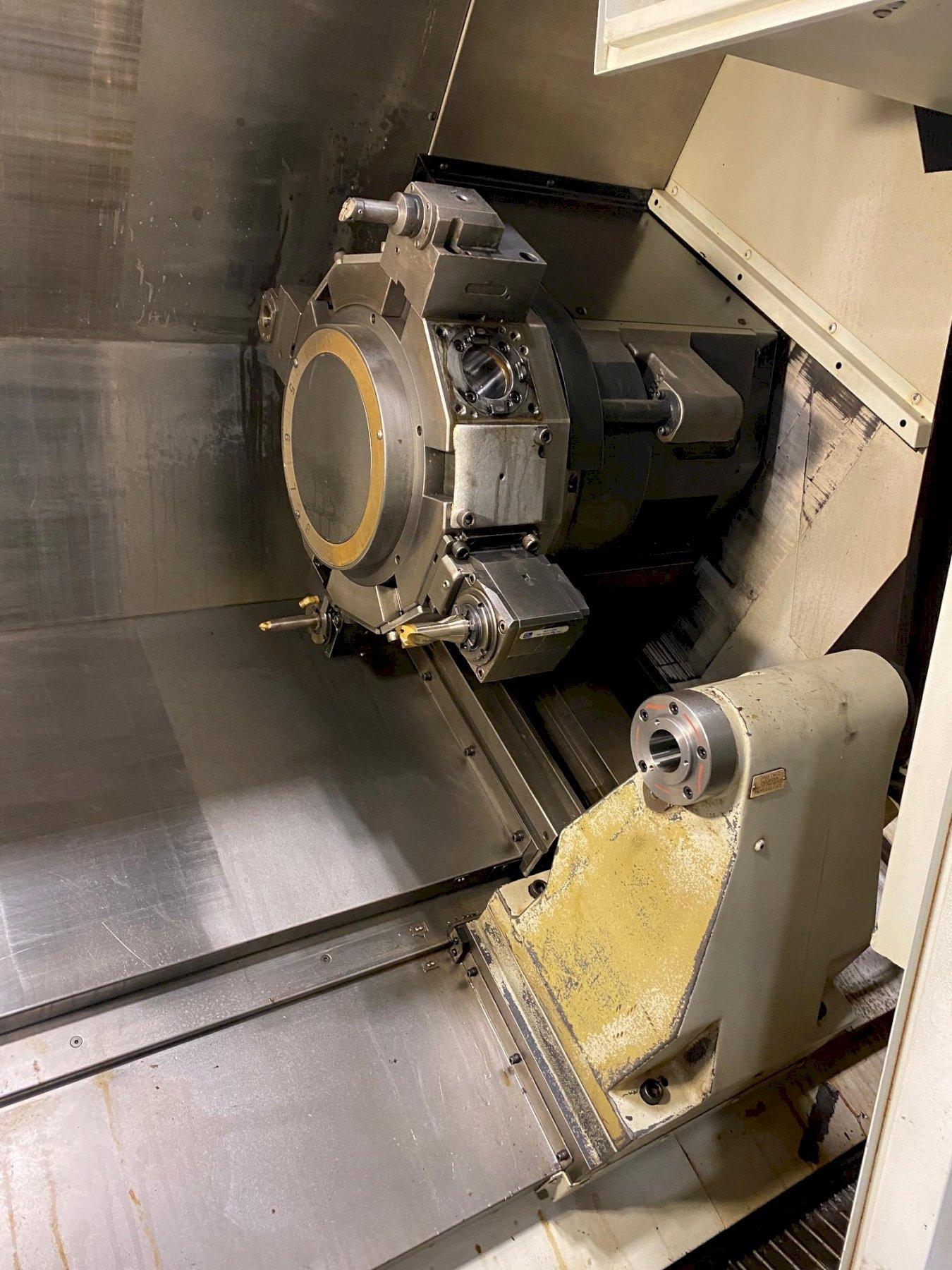

Tailstock
yes
Sub Spindle
no
Dimensions
122" x 76" x 84"
Weight
13,000 pounds

Equipped With:

- MSX-850II Control
- Live Tooling
- Programmable Tailstock
- Chip Conveyor
- Coolant Tank & Pump

The Mori Seiki NL2500MC/700 is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
