Mori Seiki NL2500MC/700 - Lathes (3-Axis or More)

Share Machine

Specifications Print Specs

Model: NL2500MC/700

Year: 2005

Stock #: 3644 Sold

Type: Lathes (3-Axis or More)

Manufacturer: Used Mori Seiki Machines

Highlights:

Mori Seiki NL2500MC/700 CNC Lathe, MSX850 Control, 10

Equipped With:

Misc ID/OD Toolholders
(2) Live Holders

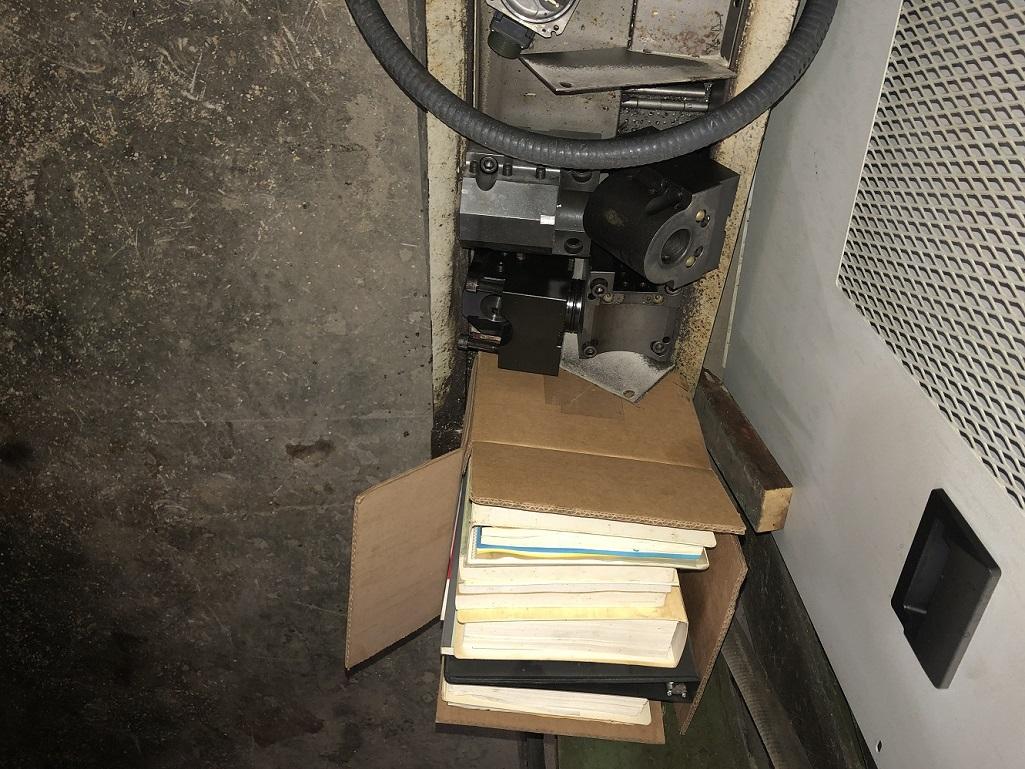

Tool Pre-setter
Foot Pedal
Coolant Tank & Pump

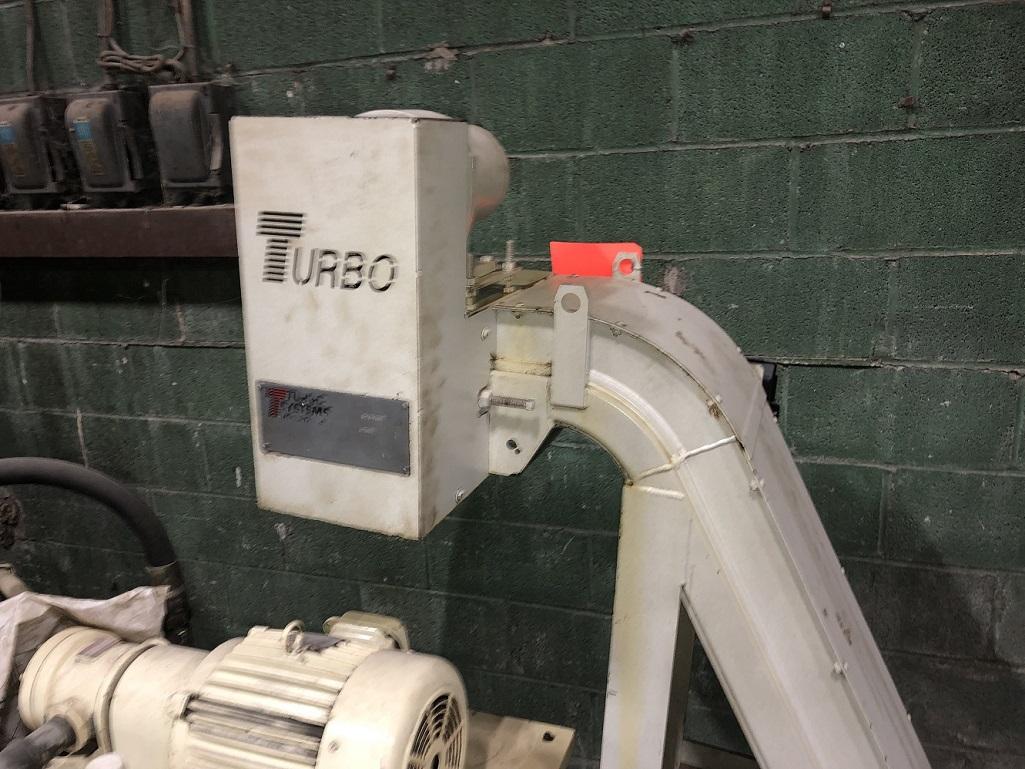

Chip Conveyor

Machine Videos

https://youtu.be/6kYeva-Ew-g

Files

TERMS AND CONDITIONS.PDF

Machine Specifications

Inch

Metric

Machine Specifications:

CNC Control

yes

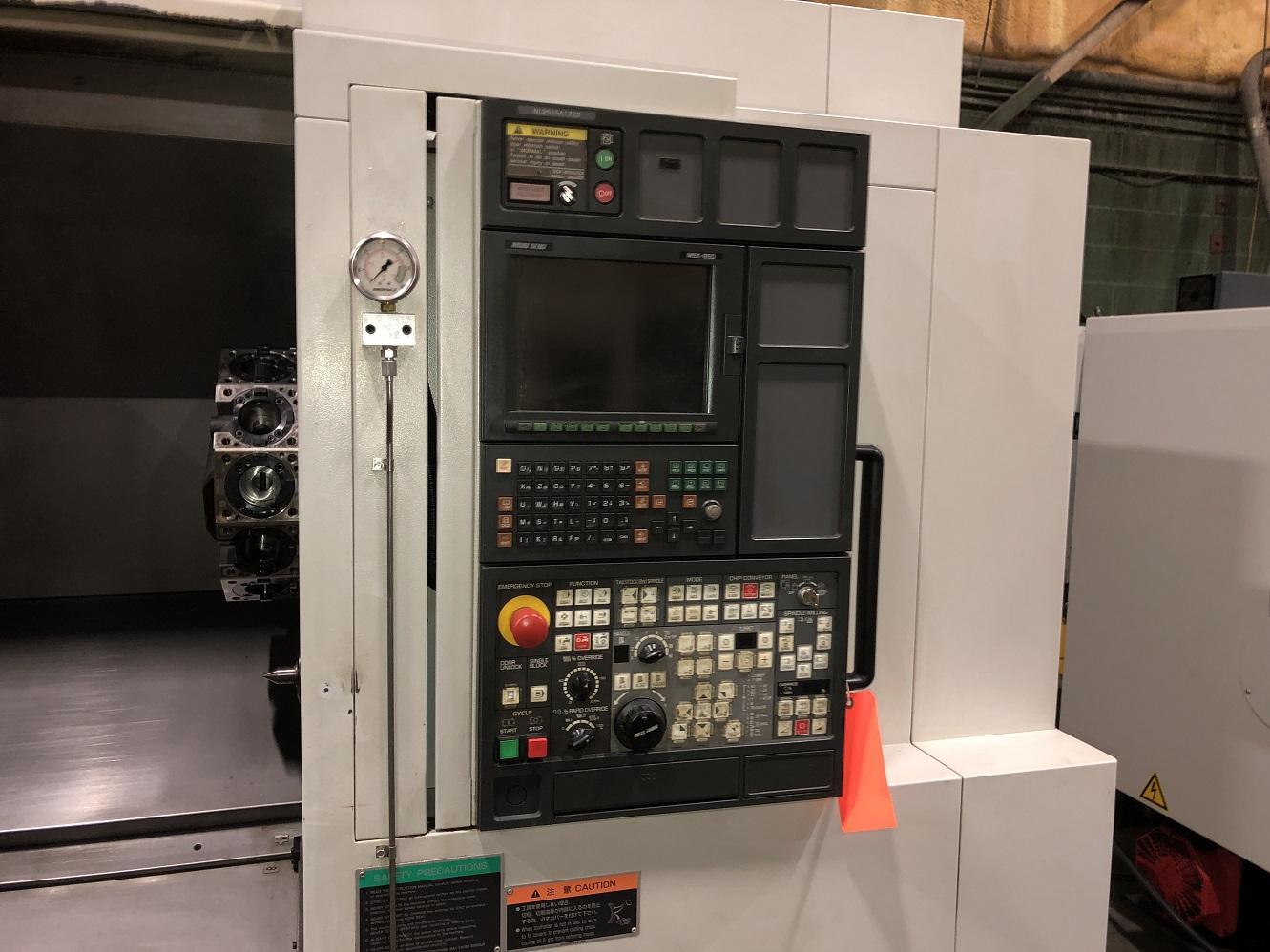

Control Type

MSX 850

# Axis

Chuck Size

10"

Swing

36.4"

Turning Diameter

14"

Center Distance

31"

Bar Capacity

3.1"

Spindle Bore

3.6"

X Axis Travel

10.2"

Z Axis Travel

31"

Y Axis (Yes / No)

X Axis Rapid Feedrate

1,181 inches-per-minute

Z Axis Rapid Feedrate

1,181 inches-per-minute

Spindle Speed (RPM)

4,000

Main Motor

20 Horsepower

Live Milling (Yes / No)

yes

Live Milling Speed (RPM)

6,000

Live Milling Motor

7.5

Turret Capacity

Tailstock (Yes/No)

yes

Weight

12,800 pounds

Equipped With:

Misc ID/OD Toolholders
(2) Live Holders
Tool Pre-setter
Foot Pedal
Coolant Tank & Pump
Chip Conveyor

The Mori Seiki NL2500MC/700 is an exclusive part of our Lathes (3-Axis or More) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
