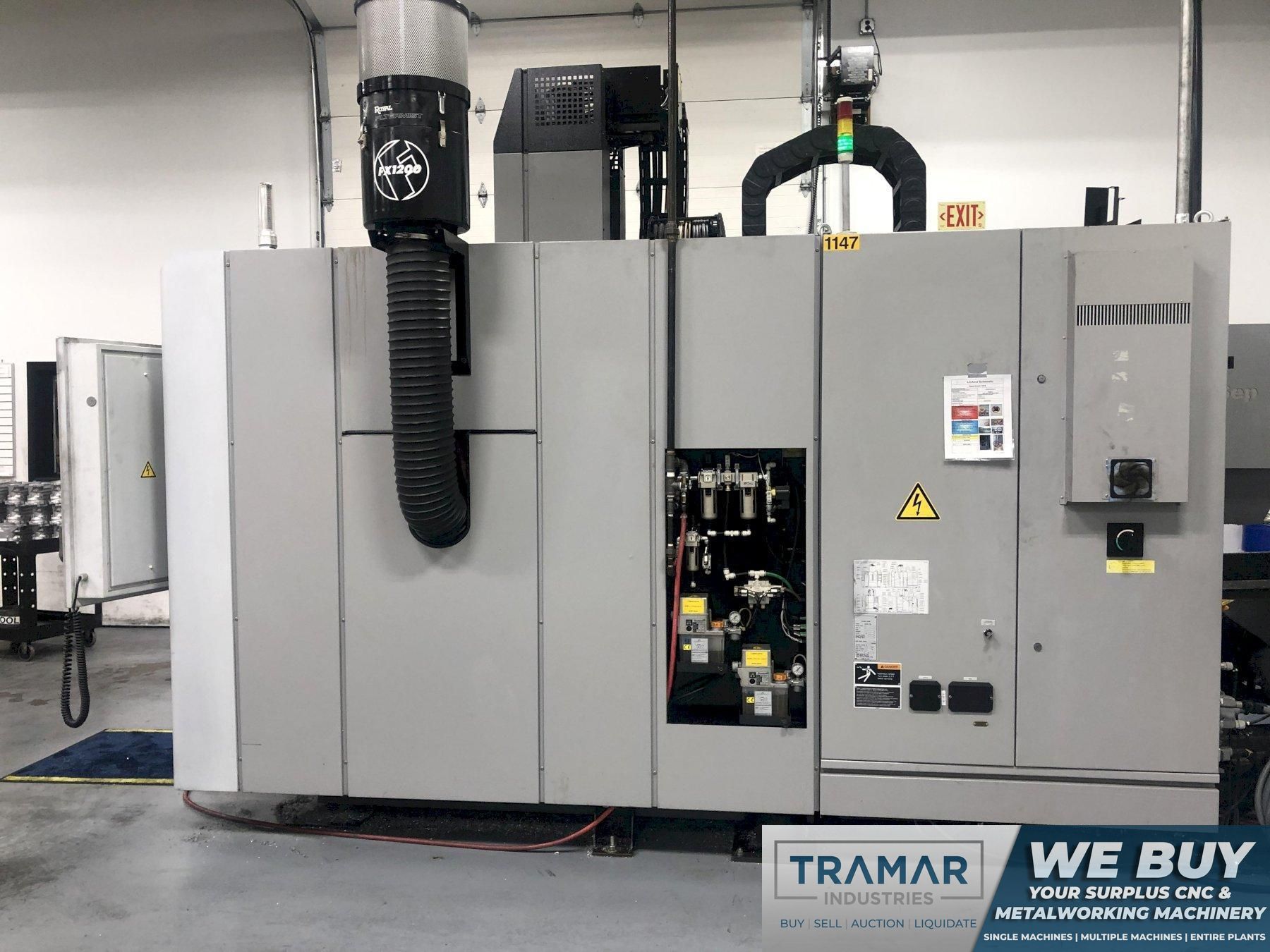

Mori Seiki NMV5000 - Machining Centers, Vertical, (5-Axis or More)

Share Machine
Specifications Print Specs
Model: NMV5000
Year: 2012
Stock #: 3898 Sold
Highlights:

Mori Seiki NMV5000 DCG 5-Axis CNC Vertical Machining Center, MSX-711 IV (Fanuc 31i-A5), 19.7
Machine Specifications
# Axis
5
Control Type
MSX-711 IV (Fanuc 31i-A5)
Table Working Surface (DIAMETER)
19.7"
Max Table Load
660 pounds
X
28.7"
Y
20.1"
Z
20.1"
Rapid Traverse Rate (X/Y/Z)
1,968/1,968/1,574
Power
30 horsepower
RPM
20,000
# ATC
60
Taper
HSK 63
B Axis Indexing
0.001
B Axis Indexing Range
+ 160/-180 Deg
Weight
27,280 pounds

Equipped With:

High Pressure Coolant Thru Spindle
Chip Blaster Model JV40
Mapps IV (Conversational Programming)
Fast Data Server
Glass Scales on B & C Axis
Custom Macros
Work & Tool Offset
Mist Collector
Cutting ModeSelection (speed priority-Accuracy Priority)
Mayfron ConSep Chip Conveyor
Spindle Chiller

The Mori Seiki NMV5000 is an exclusive part of our Machining Centers, Vertical, (5-Axis or More) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
