Mori Seiki NT4200/1000SZ - Lathes (3-Axis or More)

Request Quote
Share Machine
Specifications Print Specs
Model: NT4200/1000SZ
Year: 2006
Stock #: 14492
Highlights:

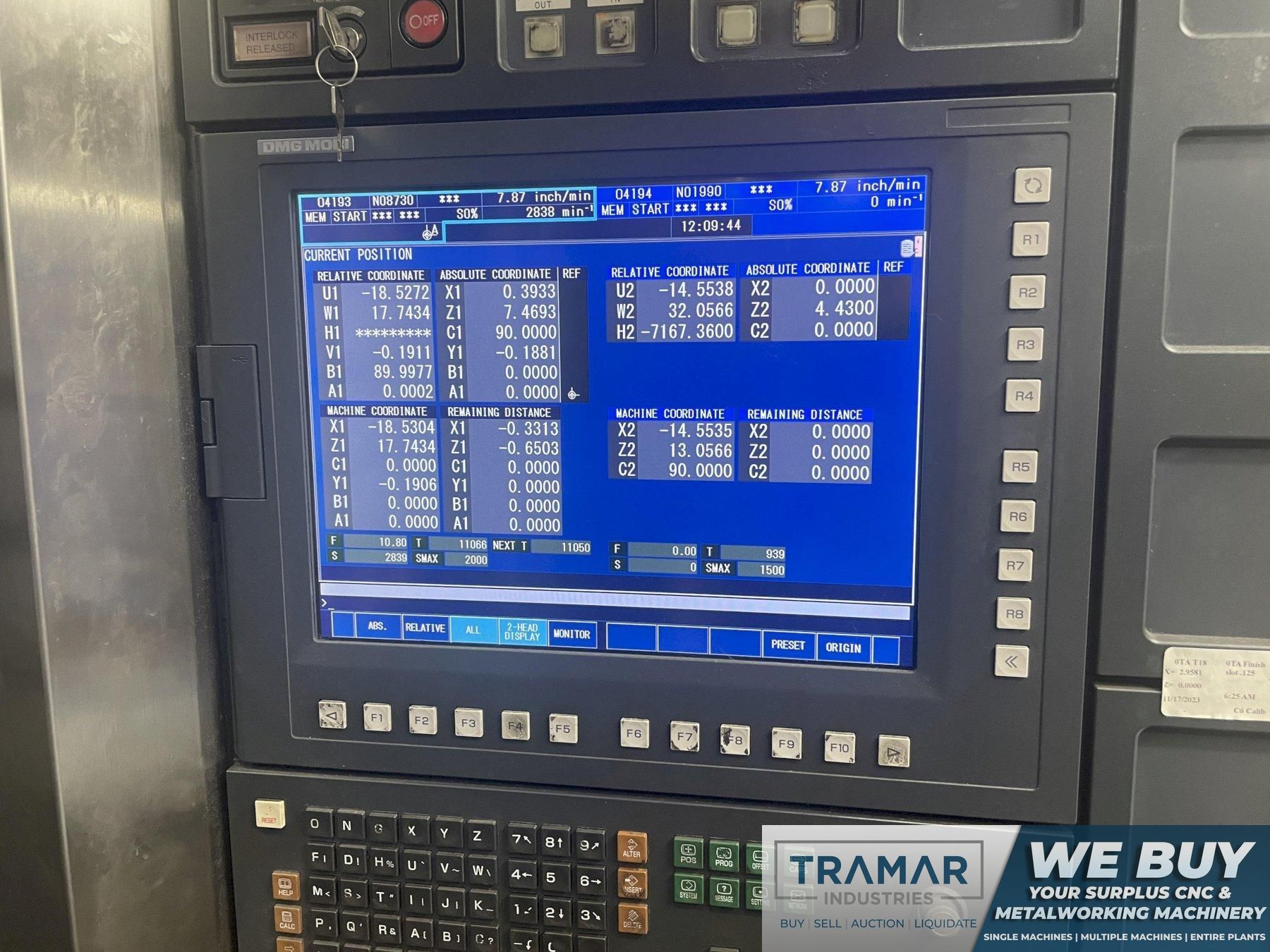

Fanuc Control

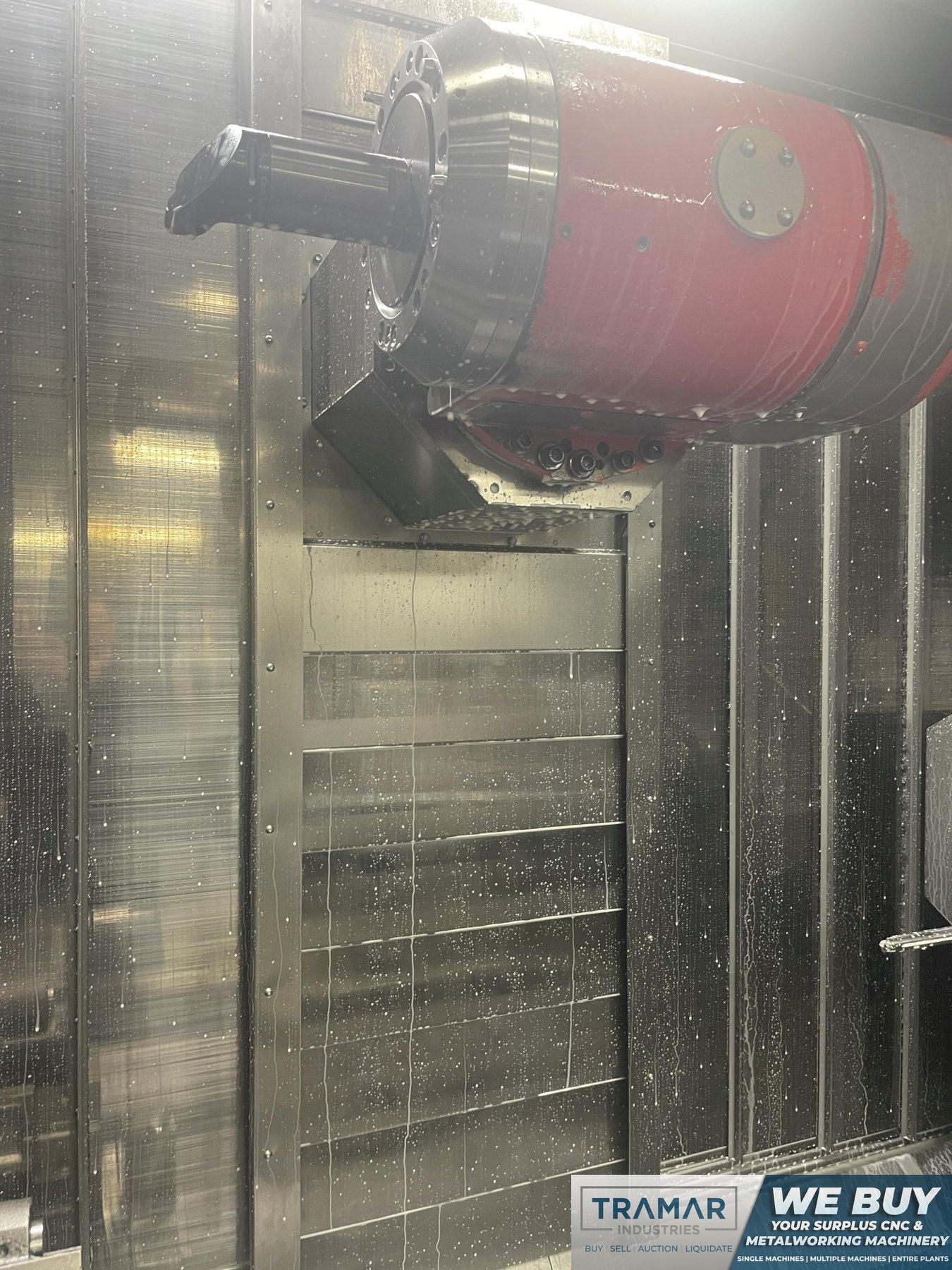

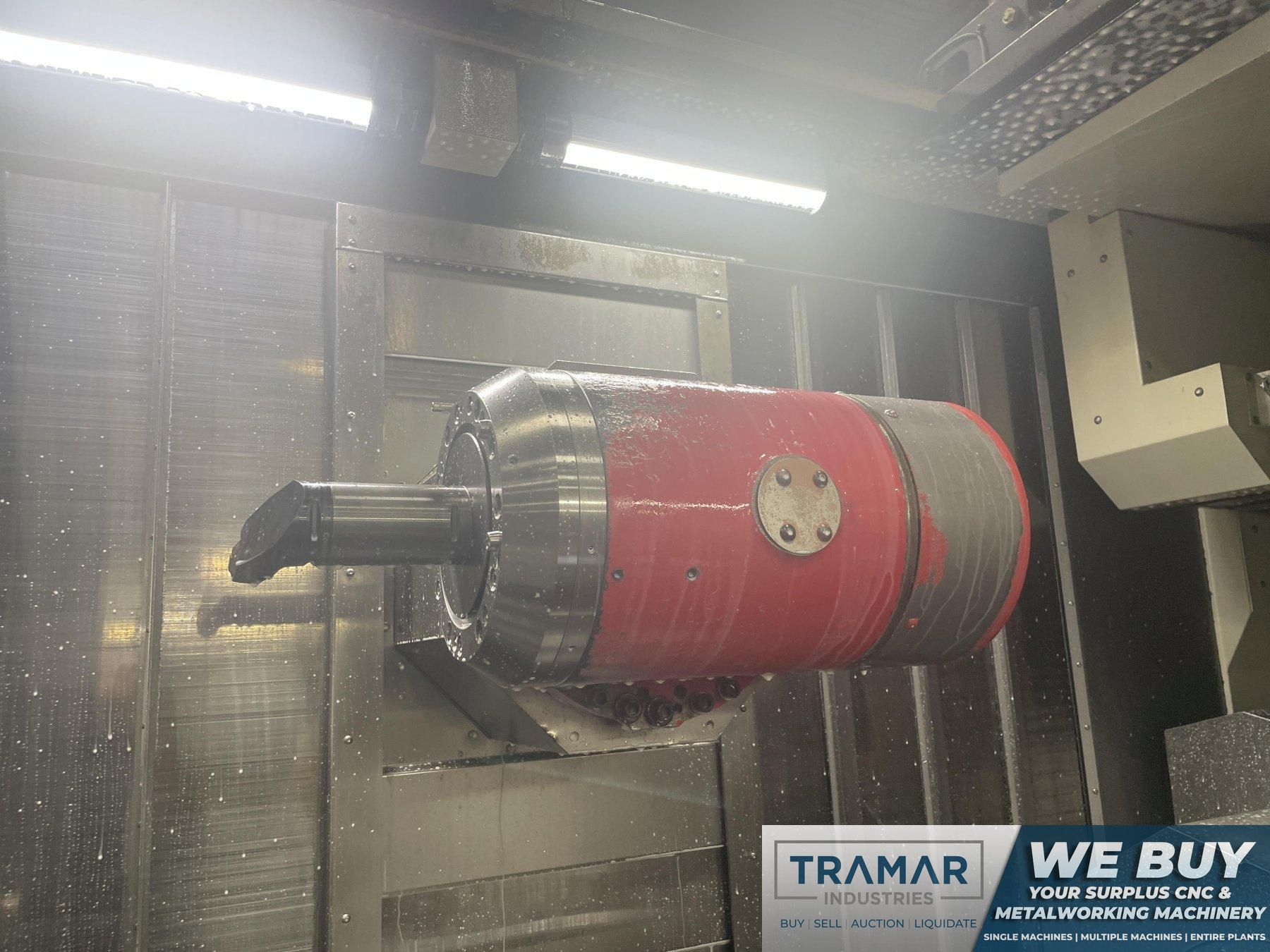

Live Milling Spindle
Y Axis | Sub Spindle

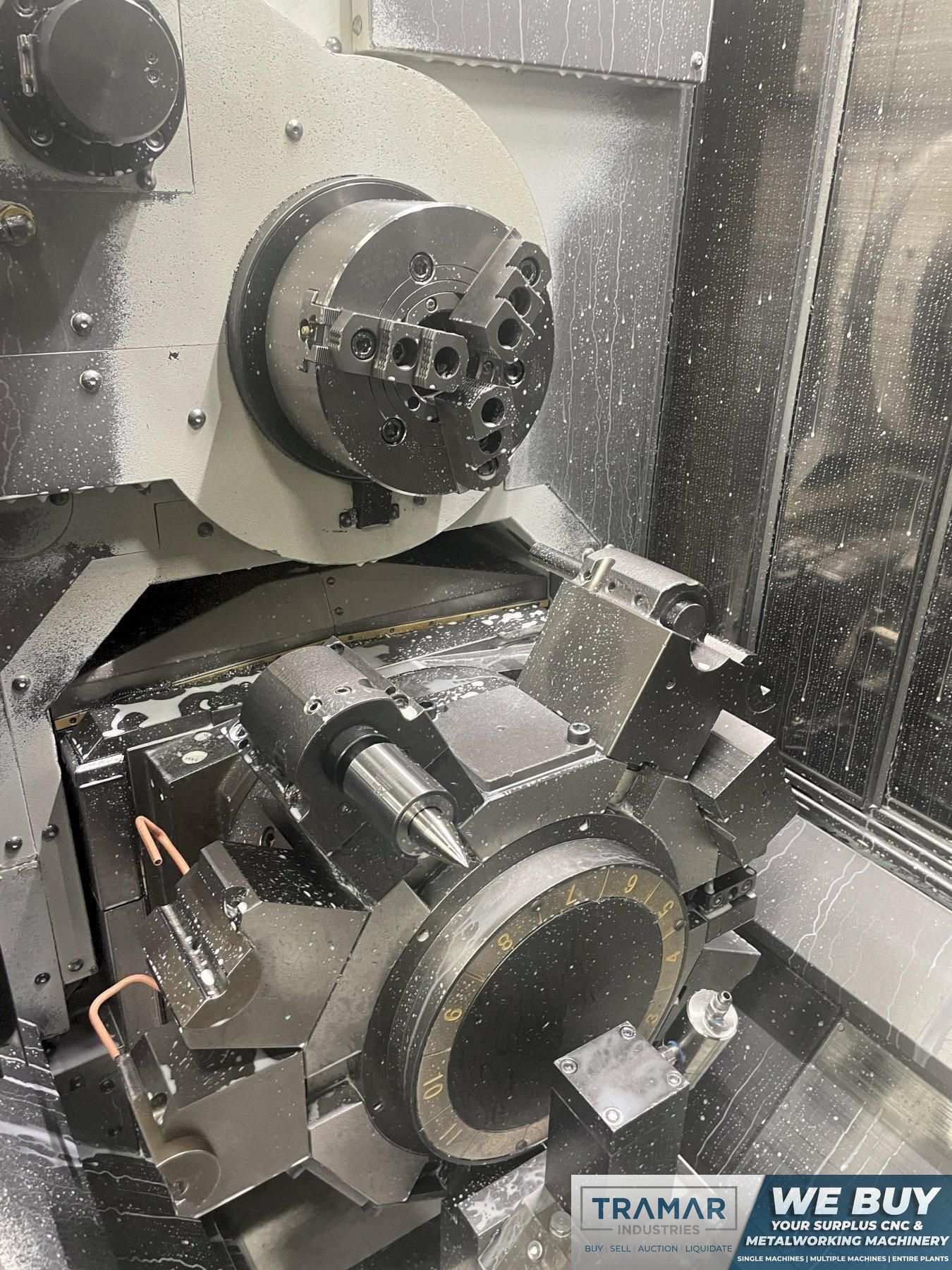

Lower Turret w/Hyd. Steady Rest
HP Coolant Thru Spindle

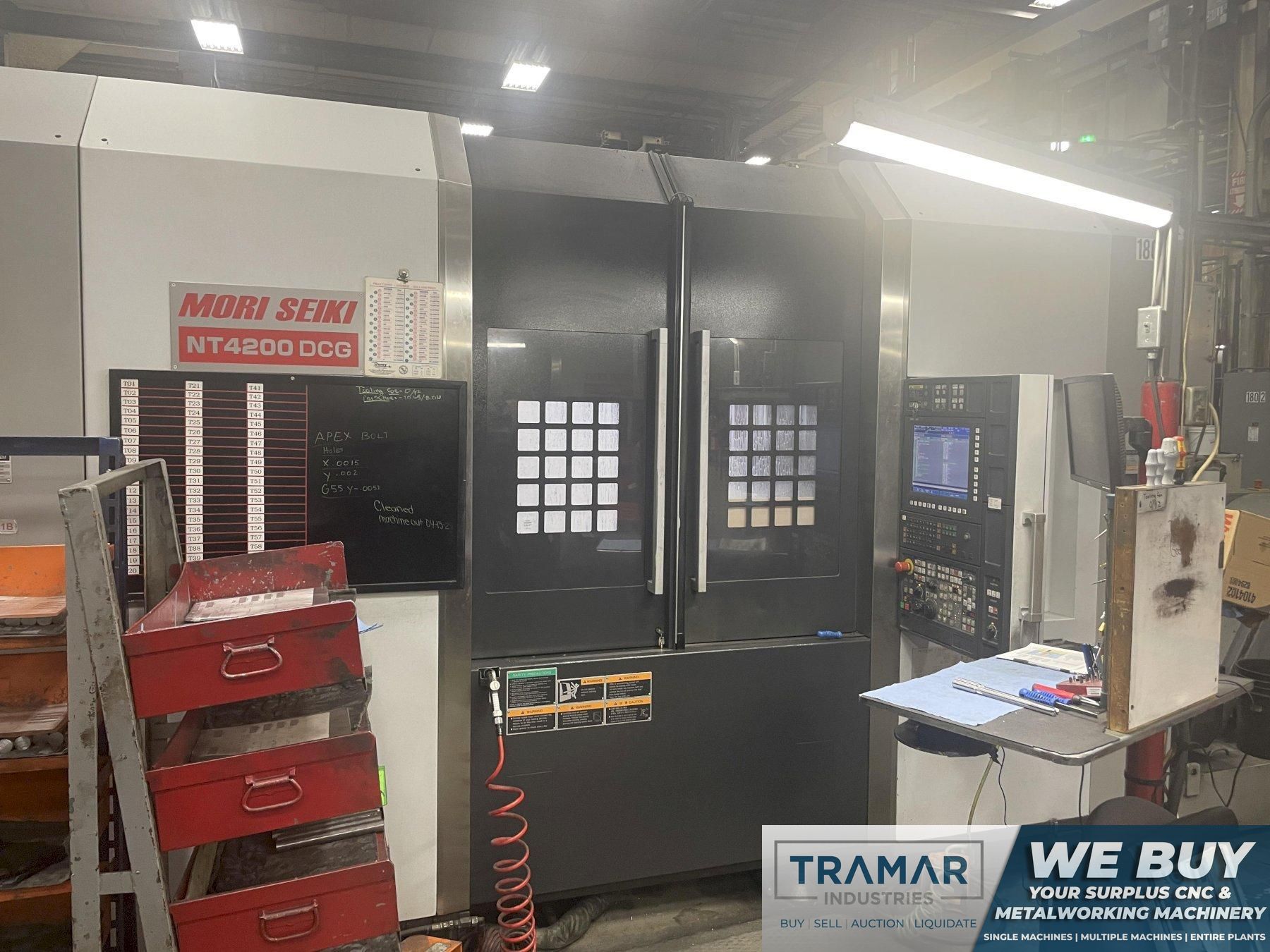

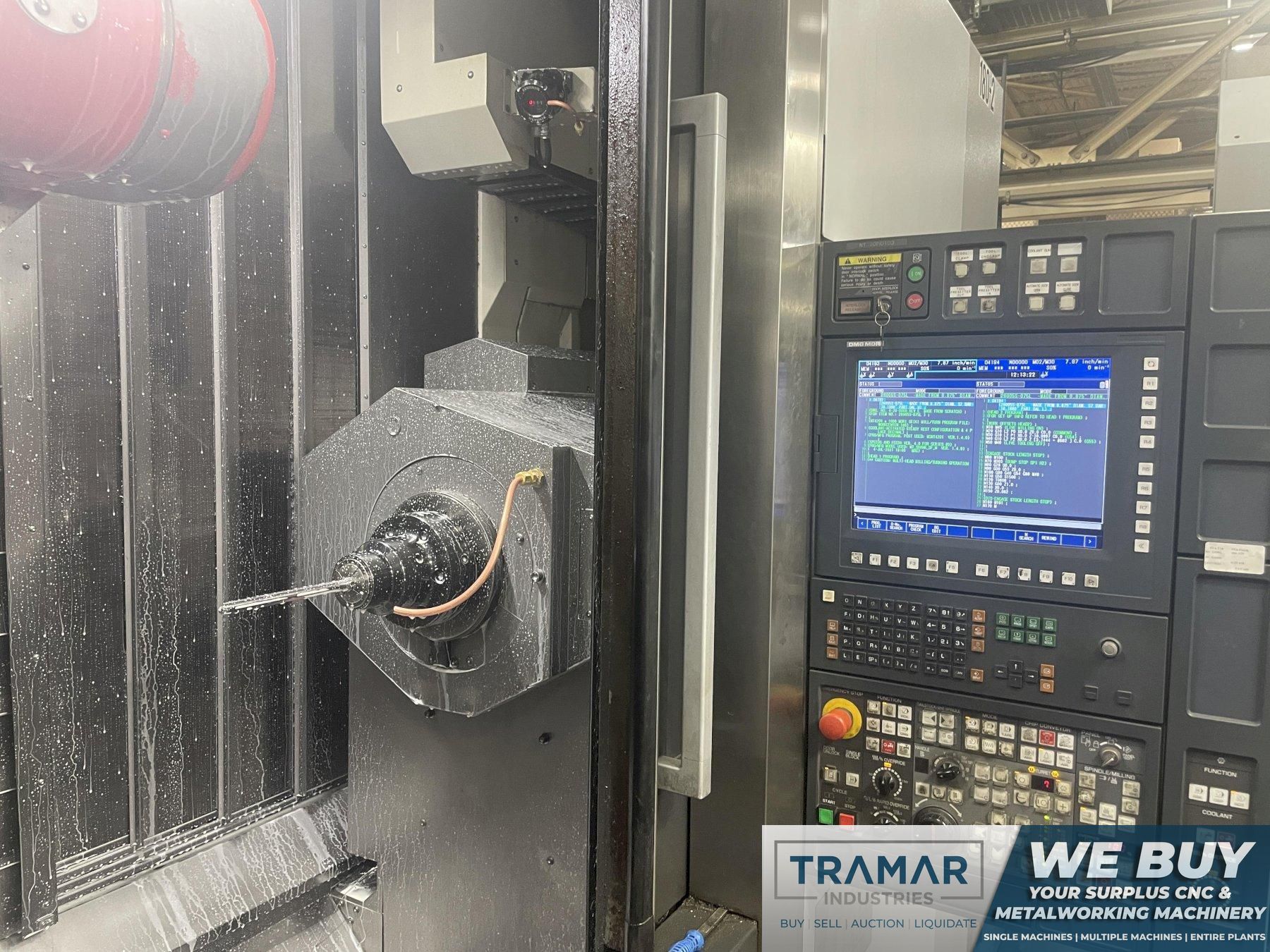

Mori Seiki NT4200/1000SZ CNC Multi-tasking Lathe For Sale - 2006
Machine Specifications
CNC Control
yes
Control Type
Fanuc
# Axis
9
Swing
28.7"
Turning Diameter
25.9"
Turning Diameter Lower Turret
13.7"
Center Distance
42.5"
Bar Capacity
2.5"
X Axis Travel
29.5"
X2 Axis Travel
7.7"
Y Axis Travel
8.3"
Z Axis Travel
44.1"
Z2 Axis Travel
39.8"
B Axis Indexing
+/- 120°
C1/C2 Axis Index
0.0001°

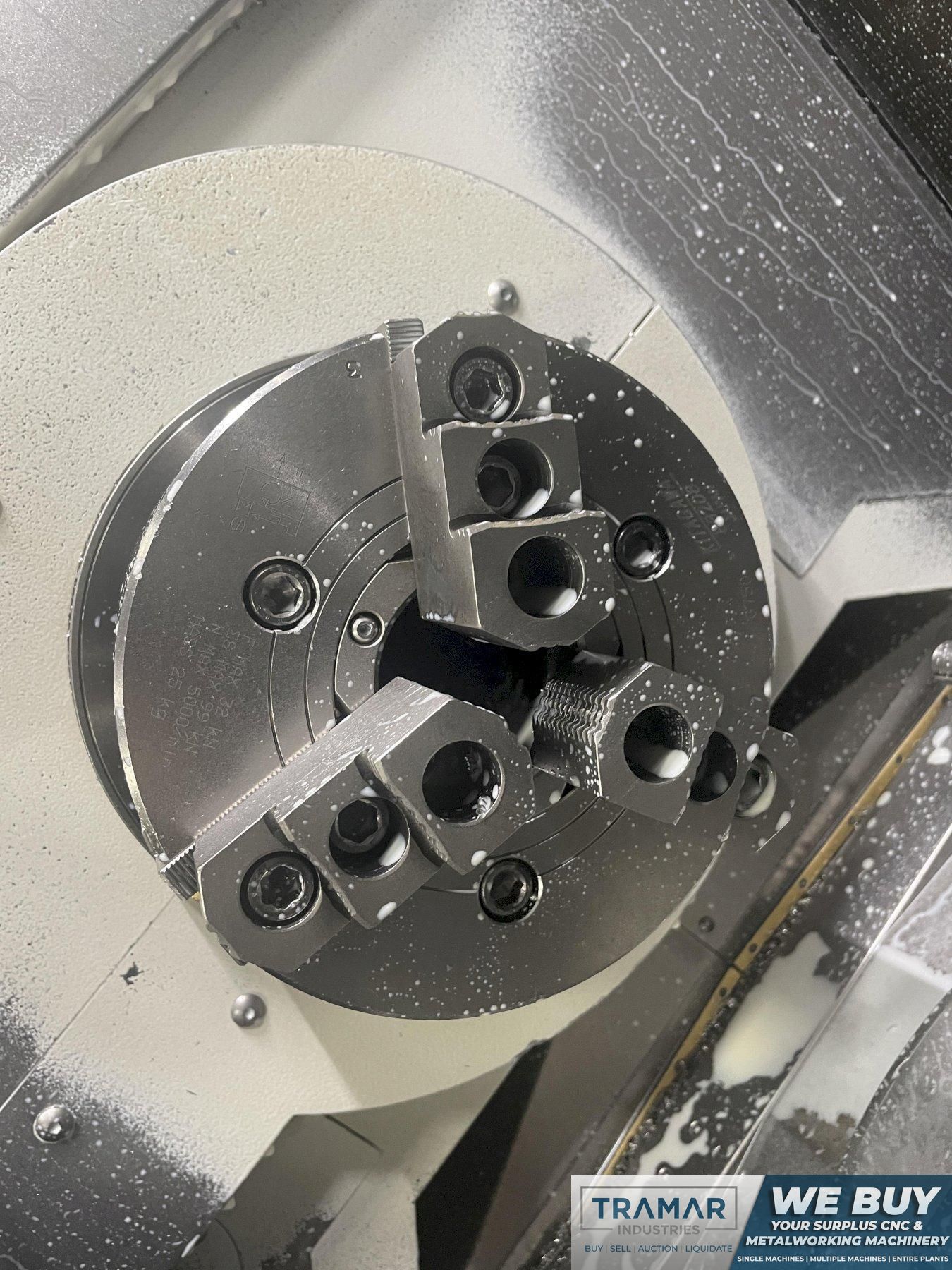

Spindle Nose
A2-6
Spindle Speed
5,000 rpm
Main Motor
30 hp
Tailstock
no
Y Axis
yes
Live Tooling
yes
Milling Spindle Taper
KM-63
Live Tooling Speed
12,000 rpm - Milling Spindle
Live Tooling Motor
25 hp

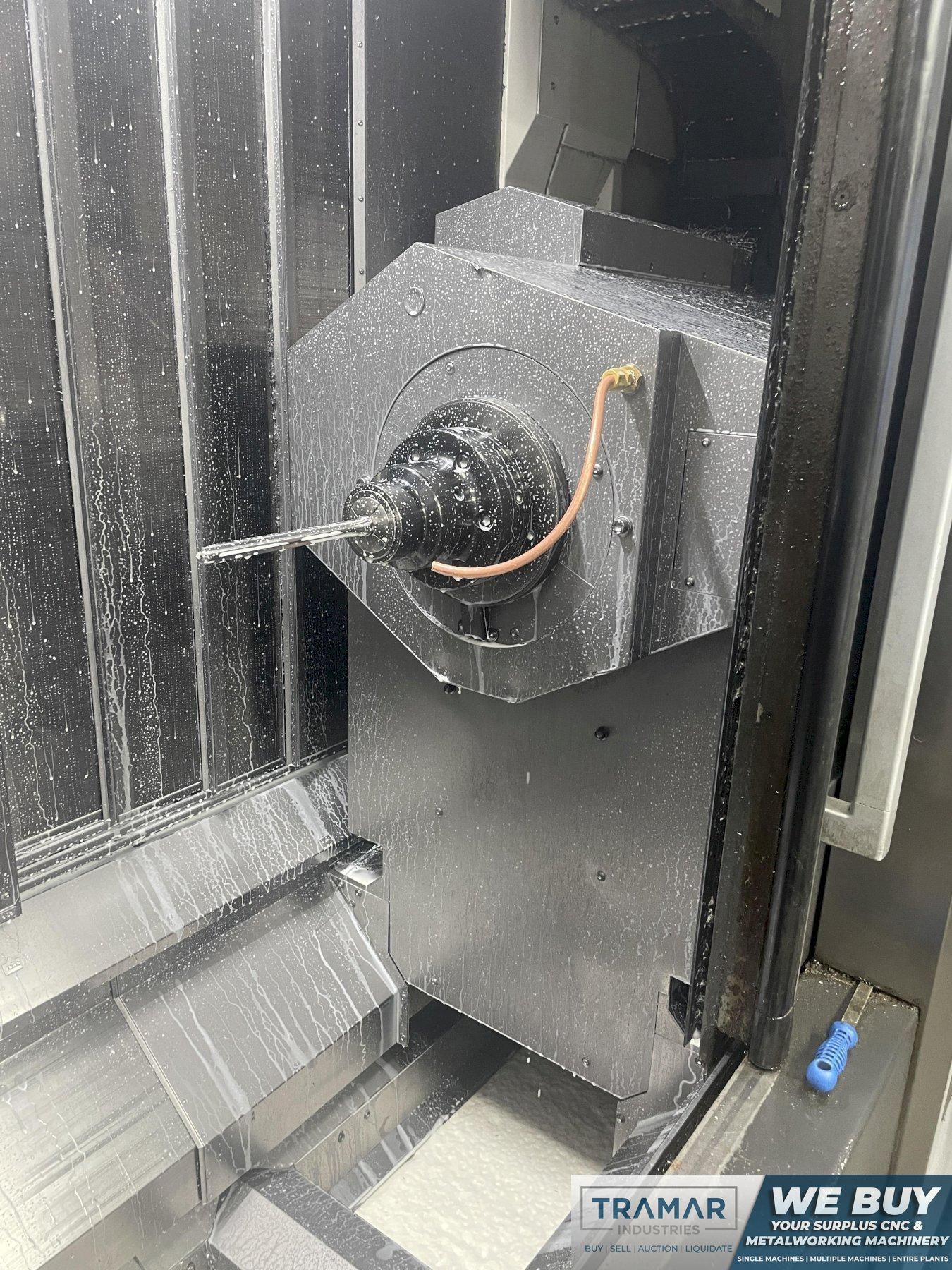

Sub Spindle
yes
Sub Spindle Bar Capacity
2.5"
Sub Spindle Nose
A2-6
Sub Spindle Speed
5,000 rpm
Sub Spindle Motor (HP)
30 hp
Turret Capacity
12 Stations Lower Turret

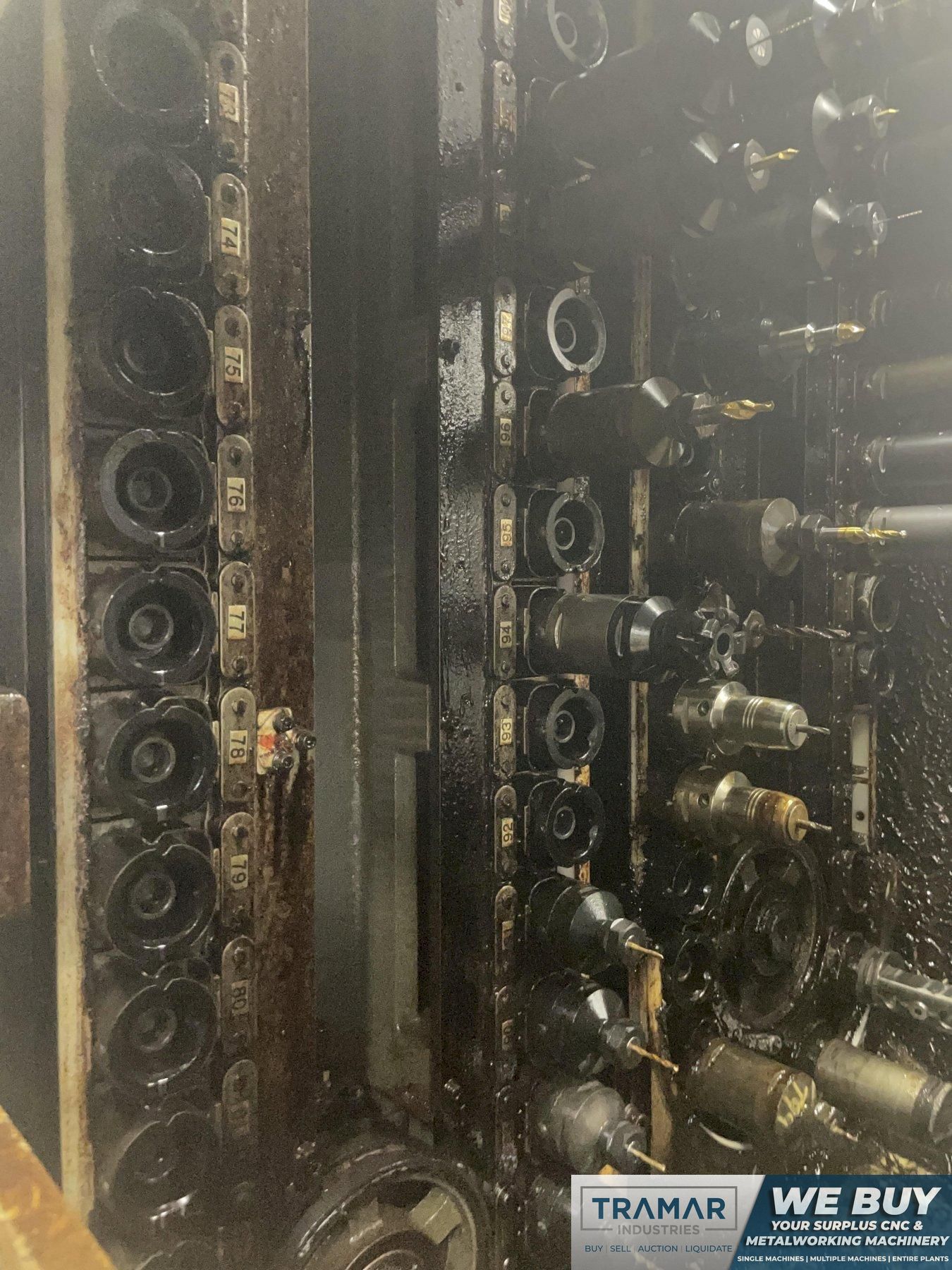

ATC Capacity
100 Stations
Machine Weight
49,700 pounds

Equipped With:

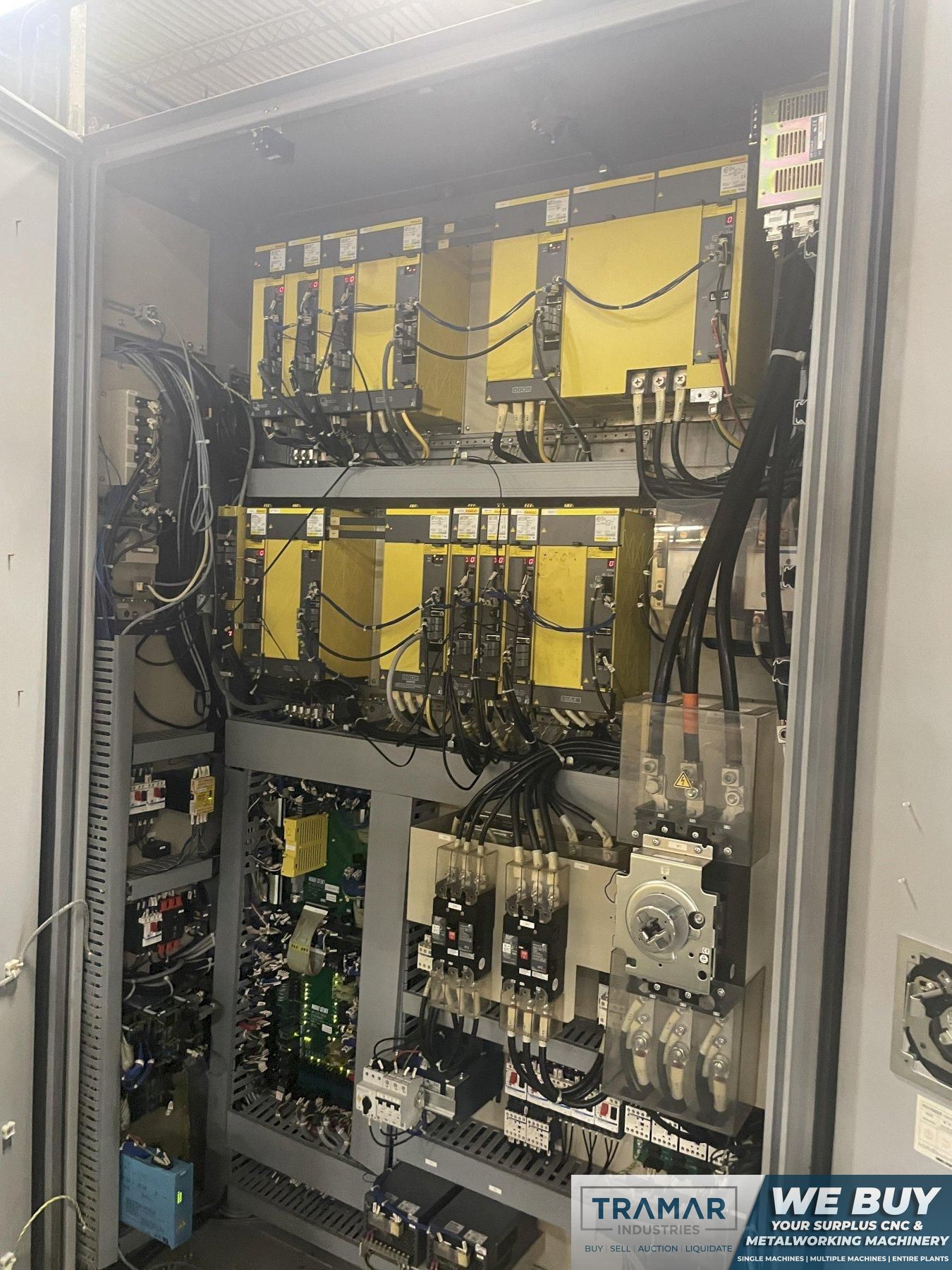

- Fanuc CNC Control
- Mapps Conversational Programming Software
- Chip Conveyor
- Coolant Tank & Pump

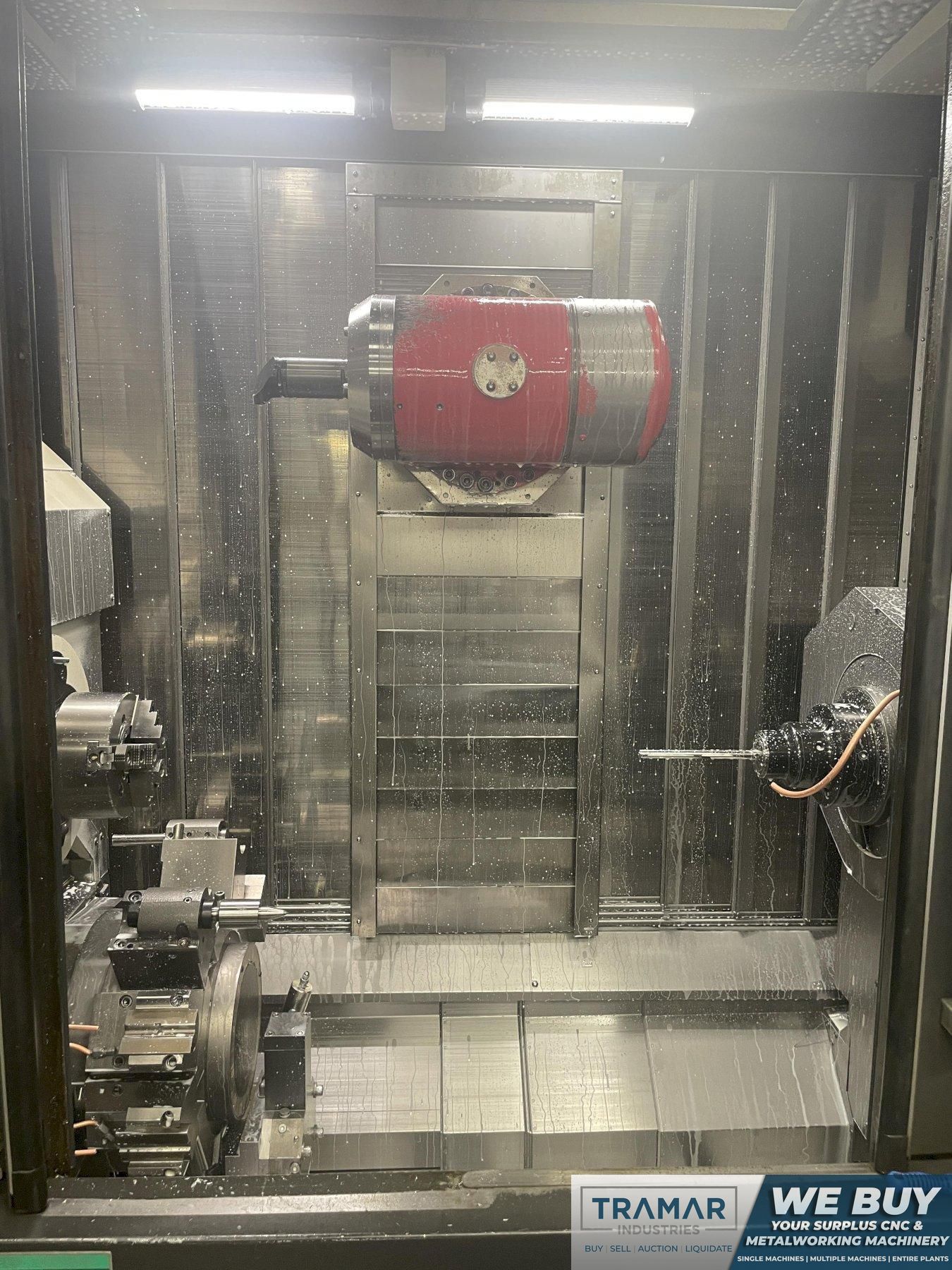

- Live Milling Spindle

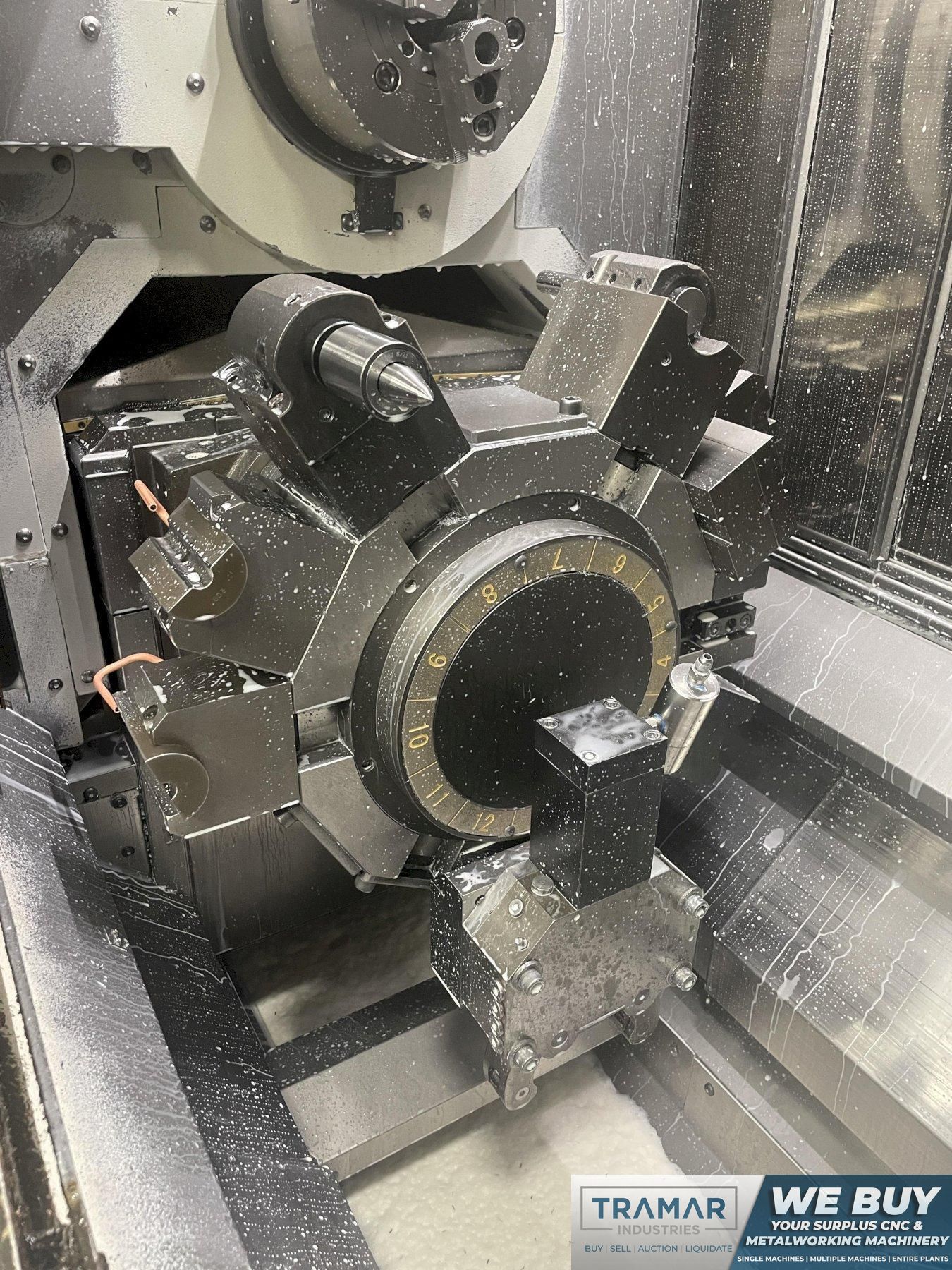

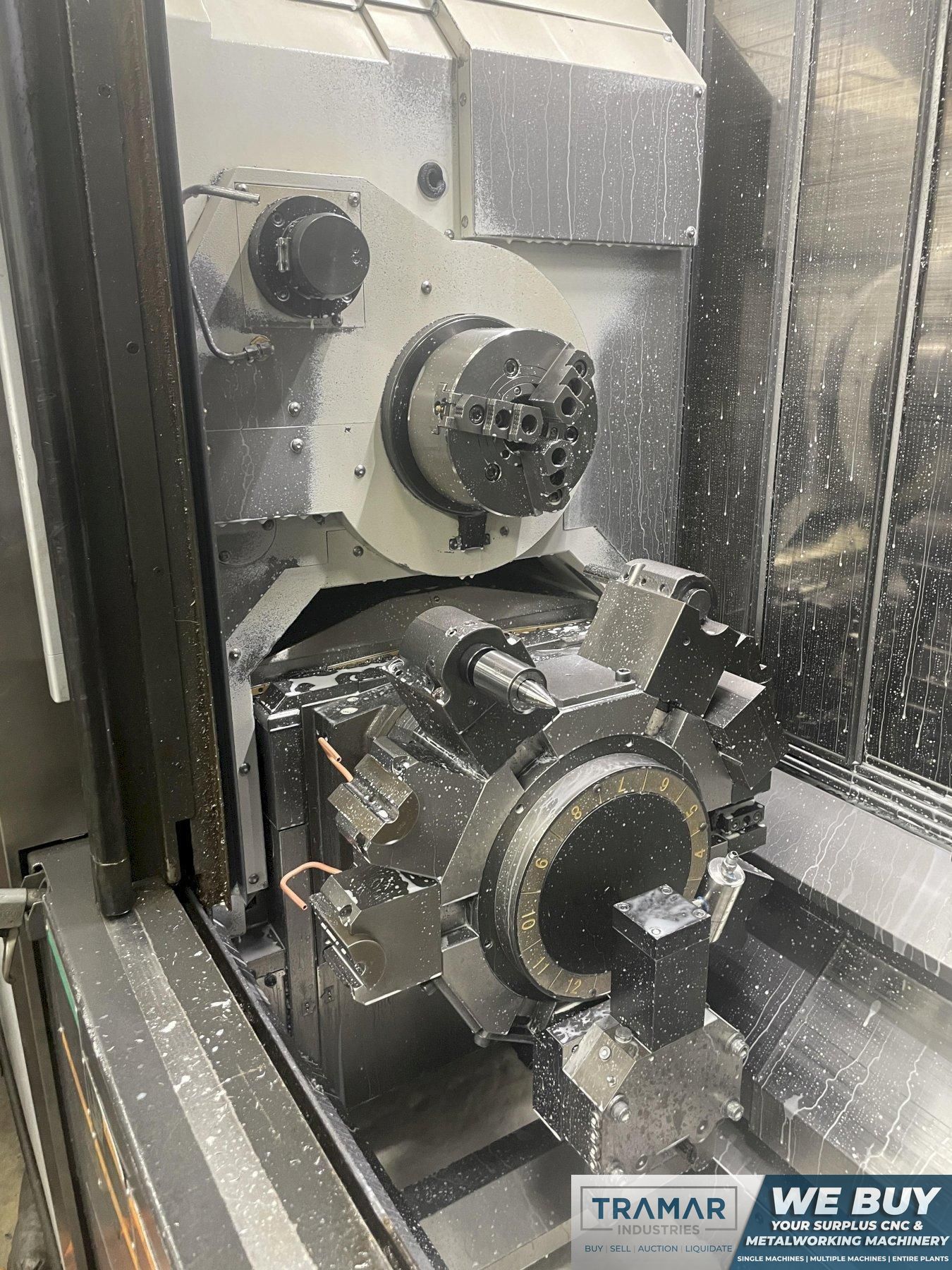

- Lower Turret
- Sub Spindle
- Y Axis

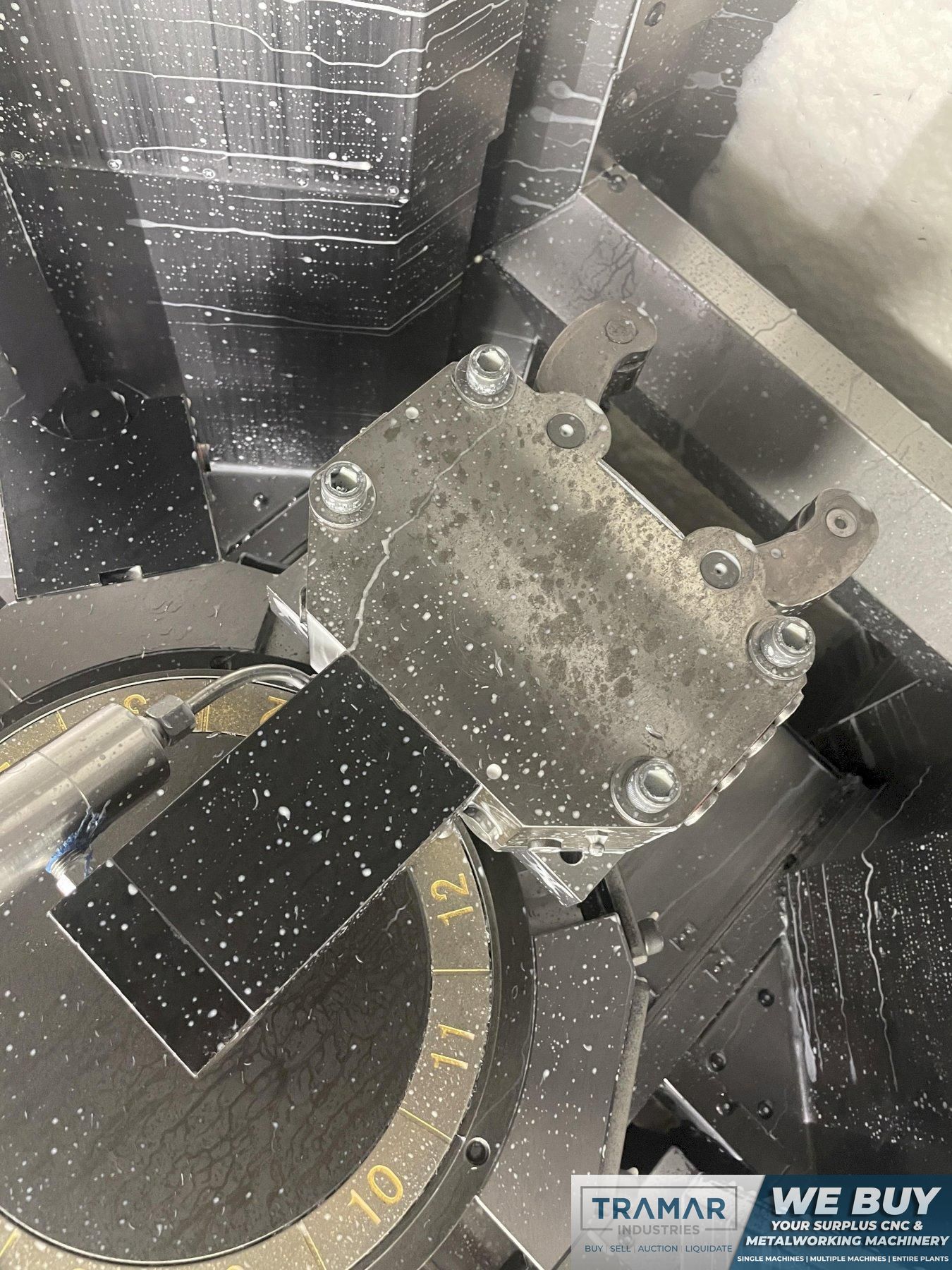

- Hyd. Steady Rest on Lower Turret

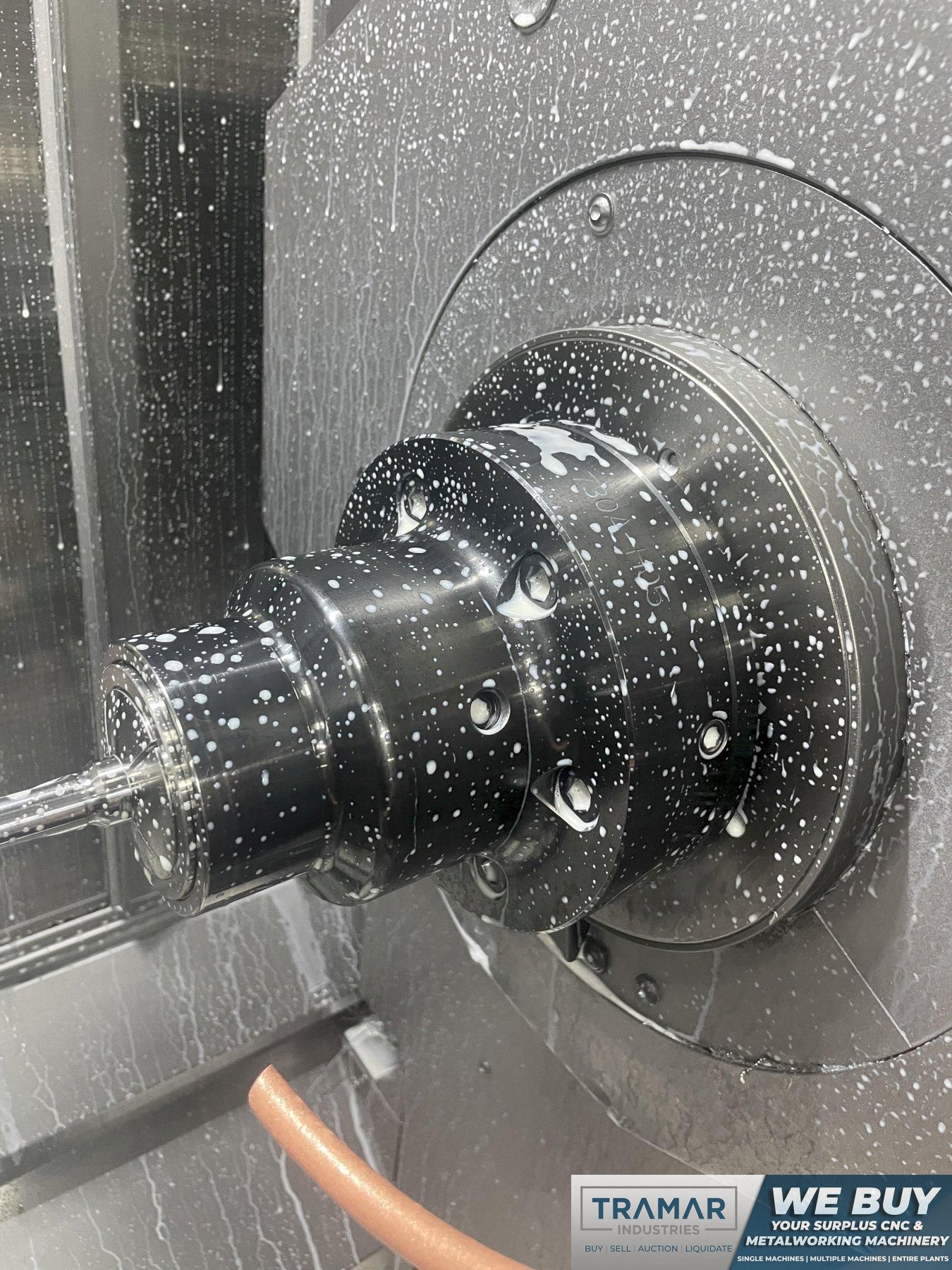

- Collet Chuck on Sub Spindle
- Probing
- Coolant Thru Spindle - High Pressure

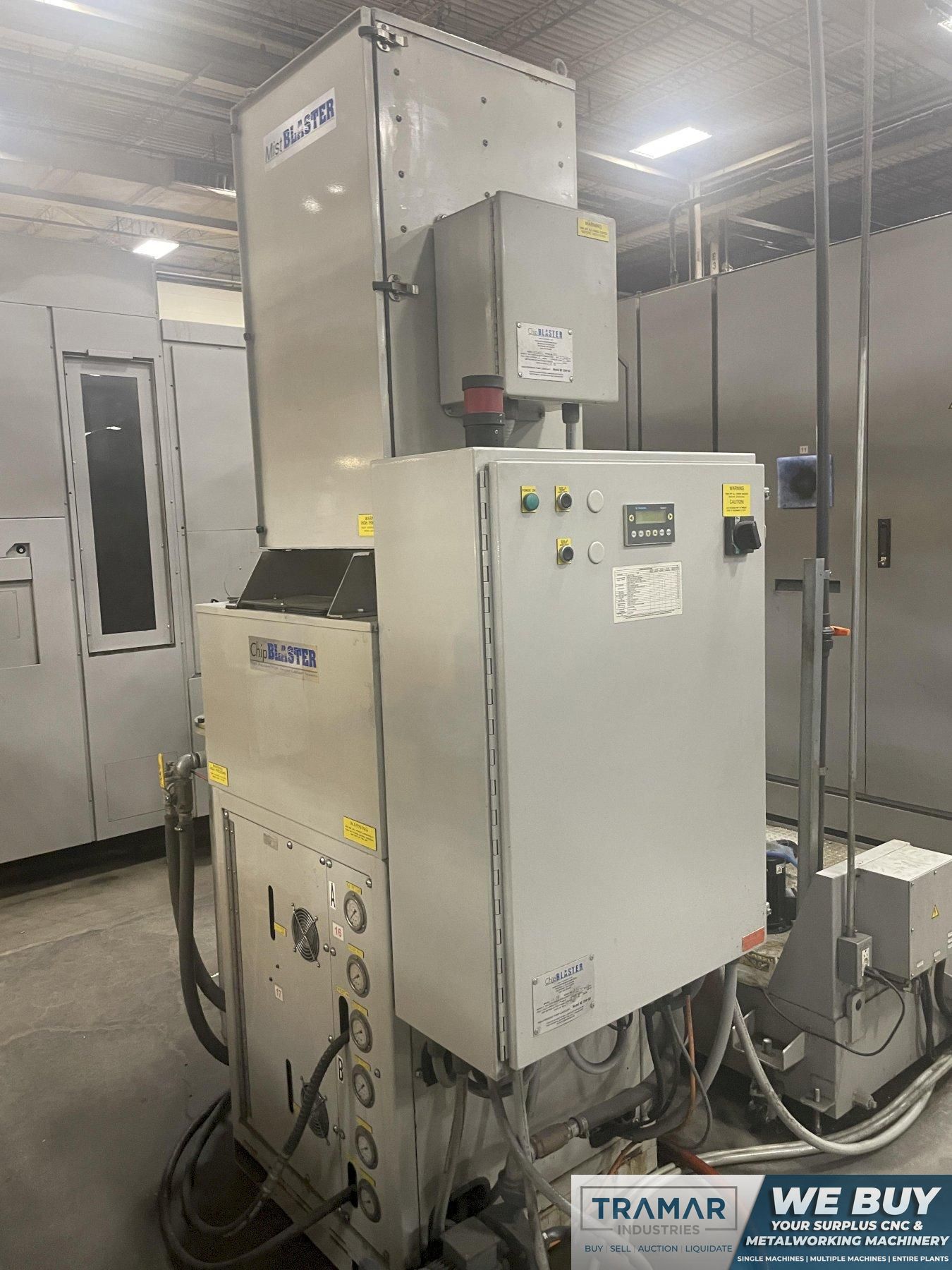

- Chip Blaster Unit

The Mori Seiki NT4200/1000SZ is an exclusive part of our Lathes (3-Axis or More) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
