DMG Mori NZL6000YB/4000 - Lathes (3-Axis or More)

Share Machine

Specifications Print Specs

Model: NZL6000YB/4000

Year: 2010

Stock #: 13527 Sold

Type: Lathes (3-Axis or More)

Manufacturer: Used DMG Mori Machines

Highlights:
MSX-853IV Control
Upper Turret (Live Tooling & Y Axis) & Lower Turret
Hydraulic Steady Rest | Tool Presetter
CoolJet Coolant System
47" Swing x 157" Center Distance

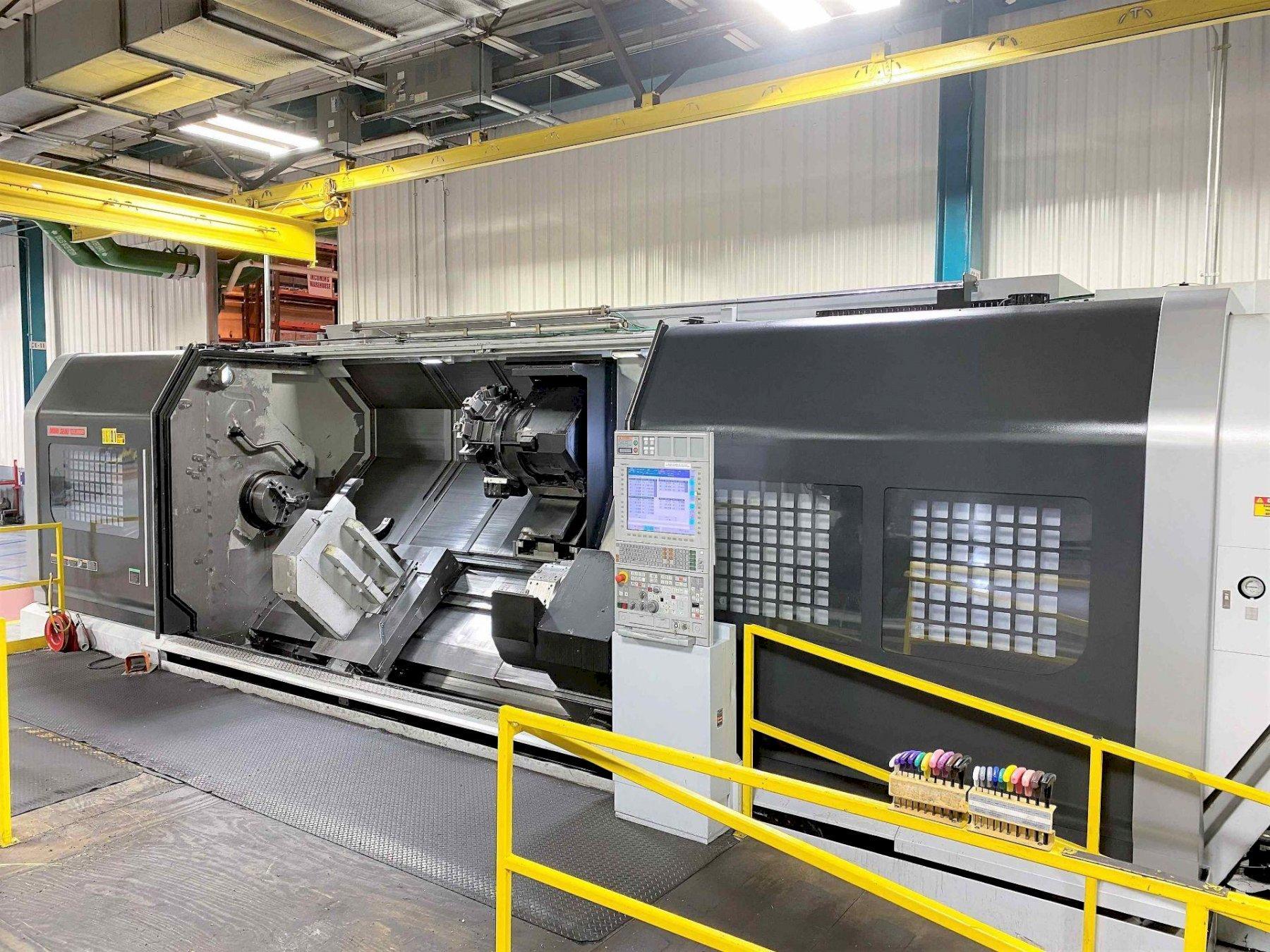

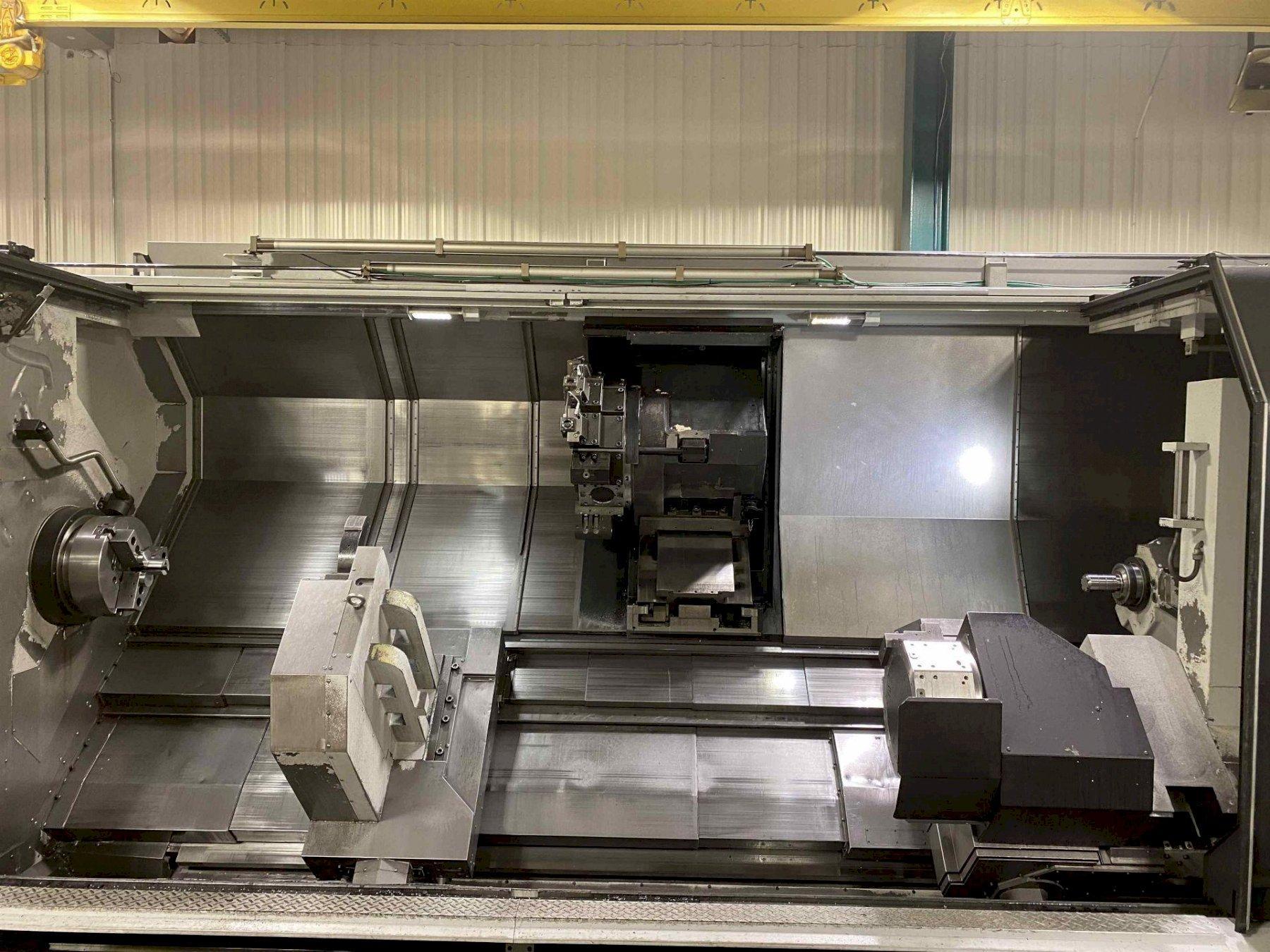

Mori Seiki NZL6000BY/4000 CNC Horizontal Lathe 2010

Equipped With:

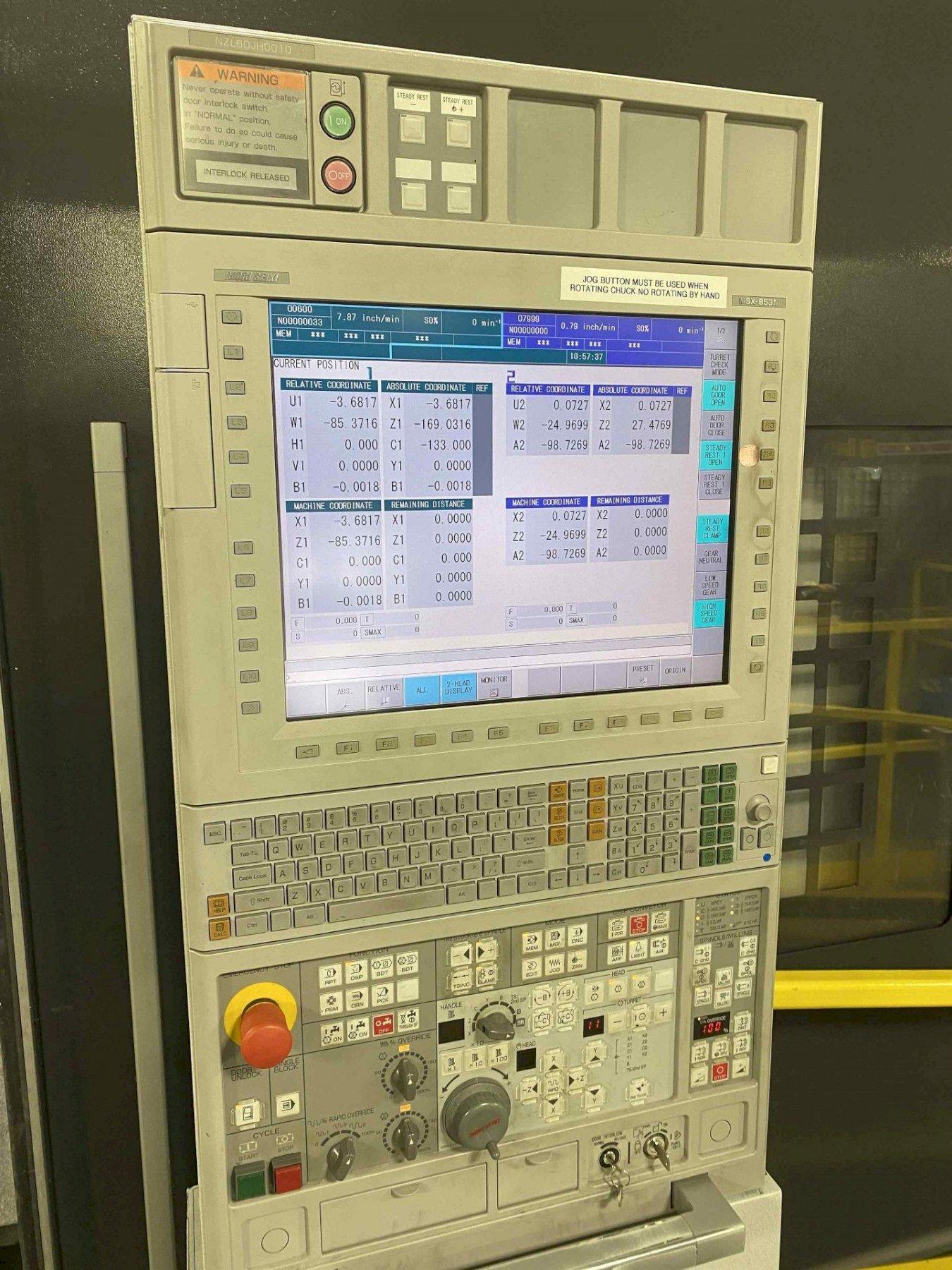

- MSX-853IV Control

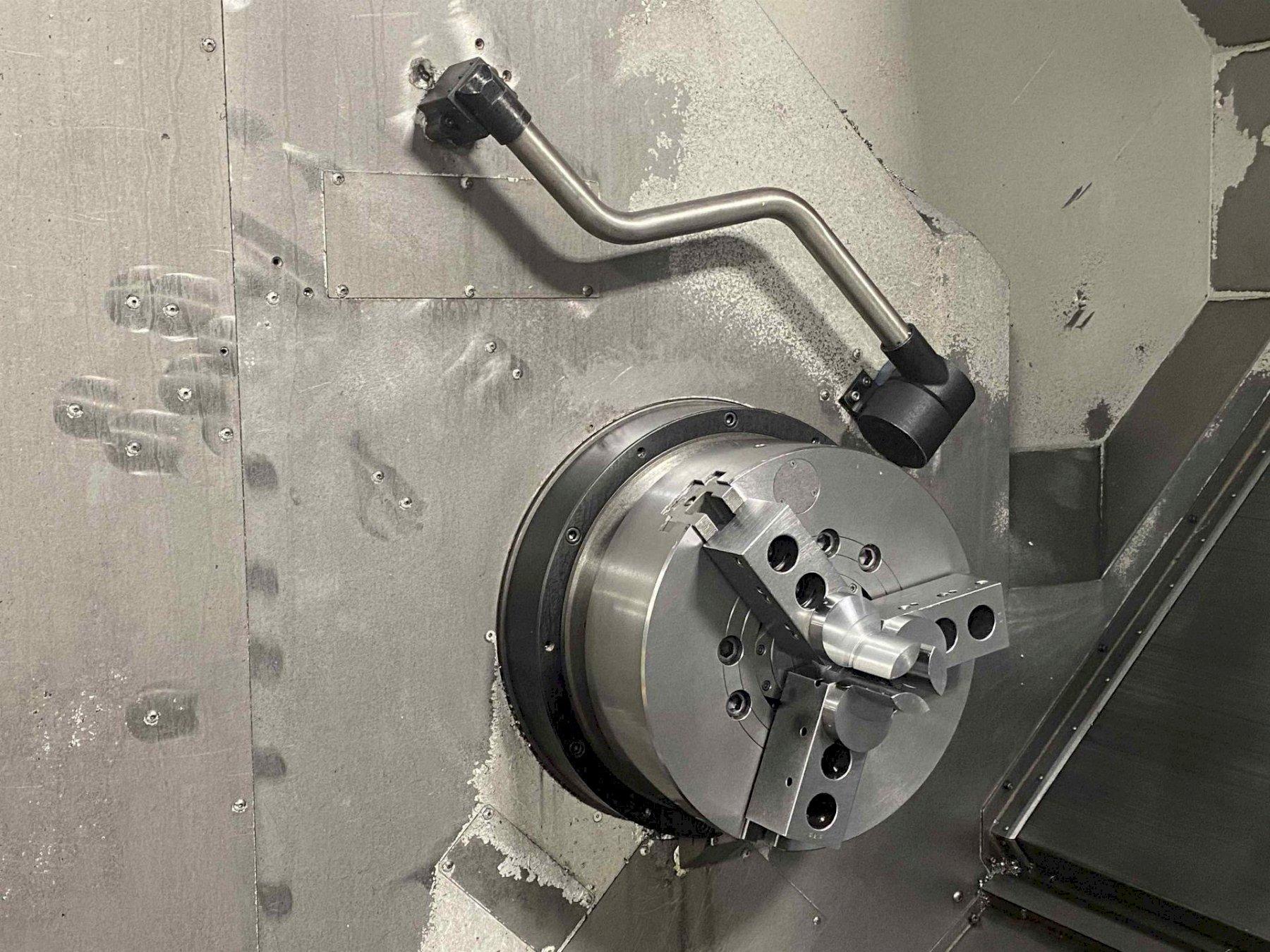

- 18" 3-Jaw Chuck
- Tool Presetter

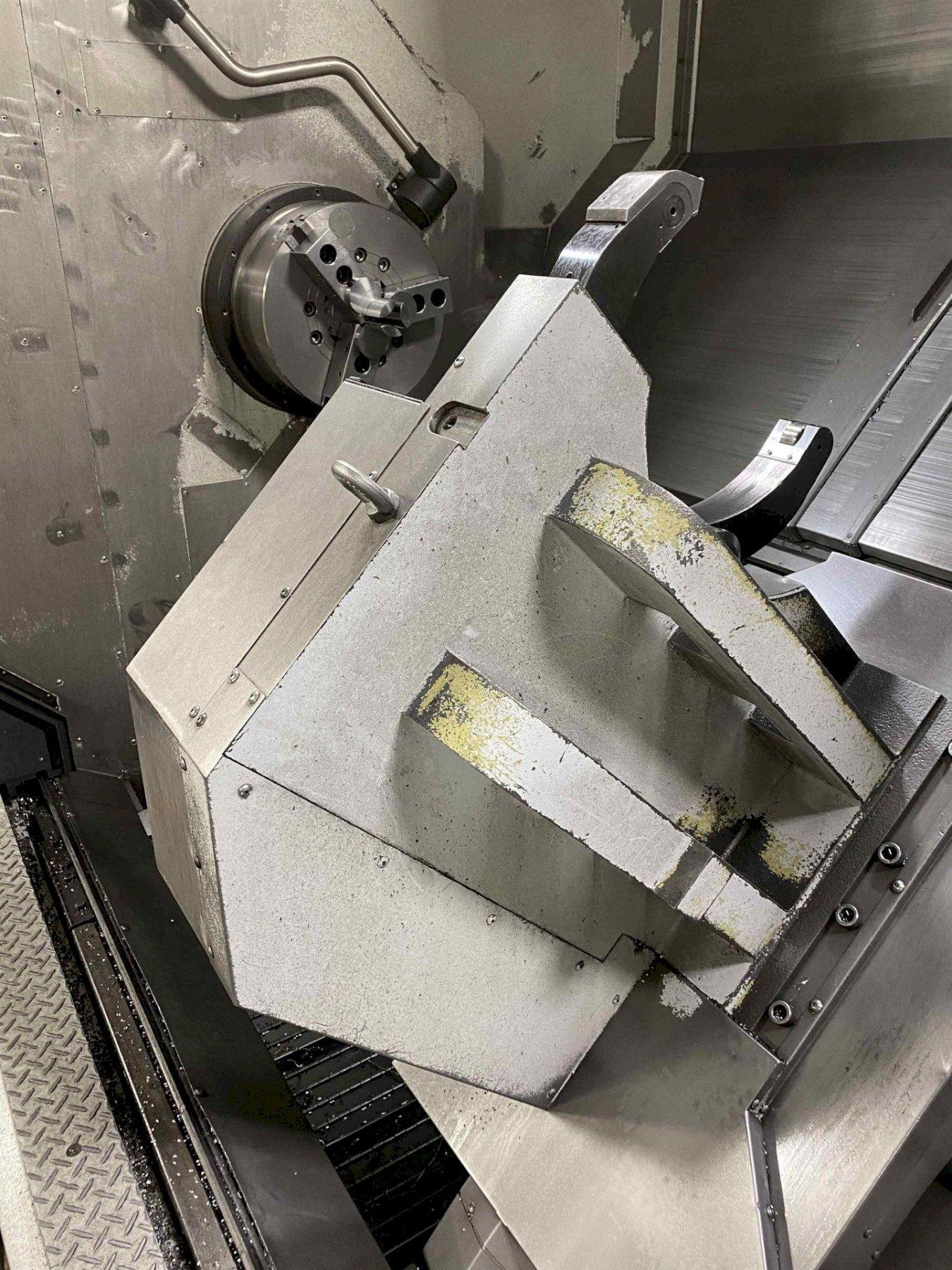

- Programmable Automatic Centering Hydraulic Steady Rest
- Programmable Tailstock
- Chip Conveyor
- Coolant Tank & Pump
- Cooljet System 3032P-230

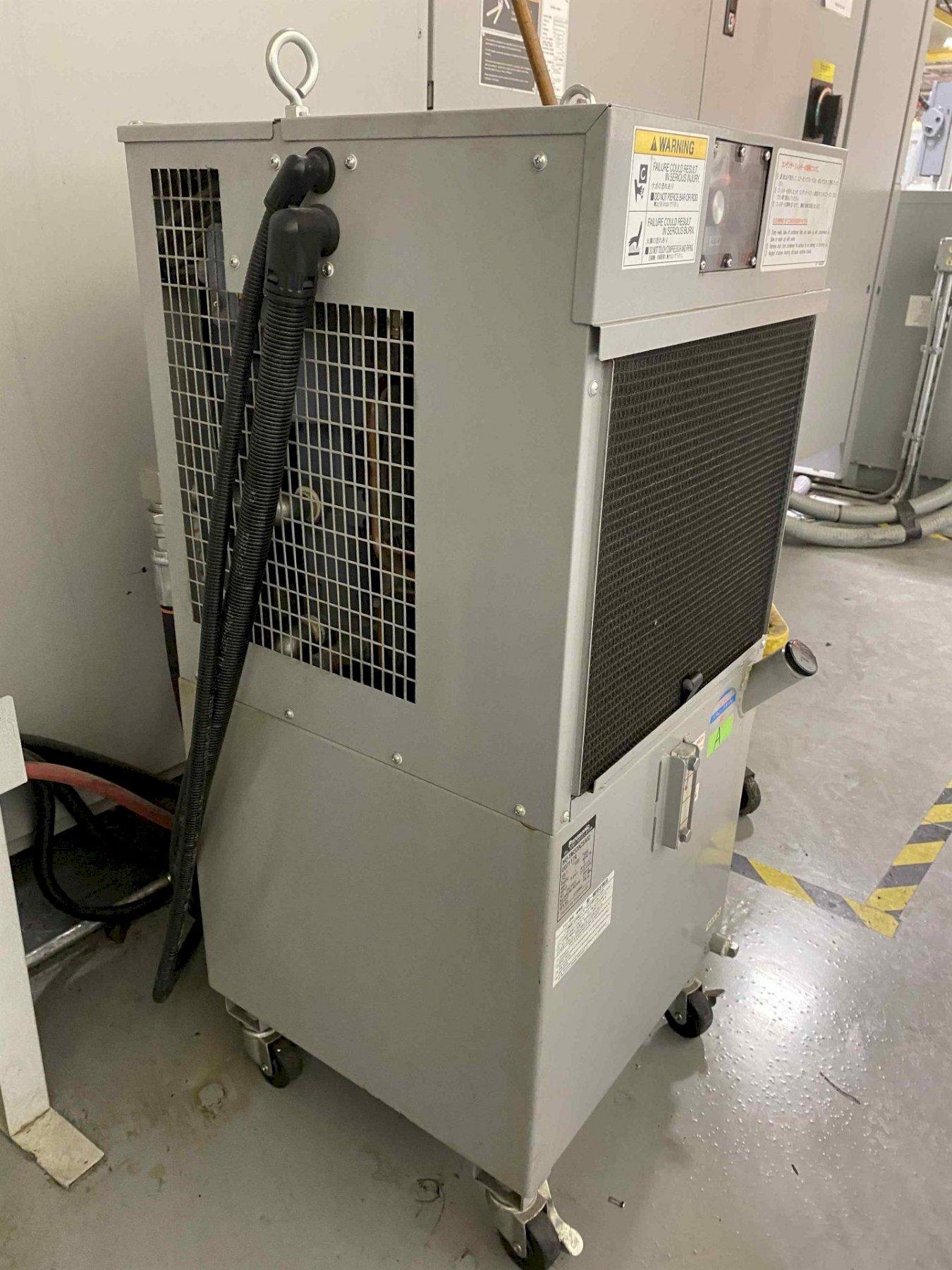

- Spindle Chiller

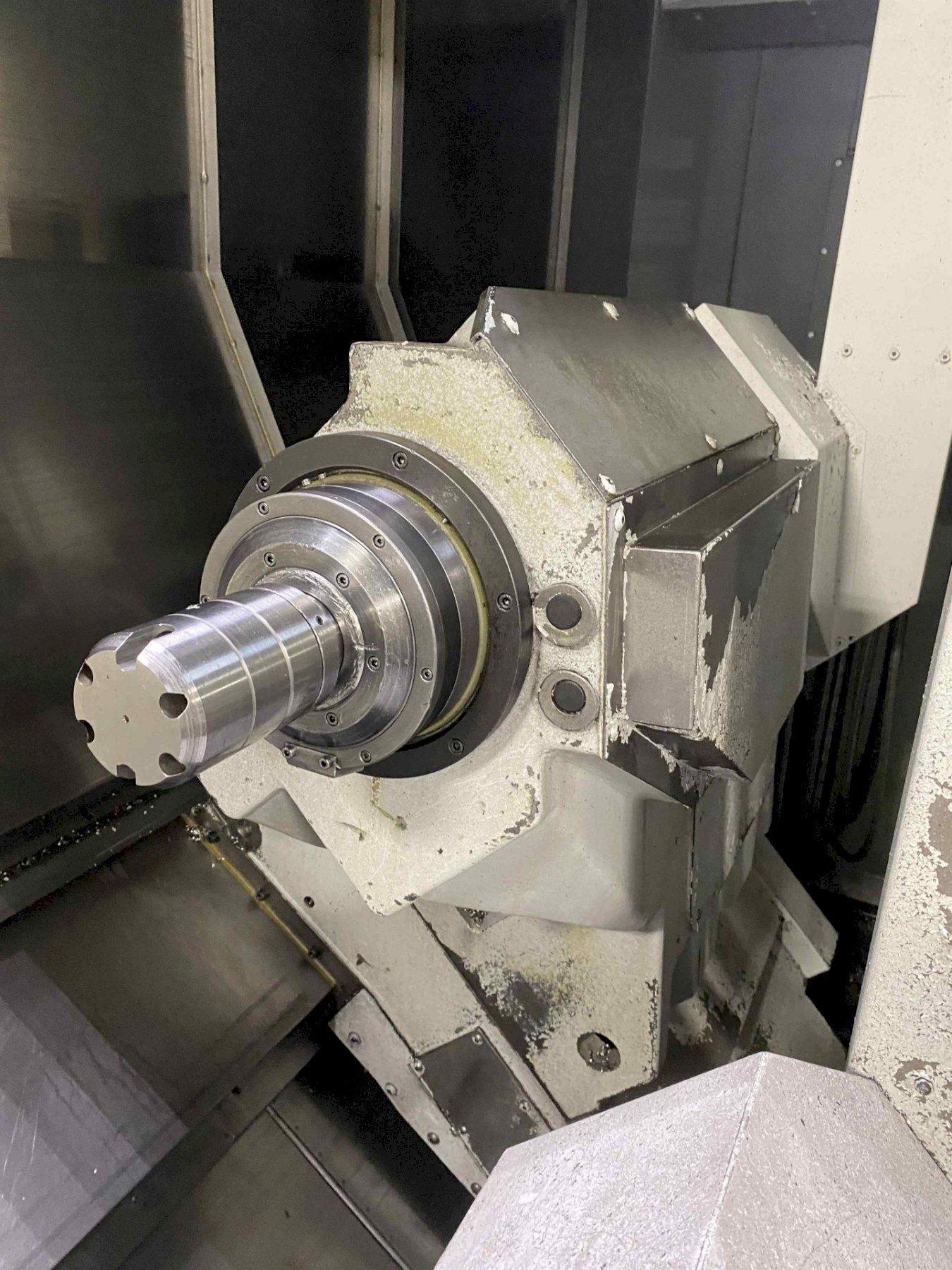

- Live Tooling (Upper Turret)
- Tool Presetter

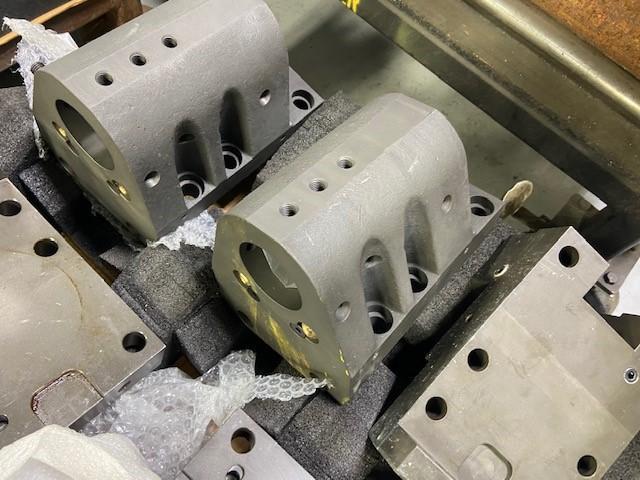

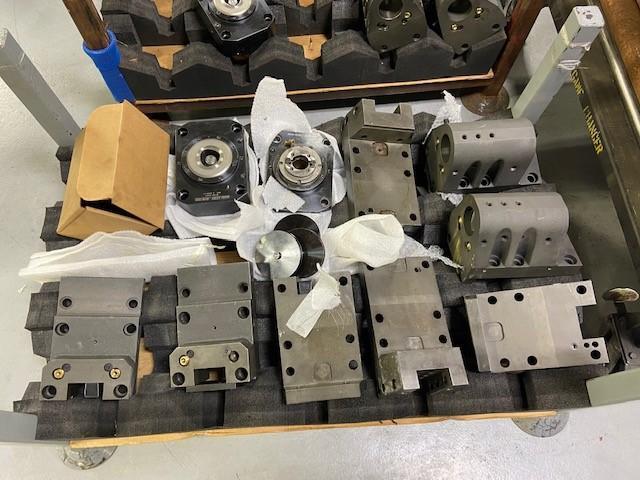

- Misc. Tooling Available
* (9) Boring Bar Holders
* (13) Turning Tool Holders

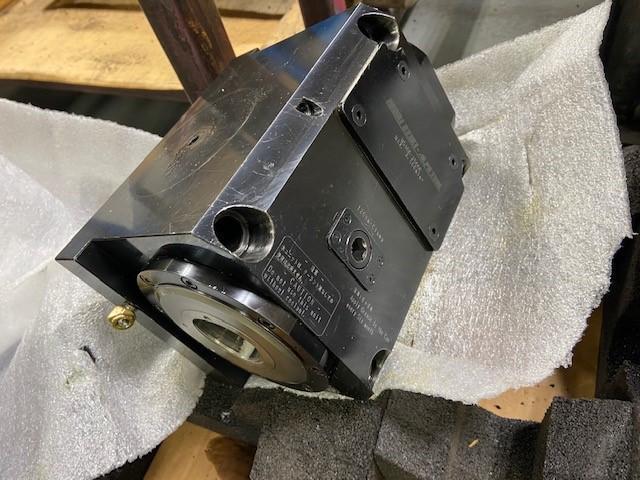

* (5) Live Holders

Machine Specifications

Inch

Metric

Machine Specifications:

CNC Control

yes

Control Type

MSX-853IV

# Axis

Chuck Size

18"

Swing

47.24"

Turning Diameter

35.43"

Turning Diameter Lower Turret

26.38"

Center Distance

157.6"

Bar Capacity

7.28"

X Axis Travel

19.09"

X2 Travel

13.39"

Y-Axis Travel

+/- 3.94"

Z Axis Travel

163.5"

Z2 Travel

157.2"

C Axis Index

0.001°

Y Axis

yes

Main Motor

100/73 hp

Live Tooling

yes

Live Tooling Speed

3,500 rpm

Live Tooling Motor

20/15 hp

Steady Rest

Yes

Sub Spindle

Tailstock (Yes/No)

yes

Tailstock Travel

157.2"

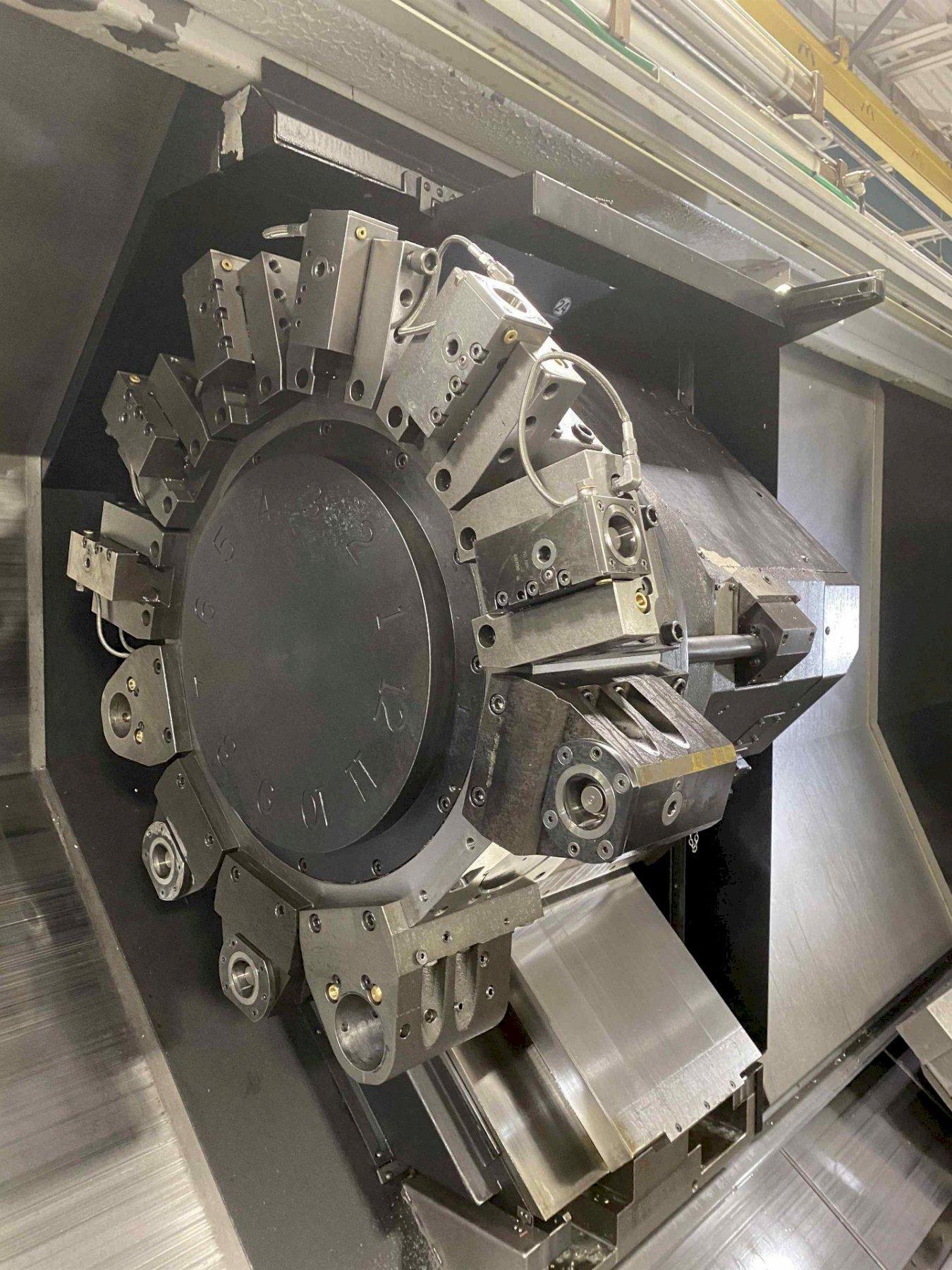

Upper Turret Stations

12 Stations (Live Milling Capable)

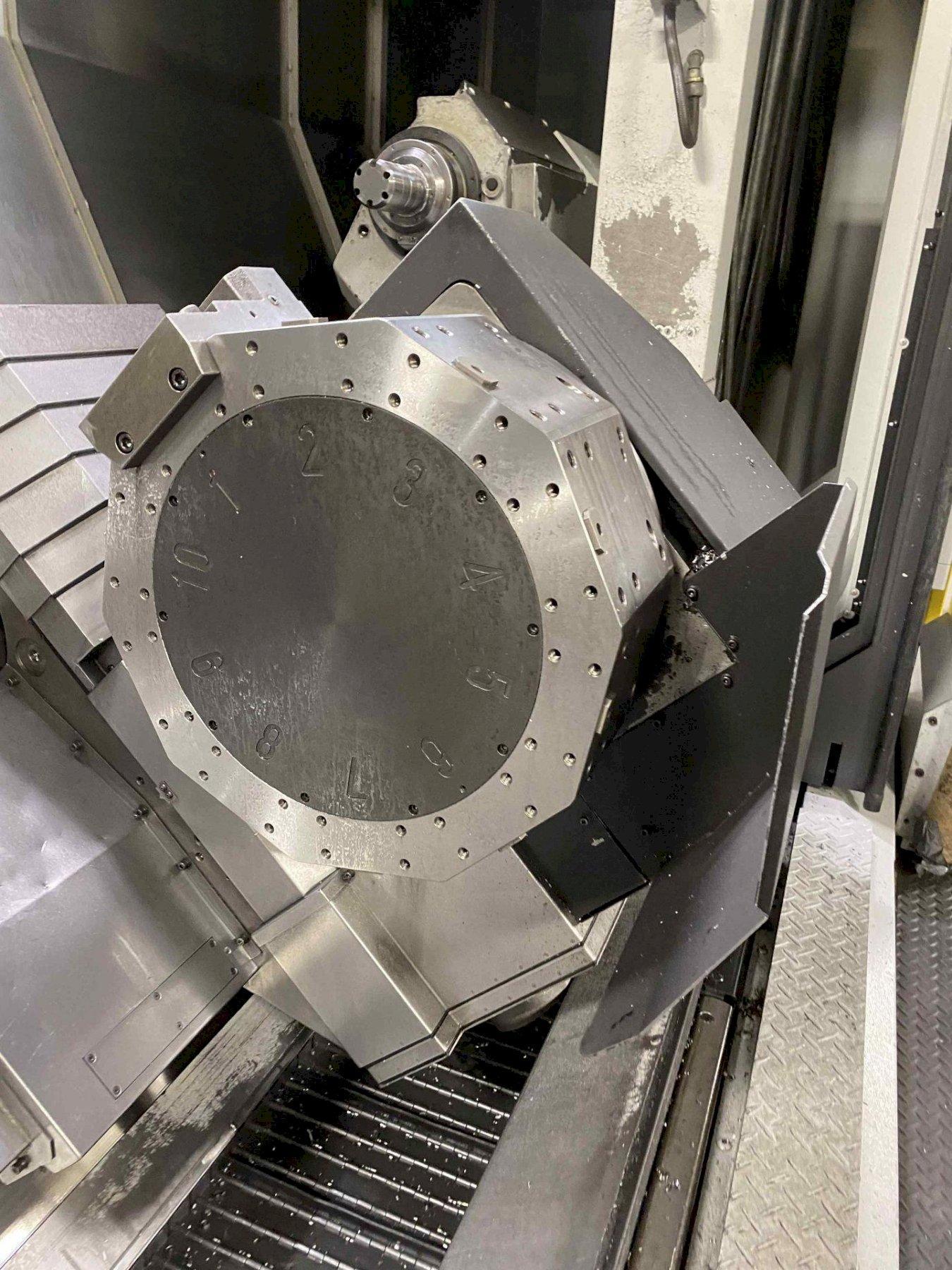

Lower Turret Stations

10 Stations

Dimensions

388" x 134" x 129"

Weight

100,100 pounds

Equipped With:

The DMG Mori NZL6000YB/4000 is an exclusive part of our Lathes (3-Axis or More) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
