Okuma LB3000EX-MYW - Lathes (3-Axis or More)

Request Quote
Share Machine
Specifications Print Specs
Model: LB3000EX-MYW
Year: 2017
Stock #: K744112
Yes
Highlights:

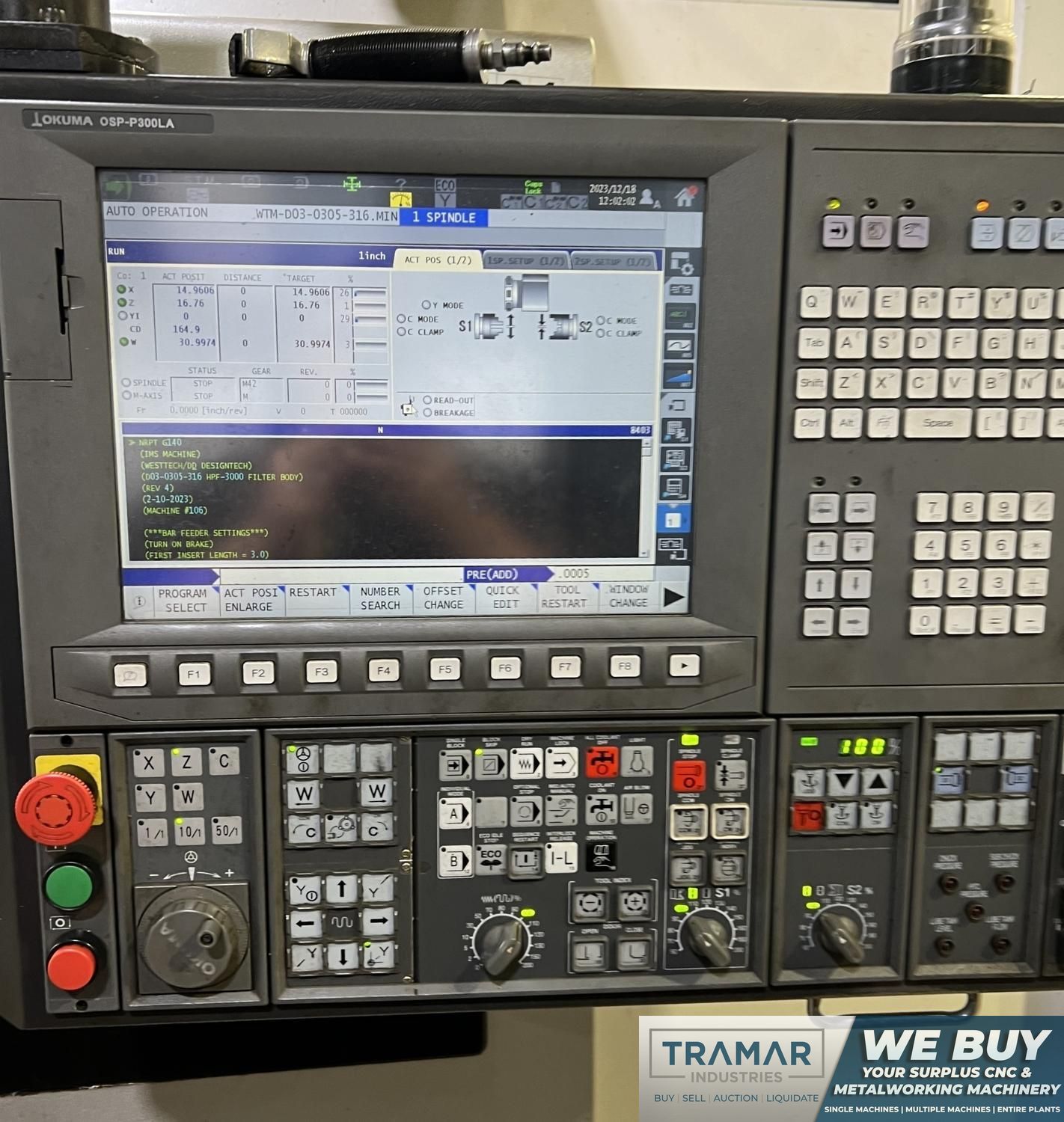

OKUMA OSP-P300LA CNC CONTROL
Y-AXIS | LIVE TOOLING | SUB SPINDLE
BIG BORE (3.18” BAR CAPACITY)
10”, 3-JAW KITAGAWA HYDRAULIC CHUCK (MAIN SPINDLE)
6”, 3-JAW KITAGAWA (B-206) HYDRAULIC CHUCK (SUB SPINDLE)
MP SYSTEMS HIGH-PRESSURE COOLANT UNIT 1,000 psi
ADVANCED ONE-TOUGH IGF

Okuma LB3000EXII-MYW Used CNC Lathe For Sale - 2017
Machine Specifications
CNC Control
yes
Control Type
OSP-P300LA
# Axis
6
Swing
22.83"
Turning Diameter
13.39"
Center Distance
31.5"
Chuck Size
10"
Bar Capacity
3.18"
X Axis Travel
10.24"
Y Axis Travel
4.53"
Z Axis Travel
39.76"
C Axis Index
0.001°
Spindle Nose
A2-8
Spindle Speed
4,200 rpm
Main Motor
40 hp
Tailstock
no
Y Axis
yes
Live Tooling
yes
Live Tooling Speed
6,000 rpm
Sub Spindle
yes
Sub Spindle Chuck
6"
Sub Spindle Bar Capacity
2.44"
Sub Spindle Speed
6,000 rpm
Sub Spindle Motor (HP)
15 hp
Turret Capacity
12

Equipped With:

- Okuma OSP-P300LA Control
- Y-axis
- Live Milling
- Sub Spindle
- Big Bore (3.18” Bar Capacity)
- 10”, 3-jaw Kitagawa Hydraulic Chuck (Main Spindle)
- 6”, 3-jaw Kitagawa (B-206) Hydraulic Chuck (Sub Spindle)
- Tool Presetter
- Chip Conveyor
- High-pressure Coolant (1,000 Psi)
- MP Systems High-pressure Coolant Unit
- Variable Spindle Speed Threading
- Advanced One-Touch IGF
- Spindle Sync Tapping
- Barfeed Interface
- (1) Radial Live Tool Holder
- (1) Axial Live Tool Holder


The Okuma LB3000EX-MYW is an exclusive part of our Lathes (3-Axis or More) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
