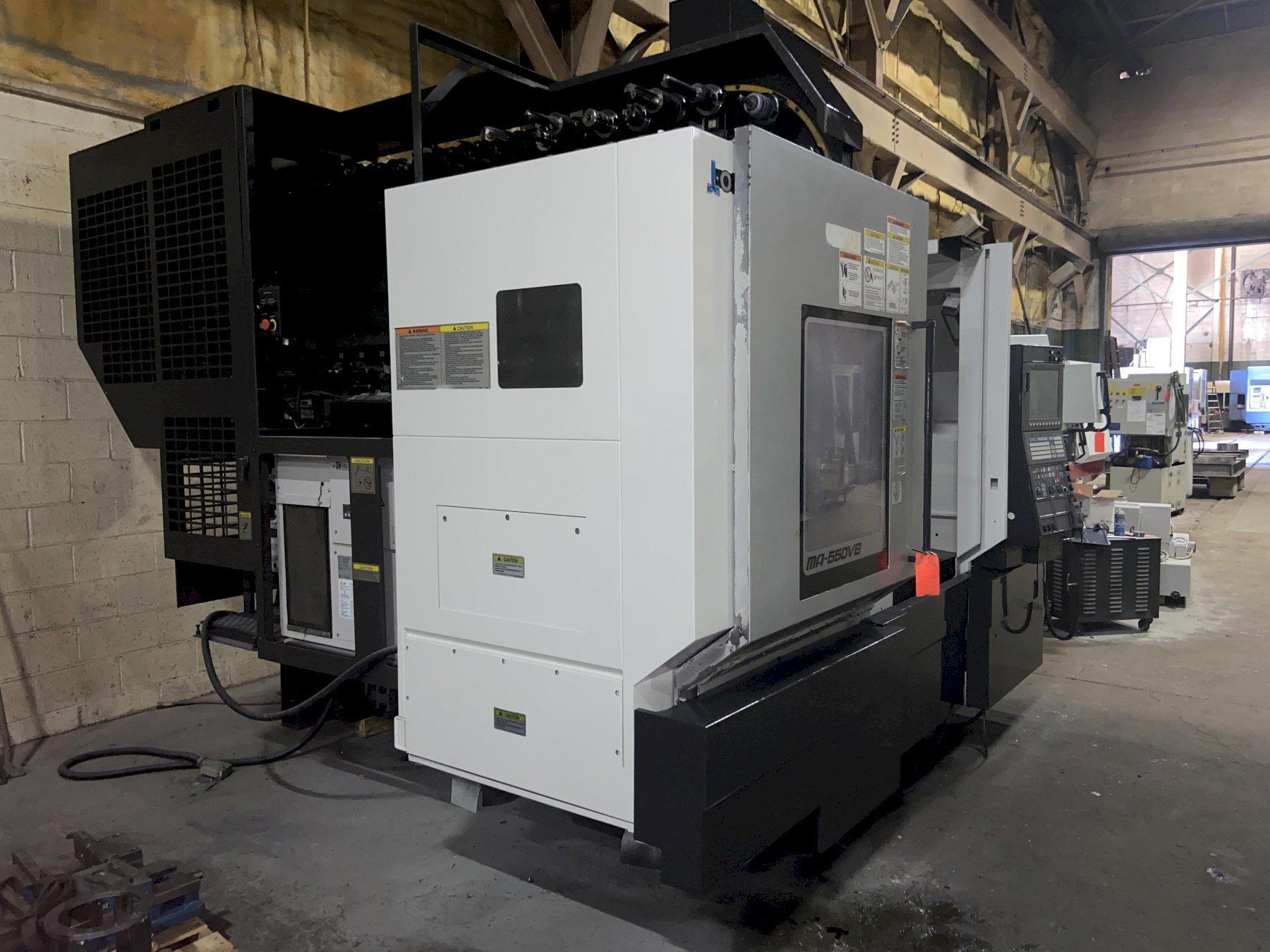

Okuma MA550-VB - Vertical Machining Centers

Share Machine
Specifications Print Specs
Model: MA550-VB
Year: 2015
Stock #: 3909 Sold
Highlights:

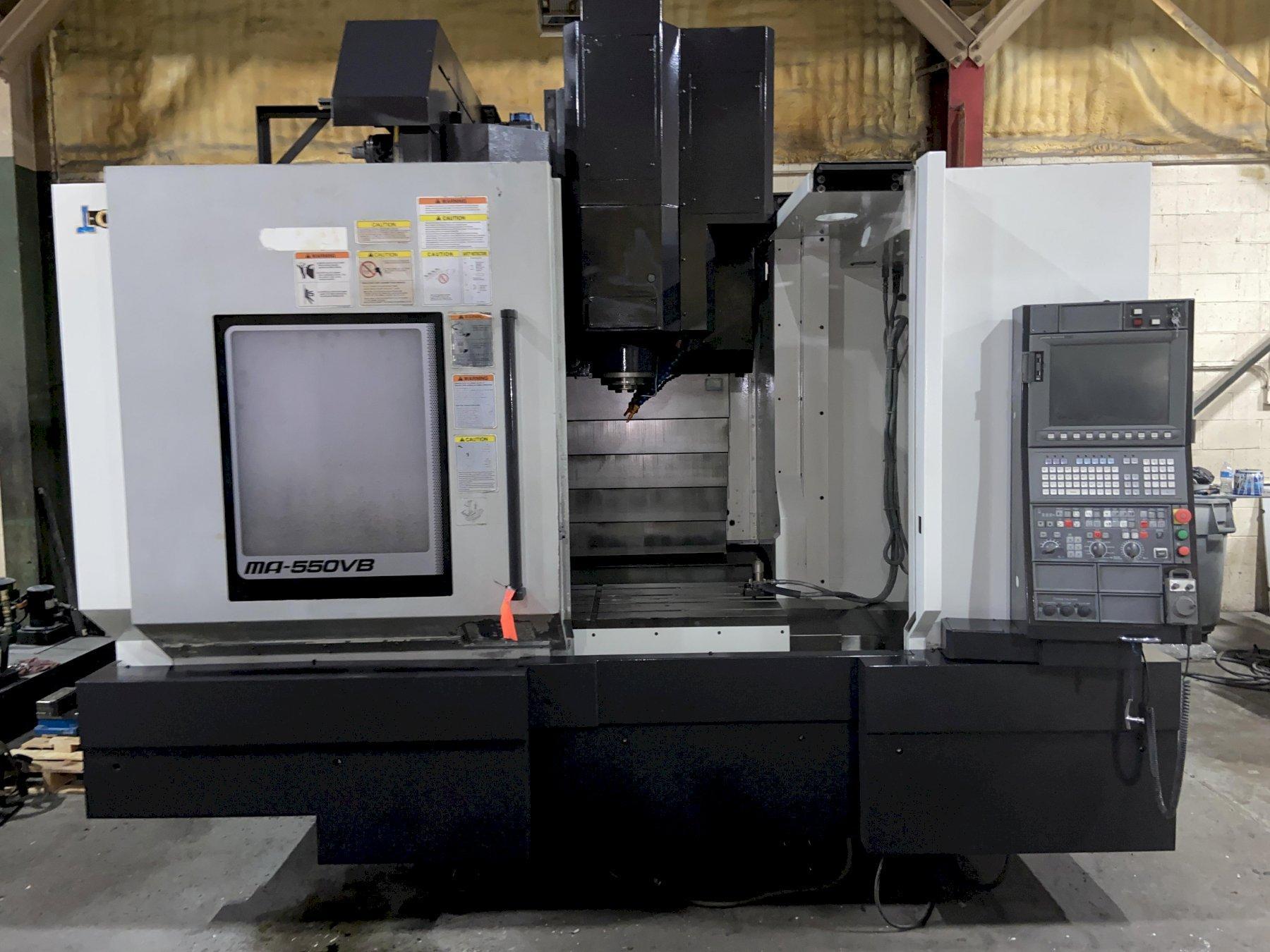

Okuma MA-550VB CNC Vertical Machining Center, OSP300M Control, 51
Machine Videos
Machine Specifications
Control Type

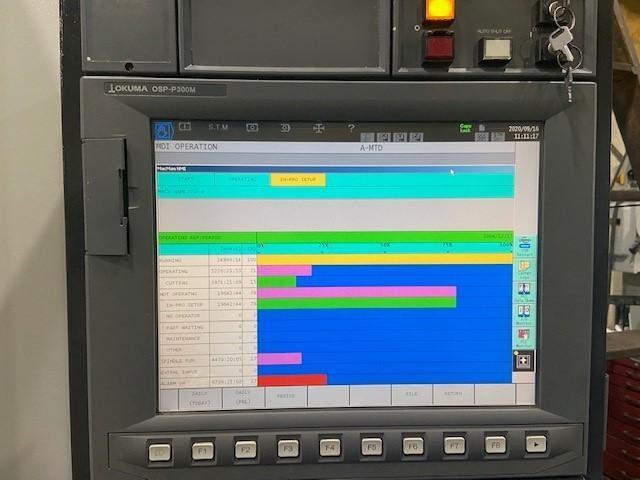

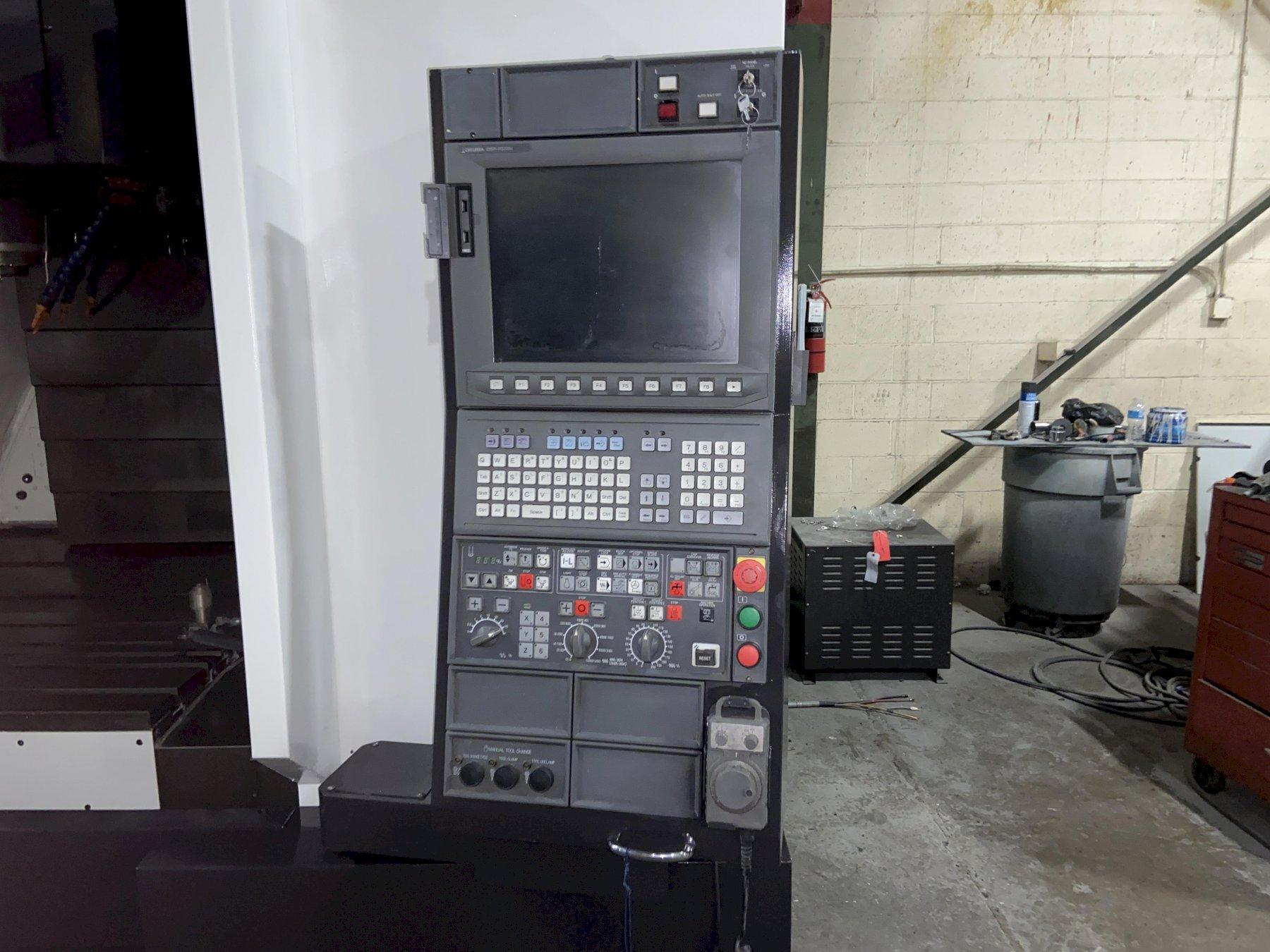

OSP 300M
# Axis
3

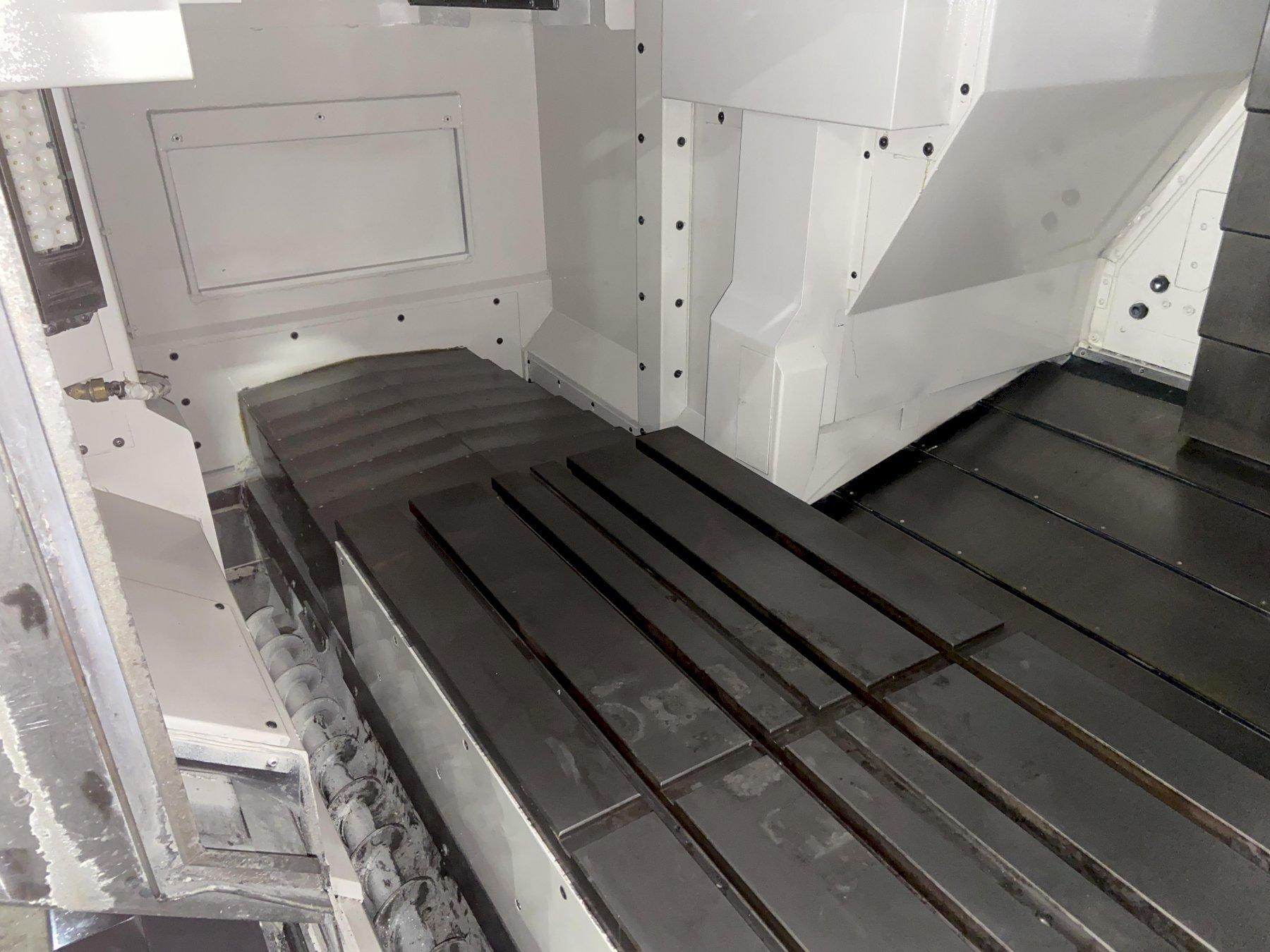

Table Size
51.18" x 22..05"
Table Capacity
2,200 pounds
Max Distance Spindle To Table Top
29.92"
X-Axis Travel
51.18"
Y-Axis Travel
22.05"
Z-Axis Travel
22.05"
Spindle Speed
6,000
Spindle Taper
50
Main Motor
30 Horsepower
Tool Changer Capacity
48
X-Axis Feedrate
1,181 IPM
Y-Axis Feedrate
1,181 IPM
Z-Axis Feedrate
1,181 IPM
X-Axis Rapid Traverse Rate
1,574 IPM
Y-Axis Rapid Traverse Rate
1,574 IPM
Z-Axis Rapid Traverse Rate
1,181 IPM
Coolant Thru Spindle
yes
Tool Change Time
2.4 Seconds (Tool to Tool)
Dimensions
112" x 125" x 114"
Weight
25,960 pounds

Equipped With:

BigPlus Cat 50 Spindle
Traveling Column (Y) Design
Box Ways
Geared Head
Coolant Thru Spindle

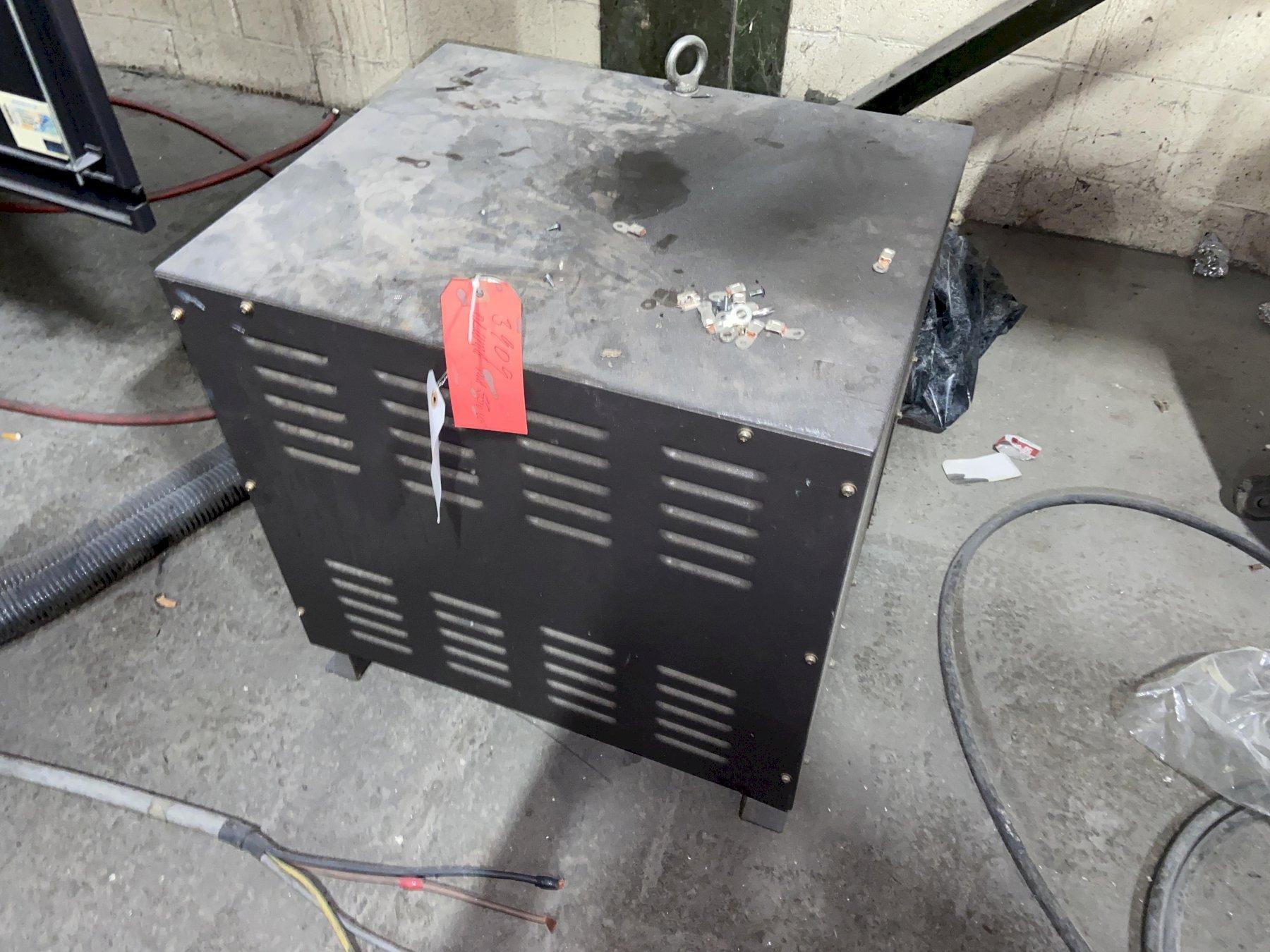

Transformer

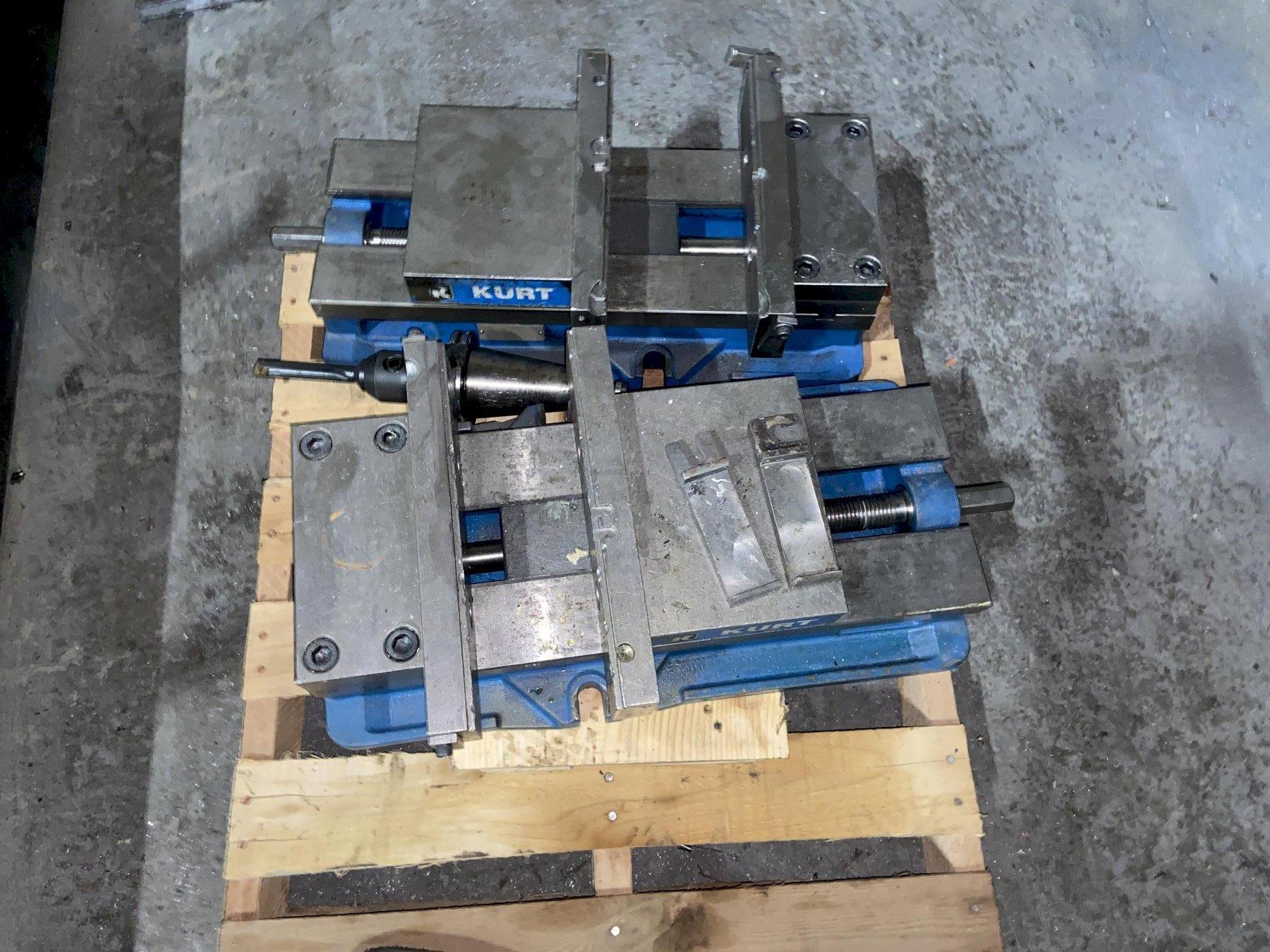

(2) Kurt Vises

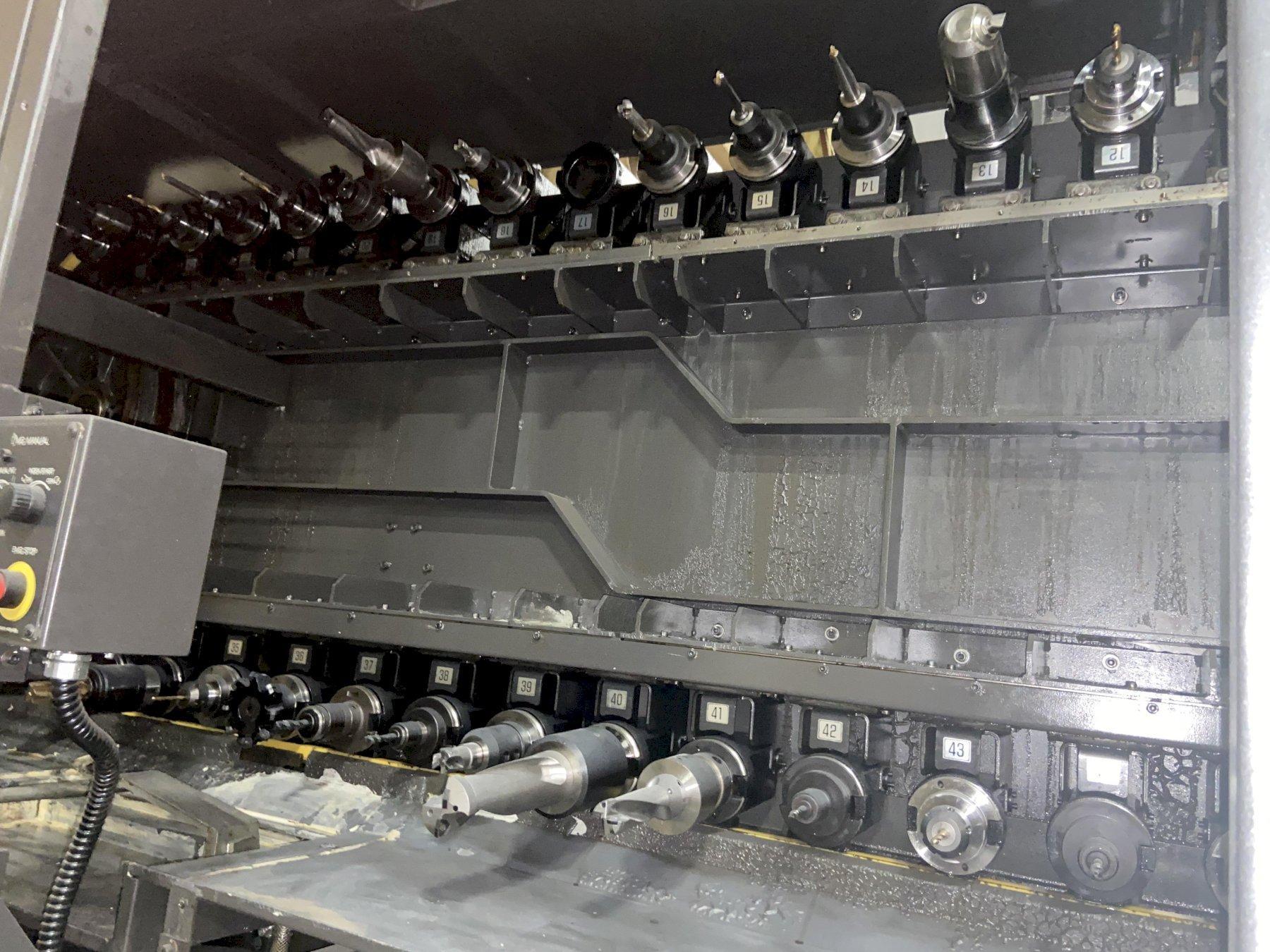

Tool Holders (approx 48)
Chip Conveyor
Chip Augers
Chip Blaster High-Pressure Coolant Unit
Mist Collector

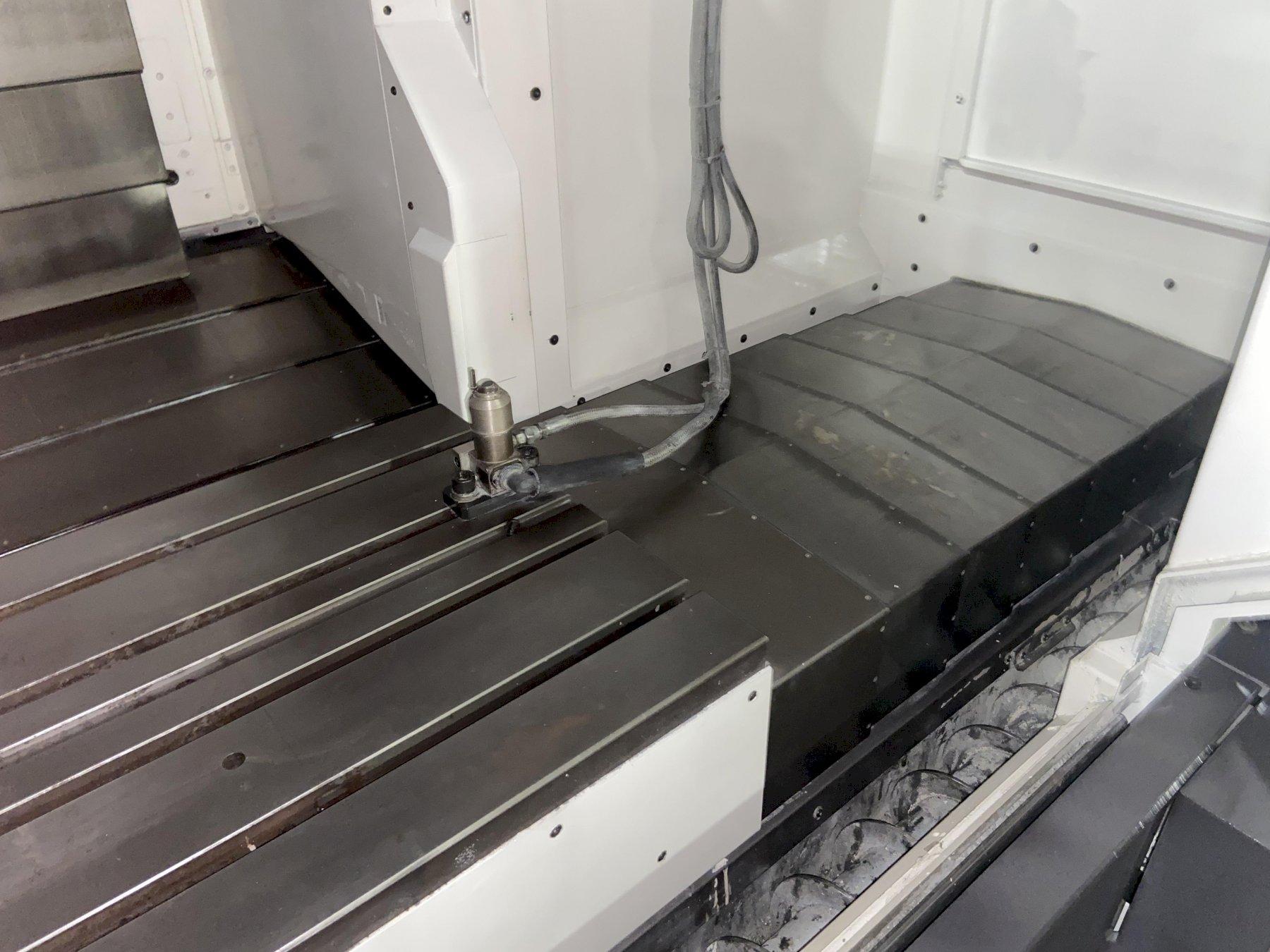

Auto Tool Length Measurement
Renishaw RMP 600 Probe
Coolant Tank & Pumps

The Okuma MA550-VB is an exclusive part of our Vertical Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
