Okuma Spaceturn LB3000EX - Horizontal Lathes

Request Quote
Share Machine
Specifications Print Specs
Model: Spaceturn LB3000EX
Year: 2013
Stock #: 13490
Highlights:

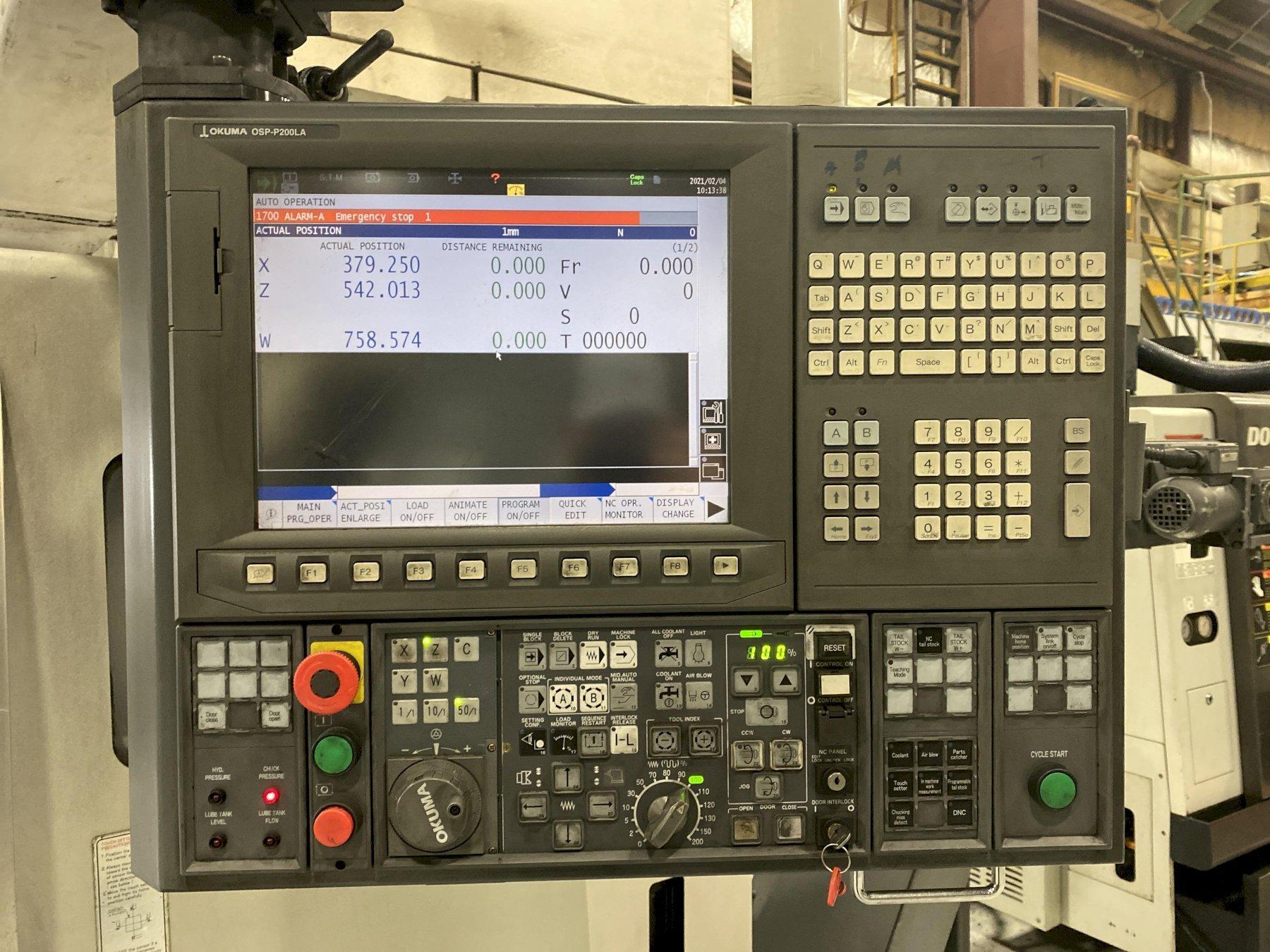

OSP P200LA Control
3.15" Bar Capacity
Programmable Tailstock
Tool Presetter
Okuma Spaceturn LB3000EX/1000

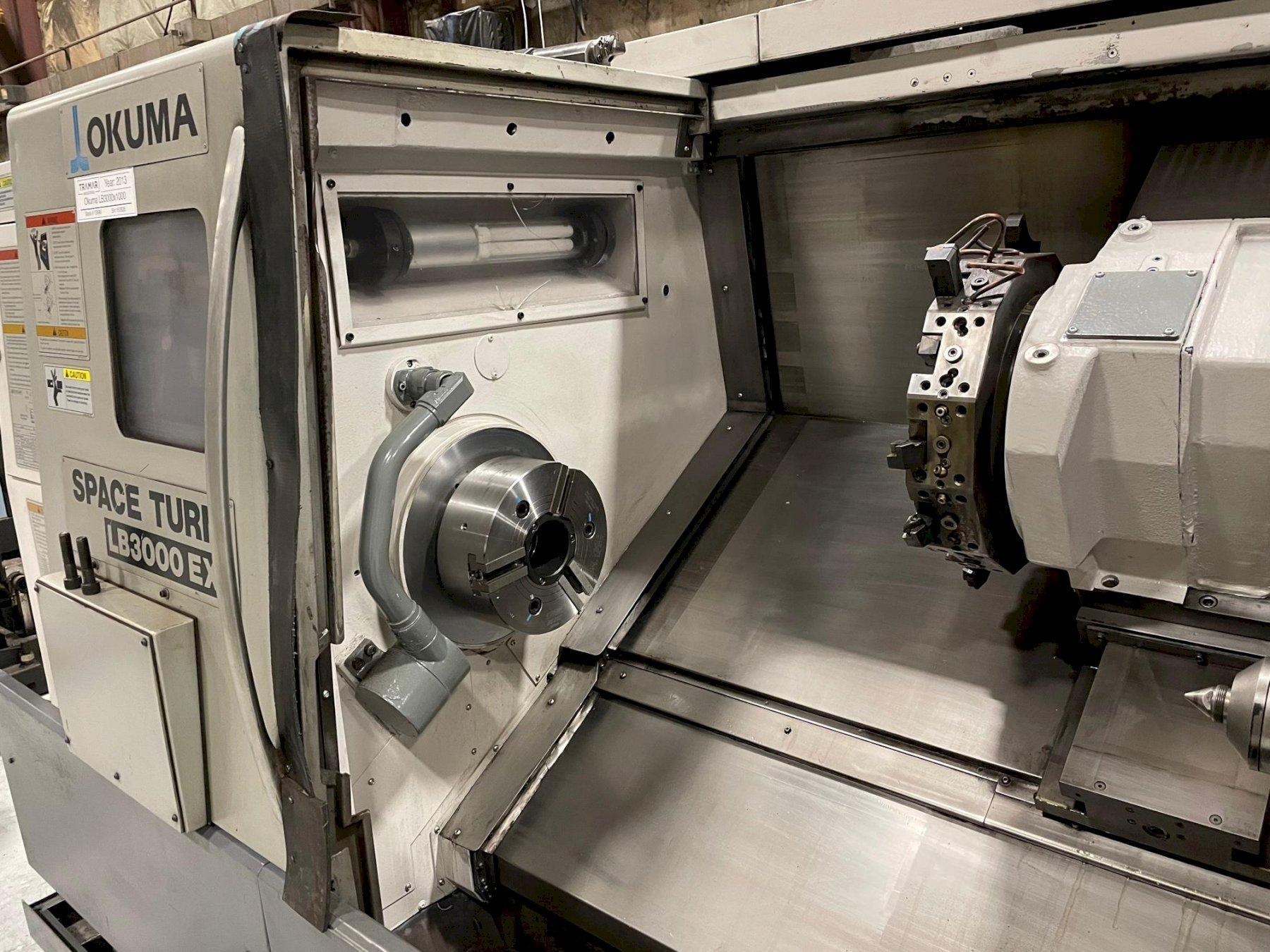

Okuma Spaceturn LB3000EX Horizontal CNC Lathe
Machine Specifications
Year
2013
Control Type
OSP P200LA
# Axis
2
Swing
22.83"
Turning Diameter
16.14"
Center Distance
40.16"
Chuck Size
10"
Bar Capacity
3.15"
X Axis Travel
10.24"
Z Axis Travel
41.93"
Rapid Traverse (X/Z)
984/1,181 ipm
Spindle Nose
A2-8
Spindle Speed (RPM)
4,200
Main Motor
30 hp
Live Tooling
no
Sub Spindle
no
Tailstock
yes
Y Axis
no

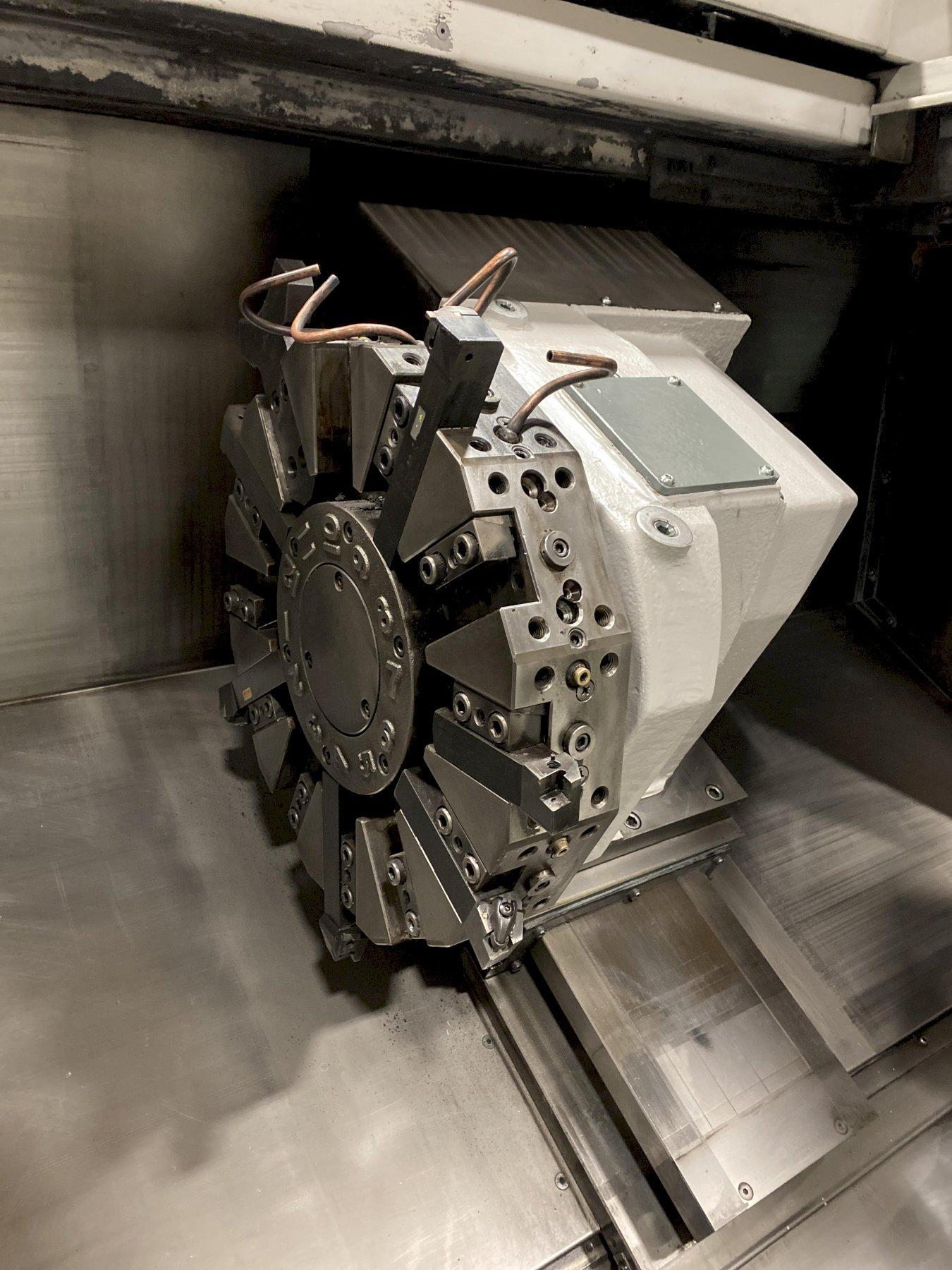

Turret Capacity
12
Dimensions
135" x 74" x 80"
Weight
13,200 pounds

Equipped With:

- Okuma OSP P200LA Control
- Chip Conveyor
- Coolant Tank
- Tool Presetter
- Tool Wear Compensation
- Hi-G Control

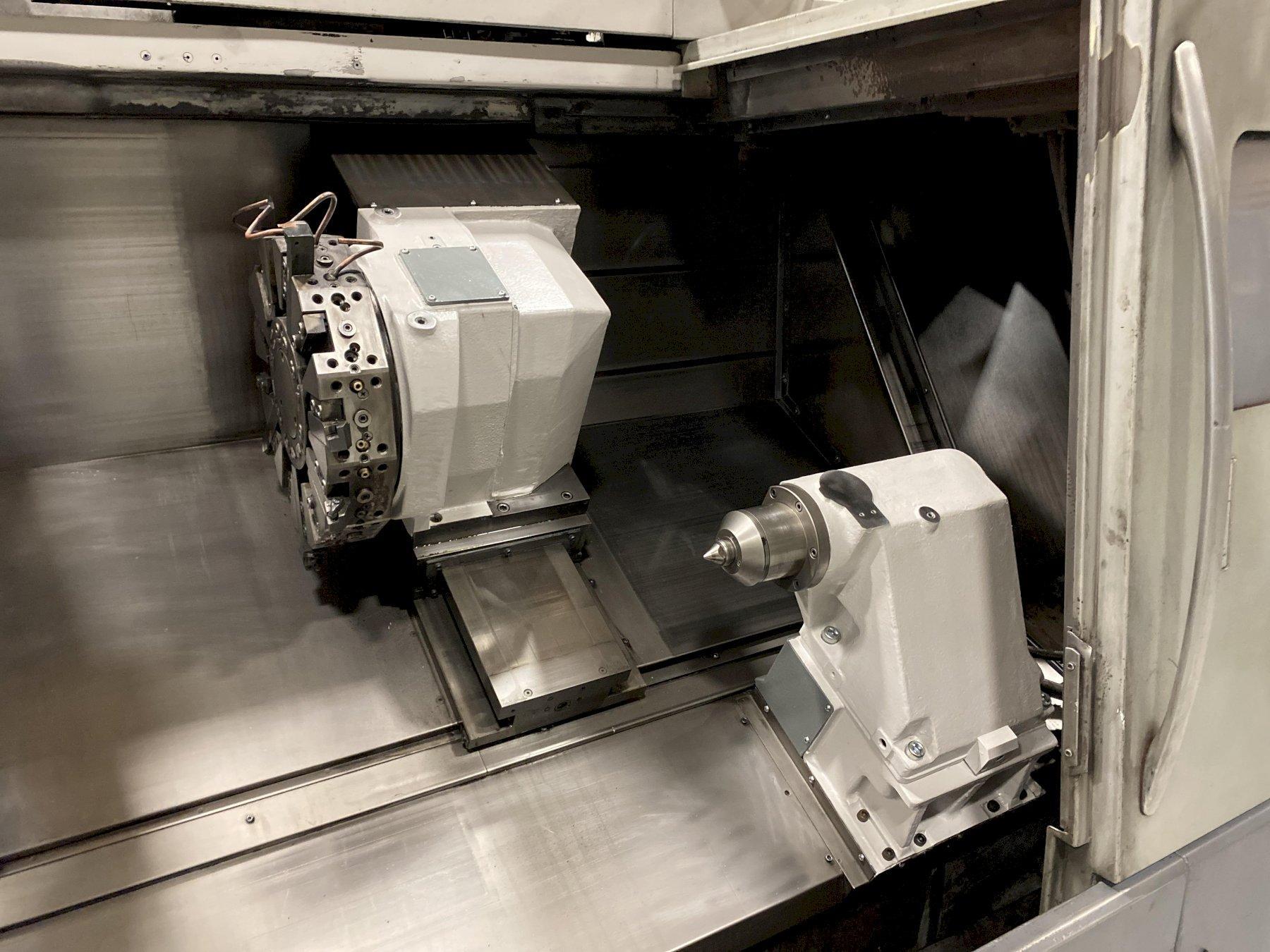

- Programmable Tailstock
- Big Bore Option

The Okuma Spaceturn LB3000EX is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
