Okuma Spaceturn LB3000EX - Horizontal Lathes

Request Quote
Share Machine
Specifications Print Specs
Model: Spaceturn LB3000EX
Year: 2016
Stock #: Lb3000
Highlights:

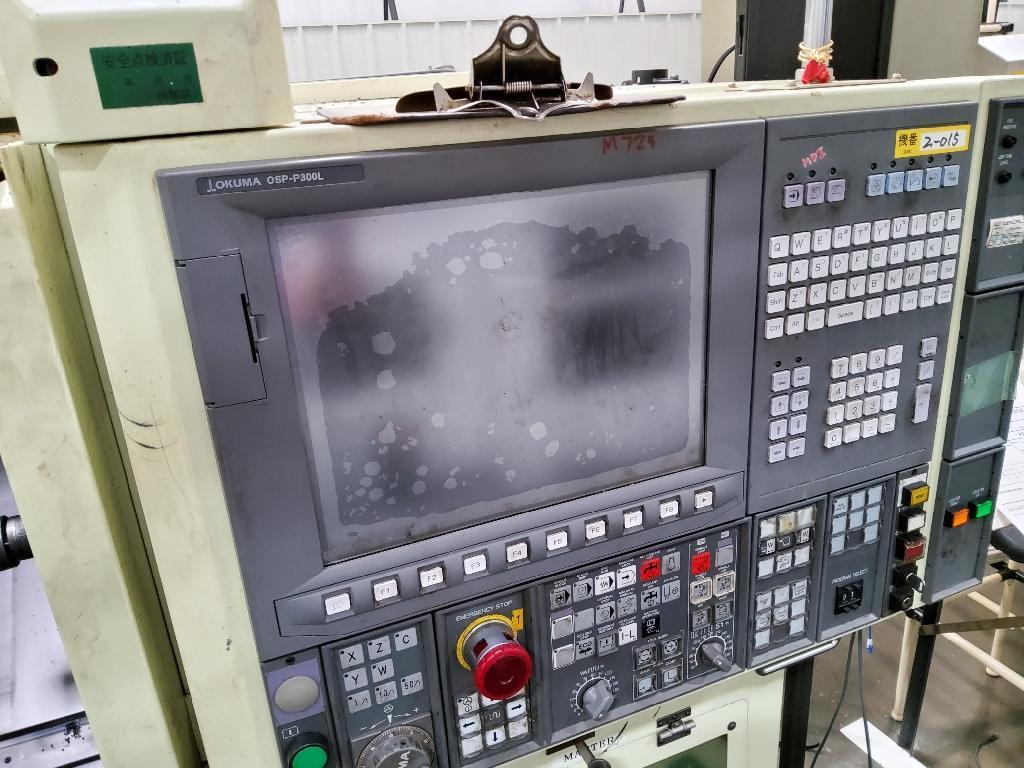

OSP P300L Control
3.15" Bar Capacity
Programmable Tailstock

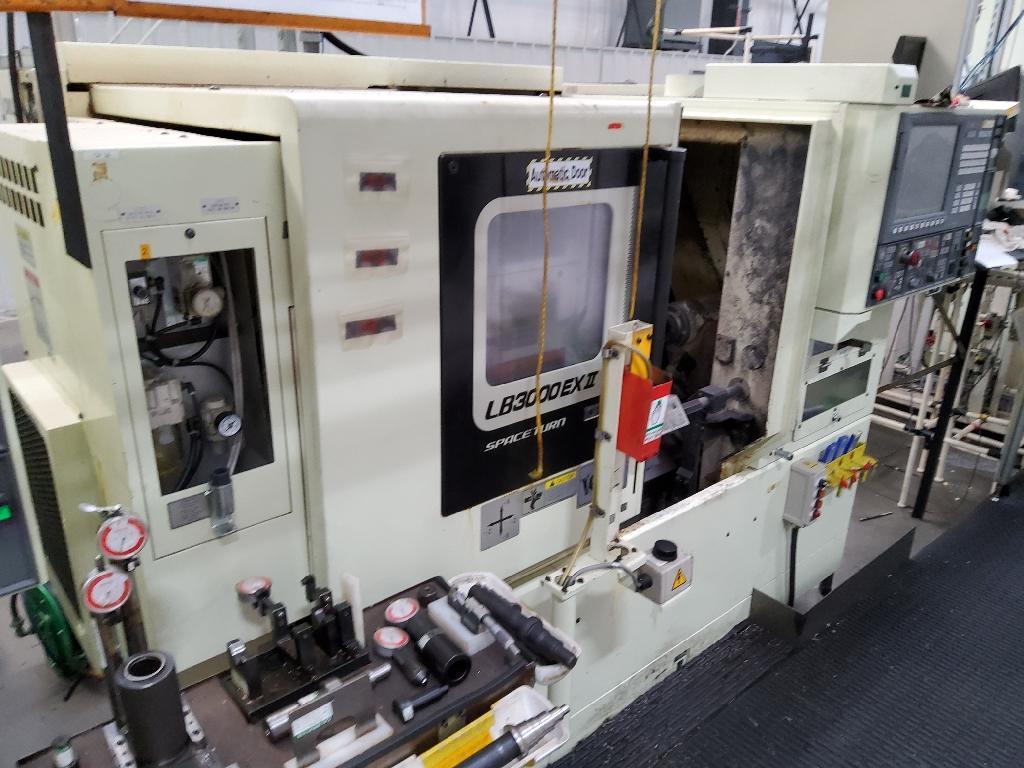

Okuma Spaceturn LB3000EX Horizontal CNC Lathe
Machine Specifications
Year
2016
Control Type
OSP P300L
# Axis
2
Swing
22.83"
Turning Diameter
16.14"
Center Distance
20.47"
Chuck Size
10"
Bar Capacity
3.15"
X Axis Travel
10.24"
Z Axis Travel
22.24"
Rapid Traverse (X/Z)
984/1,181 ipm
Spindle Nose
A2-6
Spindle Speed
5,000 rpm
Main Motor
30 hp
Live Tooling
no
Sub Spindle
no
Tailstock
yes
Y Axis
no

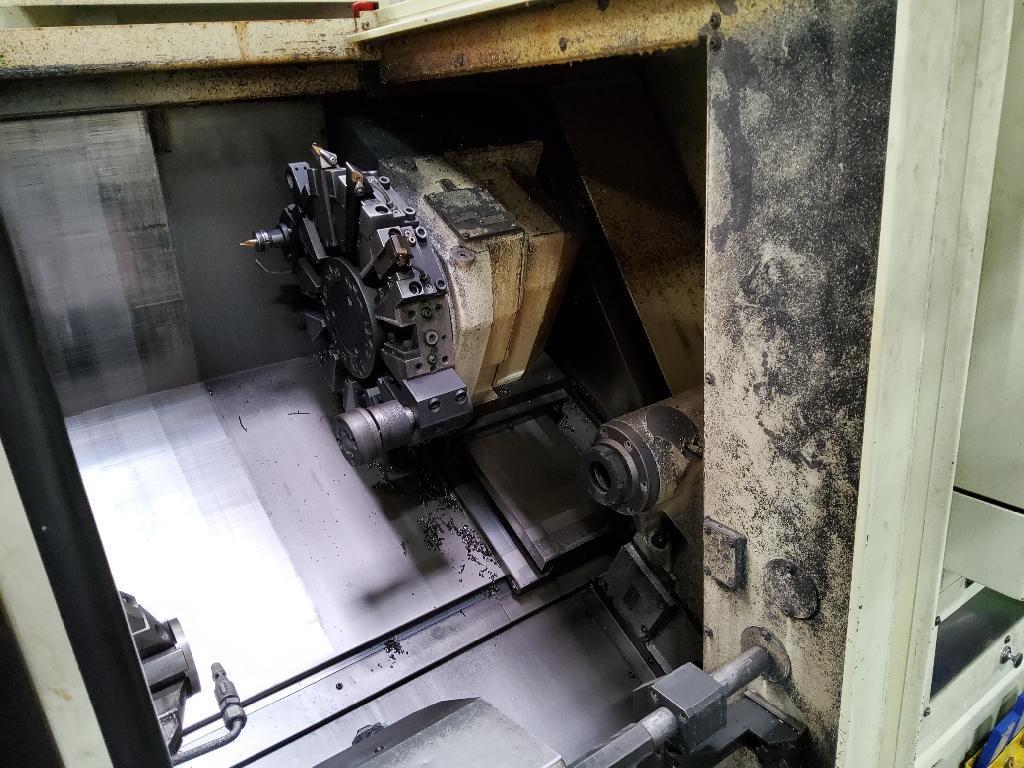

Turret Capacity
12
Dimensions
135" x 74" x 80"
Weight
10,000 pounds

Equipped With:

- Okuma OSP P300LA Control
- Chip Conveyor (Rear)
- Coolant Tank
- Programmable Tailstock

The Okuma Spaceturn LB3000EX is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
