Portasolutions Portacenter Cube 250 - Machining Centers, Horizontal, (5-Axis or More)

Request Quote
Share Machine
Specifications Print Specs
Model: Portacenter Cube 250
Year: 2016
Stock #: M4301
Highlights:
- Fanuc Series 30i-Model B CNC Control
- Versatile 4-Axis Machining Capability
- (4) 15.75" X 15.75" Machining Pallets
- High-Speed Spindle at 13,000 RPM
- Powerful 34 hp Main Motor
- 72-Tool Capacity Tool Changer
- Rapid Traverse Rate of 1817 ipm
- Coolant Thru Spindle for Efficient Cooling
- Triple-Spindle Configuration for Increased Productivity
- Ideal for Precision Horizontal Machining Operations

Used 2016 Porta Solutions Portacenter Cube 250 3-Spindle CNC Horizontal Machining Center For Sale
Machine Specifications
CNC Control
yes
Control Type
Fanuc Series 30i-Model B
# Axis
4
Table Size
(4) 15.75" X 15.75"
X-Axis Travel
9.84"
Y-Axis Travel
12.20"
Z-Axis Travel
7.87"
Rapid Traverse Rate (X/Y/Z)
1,817 ipm
Spindle Taper
ISO 40
Spindle Speed
13,000 RPM
Main Motor
34 hp
Tool Changer Capacity
72
Coolant Thru Spindle
yes

Equipped With:

- Fanuc Series 30i-Model B CNC Control
- Chip Conveyor
- Coolant Tank & Pump
- Pendant Control
- 4 Station pallet table (3 Machining Stations, 1 load/unload station)
- This machine can replace 3 Horizontal Machining Centers

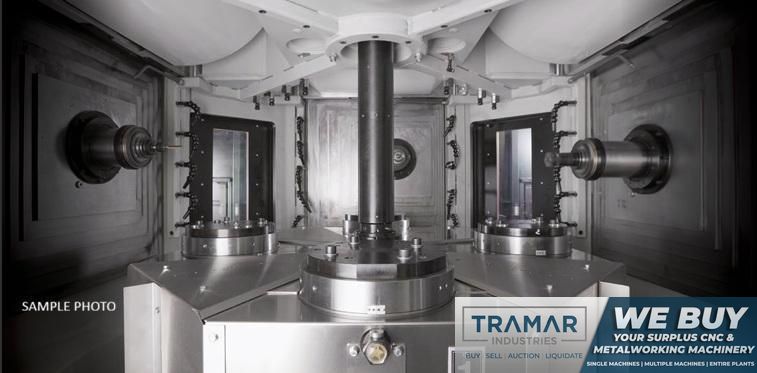

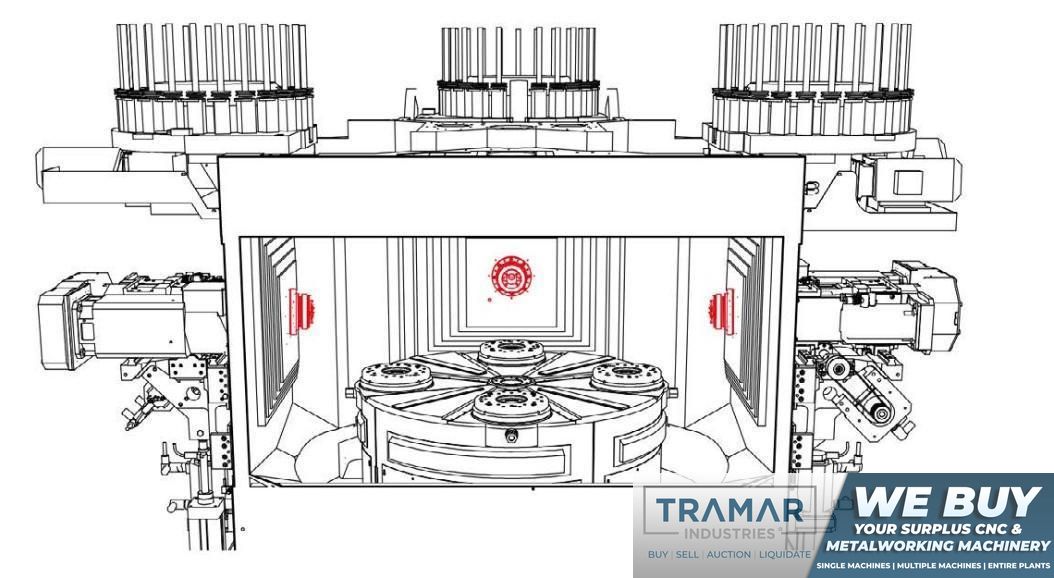

The Portasolutions Porta Cube 250 is a machining center with 3 fully independent spindles and a single process, to machine 3 parts simultaneously, while a fourth station, exclusively dedicated to loading and unloading, prevents any interruption in production.

The Portasolutions Portacenter Cube 250 is an exclusive part of our Machining Centers, Horizontal, (5-Axis or More) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
