Samsung MCV50 - Vertical Machining Centers

Request Quote
Share Machine
Specifications Print Specs
Model: MCV50
Year: 2013
Stock #: 14244
Highlights:

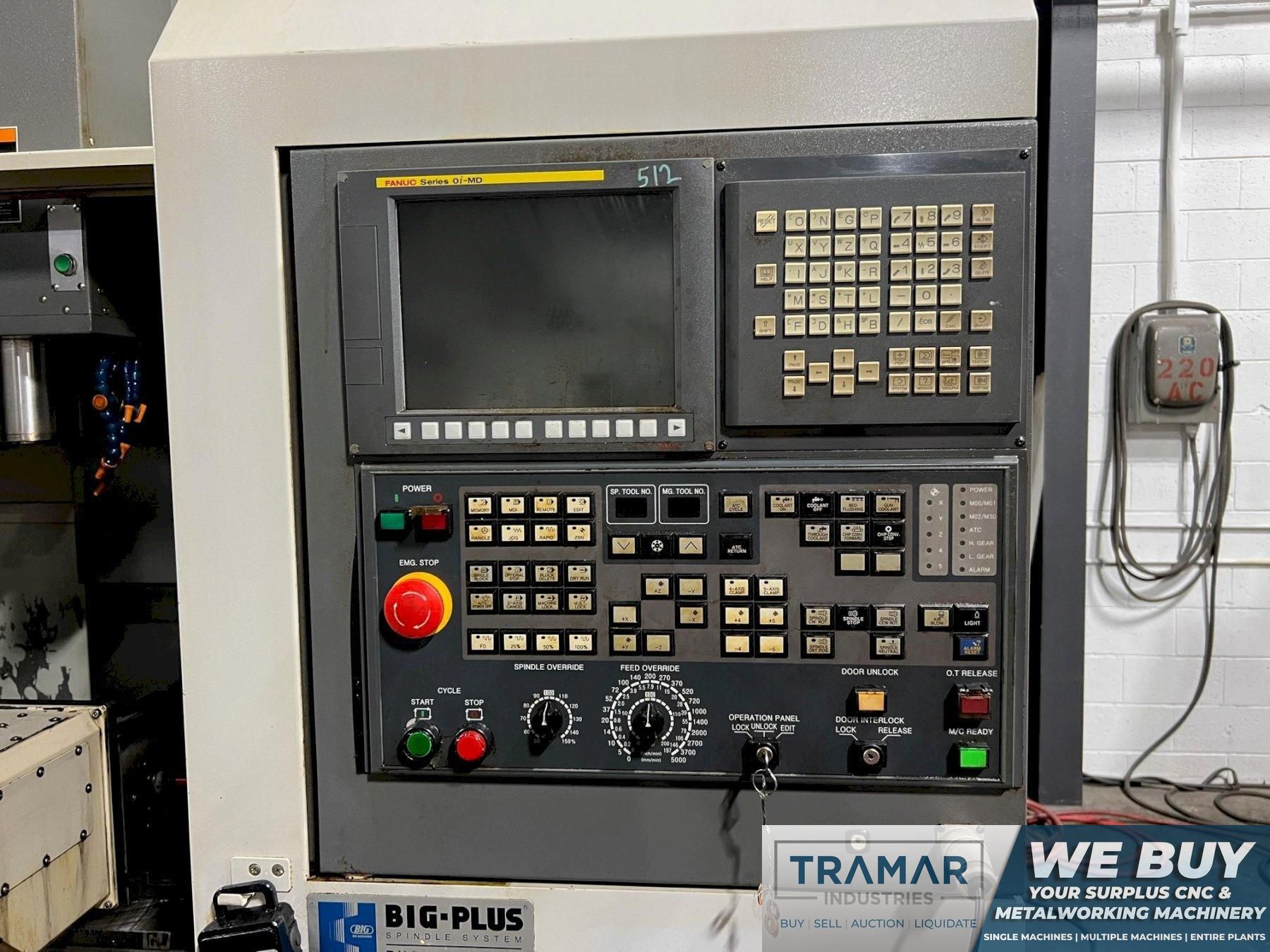

Fanuc 0i-MD CNC Control
Coolant Thru Spindle

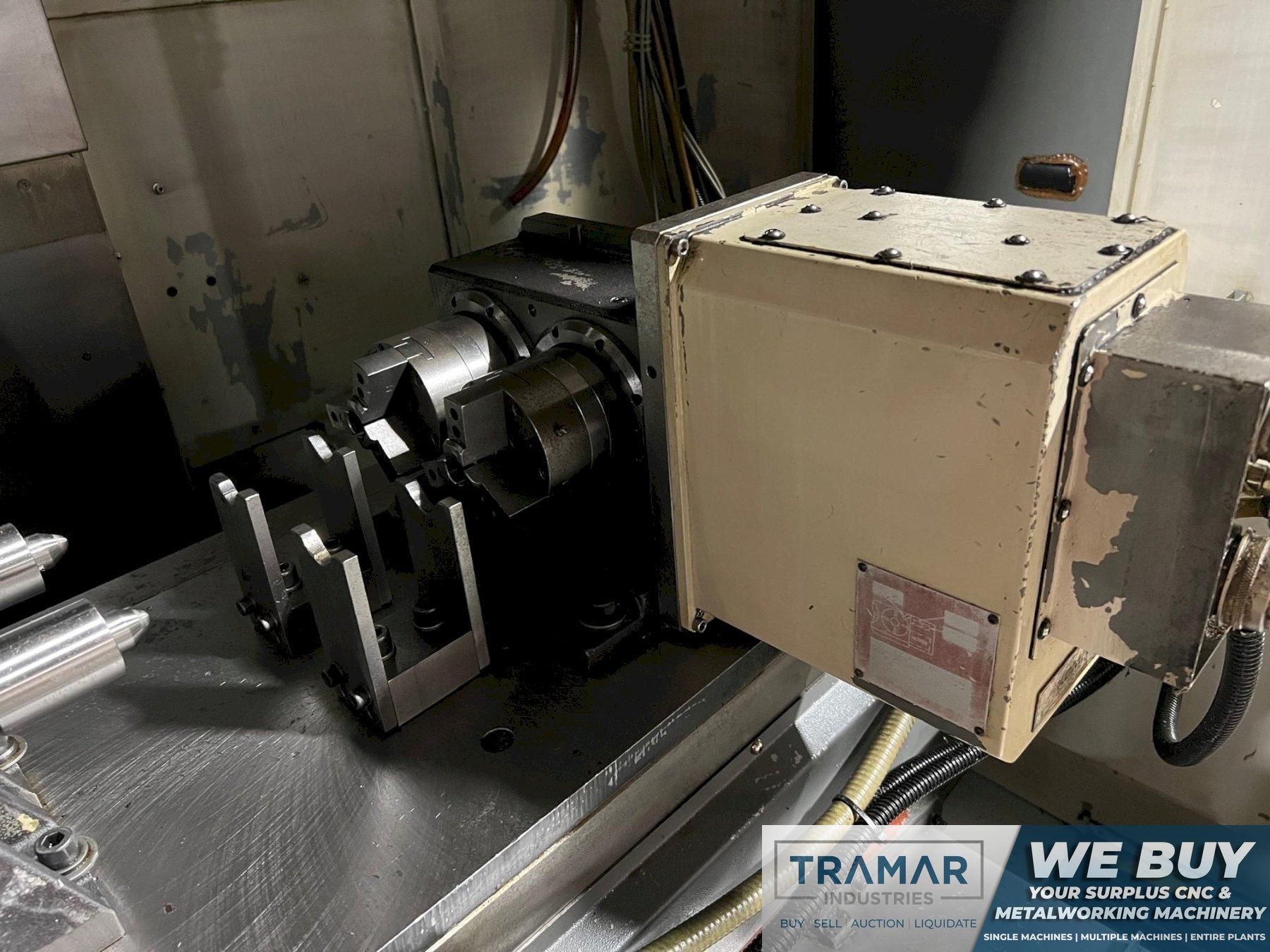

Tsudakoma RN-100R-2 4th Axis Rotary Table w/Tailstock
Table Size: 36.22" x 19.69" | Table Load: 1,322 lbs
Travels (X/Y/Z): 35.43" / 19.69" / 20.08"
CAT 40 Big Plus | 10,000 rpm | 30 Station ATC

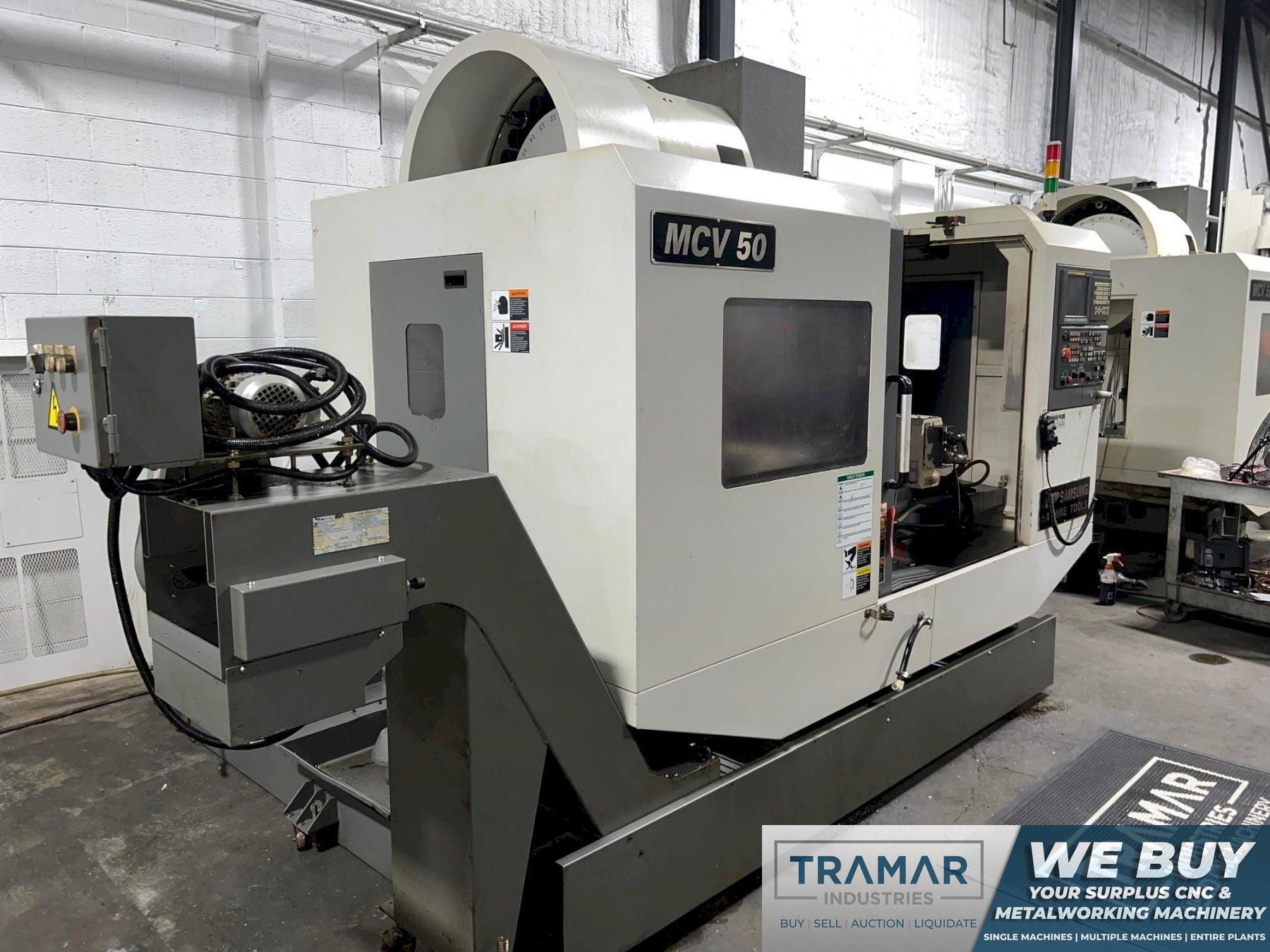

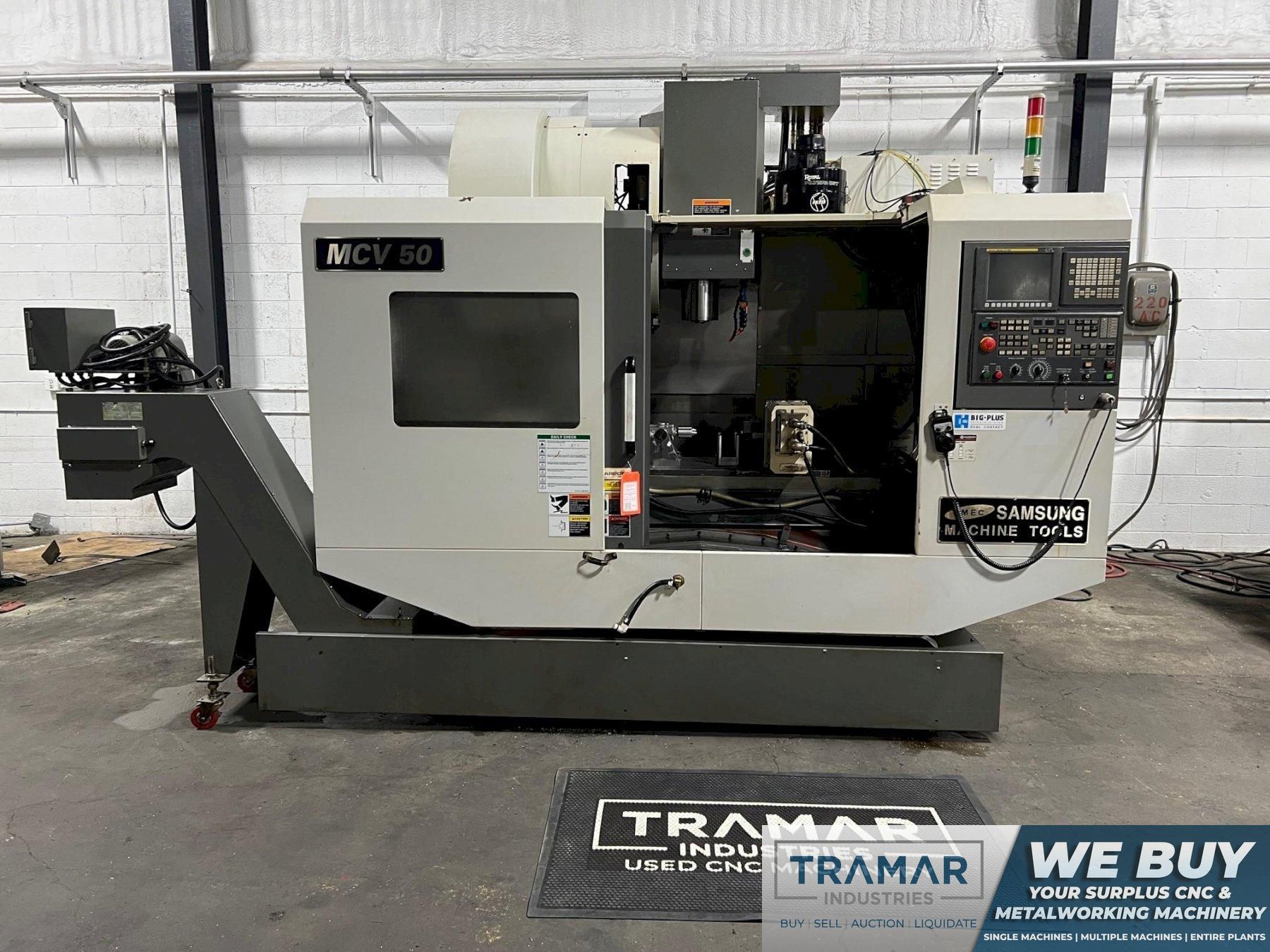

Samsung MCV 50 CNC Vertical Machining Center with 4th Axis Rotary Table For Sale - 2013
Machine Videos
Machine Specifications
CNC Control
yes
Control Type
Fanuc 0i-MD
# Axis
4
Table Size
47.3" x 20.1"
Table Capacity
1,764 pounds
X-Axis Travel
41.34"
Y-Axis Travel
20.5"
Z-Axis Travel
20.5"
Rapid Traverse Rate (X/Y/Z)
1,417/1,417/1,181 ipm
Spindle Taper
CAT 40 Big Plus
Spindle Speed
10,000 RPM
Main Motor
20 hp
Tool Changer Capacity
30
Coolant Thru Spindle
yes
Dimensions
102" x 87" x 100"
Weight
13,800 pounds

Equipped With:

- Fanuc 0i-MD CNC Control
- Chip Conveyor

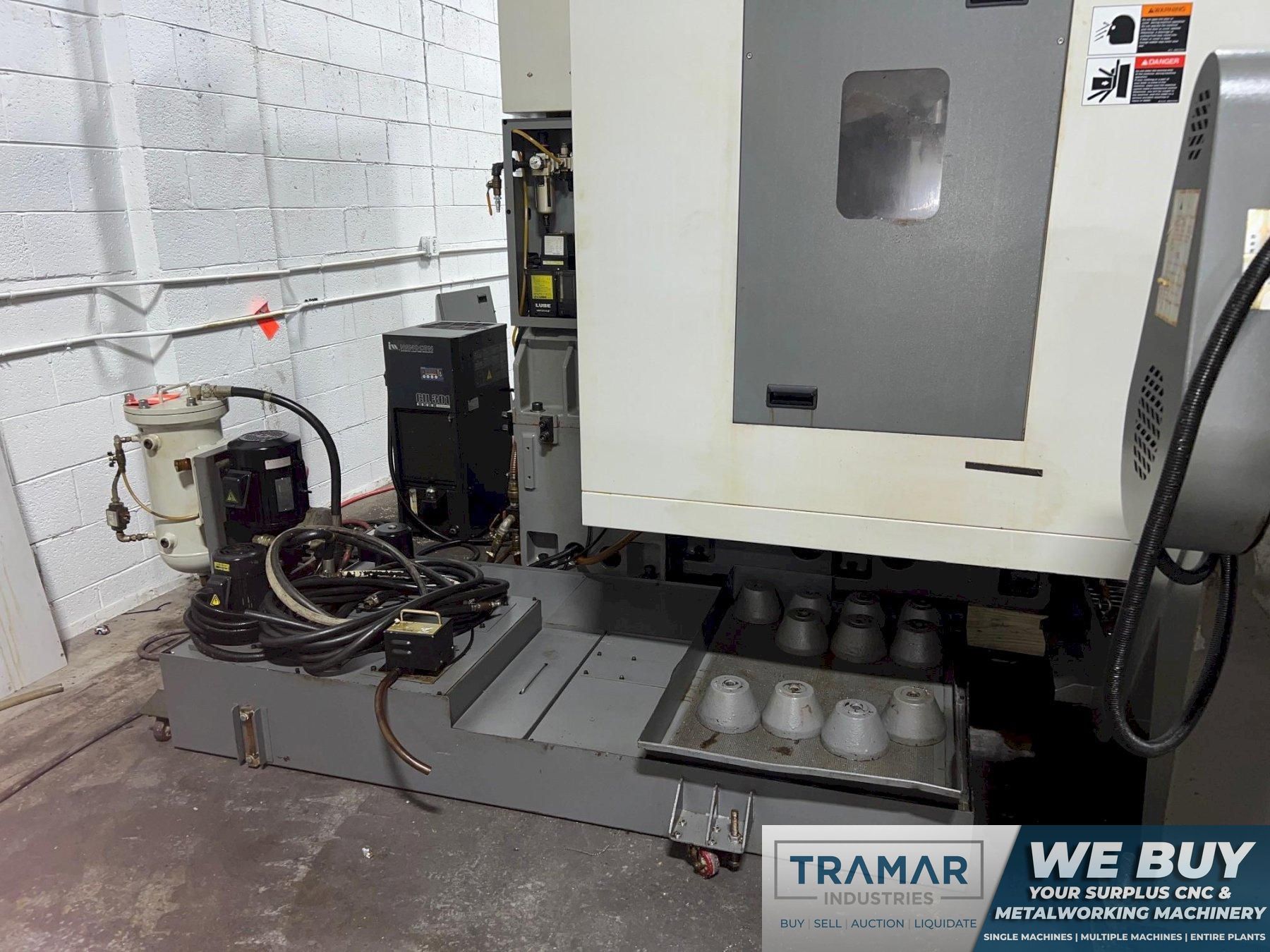

- Coolant Tank & Pump
- Spindle Chiller
- 30 Station Side Mount Tool Changer
- Coolant Thru Spindle
- CAT 40 Big Plus

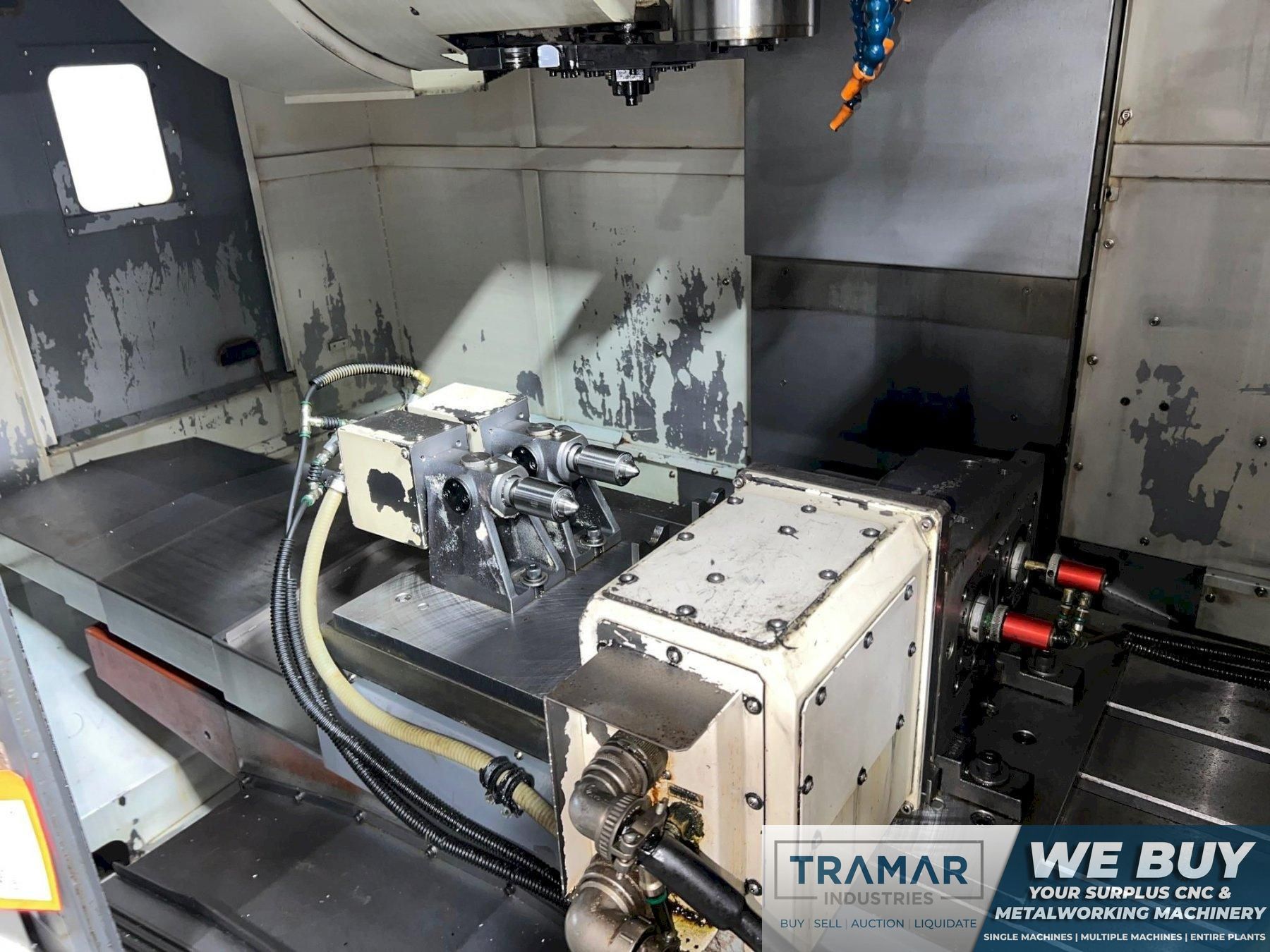

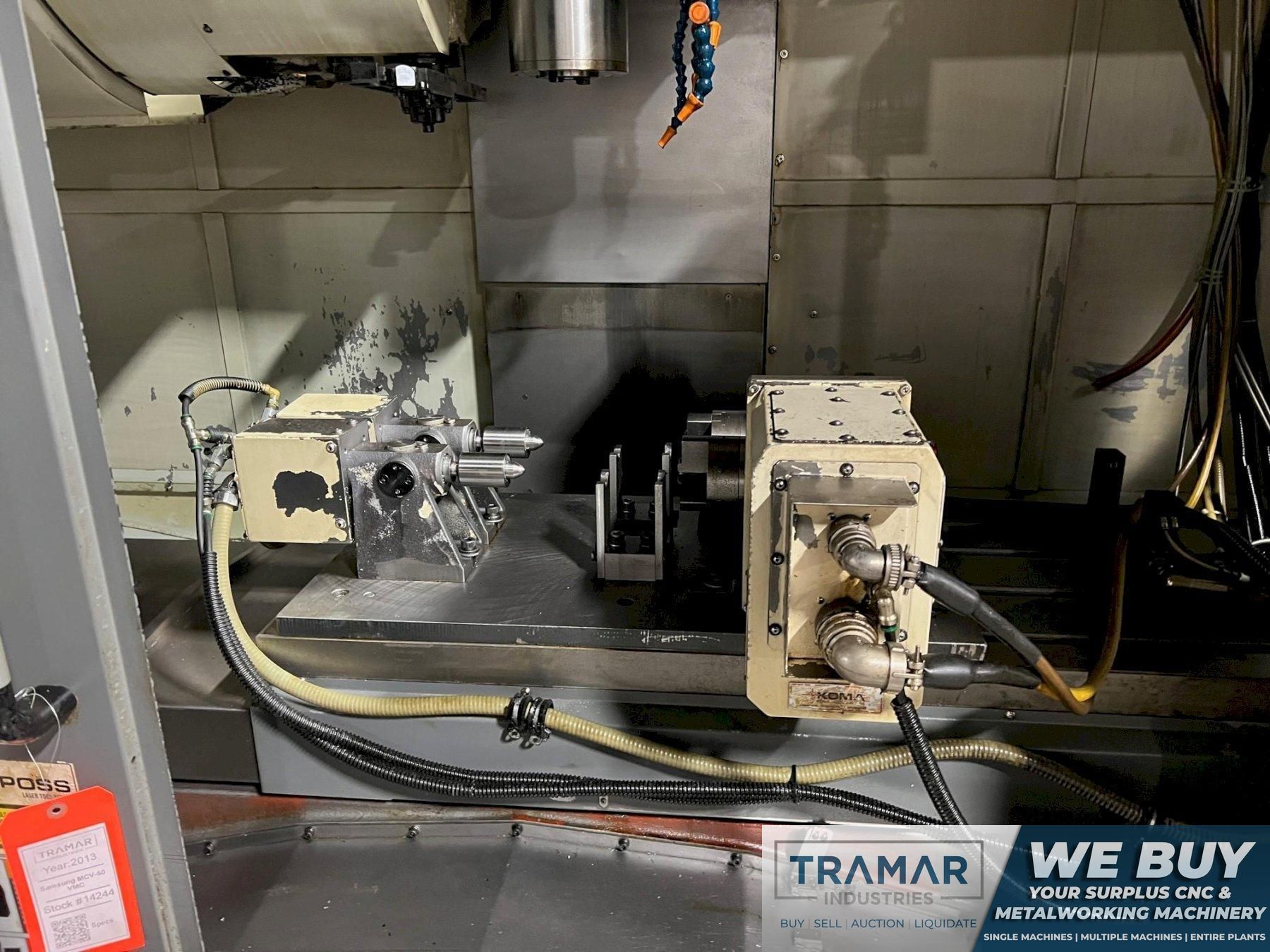

- Tsudakoma RN-100R-2 4th Axis Rotary Table w/Tailstock

The Samsung MCV50 is an exclusive part of our Vertical Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
