Samsung MCV50 - Vertical Machining Centers

Request Quote
Specifications Print Specs
Model: MCV50
Year: 2012
Stock #: 13393
Highlights:
Fanuc 0i-MD CNC Control
Coolant Thru Spindle
Table: 36.22" x 19.69" | 1,322 lbs
Travels (X/Y/Z): 35.43" / 19.69"0 / 20.08"
Manual Guide i

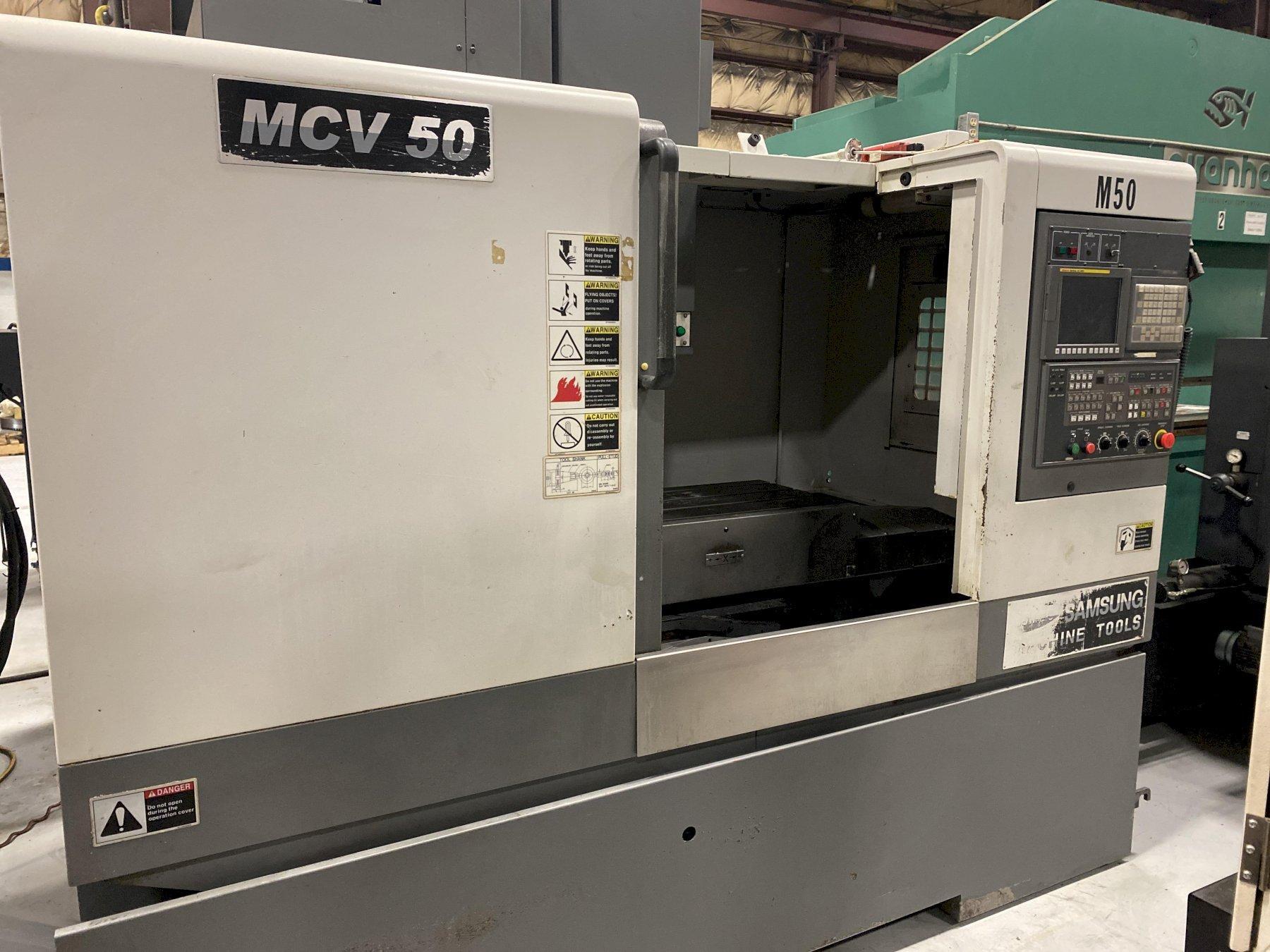

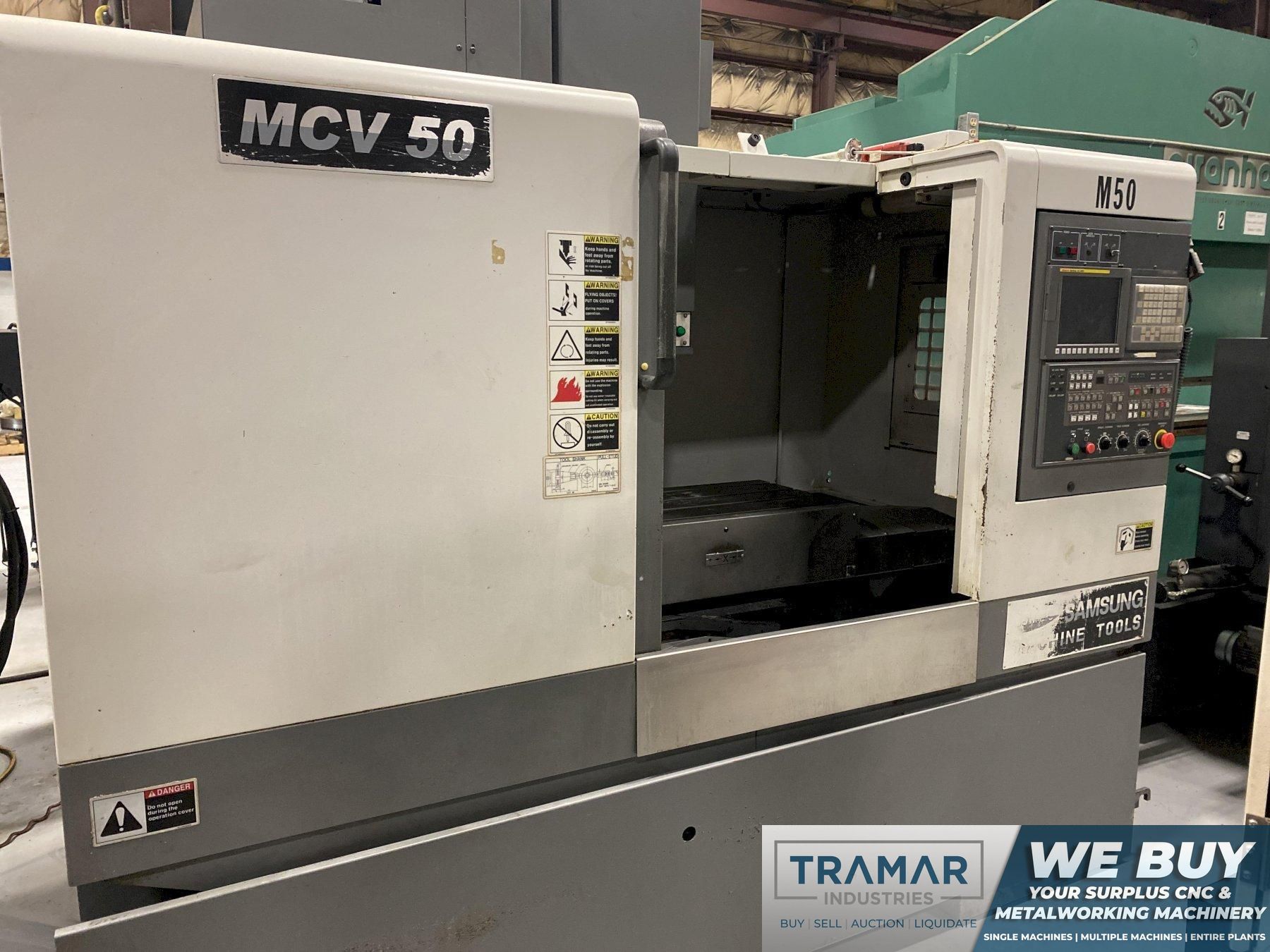

Samsung MCV50 CNC Vertical Machining Center (2012)
Machine Specifications
Year
2012
Control Type
Fanuc 0i-MD
# Axis
3

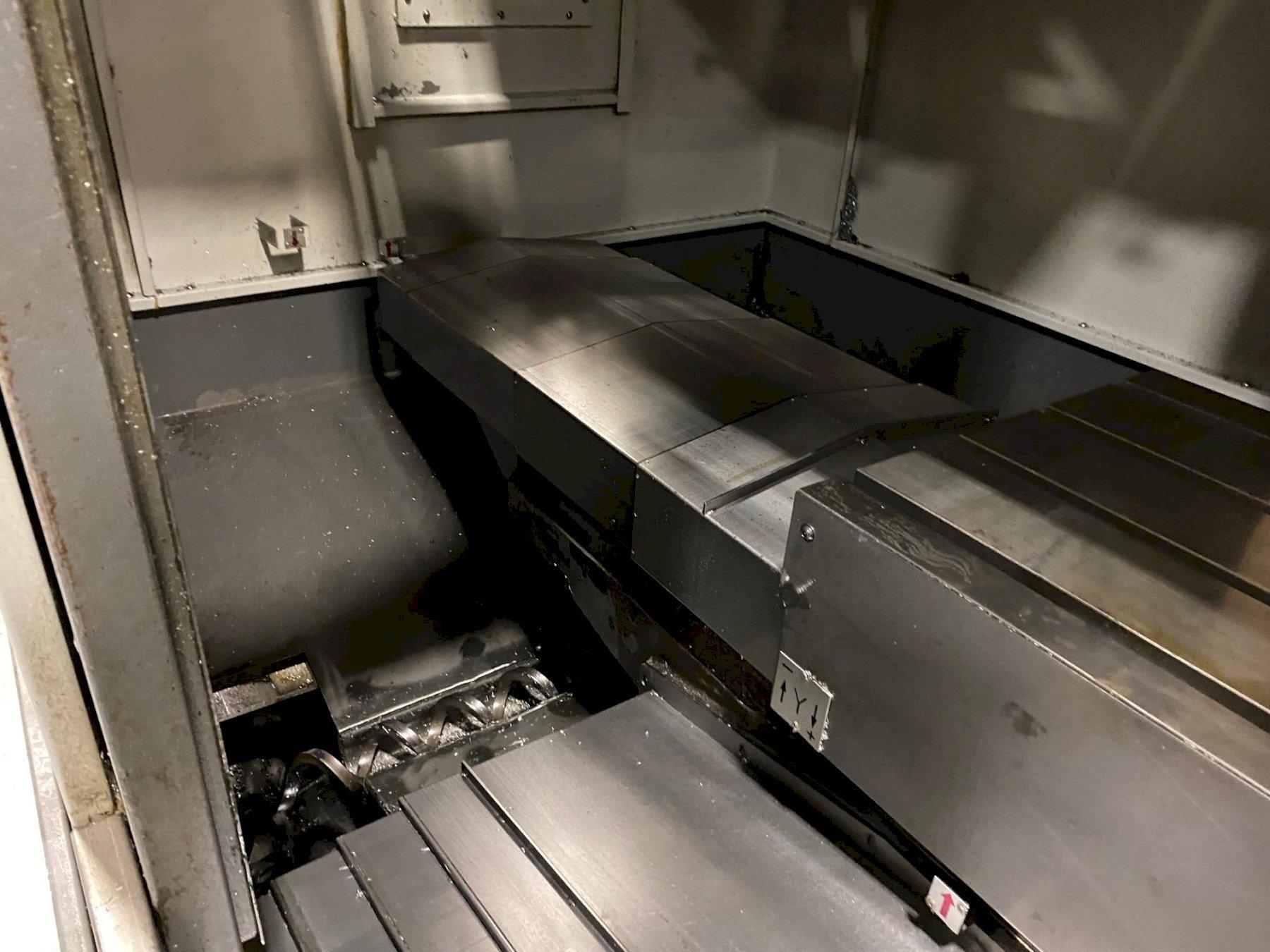

Table Size
36.22" x 19.69"
Table Capacity
1,322 pounds
X-Axis Travel
35.43"
Y-Axis Travel
19.69"
Z-Axis Travel
20.08"
Rapid Traverse Rate (X/Y/Z)
1,417/1,417/1,181 ipm
Spindle Taper
CAT 40
Spindle Speed
10,000 RPM
Main Motor
20 hp
Tool Changer Capacity
30
Coolant Thru Spindle
yes
Dimensions
102" x 87" x 100"
Weight
13,800 pounds

Equipped With:

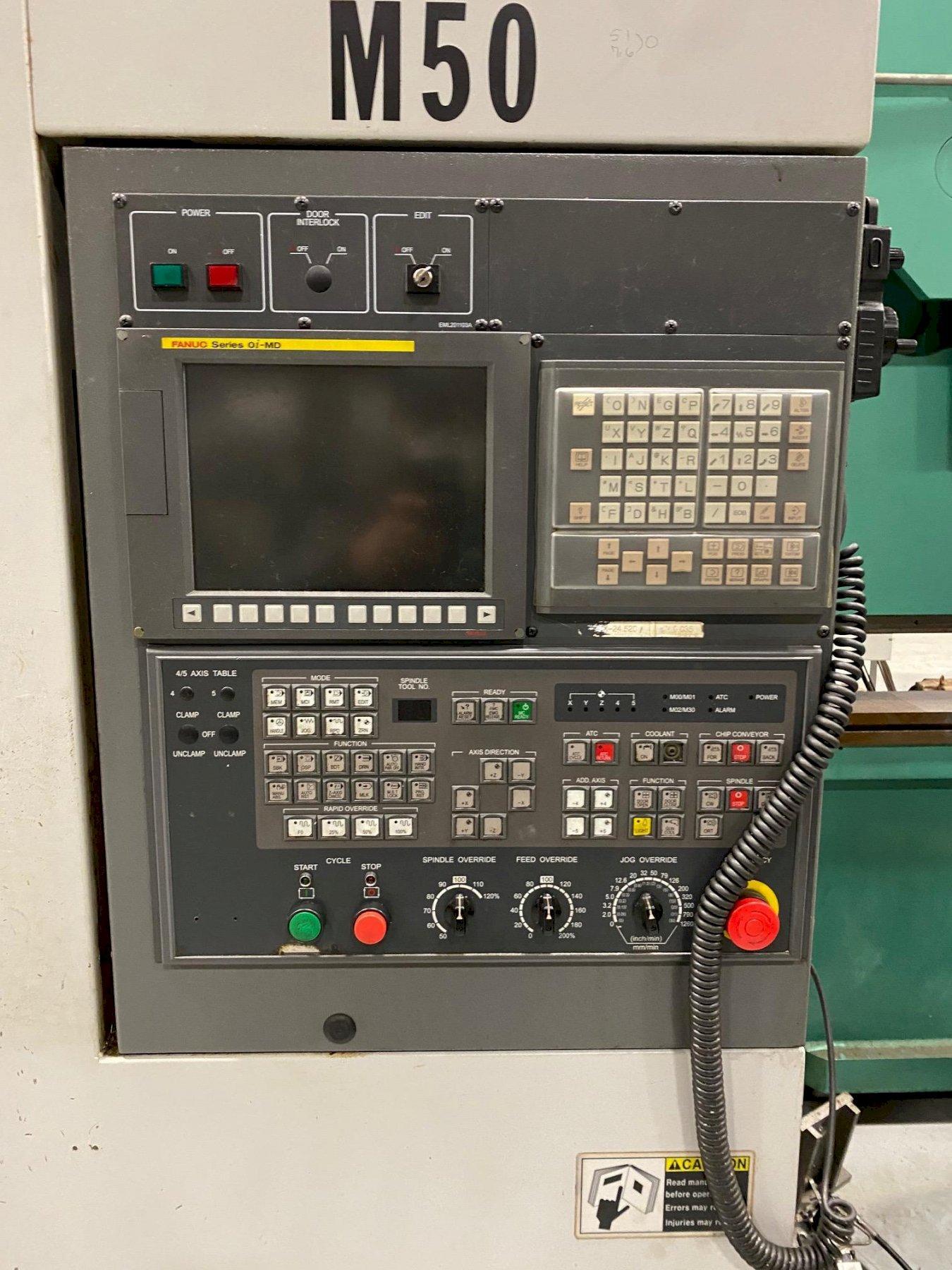

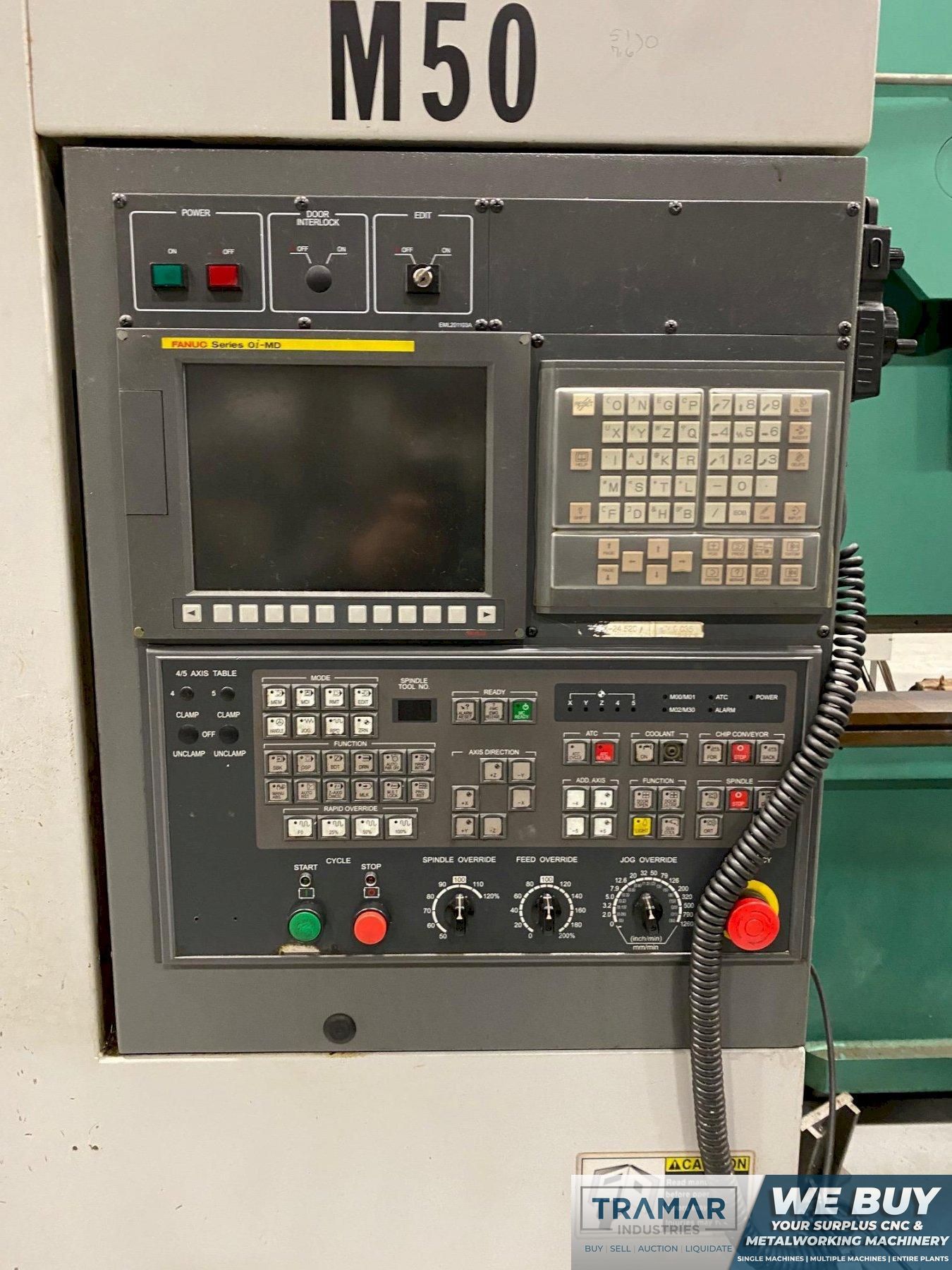

- Fanuc 0i-MD CNC Control

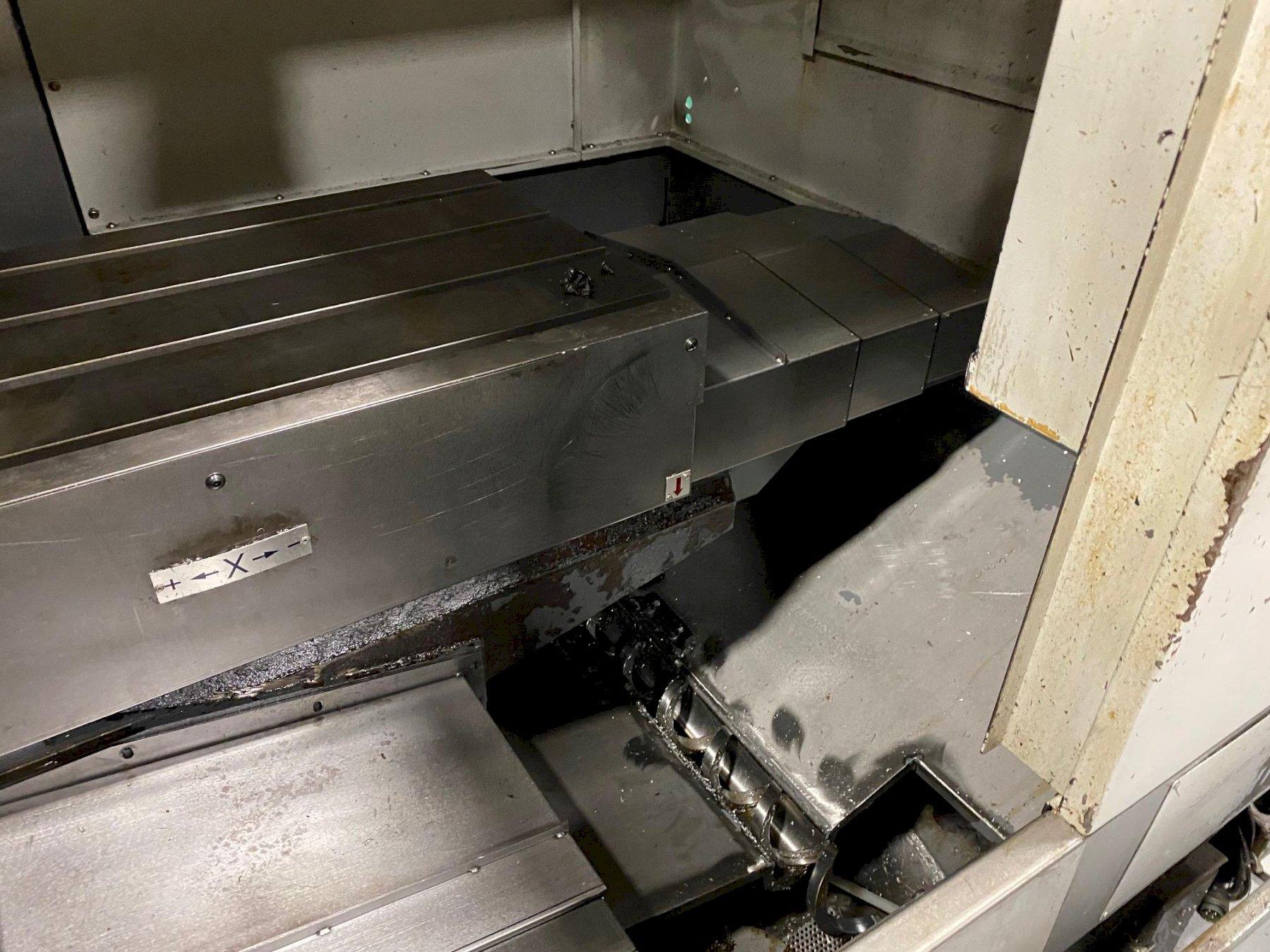

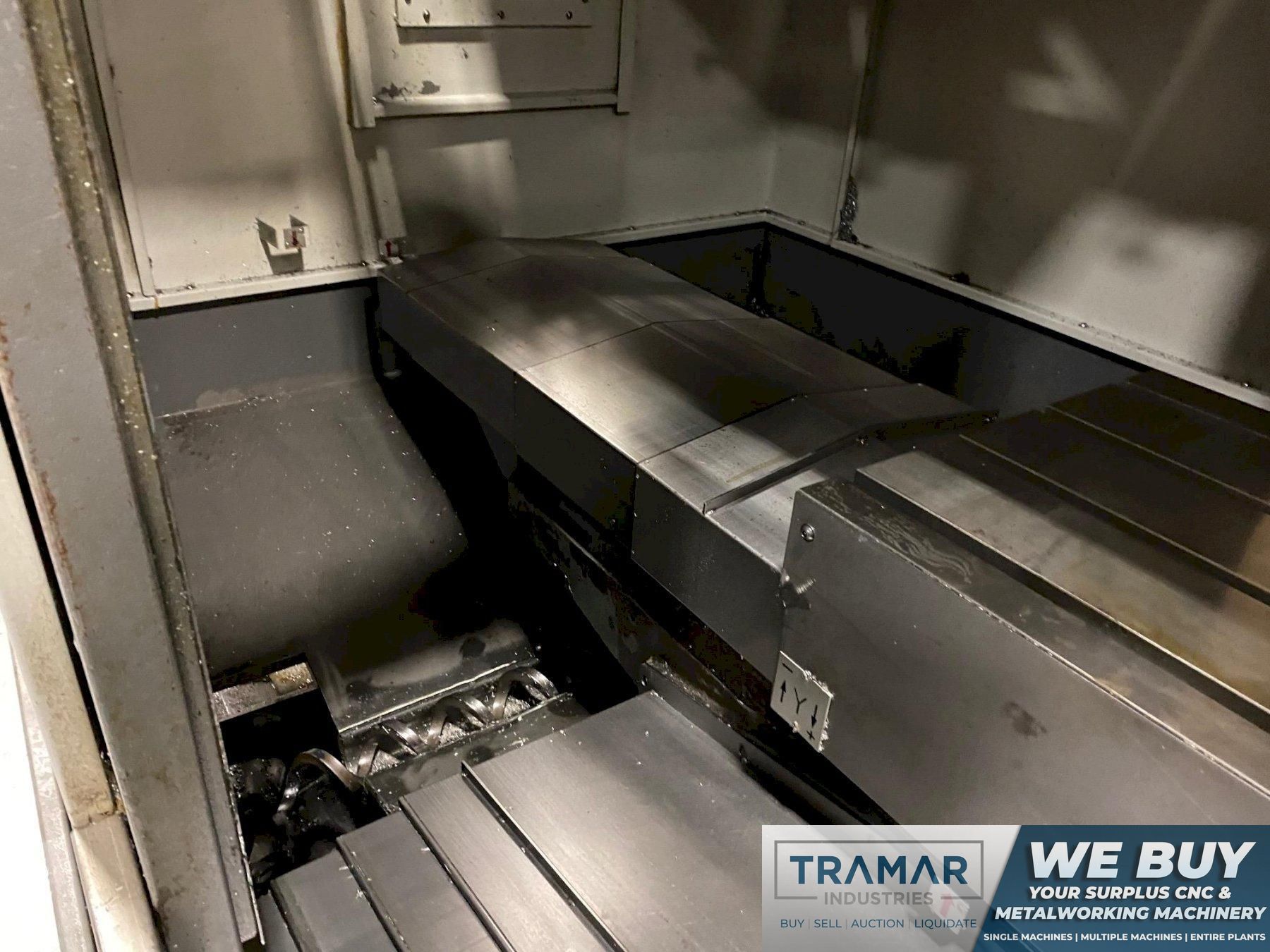

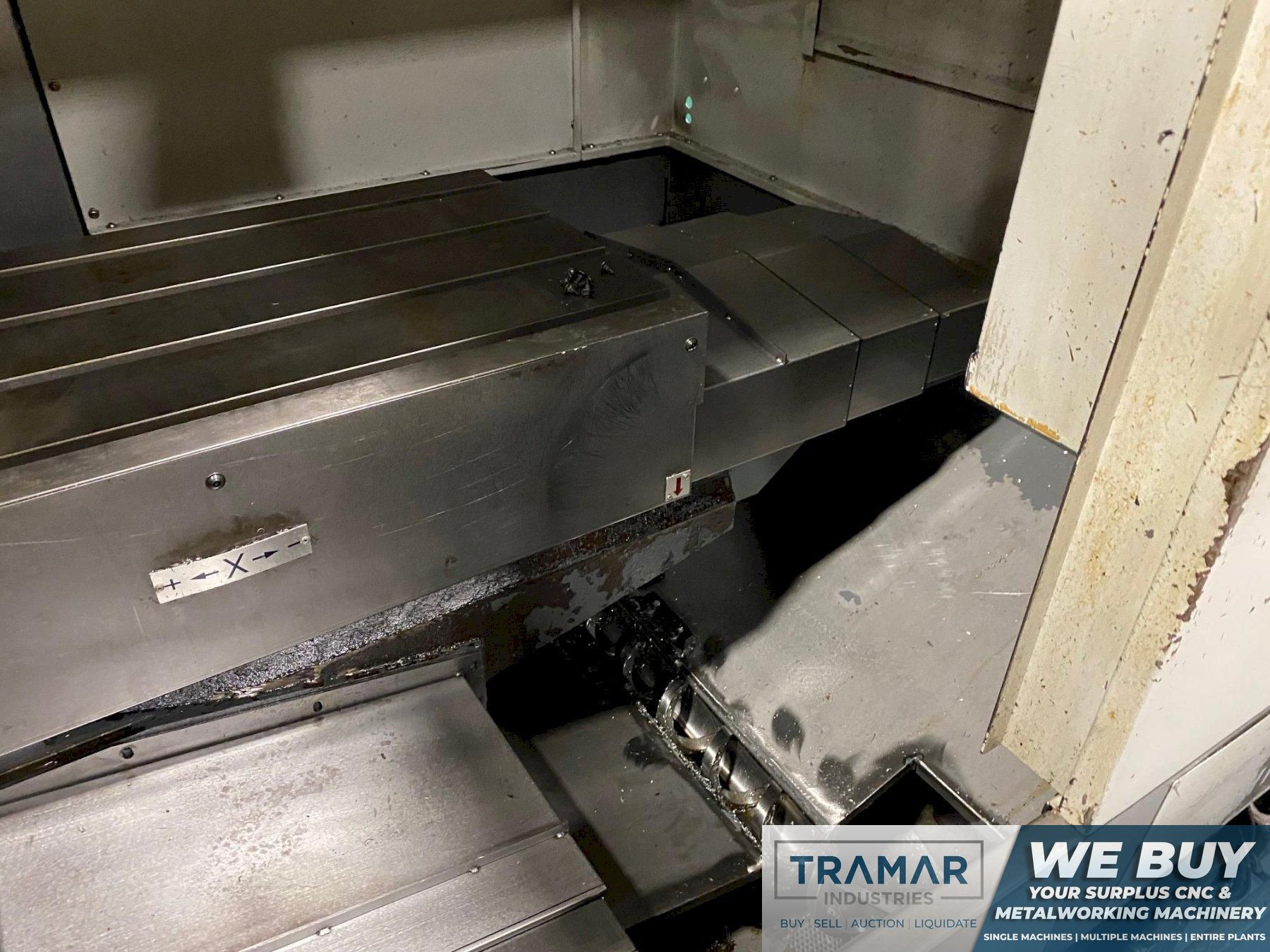

- Chip Auger
- Coolant Tank & Pump

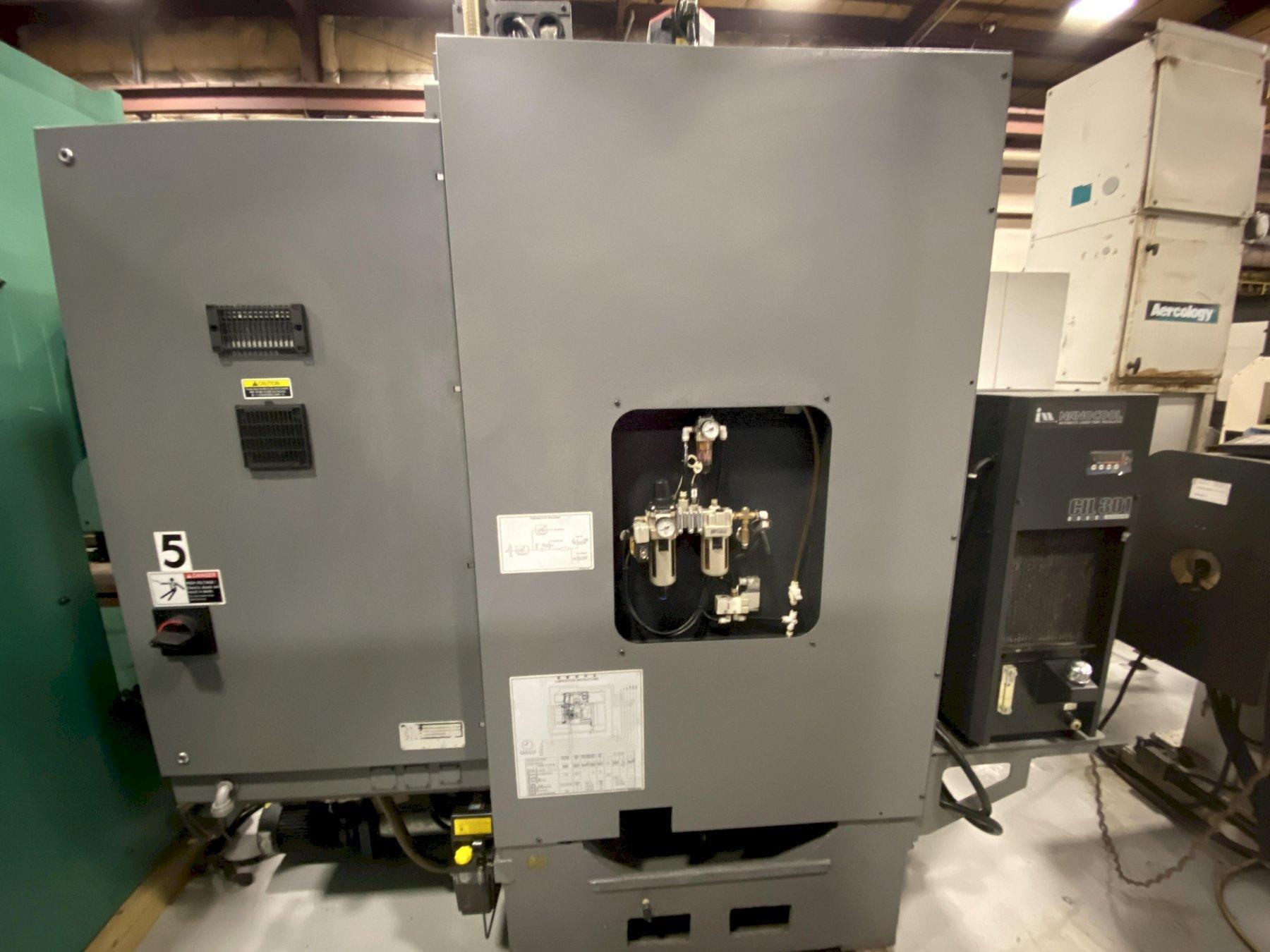

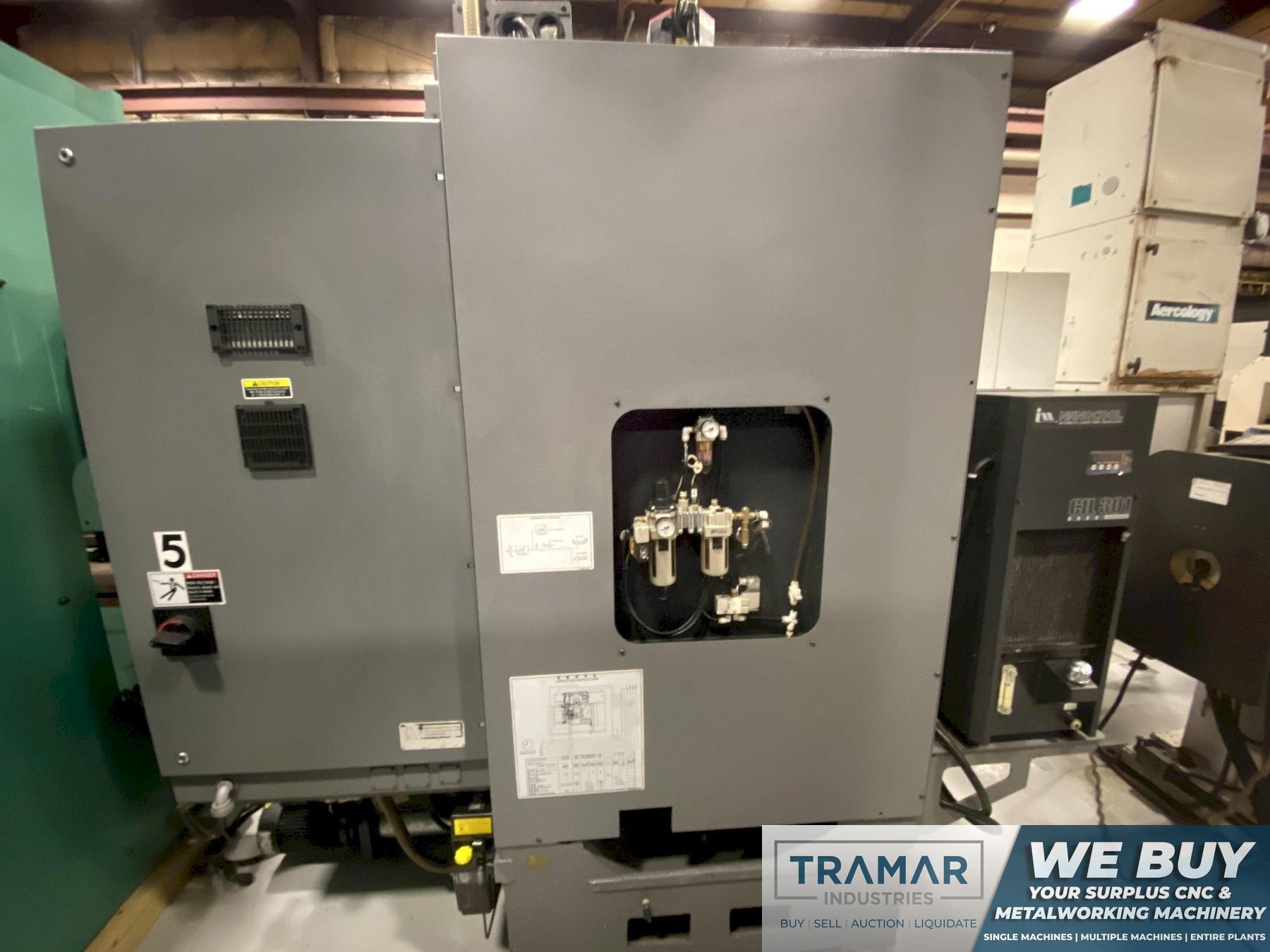

- Spindle Chiller

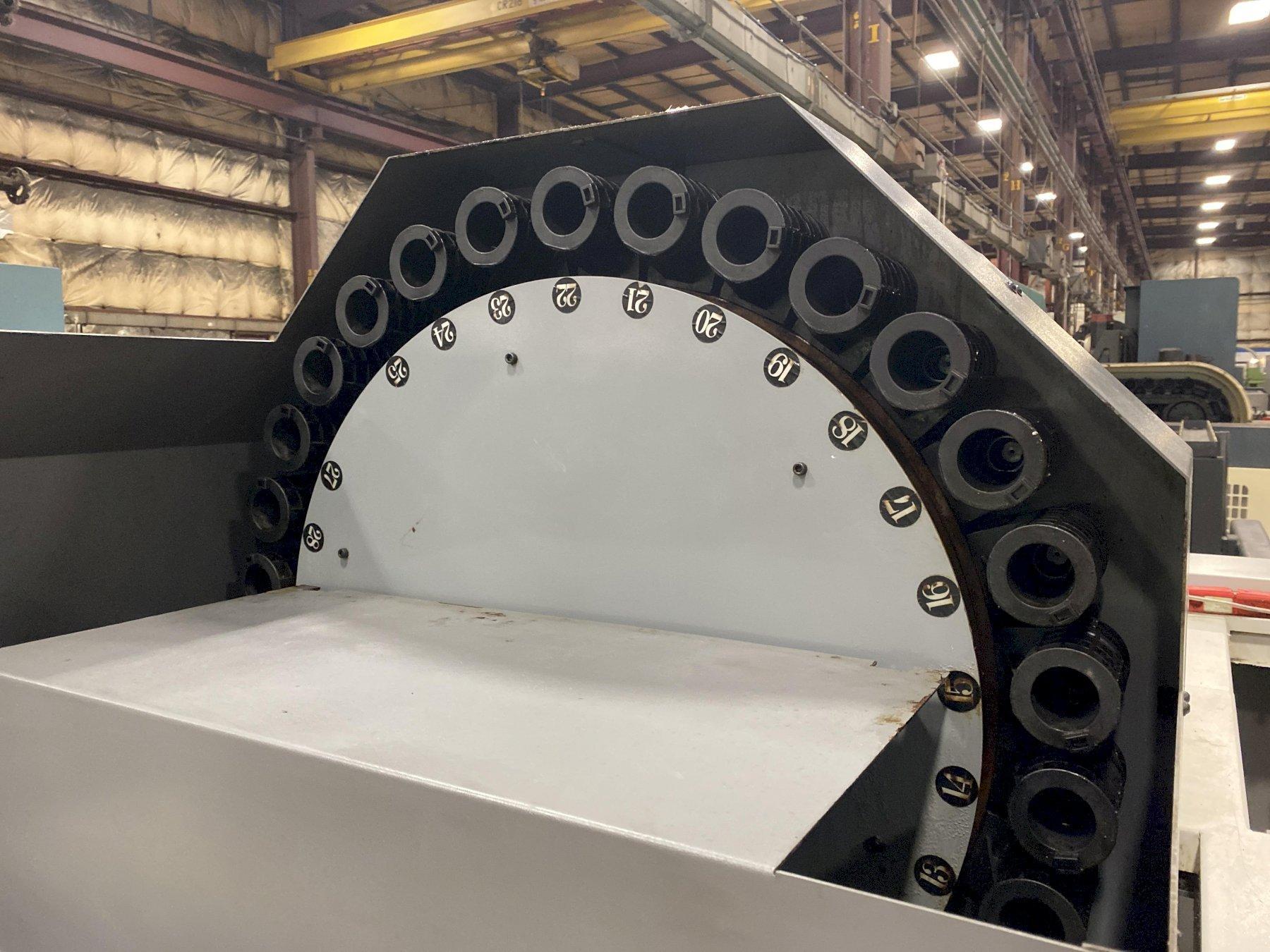

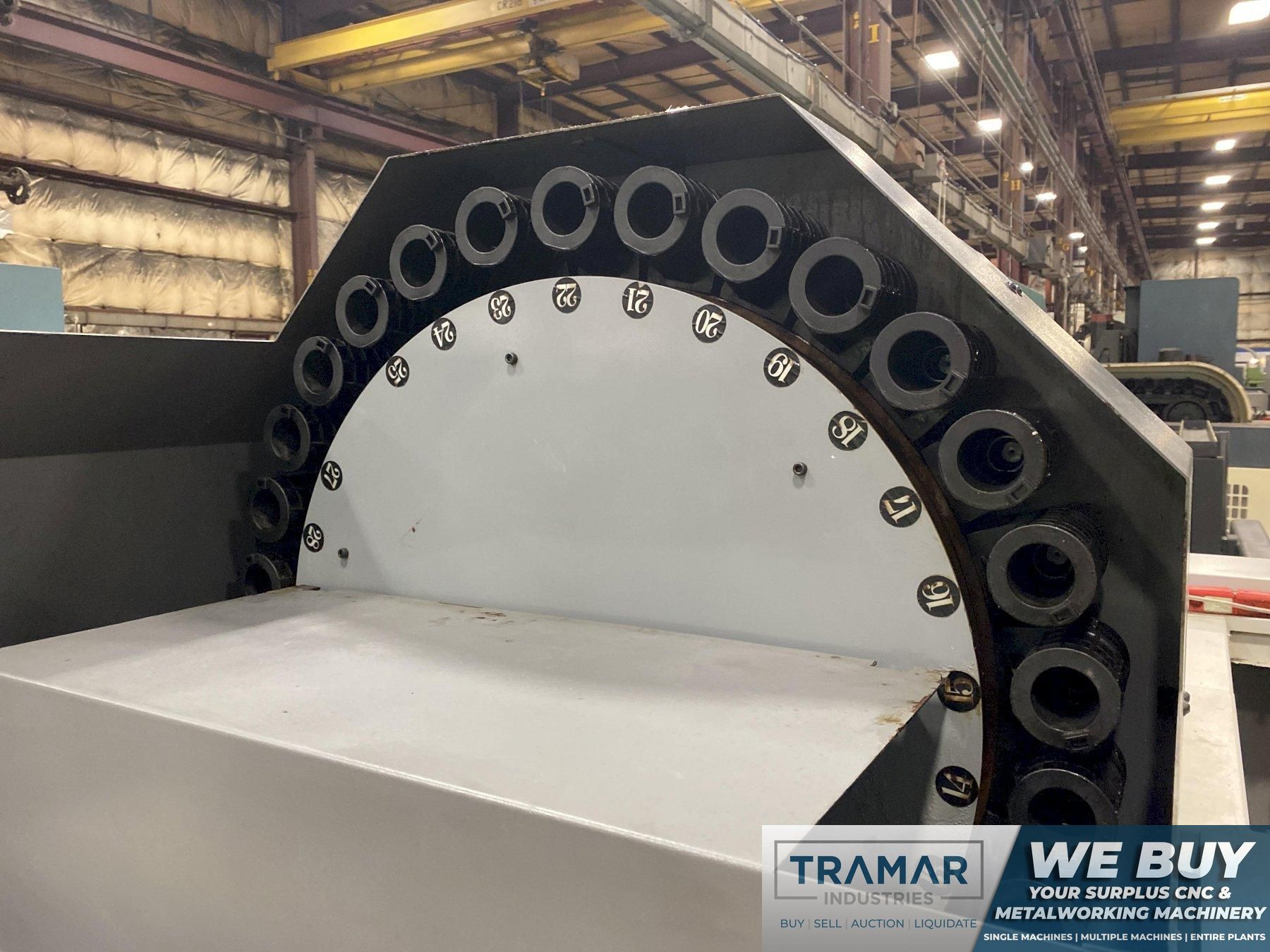

- 30 Station Side Mount Tool Changer
- Coolant Thru Spindle

- Manual Guide i (Conversational Programming)
- Available Manuals

The Samsung MCV50 is an exclusive part of our Vertical Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
