Samsung SL-45MC/3000BB - Lathes (3-Axis or More)

Request Quote
Share Machine
Specifications Print Specs
Model: SL-45MC/3000BB
Year: 2010
Stock #: 33964
Highlights:

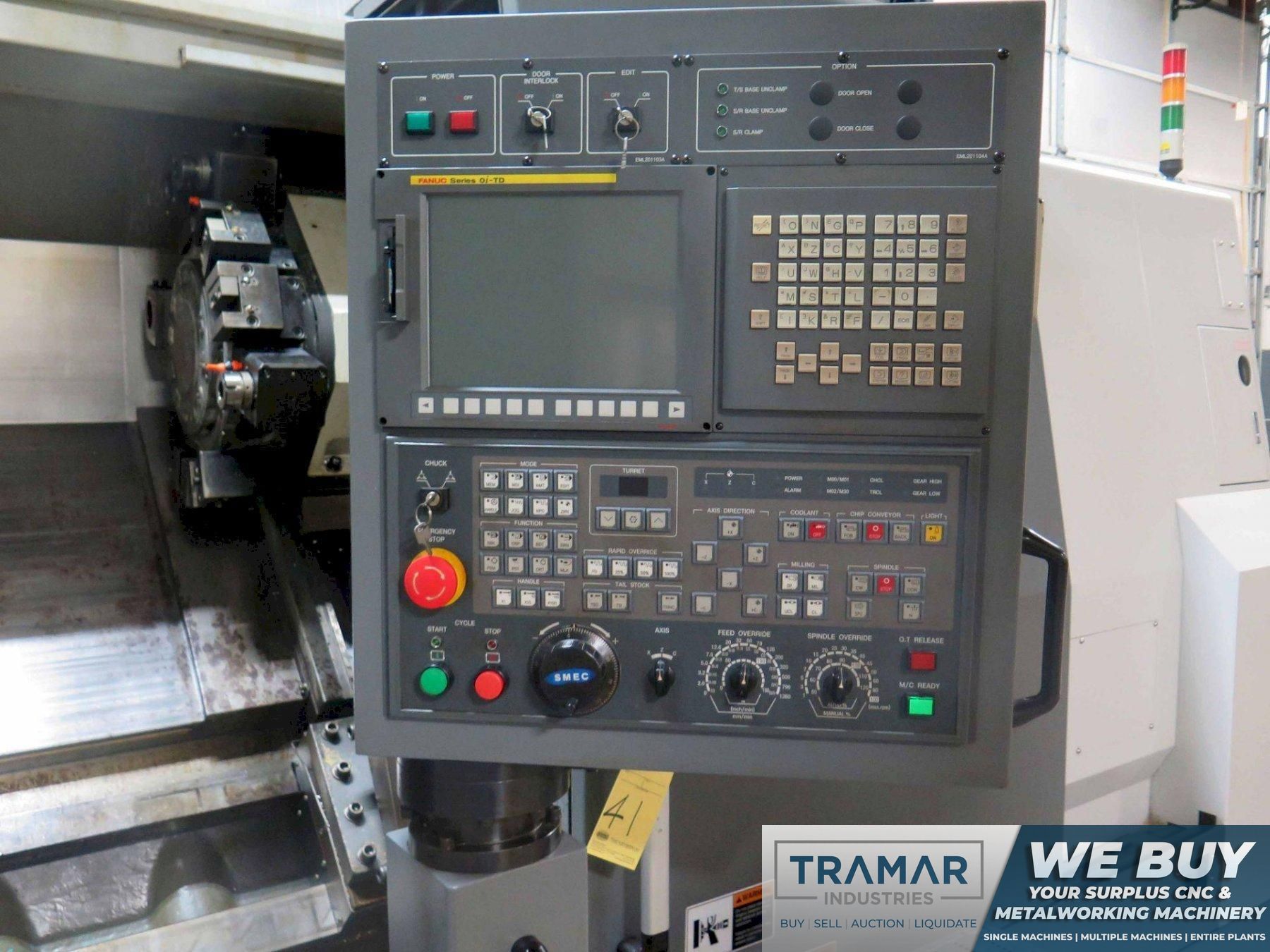

Fanuc 0i-TD Control
Schunk Hydraulic Steady Rest
Programmable Tailstock
Live Tooling

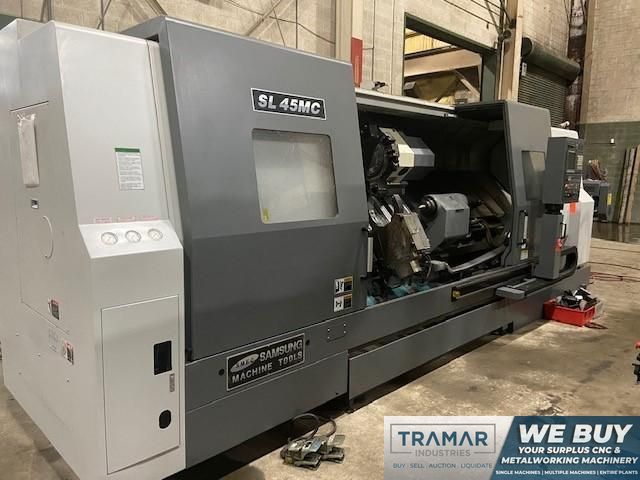

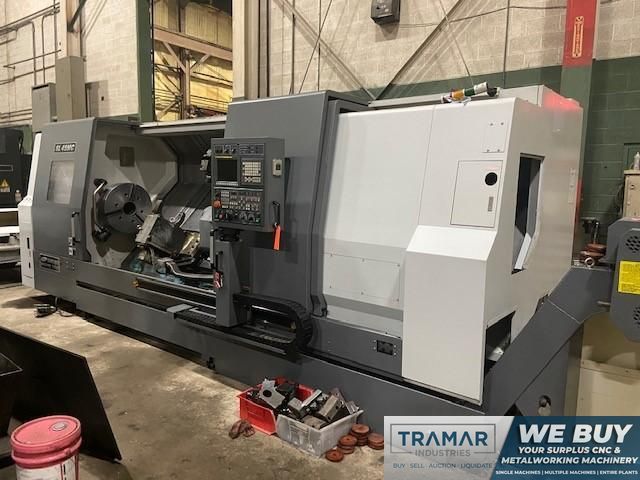

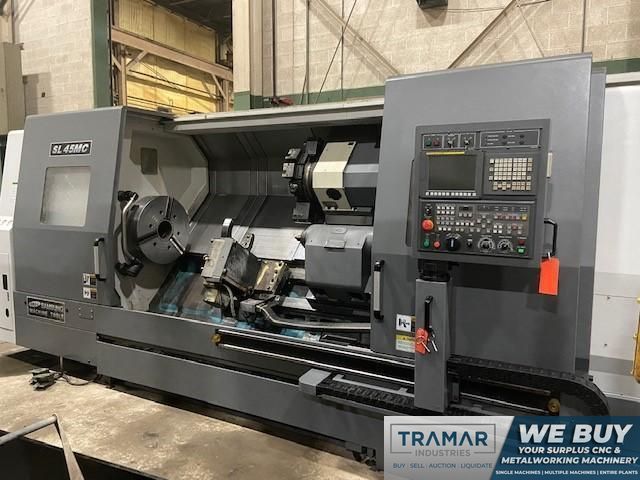

Samsung SL-45MC/3000BB CNC Lathe
Machine Specifications
Year
2010
Control Type
Fanuc 0i-TD
# Axis
3
Chuck Size
24"
Swing
30.5"
Turning Diameter
24.4"
Center Distance
118"
Bar Capacity
6.5"
Spindle Bore
7.125"
X Axis Travel
13.78"
Z Axis Travel
123.23"
Y Axis (Yes / No)
no
Spindle Speed
1,200 rpm
Main Motor
50 hp
Live Milling (Yes / No)
yes
Live Tooling Speed
4,000 rpm
Live Tooling Motor
10 hp
Turret Capacity
12
Tailstock (Yes/No)
yes
Dimensions
288" x 90"
Weight
44,100 pounds

Equipped With:

- Fanuc 0i-TD Control
- Schunk Programmable Hydraulic Steady Rest
- Chip Conveyor
- Box Ways
- Live Tooling
- Programmable Tailstock
- Geared Head
- Tool Probe
- (2) Live Holders

The Samsung SL-45MC/3000BB is an exclusive part of our Lathes (3-Axis or More) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
