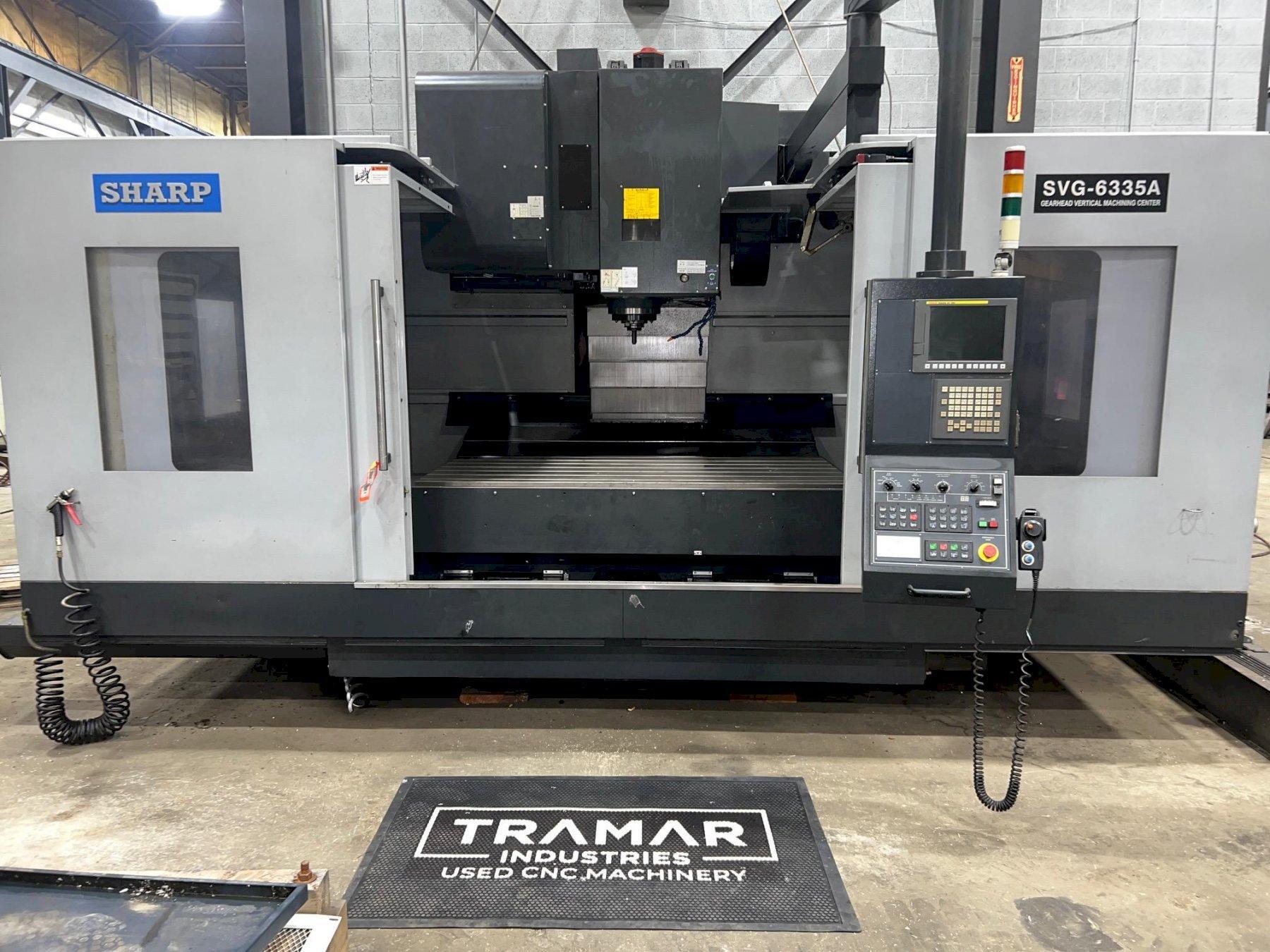

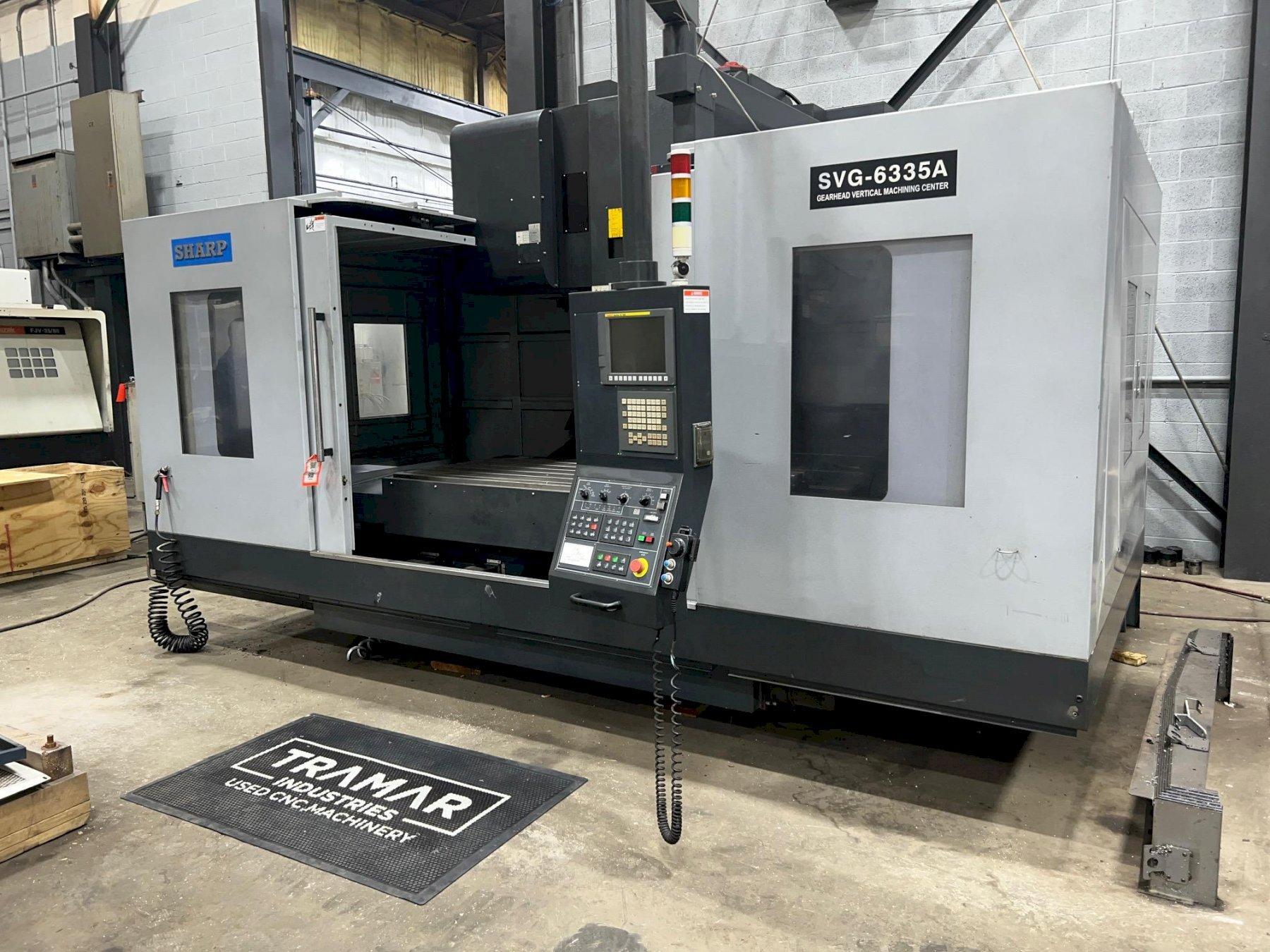

Sharp SVG-6335A - Vertical Machining Centers

Request Quote
Share Machine
Specifications Print Specs
Model: SVG-6335A
Year: 2013
Stock #: 13912
Highlights:

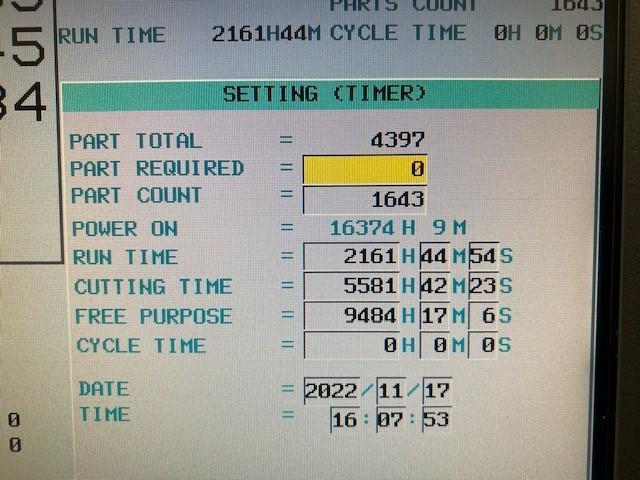

Fanuc 0i-MD CNC Control
Chip Conveyor

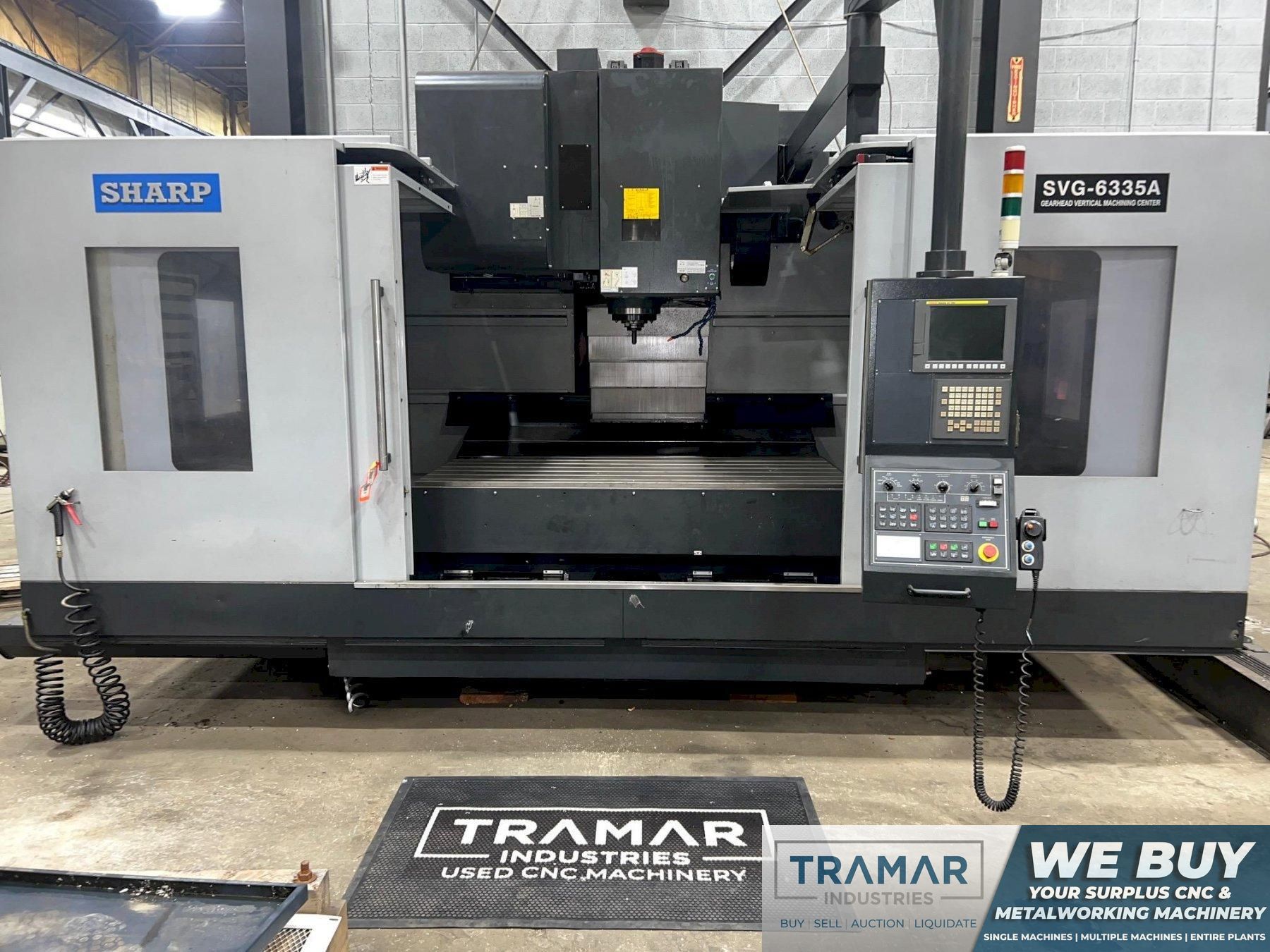

Sharp SVG-6335A CNC Vertical Machining Center For Sale - 2013
Machine Videos
Machine Specifications
Year
2013
Control Type
Fanuc 0i-MD
# Axis
3

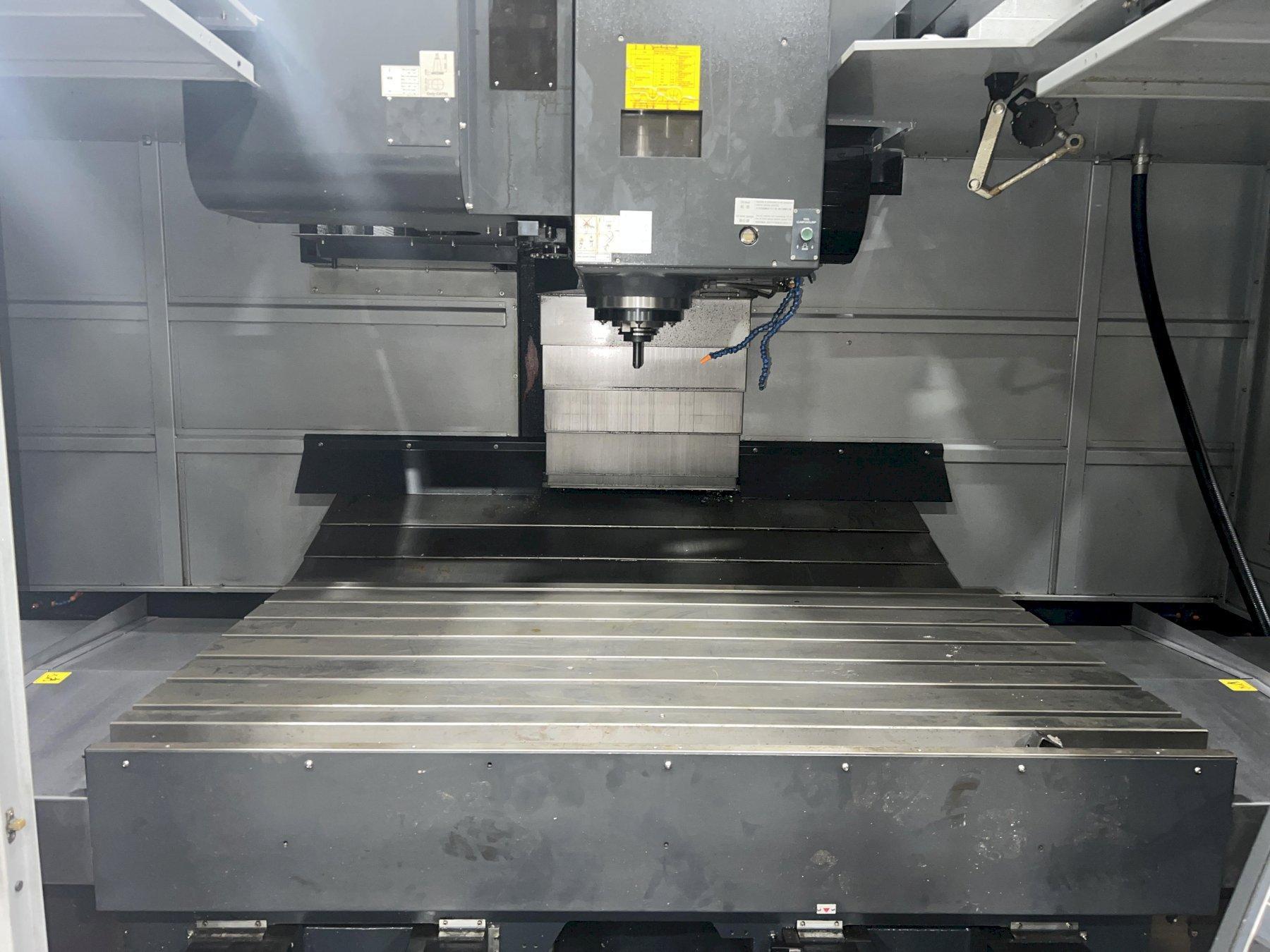

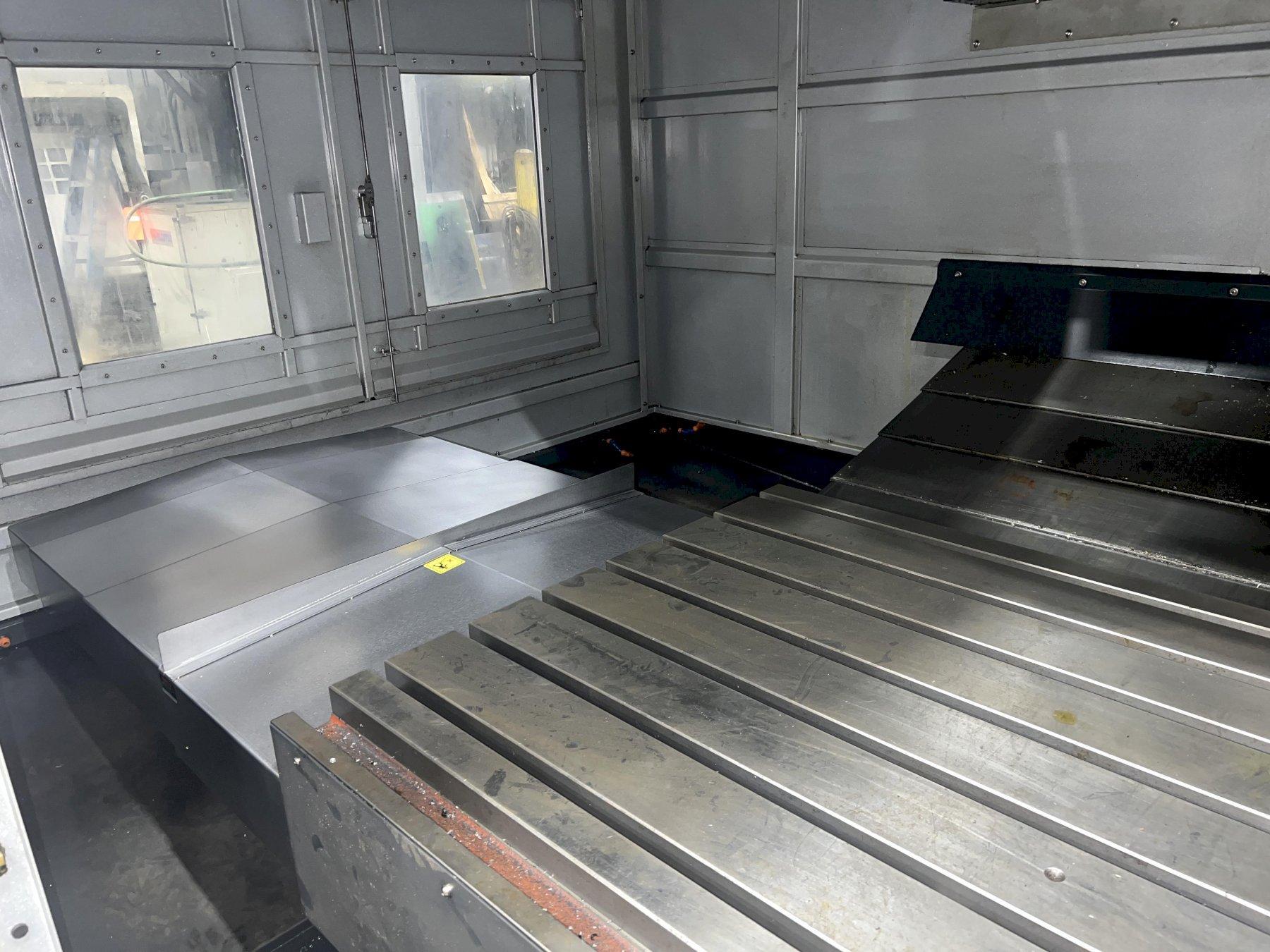

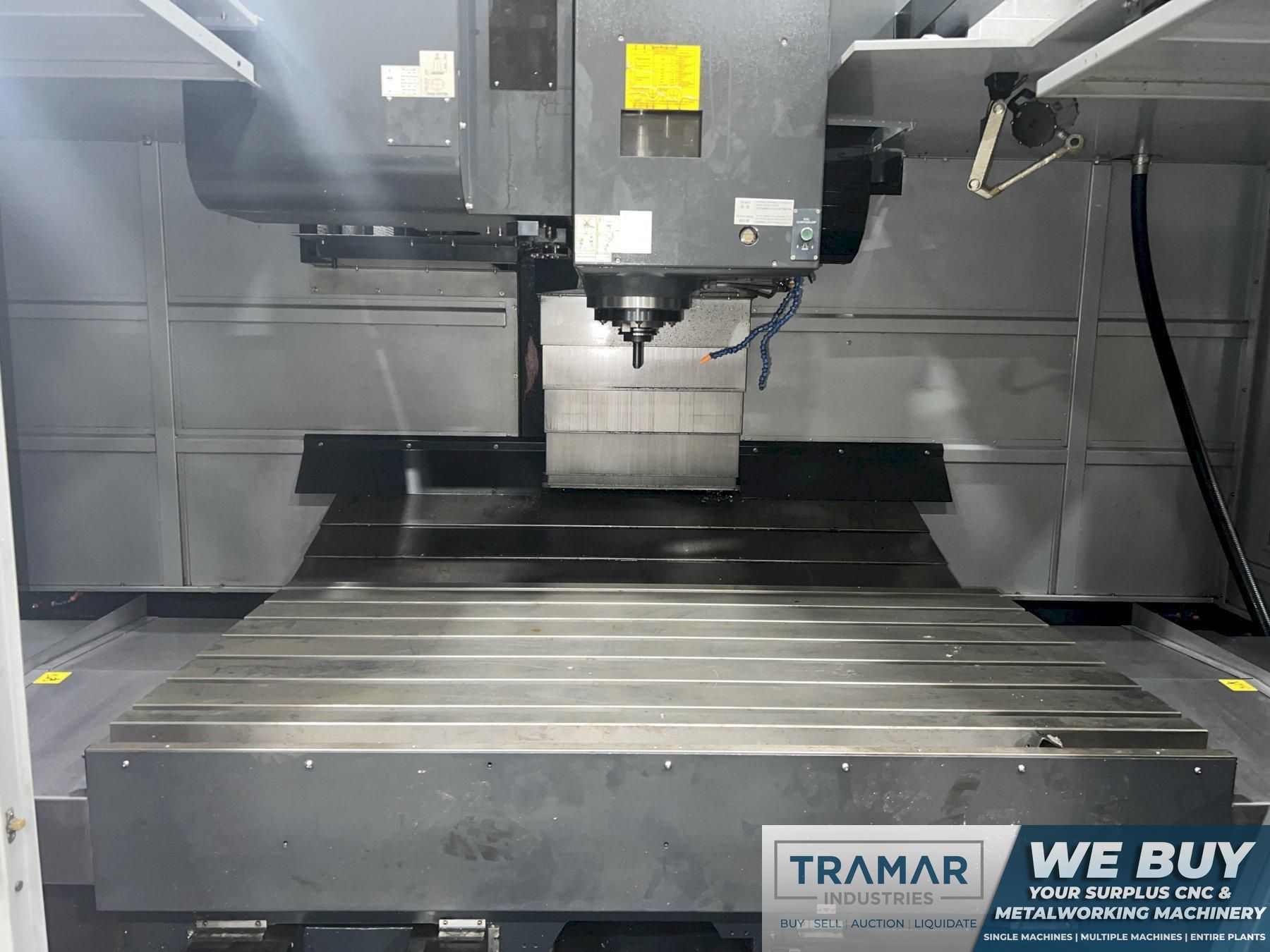

Table Size
71" x 37"
Table Capacity
5,500 pounds
X-Axis Travel
63"
Y-Axis Travel
34.6"
Z-Axis Travel
27.6"
Rapid Traverse Rate (X/Y/Z)
787/787/590 ipm
Spindle Taper
CAT 50
Spindle Speed
8,000 rpm
Main Motor
35 hp

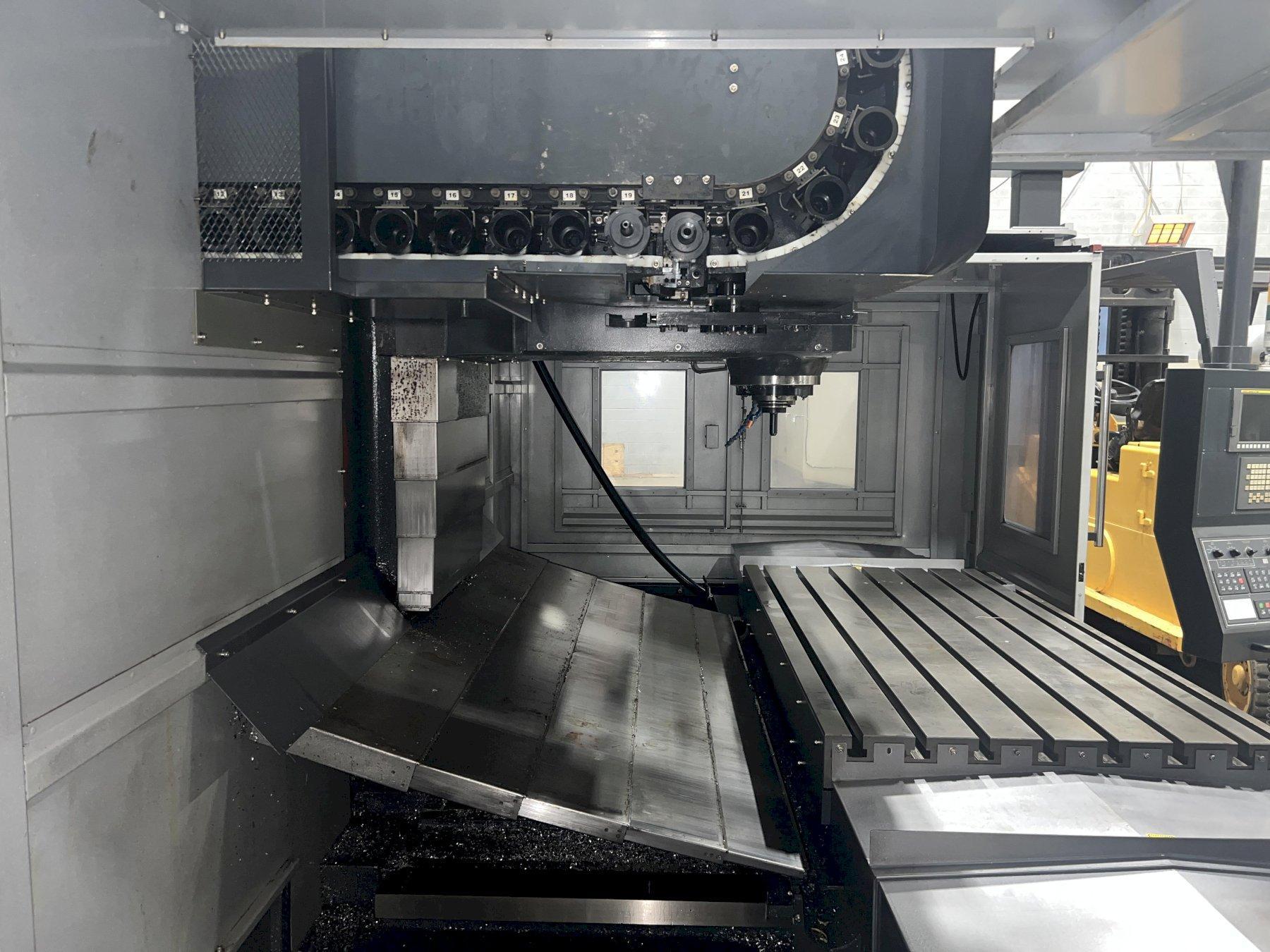

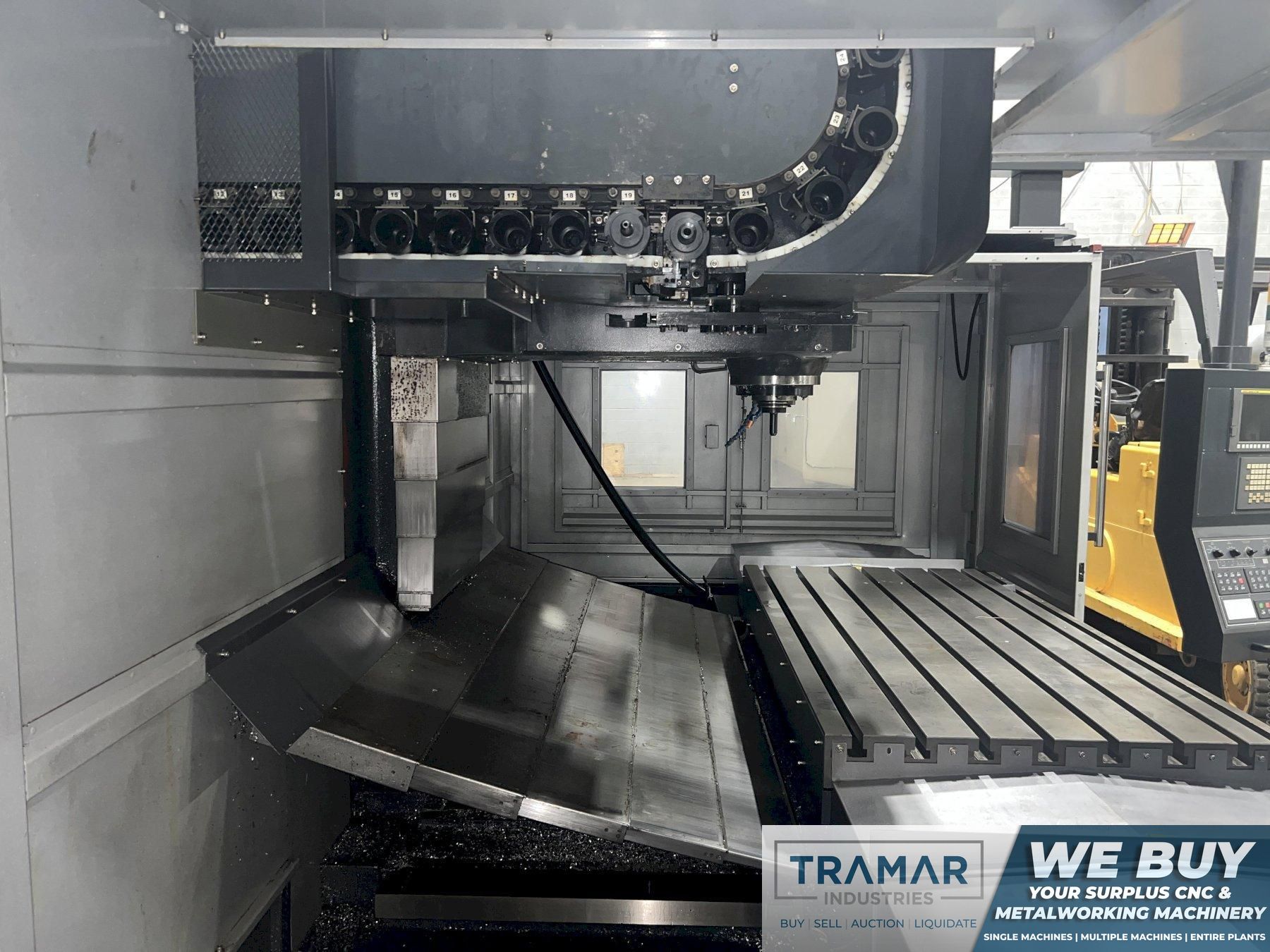

Tool Changer Capacity
40
Machine Weight
34,200 pounds

Equipped With:

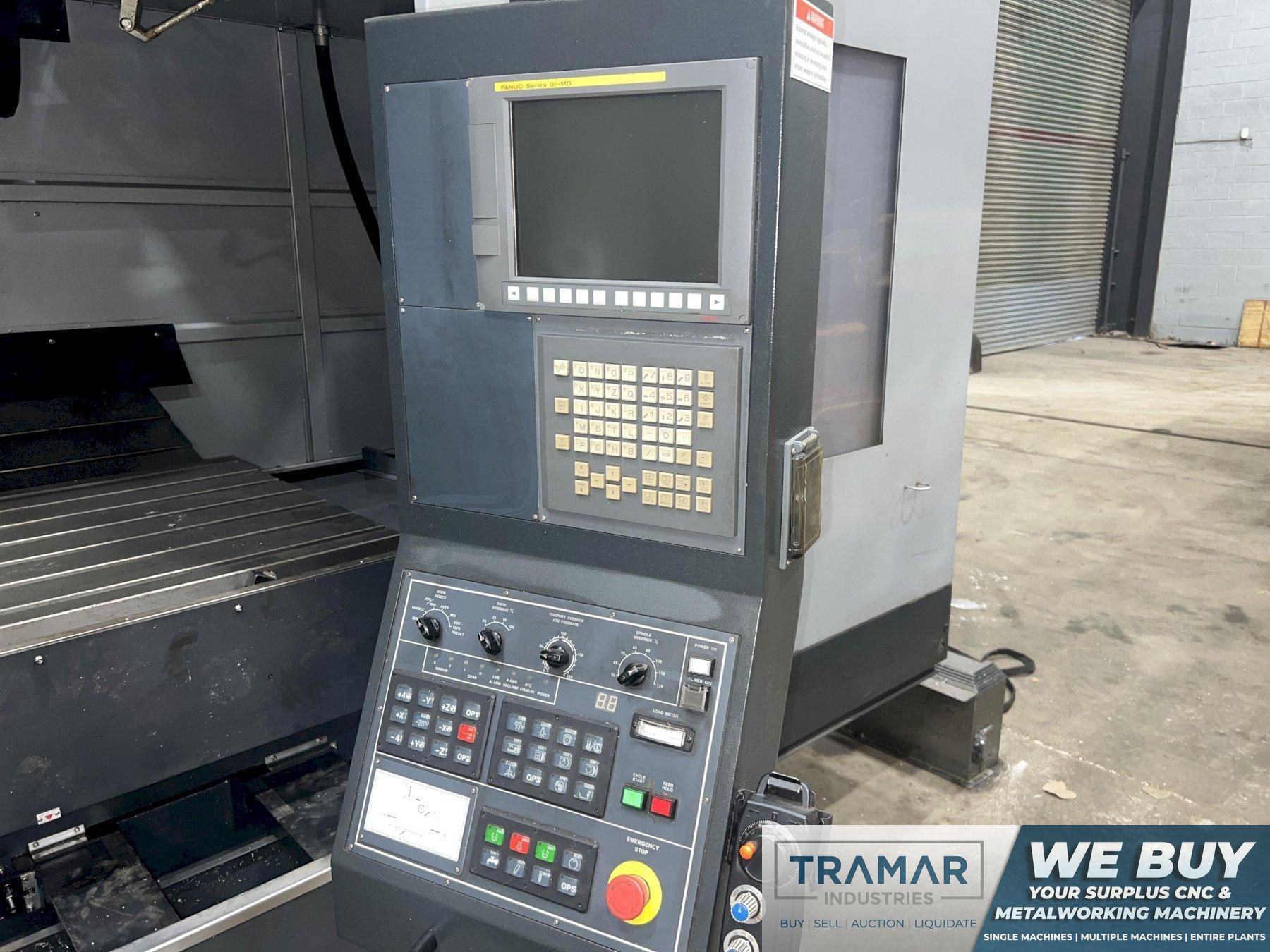

- Fanuc 0i-MD CNC Control
- Data Server
- Manual Guide i
- Ethernet Port
- USB Port
- Box Ways (4 on Y Axis)
- Chip Augers

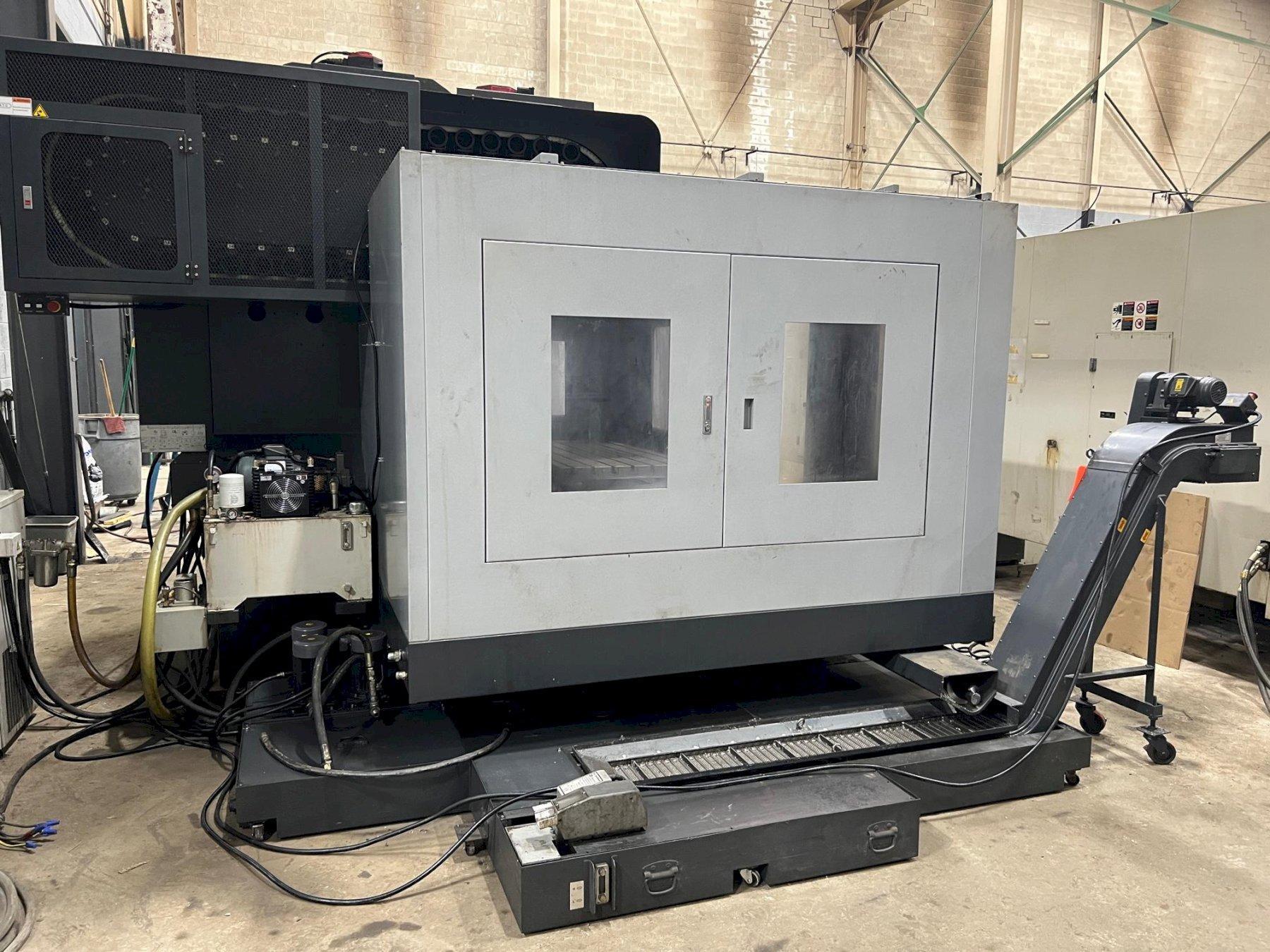

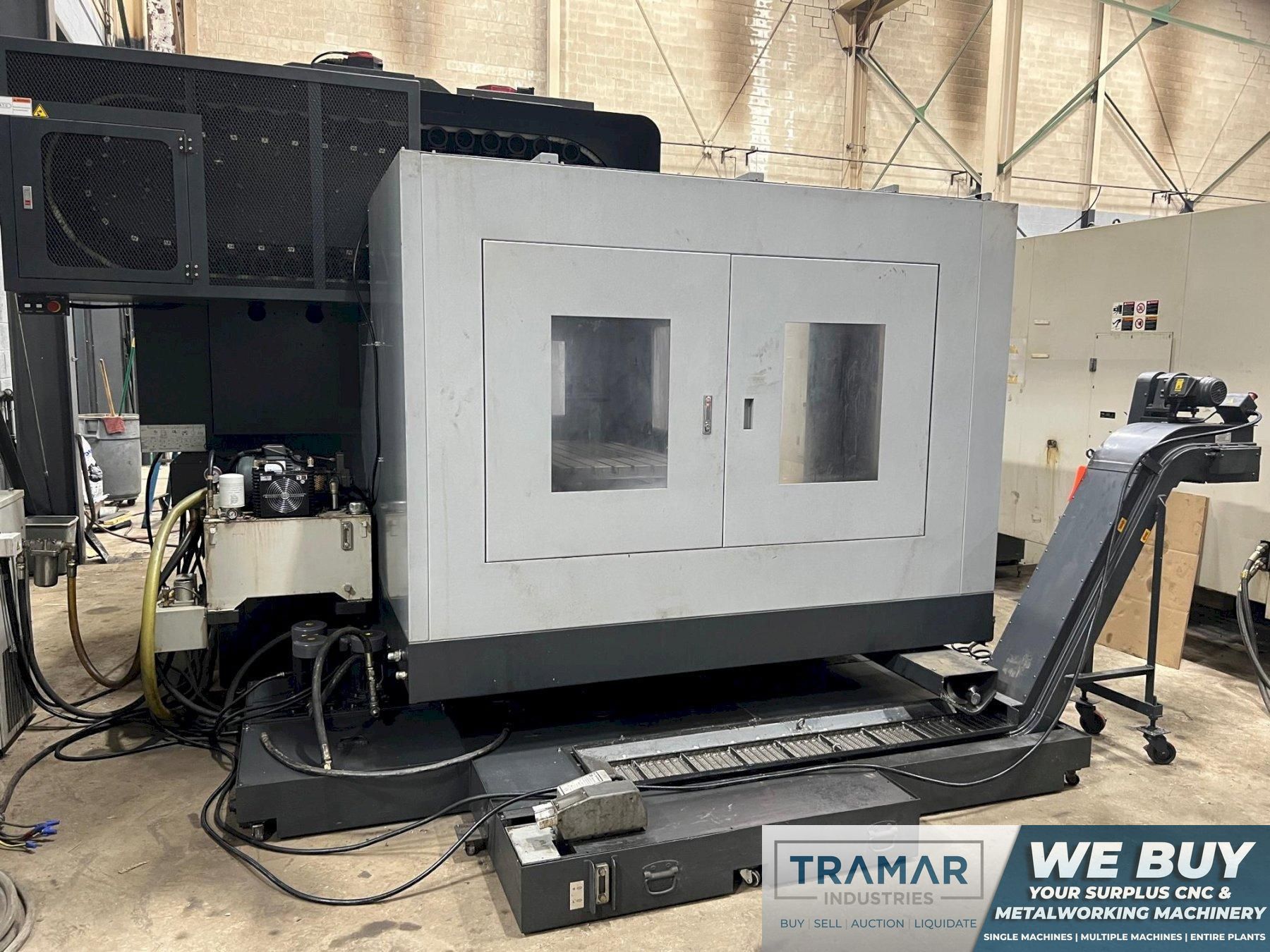

- Chip Conveyor
- Coolant Tank & Pumps
- 2 Speed Gearbox
- Prepped for Coolant Thru Spindle
- Remote Jog Handle

The Sharp SVG-6335A is an exclusive part of our Vertical Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
