Model: BP130-3.5
Year: 2012
Stock #: 16441
Highlights:

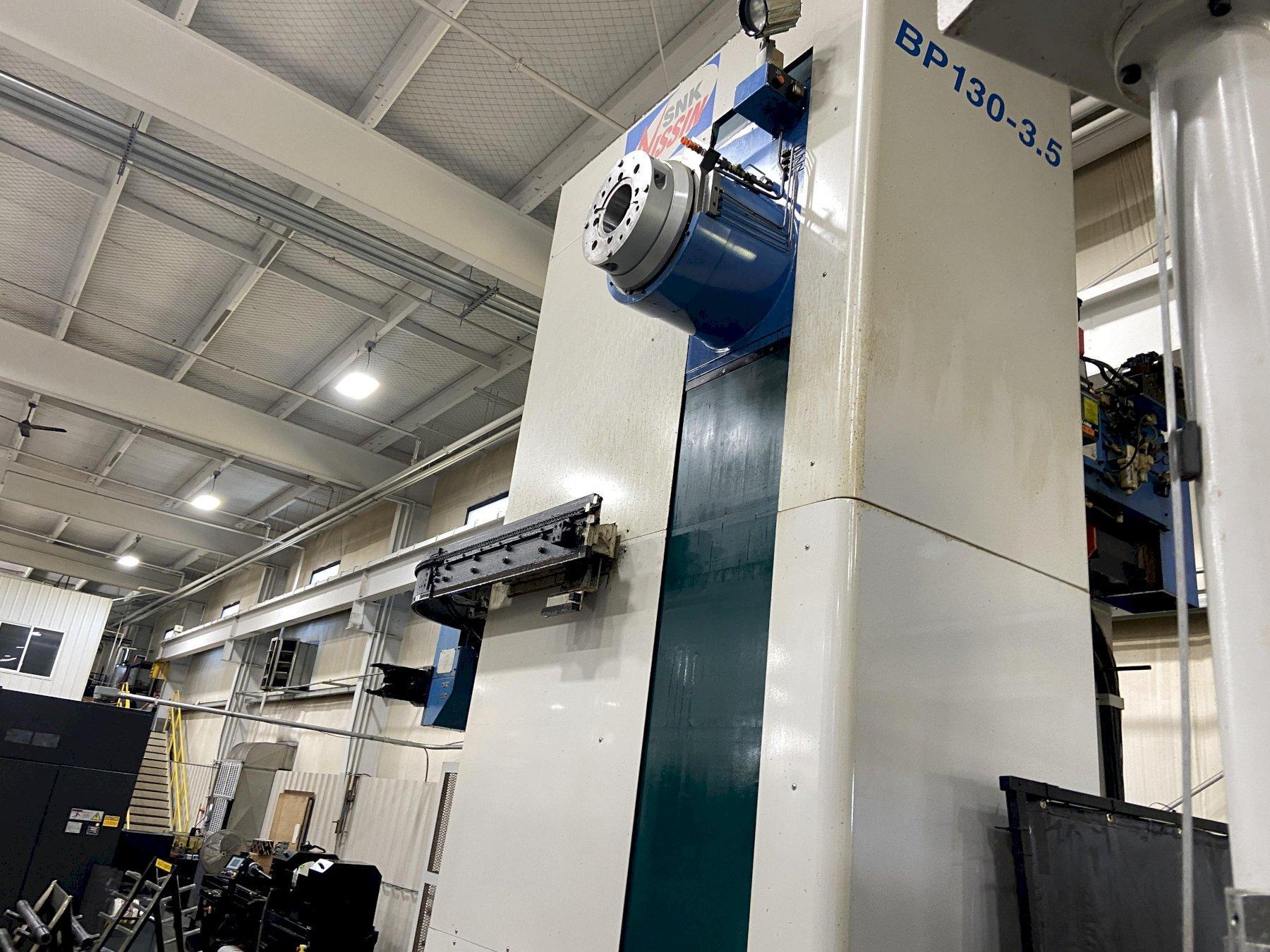

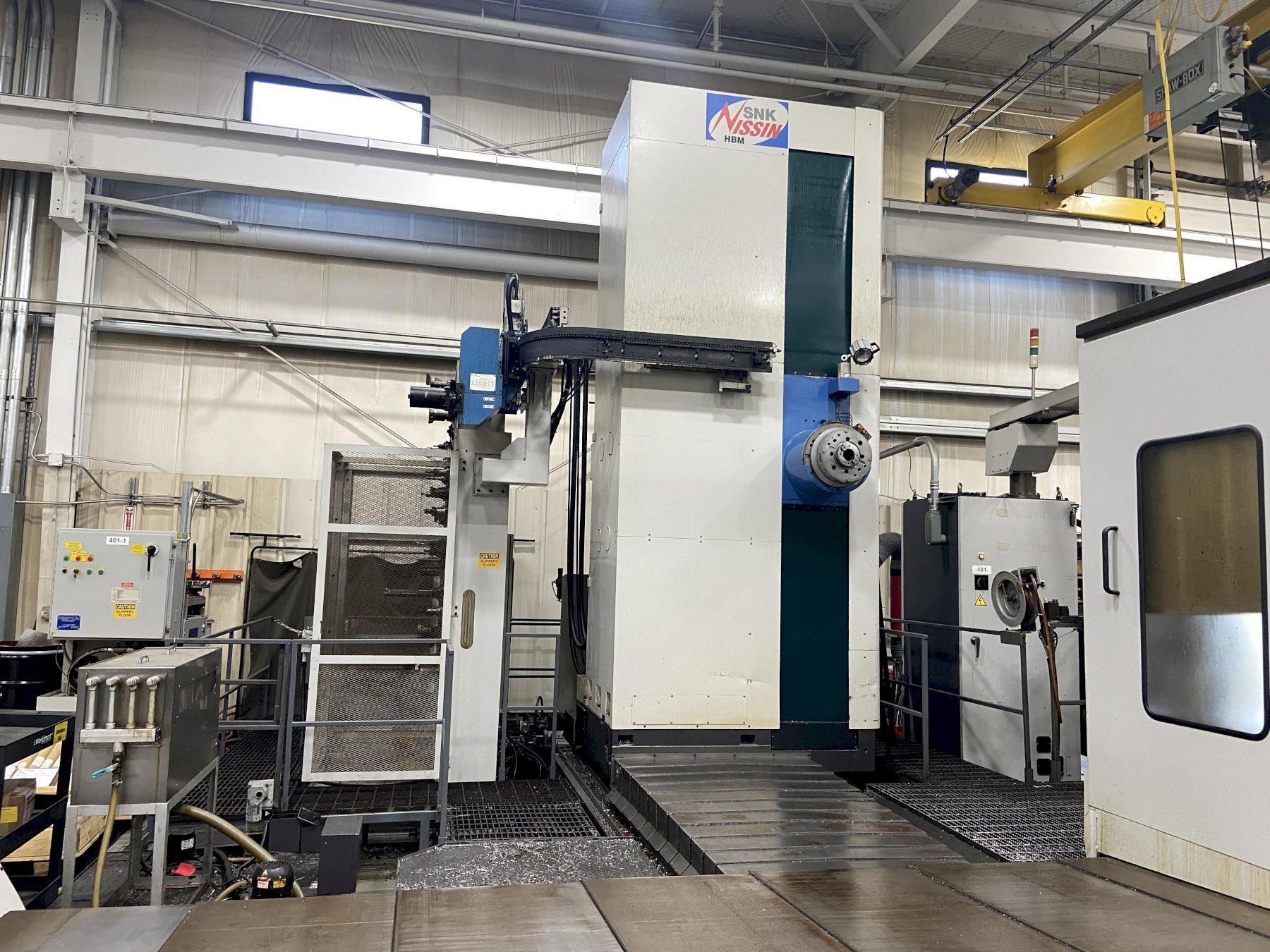

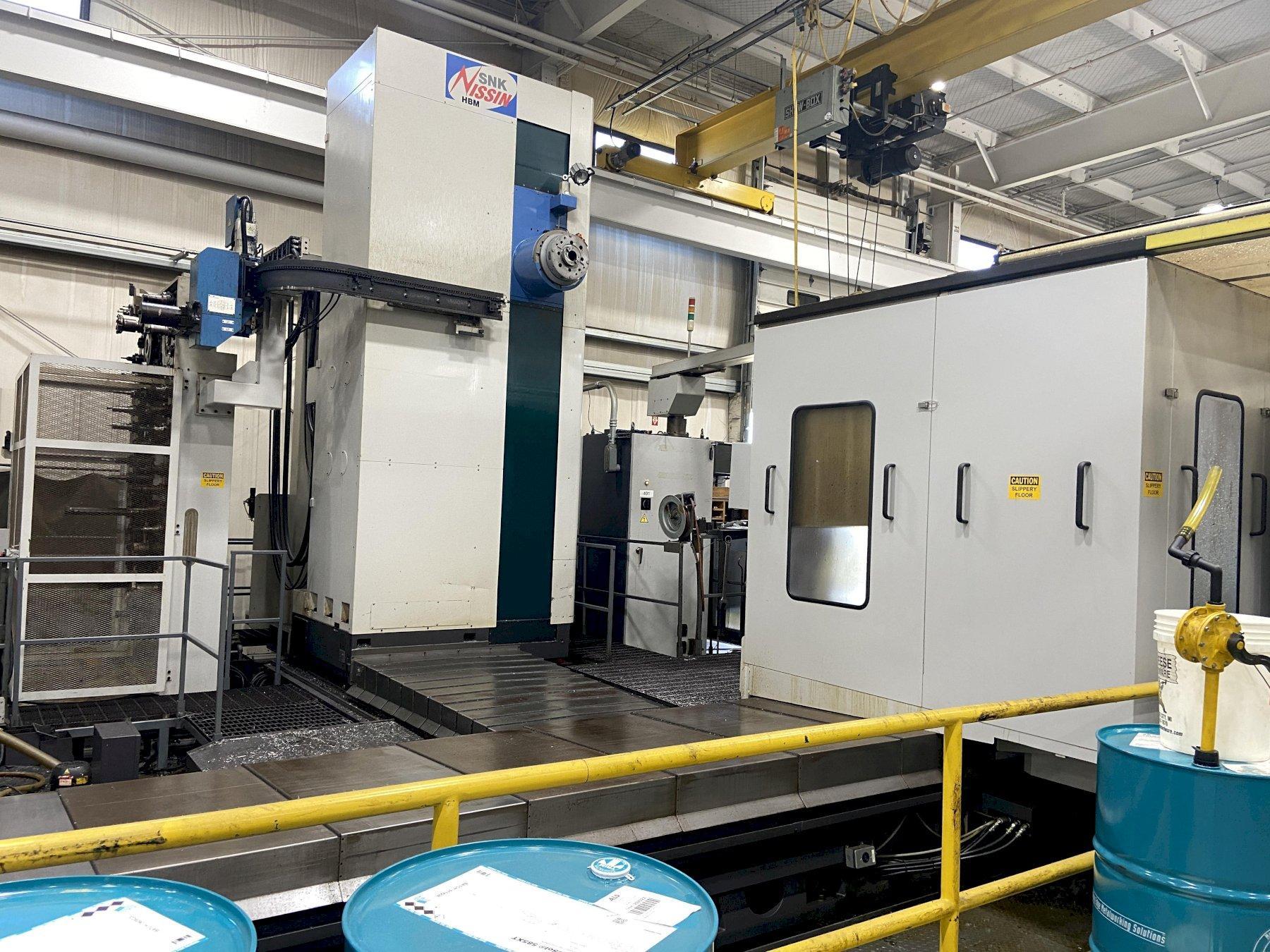

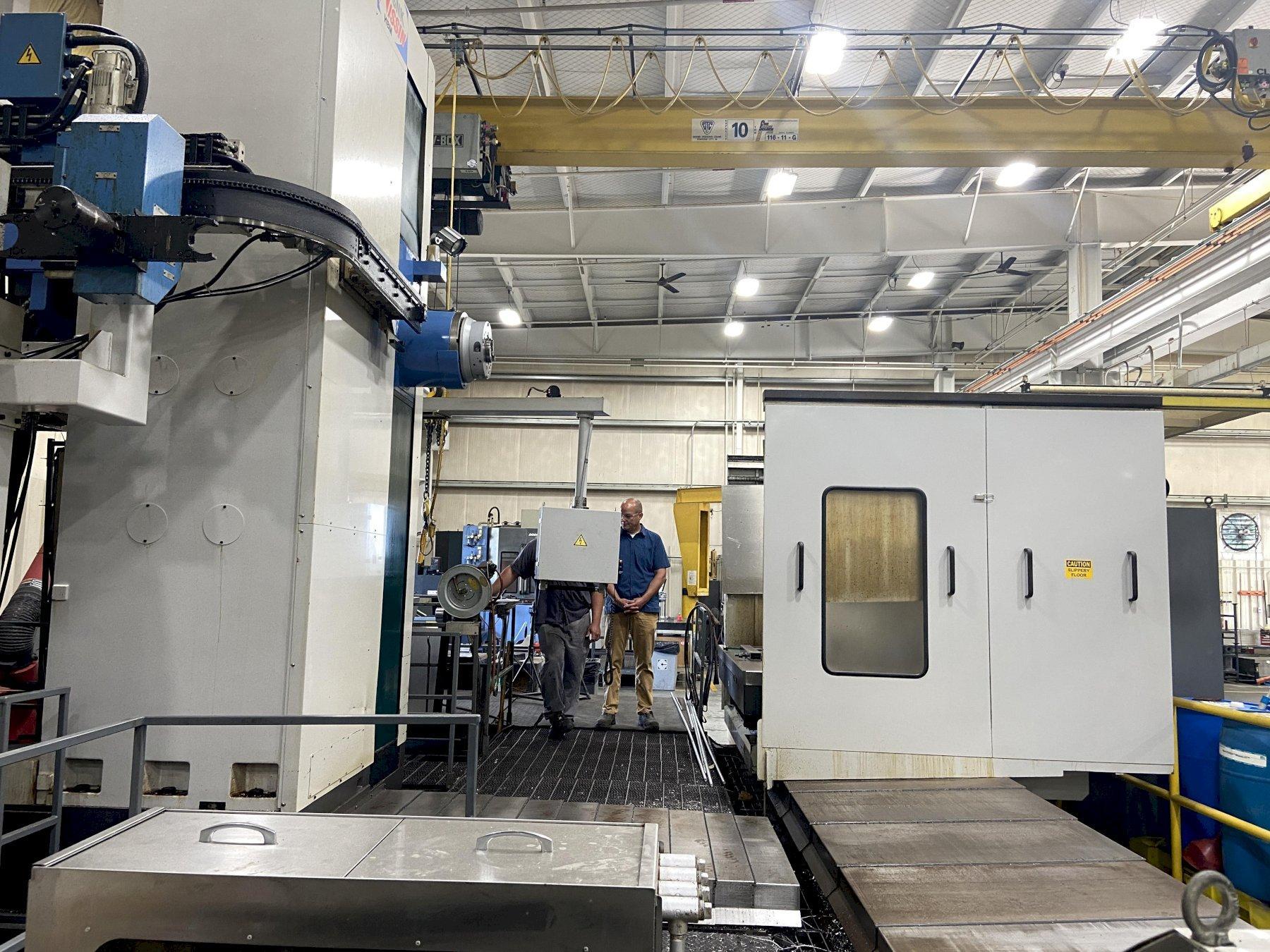

SNK Nissin BP130-3.5 Used CNC Horizontal Table Type Boring Mill For Sale - 2012
Machine Specifications
Year
2012
Control Type
Fanuc 31i-B5
# Axis
5
Table Size
86.61" x 62.99"
Table Capacity
22,000 pounds
X-Axis Travel
137.8"
Y-Axis Travel
98.4"
Z-Axis Travel
62.99"
W-Axis Travel
27.5"
Rapid Traverse Rate (X/Y/Z/W/B)
315/394/394/236/197 ipm
Spindle Speed
2,500 rpm
Spindle Taper
CAT 50
Spindle Motor (HP)
35 hp
Tool Changer Capacity
60
Machine Dimensions
288" x 264" x 192"
Machine Weight
80,000 pounds

Equipped With:

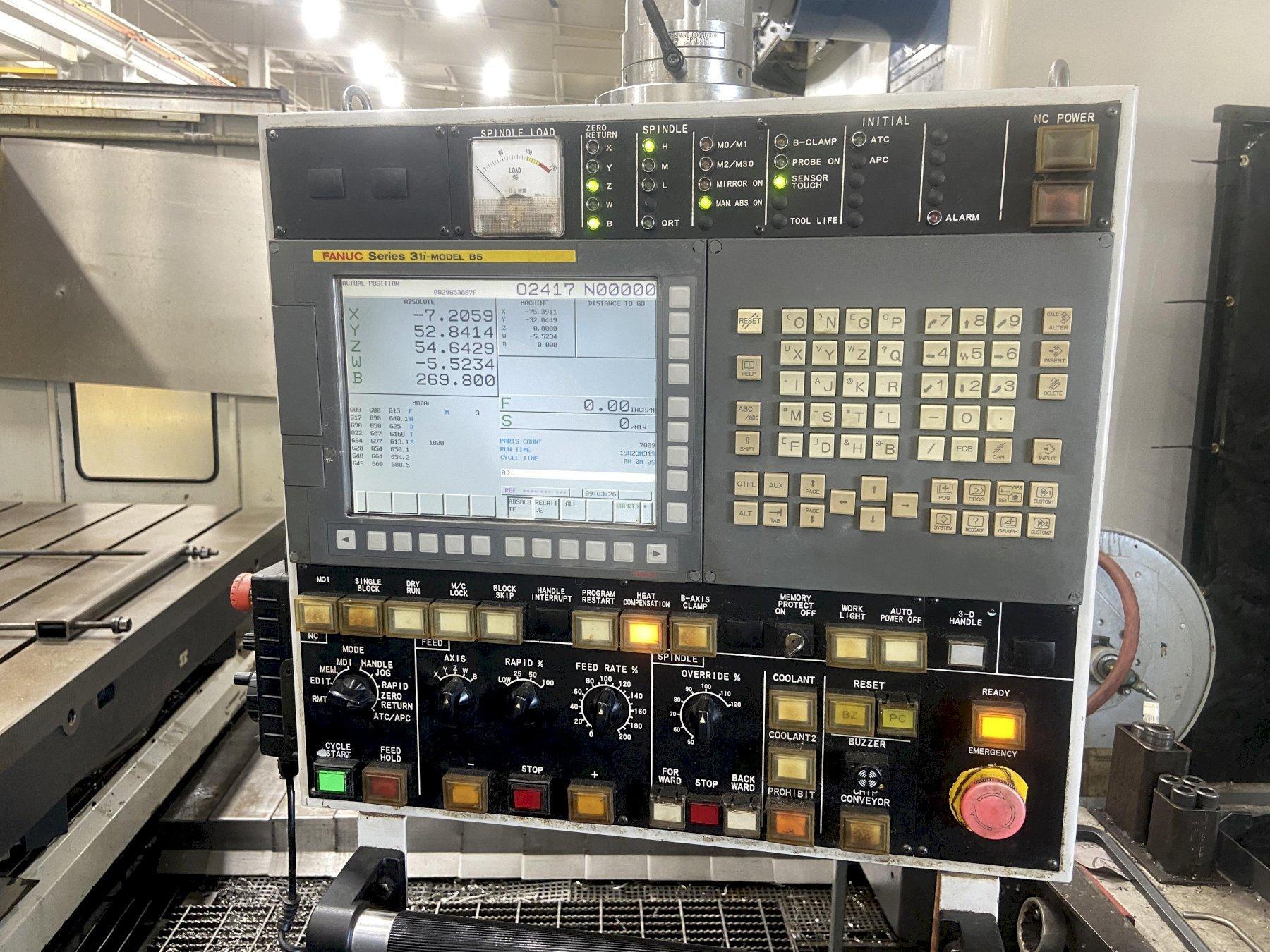

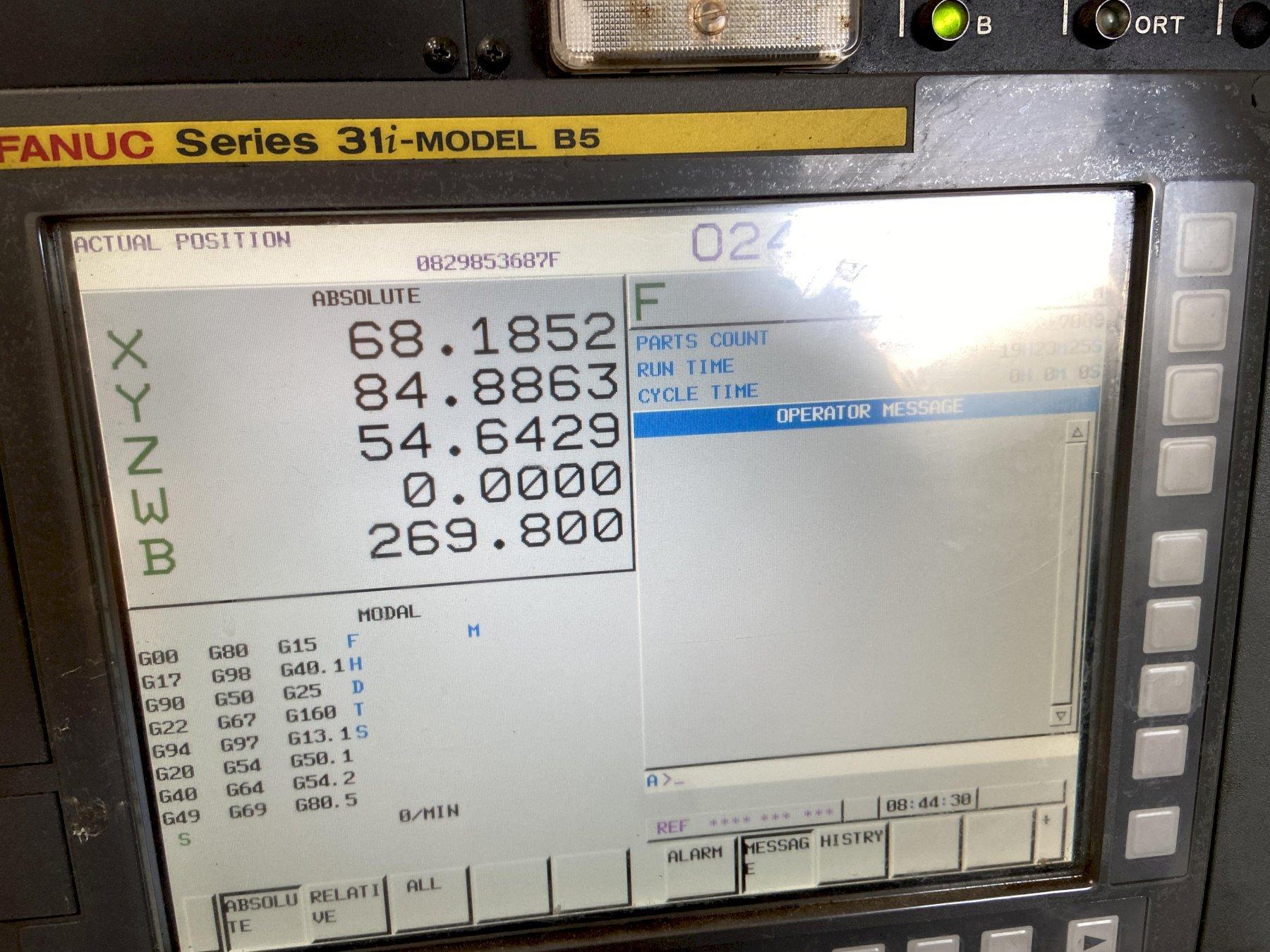

- Fanuc 31i-B5 CNC Control
- 5-axis Simultaneous Control

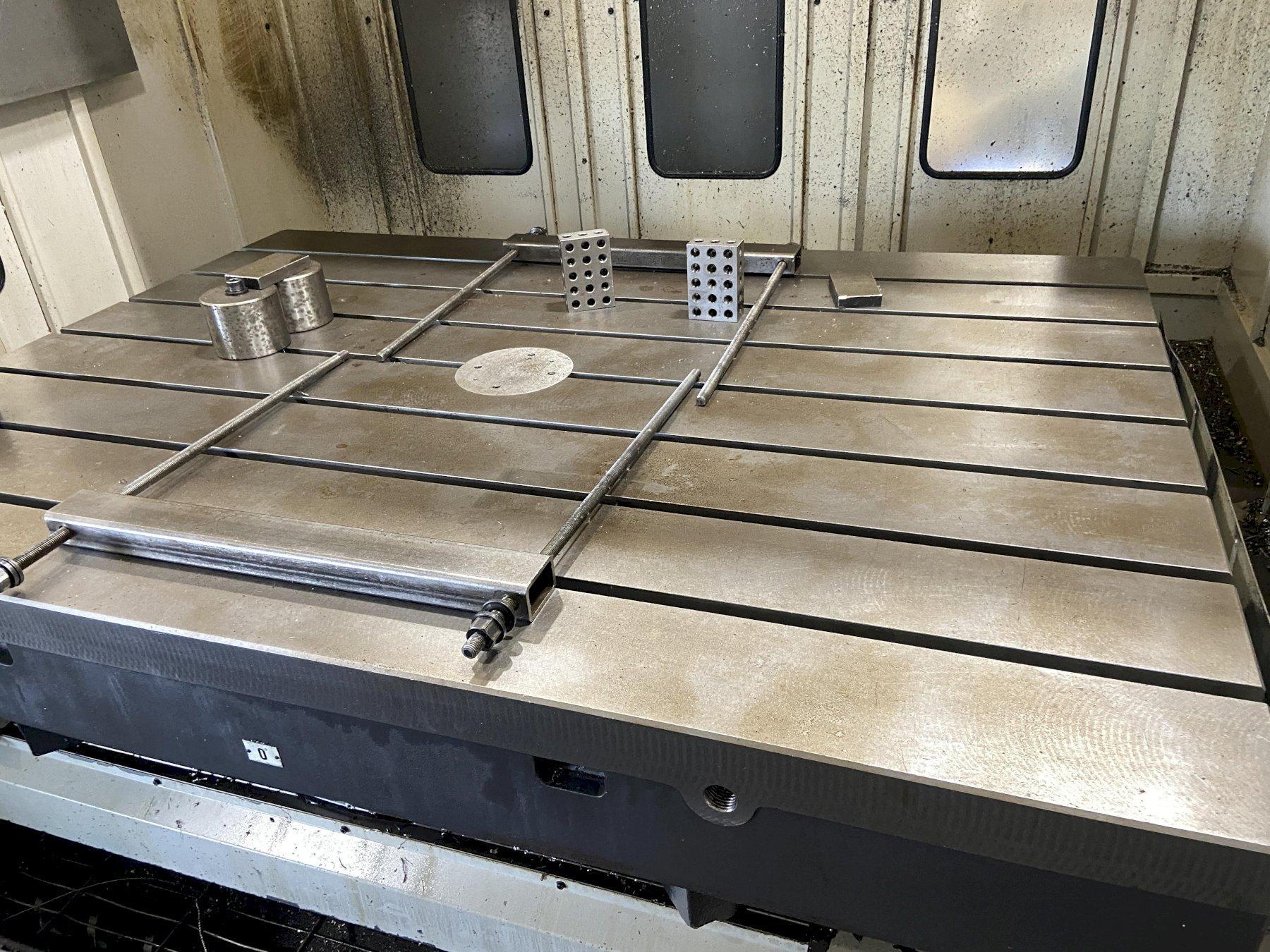

- Built-in Rotary Table (62.9” X 86")
- 5.125” Diameter Boring Spindle/quill (With 27.5” Extension)
- 8.66” Diameter Milling Spindle
- 2,795 Ft Lbs Of Torque
- 3-step Gear-driven Spindle
- High-pressure Through-spindle Coolant (1,000 Psi)

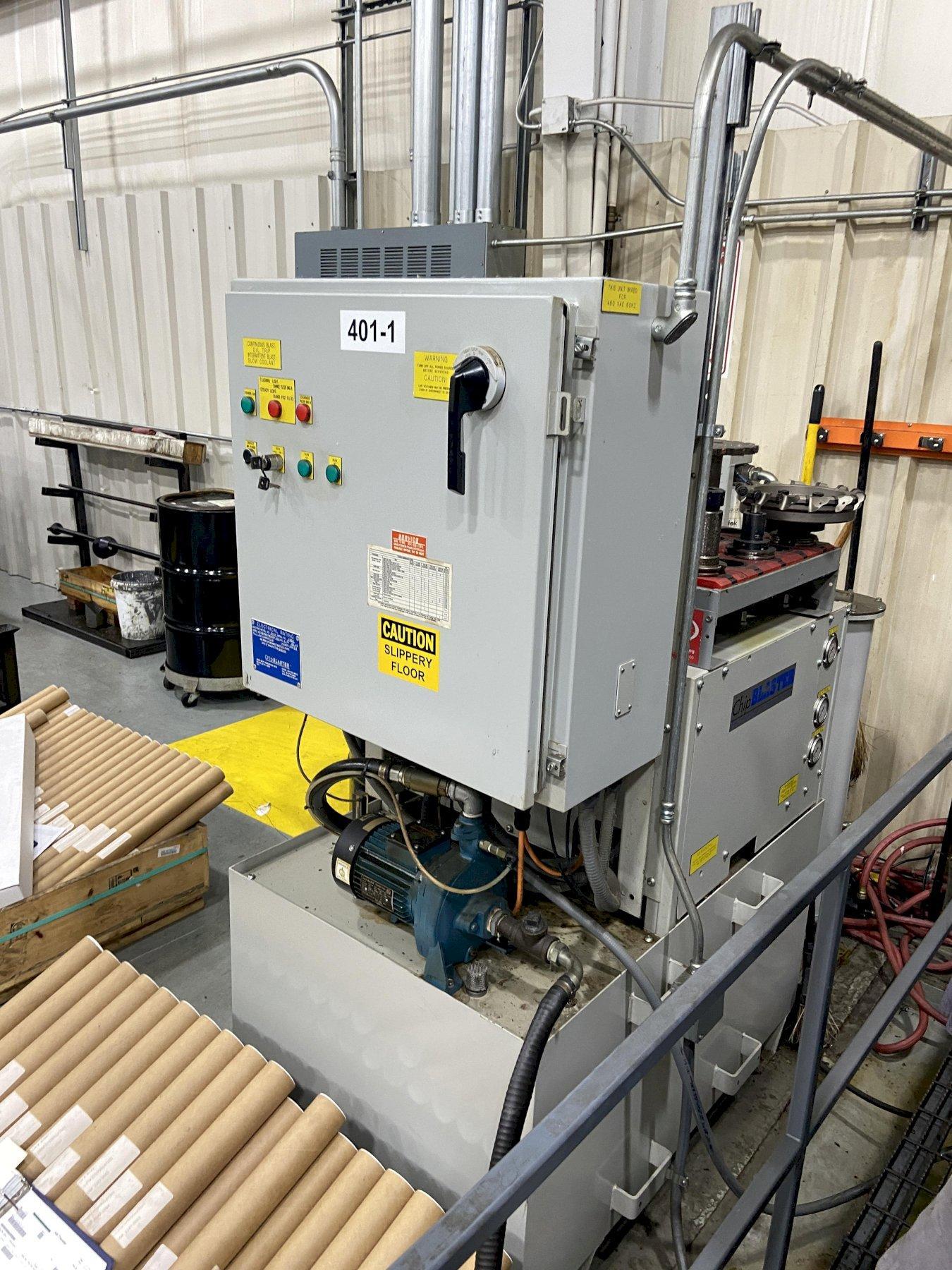

- Chip Blaster High-pressure Coolant Unit
- Linear Scales (X, Y, Z & B Axes)
- Touch Probe

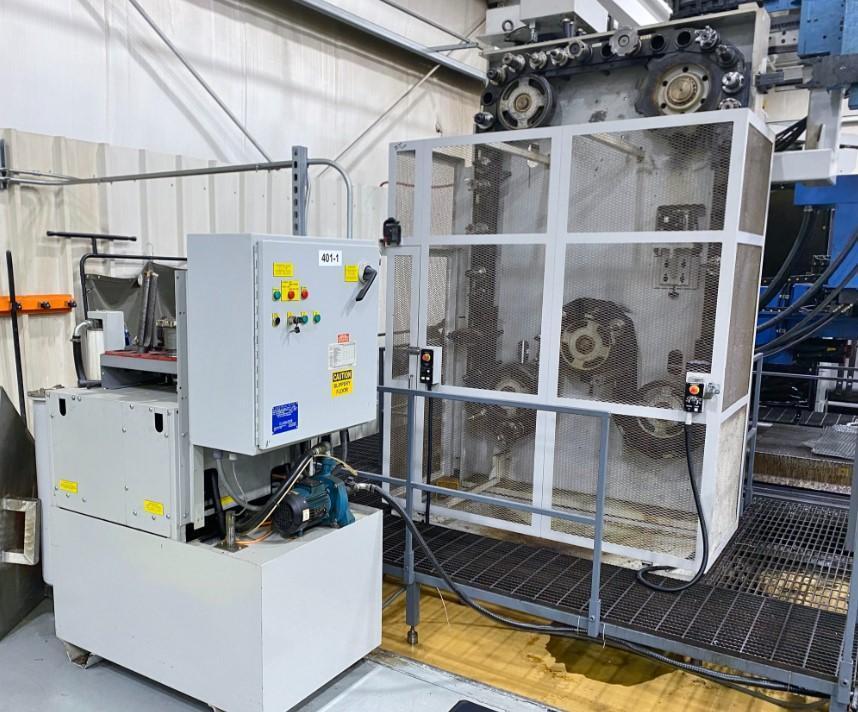

- 60 Position Tool Changer
- Chip Conveyor
- Chip Cover/Splash Guards
- Thermal Displacement Compensation
- Constant Surface Speed Control
- Tool Length Measurement
- Feed Hold/spindle Stop
- Helical Interpolation
- Rigid Tapping

The SNK Nissin BP130-3.5 is an exclusive part of our Boring Mills, Horizontal, Table Type, CNC inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
