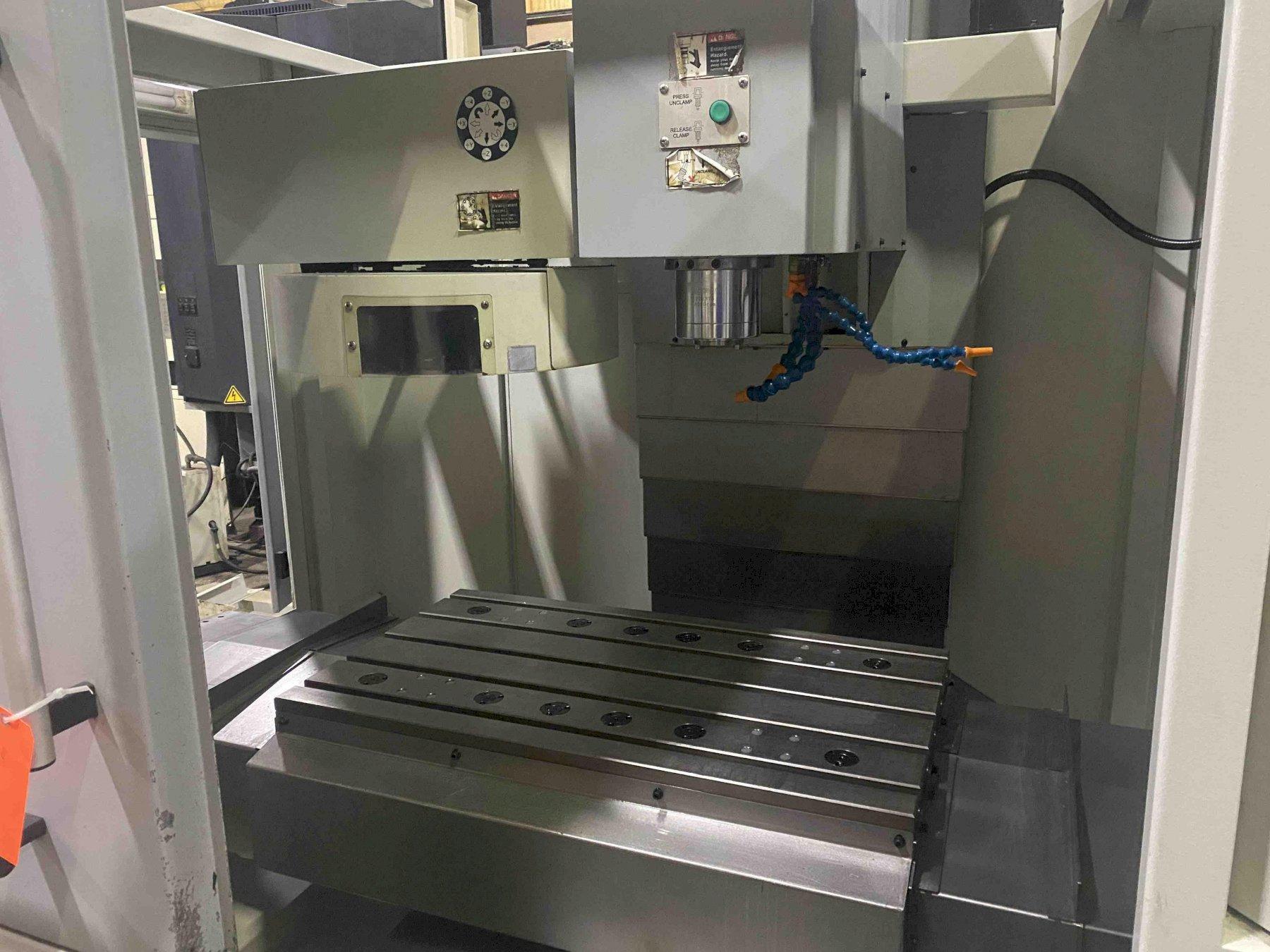

Southwestern Industries Trak LPM - Vertical Machining Centers

Share Machine
Specifications Print Specs
Model: Trak LPM
Year: 2016
Stock #: 3968 Sold
Highlights:

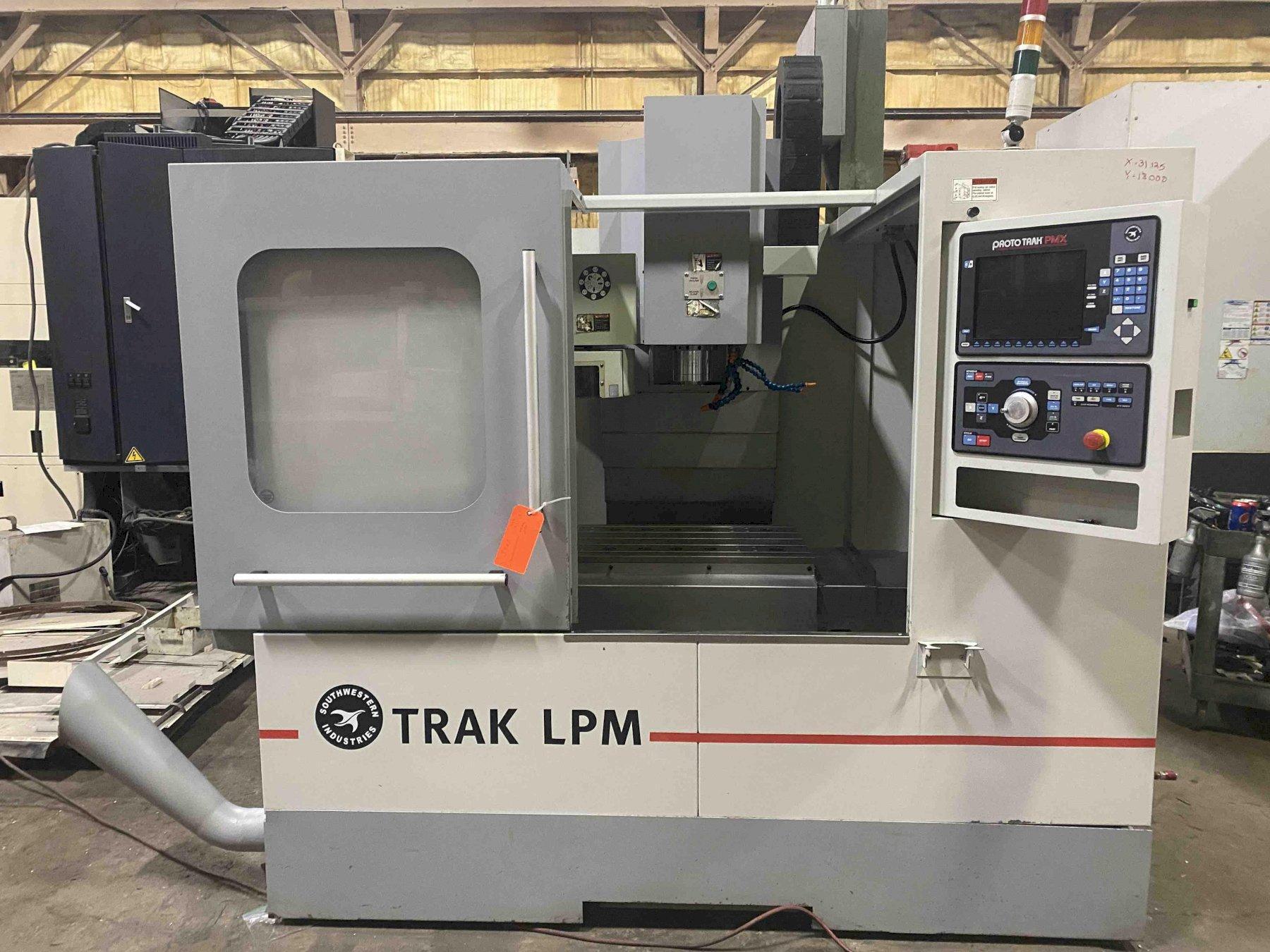

Southwestern Industries LPM CNC Vertical Machining Center, Prototrak PMX, 31
Machine Videos
Machine Specifications
Control Type

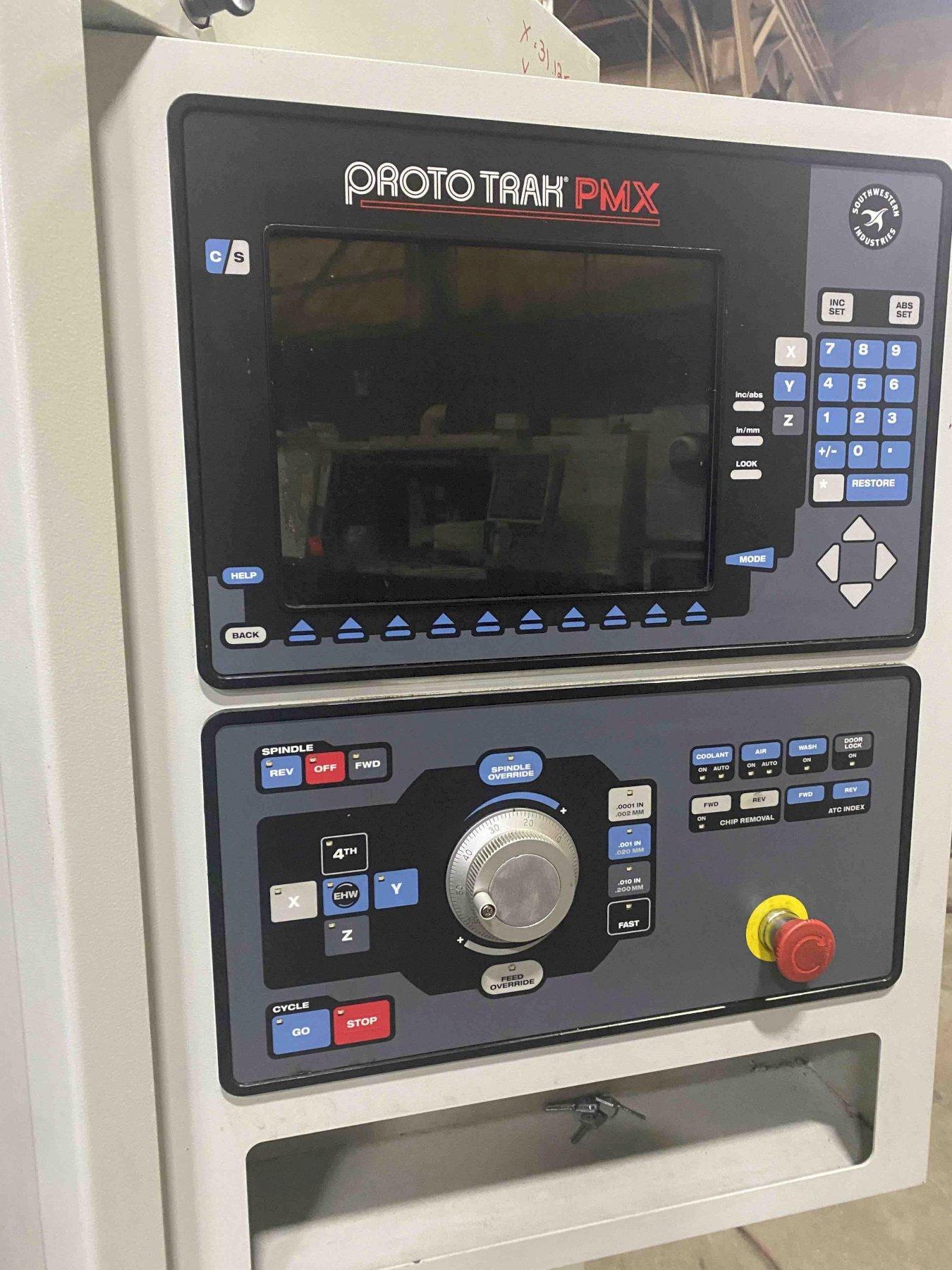

Prototrak PMX CNC Controls
# Axis
4
Table Size
19" x 35"
Table Capacity
1,000 pounds
X-Axis Travel
31"
Y-Axis Travel
18.5"
Z-Axis Travel
21"
Max Distance Spindle To Table Top
24"
Spindle Speed
8,000
Spindle Taper
40
Main Motor
15 Horsepower

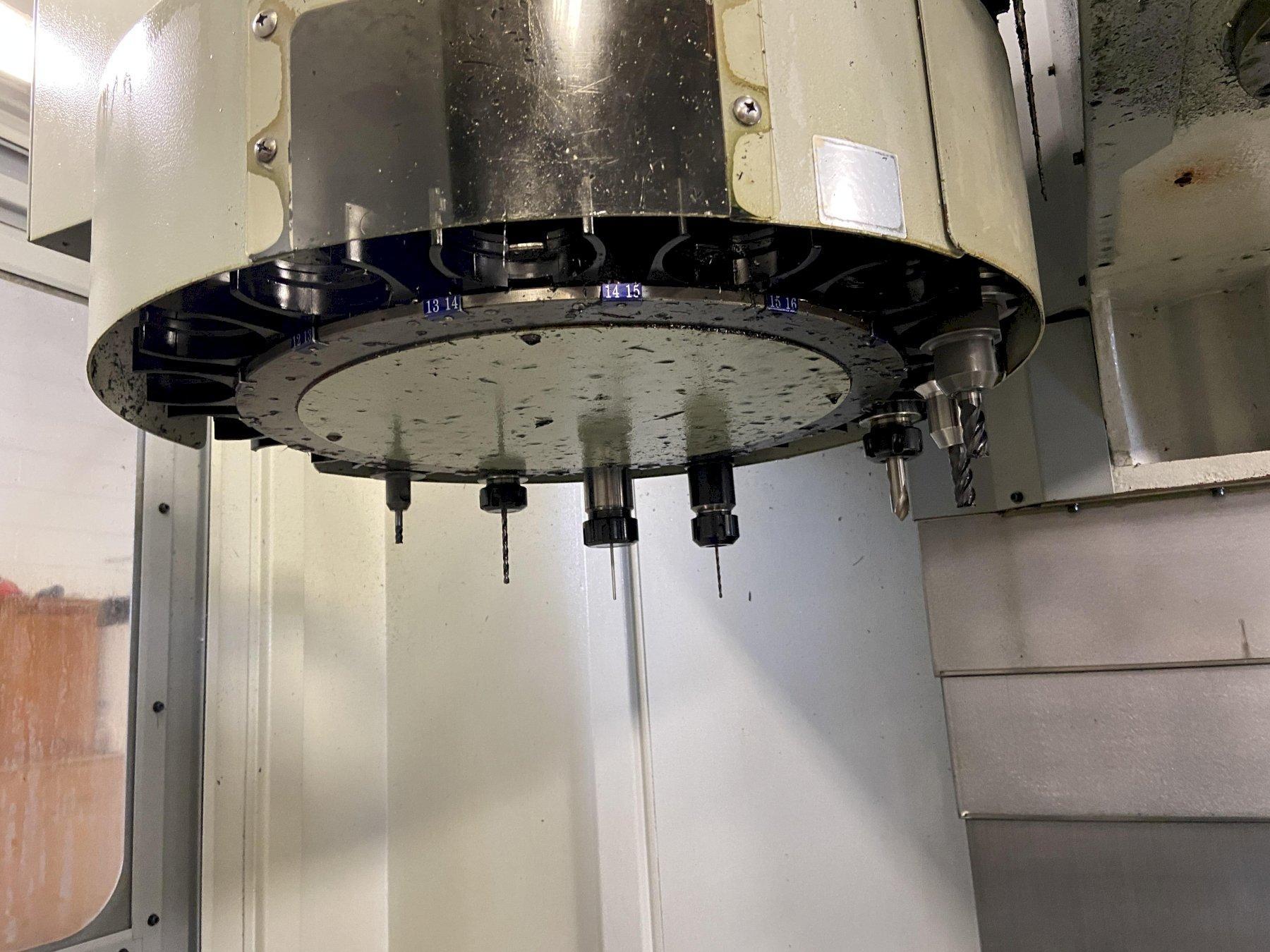

Tool Changer Capacity
16
X-Axis Rapid Traverse Rate
800 ipm
Y-Axis Rapid Traverse Rate
800 ipm
Z-Axis Rapid Traverse Rate
700 ipm

Equipped With:

Rigid Tapping
Parasolid File Converter
4th Axis Drive
Chip Auger

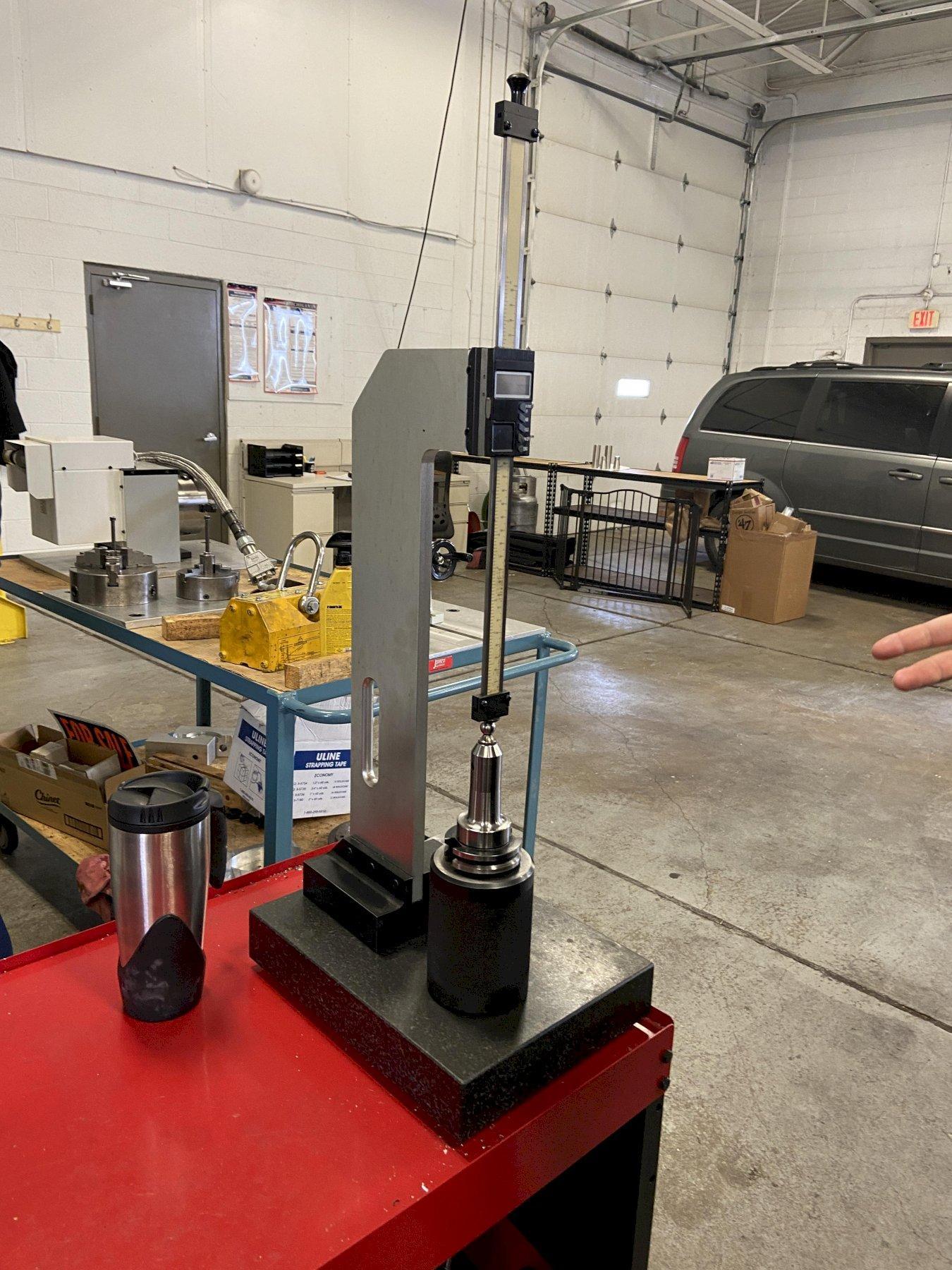

Tool Setter
******No tool holders, No vices for sale******

The Southwestern Industries Trak LPM is an exclusive part of our Vertical Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
