Tarus GDTTC510-6XRT - CNC Gun Drills

Share Machine
Specifications Print Specs
Model: GDTTC510-6XRT
Year: 2007
Stock #: h14112 Sold
Type: CNC Gun Drills
Manufacturer: Used Tarus Machines
Highlights:
60" x 60" - Rotary Table 360°
Max Diameter Drilled Hole: 2"
Max Drilling Depth: 84"

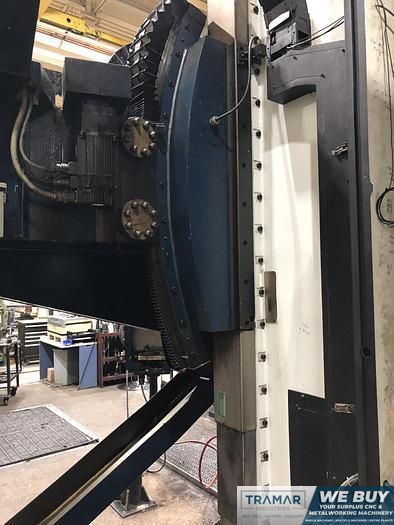

15° Drilling Head Tilt

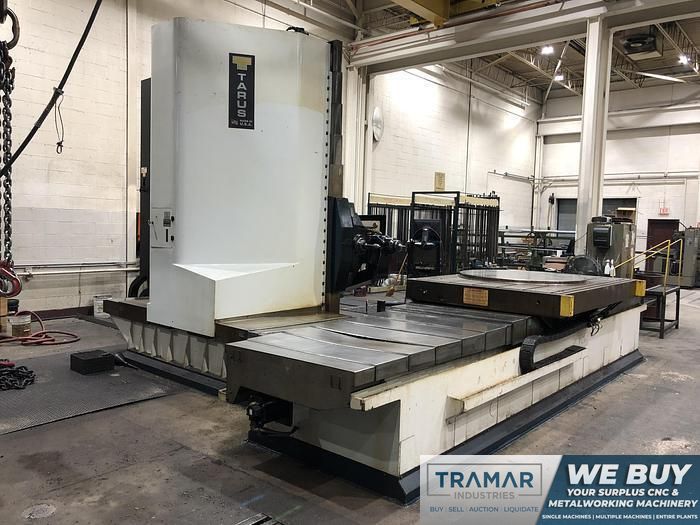

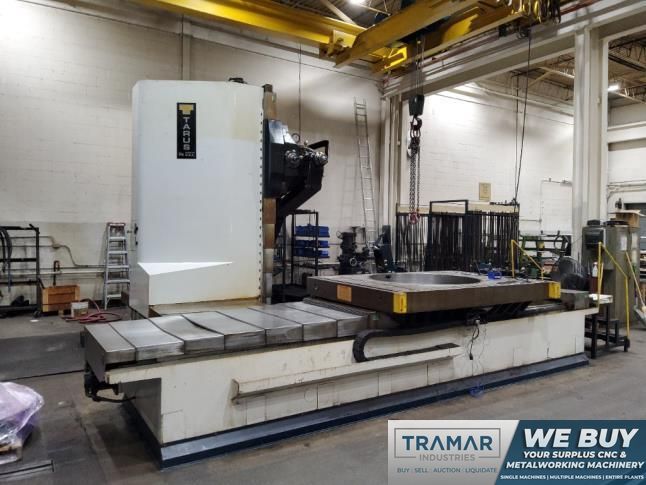

Tarus GDTTC510-6XRT CNC Heavy Duty Gundrill For Sale - 2007
Machine Specifications
CNC Control
yes
Control Type
TARUS TPI 2,000
# Spindles
1
Table Size
60" x 60" - Rotary Table 360°
Max Table Load
66,000 pounds
Max Diameter Hole Drilled
2"
Max Drilling Depth
84"
Drilling Head Tilt
15°
X-Axis Travel
114"
Y-Axis Travel
60"
Z-Axis Travel
84"
W-Axis Travel
30"
Spindle Speed
3,400 rpm
Rapid Traverse Rate (X/Y/Z)
300 ipm

Equipped With:

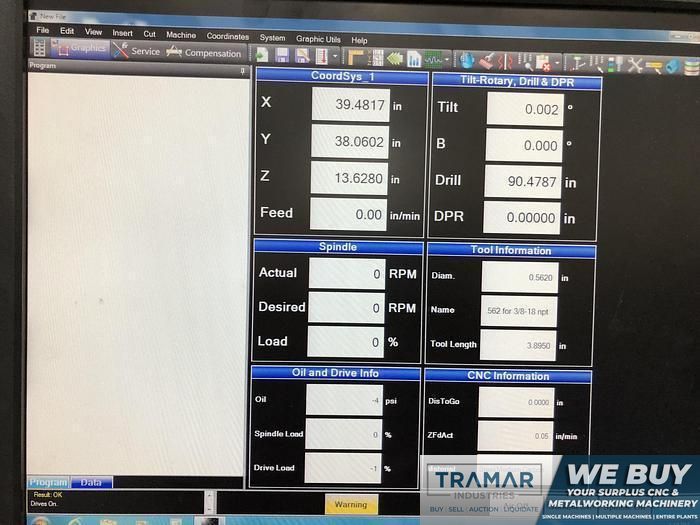

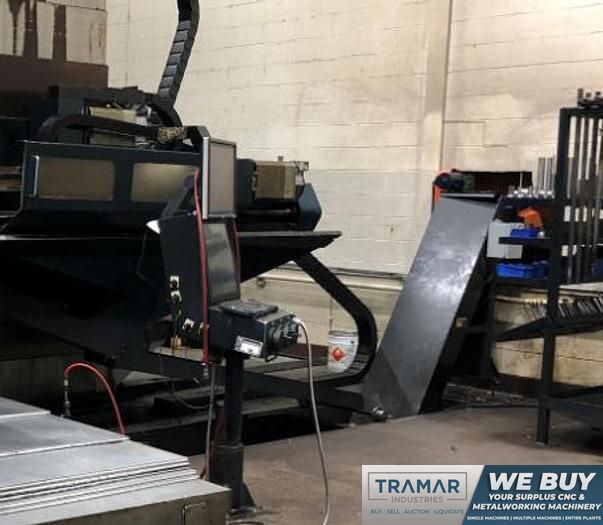

- TARUS TPI 2000 CNC WINDOWS BASED CONTROL

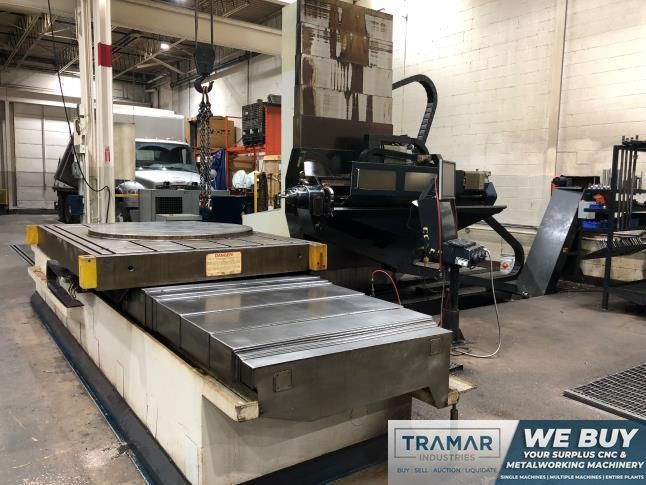

- MAGNETIC ROTARY TABLE
- 15° DRILLING HEAD TILT

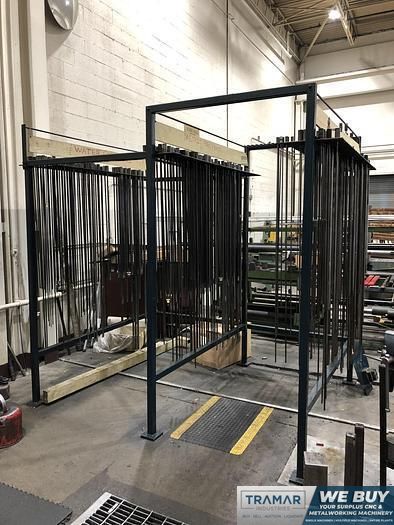

- LARGE ASSORTMENT OF GUN DRILL METRIC & STANDARD SIZES ( APPROX. 370 ) & ACCESSORIES

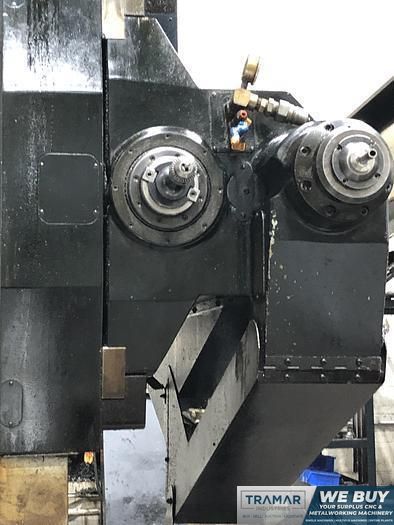

- AUXILIARY # 50 TAPER MILLING HEAD
- (3) WHIP GUIDES W/BEARINGS
- CHIP CONVEYOR

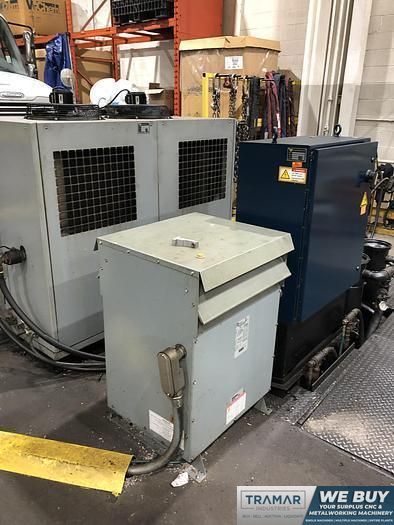

- ELECTRICAL 600 VOLT TRANSFORMER
- HYDRAULIC PUMP & CHILLER
- FILTER UNIT

The Tarus GDTTC510-6XRT is an exclusive part of our CNC Gun Drills inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
