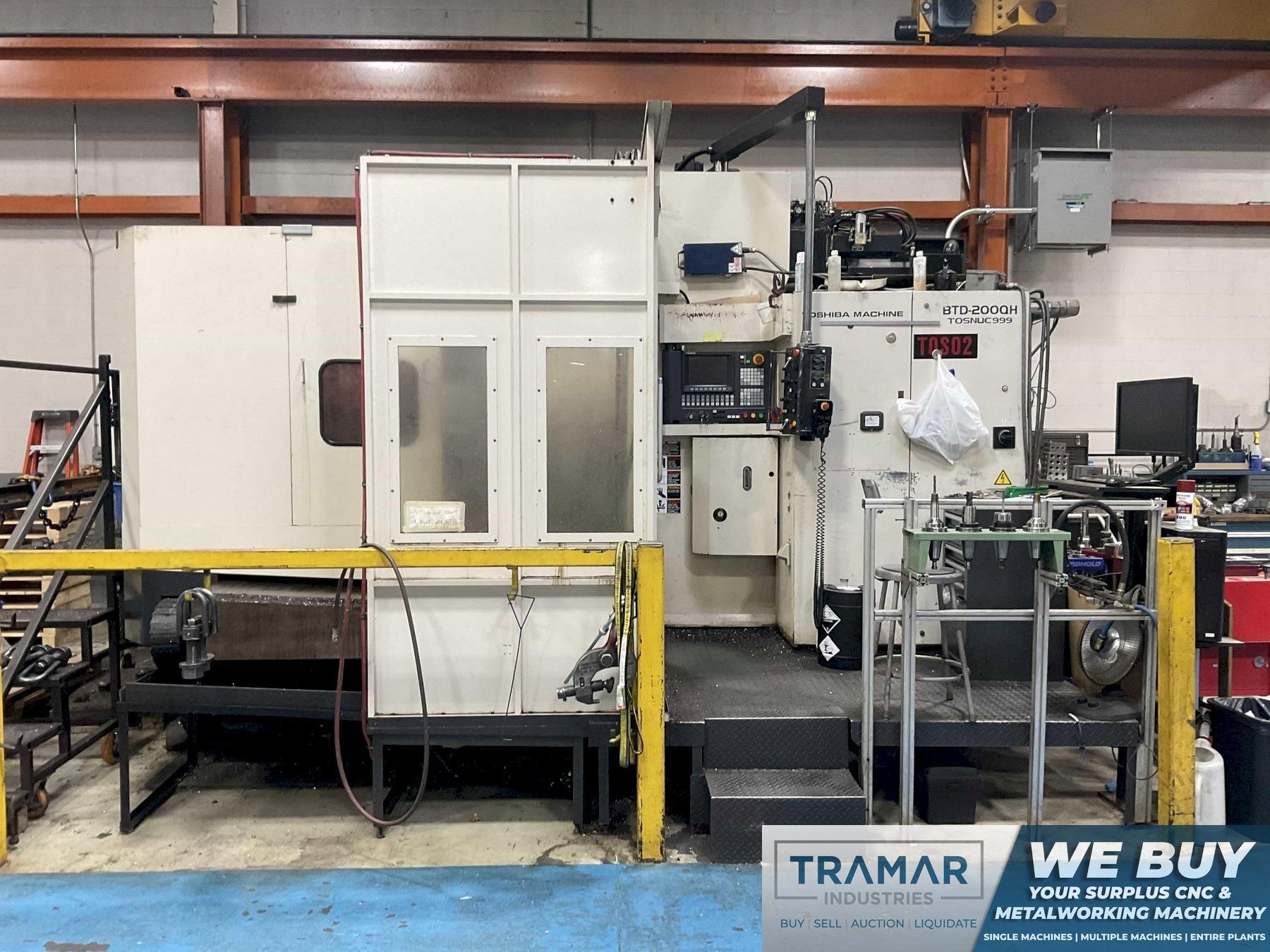

Toshiba Machine BTD-200QH - Horizontal Boring Mills (Table)

Request Quote
Share Machine
Specifications Print Specs

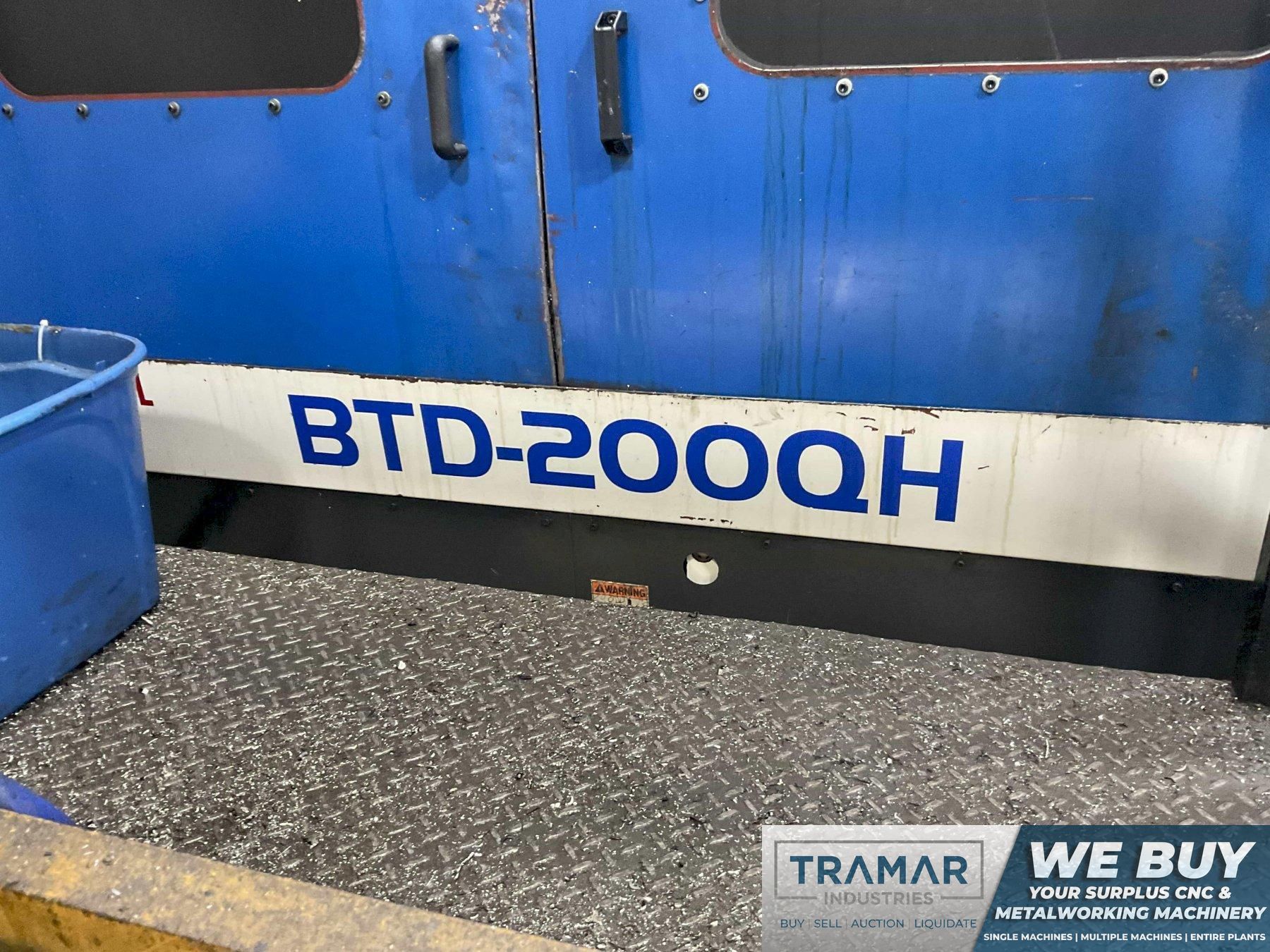

Model: BTD-200QH
Year: 2013
Stock #: BR43334
Highlights:

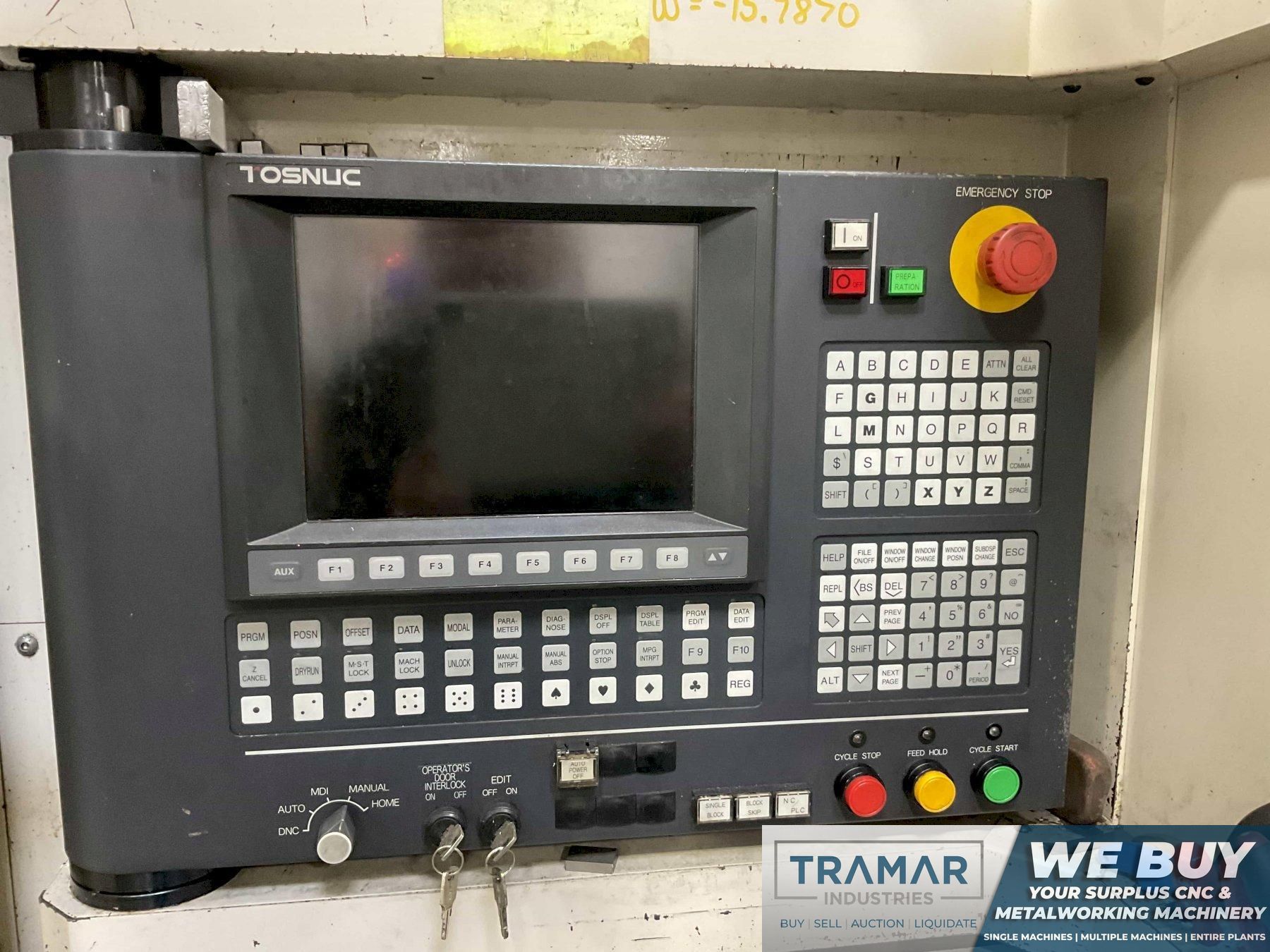

TOSNUC 999 CNC Control
Renishaw Probing
Chip Conveyor
Chip Cover Enclosure

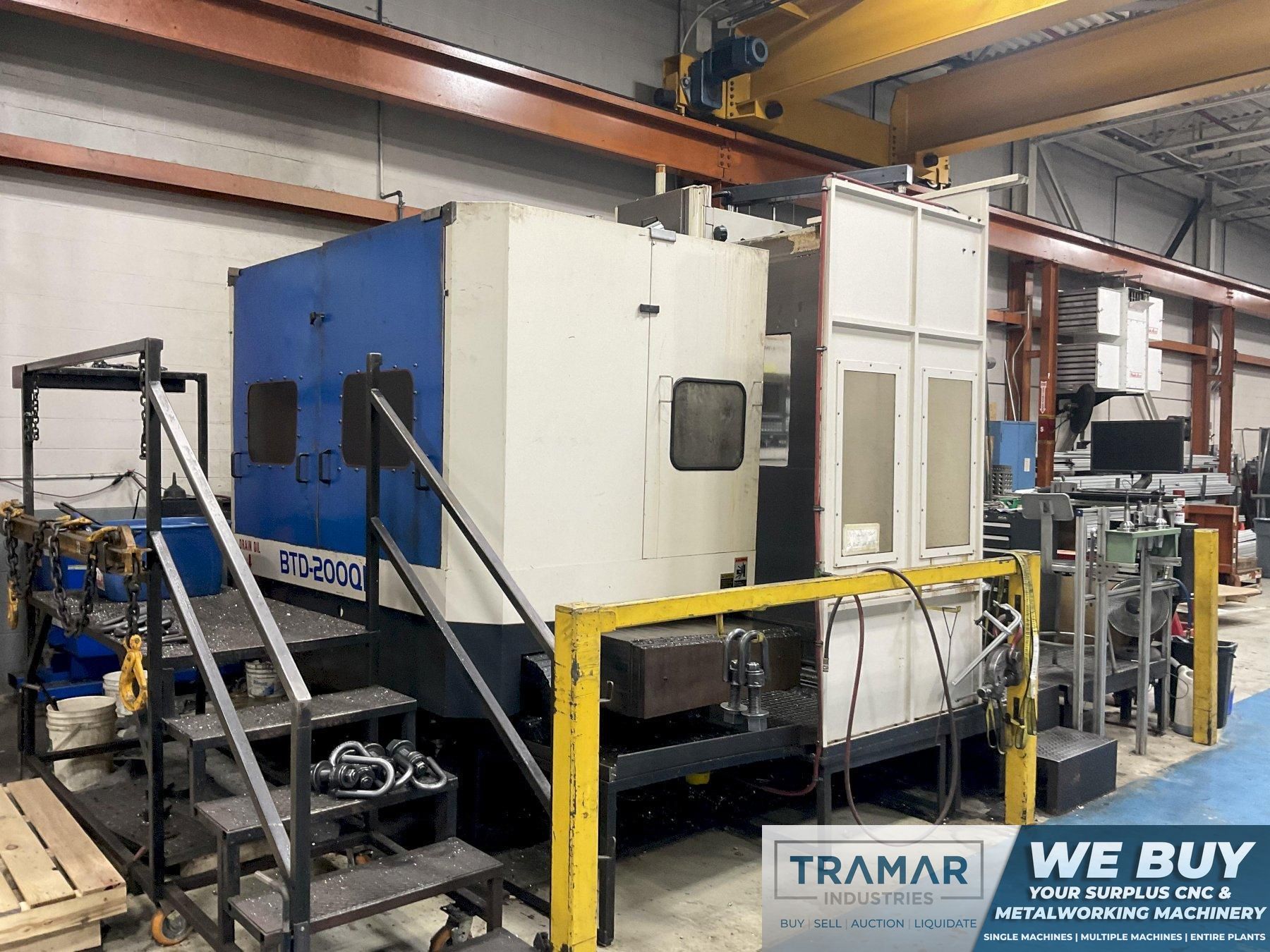

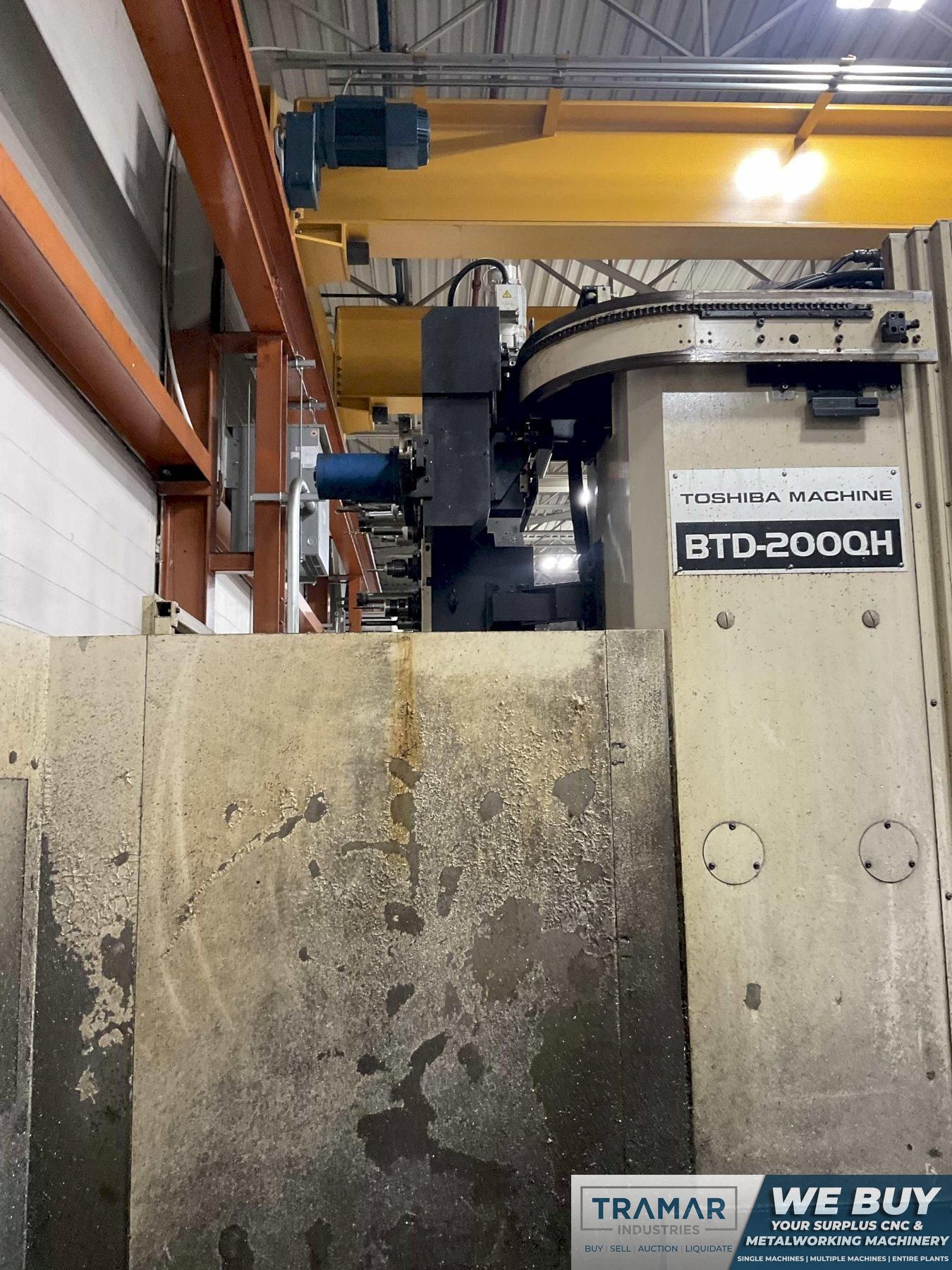

Toshiba BTD-200QH CNC Horizontal Boring Mill For Sale - 2013
Machine Specifications
Year
2013
Control Type
Tosnuc 999

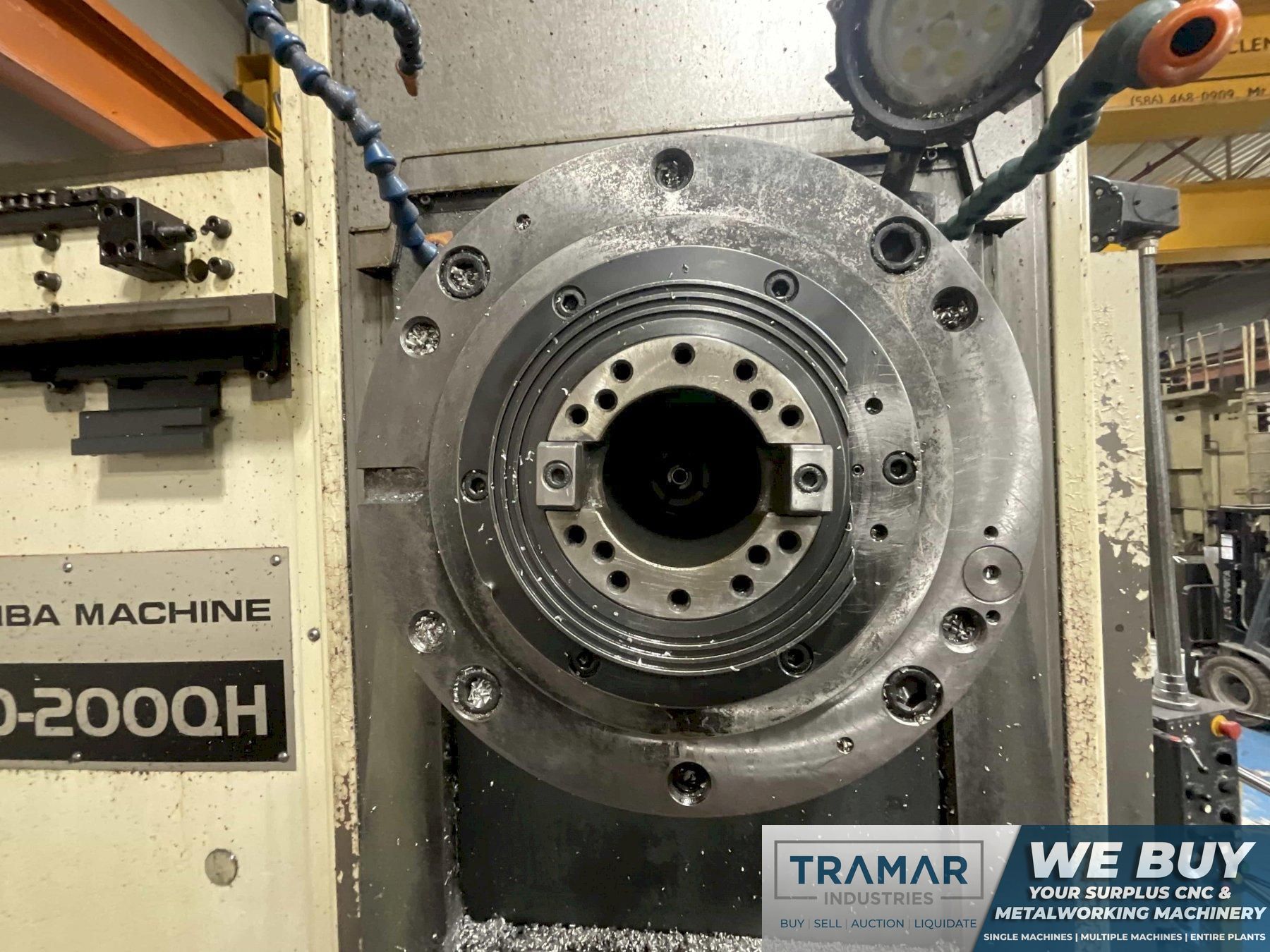

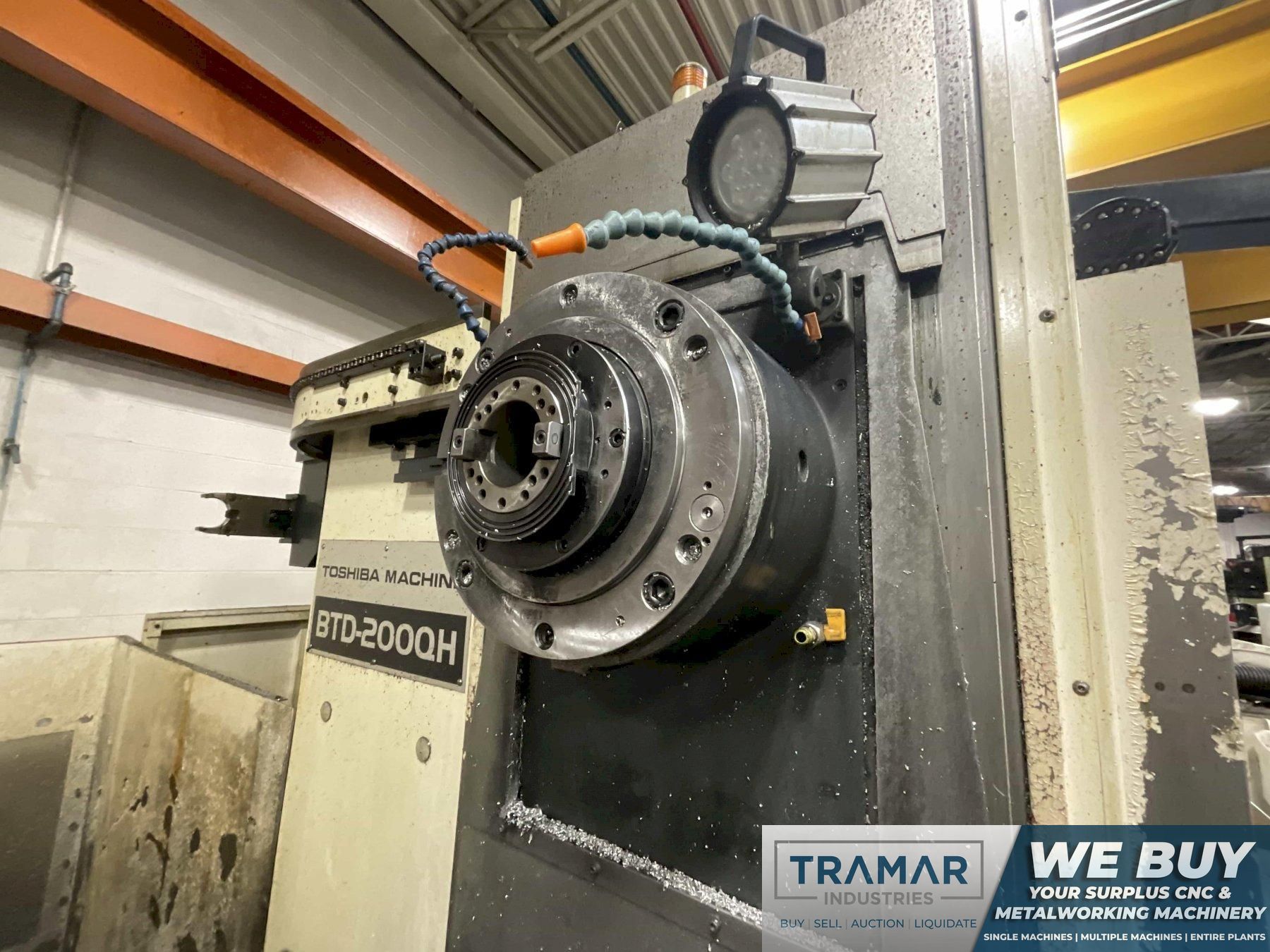

Spindle Size
4.3"

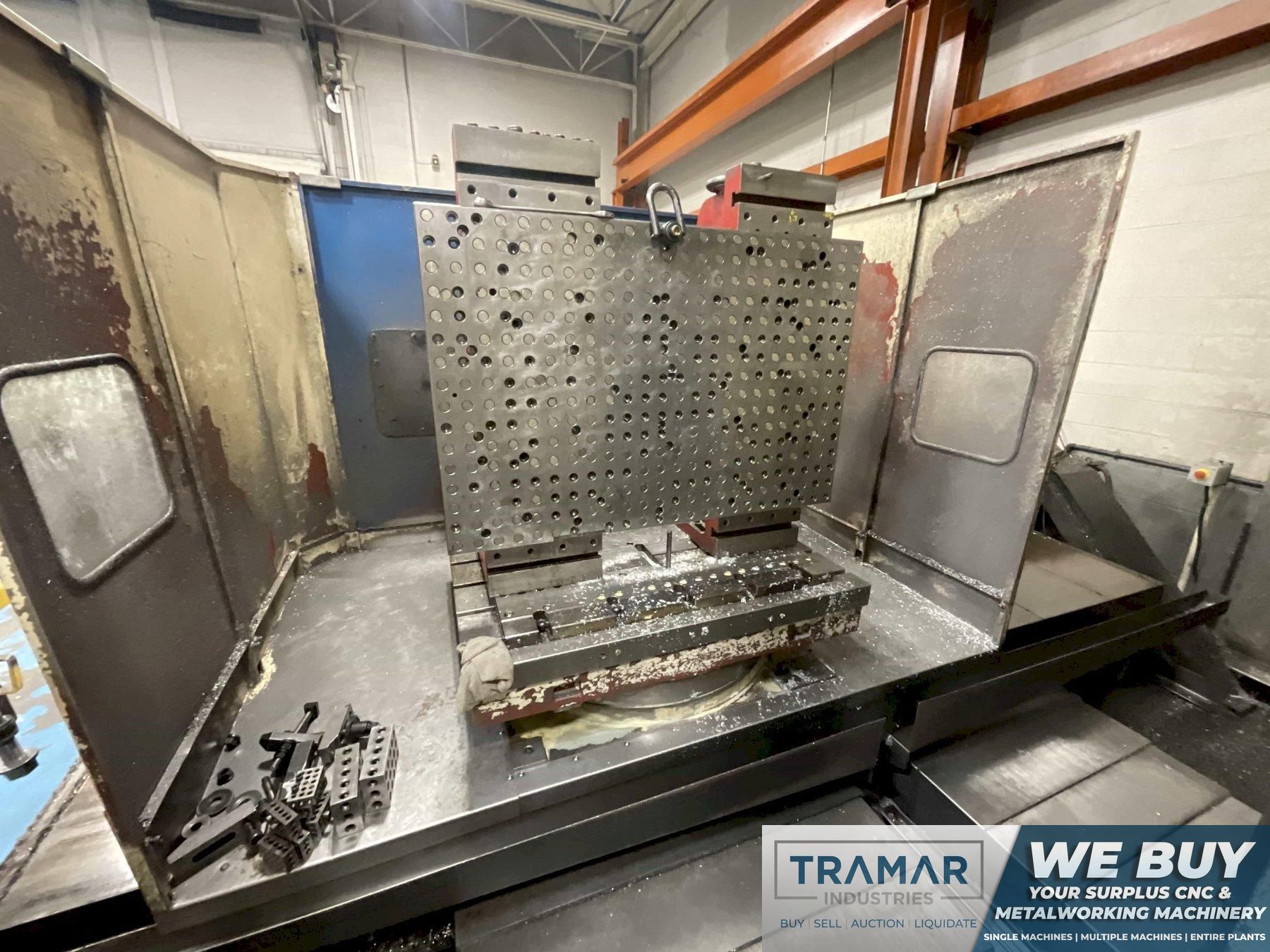

Table Size
47.2" x 39.3
Max Table Load
8,800 pounds
X Axis Travel
59"
Y Axis Travel
47.2"
Z Axis Travel
27.5"
W-Axis Travel (Quill)
15.7"
B-Axis (Pallet Indexing)
0.0001°
Spindle Taper
CAT 50
Spindle Speed
3,000 rpm
Spindle Motor
30 hp

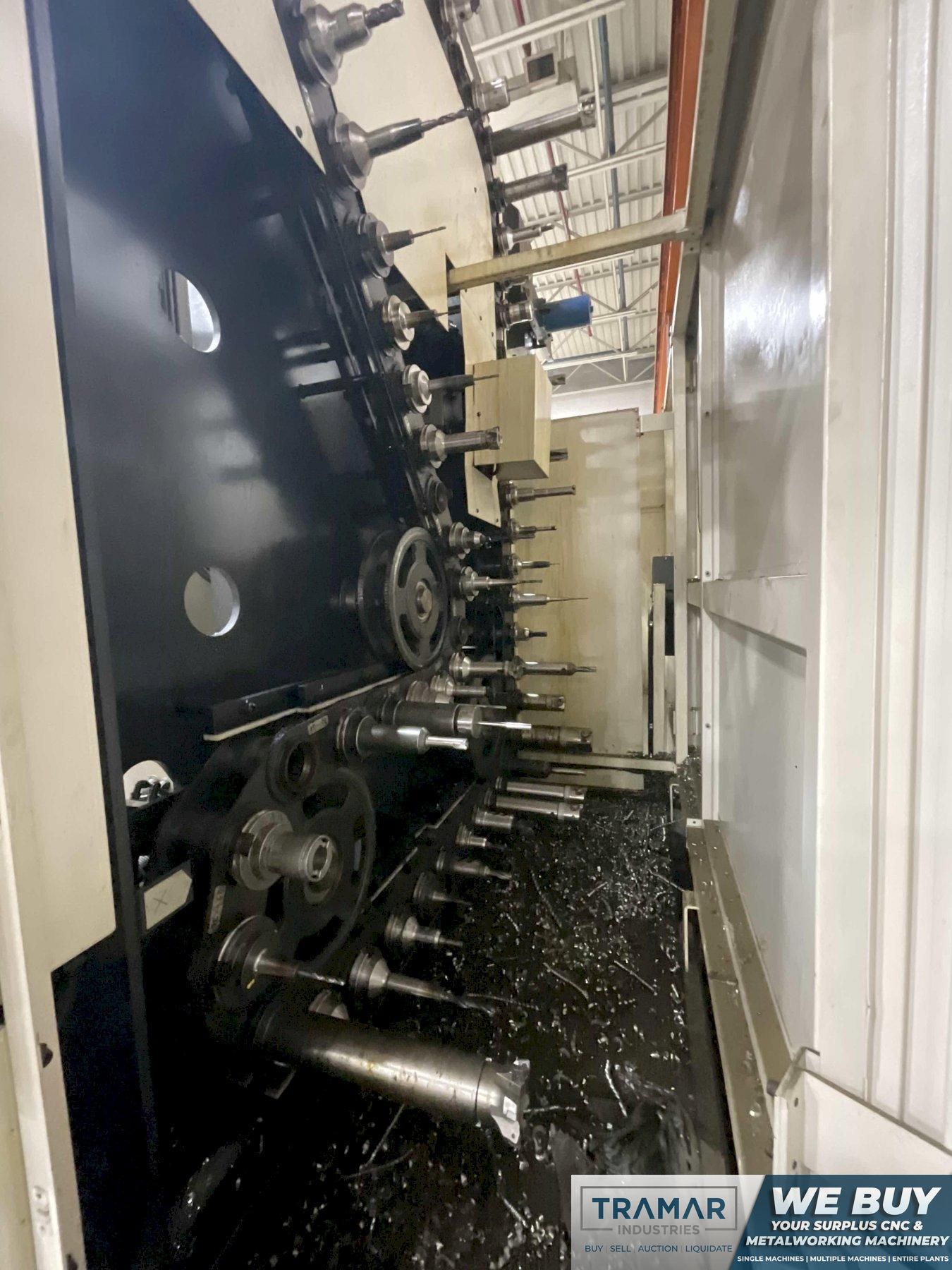

Tool Changer Capacity
60
Coolant Thru Spindle
yes
Machine Dimensions
175" x 175" x 127"
Machine Weight
40,000 pounds

Equipped With:

- Tosnuc 999 CNC Control
- Renishaw Probing
- Chip Conveyor
- Coolant Tank & Pump

The Toshiba Machine BTD-200QH is an exclusive part of our Horizontal Boring Mills (Table) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
