Takisawa LA-250YS - Lathes (3-Axis or More)

Request Quote

Share Machine

Specifications Print Specs

Model: LA-250YS

Year: 2018

Stock #: 15381

Type: Lathes (3-Axis or More)

Manufacturer: Used Takisawa Machines

Highlights:

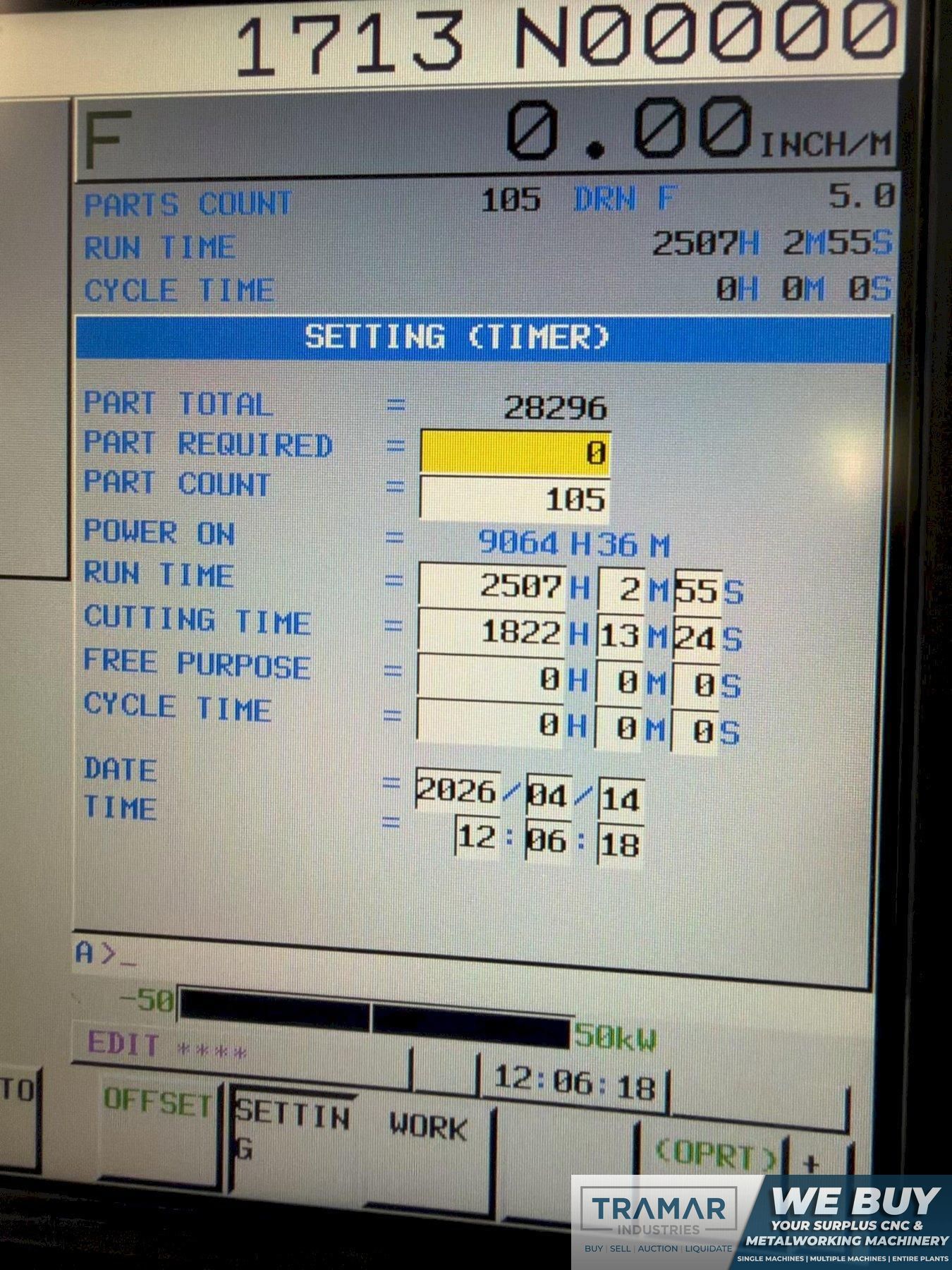

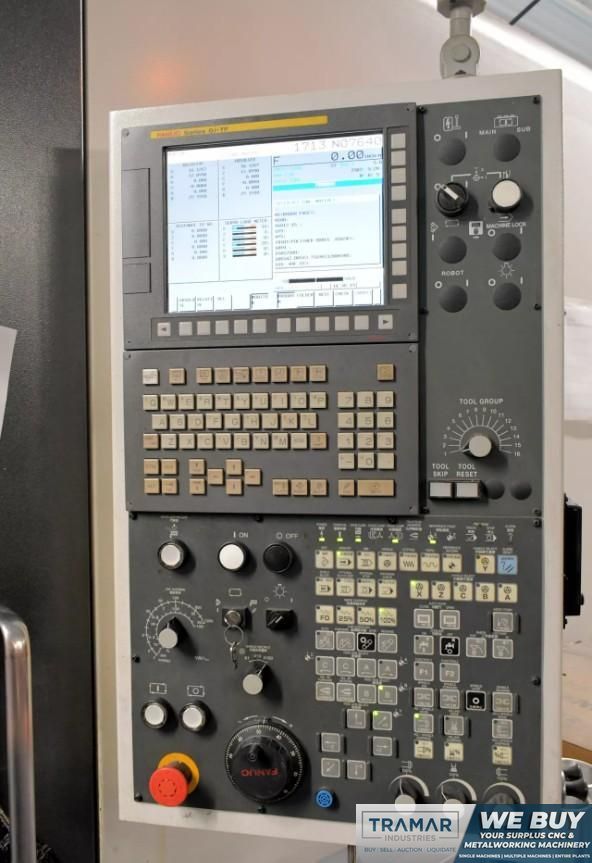

Fanuc 0i-TF CNC Control
Live Tooling
Y Axis
Sub Spindle
Chip Conveyor

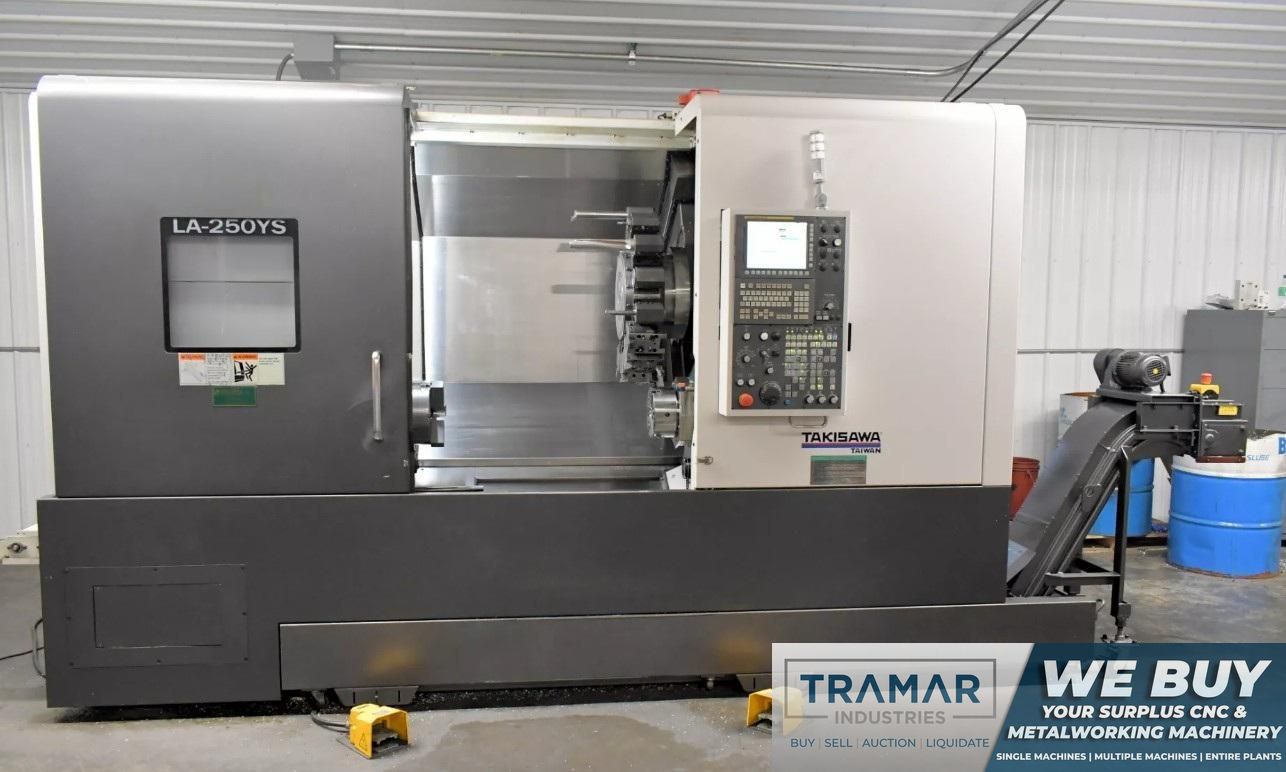

Used 2018 Takisawa LA-250YS CNC Lathe For Sale

Equipped With:

- Fanuc 0i-TF CNC Control

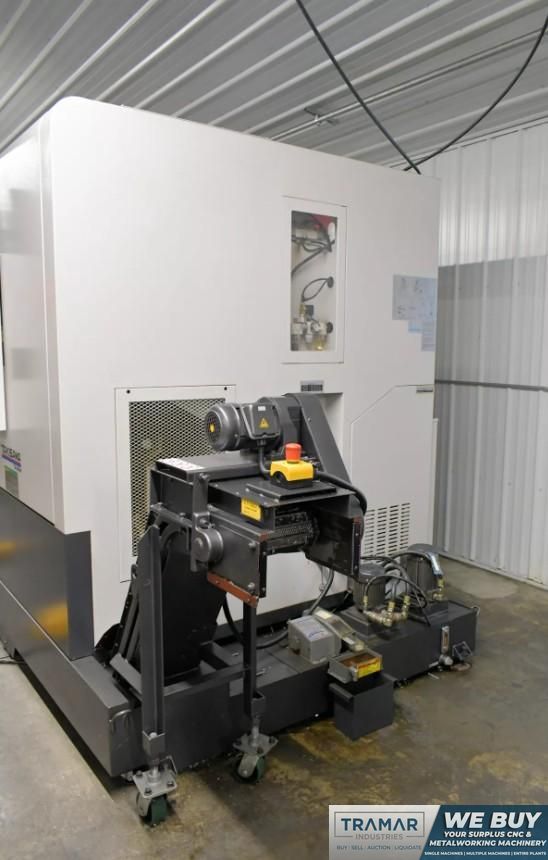

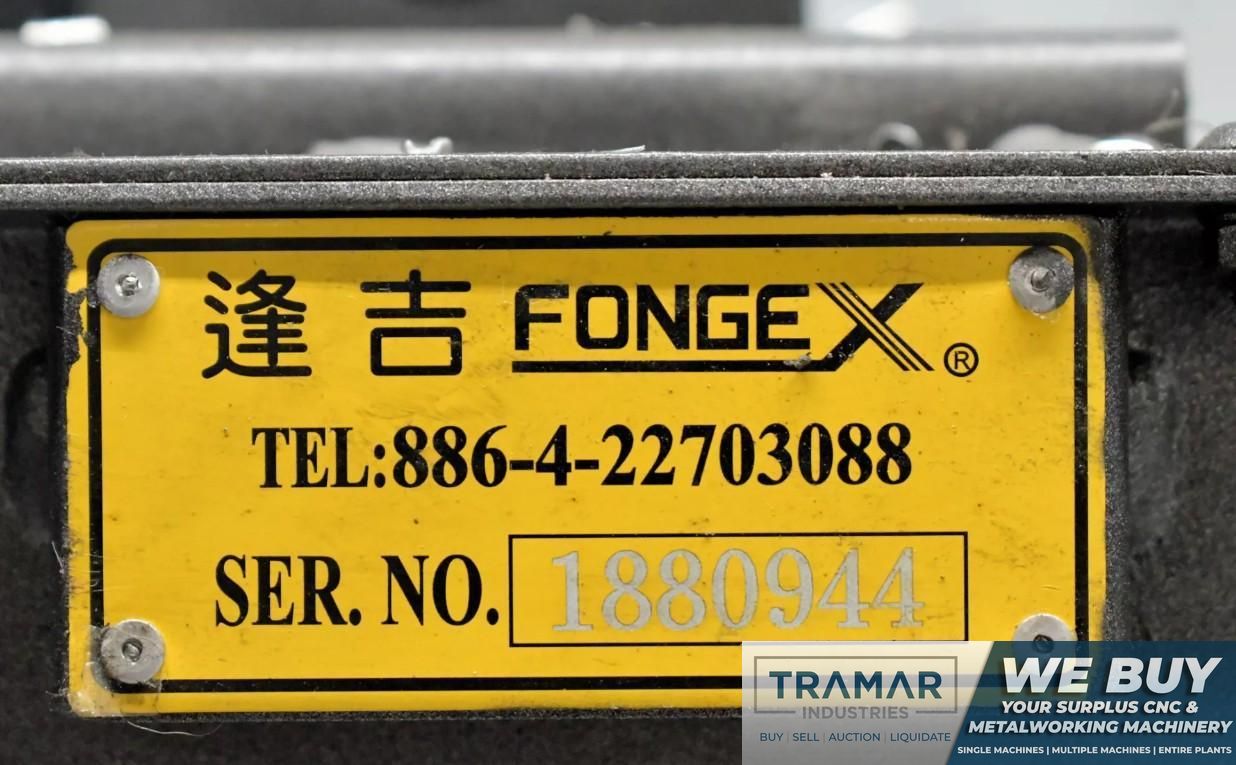

- Chip Conveyor
- Coolant Tank & Pump
- Parts Conveyor
- Live Tooling
- Y Axis
- Sub Spindle
- Tool Presetter

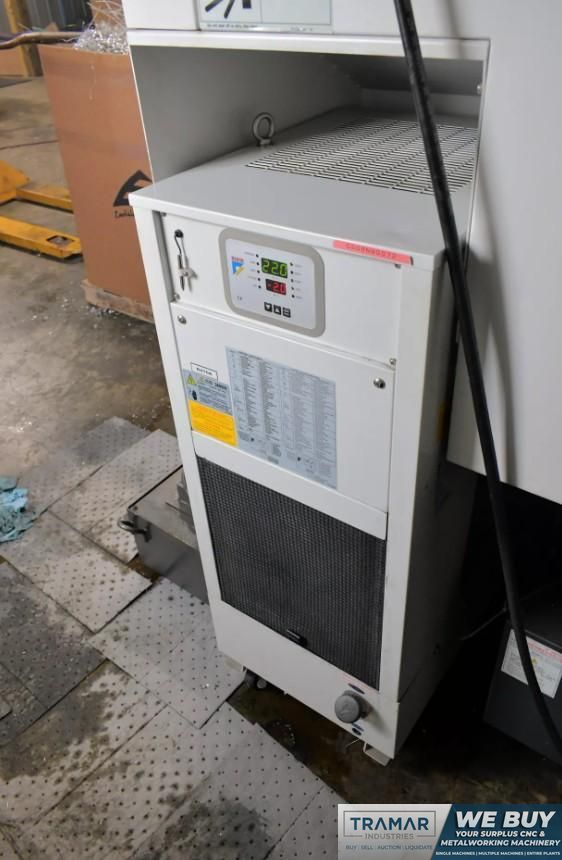

- Spindle Chiller
- Manual Guide i (Conversational Programming)
- Misc. Static Tooling Available
- (2) Straight Live Tool Holders
- (2) Right Angled Live Tool Holders
- Heavy Duty Box Way Machine

Machine Specifications

Inch

Metric

Machine Specifications:

CNC Control

yes

Control Type

Fanuc 0i-TF

# Axis

Swing

23.6"

Turning Diameter

14.6"

Center Distance

43.11"

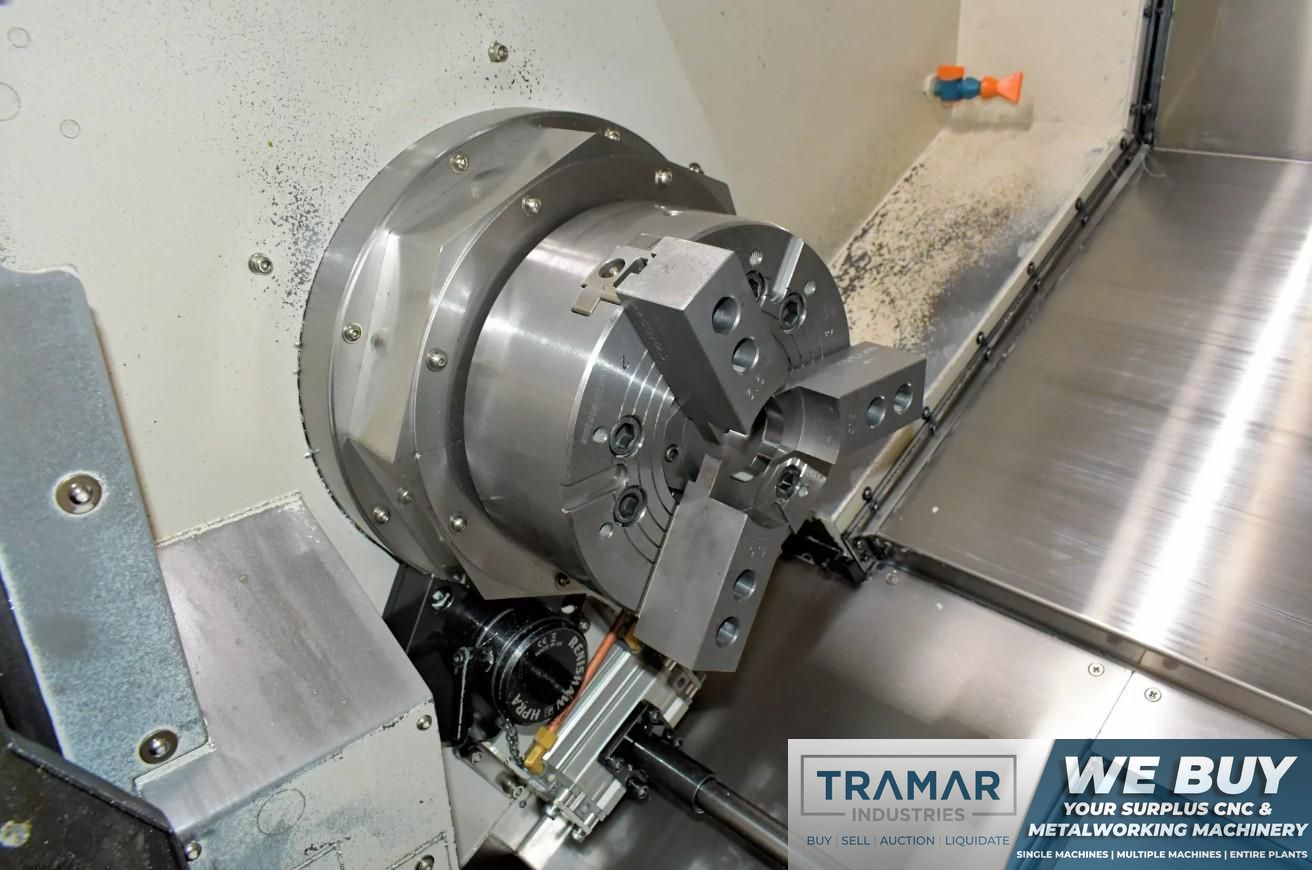

Chuck Size

10"

Bar Capacity

3.05"

X Axis Travel

10.6"

Y Axis Travel

3.92"

Z Axis Travel

31.49"

B Axis Travel (Sub Spindle)

28.93"

C1/C2 Axis Index

0.001°

Rapid Traverse (X/Y/Z)

787/393/797 ipm

Spindle Nose

A2-8

Spindle Speed

3,500 rpm

Main Motor

30 hp

Tailstock

Y Axis

yes

Live Tooling

yes

Live Tooling Speed

5,000 rpm

Live Tooling Motor

5 hp

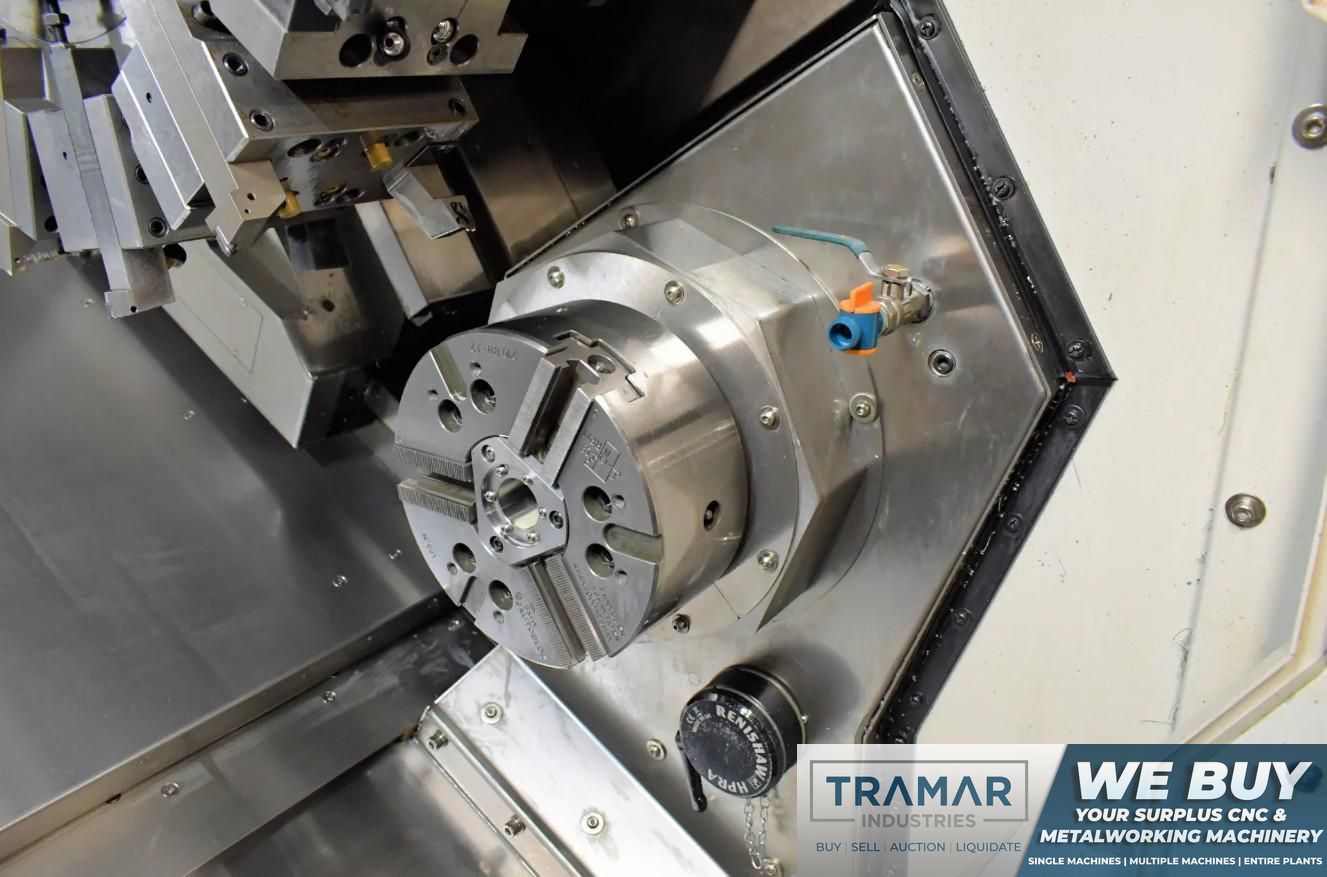

Sub Spindle

yes

Sub Spindle Chuck

Sub Spindle Bar Capacity

Sub Spindle Nose

A2-6

Sub Spindle Speed

3,500 rpm

Sub Spindle Motor (HP)

15 hp

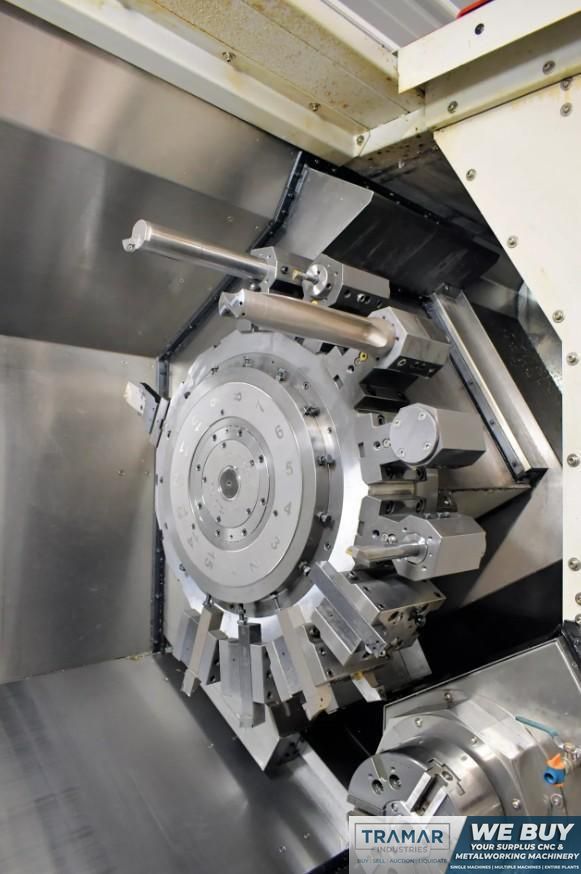

Turret Capacity

15 Stations

Machine Dimensions

149" x 73" x 98"

Machine Weight

17,800 pounds

Equipped With:

The Takisawa LA-250YS is an exclusive part of our Lathes (3-Axis or More) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
