You Ji YV-1600 ATC+C - Vertical Lathes

Share Machine

Specifications Print Specs

Model: YV-1600 ATC+C

Year: 2018

Stock #: 15501 Sold

Type: Vertical Lathes

Manufacturer: Used You Ji Machines

Highlights:

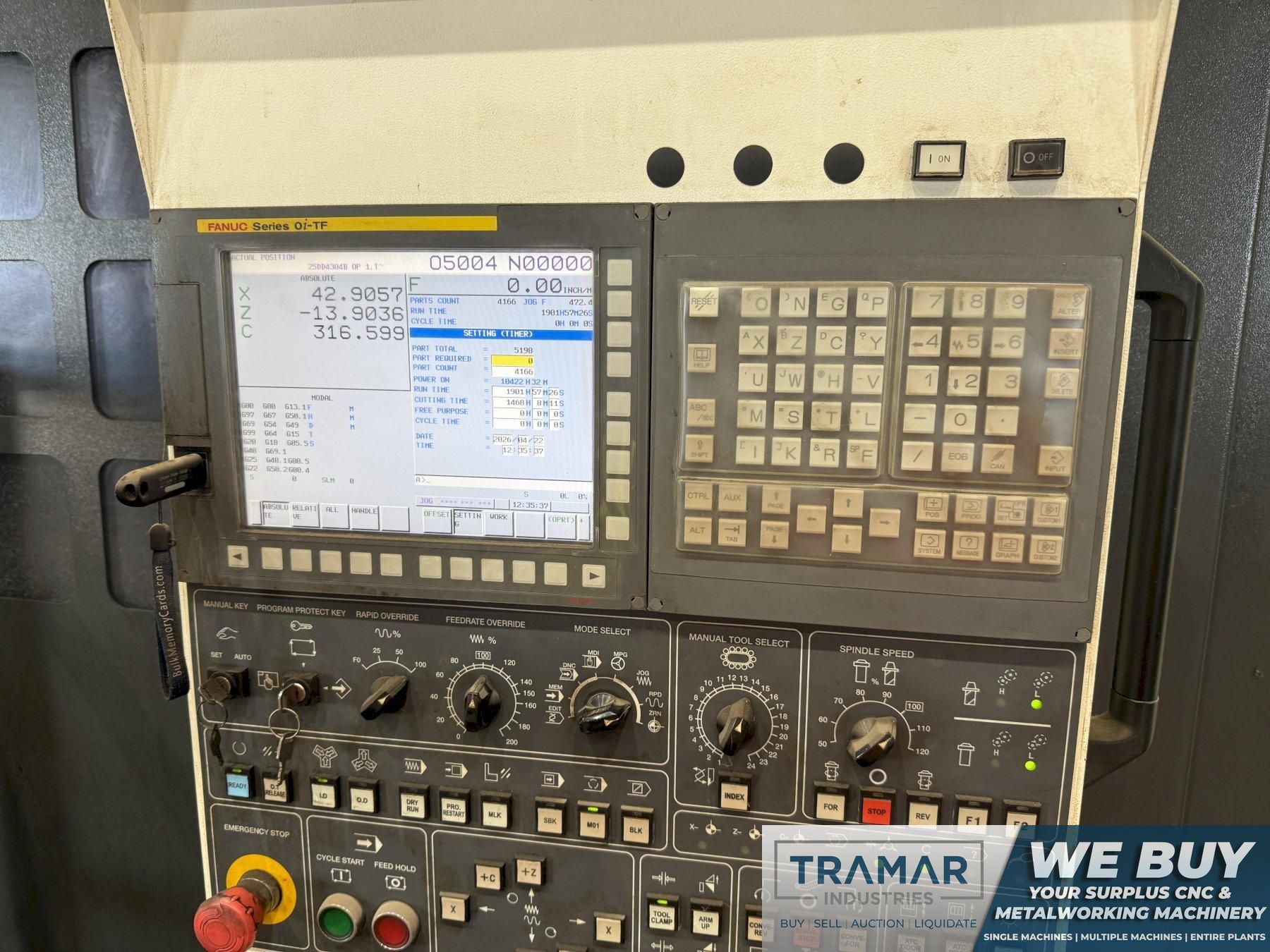

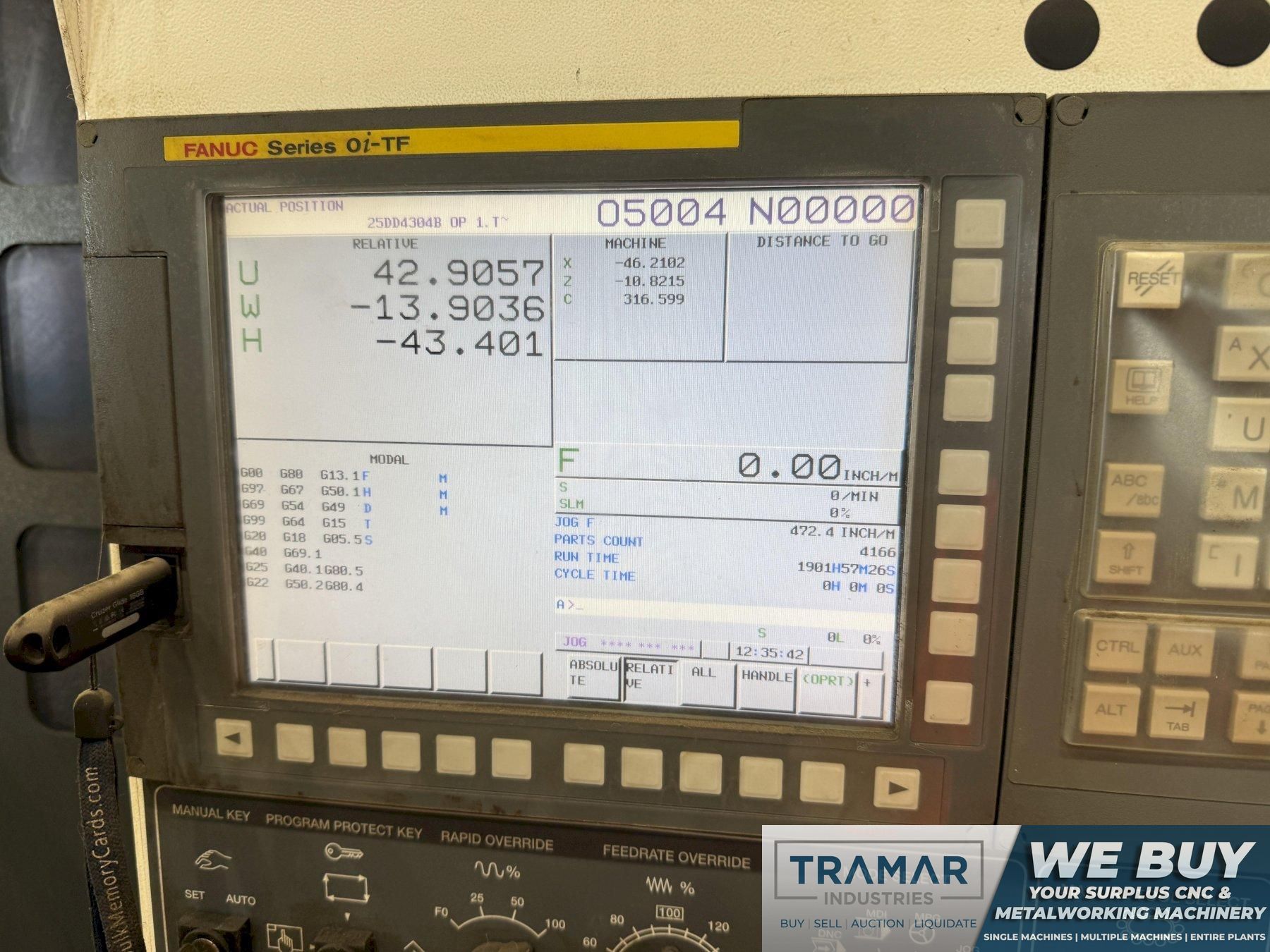

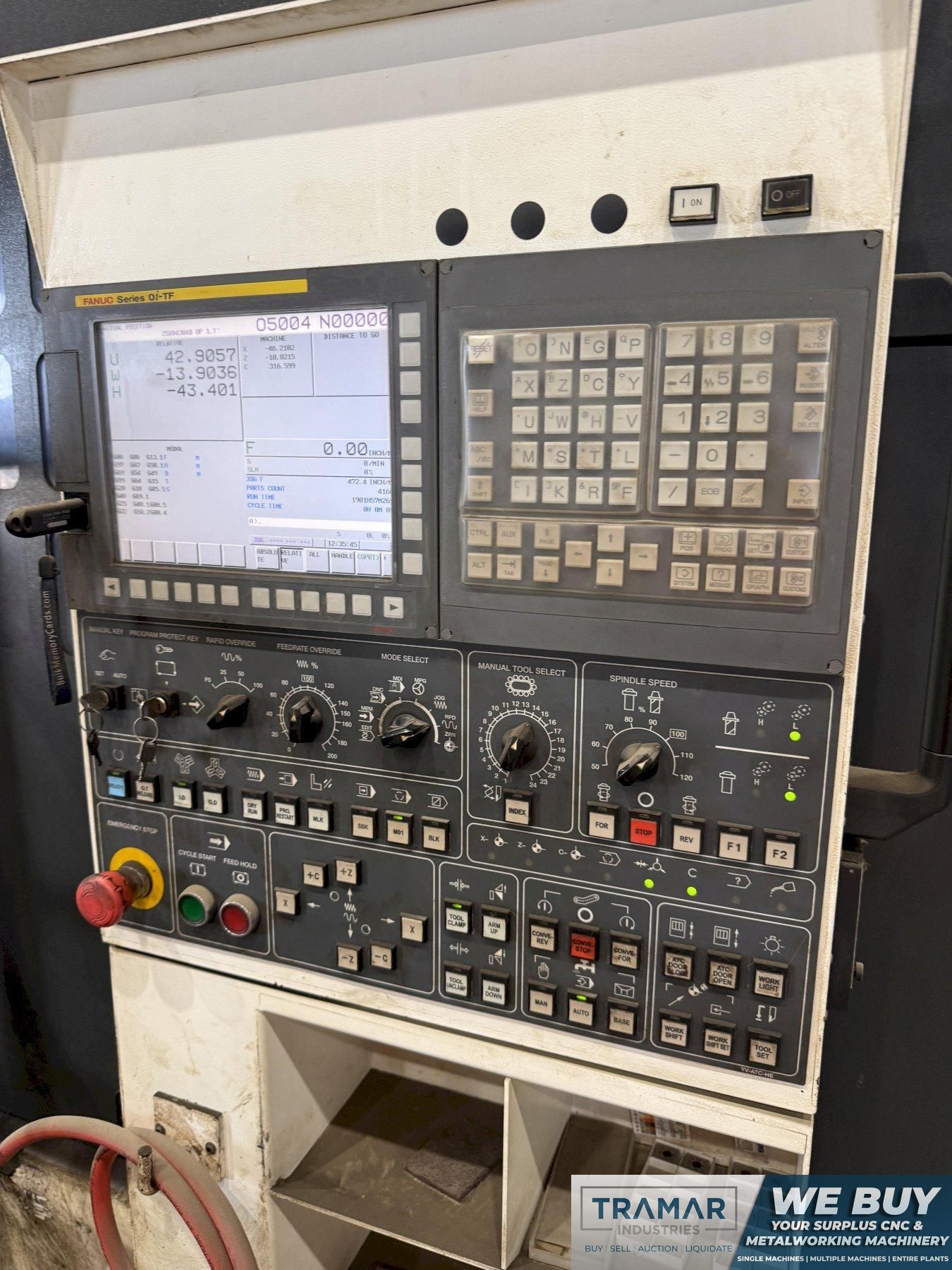

Fanuc 0i-TF CNC Control

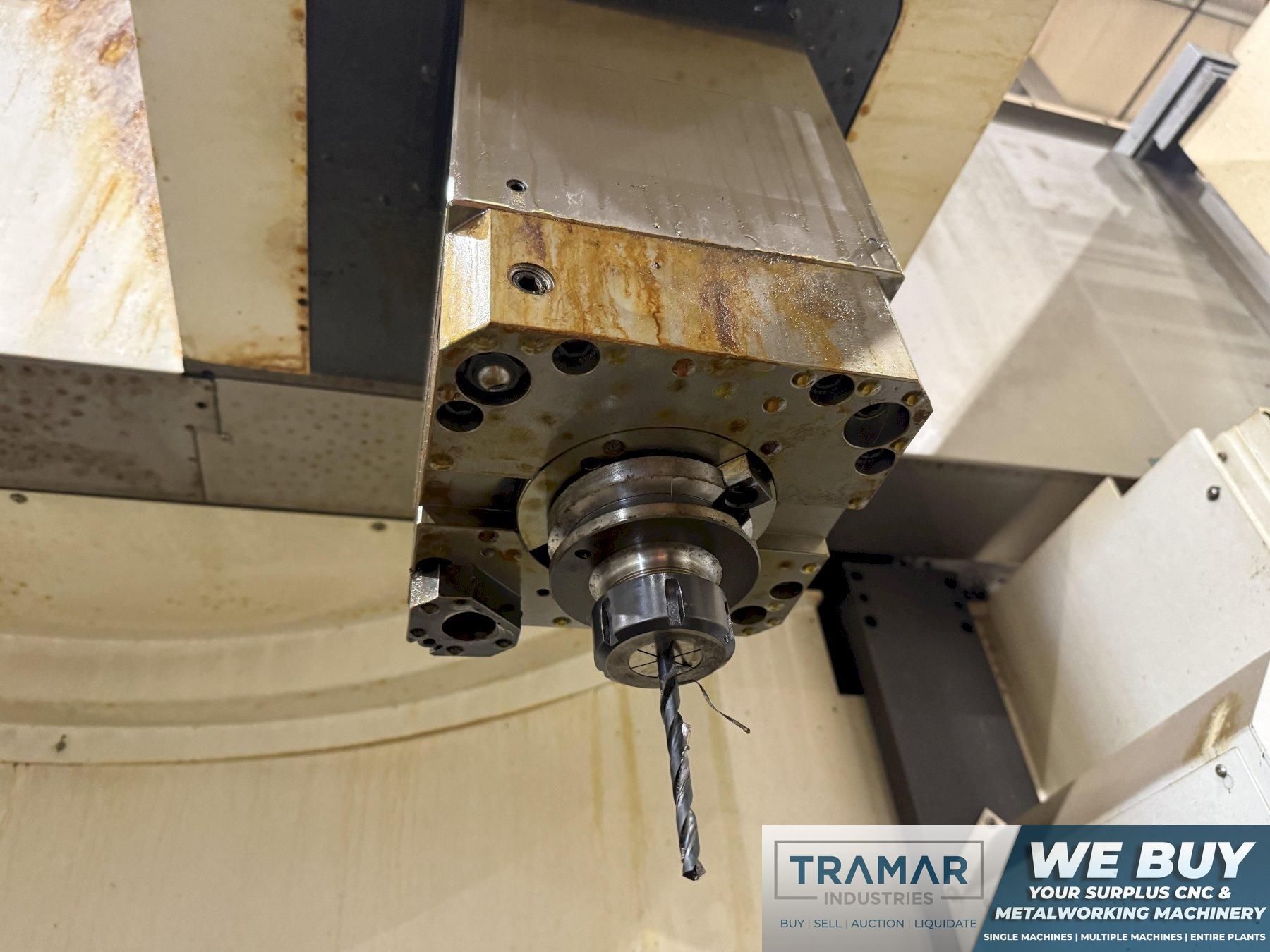

Live Tooling w/C Axis
63" Table Diameter

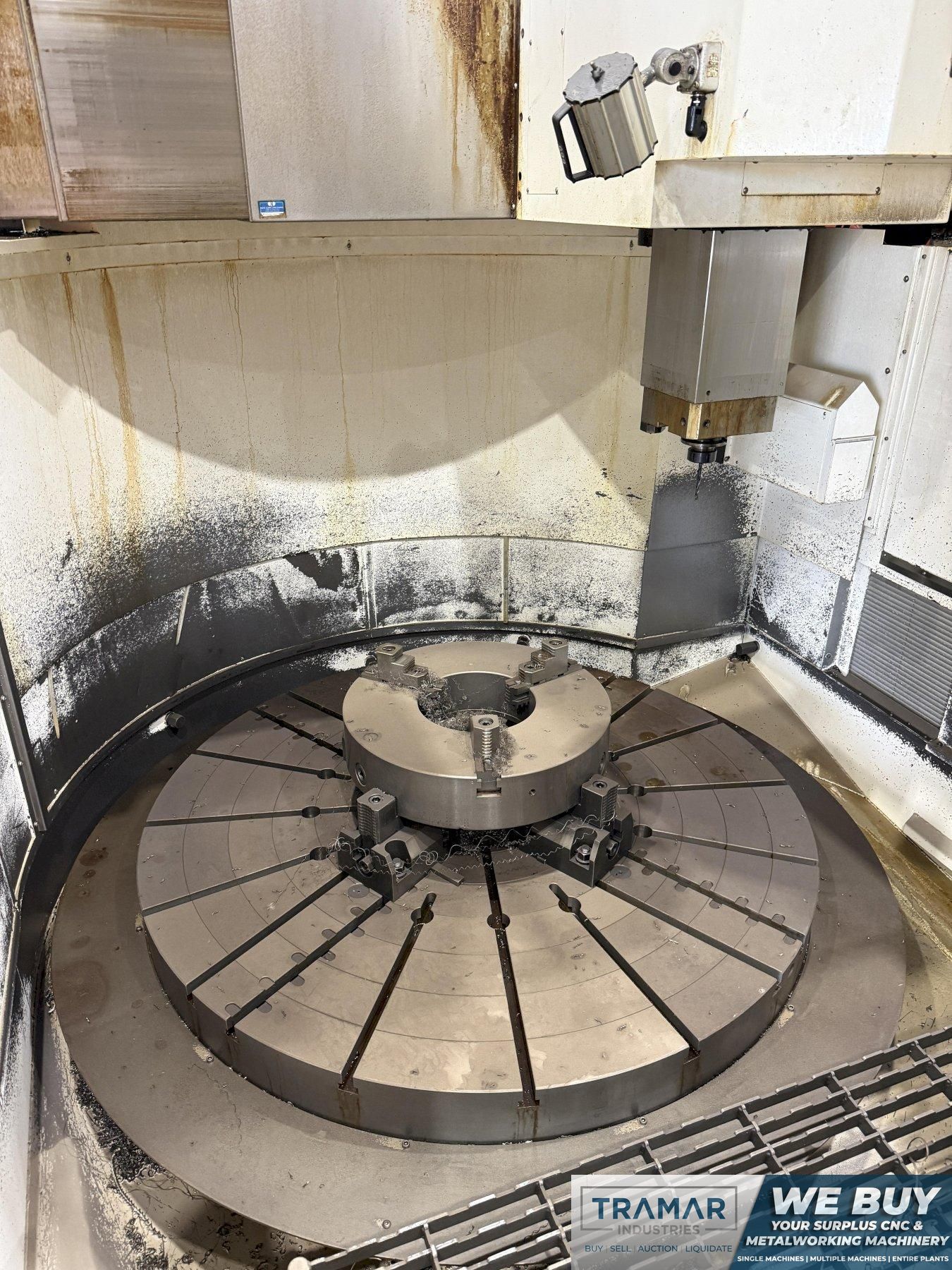

4-Jaw Manual Chuck

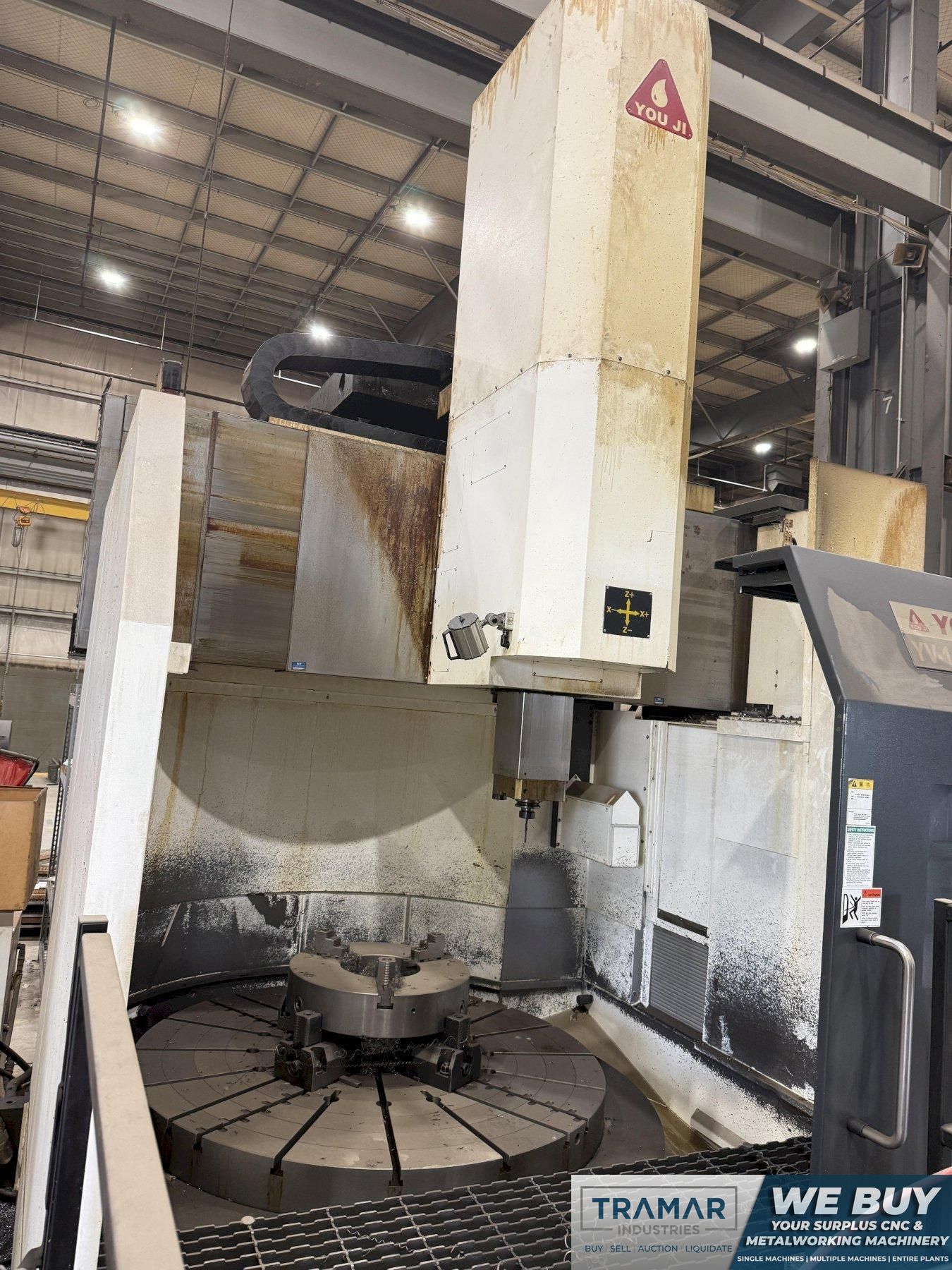

2018 Youji YV-1600 ATC+C Used CNC Vertical Turret Lathe with Live Tooling For Sale

Equipped With:

- Fanuc 0i-Tf CNC Control

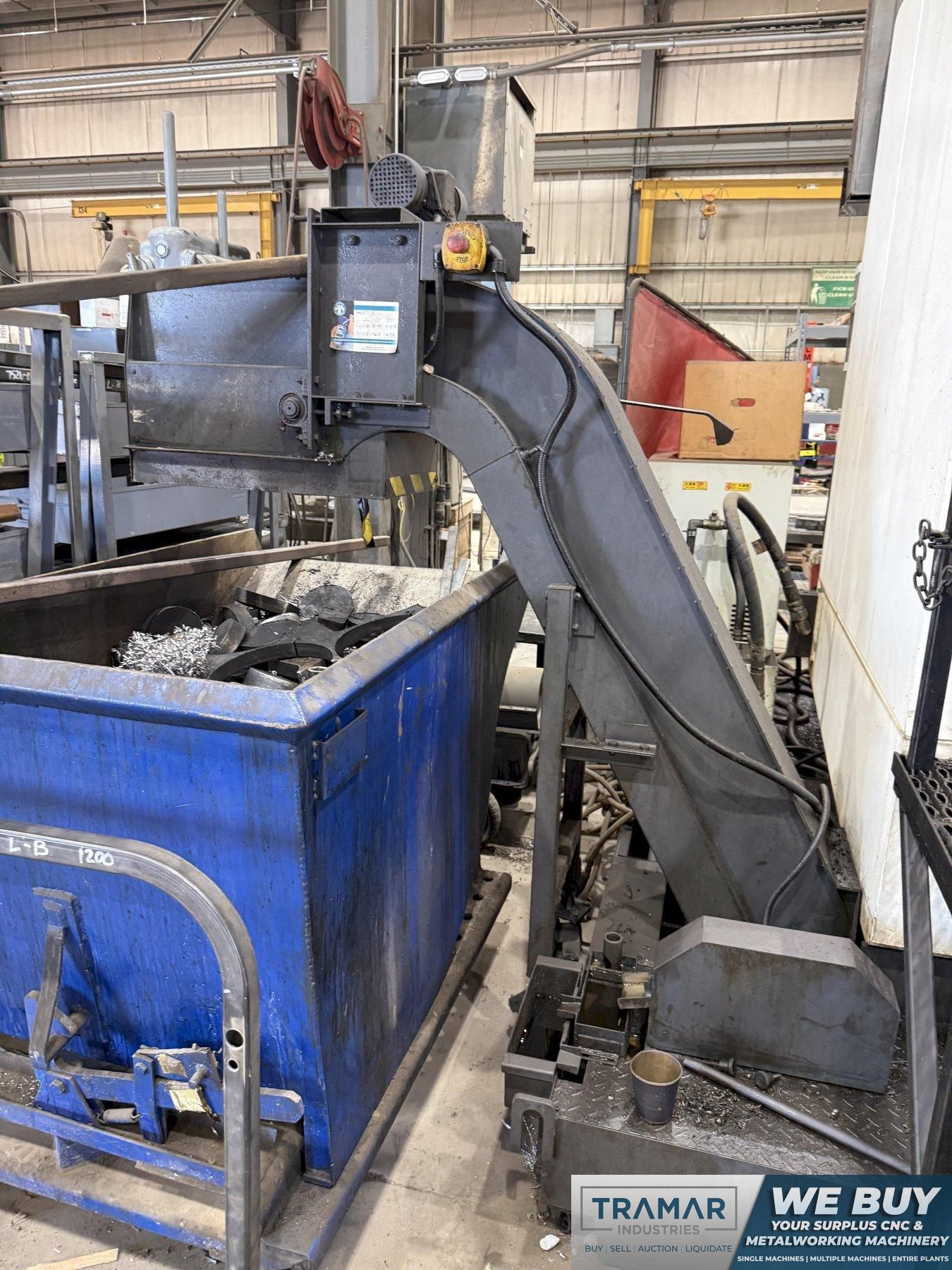

- Chip Conveyor
- Coolant Tank & Pump

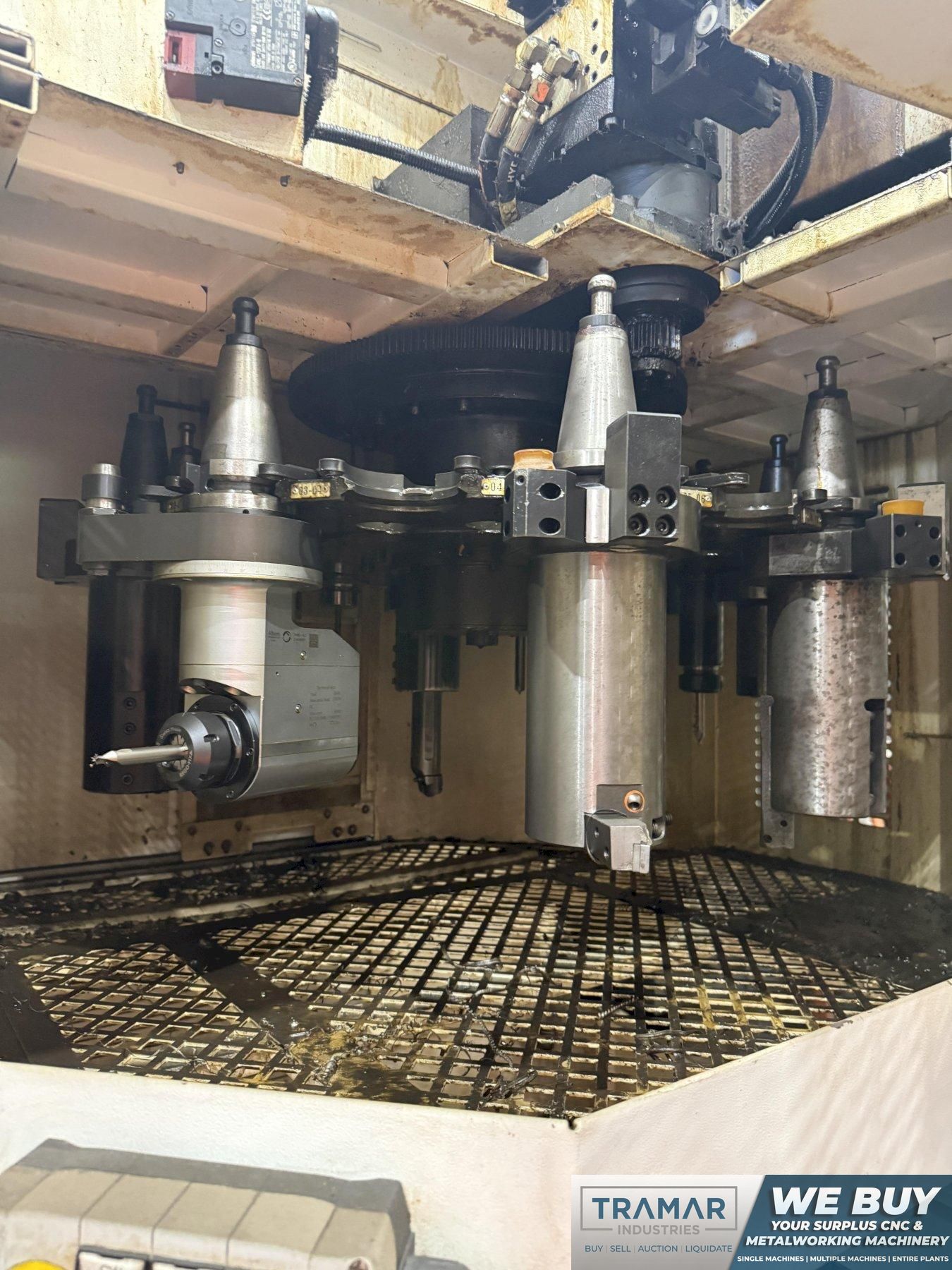

- Live Tooling
- 4-Jaw Manual Chuck
- Misc Tooling

*** VIDEO CLICK HERE ***

Machine Videos

Machine Specifications

Inch

Metric

Machine Specifications:

CNC Control

yes

Control Type

Fanuc 0i-TF

Swing

78.4"

Turning Diameter

70.86"

Table Diameter

63"

Max Table Load

17,636 pounds

Chuck Size

63"

Max Height Under Rail

47.24"

Vertical Travel of Crossrail

31.49"

X-Axis Travel

48.23"

Z-Axis Travel

35.43"

Spindle Taper

CAT 50

Spindle Speed

70-250 rpm

Spindle Motor

60 horsepower

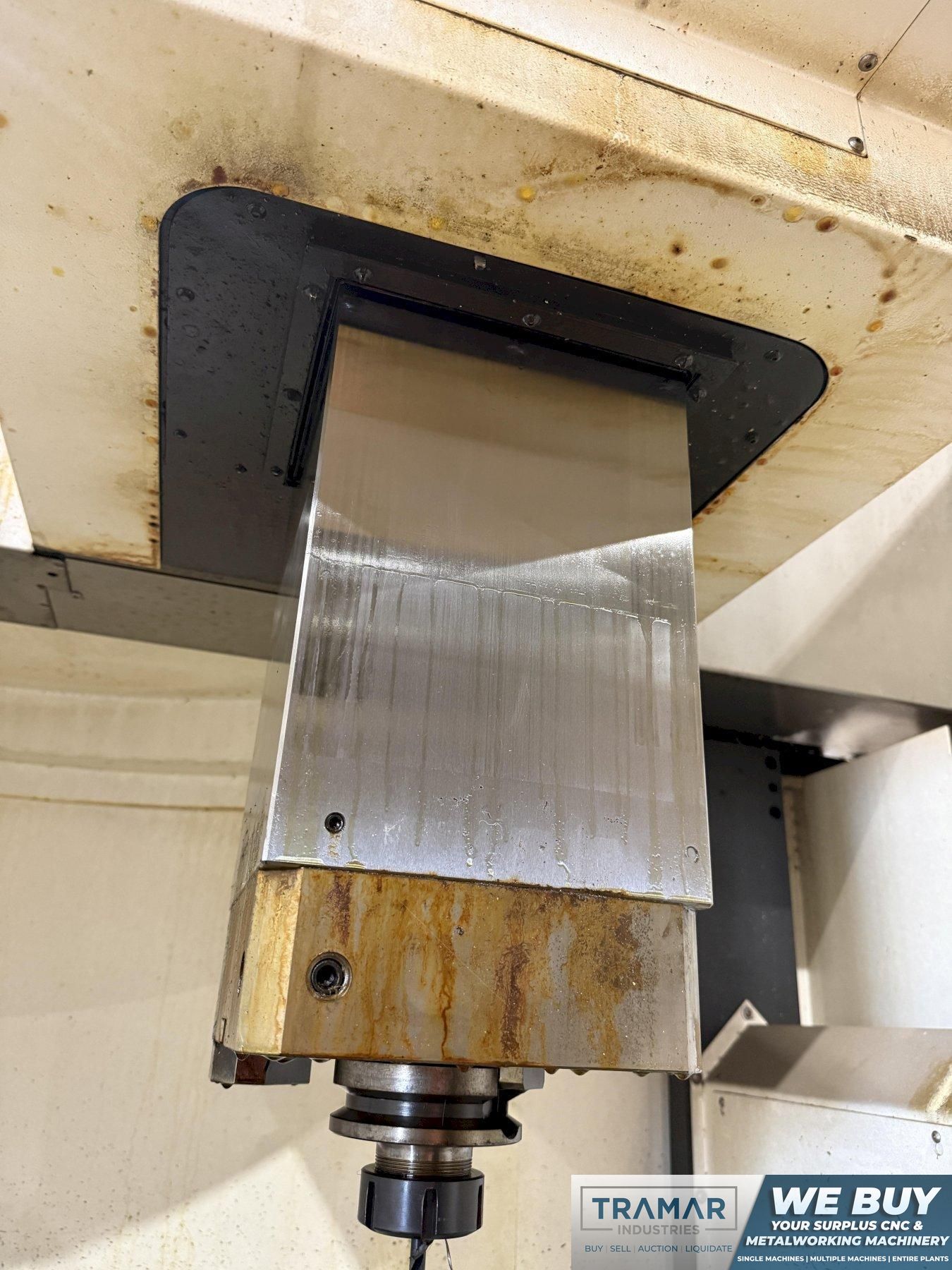

Live Tooling

yes

Live Tooling Speed

2,400 rpm

Live Tooling Motor

15 hp

Tool Changer Capacity

Machine Dimensions

178" x 230" x 213" (max height)

Machine Weight

55,000 pounds

Equipped With:

- Fanuc 0i-Tf CNC Control
- Chip Conveyor
- Coolant Tank & Pump
- Live Tooling
- 4-Jaw Manual Chuck
- Misc Tooling

*** VIDEO CLICK HERE ***

The You Ji YV-1600 ATC+C is an exclusive part of our Vertical Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
