Doosan Puma 2600SYB II - Lathes (3-Axis or More)

Request Quote

Share Machine

Specifications Print Specs

Model: Puma 2600SYB II

Year: 2022

Stock #: k53223

Type: Lathes (3-Axis or More)

Manufacturer: Used Doosan Machines

Highlights:
Fanuc 31i-Model A CNC Control
Live Tooling & Y Axis
Sub Spindle
Parts Catcher
Tool Presetter
Low Cutting Hours

Used 2022 Doosan Puma 2600SYB II CNC Lathe For Sale

Equipped With:

- Fanuc 31i-Model A CNC Control
- Chip Conveyor
- Coolant Tank & Pump
- Parts Catcher
- Tool Presetter
- Parts Conveyor
- Auto Tool Length Measurement
- Live Tooling
- Sub Spindle
- Y Axis
- Embedded Ethernet
- Rigid Tapping

Machine Specifications

Inch

Metric

Machine Specifications:

CNC Control

yes

Control Type

Fanuc 31i-Model A

Swing

30.7"

Turning Diameter

14.8"

Center Distance

28.5"

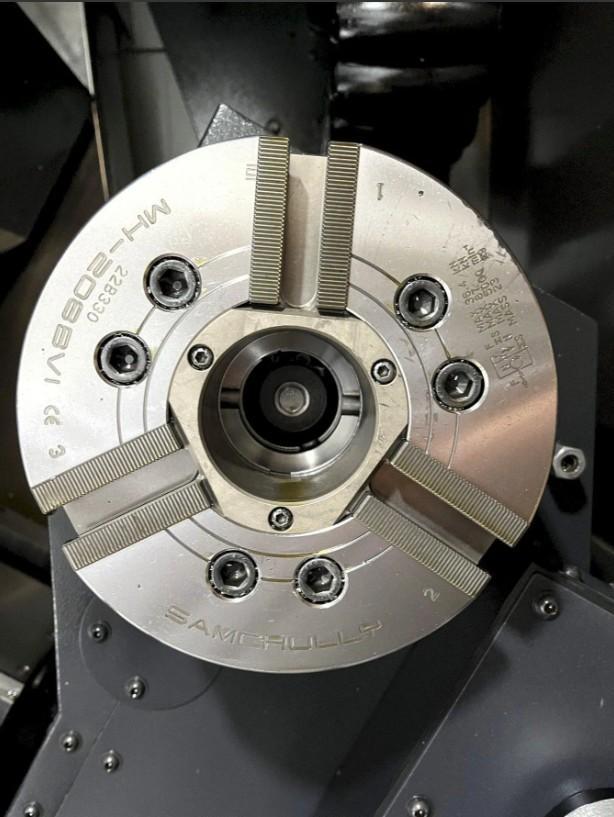

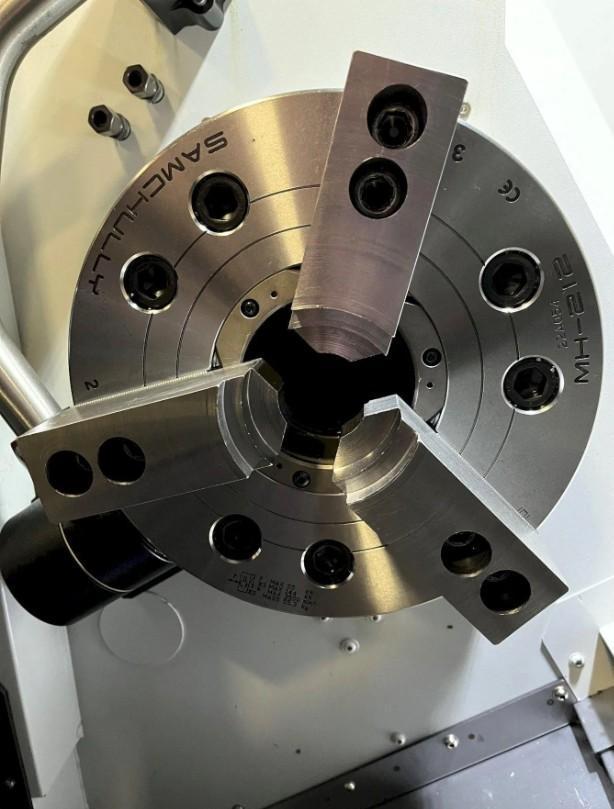

Chuck Size

12"

Bar Capacity

X Axis Travel

10.2"

Z-Axis Travel

32.7"

C Axis Index

0.001°

Rapid Traverse Rate (X/Y/Z)

1,181/394/1,181 ipm

Spindle Nose

A2-8

Spindle Speed

2,800 rpm

Main Motor

30 hp

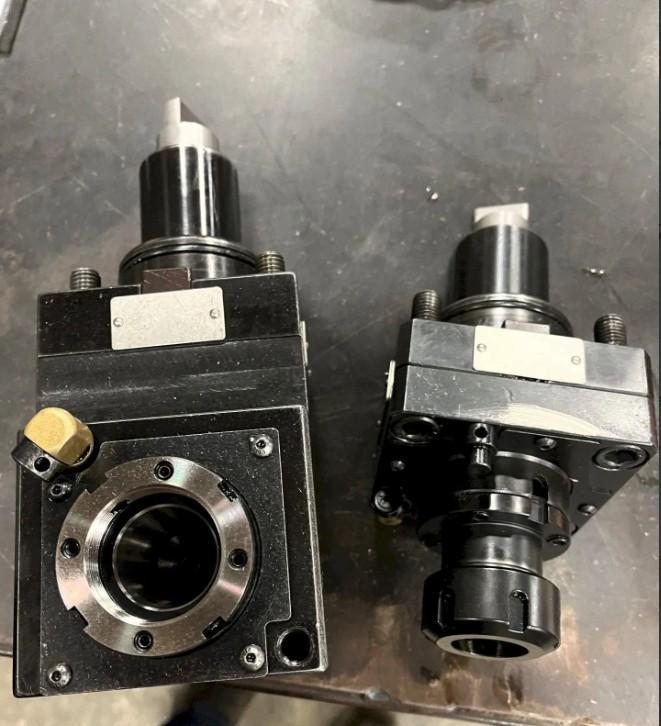

Live Tooling

yes

Live Tooling Speed

5,000 rpm

Live Tooling Motor

7 hp

Tailstock

Y Axis

yes

Sub Spindle

yes

Sub Spindle Nose

A2-5

Sub Spindle Chuck

Sub Spindle Speed

4,500 rpm

Sub Spindle Motor (HP)

10 hp

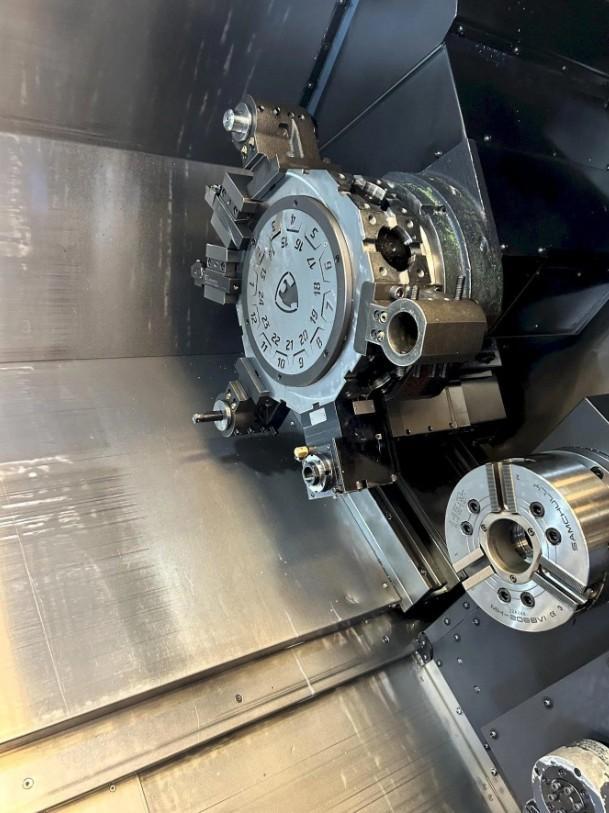

Turret Capacity

24 Stations

Machine Dimensions

145" x 74" x 86"

Machine Weight

14,190 pounds

Equipped With:

The Doosan Puma 2600SYB II is an exclusive part of our Lathes (3-Axis or More) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
