Mazak Cybertech Turn 5500M - Lathes (3-Axis or More)

Share Machine
Specifications Print Specs
Model: Cybertech Turn 5500M
Year: 2008
Stock #: 13735 Sold
Highlights:

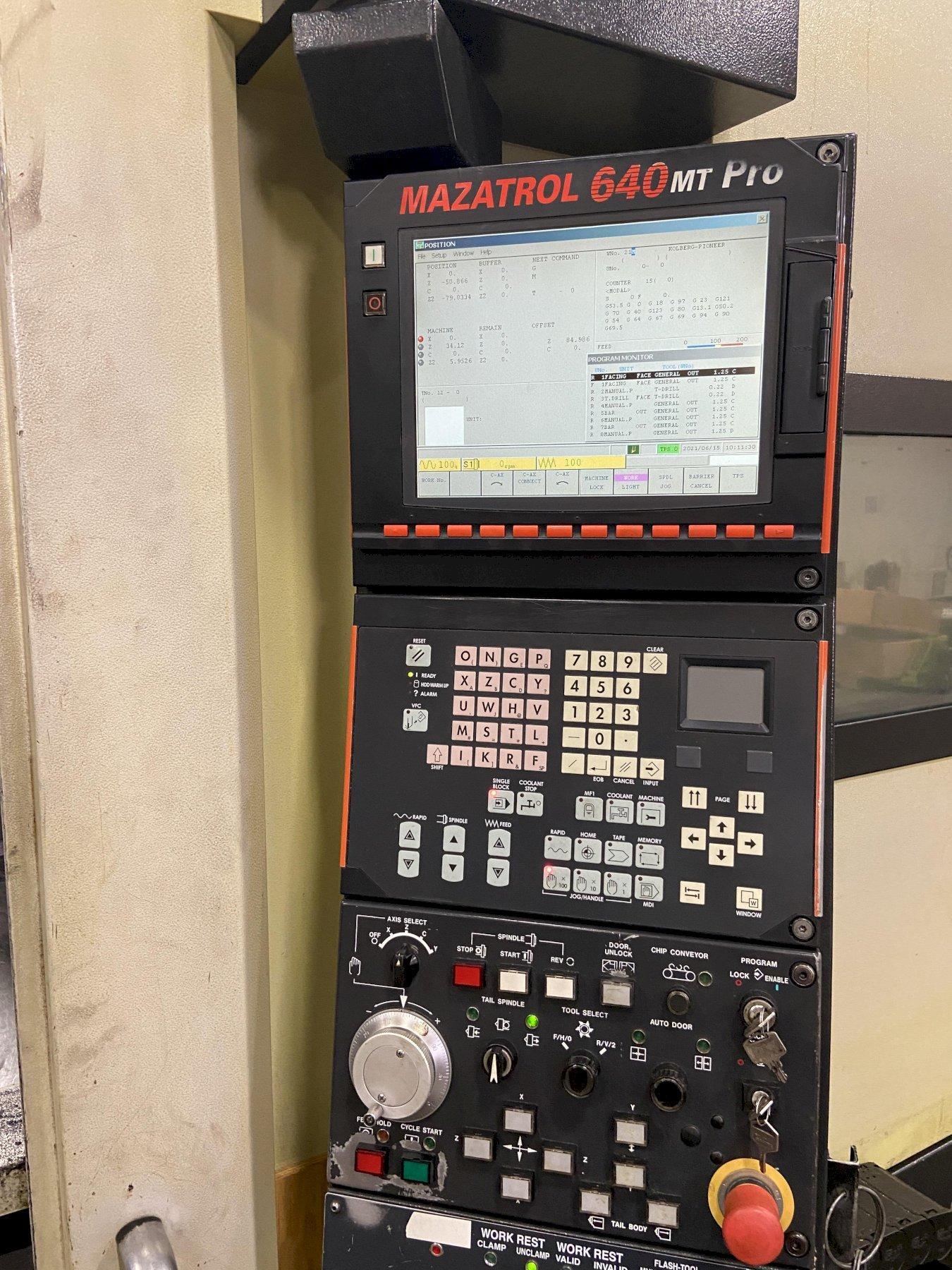

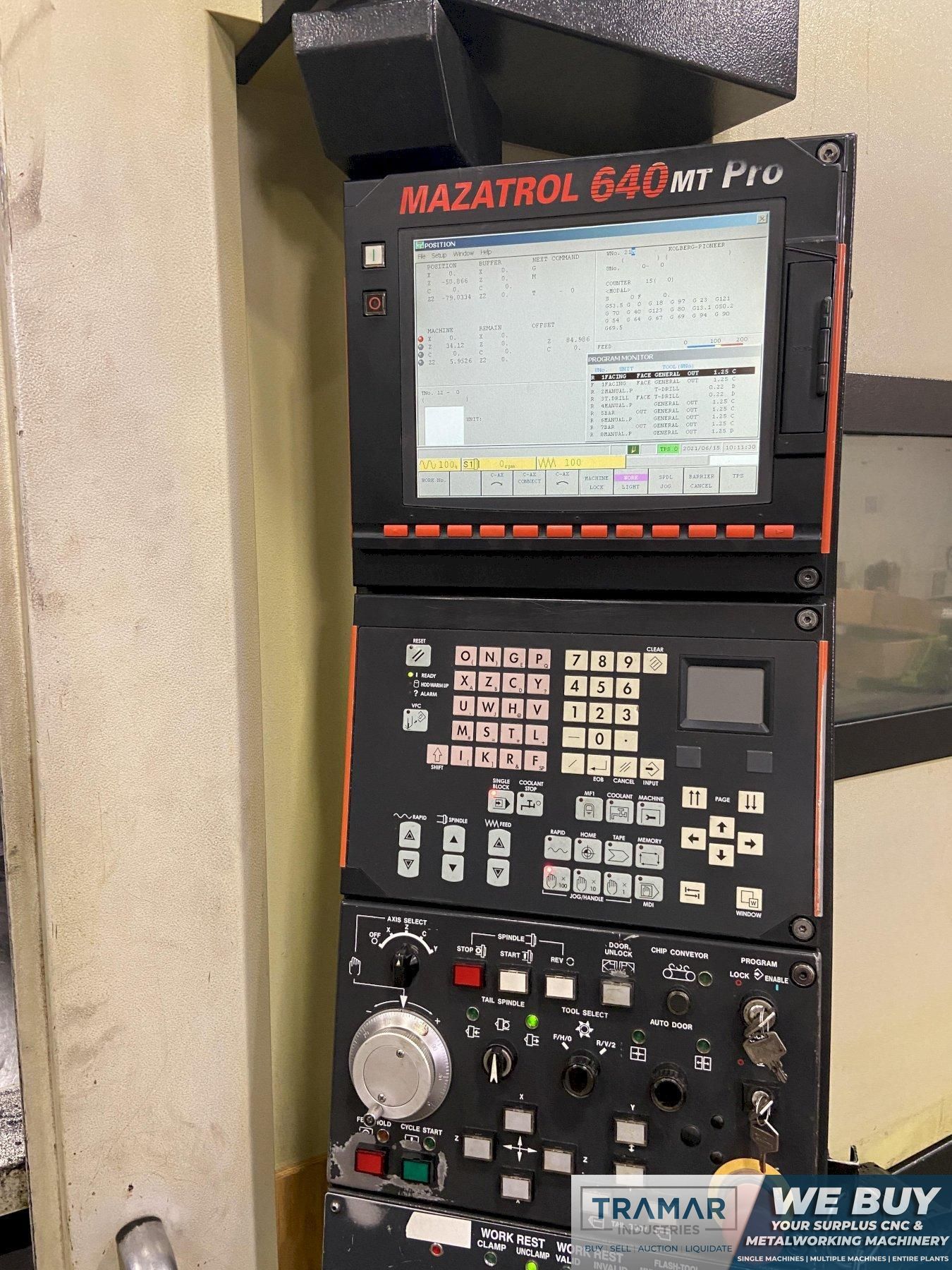

Mazatrol PC Fusion 640MT Pro

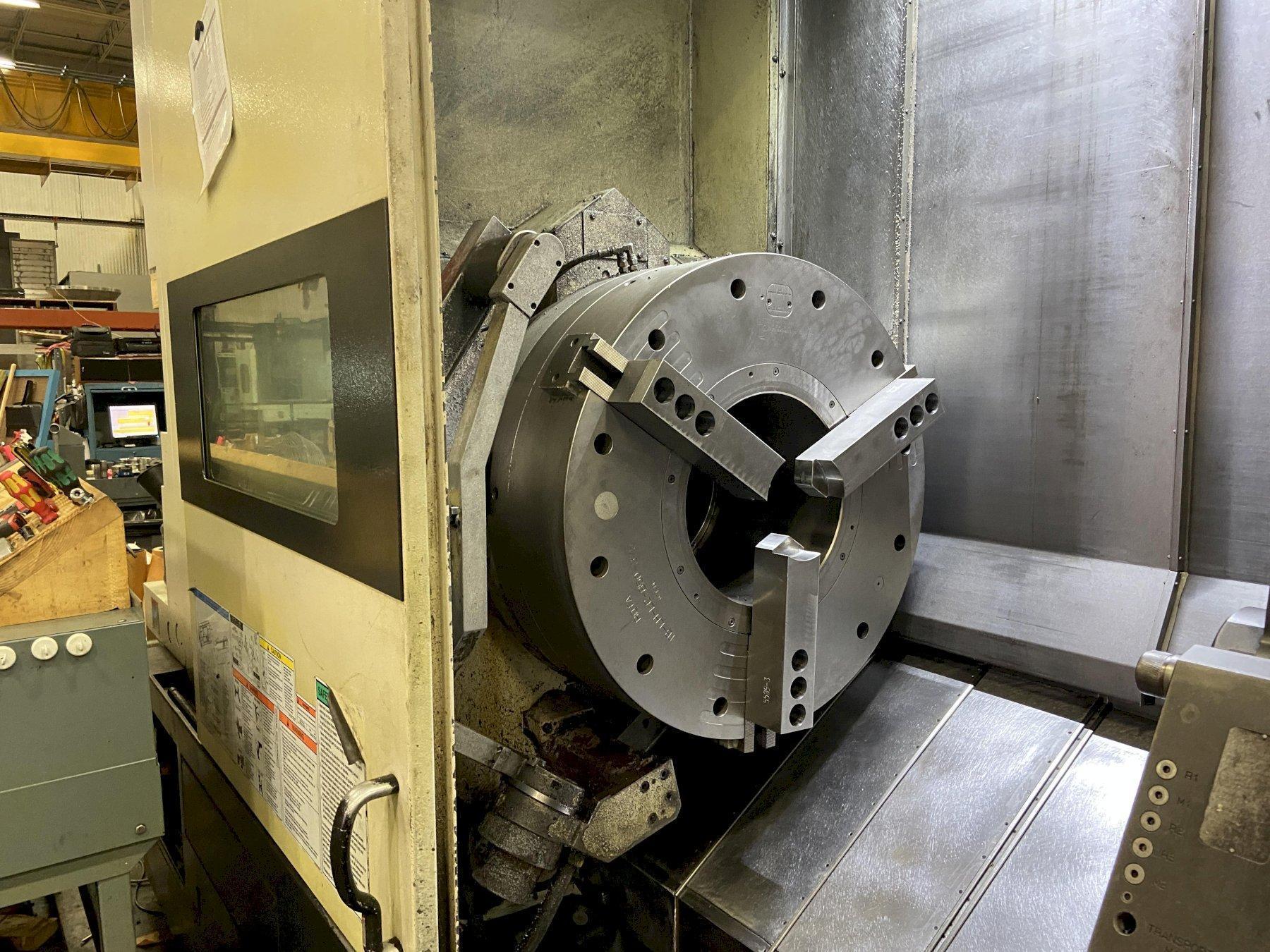

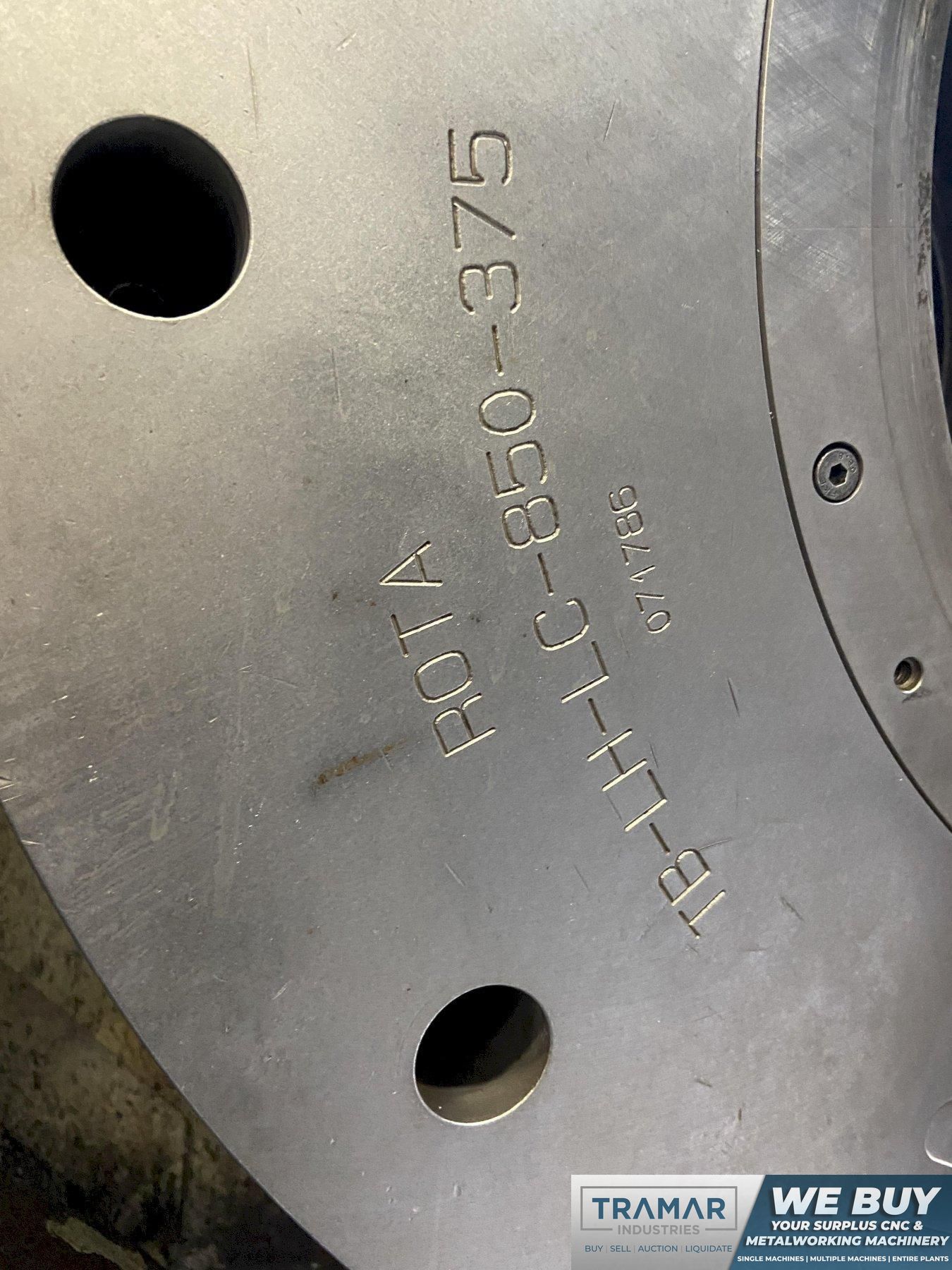

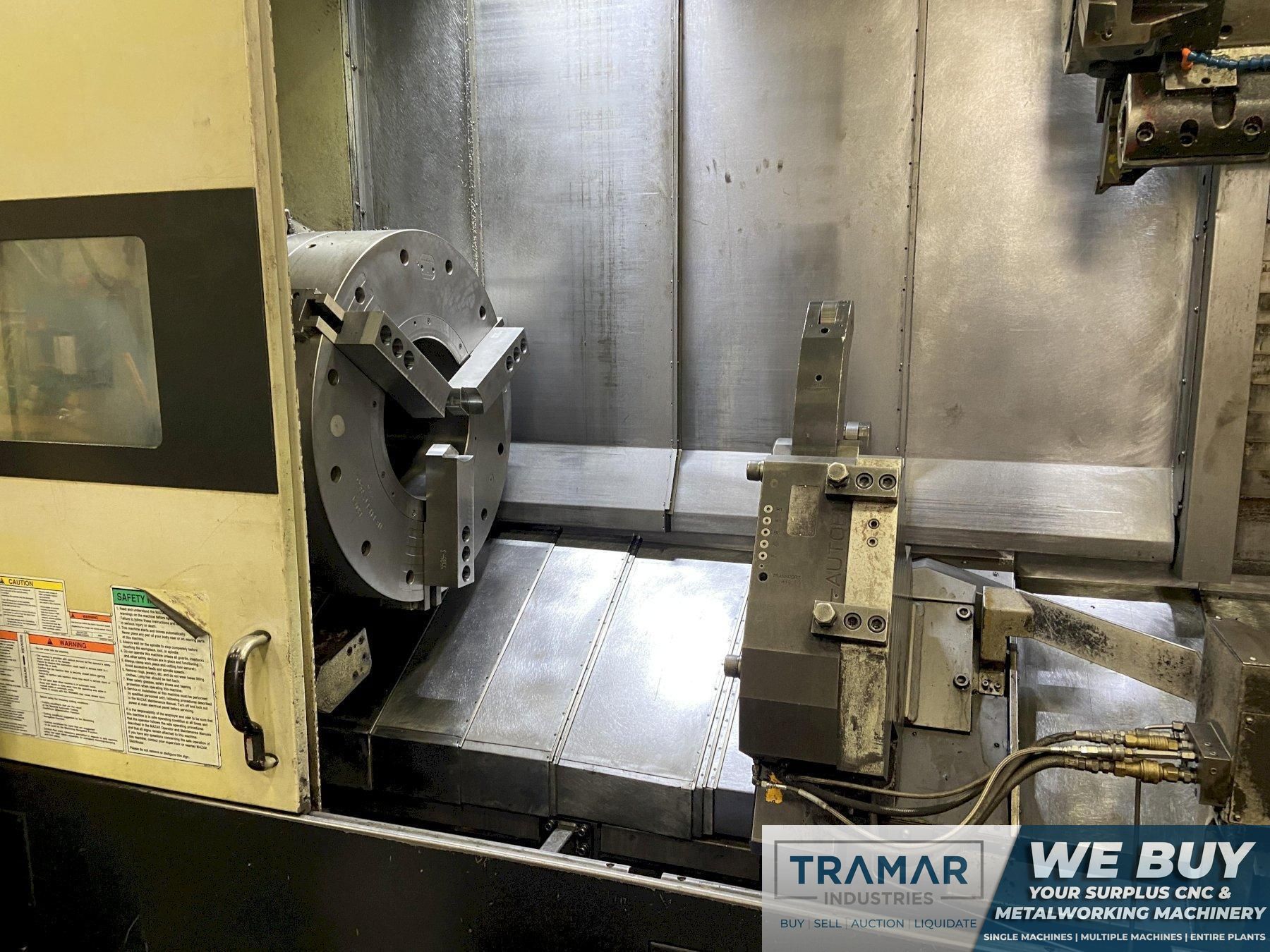

33" Air Chuck (Main Spindle)

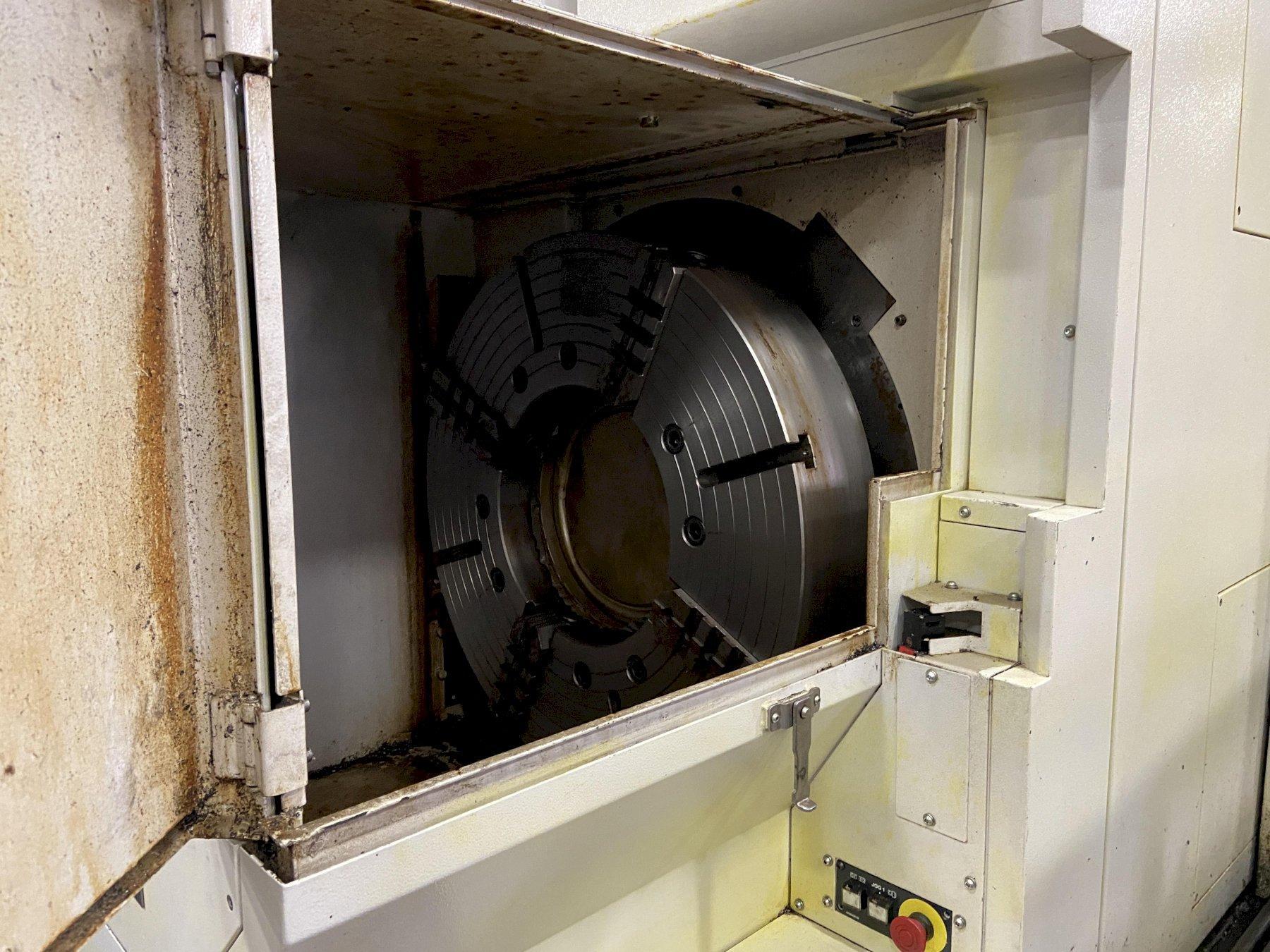

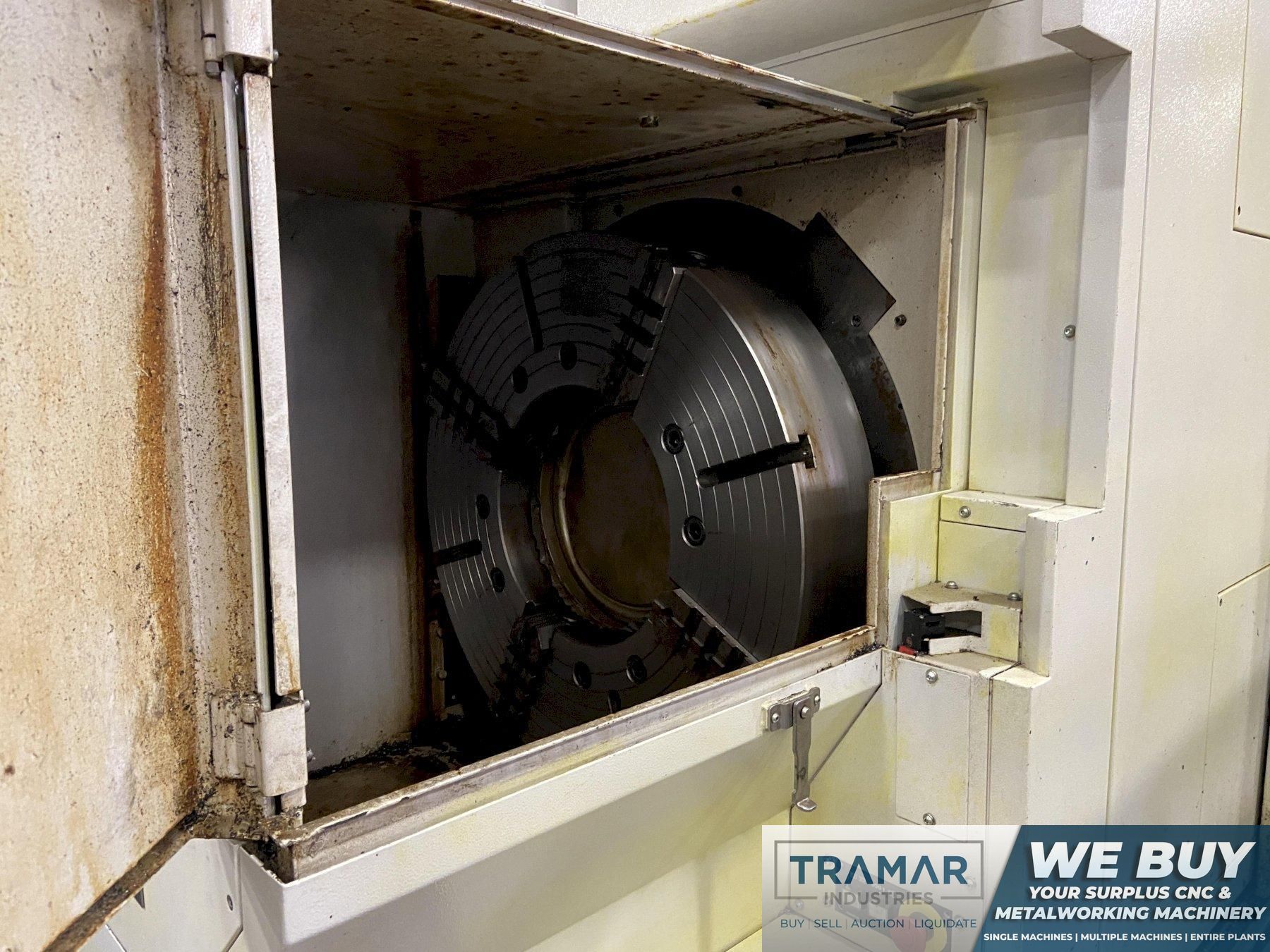

28" Manual Rear Chuck

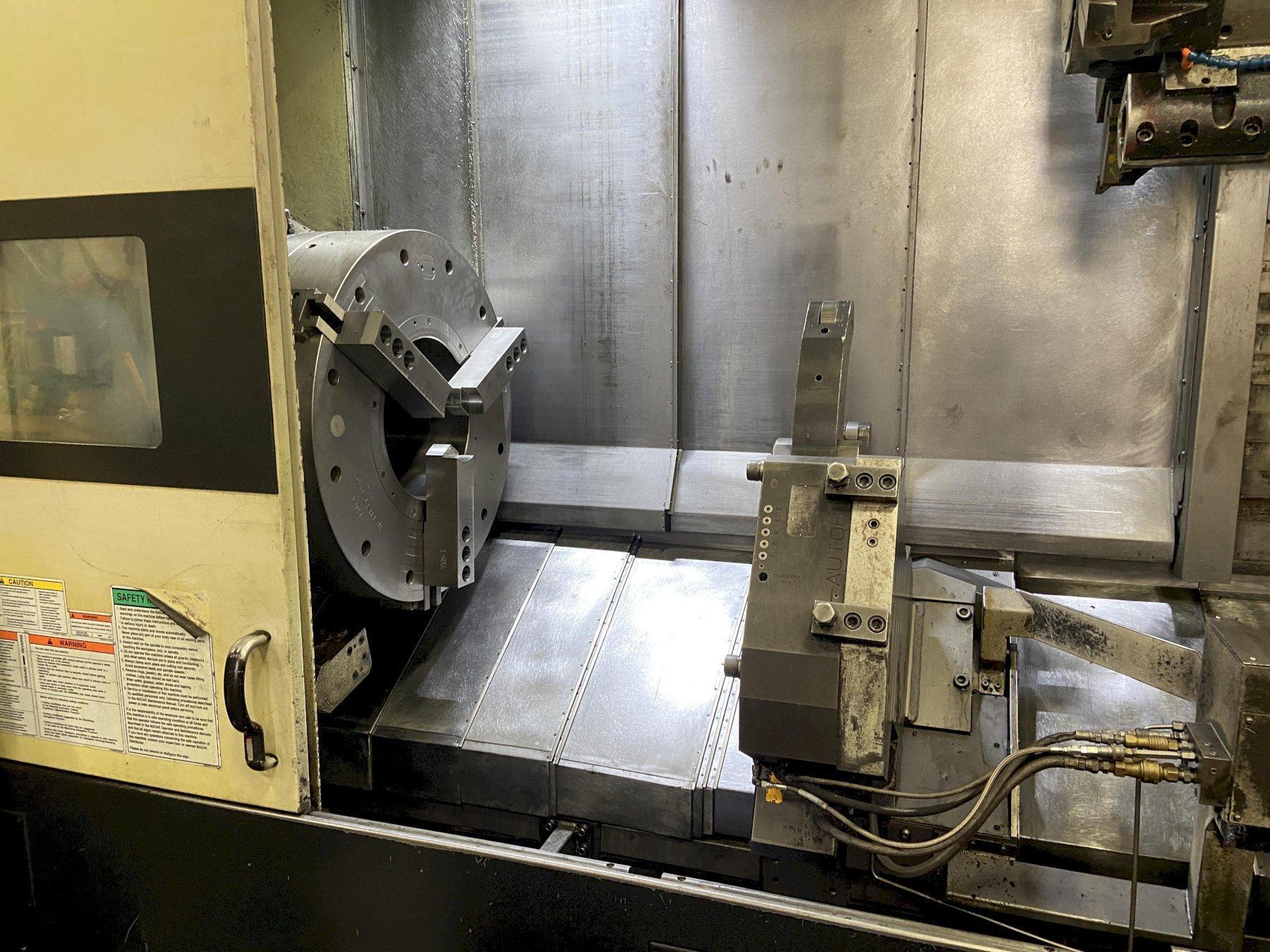

Hydraulic Steady Rest
Hi-Pressure Coolant 1,000 psi

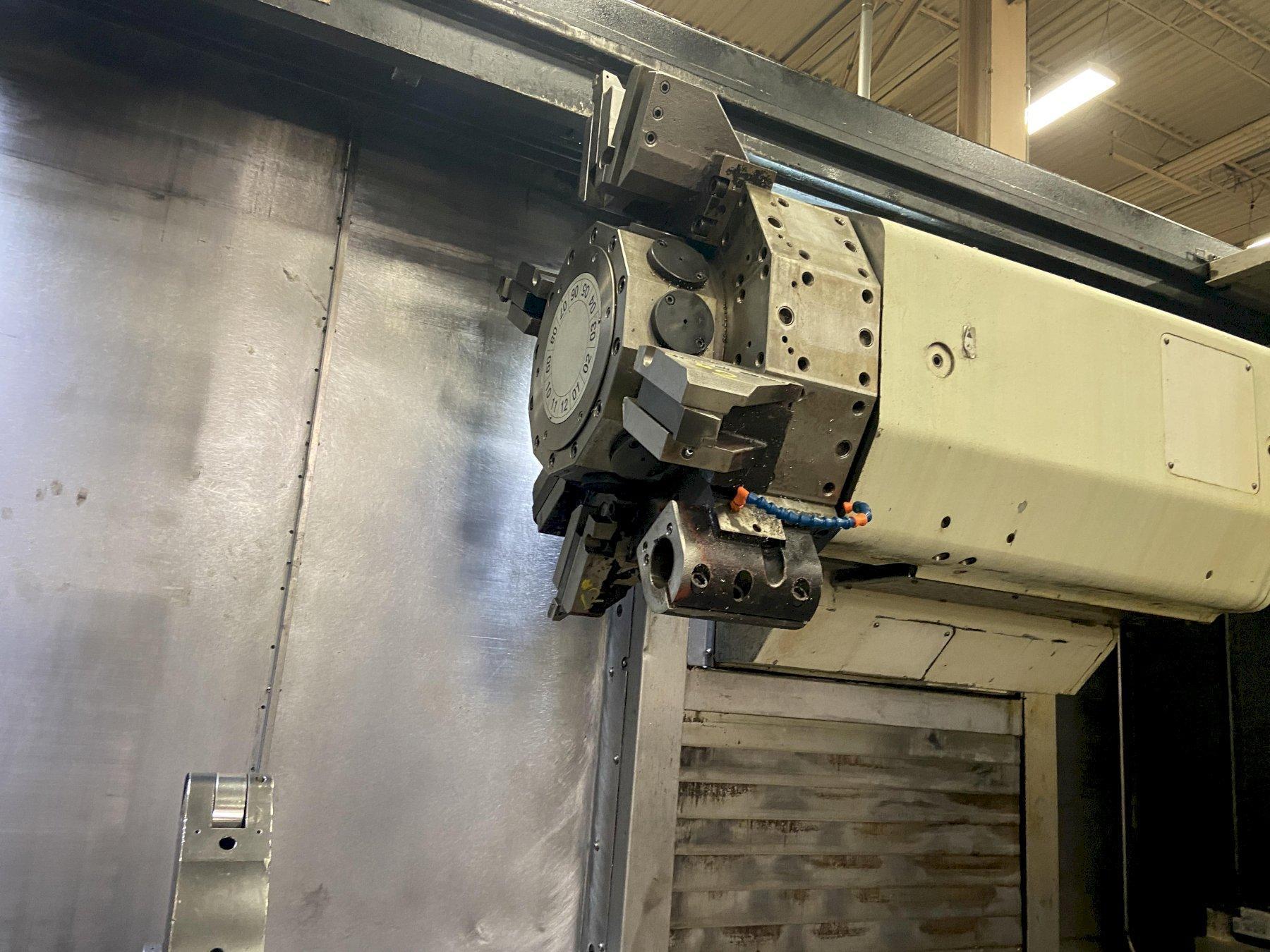

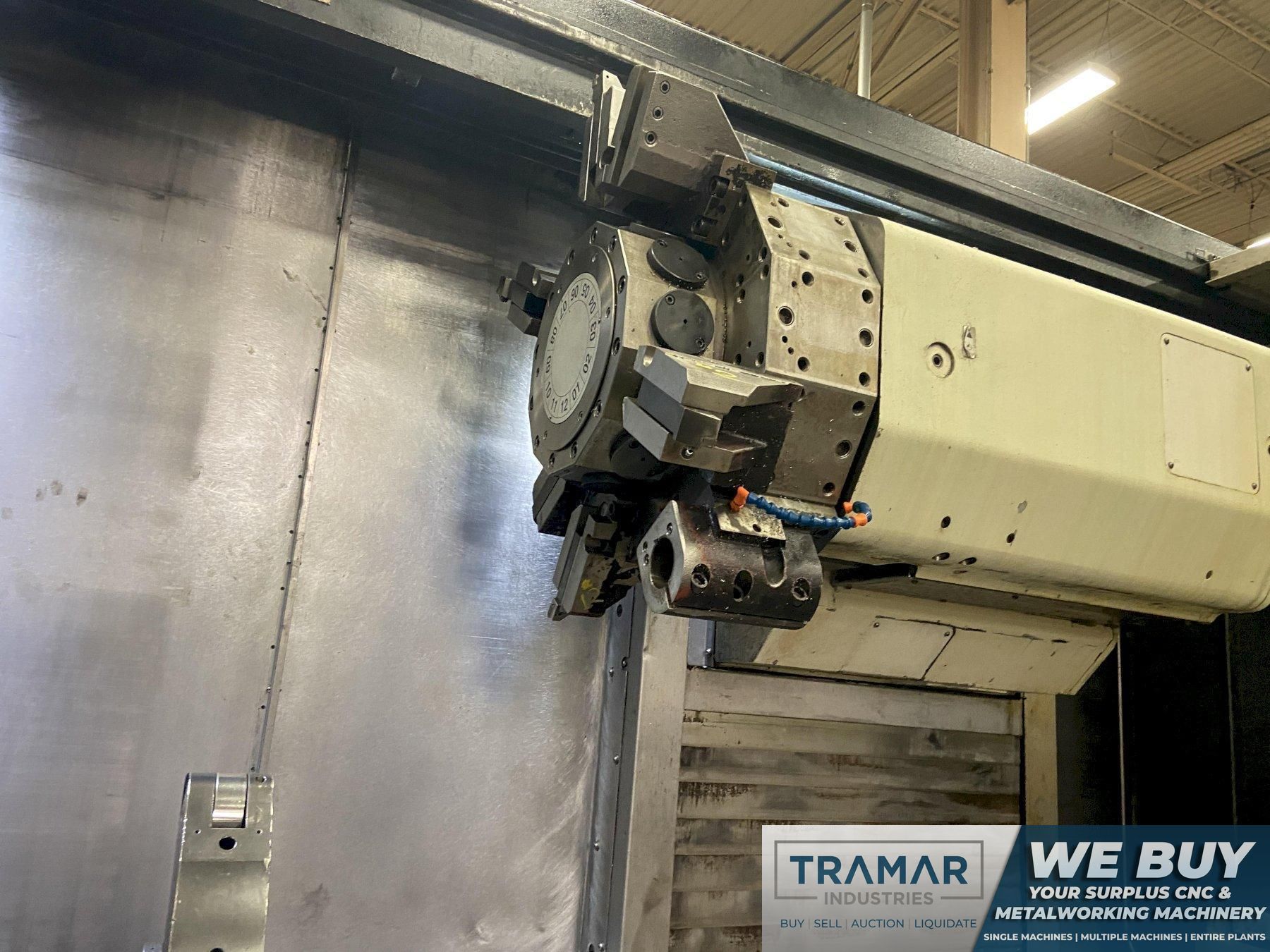

Live Tooling

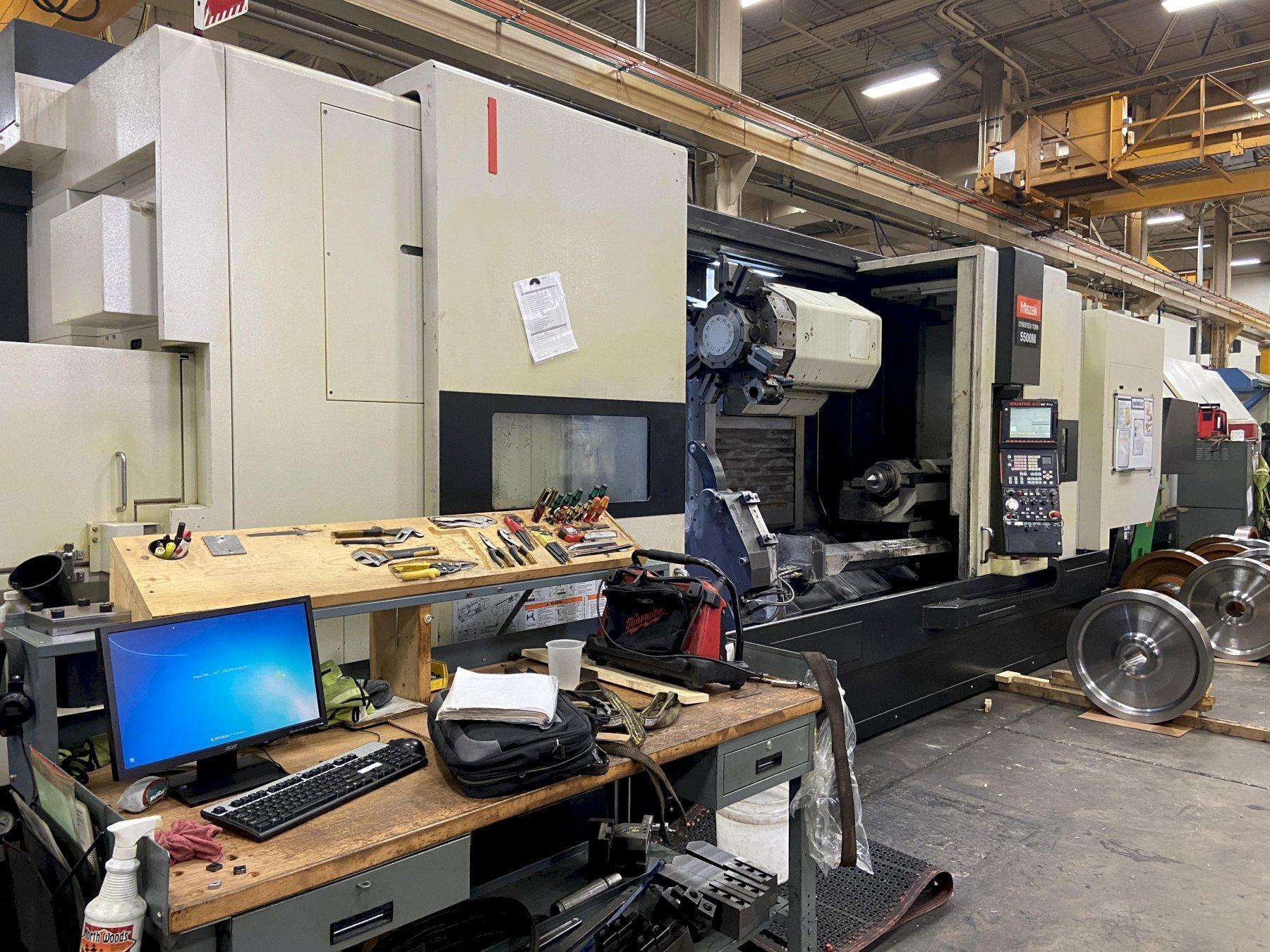

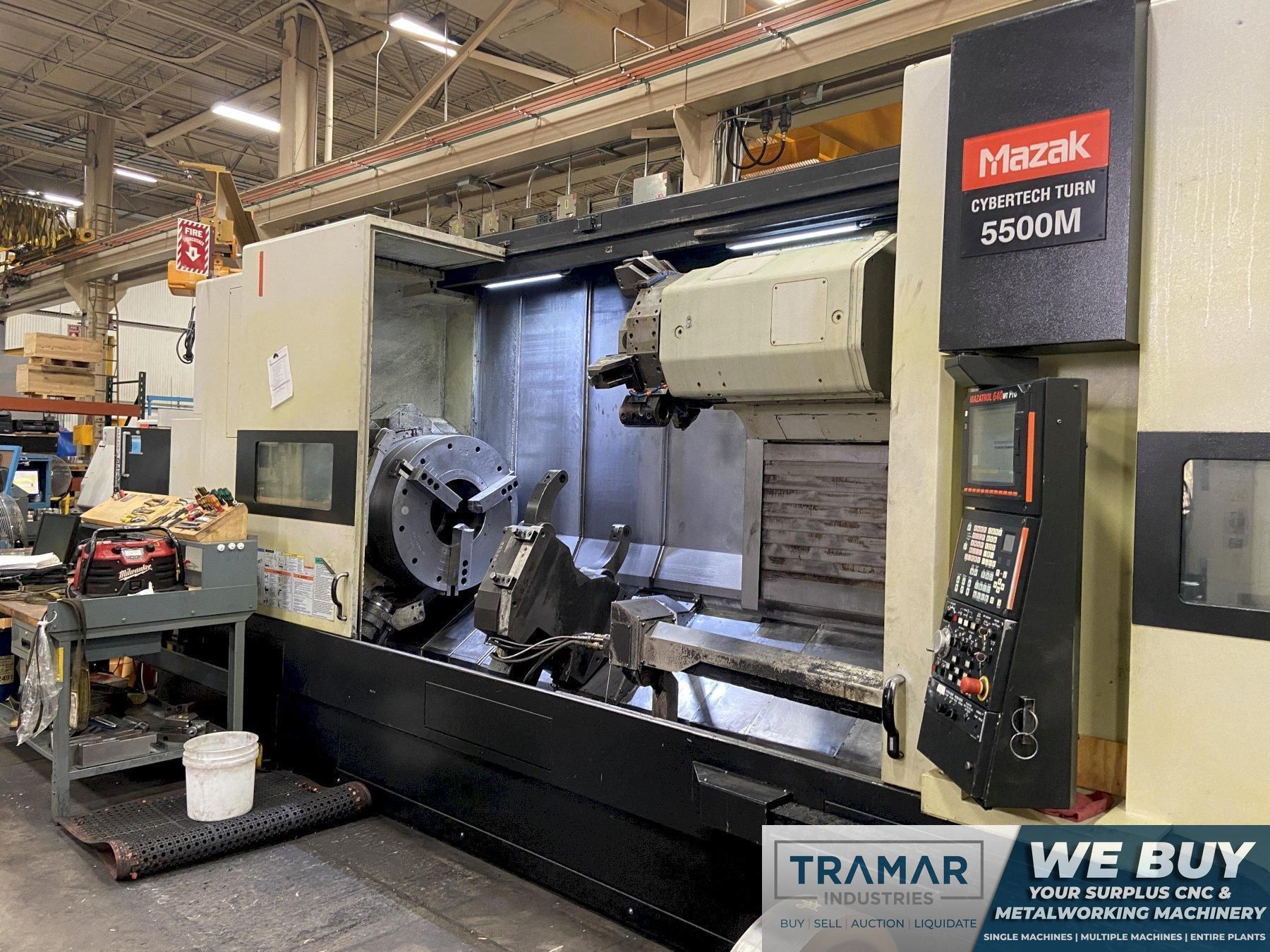

Used Mazak Cybertech Turn 5500M CNC Lathe
Machine Specifications
Year
2008
Control Type
Mazatrol PC fusion 640MT Pro
# Axis
3
Chuck Size
33"
Swing
36.02"
Turning Diameter
31.89"
Center Distance
120"
Bar Capacity
14.76"
X Axis Travel
21.26"
Z Axis Travel
123.23"
C Axis Index
0.001°
Y Axis (Yes / No)
no
Rapid Traverse (X/Z)
945/1,181 ipm
Spindle Speed (RPM)
500
Main Motor
60 hp
Live Milling (Yes / No)
yes
Live Milling Speed (RPM)
3,000 rpm
Live Milling Motor
15 hp
Turret Capacity
12

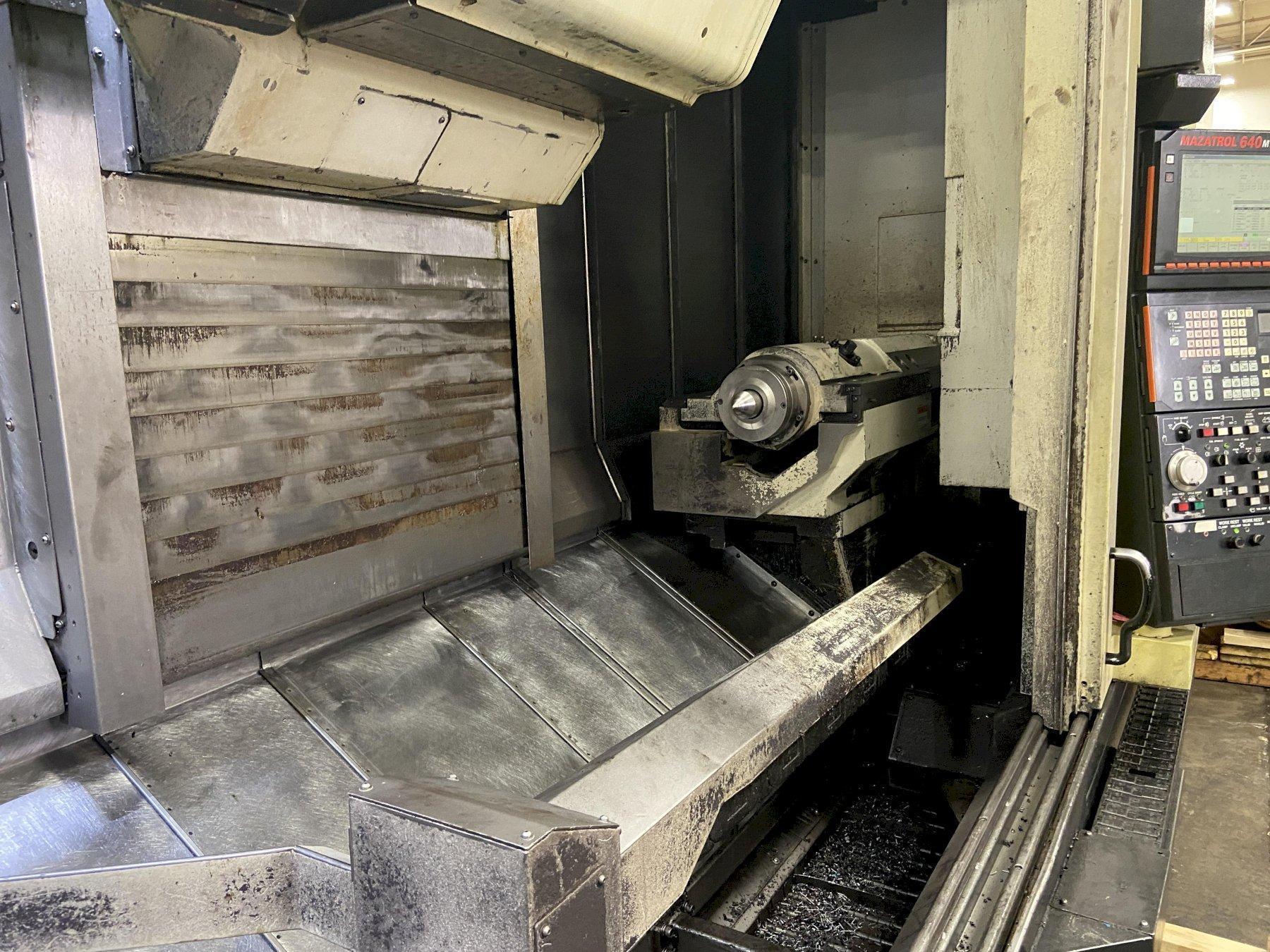

Tailstock (Yes/No)
yes
Dimensions
290" x 143" x 113"
Weight
56,000 pounds

Equipped With:

- 33.4" Front Air Chuck
- 28" Rear Manual Chuck
- Tool Presetter
- Hydraulic Steady Rest (100k Option)
- Concept Chip Conveyor with filtration (49K Option)
- (2) Live Milling Holders
- (2) Boring Bar Holders
- Misc ID/OD Holders
- Long Boring Bar Stocker
- Mazak Variable High Pressure Coolant Unit (1,000 PSI)
- Spindle Chiller
- 0.001° deg C axis
- Live Tooling

The Mazak Cybertech Turn 5500M is an exclusive part of our Lathes (3-Axis or More) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
