YCM NVS102A - Vertical Machining Centers

Share Machine
Specifications Print Specs
Model: NVS102A
Year: 2017
Stock #: BR15903 Sold
Yes
Highlights:

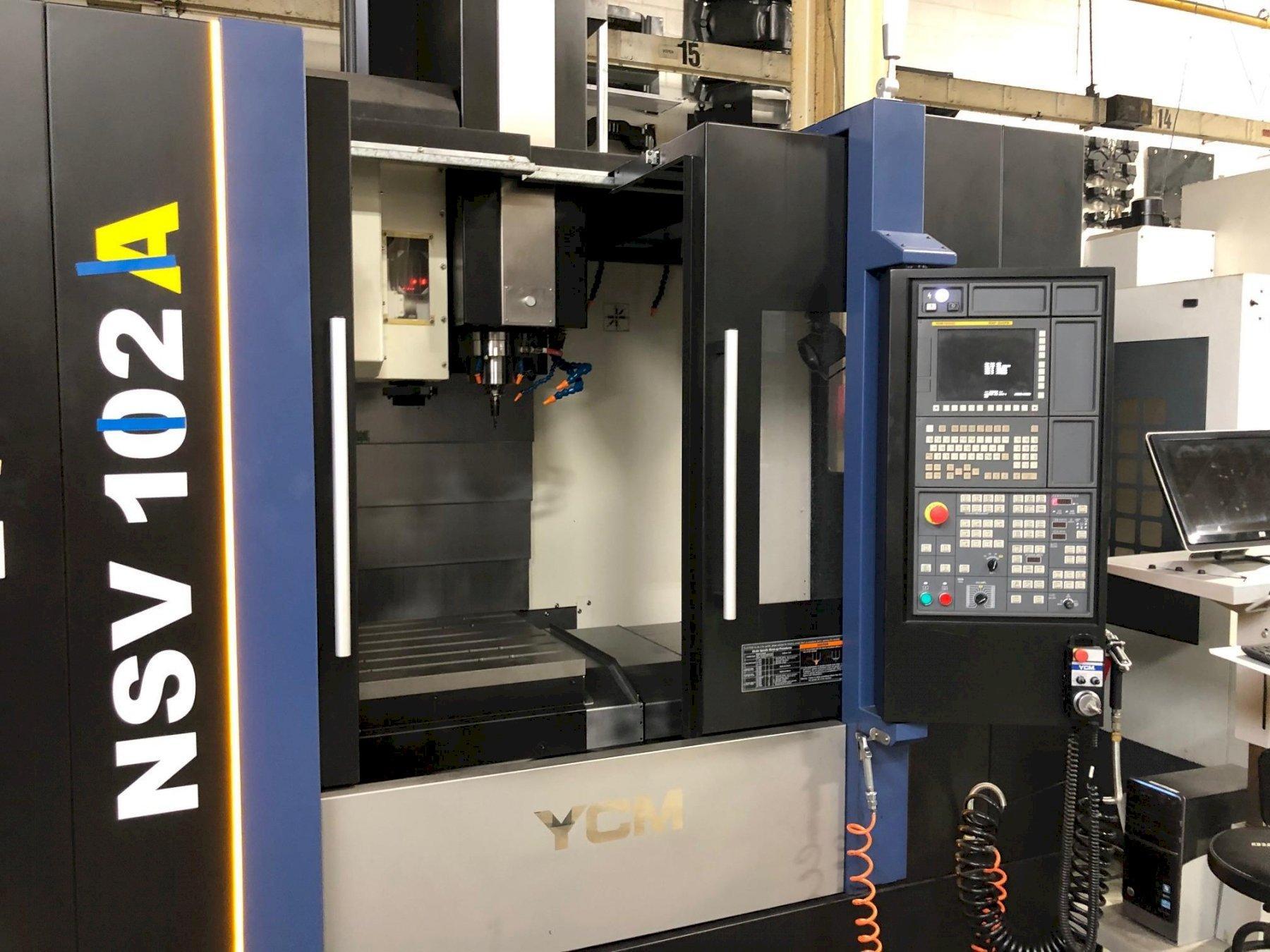

YCM NSV-102A CNC Vertical Machining Center, Fanuc MXB-200FB, 40
Machine Specifications

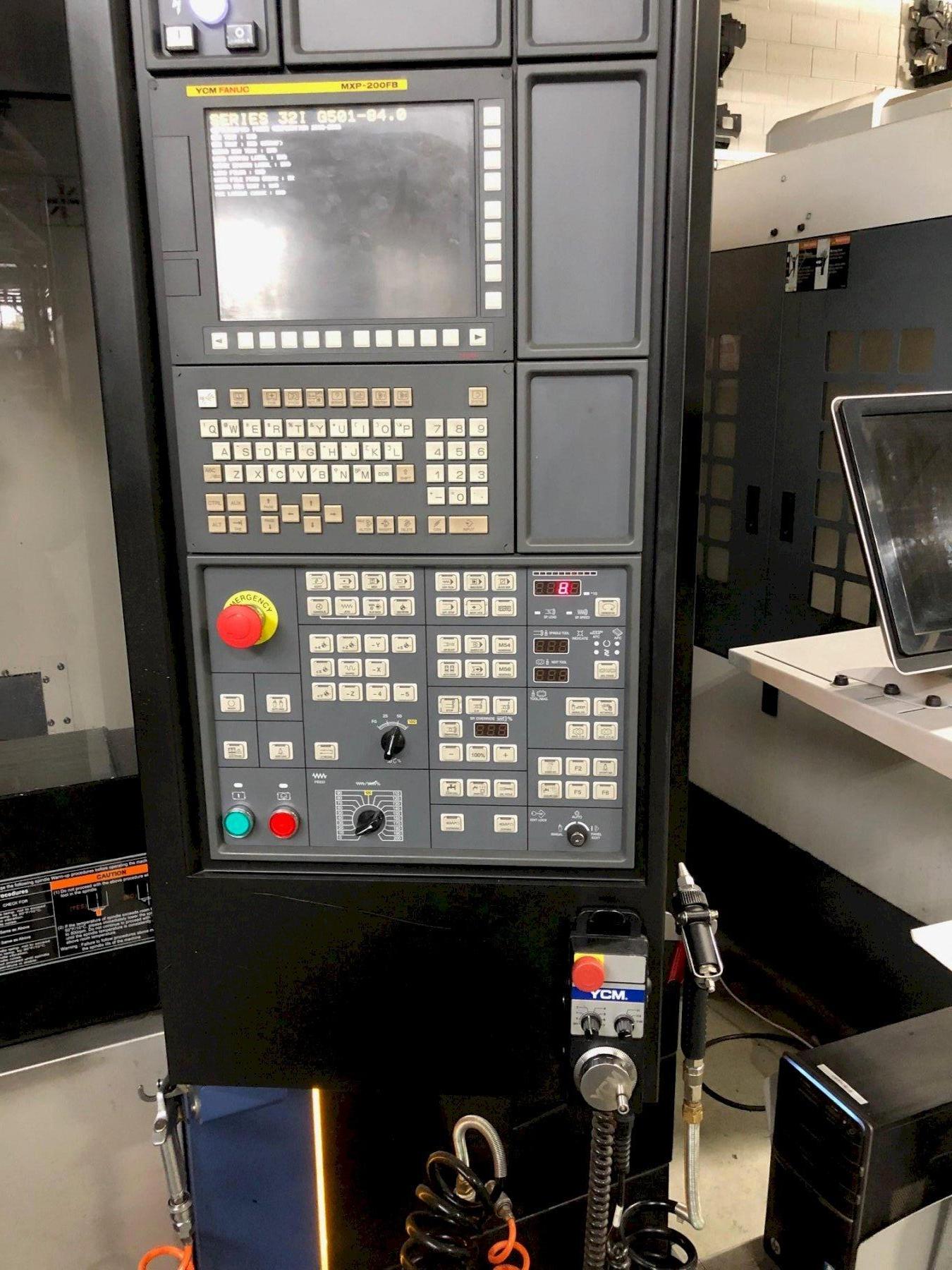

Control Type
MXB-200FB (Fanuc)
# Axis
3
Table Size
25" x 40"
Table Capacity
2,205 pounds
X-Axis Travel
40"
Y-Axis Travel
23"
Z-Axis Travel
23"
Spindle Speed
15,000 RPM
Spindle Taper
BT 40
Tool Changer Capacity
30
X-Axis Feedrate
787 IPM
Y-Axis Feedrate
787 IPM
Z-Axis Feedrate
787 IPM
X-Axis Rapid Traverse Rate
2,362 IPM
Y-Axis Rapid Traverse Rate
2,362 IPM
Z-Axis Rapid Traverse Rate
1,890 IPM
Coolant Thru Spindle
yes
Cutting Hours
1,337

Equipped With:

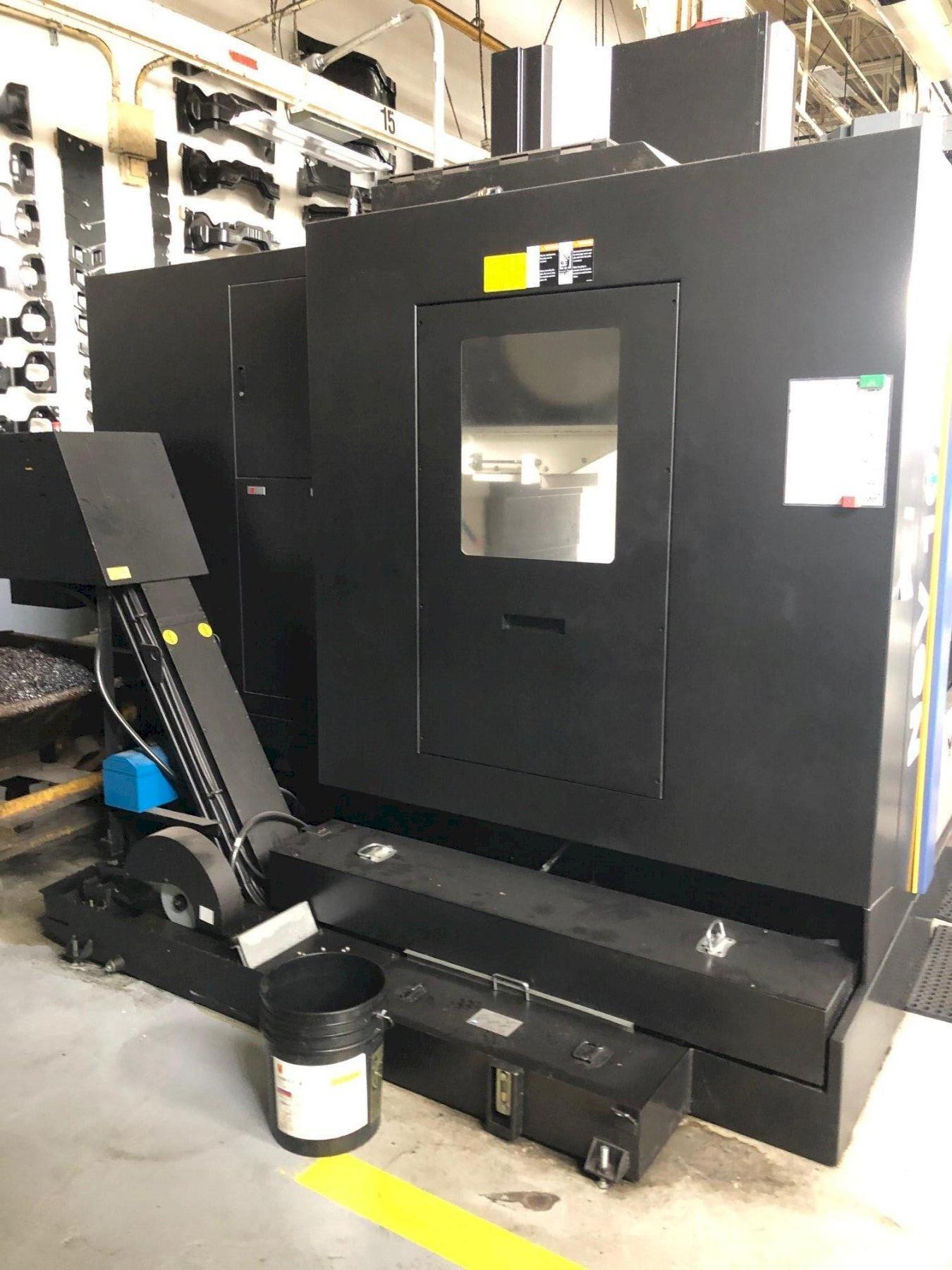

  • Lift-Up Chip Conveyor
  • Wash Down Hose

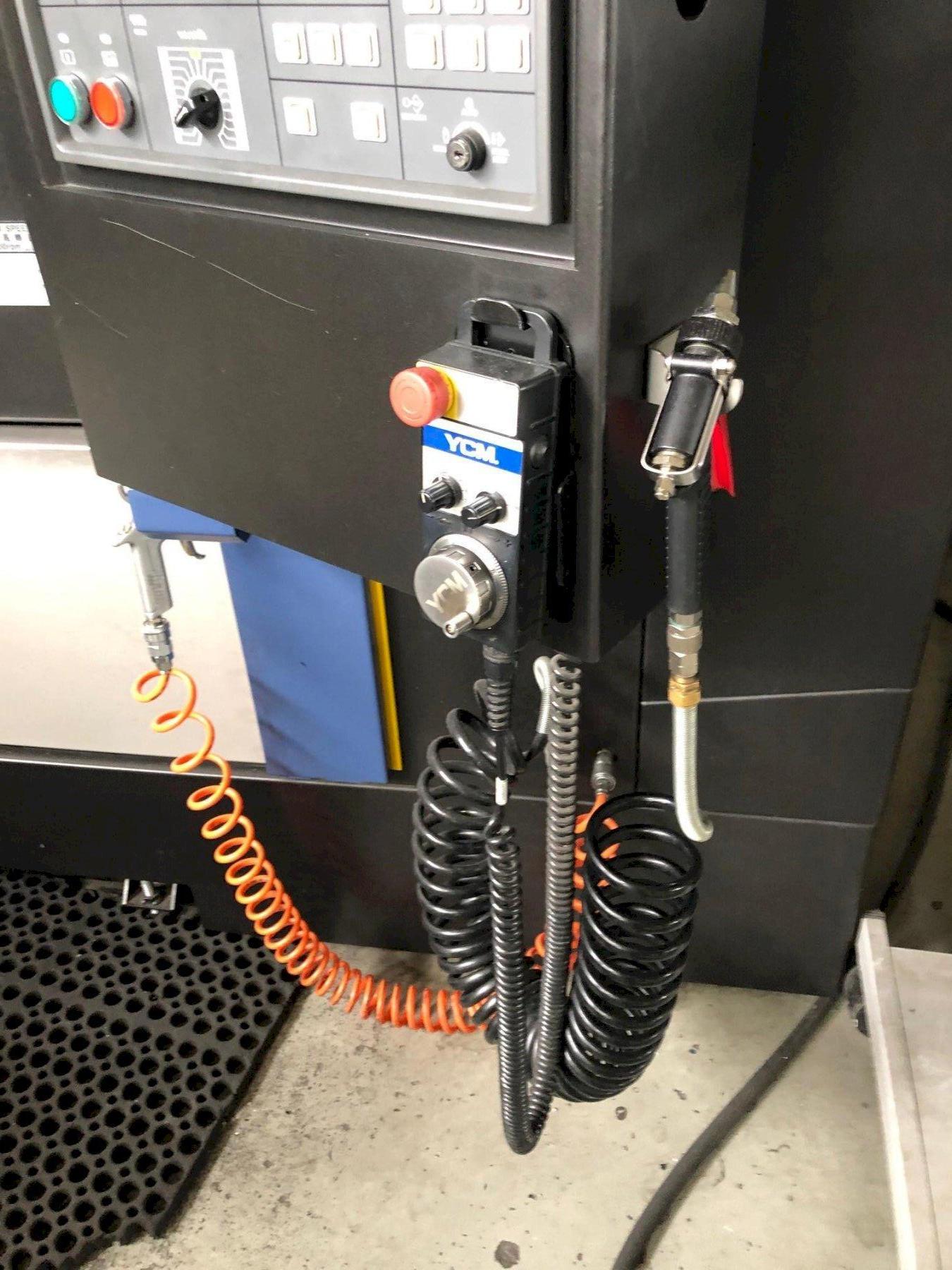

  • Handheld Remote MPG
  • Ethernet
  • Data Server
  • Coolant Thru Spindle
  • Chip Blaster Unit
  • BT-40 Tooling Package Available
  • Manual Guide i

The YCM NVS102A is an exclusive part of our Vertical Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
