YCM NXV1020A - Vertical Machining Centers

Share Machine
Specifications Print Specs
Model: NXV1020A
Year: 2016
Stock #: 4020 Sold
Highlights:

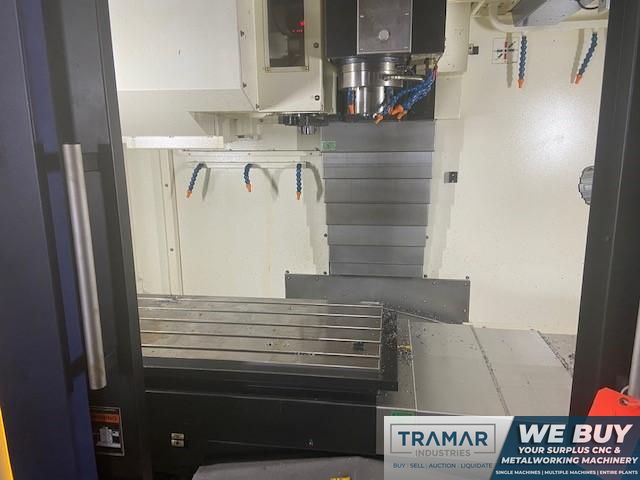

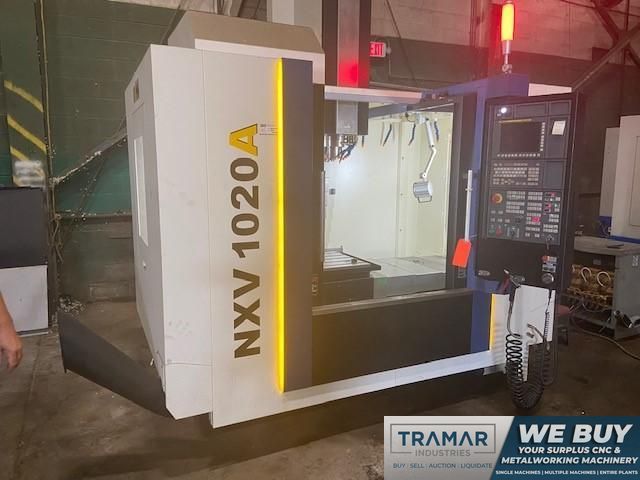

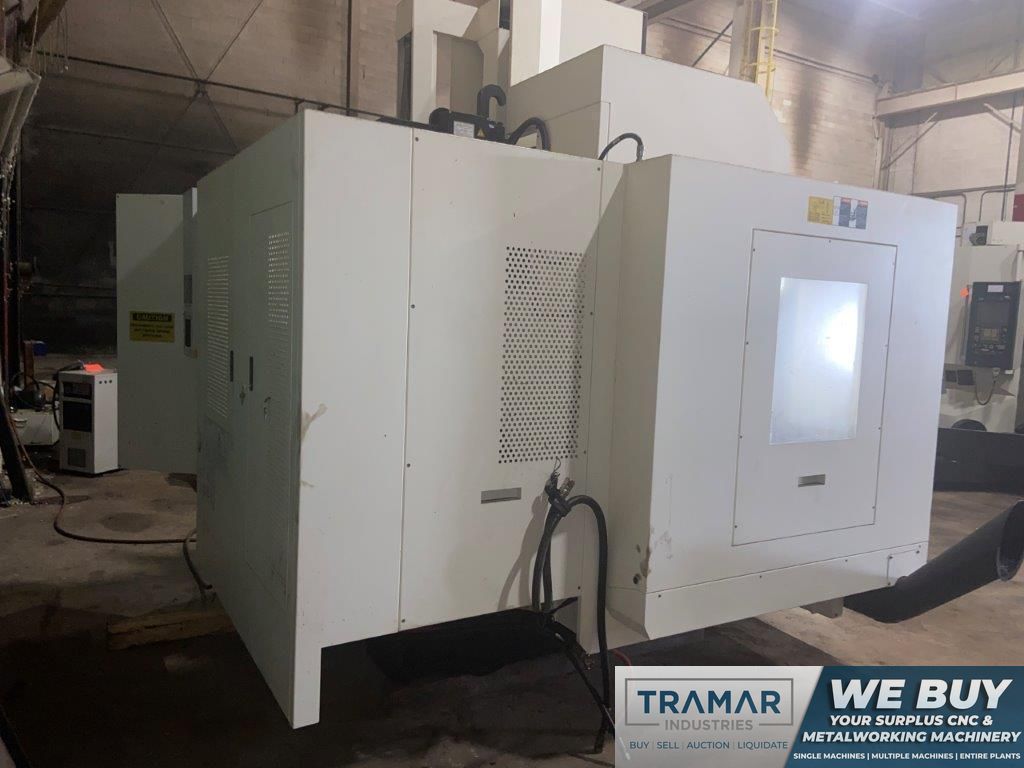

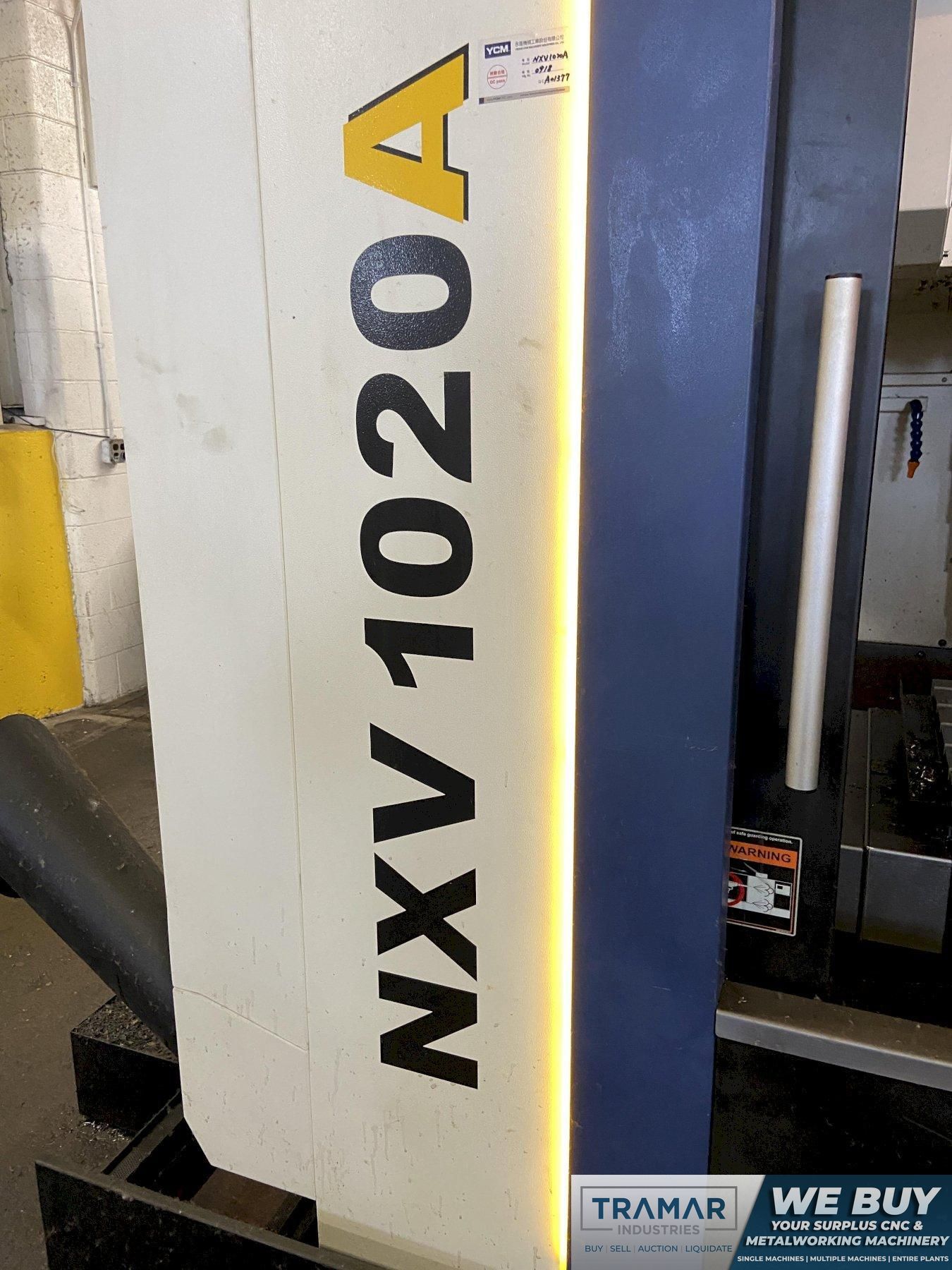

YCM NXV1020A CNC Vertical Machining Center
Machine Specifications

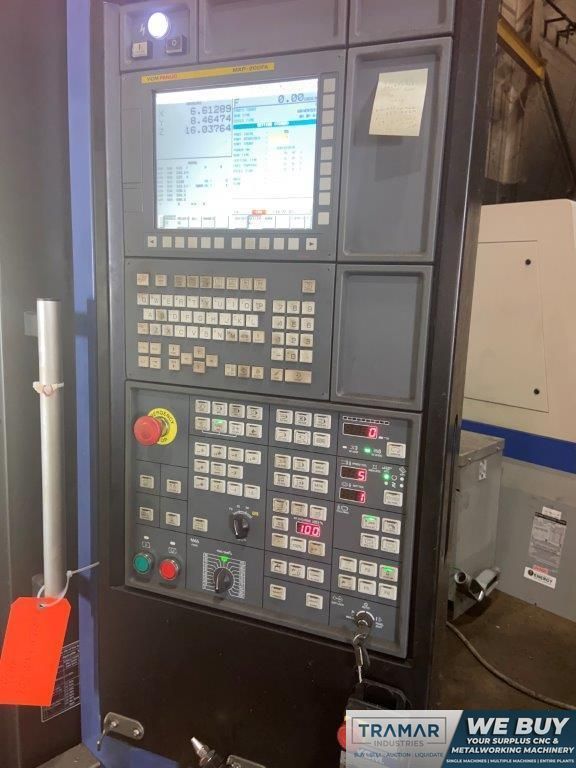

Control Type
Fanuc MXP-200FA
# Axis
3

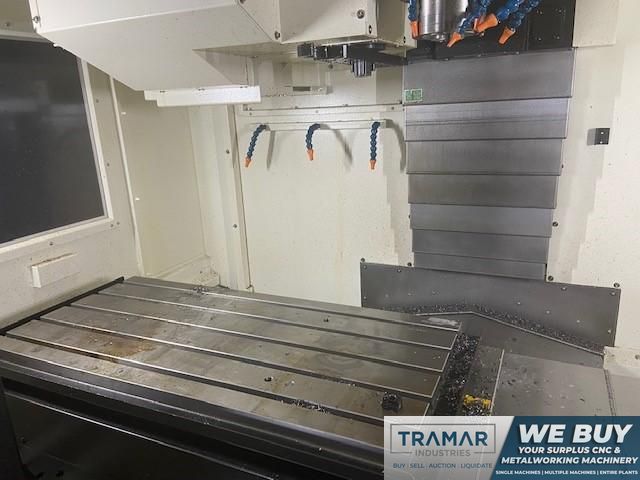

Table Size
20.47" x 44.09"
Table Capacity
1,102 ounces
X-Axis Travel
40.16"
Y-Axis Travel
20.47"
Z-Axis Travel
21.26"
Max Distance Spindle To Table Top
26.77"
Spindle Speed
12,000 RPM
Spindle Taper
CAT 40
Tool Changer Capacity
24
X-Axis Feedrate
787 IPM
Y-Axis Feedrate
787 IPM
Z-Axis Feedrate
787 IPM

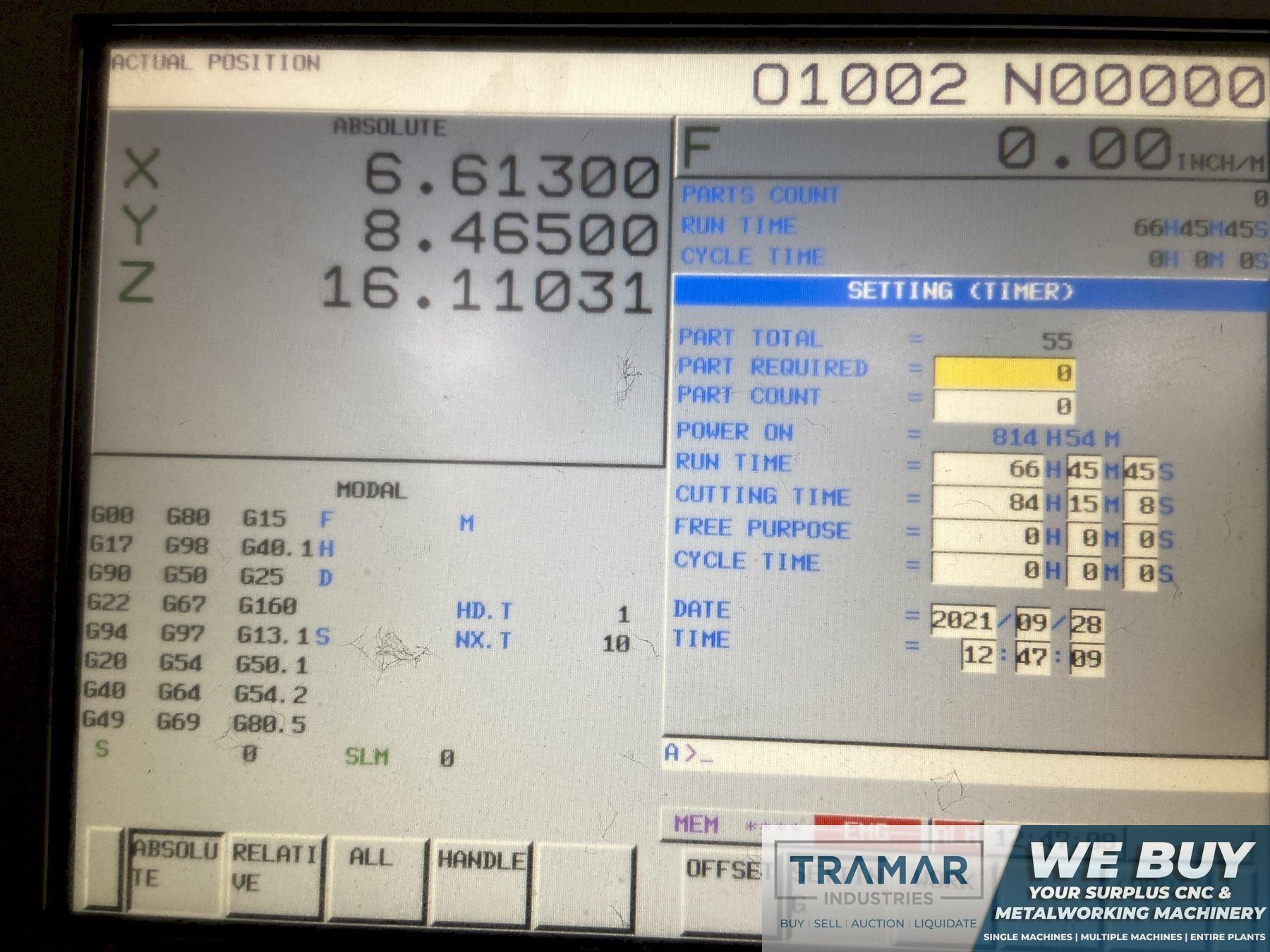

Power-On Hours
814
Cutting Hours
84
Spindle Hours
66
Weight
11,795 ounces

Equipped With:

ChipBlaster D 30-35 High-Pressure Coolant System
Chip Auger
**************Very Low Hours condition Like New ***********

The YCM NXV1020A is an exclusive part of our Vertical Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
