YCM TC-46/3200 - Horizontal Lathes

Request Quote
Share Machine
Specifications Print Specs
Model: TC-46/3200
Year: 2013
Stock #: 13591
Type: Horizontal Lathes
Manufacturer: Used YCM Machines
Highlights:
Fanuc TXP-100FA Control
Hydraulic Steady Rest SMW SLUB-5-ZS
Programmable Tailstock
Conversational Programming
2-Speed Gear Box

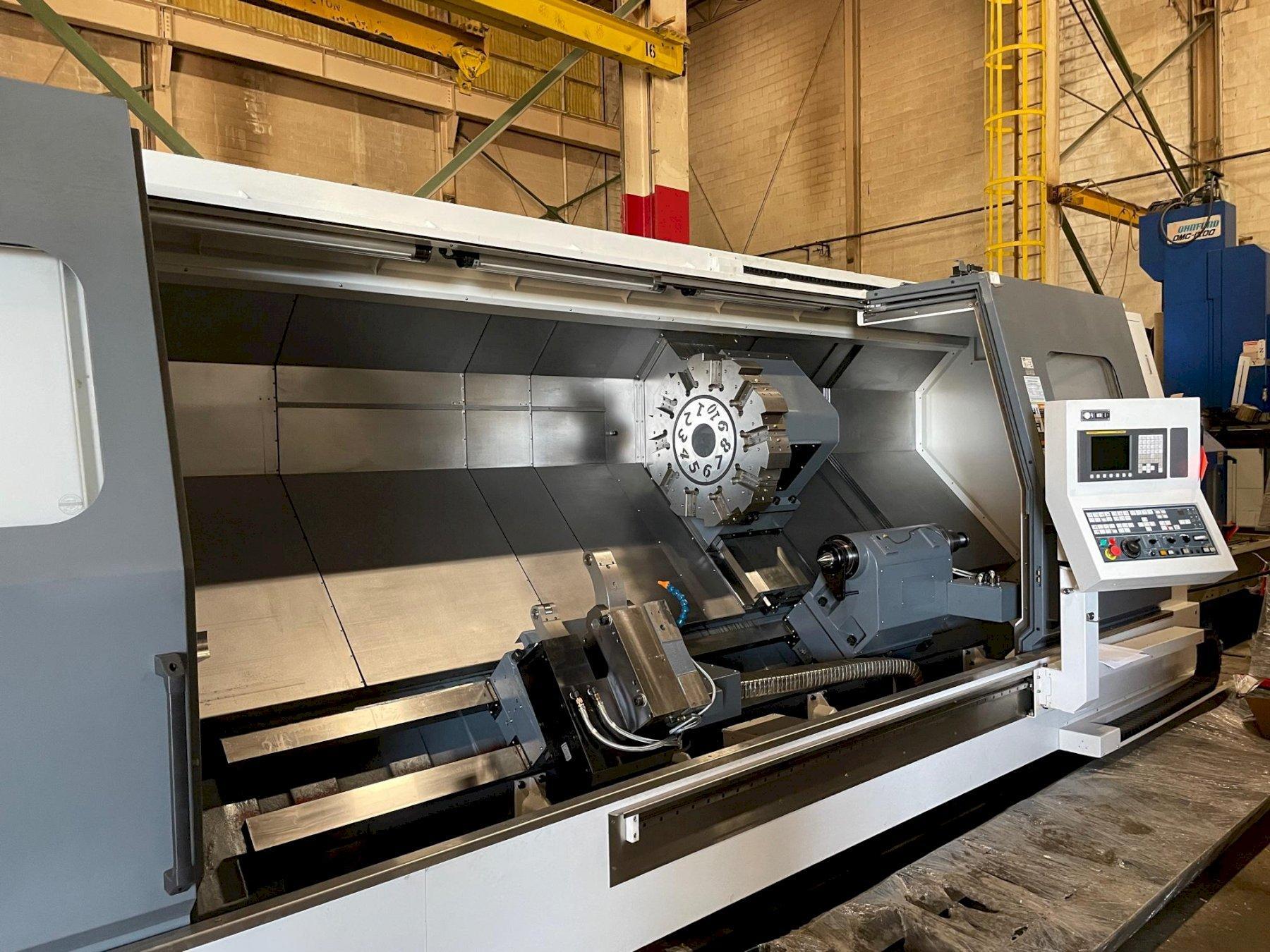

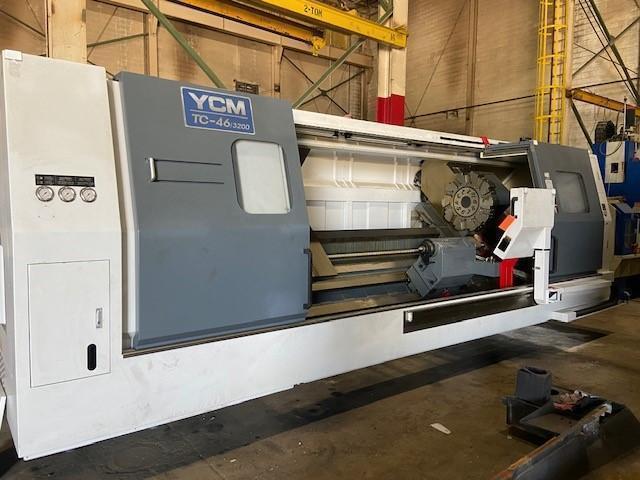

YCM TC-46/3200 CNC Lathe
Machine Specifications
Year
2013
Control Type
Fanuc TXP-100FA
# Axis
2

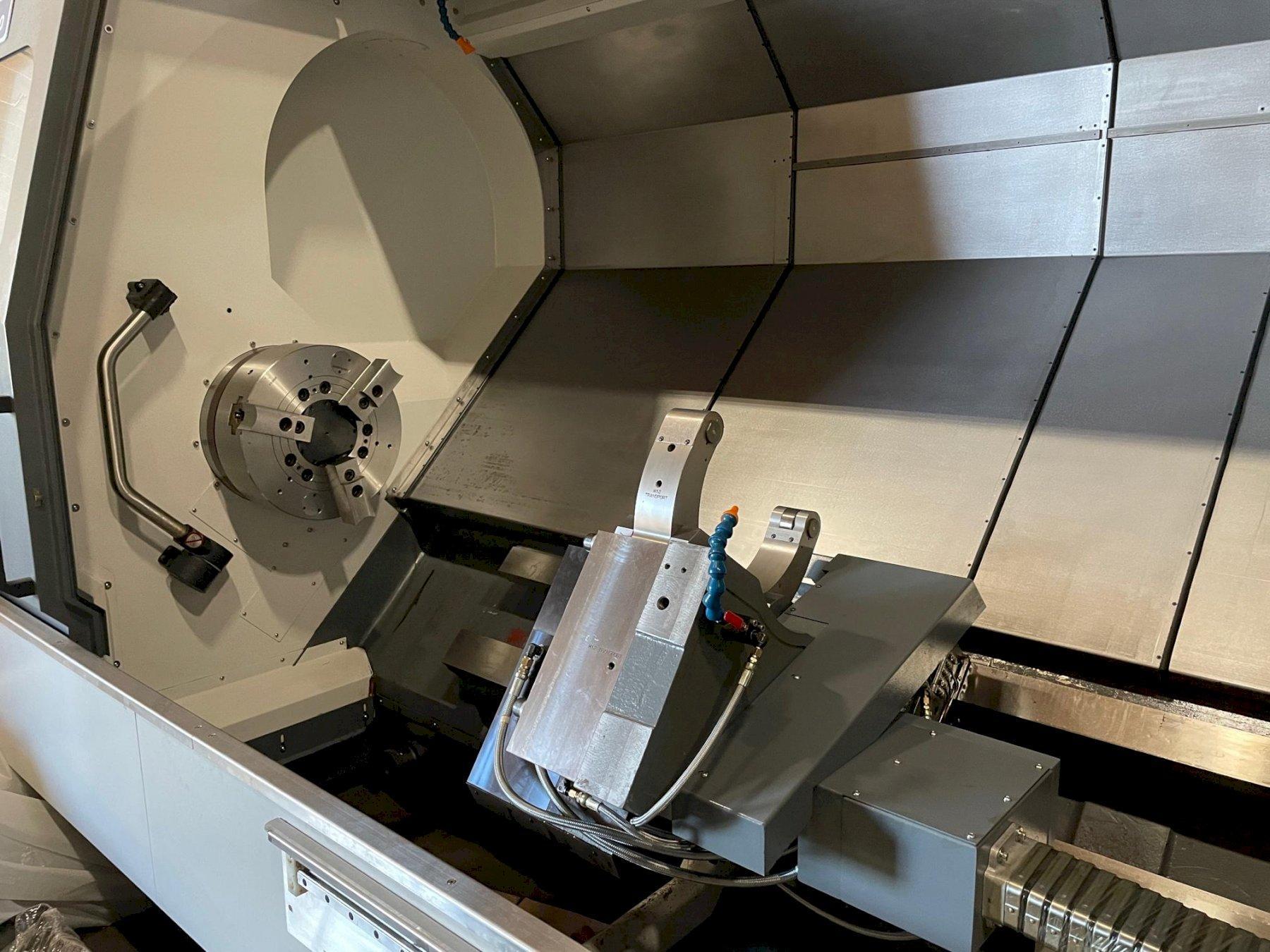

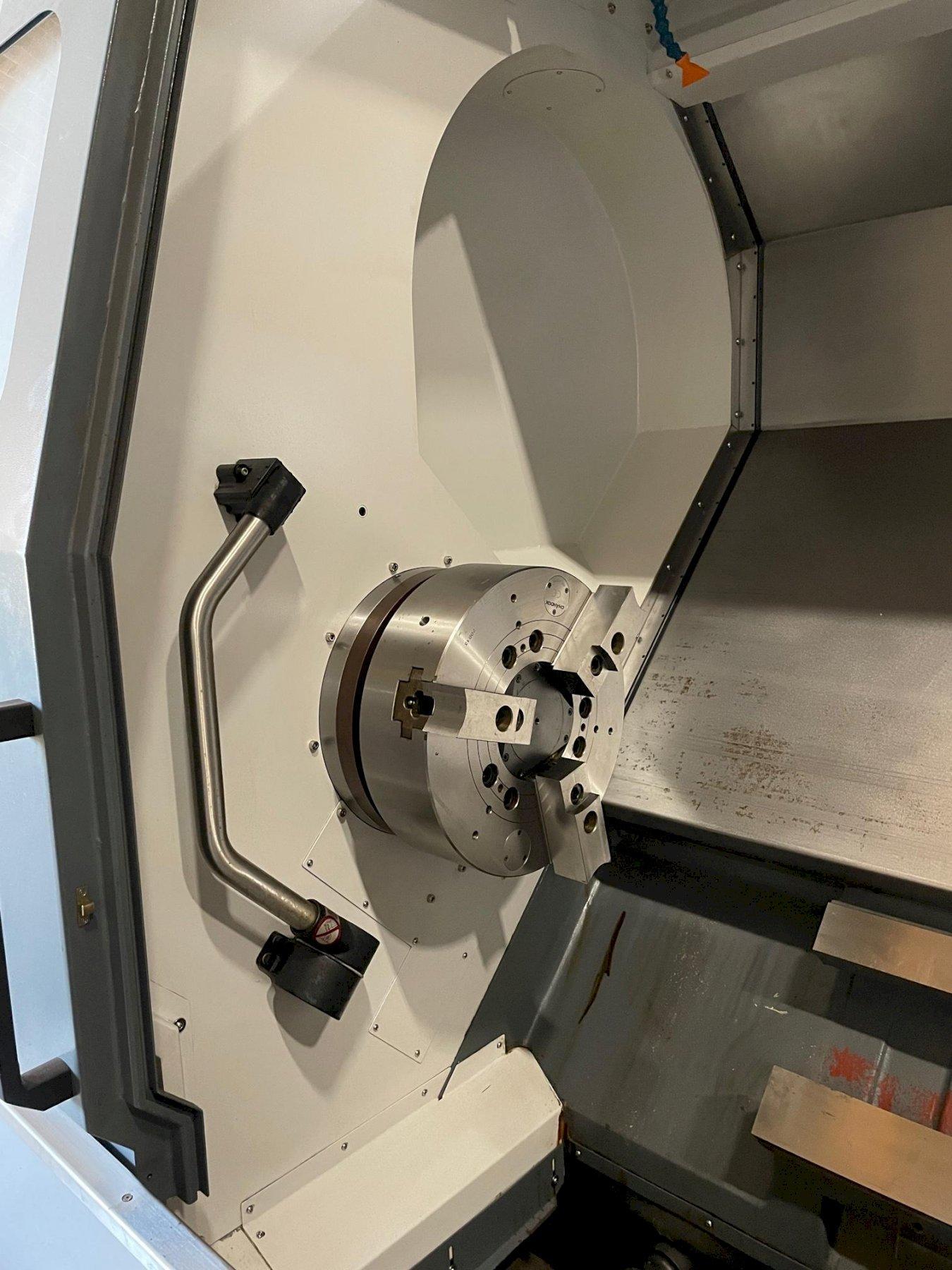

Chuck Size
18"
Swing
33.46"
Turning Diameter
29.53"
Center Distance
134.45"
Bar Capacity
4.6"
X Axis Travel
15.94"
Z Axis Travel
125.98"
X Axis Rapid Feedrate
630 inches-per-minute
Z Axis Rapid Feedrate
709 inches-per-minute
Spindle Nose
A2-15
Spindle Speed
2,000 rpm
Main Motor
50 hp
Turret Capacity
10
Y Axis (Yes / No)
no
Live Milling (Yes / No)
no
Tailstock (Yes/No)
yes
Dimensions
288" x 90"
Weight
32,400 pounds

Equipped With:

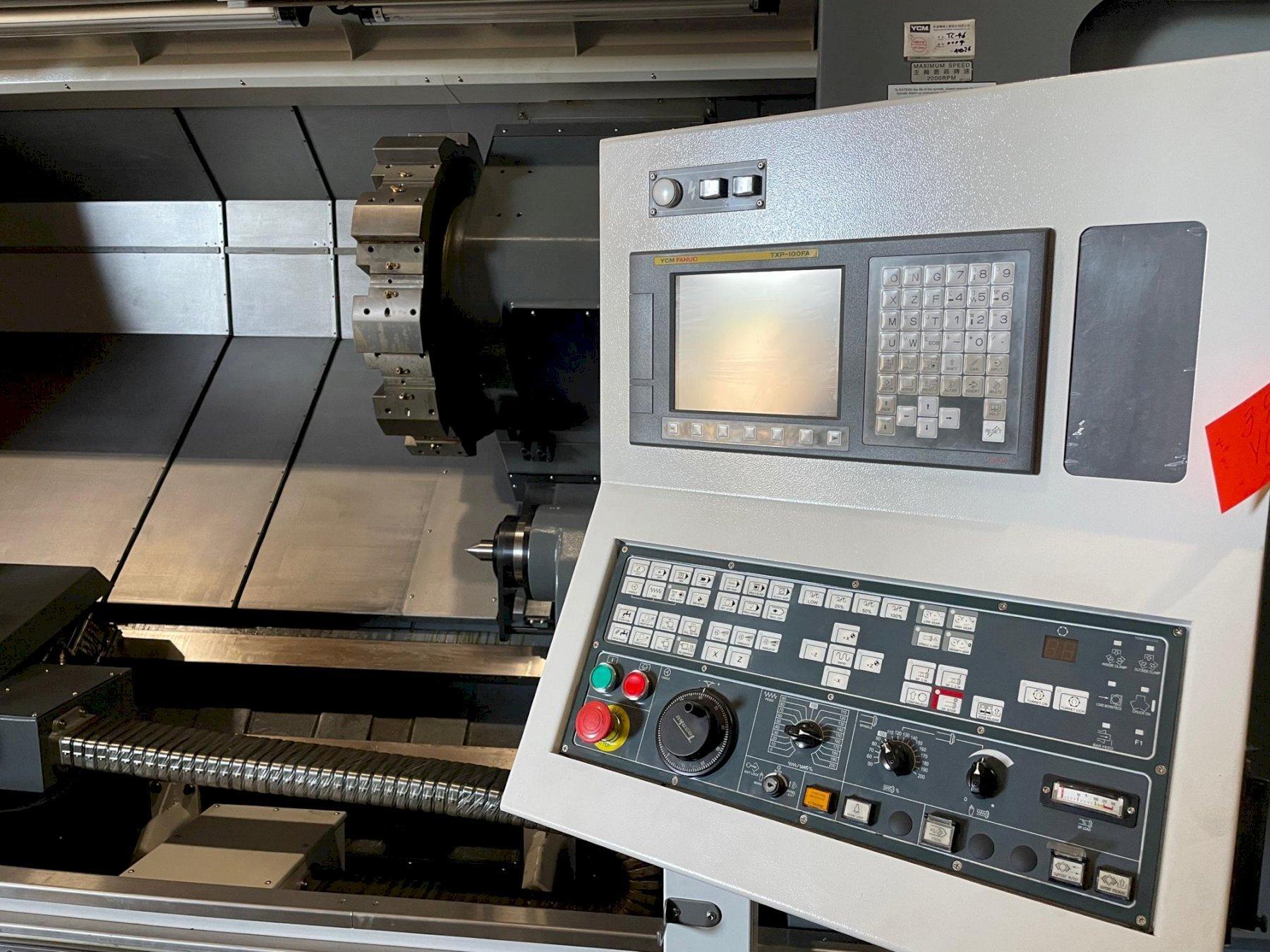

- Fanuc TXP-100FA Control

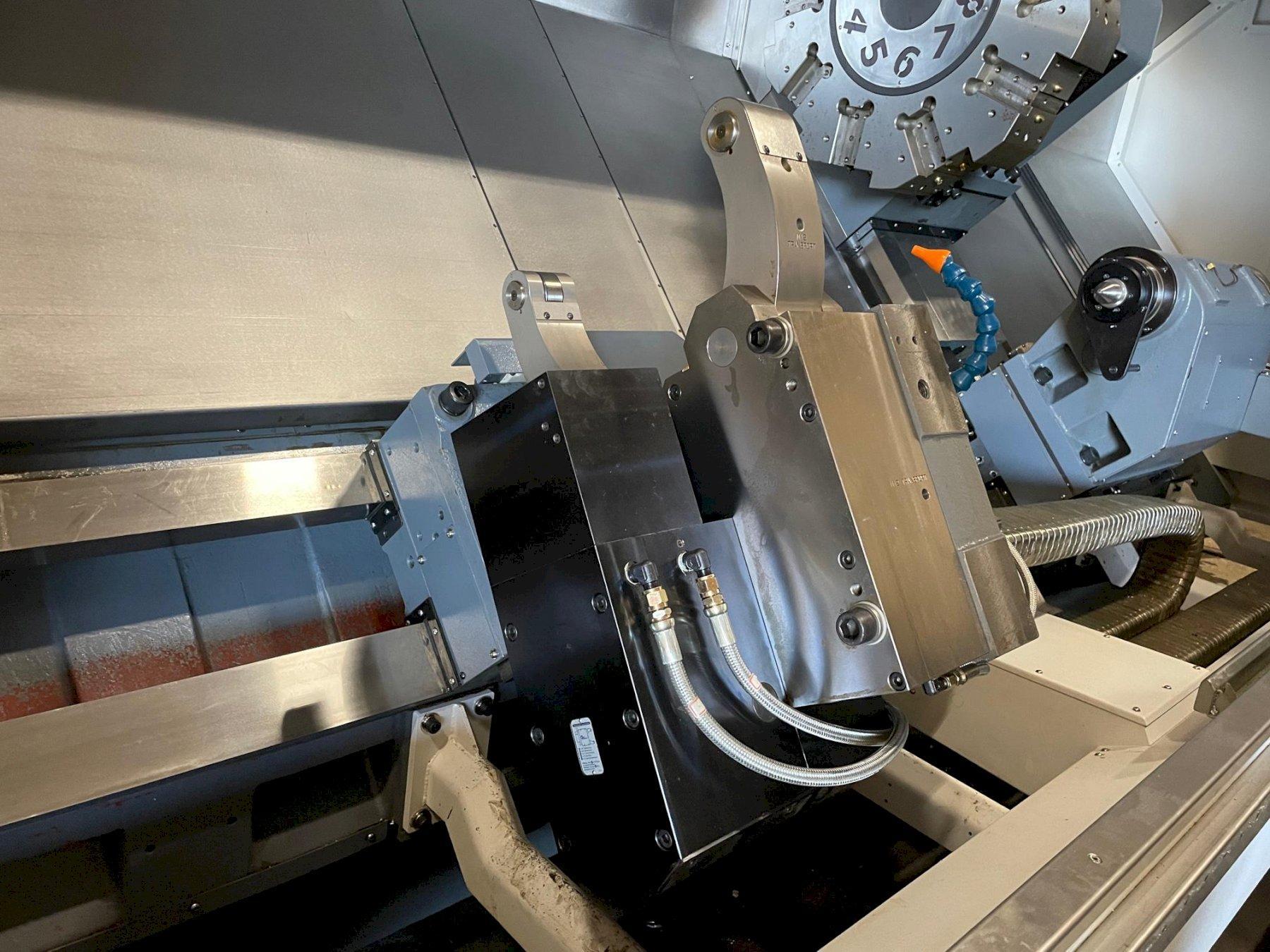

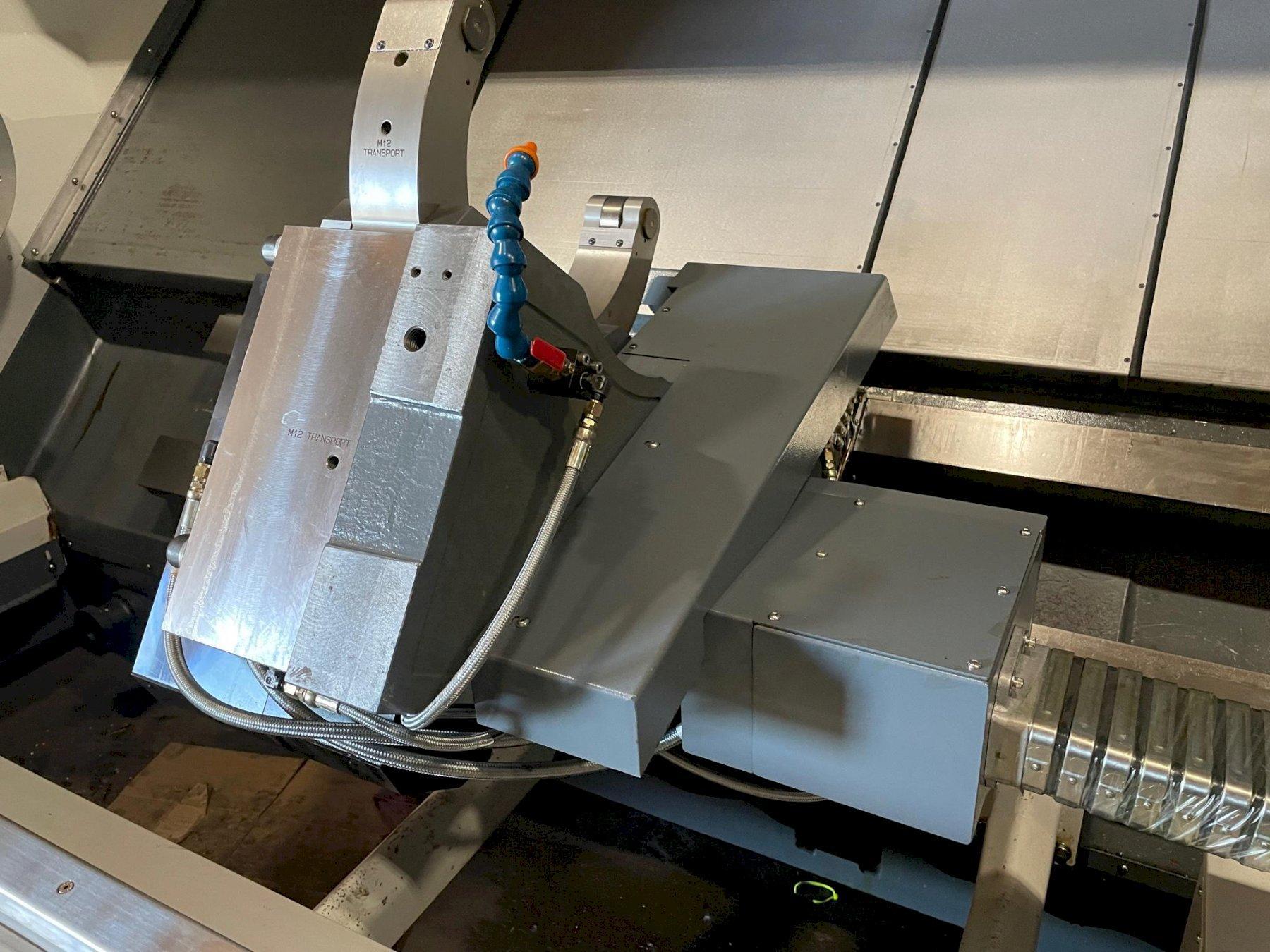

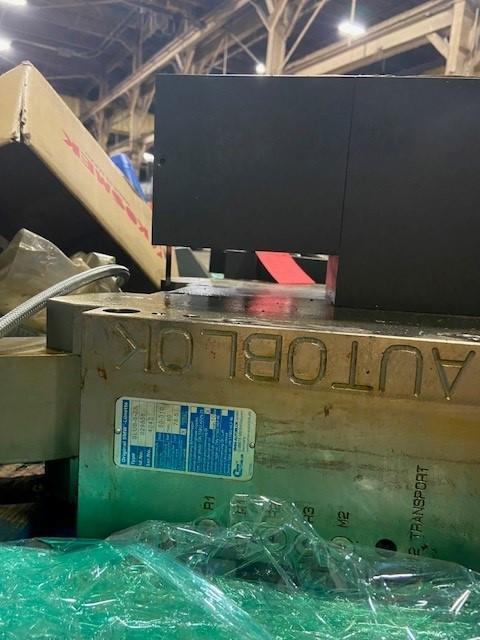

- SMW Programmable Hydraulic Steady Rest  Model SLUB-5ZS
- Chip Conveyor
- Box Ways

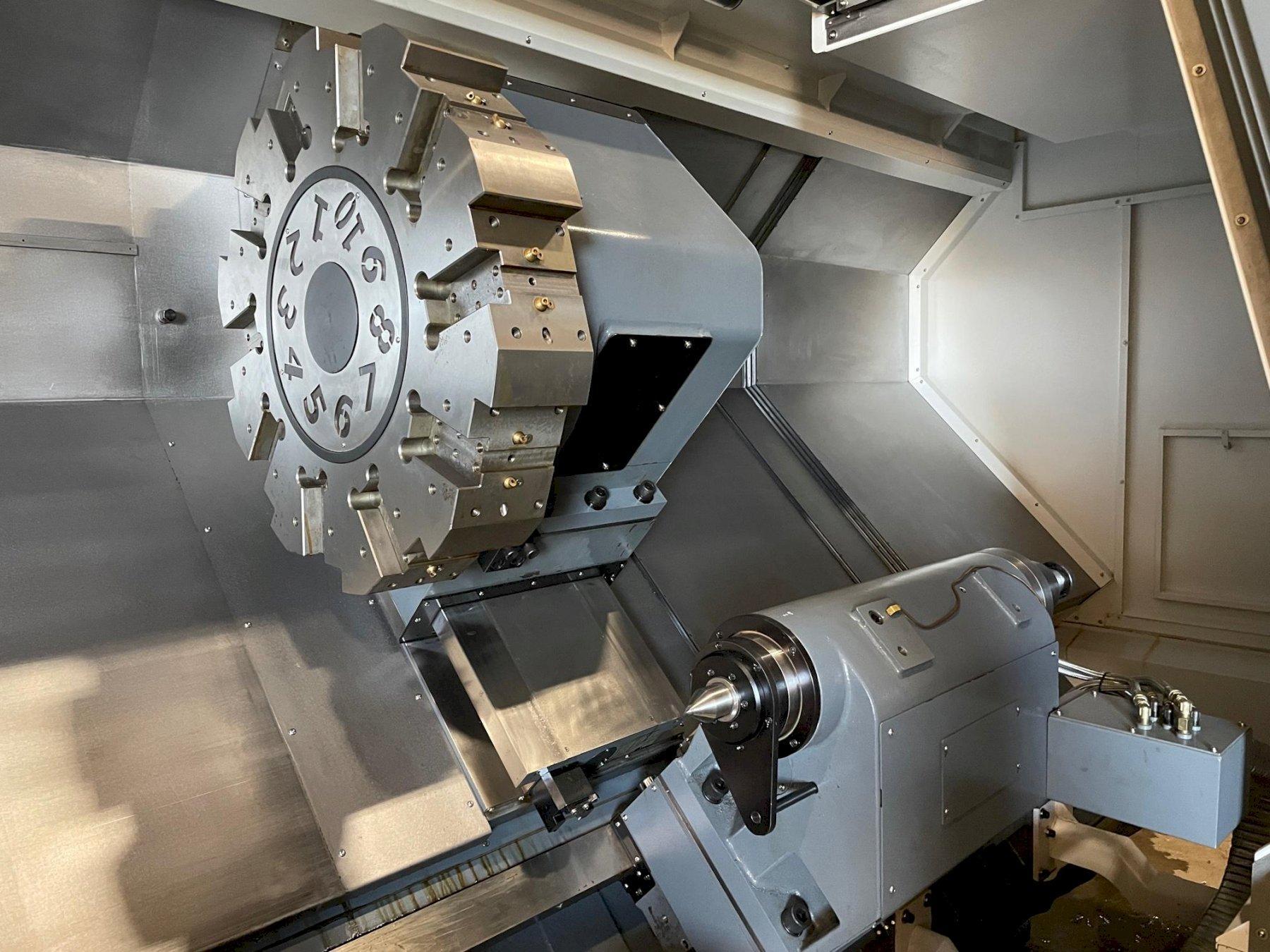

- Programmable Tailstock
- Geared Head 2 Speed Gearbox
- Tool Probe
- Auto Tool Length Measurement
- Manual Guide i (Conversational Programming)
- Dynamic Graphic Display
- Macro B & Skip Function

*** Machine is New, Never Been Used ***

The YCM TC-46/3200 is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
