Model: TV-116B
Year: 2013
Stock #: 13926
Highlights:
Fanuc MXP-200FB CNC Control
CAT 50 | 6,000 rpm | 25 hp
24 Station Sidemount ATC

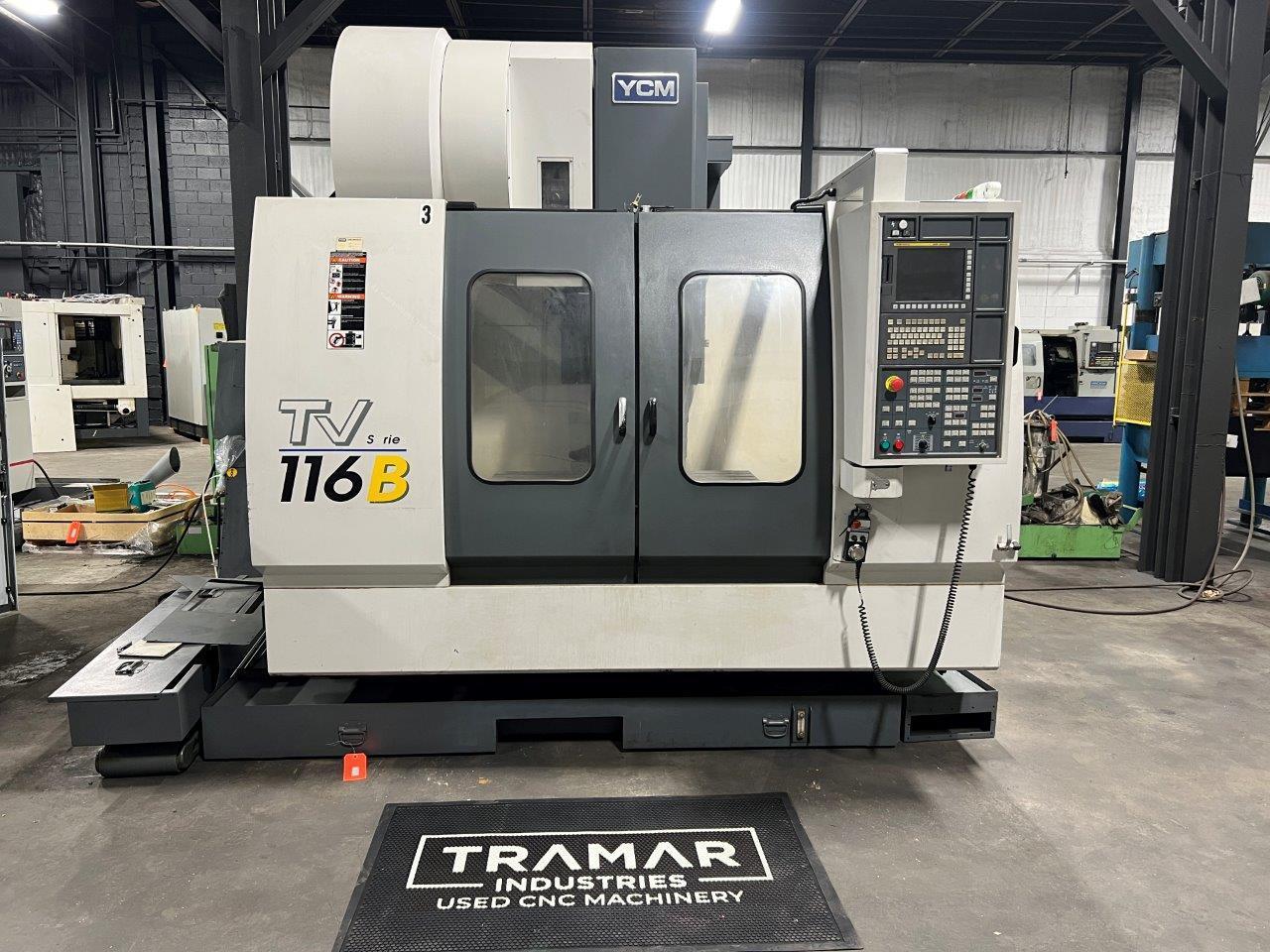

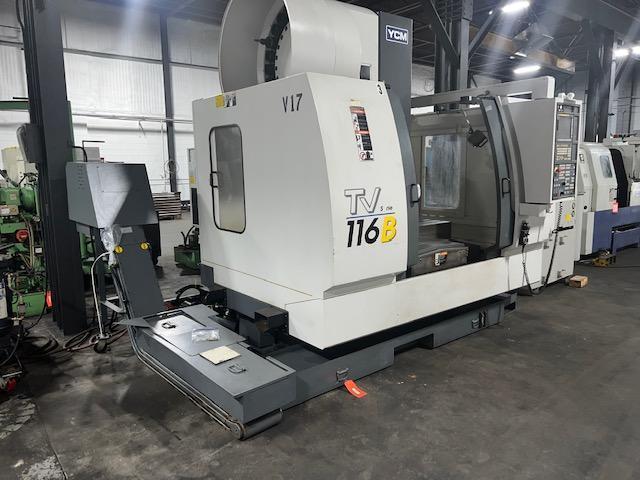

YCM TV-116B CNC Vertical Machining Center For Sale 2013
Machine Specifications
Year
2013
Control Type
Fanuc MXP-200FB
# Axis
3

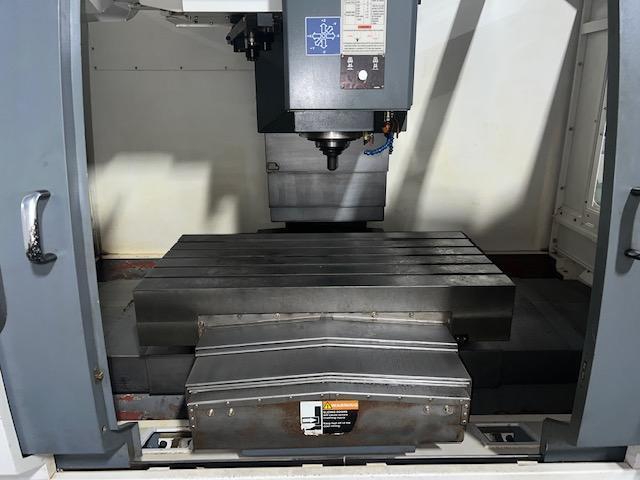

Table Size
47" x 24"
Table Capacity
2,646 pounds
X-Axis Travel
43"
Y-Axis Travel
23.62"
Z-Axis Travel
24.8"
Rapid Traverse Rate (X/Y/Z)
630 ipm
Spindle Taper
CAT 50
Spindle Speed
6,000 rpm
Main Motor
25 hp
Tool Changer Capacity
24
Coolant Thru Spindle
no
Machine Dimensions
137" x 120" x 78"
Machine Weight
25,000 pounds

Equipped With:

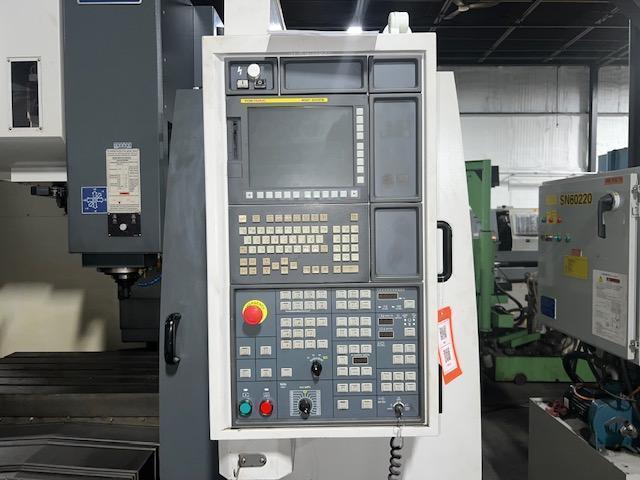

- Fanuc MXP-200FB CNC Control
- Coolant Tank & Pump
- Spindle Chiller


Small foot print design. "The long travel of X-axis lies on the top of the base, where the saddle moves along the full stroke; the cross Y-axis saddle supports the work table. This design virtually saves 20% ~ 30% of floor space. The T-base rigid structure full stroke support guarantees the most dynamic accuracy."

The YCM TV-116B is an exclusive part of our Vertical Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
