YCM XV-1020A - Vertical Machining Centers

Request Quote
Share Machine
Specifications Print Specs
Model: XV-1020A
Year: 2006
Stock #: 13961
Highlights:

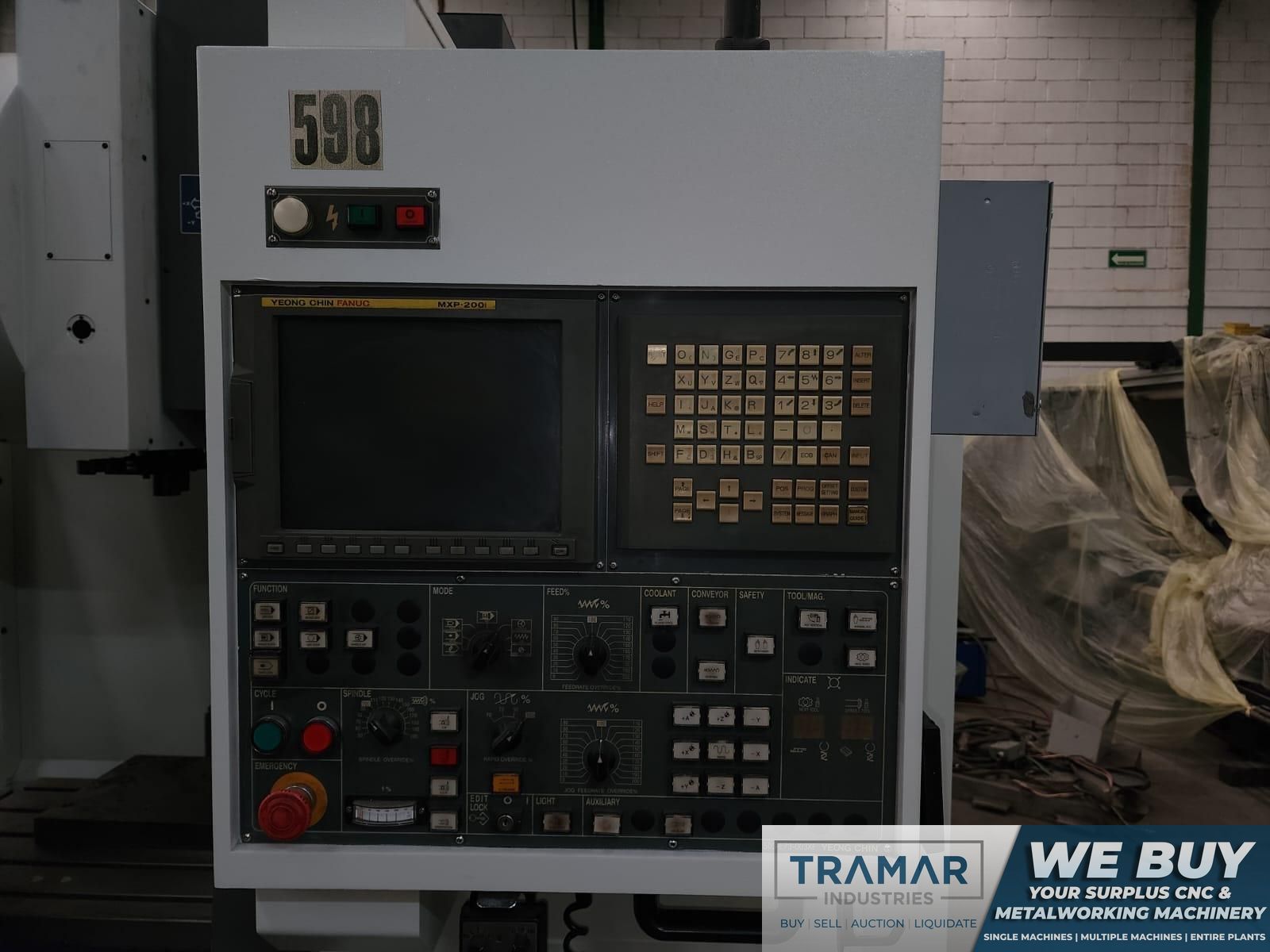

- Fanuc MXP-100i CNC Control

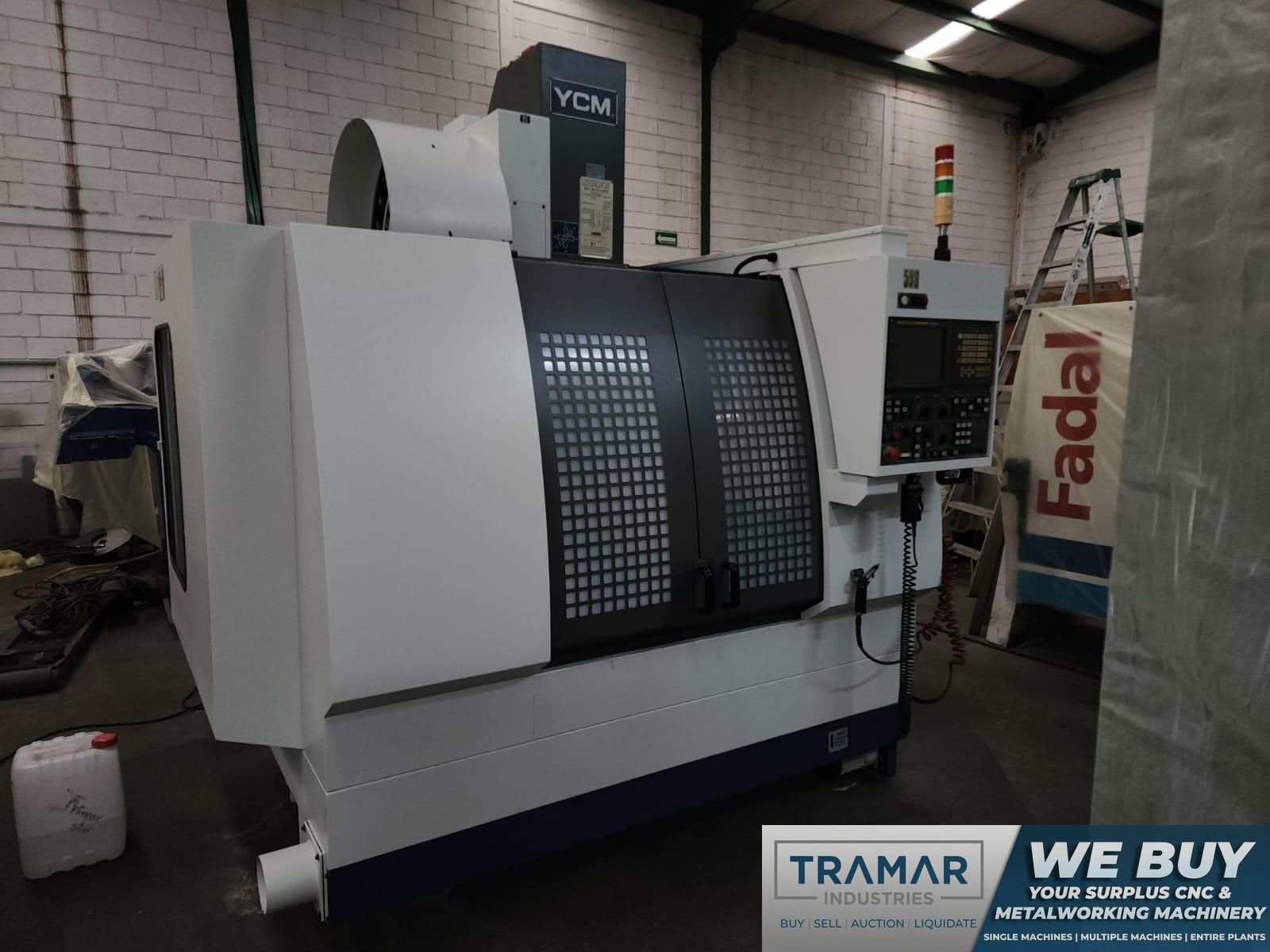

YCM XV-1020A CNC Vertical Machining Center For Sale - 2006
Machine Specifications
Year
2006
Control Type
MXP-100i
# Axis
3
Table Size
44.1" x 20.5"
Table Capacity
1,100 pounds
X-Axis Travel
40.2"
Y-Axis Travel
20.5"
Z-Axis Travel
21.3"
Rapid Traverse Rate (X/Y/Z)
1,417/1,417/945 ipm
Spindle Taper
CAT 40
Spindle Speed
10,000 rpm
Main Motor
15 hp

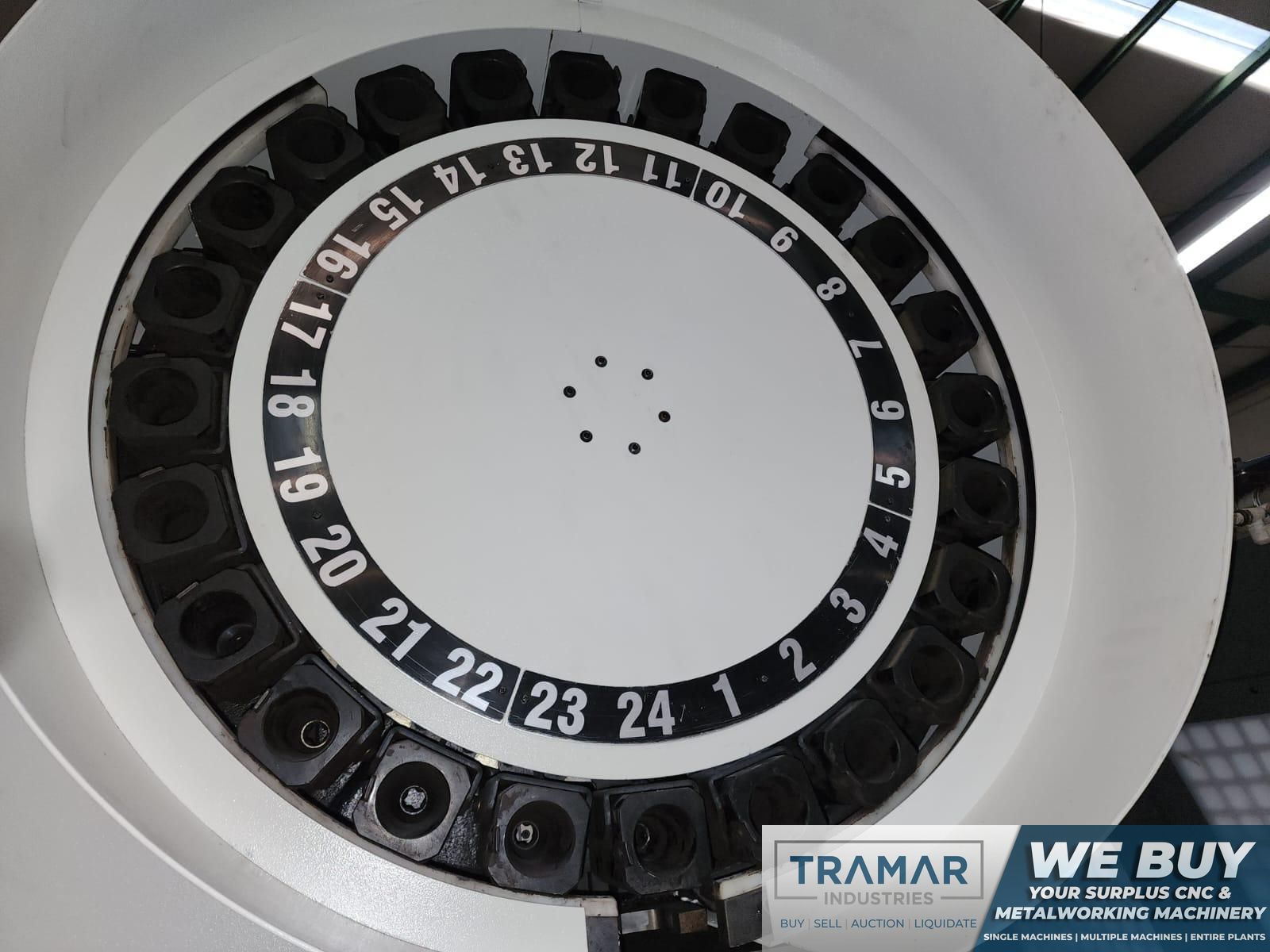

Tool Changer Capacity
24
Machine Dimensions
105" x 120" x 100"
Machine Weight
11,800 pounds

Equipped With:

- Fanuc MXP-100i CNC Control

The YCM XV-1020A is an exclusive part of our Vertical Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
