You Ji VTL1200 ATC-II - Vertical Lathes

Request Quote
Share Machine
Specifications Print Specs

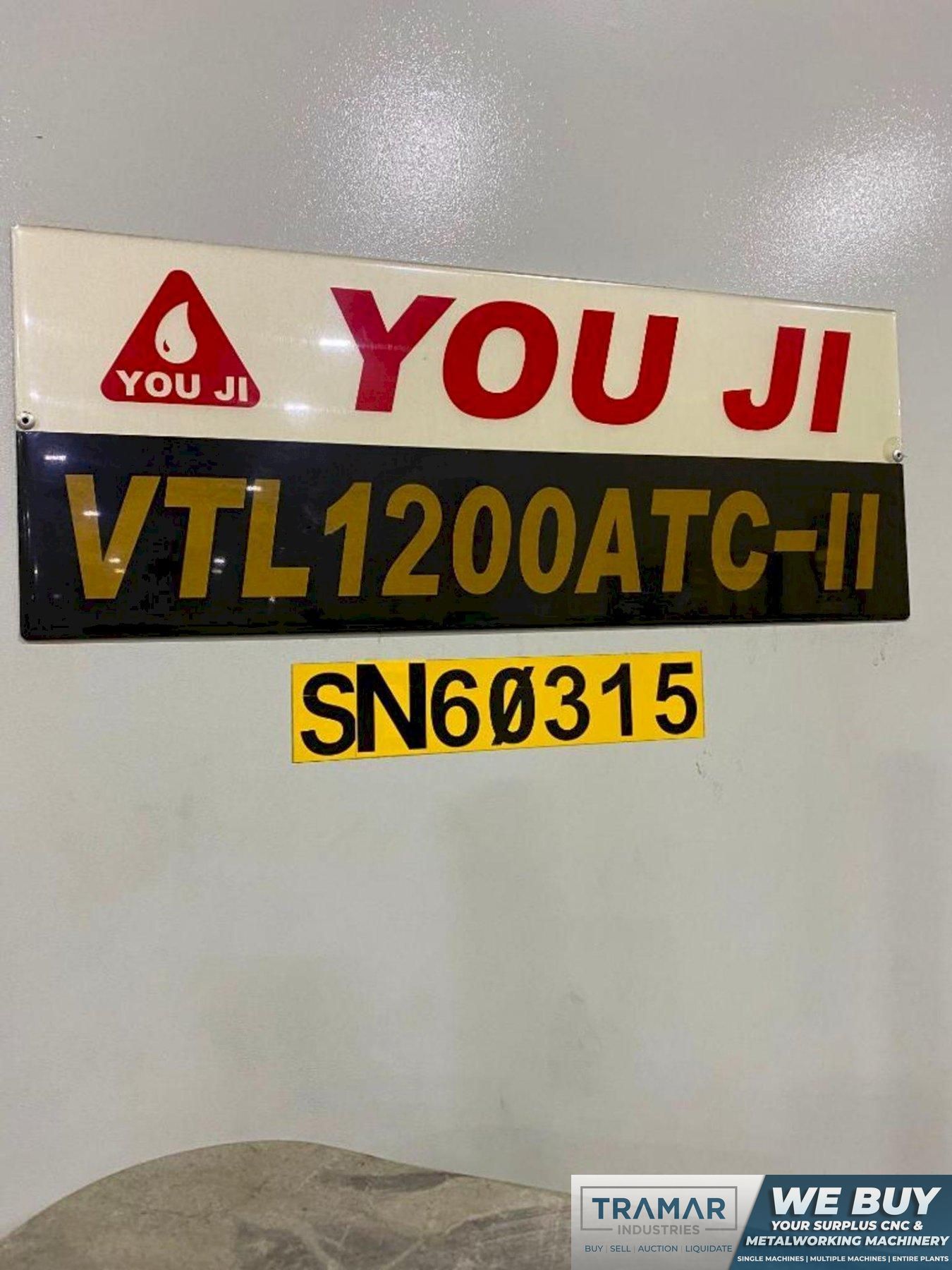

Model: VTL1200 ATC-II
Year: 2012
Stock #: 13698
Highlights:

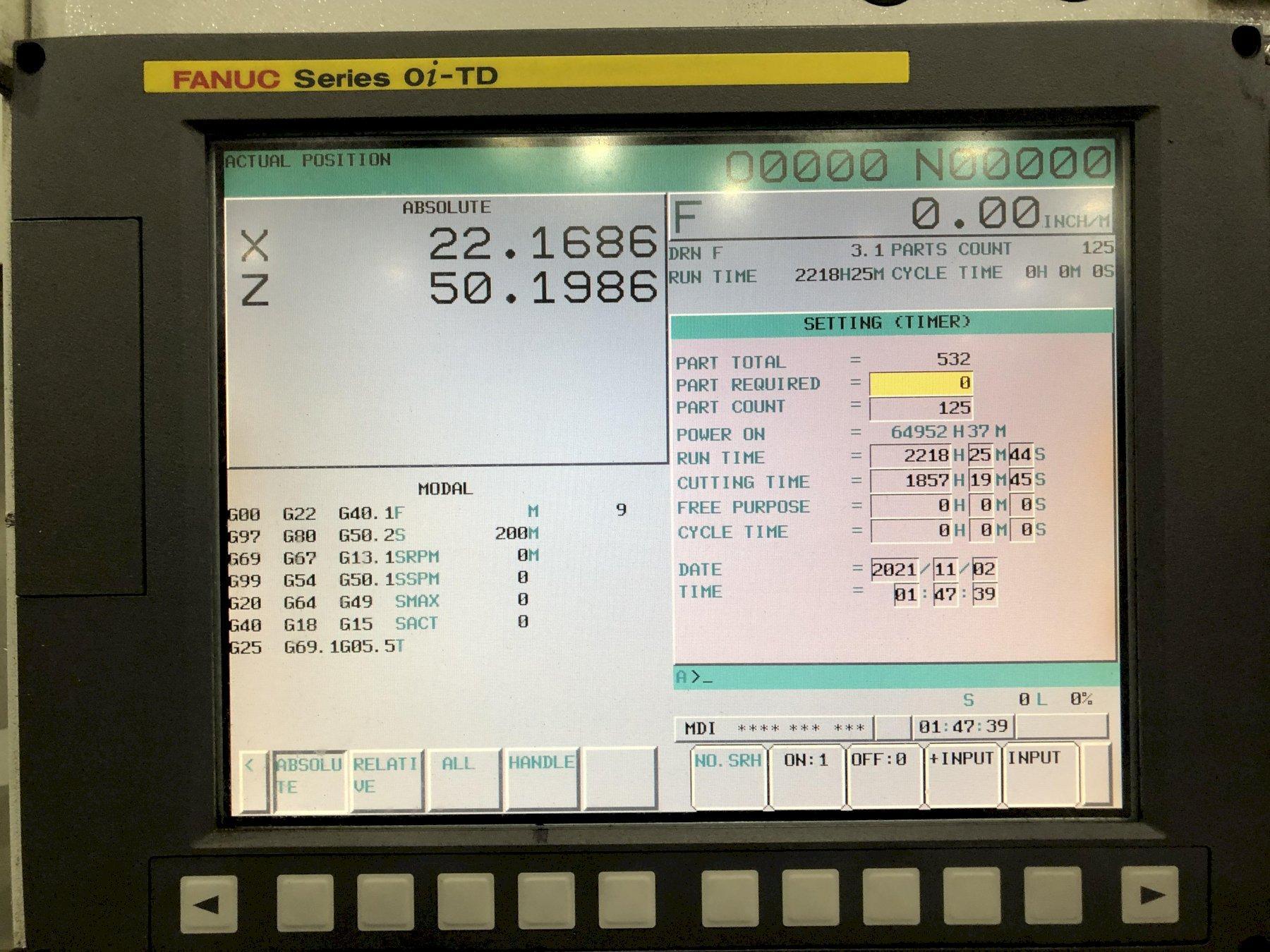

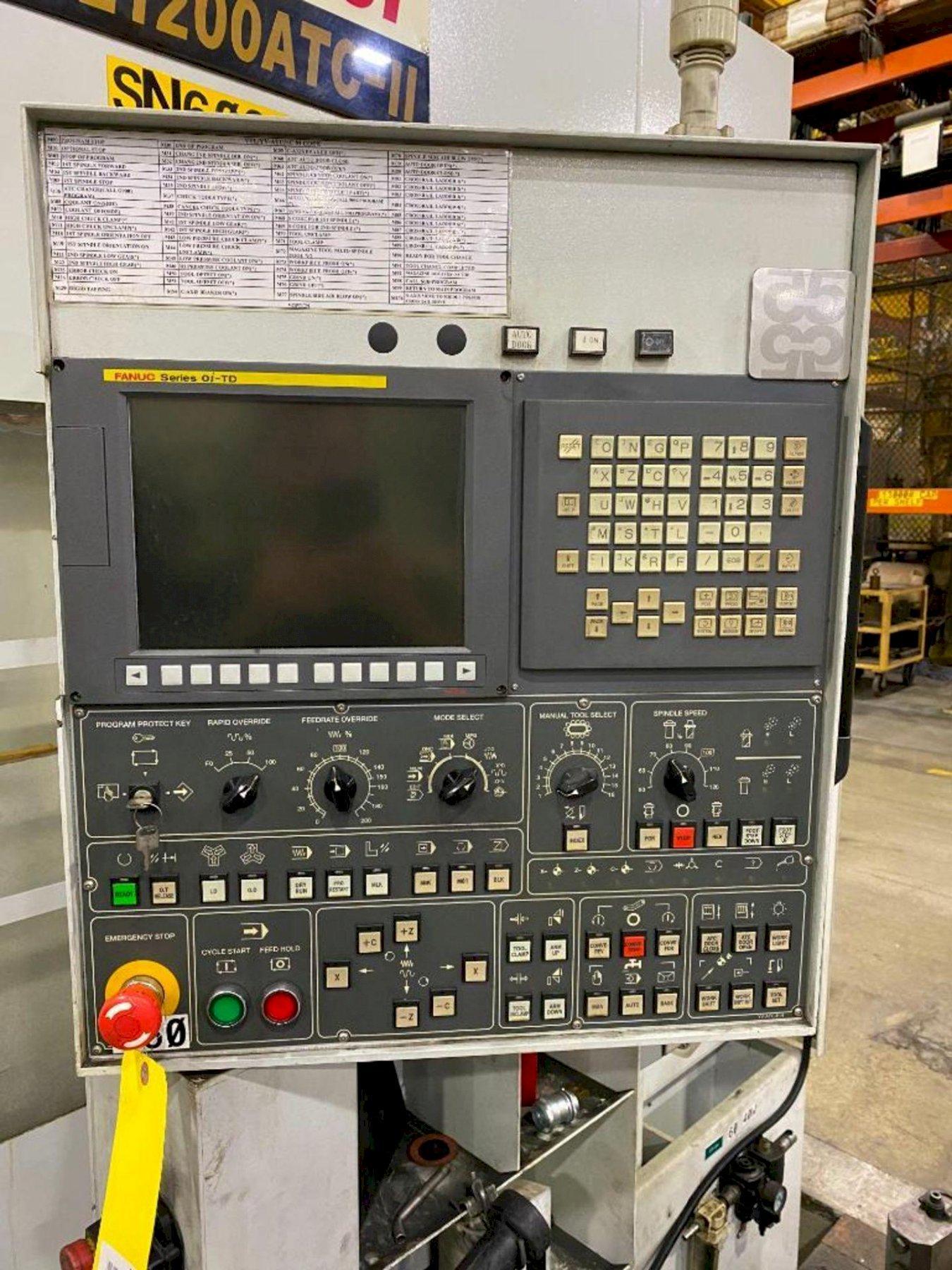

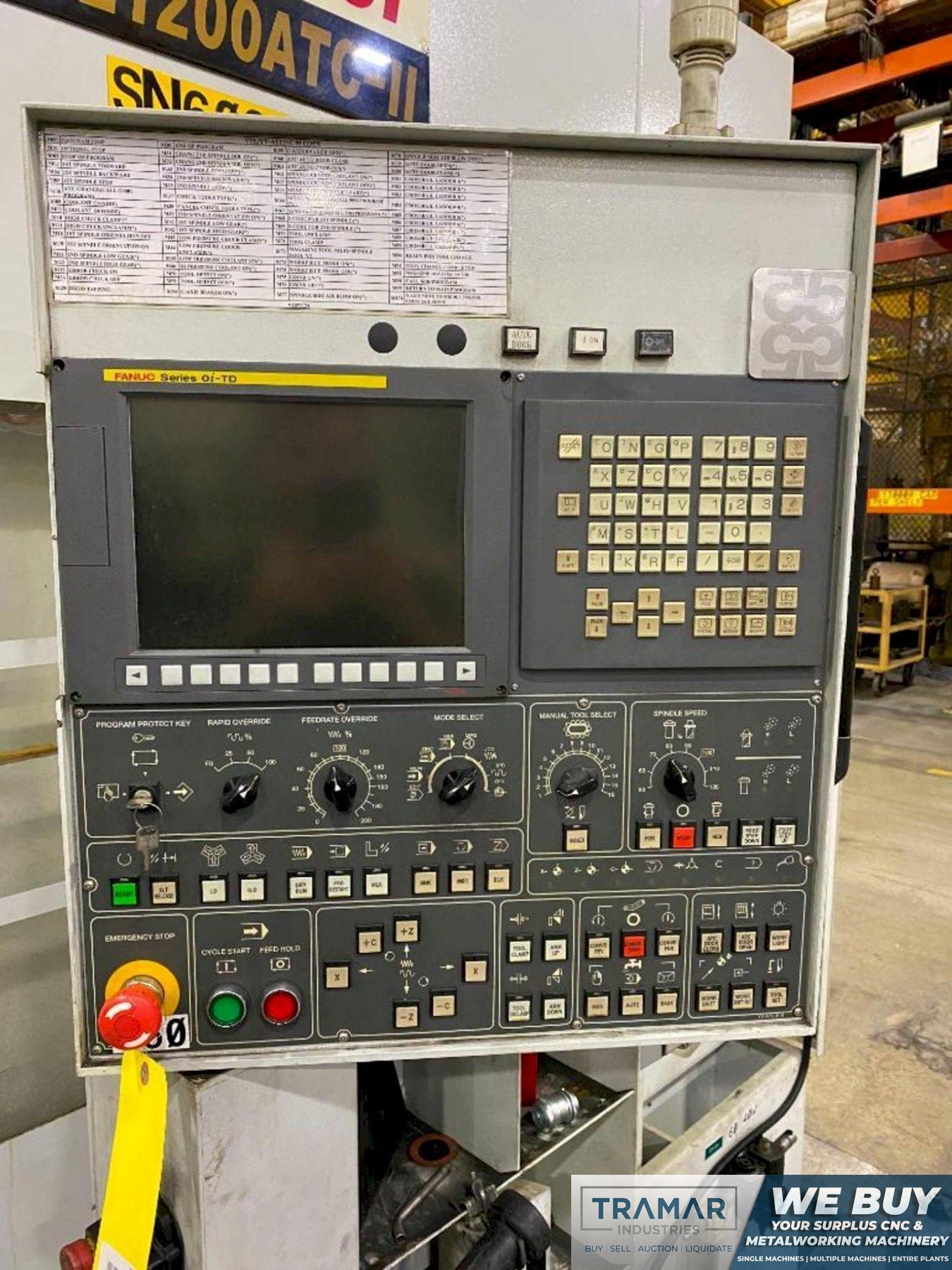

Fanuc 0i-TD Control
Swing: 63"

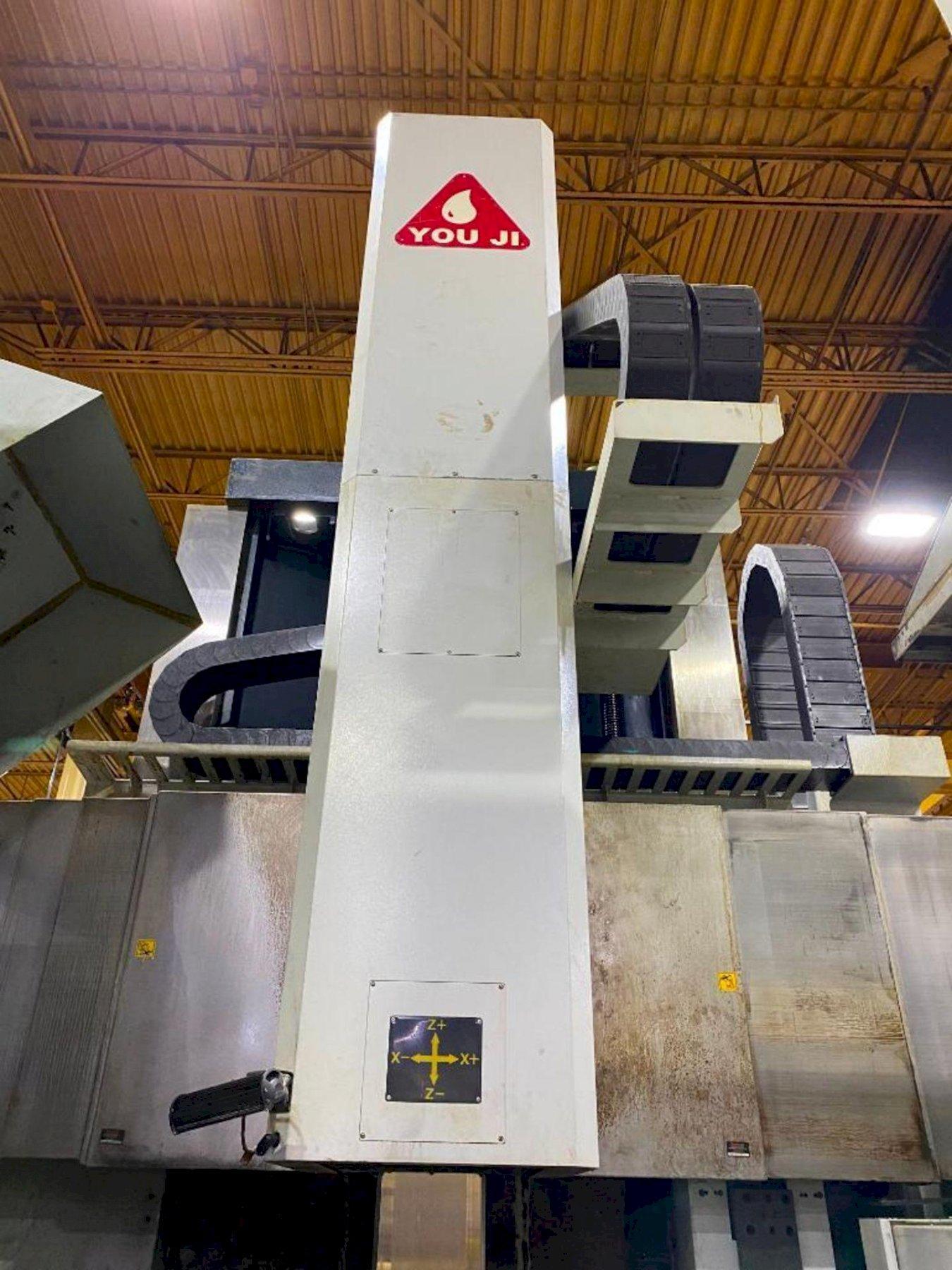

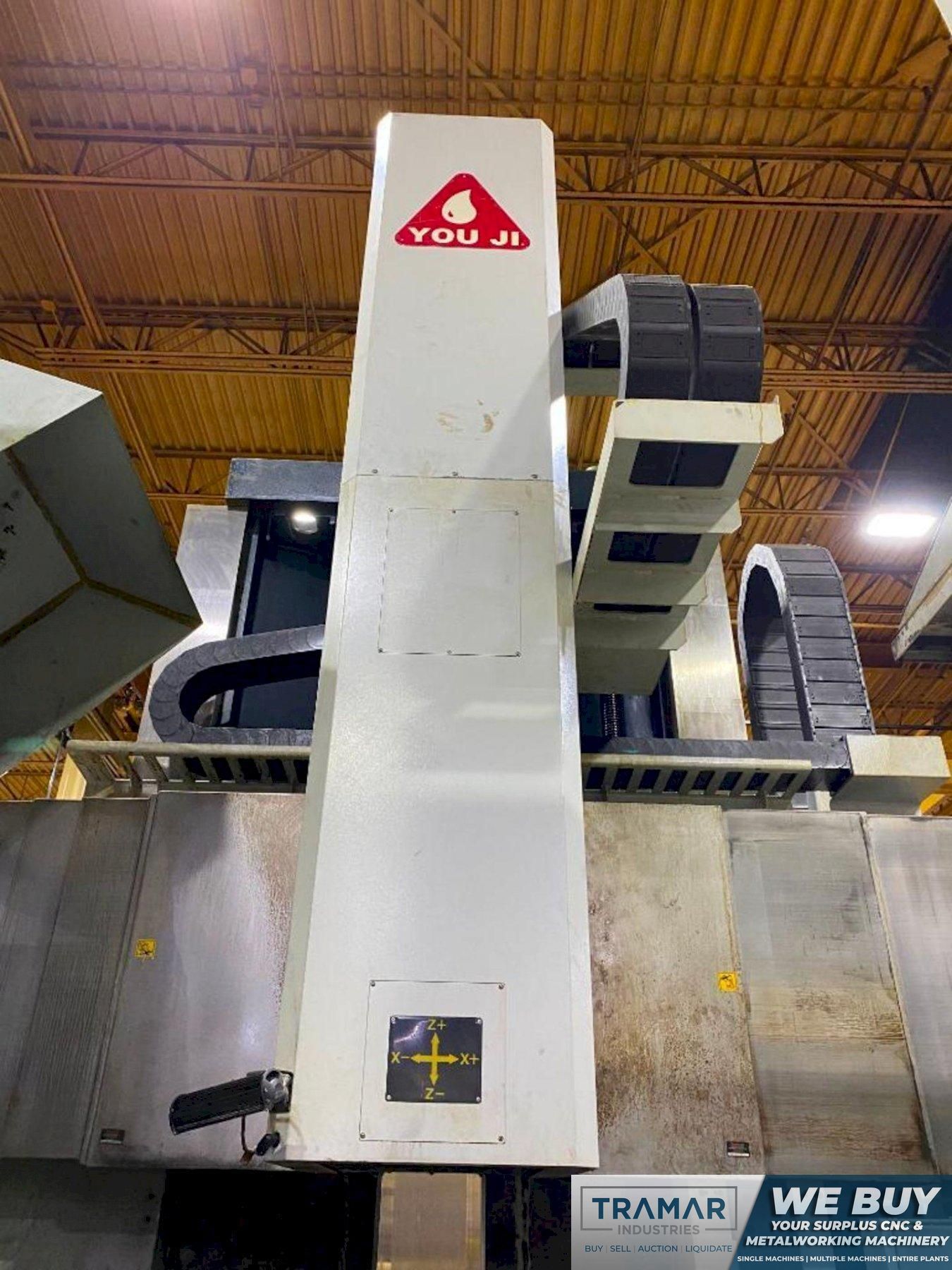

High Column
Option - Larger Z Travel - 47.2"
Larger Cross Rail Travel - 55.1"

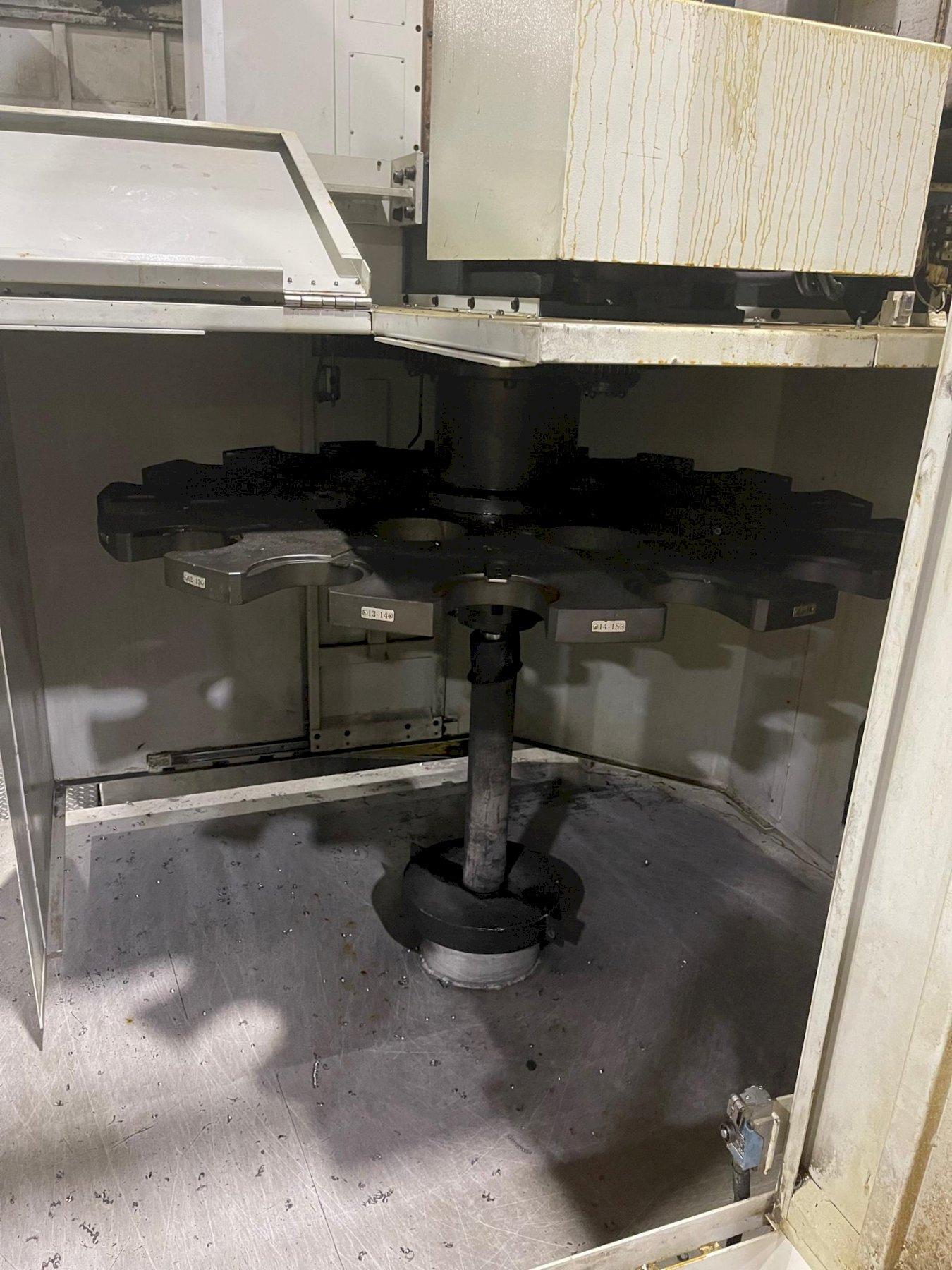

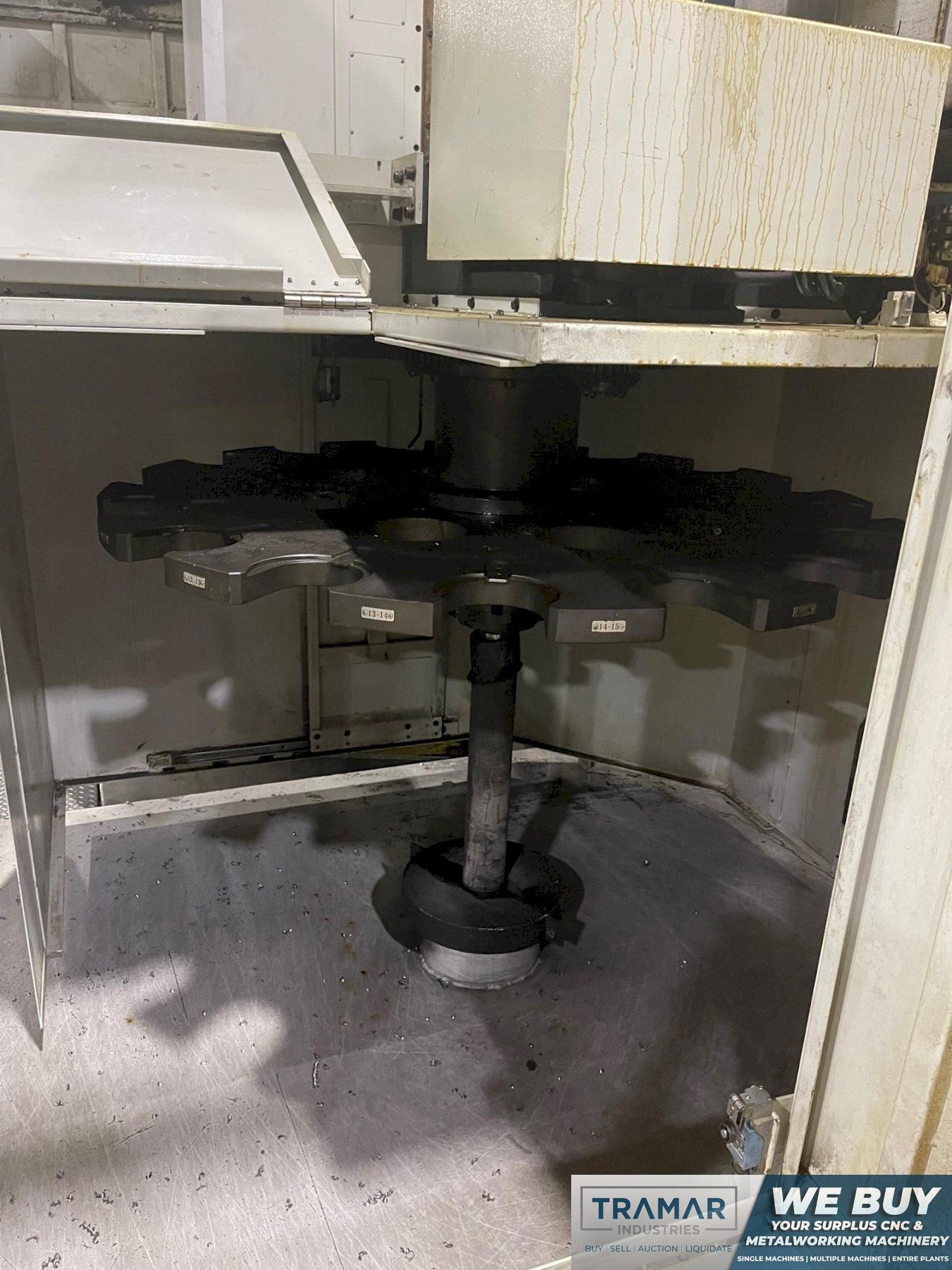

16 Stations ATC
2 Speed Gearbox
CAT 60 style tooling

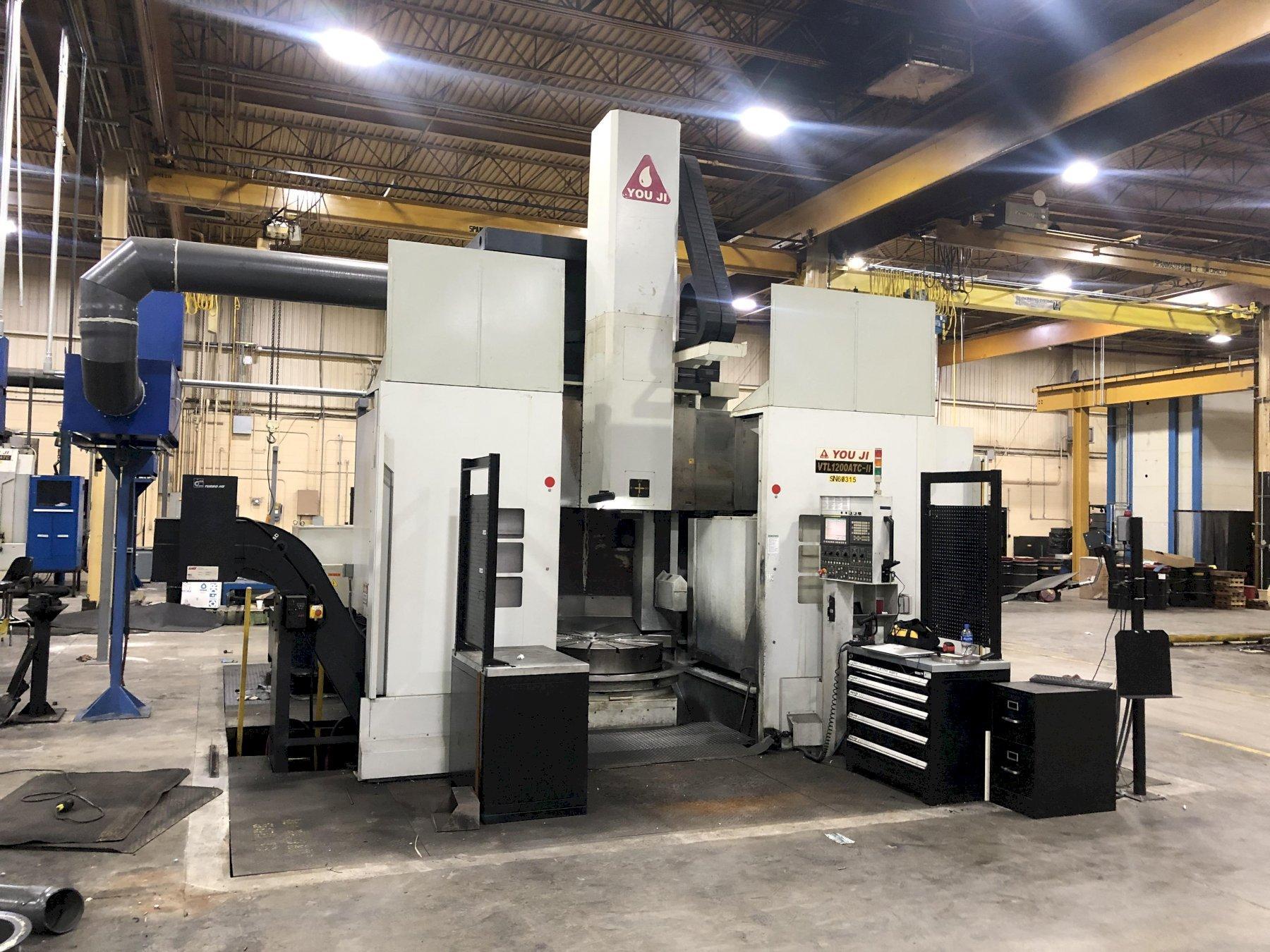

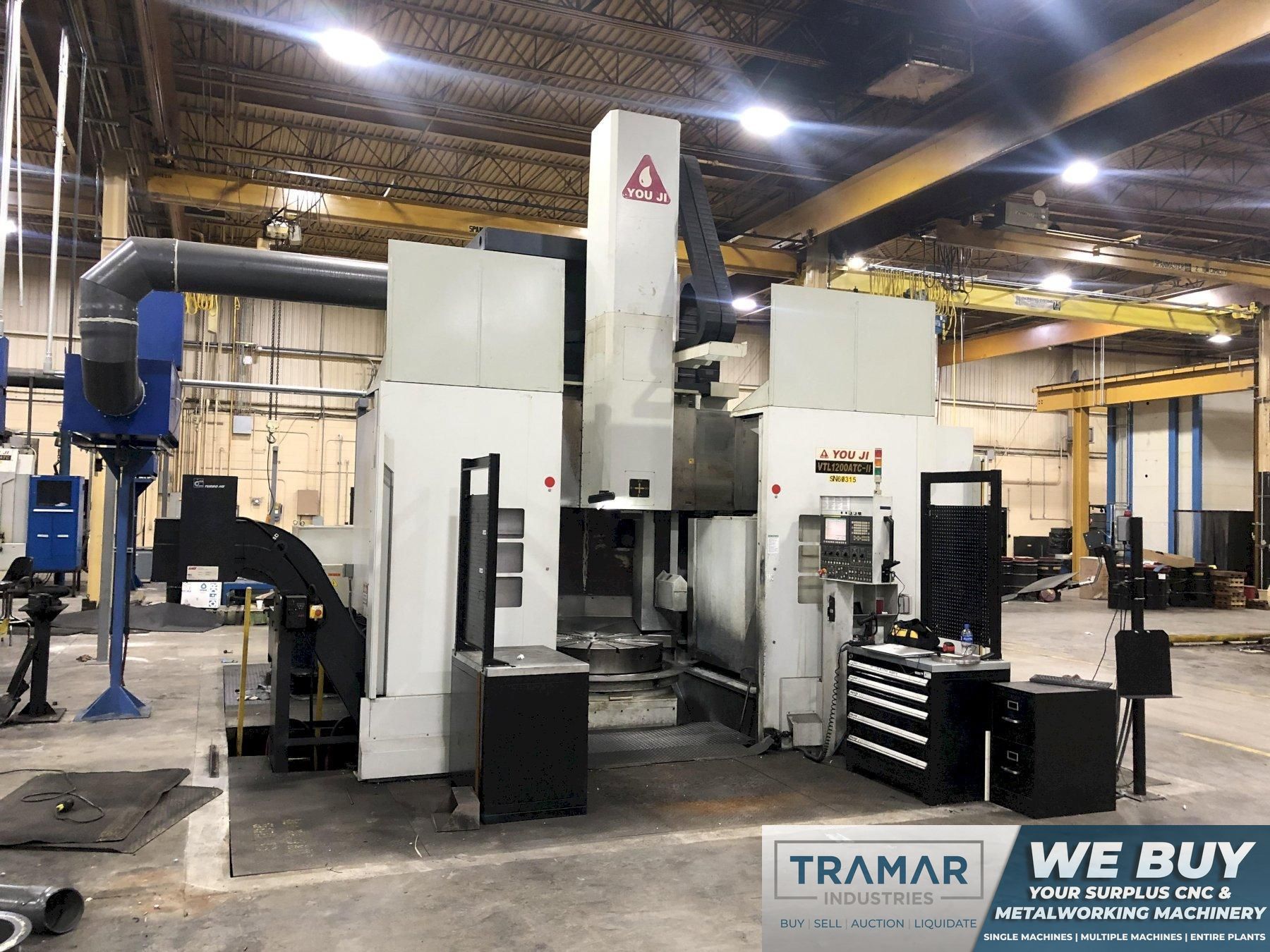

You Ji VTL1200 ATC-II CNC Vertical Lathe
Machine Specifications
Year
2012
Control Type
Fanuc 0i-TD
Swing
63"
Turning Diameter
63"

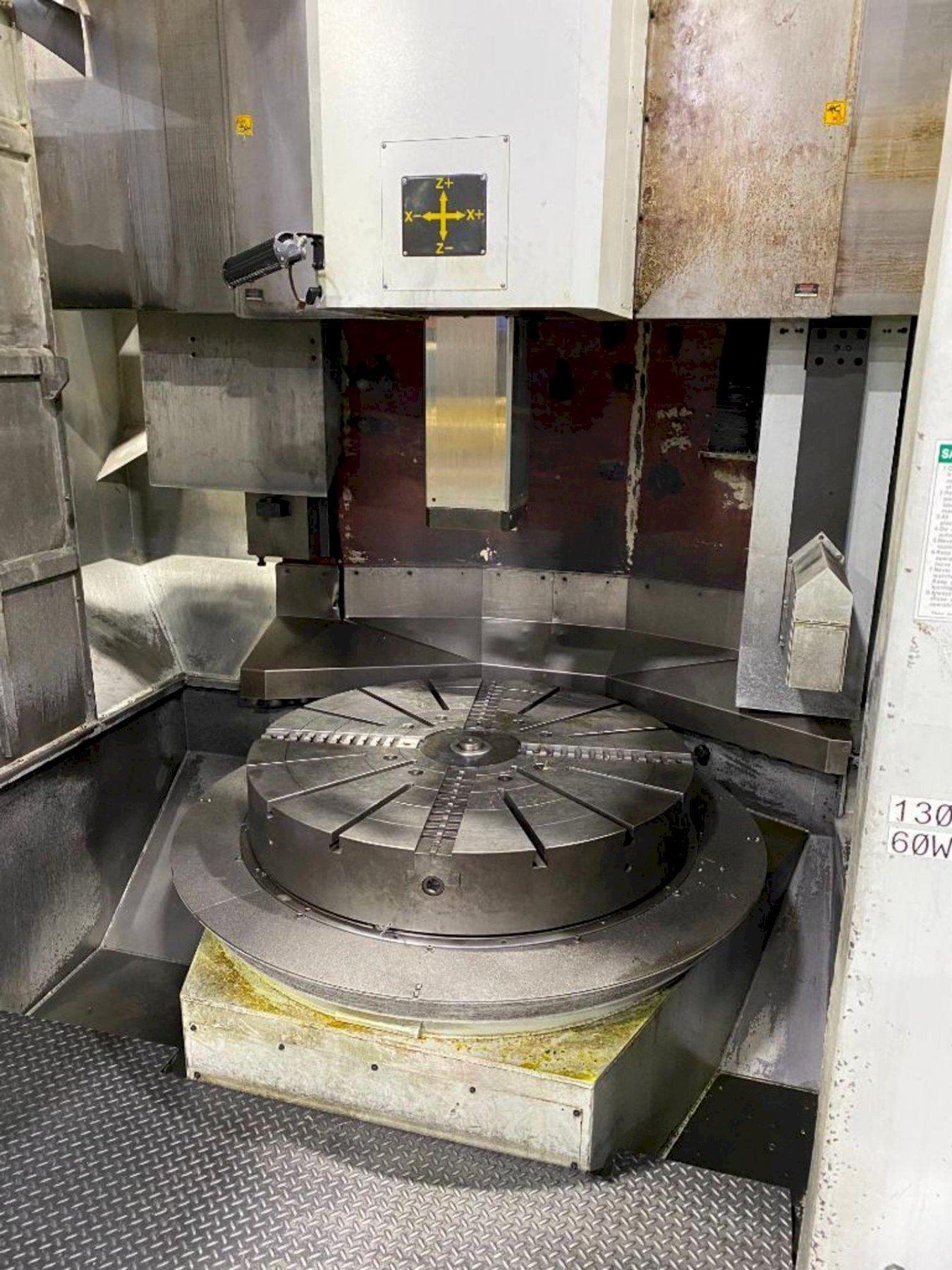

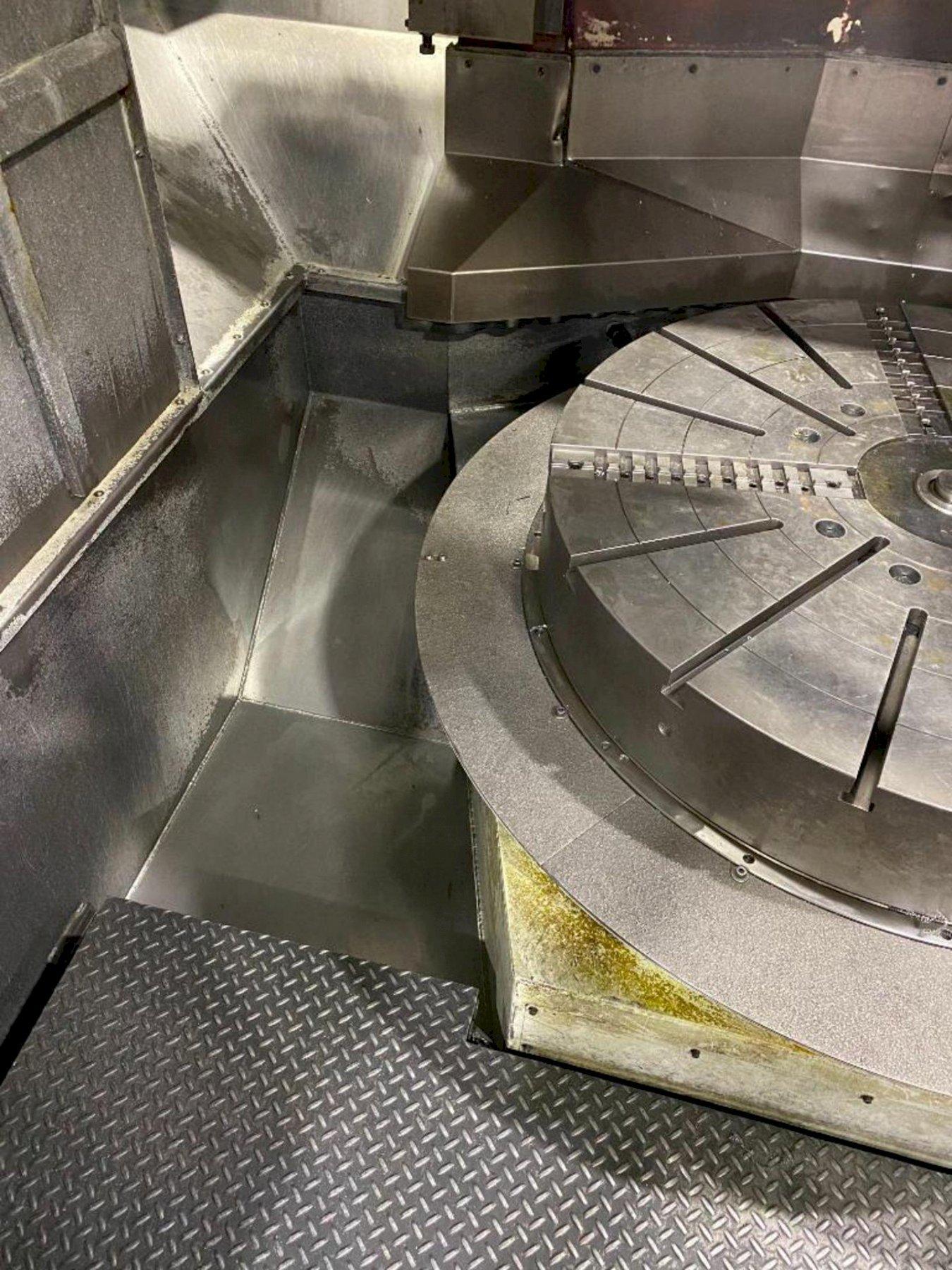

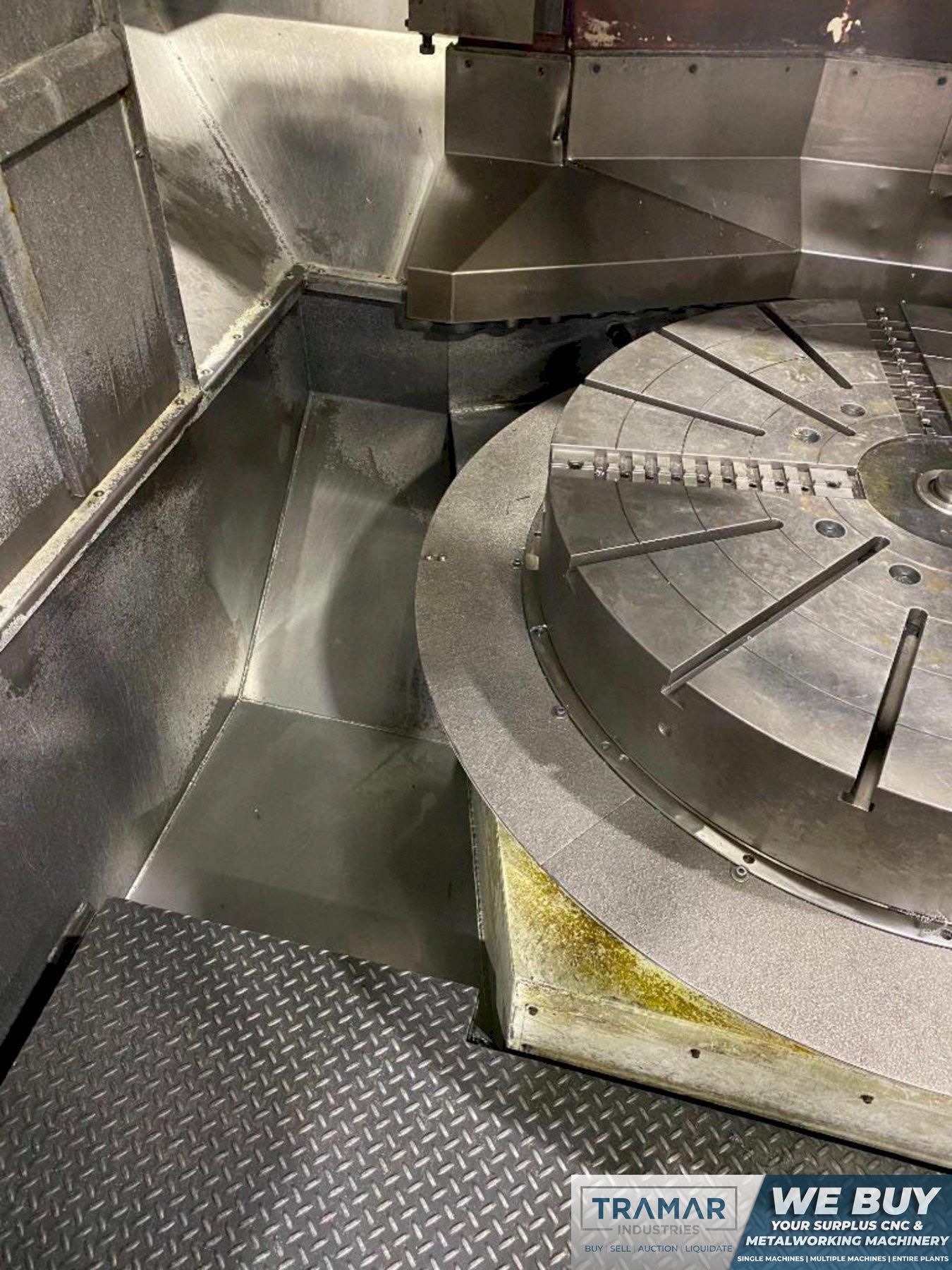

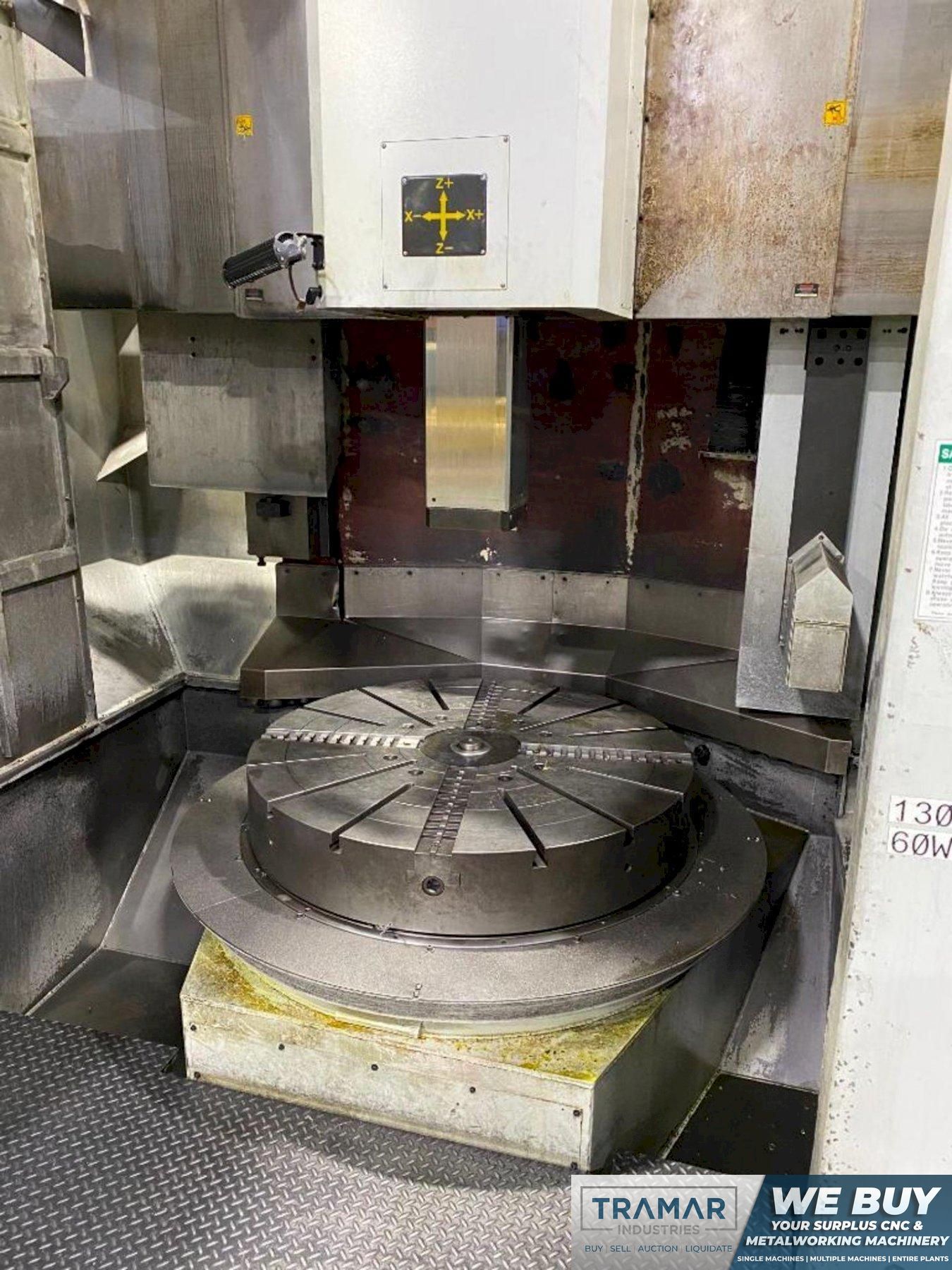

Table Diameter
49.2"
Max Table Load
11,023 lbs

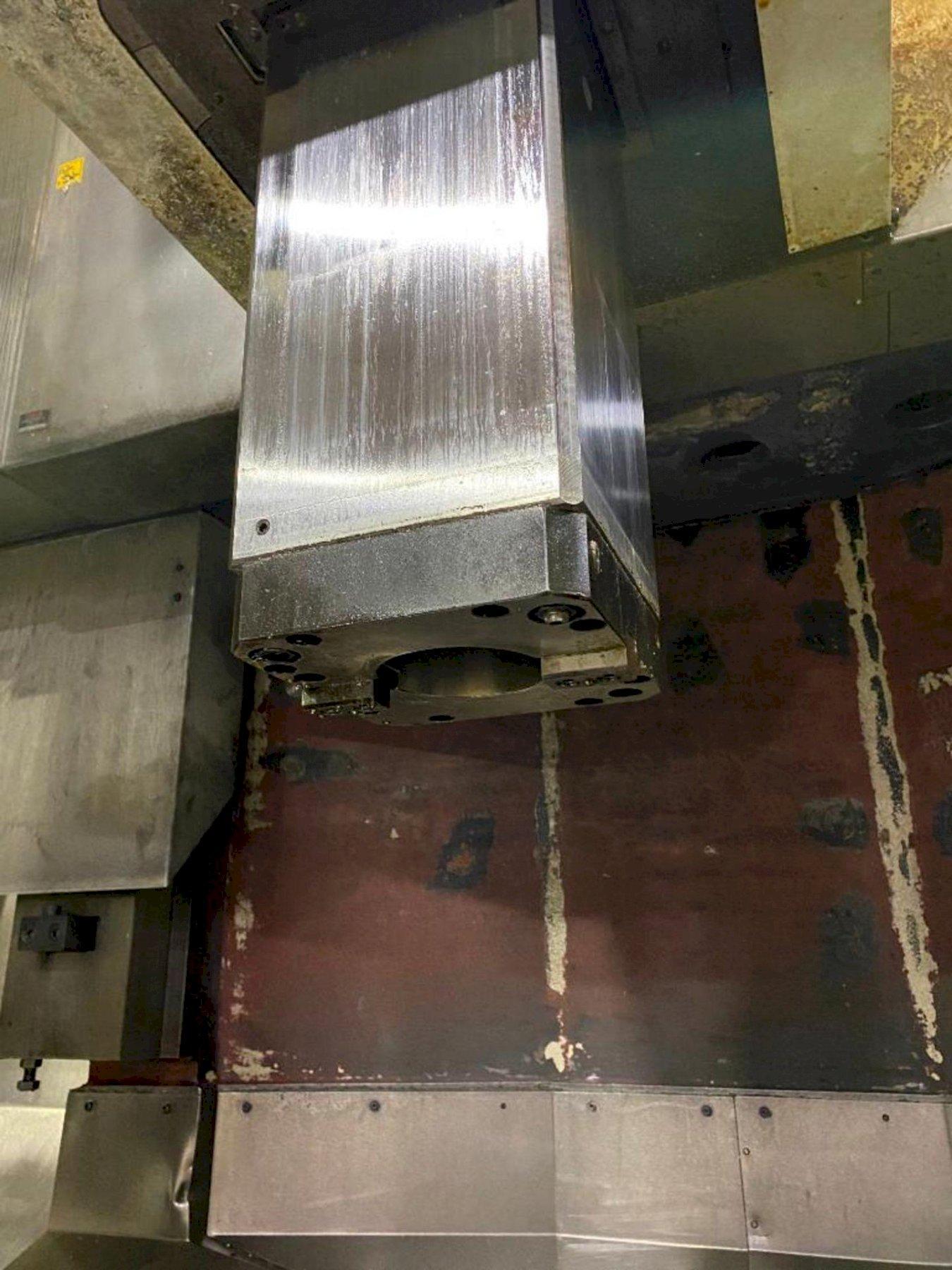

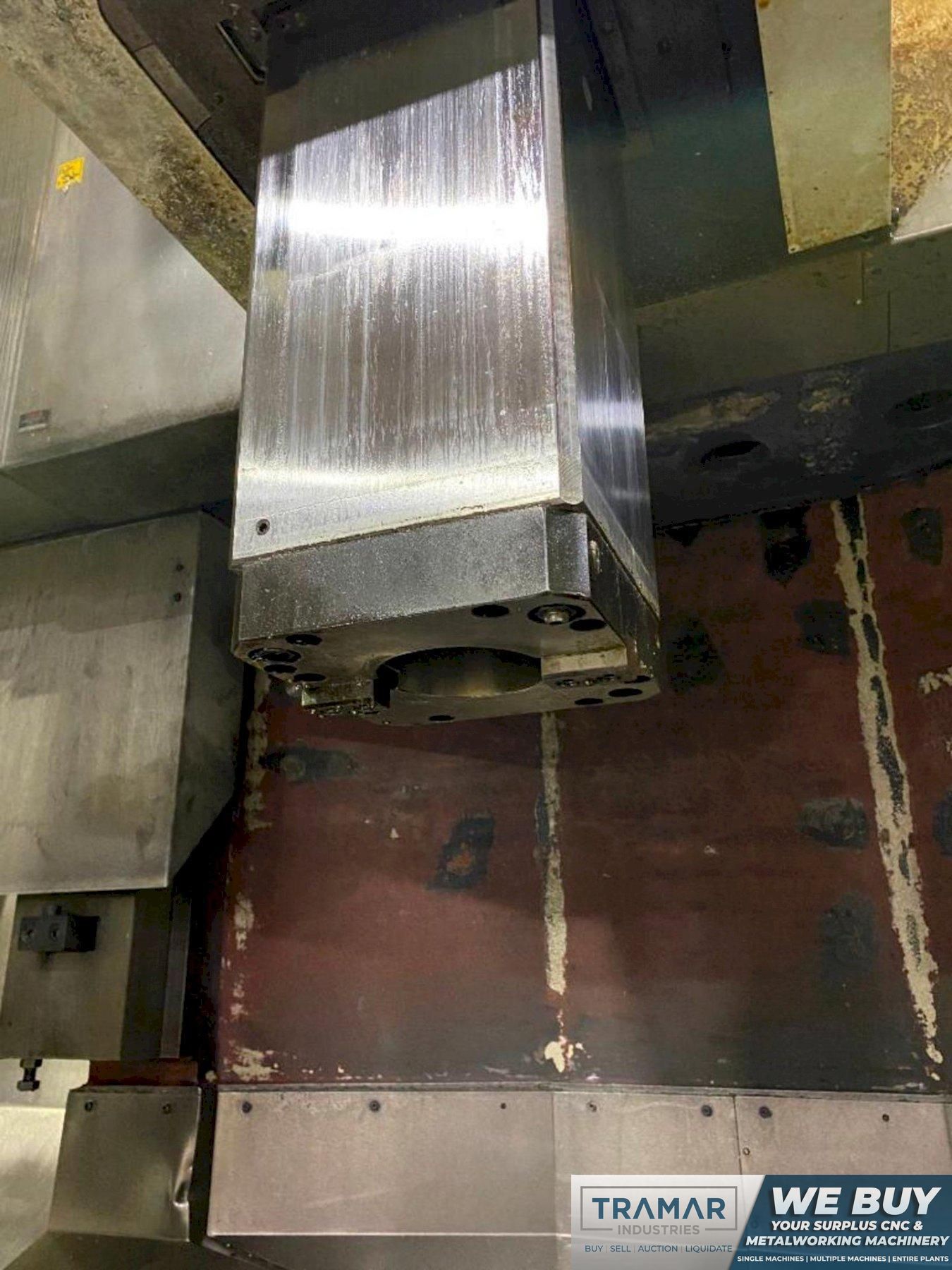

Ram Distance To Table with Ram Retracted
Max - 82.7" / Min -35.5"
Vertical Travel of Crossrail
55.1
X Axis Travel
-23.6" to 34.45"
Z-Axis Travel
47.24"
Table Speed
2-108 rpm / 108-350rpm
Spindle Motor
100 hp
Live Tooling
no
C-Axis
no
ATC Capacity
16 Stations
Machine Dimensions
182" x 152" x 195"
Weight
74,000 pounds

Equipped With:

- Fanuc 0i-TD Control

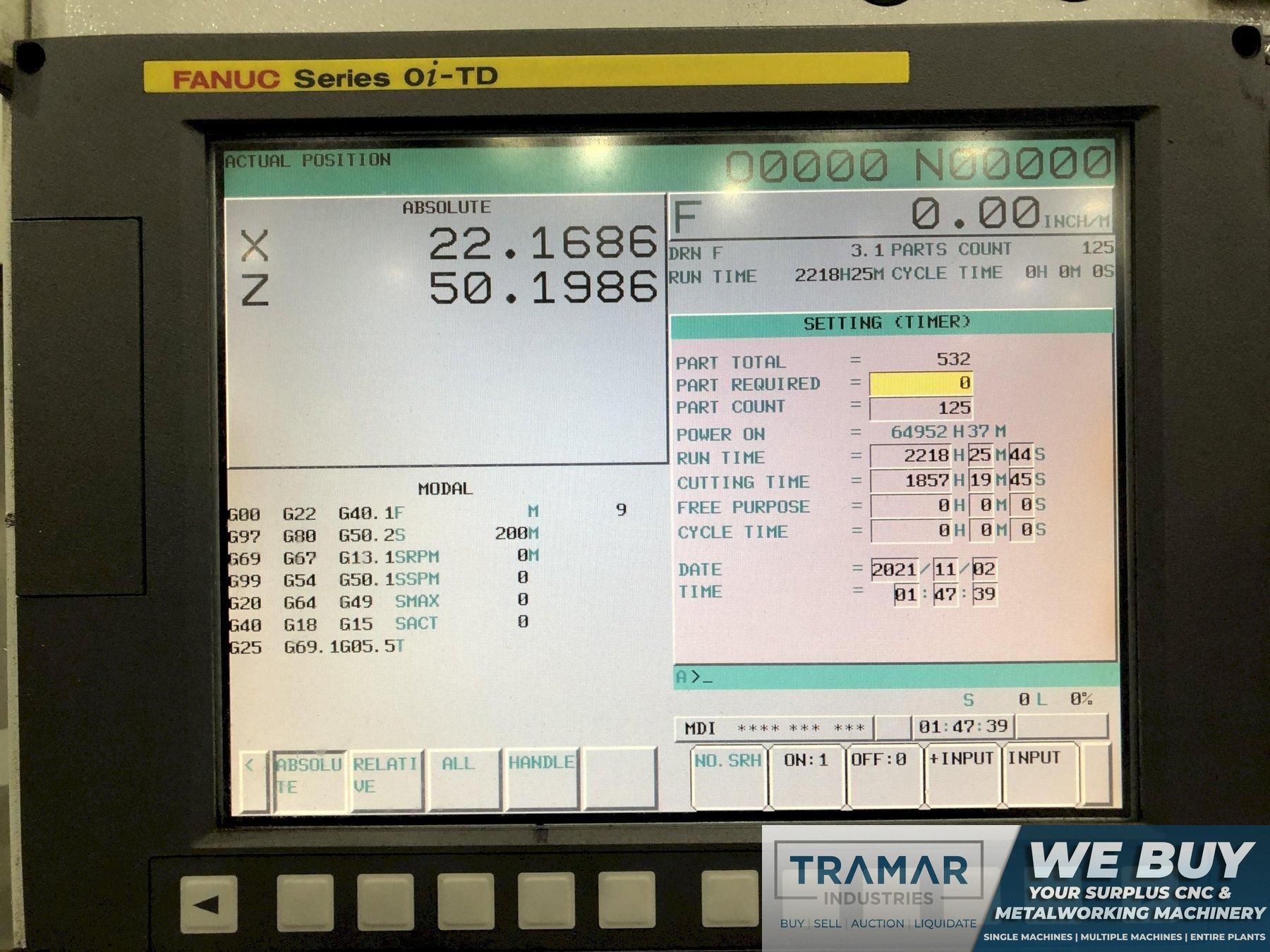

- ONLY 1,800 CUTTING HOURS
- High Column Option
- Extended Ram Stroke Option
- CAT 60 Style Tooling

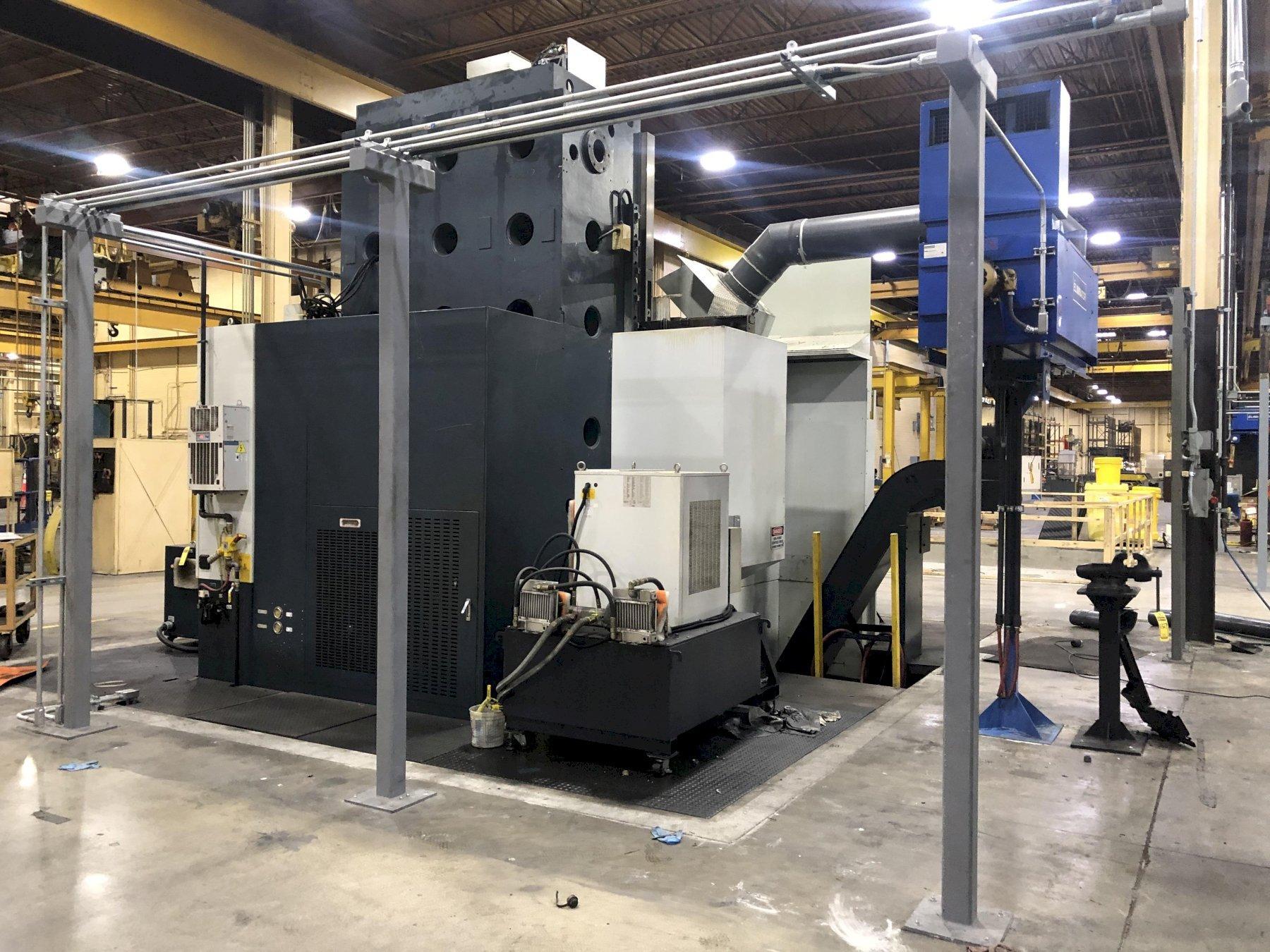

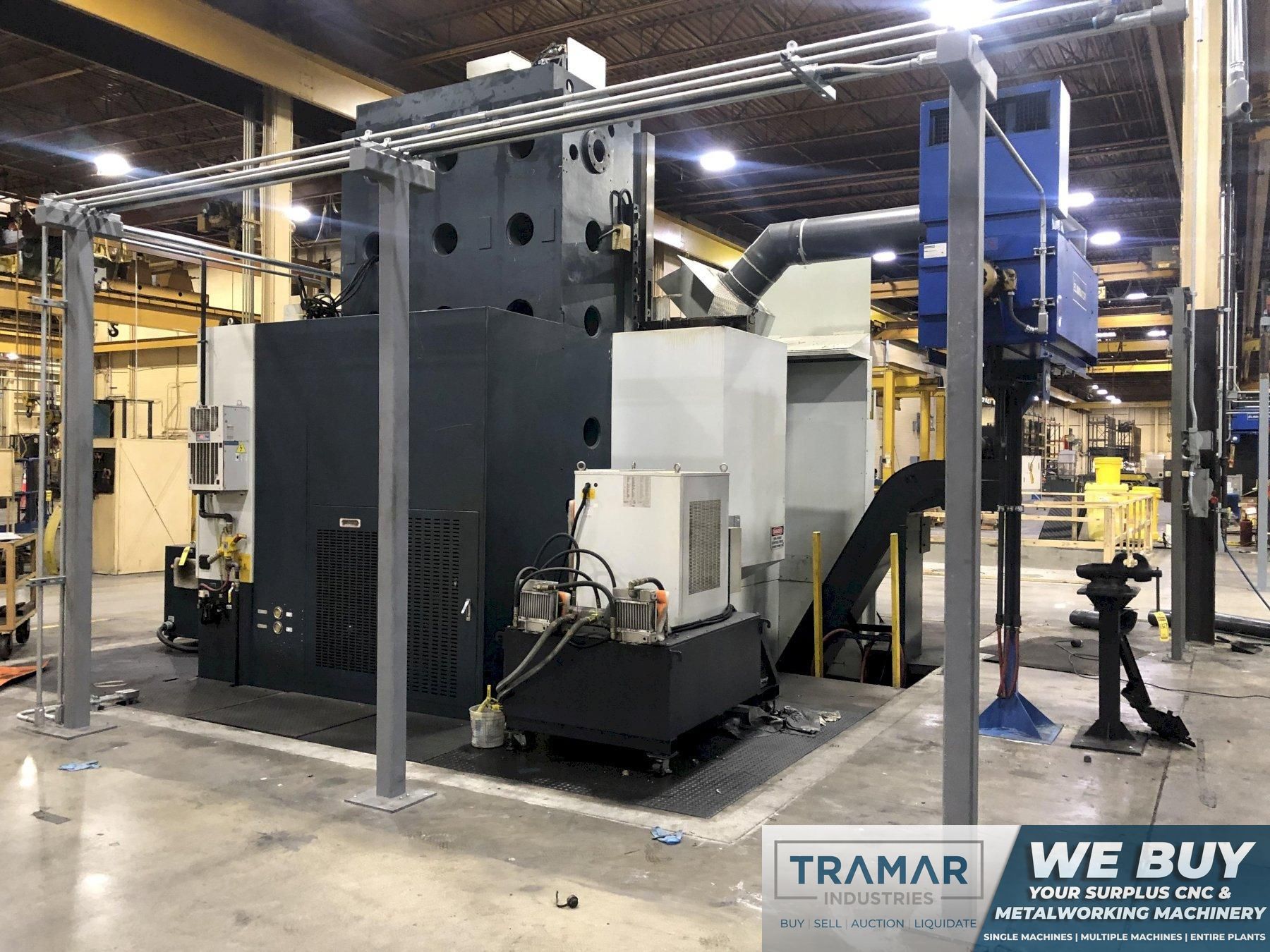

- Chip Conveyor
- Coolant Tank & Pump
- Chiller
- Tool Geometry/Work Offset
- Custom Macro B
- Embedded Ethernet
- Rigid Tapping
- Roman Numeral II = Larger Z Axis & Larger Cross Rail Travels



The You Ji VTL1200 ATC-II is an exclusive part of our Vertical Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
