You Ji YV-1000 ATC+C - Vertical Lathes

Request Quote
Share Machine
Specifications Print Specs
Model: YV-1000 ATC+C
Year: 2008
Stock #: 13537
Highlights:
Fanuc 18i-TB Control
Live Tooling
Swing: 53.1" | Table Diameter: 39.4"
16 Stations ATC
2 Speed Gearbox

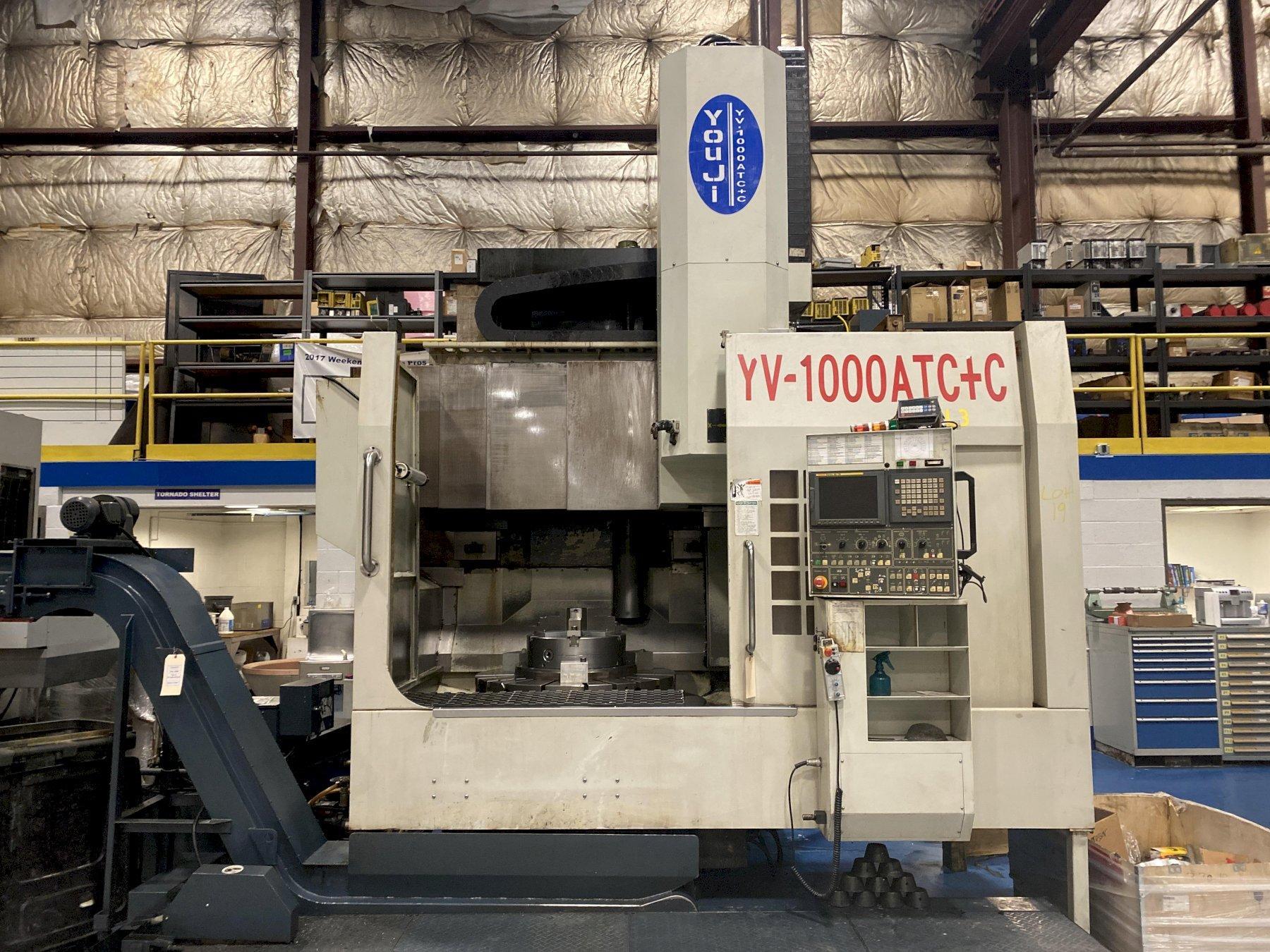

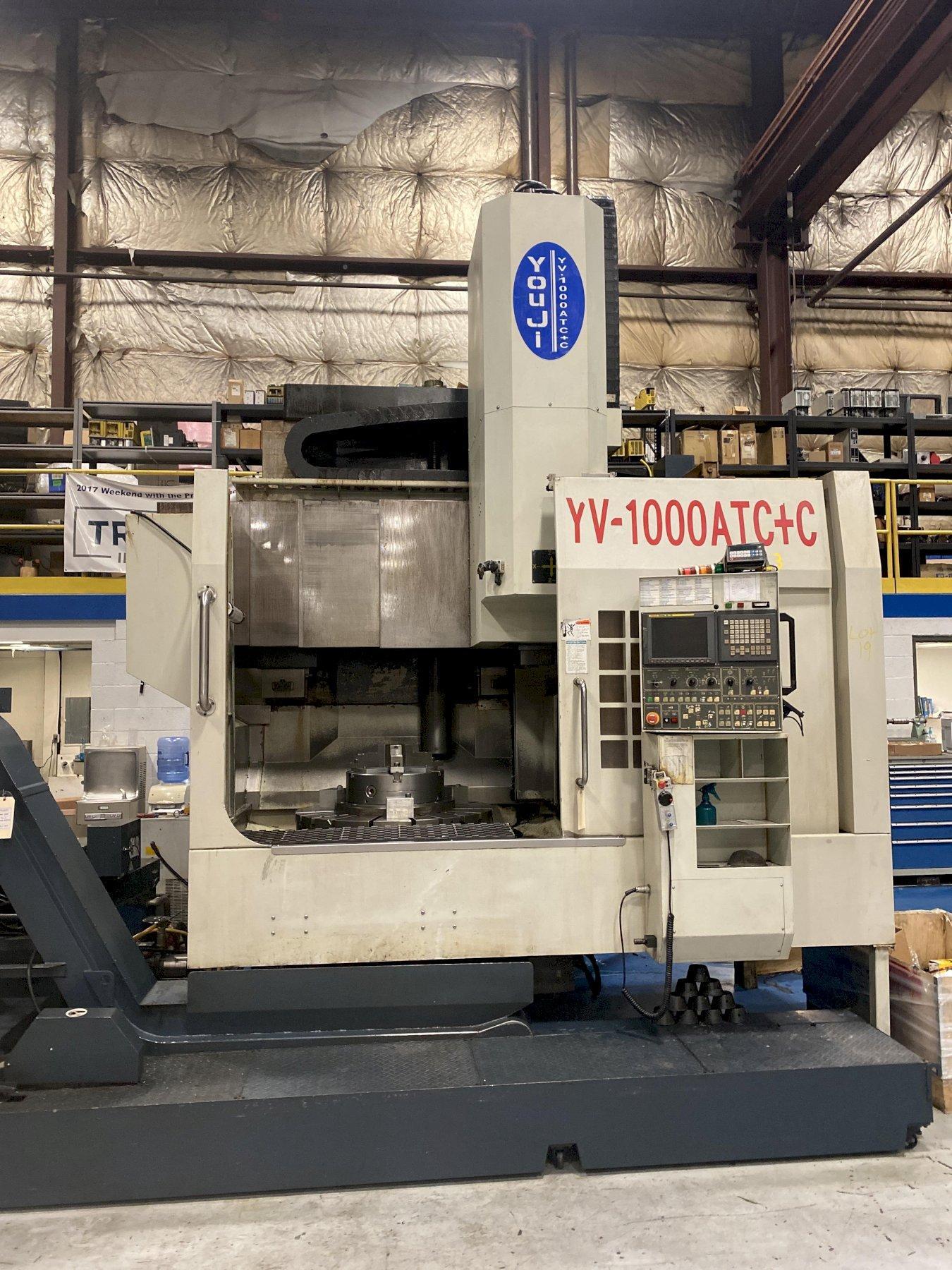

You Ji YV-1000 ATC+C CNC Vertical Lathe
Machine Videos
Machine Specifications
Year
2008
Control Type
Fanuc 18i-TB
Swing
53.1"
Turning Diameter
43.3"
Table Diameter
39.37"
Max Table Load
8,820 lbs
Max Height Under Rail
35.4"
Vertical Travel of Crossrail
19.7
X-Axis Travel
44.09"
Z-Axis Travel
31.5"
Table Speed
1-160 rpm / 160-600 rpm
Spindle Motor
60/50 hp
Live Tooling
yes
Live Tooling Spindle Taper
50 Taper
Live Tooling Speed
2,400 rpm
Live Tooling Motor
15/10 hp
C-Axis
yes
ATC Capacity
16 Stations
Machine Dimensions
182" x 152" x 195"
Weight
48,500 pounds

Equipped With:

- Fanuc 18i-TB Control

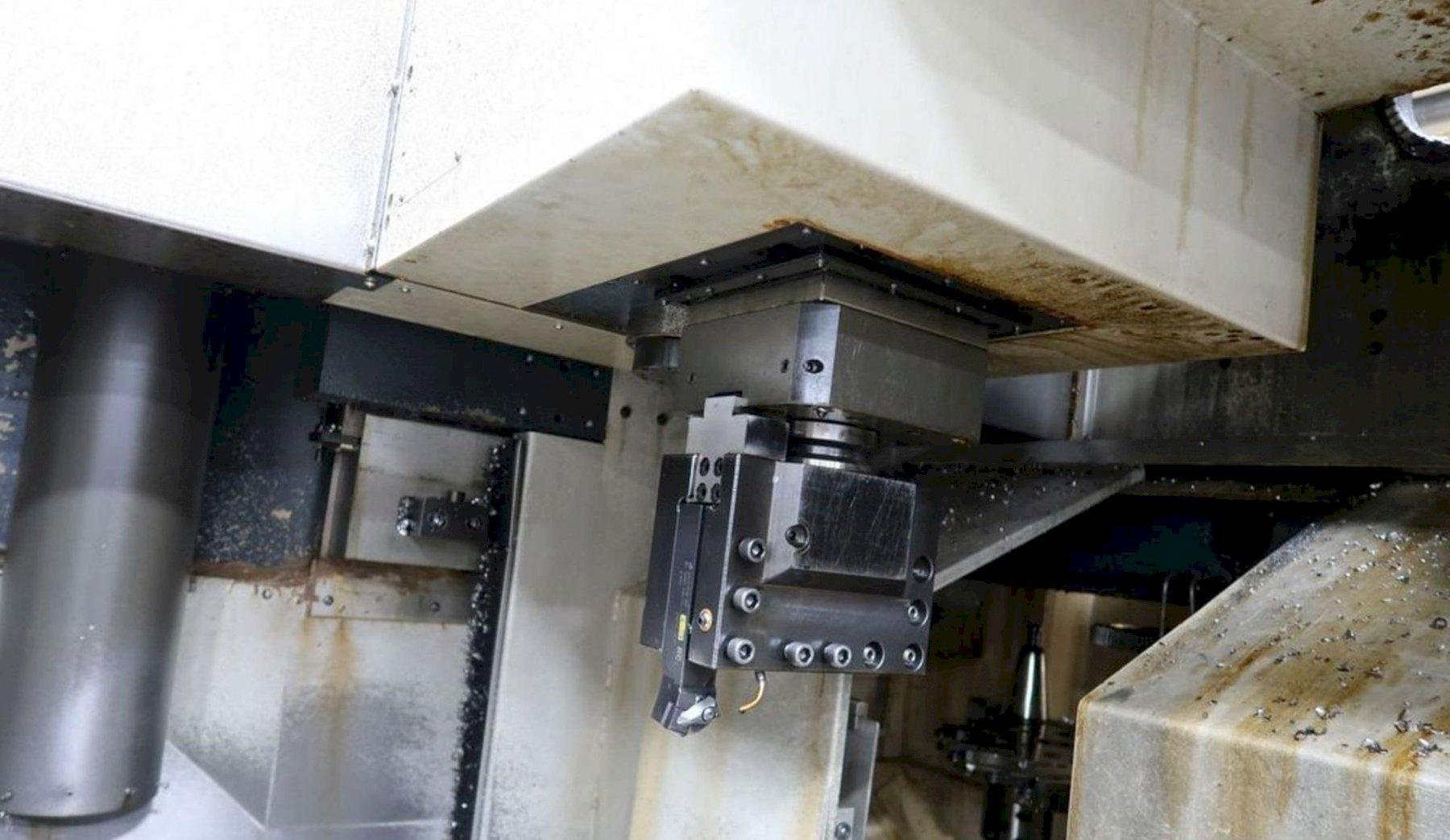

- Live Tooling

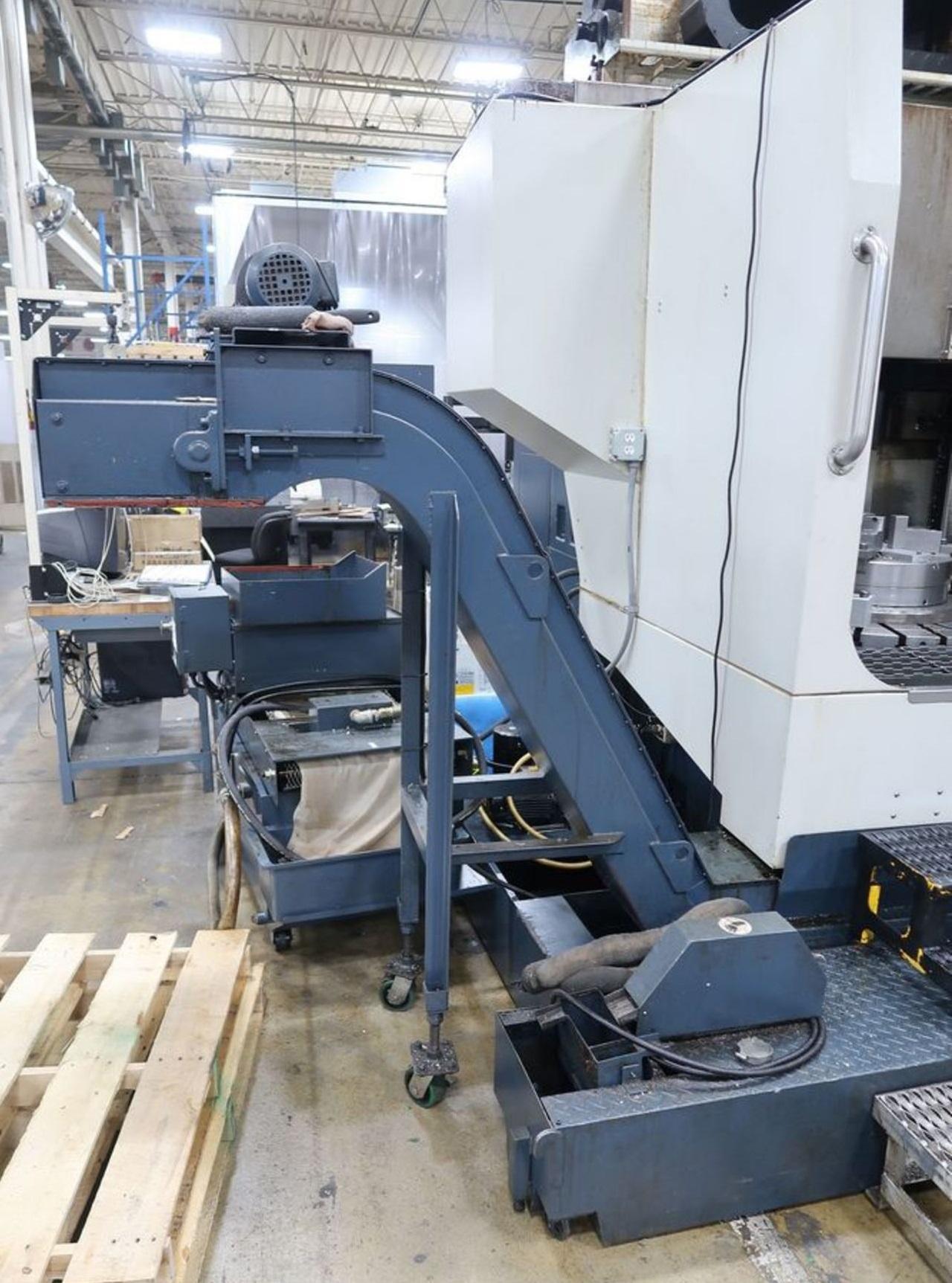

- Chip Conveyor
- Coolant Tank & Pump
- Chiller
- 20" Manual Chuck on Table
- 2 Speed GearBox
- Graphic Function
- High-Speed HRV Function
- Tool Geometry/Work Offset
- Custom Macro B
- Embedded Ethernet
- Rigid Tapping

** Video - Click Here **

The You Ji YV-1000 ATC+C is an exclusive part of our Vertical Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
