Zimmermann FZ37 - Machining Centers, Gantry (incld. Bridge & Double Column)

Request Quote
Share Machine
Specifications Print Specs
Model: FZ37
Year: 2007
Stock #: 13482
Highlights:
Year: 2007

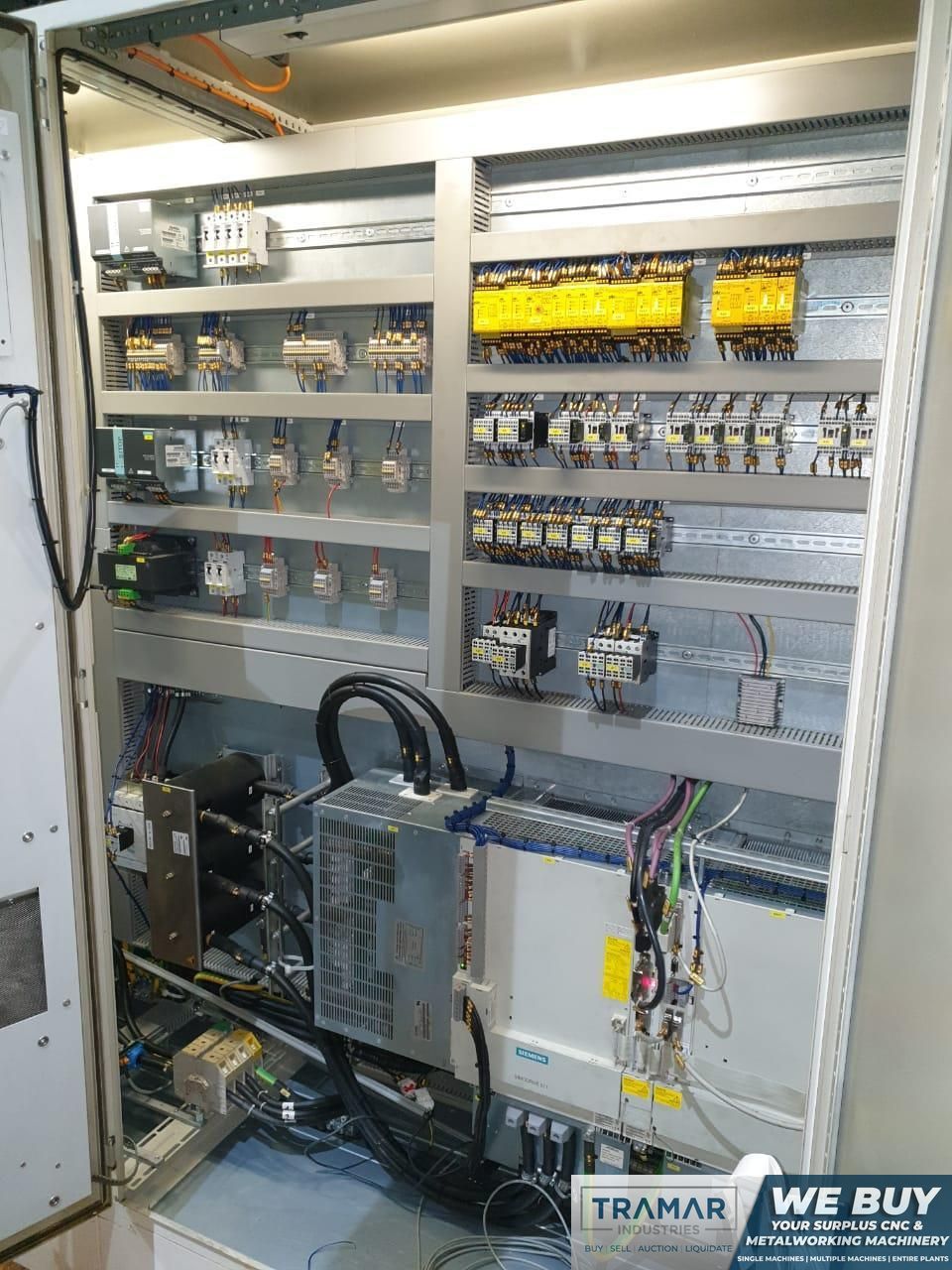

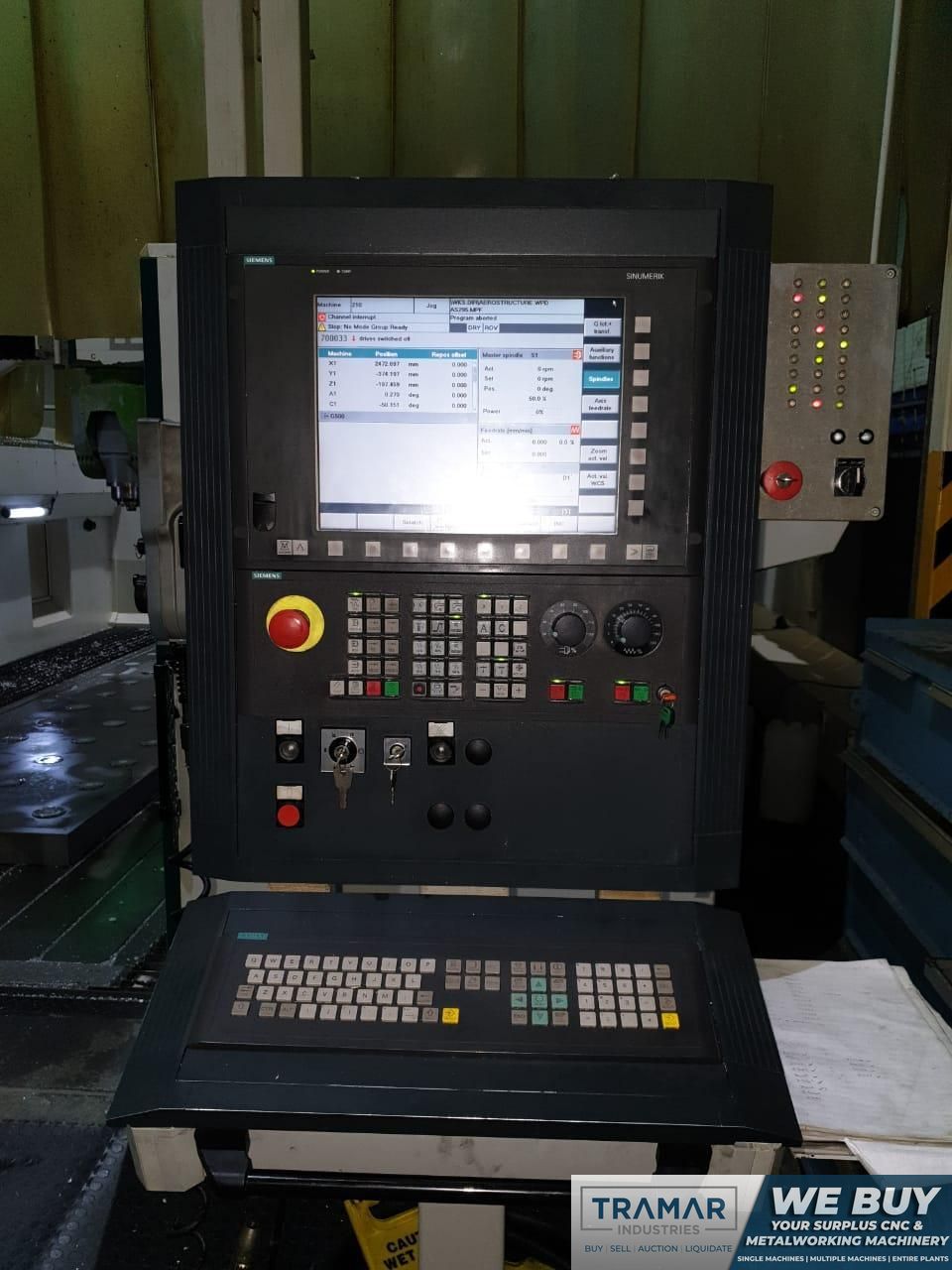

Siemens 840D Control

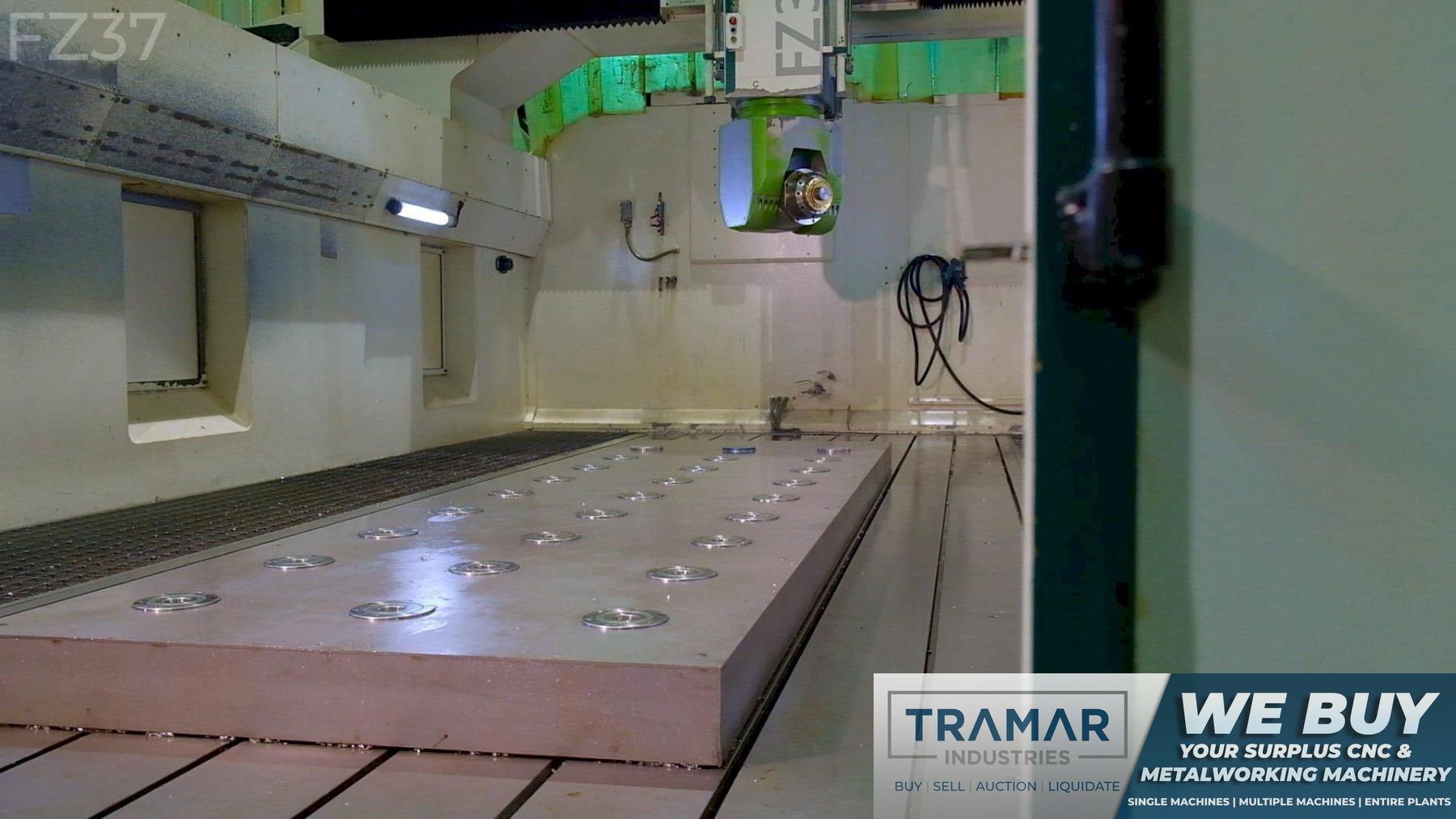

Table Size: 287" x 98.4"
Travels (X/Y/Z): 256" / 118" / 59"
A-axis: +/-110° | C-axis: +/-360°
HSK 63 | 24,000 rpm | 93 hp | 80 Station ATC

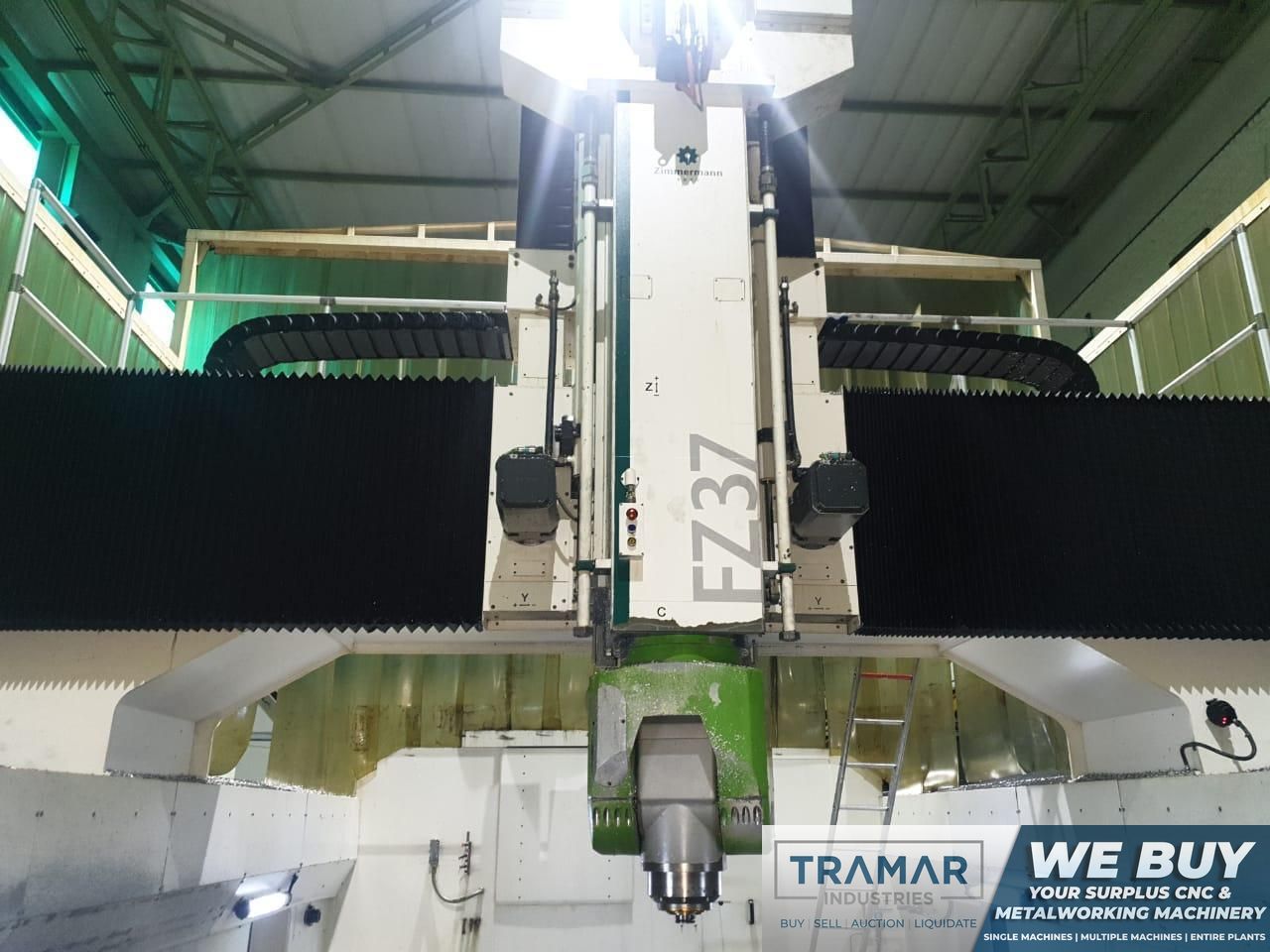

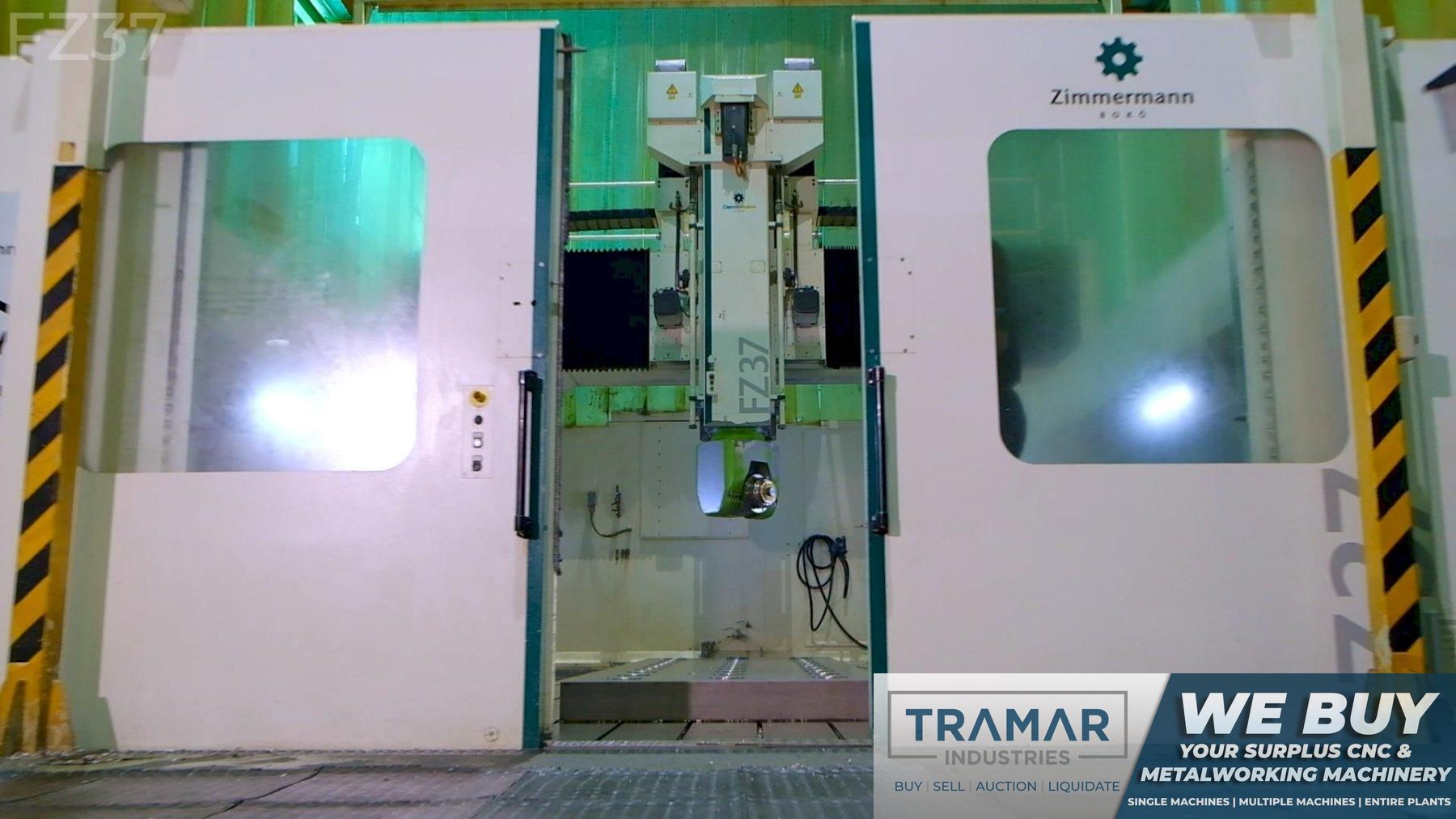

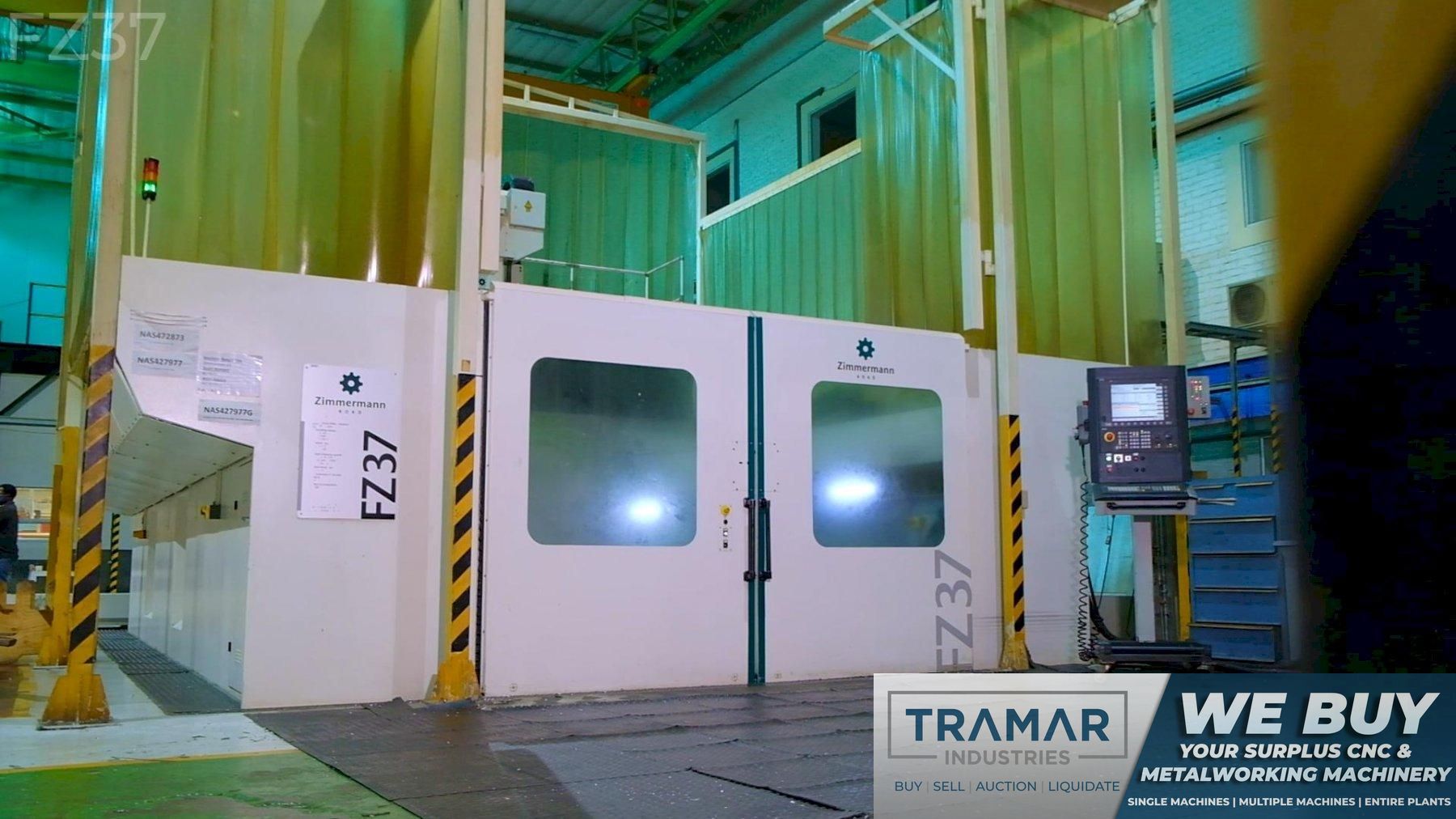

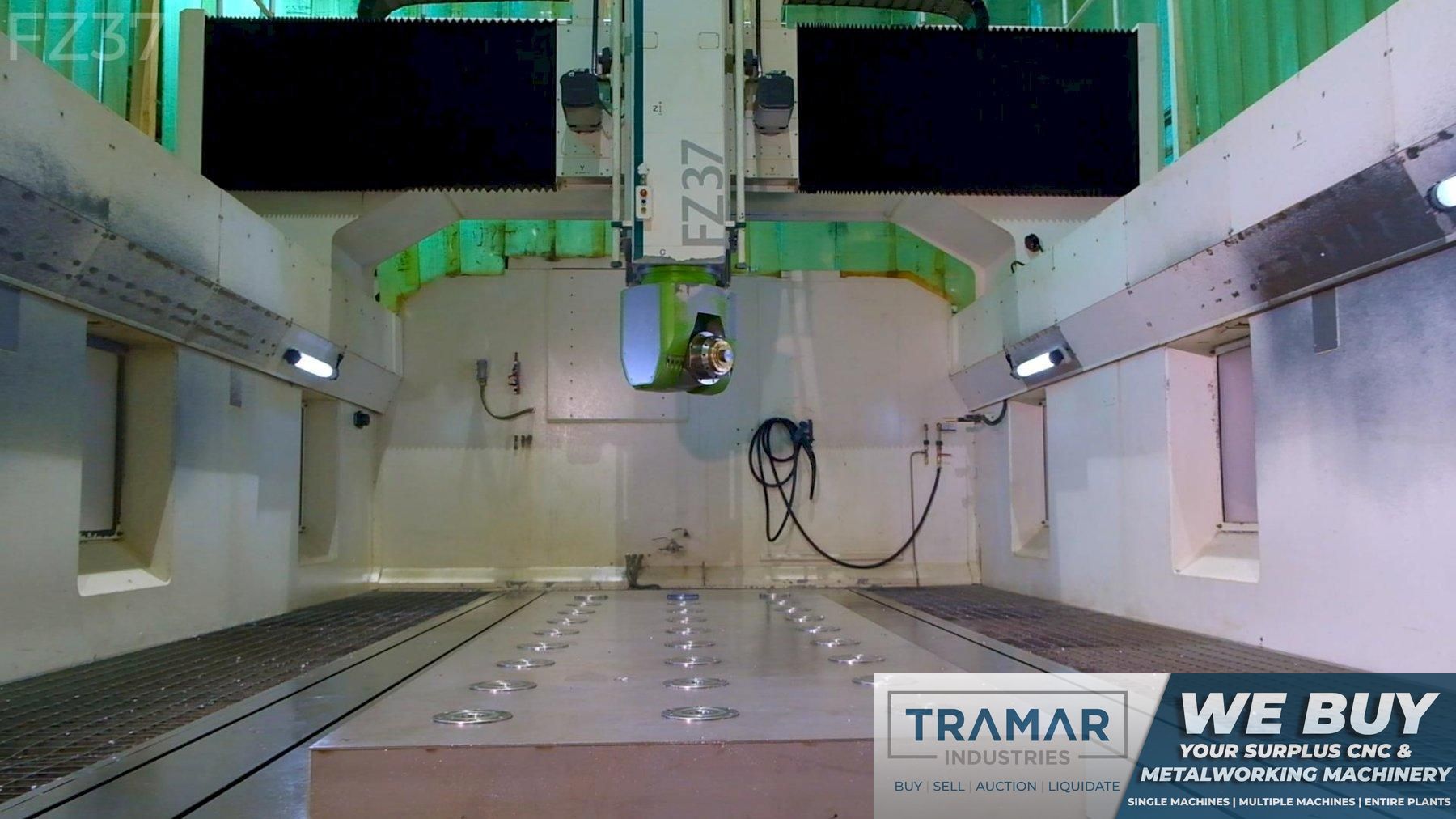

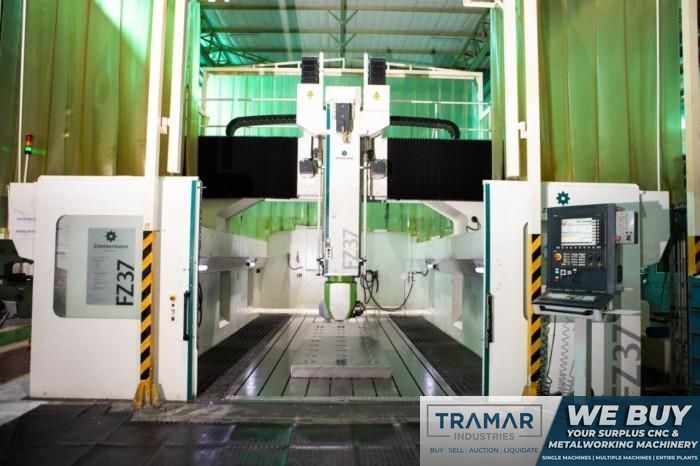

Zimmermann FZ37 5-axis CNC Bridge Mill
Machine Specifications
Year
2007
Control Type
Siemens 840D
Table-L
287"
Table-W
98.4"
X-Axis Travel
256"
Y-Axis Travel
118"
Z-Axis Travel
59"
A Axis Rotation
+/-110°
C Axis Index
+/- 360°
Rapid Traverse Rate (X/Y/Z)
1,181/1,181/787 ipm

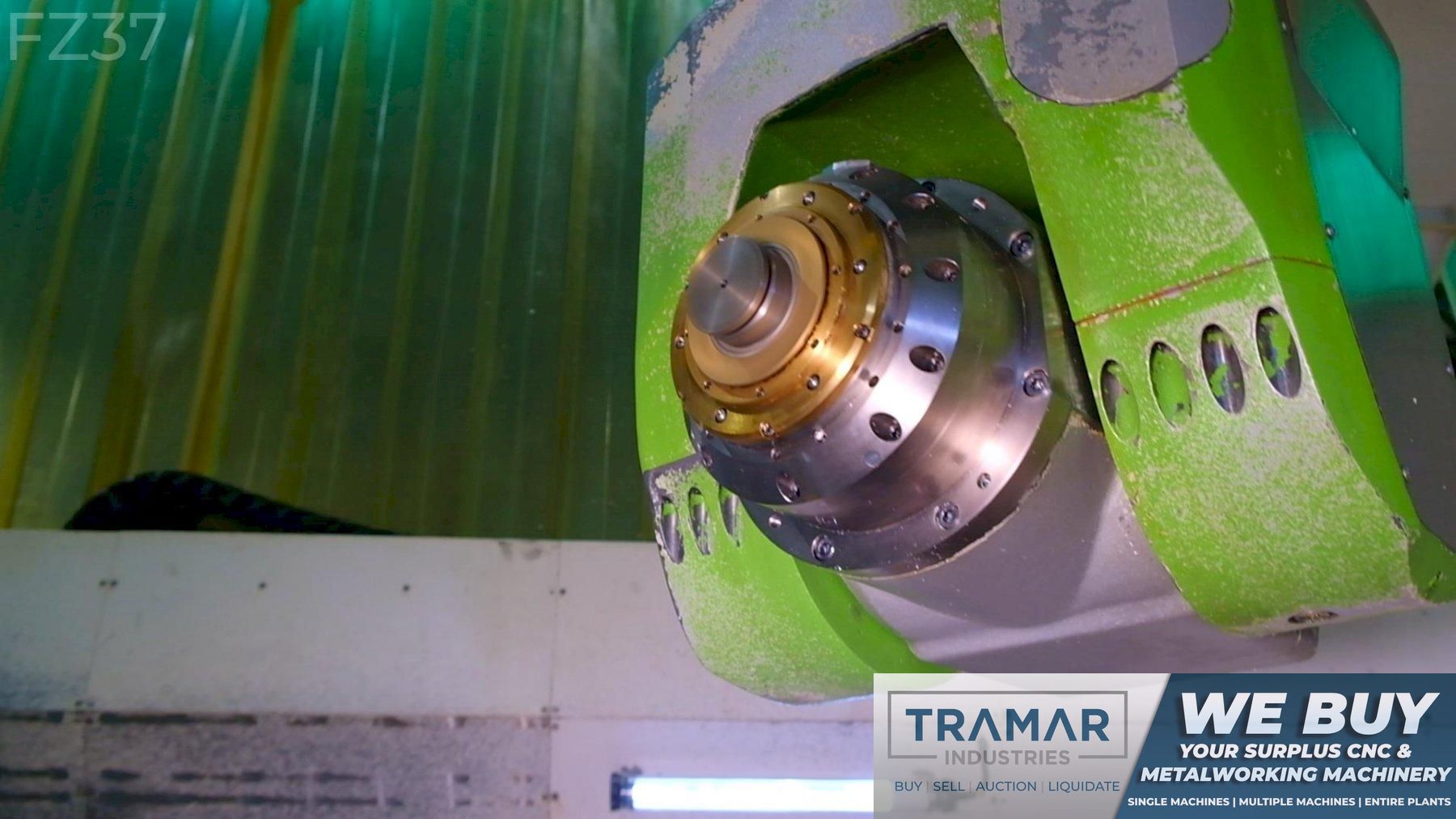

Milling Head
VH3
Spindle Taper
HSK 63
Spindle Speed
24,000 rpm
Spindle Motor
93 horsepower
ATC Capacity
80
Coolant Through Spindle
Yes
Dimensions
492" x 382" x 205"
Weight
163,150 pounds

Equipped With:

- Siemens 840D Control
- 5-axis Contouring Control
- Coolant Through The Spindle
- Renishaw Probing
- Blum Tool Measurement/Tool Brakeage Detection

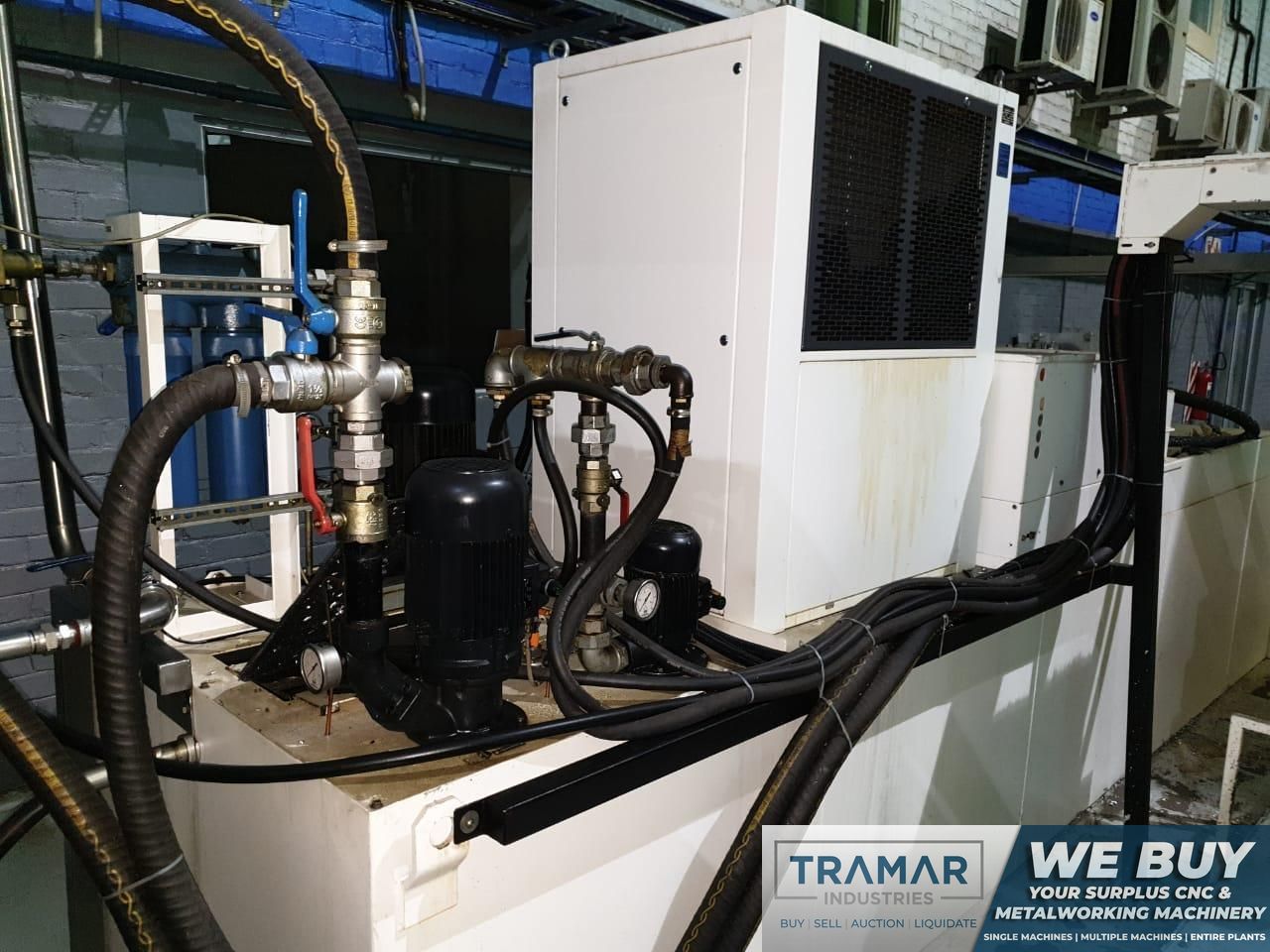

- Coolant System
- Chip Conveyor
- Ethernet Interface
- Polynom Interpolator

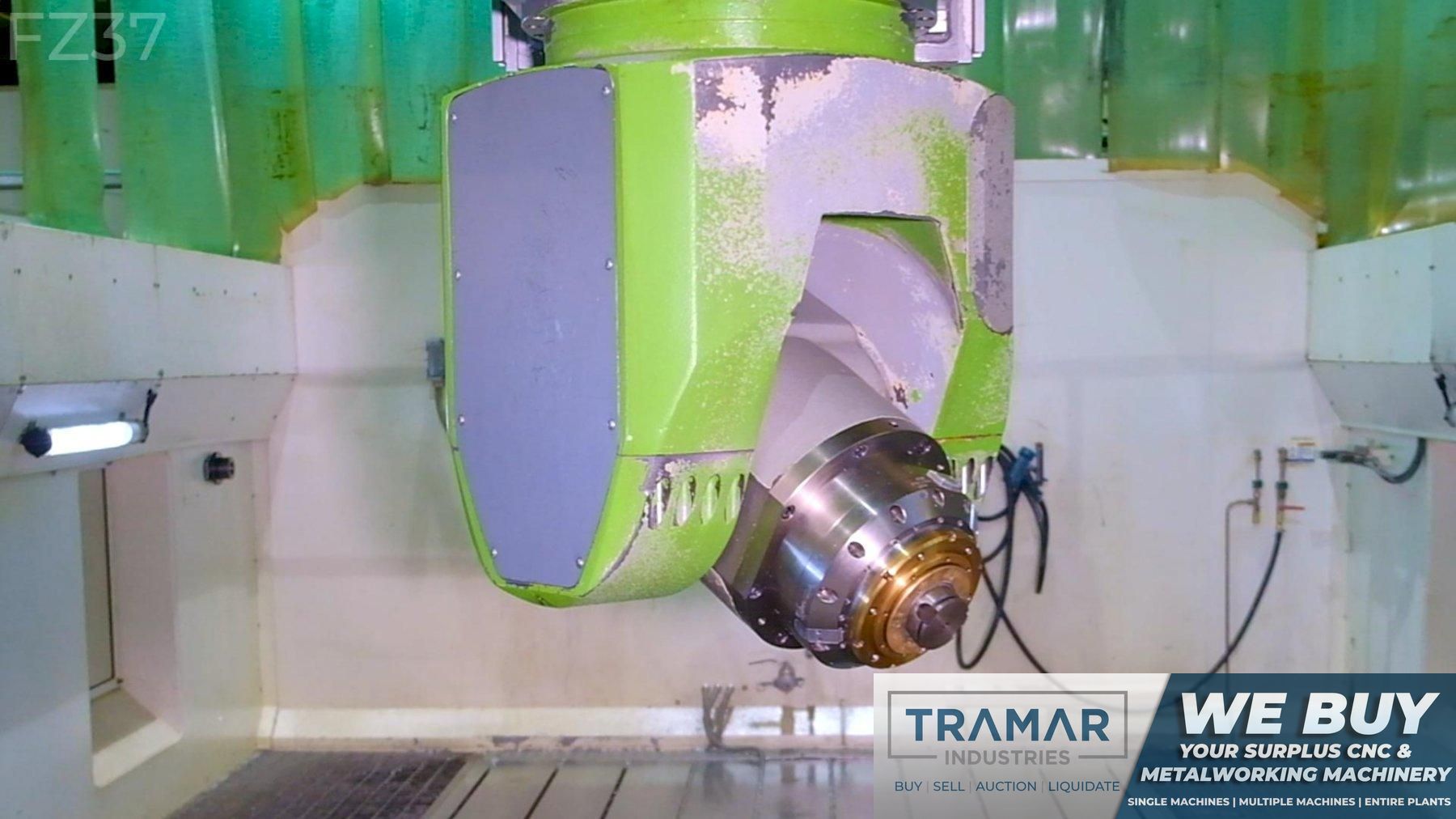

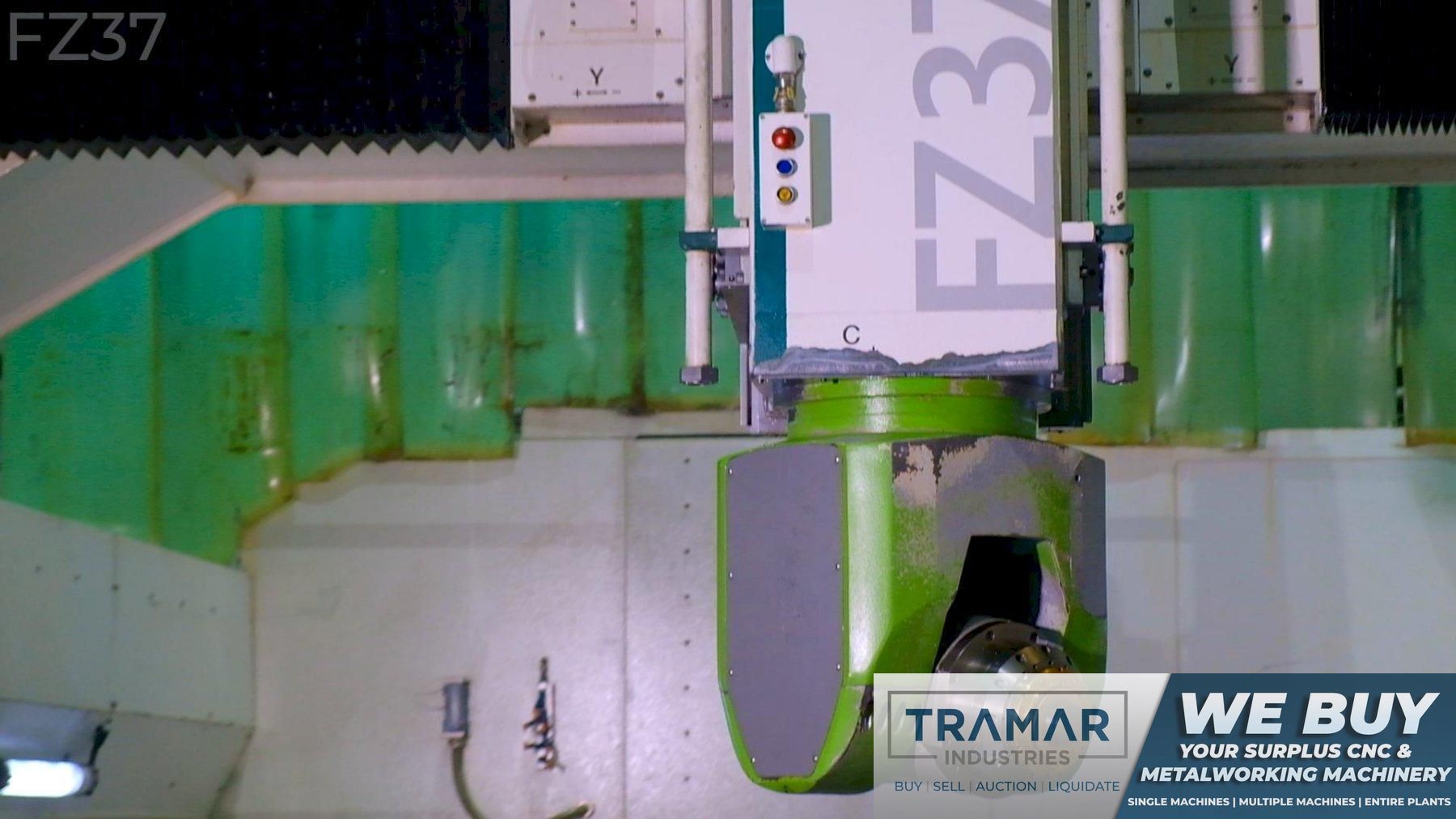

- VH3 Milling Head

The Zimmermann FZ37 is an exclusive part of our Machining Centers, Gantry (incld. Bridge & Double Column) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
