Doosan Daewoo Puma 300LB - Horizontal Lathes

Request Quote
Share Machine
Specifications Print Specs
Model: Puma 300LB
Year: 2002
Stock #: 13639
Highlights:

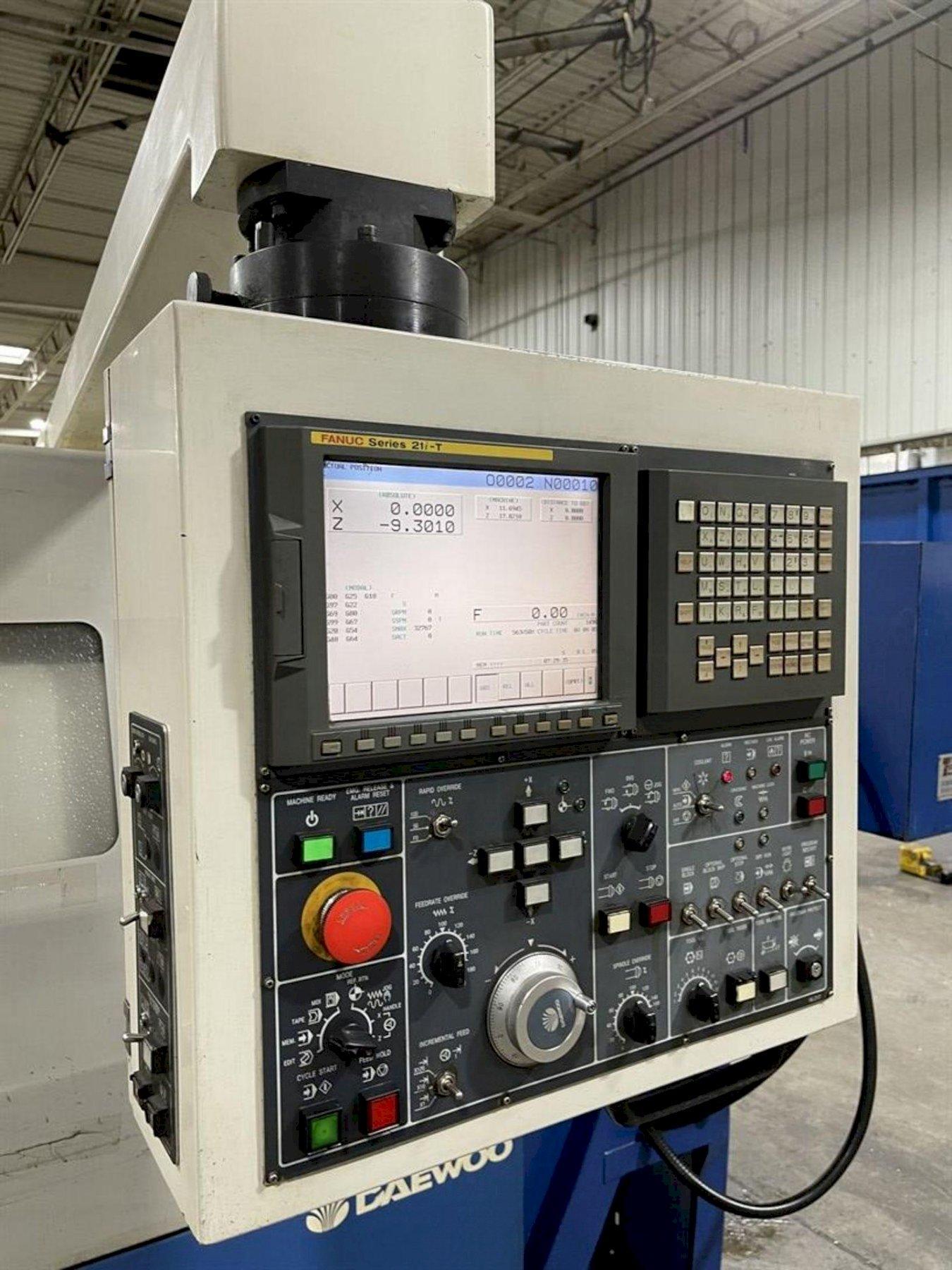

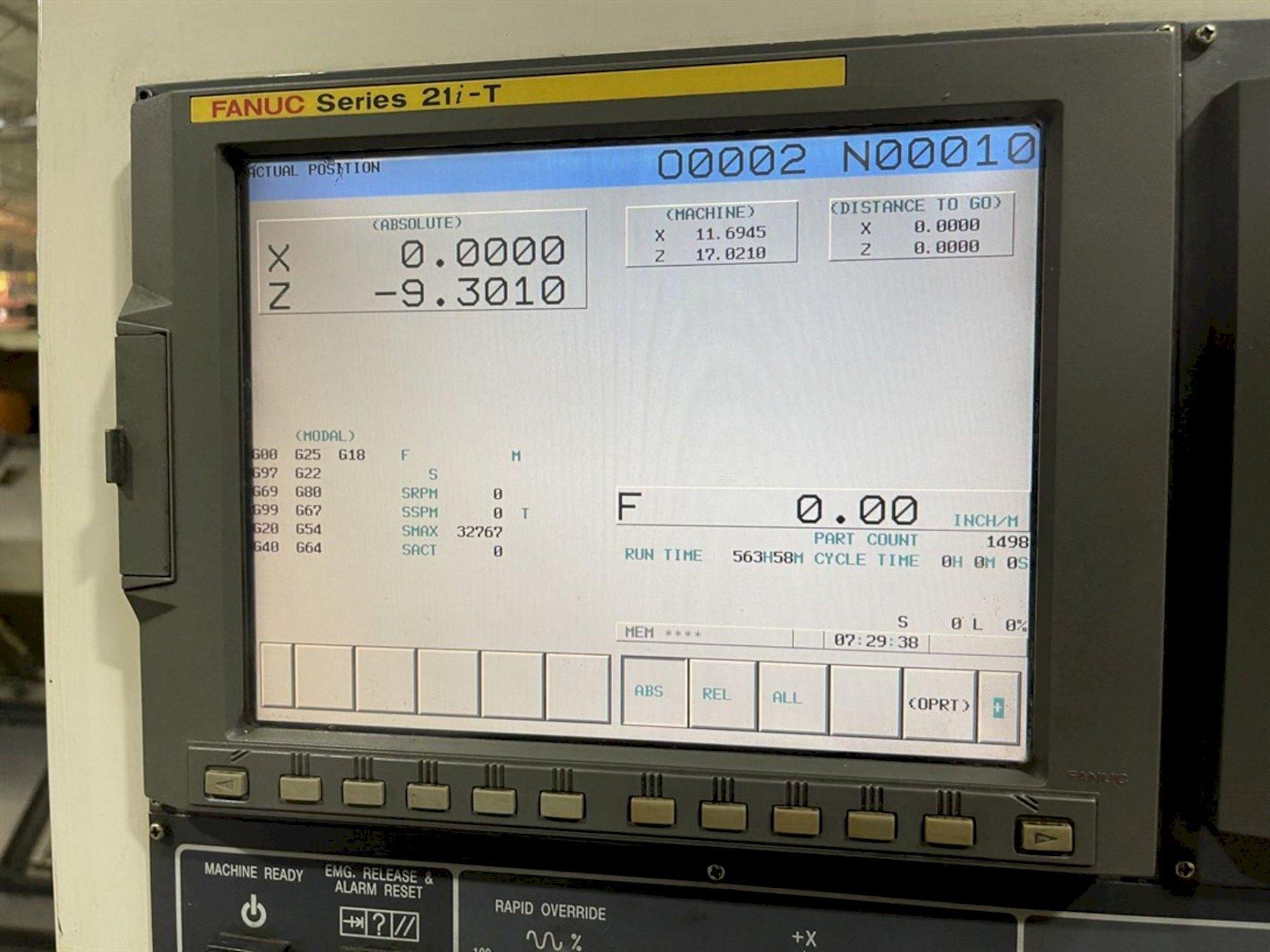

Fanuc 21i-T Control
Tool Presetter

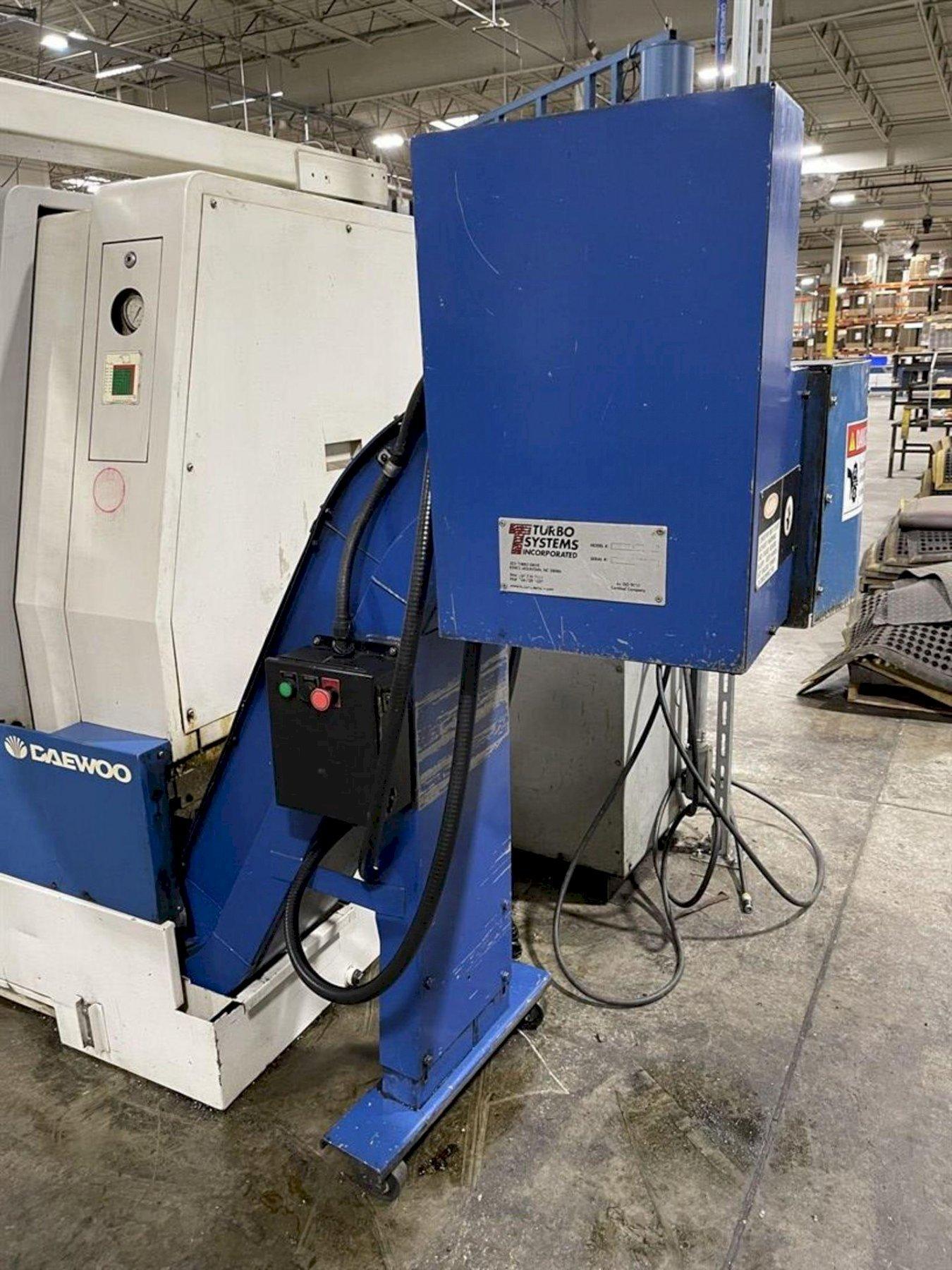

Chip Conveyor

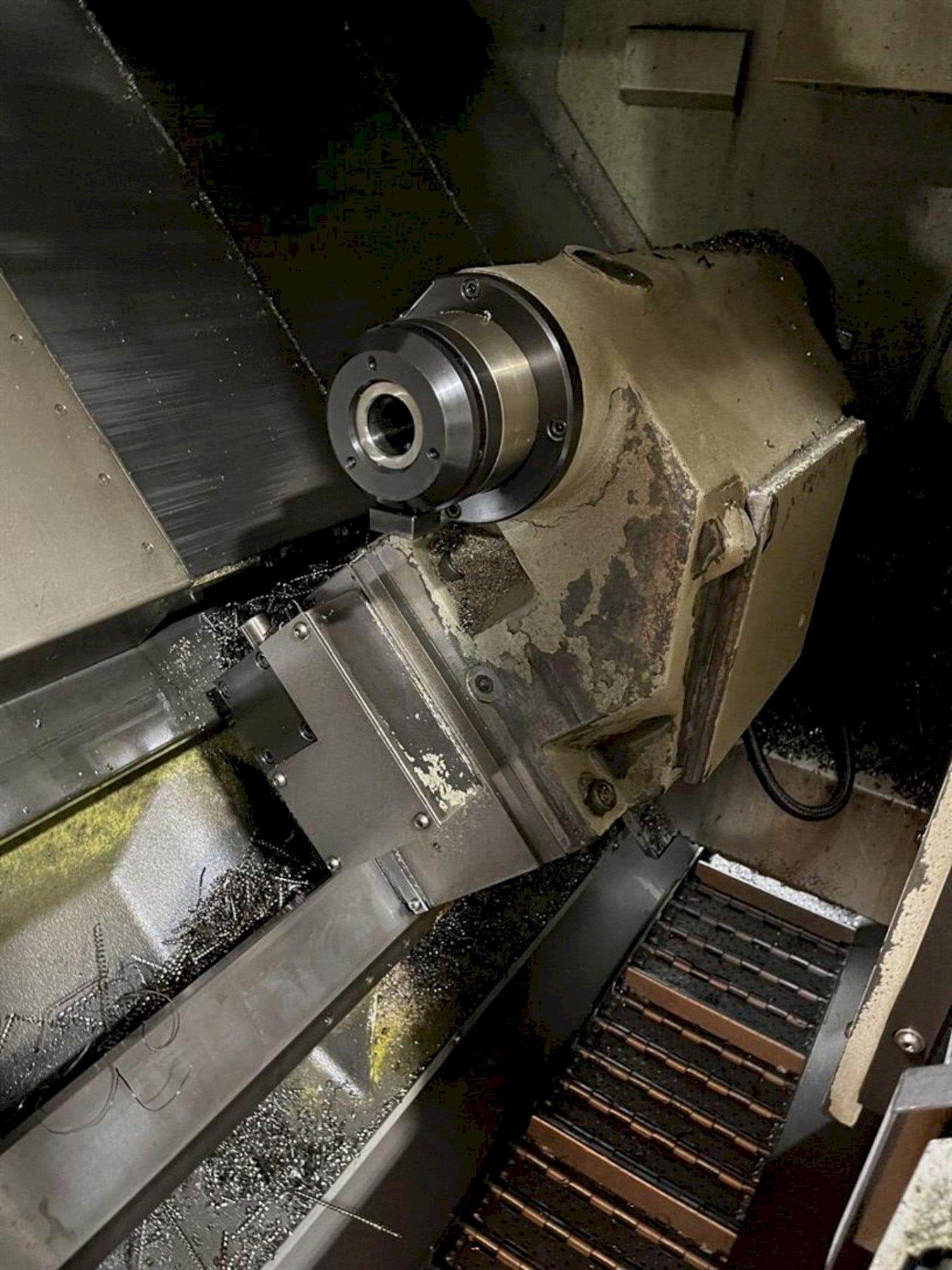

Tailstock

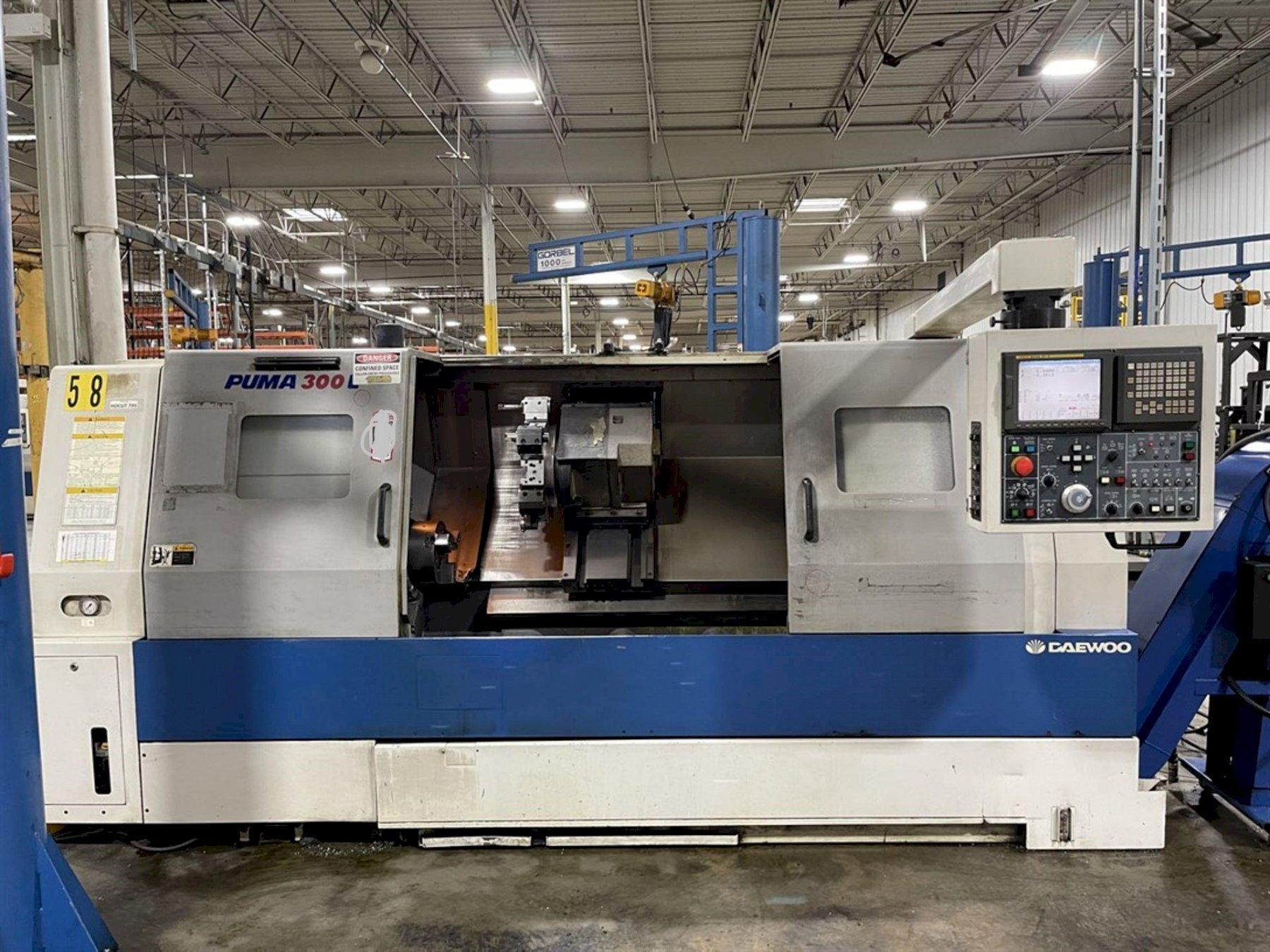

2002 Doosan Daewoo Puma 300LB CNC Lathe
Machine Specifications
Year
2002
# Axis
2
Swing
23.2"
Turning Diameter
15.7"
Center Distance
51.5"

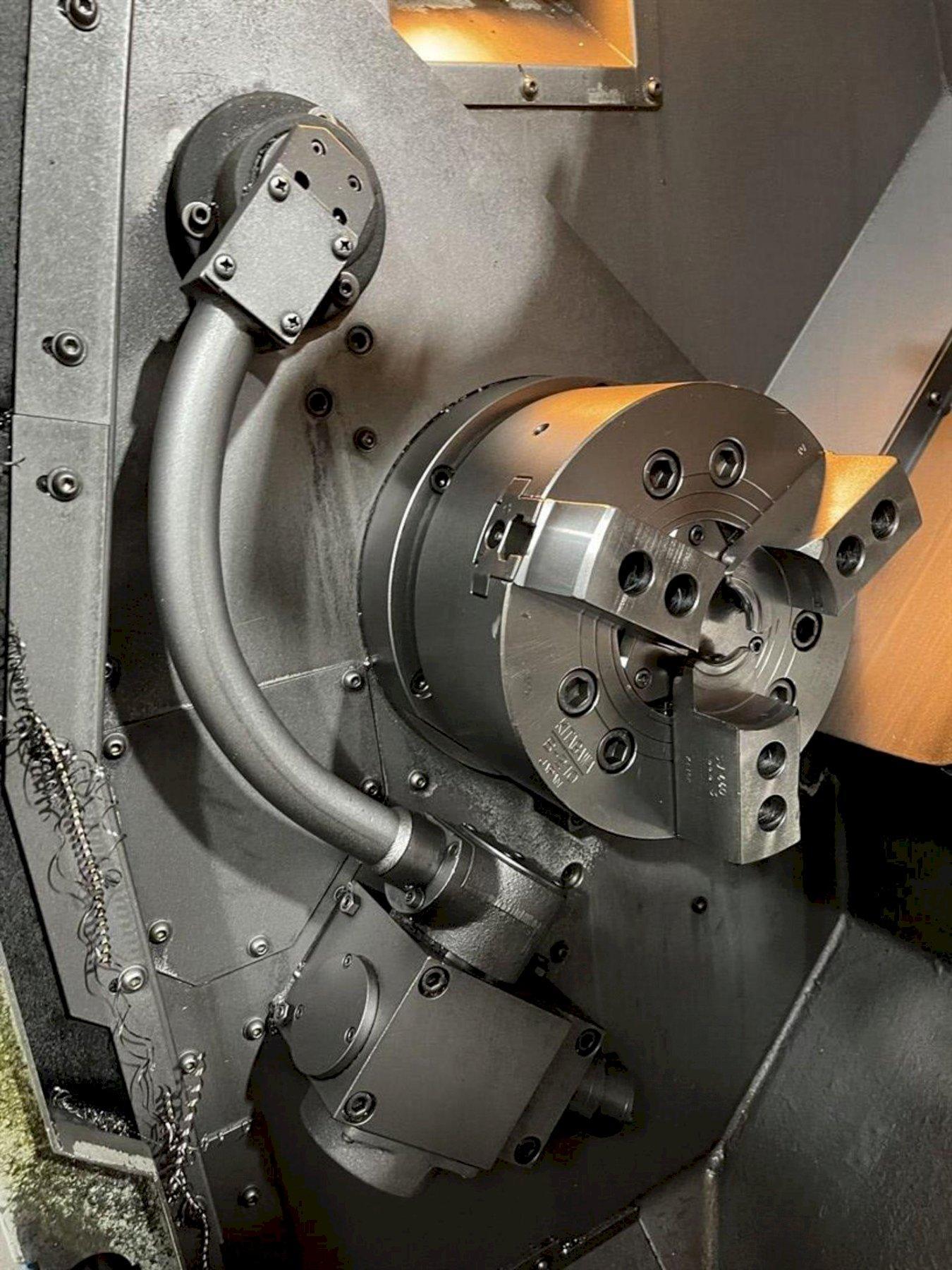

Chuck Size
10"
Bar Capacity
3.5"
X Axis Travel
11.1"
Z Axis Travel
52.36"
Spindle Speed
3,500 rpm
Main Motor
30 hp
Live Tooling
no
Tailstock
yes
Y Axis
no
Sub Spindle
no

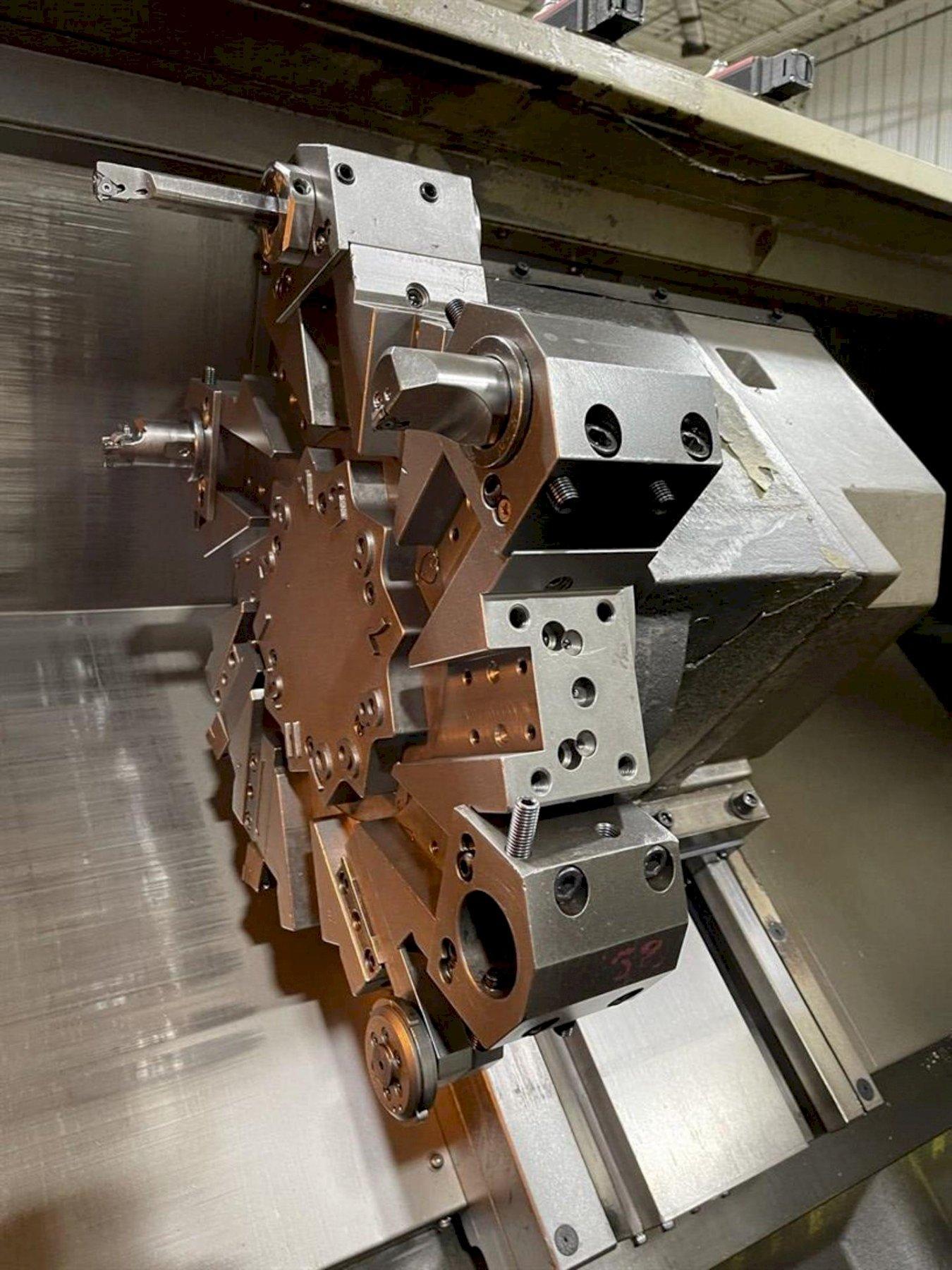

Turret Capacity
12
Machine Weight
15,000 pounds

Equipped With:

- Fanuc 21i-T Control
- Tailstock
- Chip Conveyor
- Tool Presetter

The Doosan Daewoo Puma 300LB is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
