Nakamura-tome WT-300 - Horizontal Lathes

Share Machine
Specifications Print Specs
Model: WT-300
Year: 2005
Stock #: 13098 Sold
Highlights:

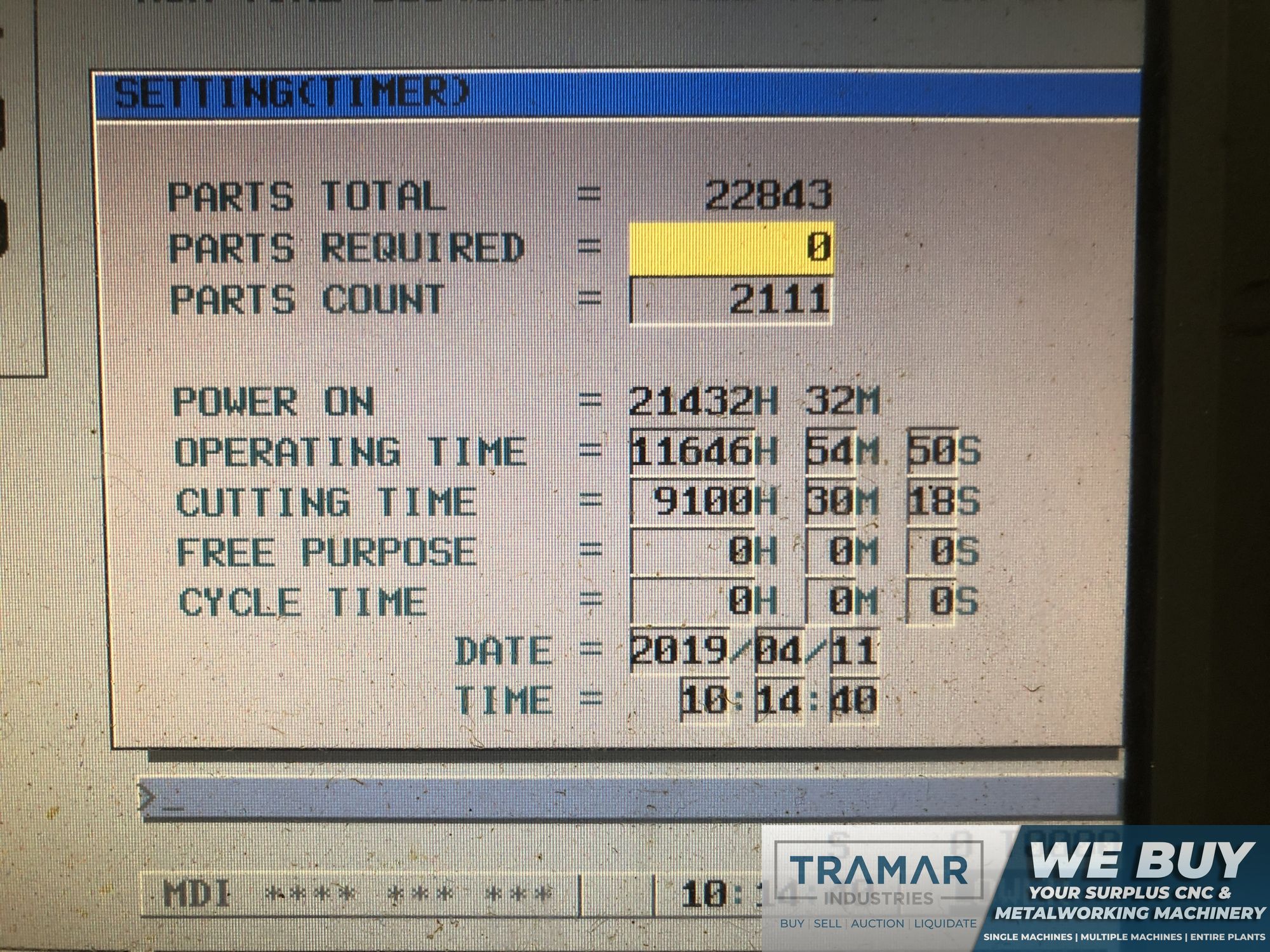

Fanuc 18i-TB Control
Main & Sub Spindle

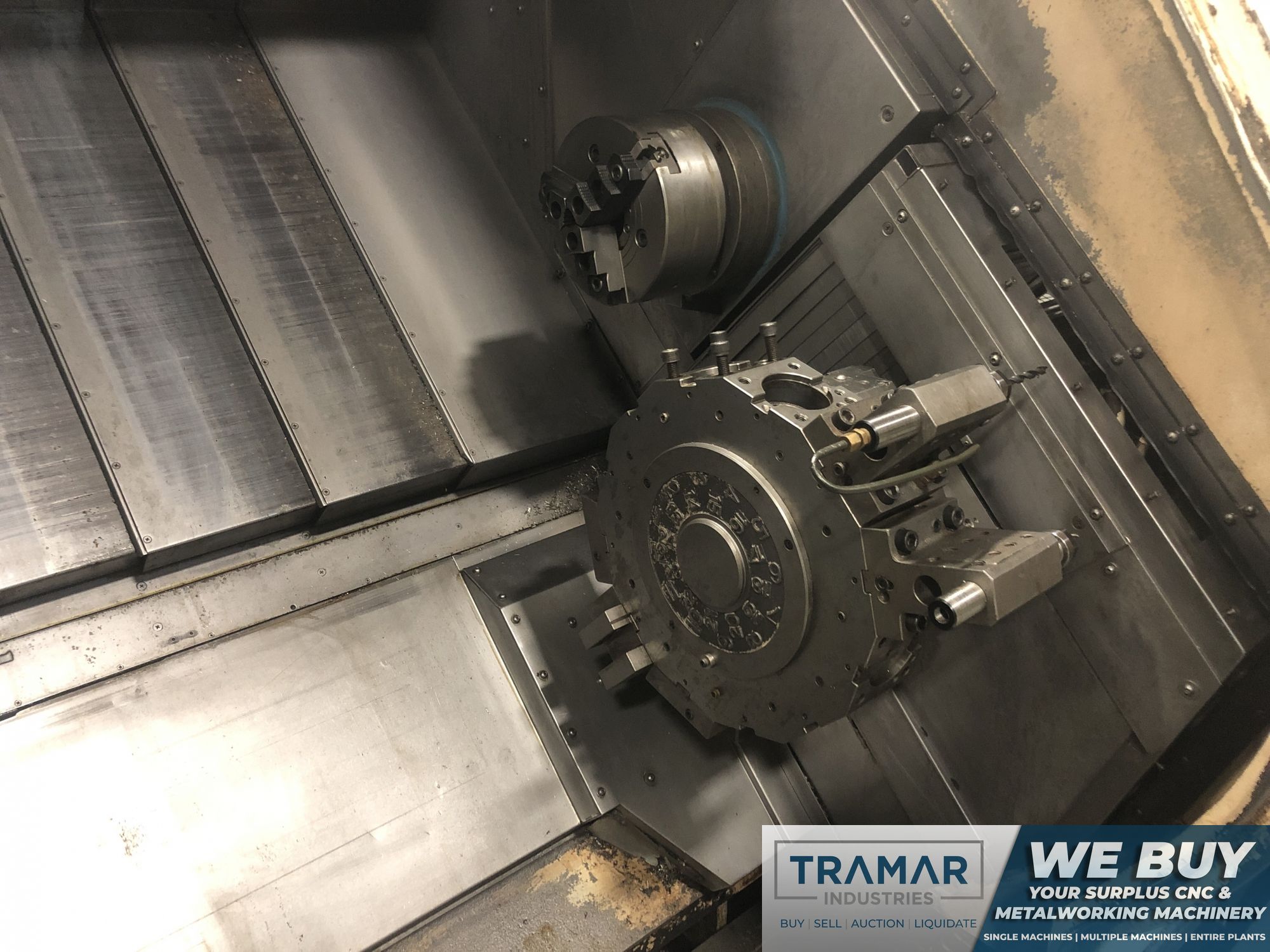

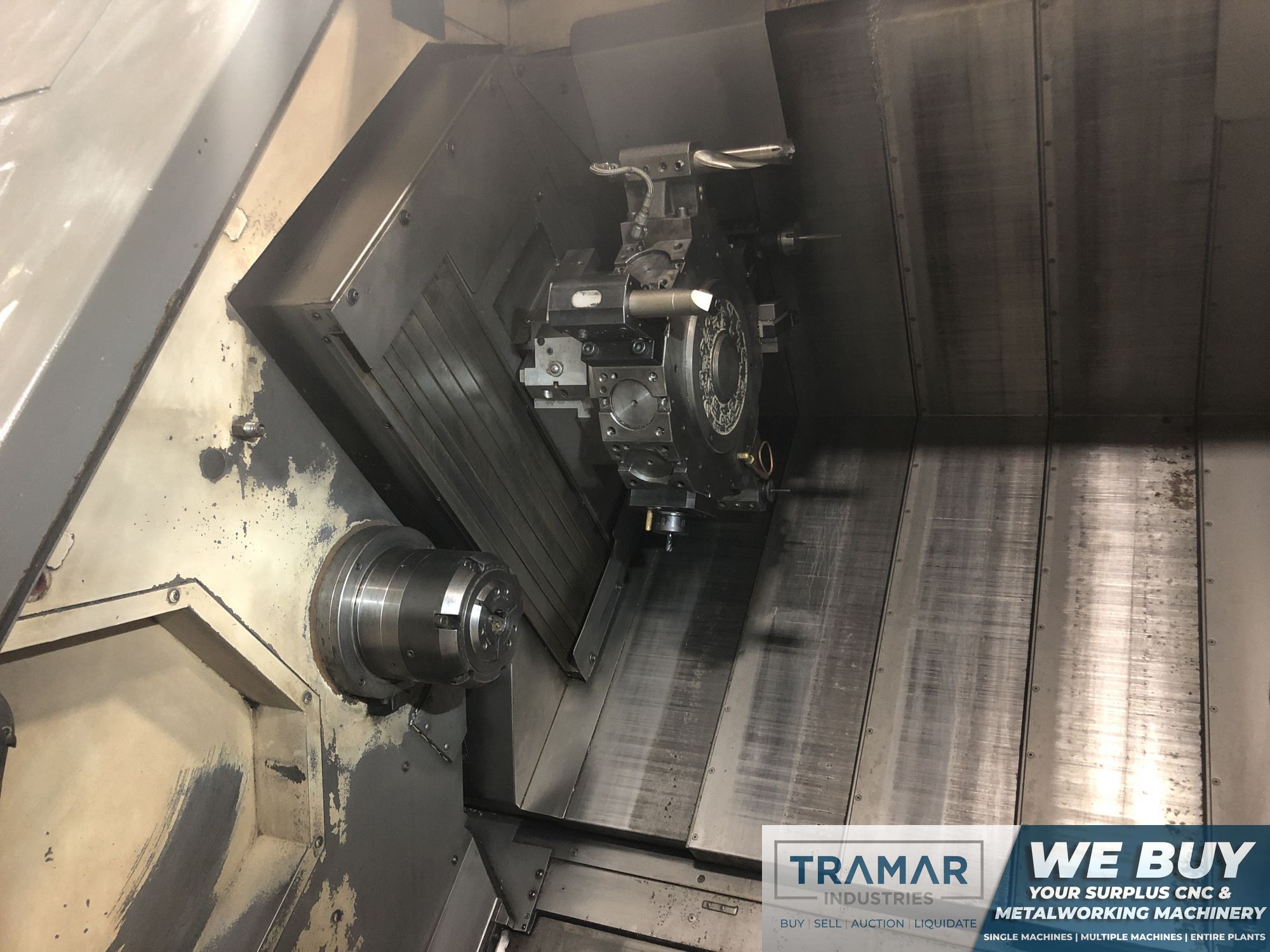

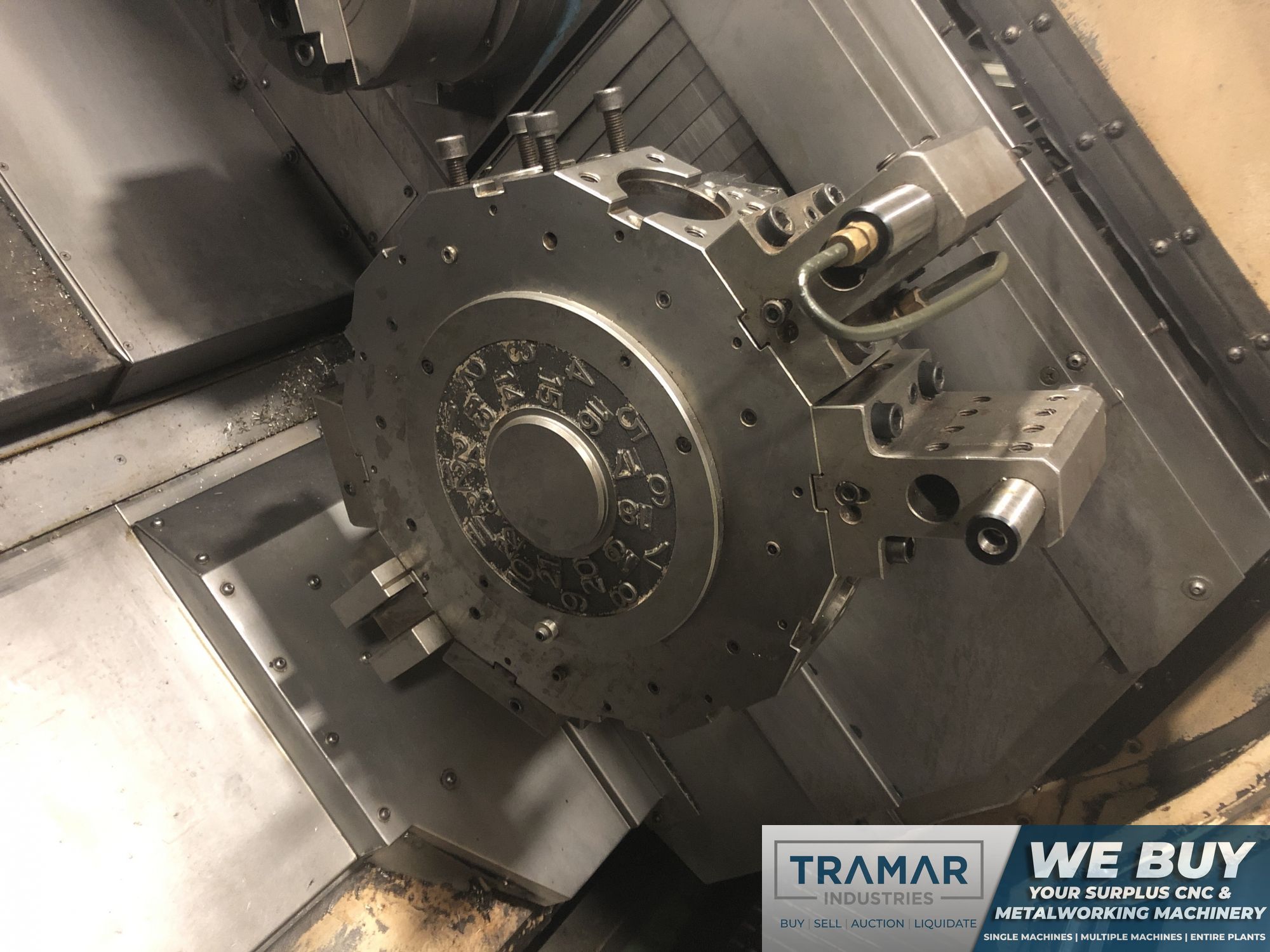

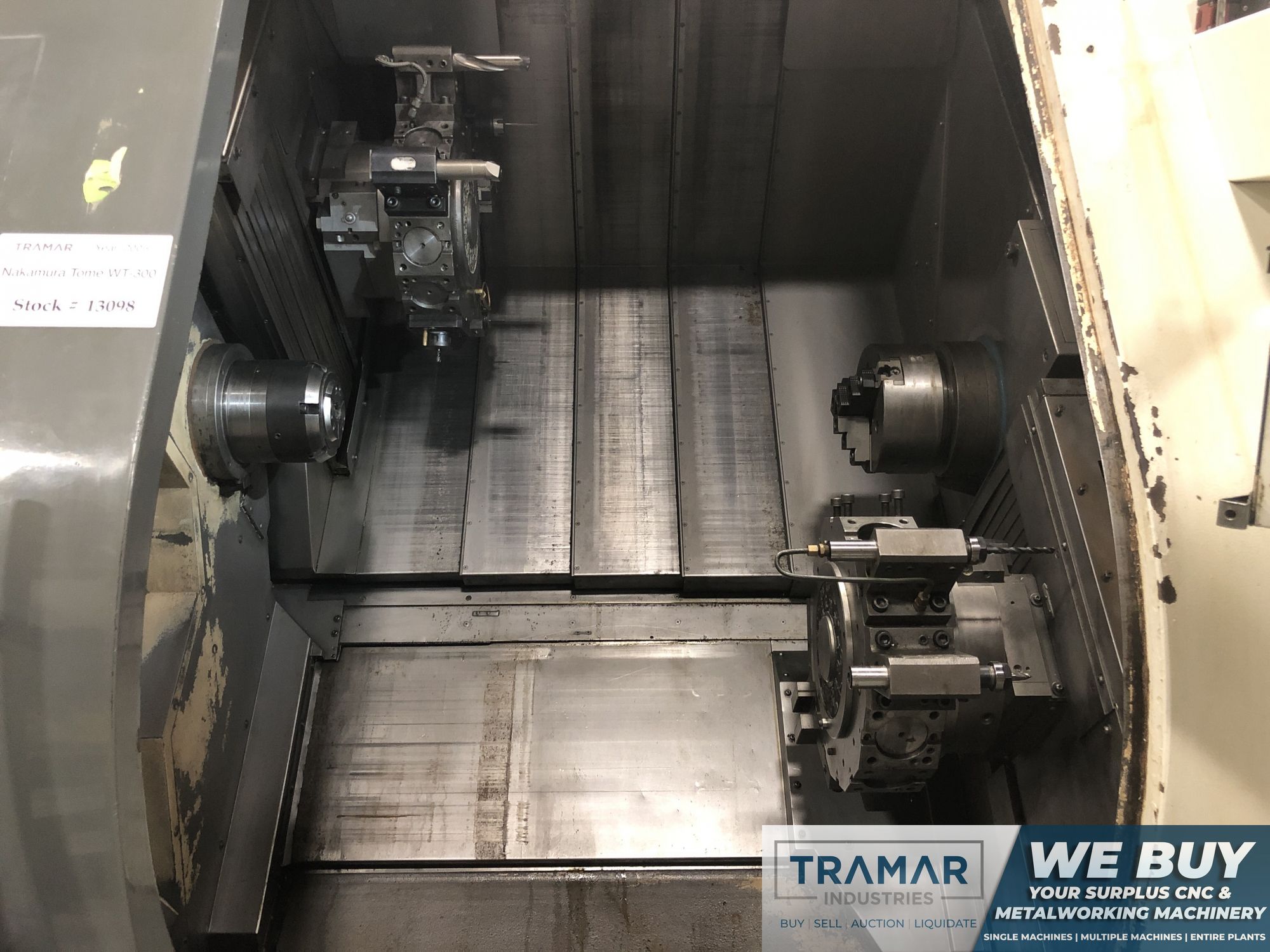

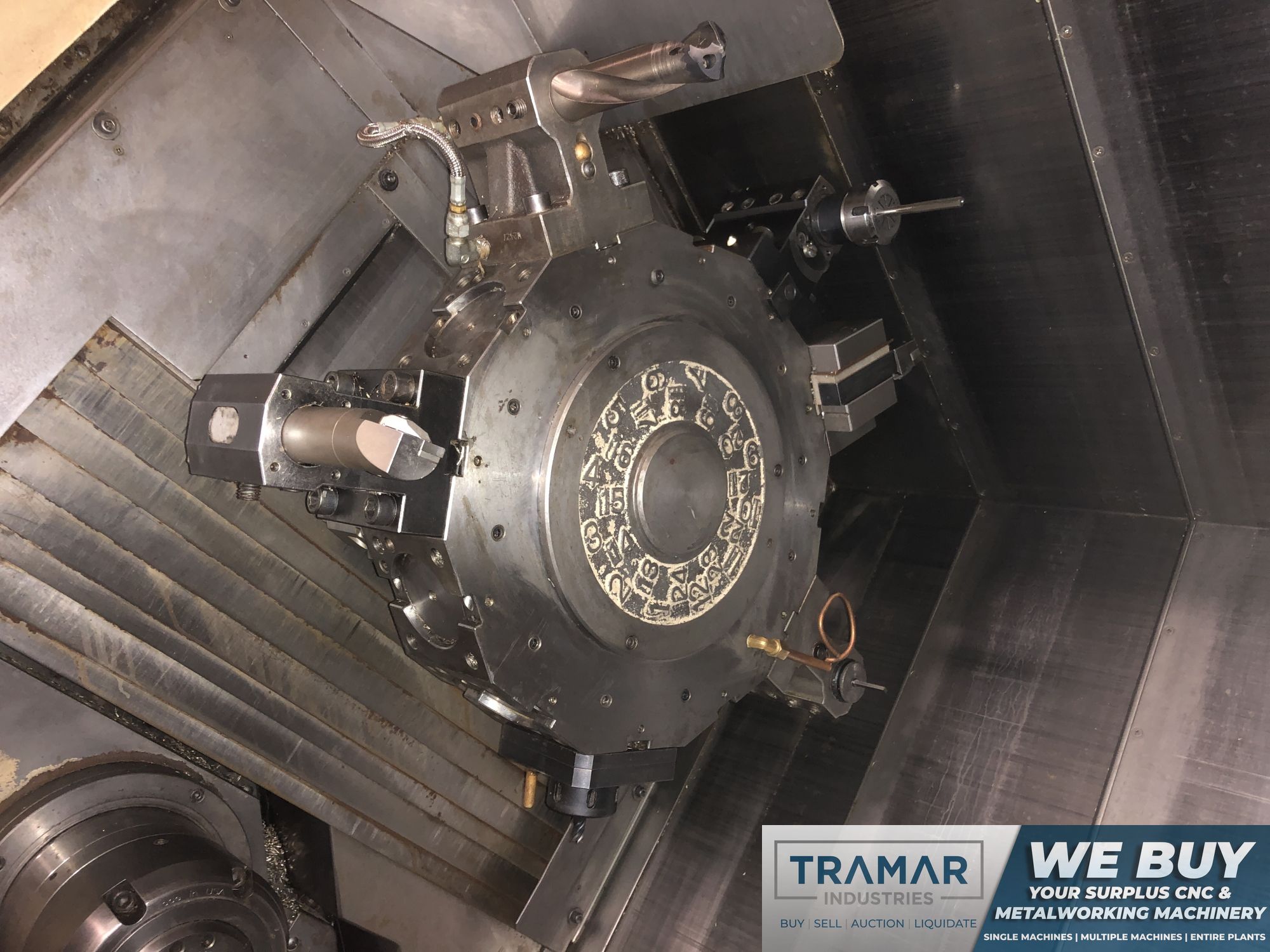

Upper & Lower Turrets
Live Tooling | Y Axis Upper Turret
LNS Quick Load Servo S3 Bar Feeder

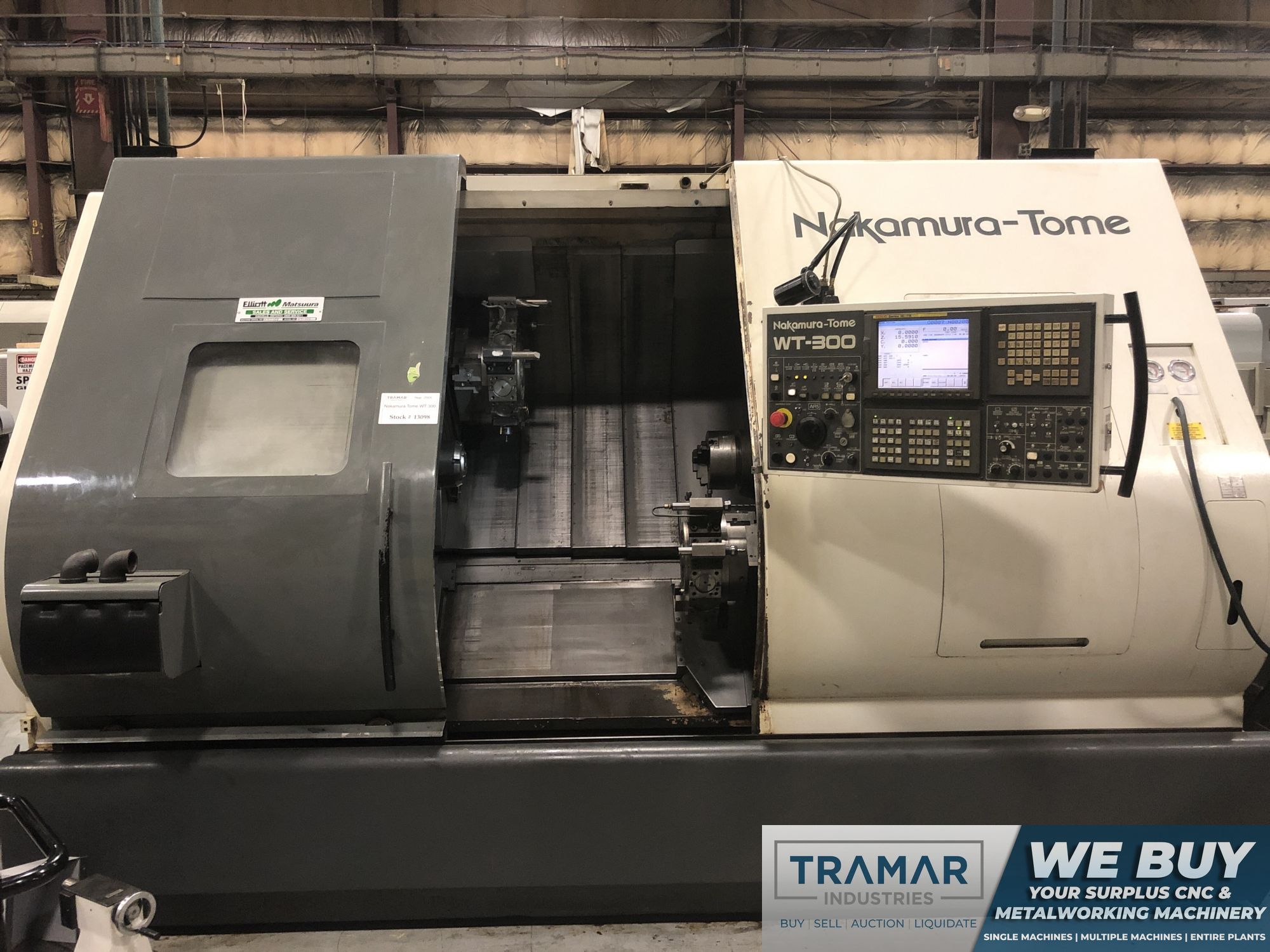

2005 NAKAMURA-TOME WT-300MMYS - CNC Horizontal Lathe
Machine Specifications
CNC Control
yes
Control Type
Fanuc 18i-TB
# Axis
8
Swing
12.2"
Turning Diameter
10.6"
Center Distance
43.3"
Chuck Size
10"
Bar Capacity
2.56"
X Axis Travel
7.4"
X2 Travel
7.4"
Z Axis Travel
30.7"
Z2 Travel
30.7"
Y Axis Travel
+/-2.4"
B Axis Travel (Sub Spindle)
33.5"
C1/C2 Axis Index
0.001°
Spindle Nose
A2-8
Spindle Speed (RPM)
2,500
Main Motor
20 HP
Sub Spindle
yes

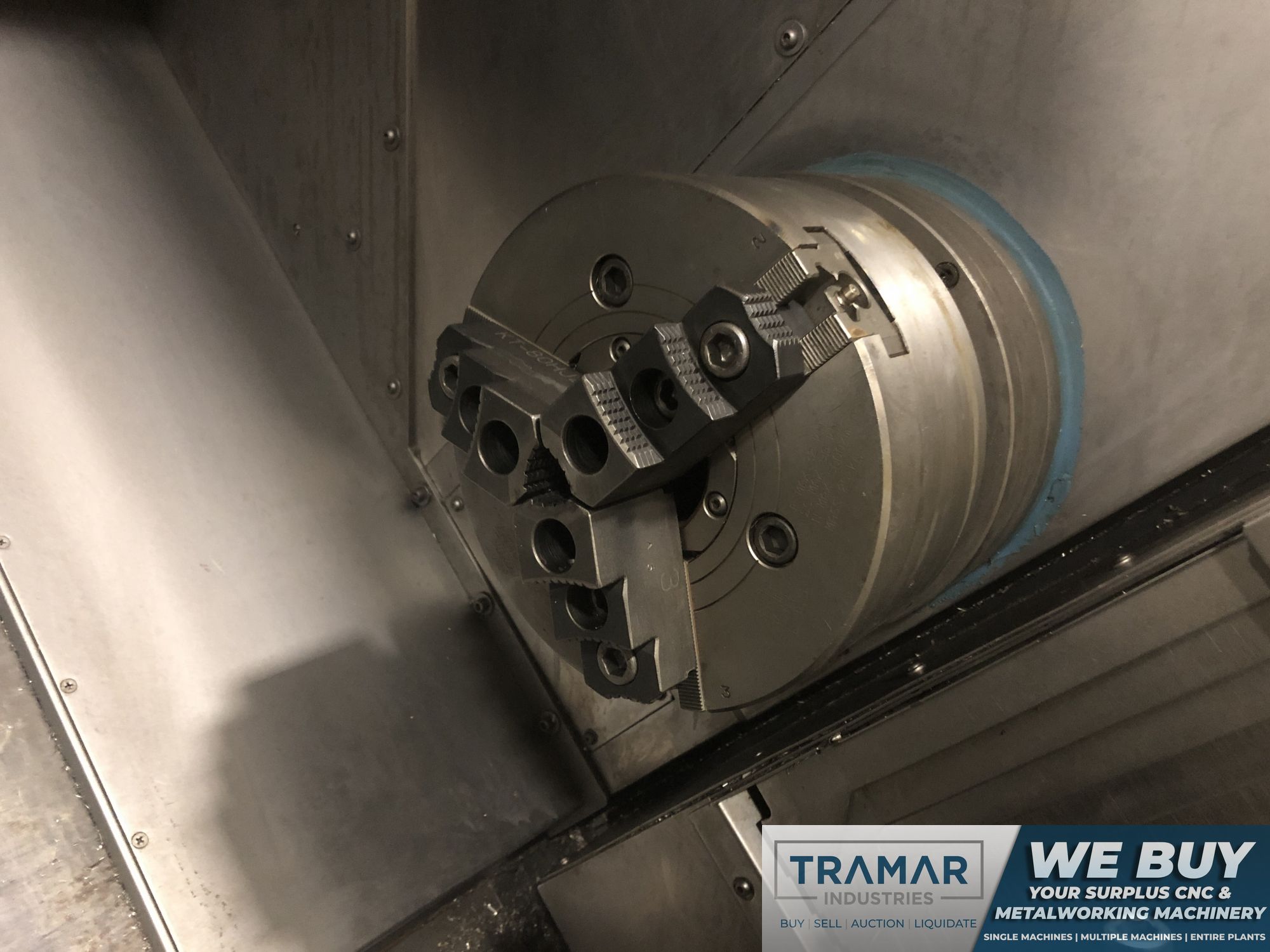

Sub Spindle Chuck
8
Sub Spindle Bar Capacity
2.56"
Sub Spindle Nose
A2-6
Sub Spindle Speed
4,500 rpm
Sub Spindle Motor (HP)
25 hp
Live Tooling
yes
Live Tooling Speed
6,000 rpm
Live Tooling Motor
7.5 hp
Turret Capacity
24 Upper / 24 Lower
Y Axis
yes
Dimensions
166" x 100" x 89 "
Weight
31,000 pounds

Equipped With:

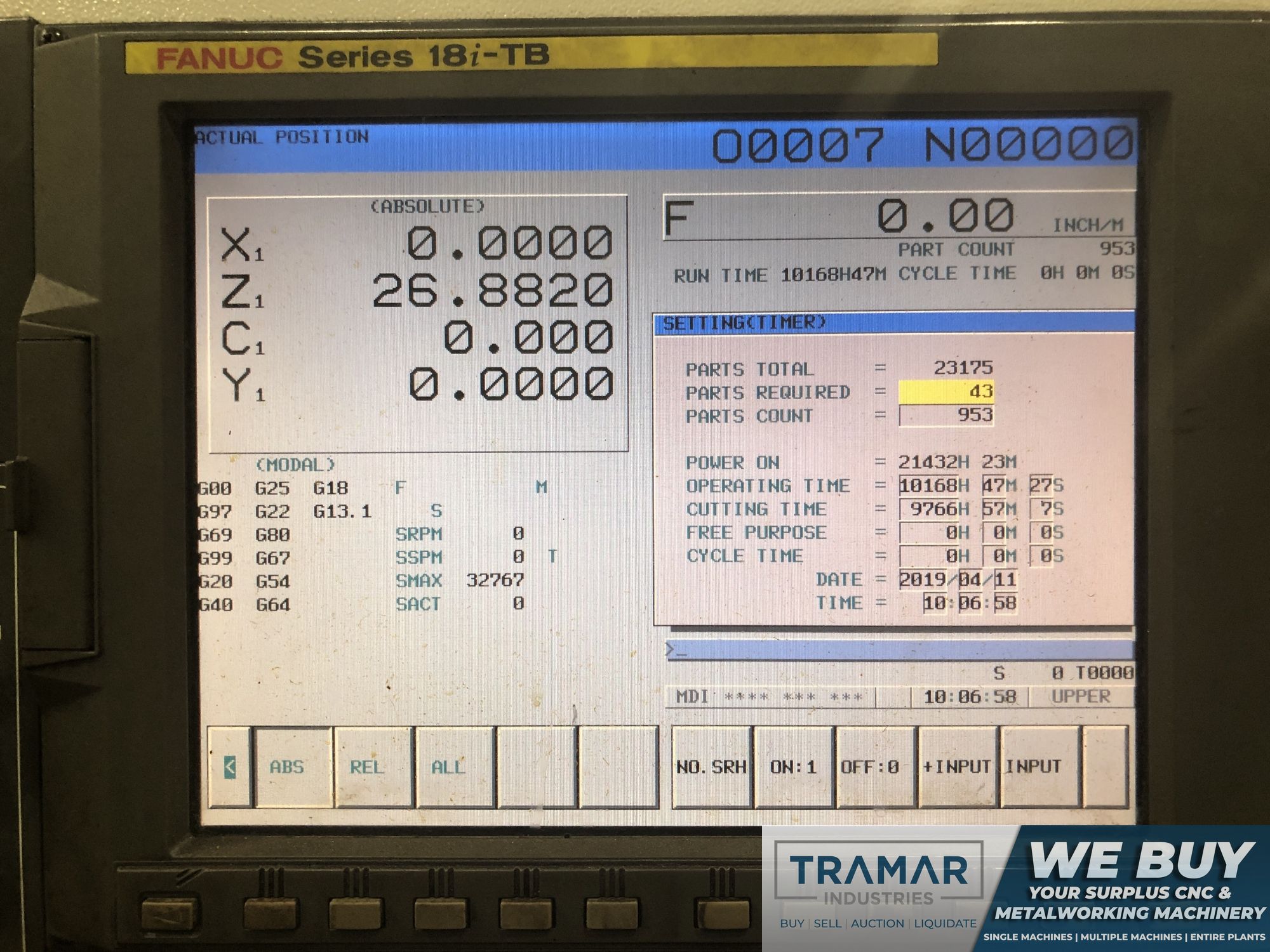

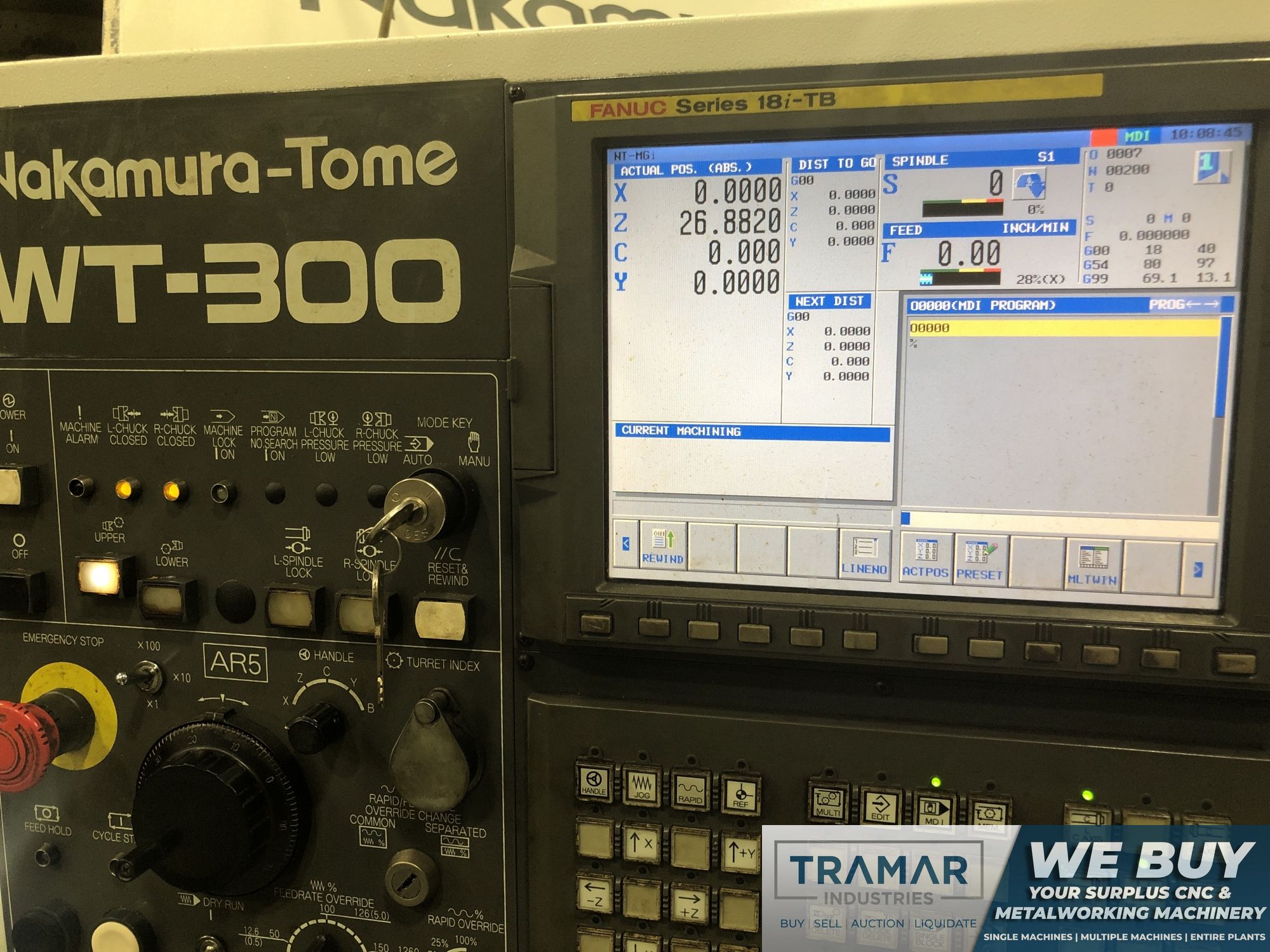

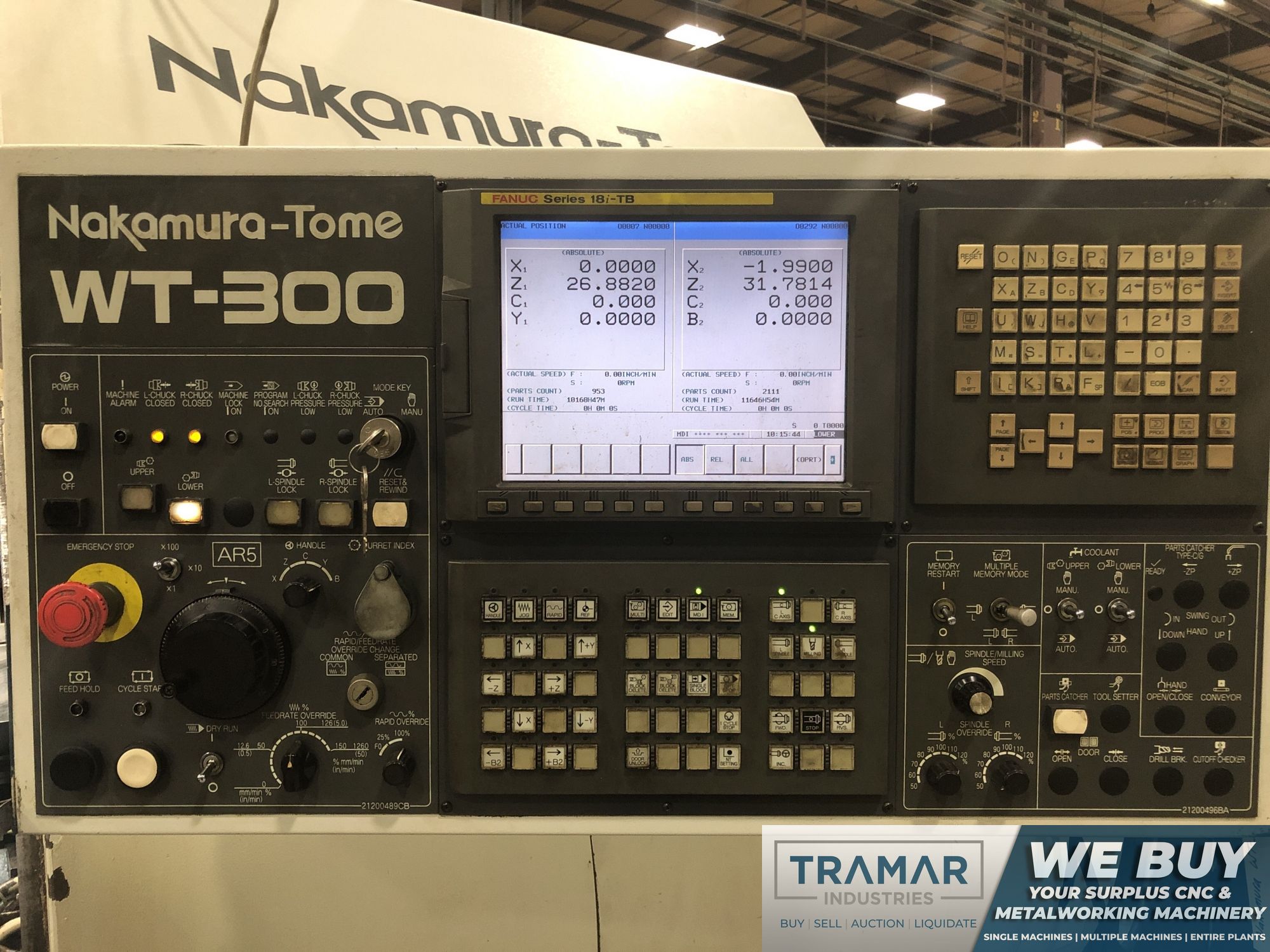

- Fanuc 18i-TB CNC Control

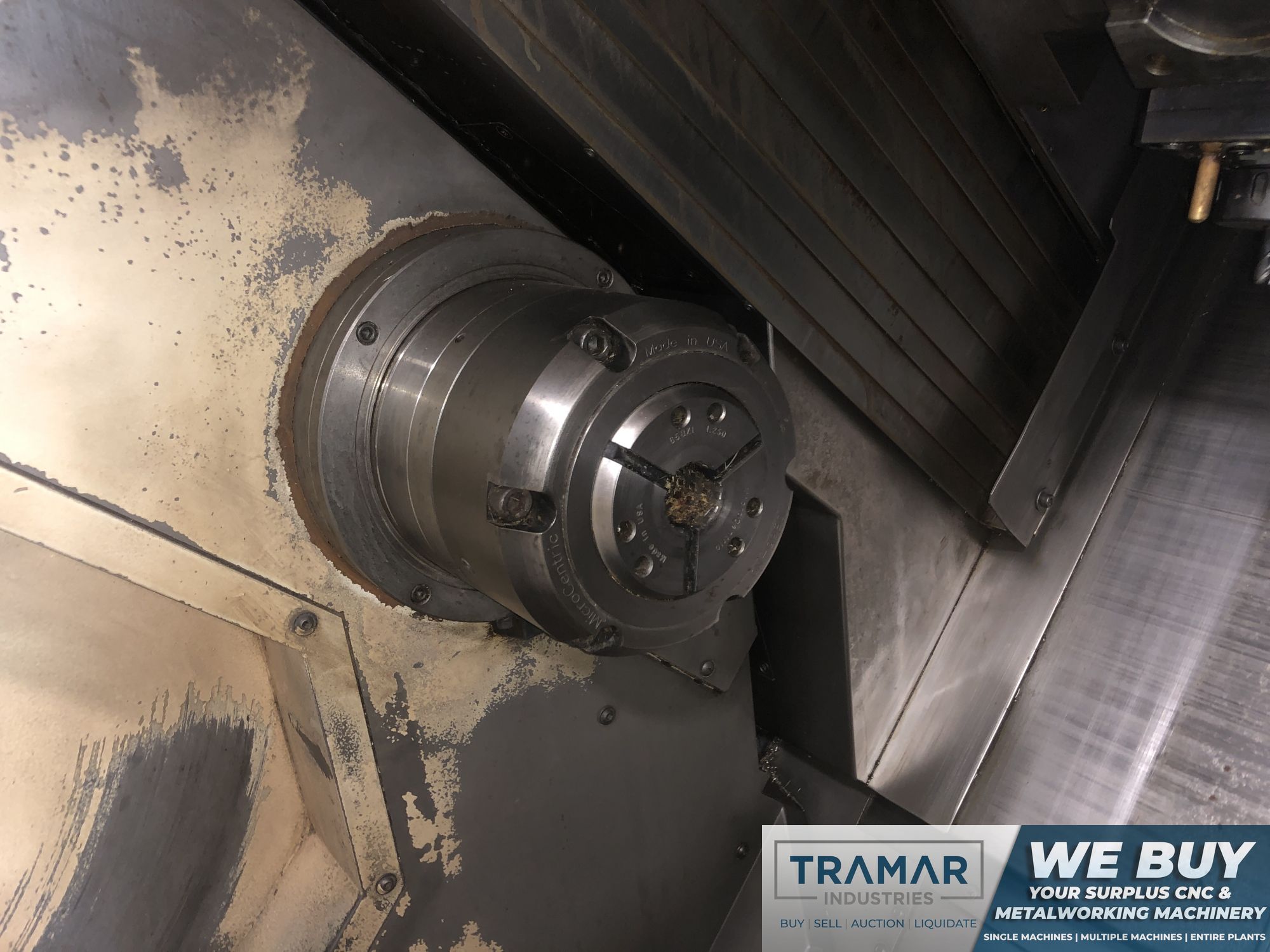

- Collet Chuck on Main Spindle
- Coolant Tank
- Chip Conveyor
- Live Tooling
- Full C axis on Main & Sub Spindle

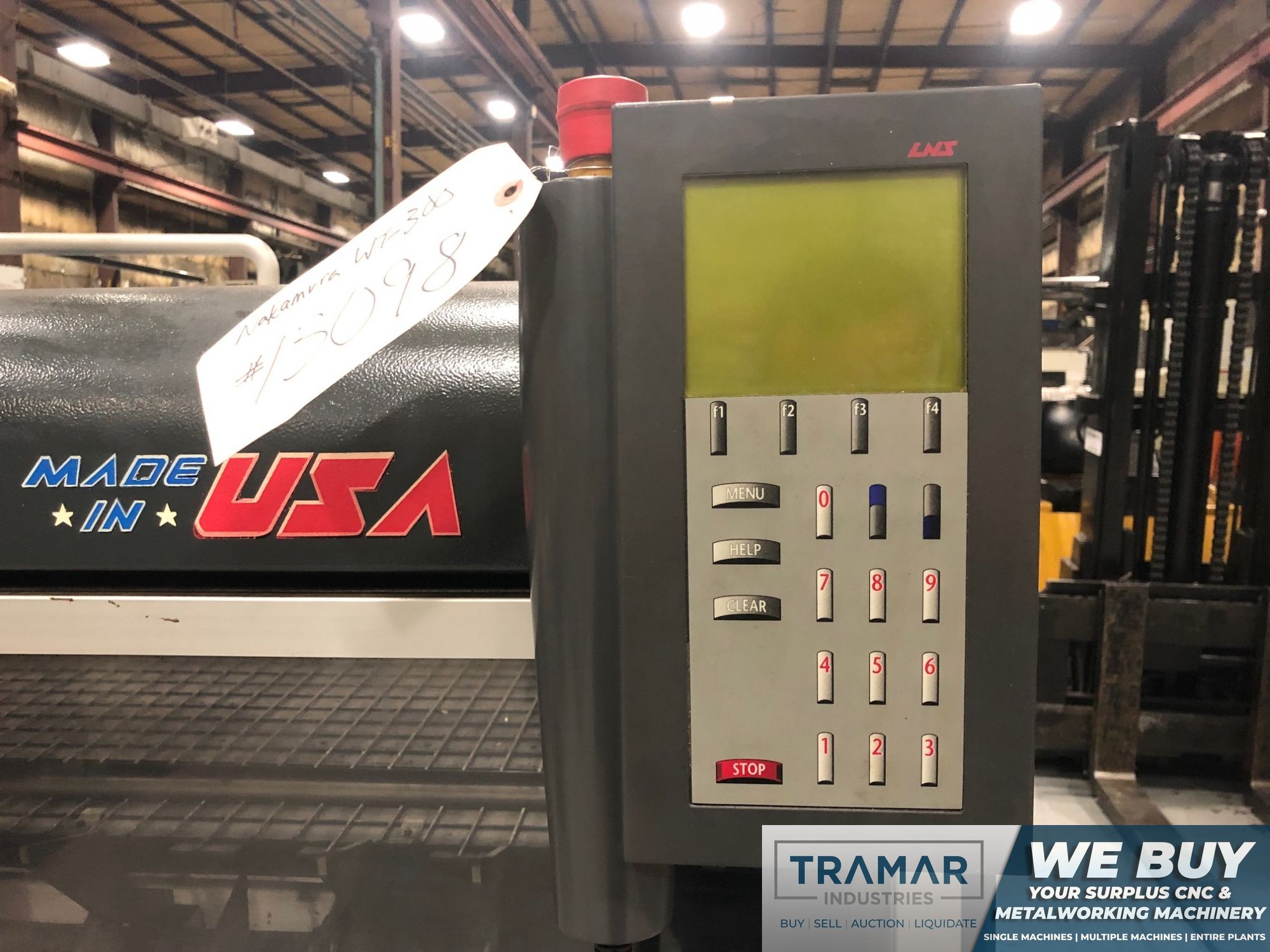

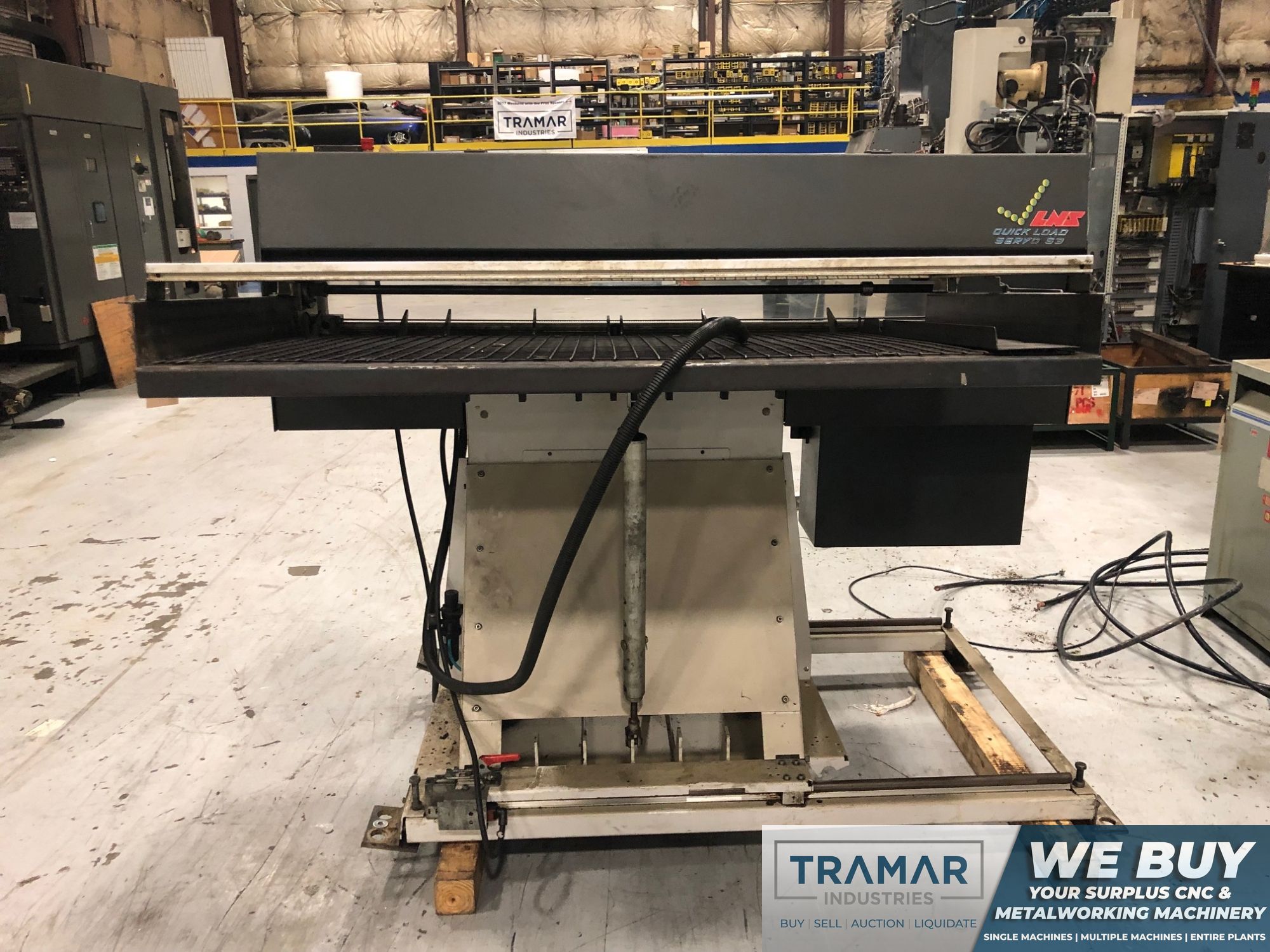

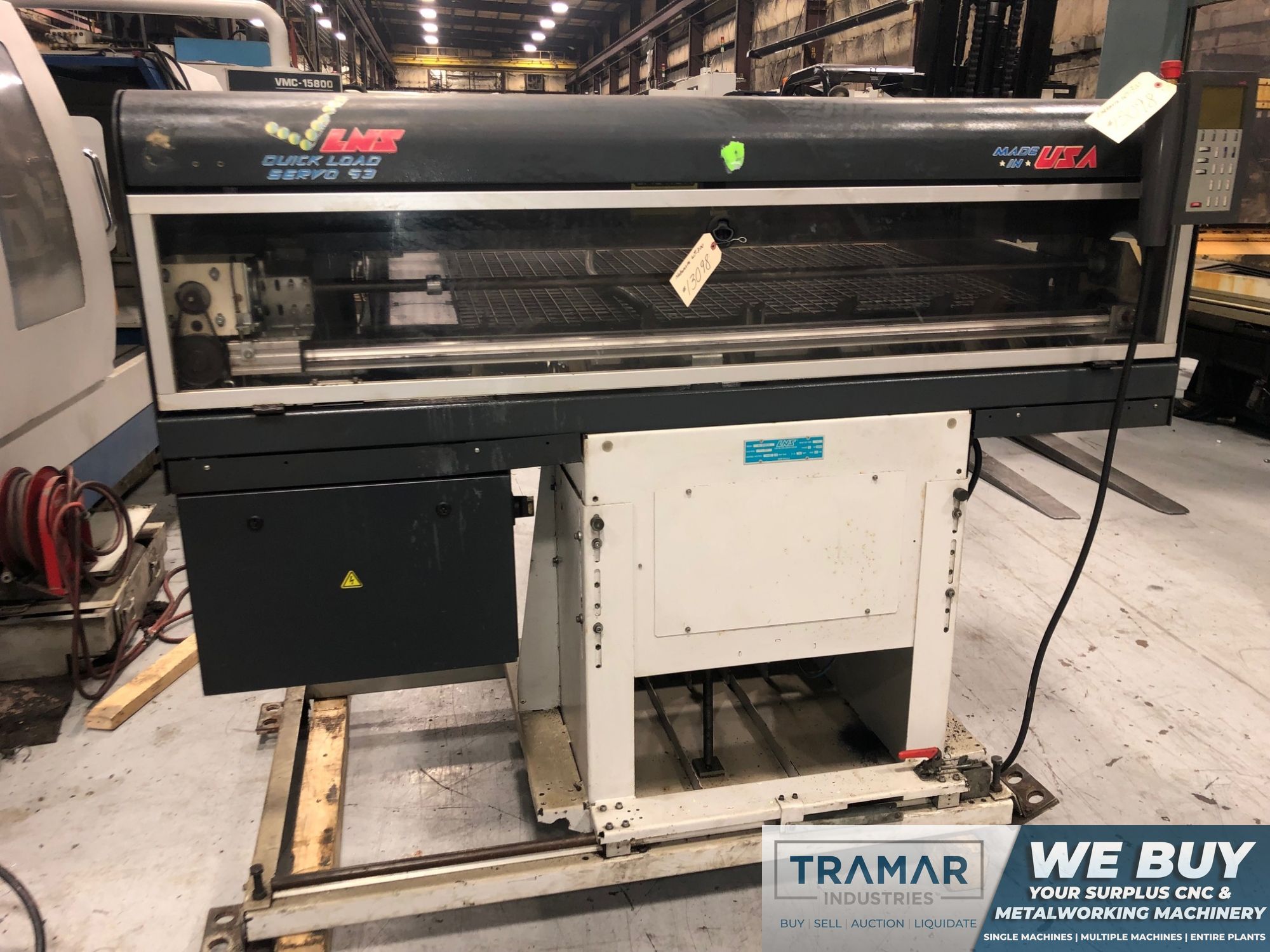

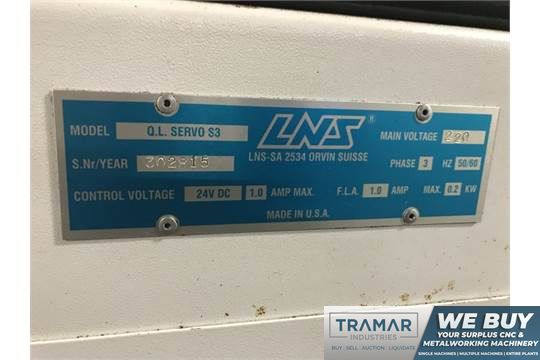

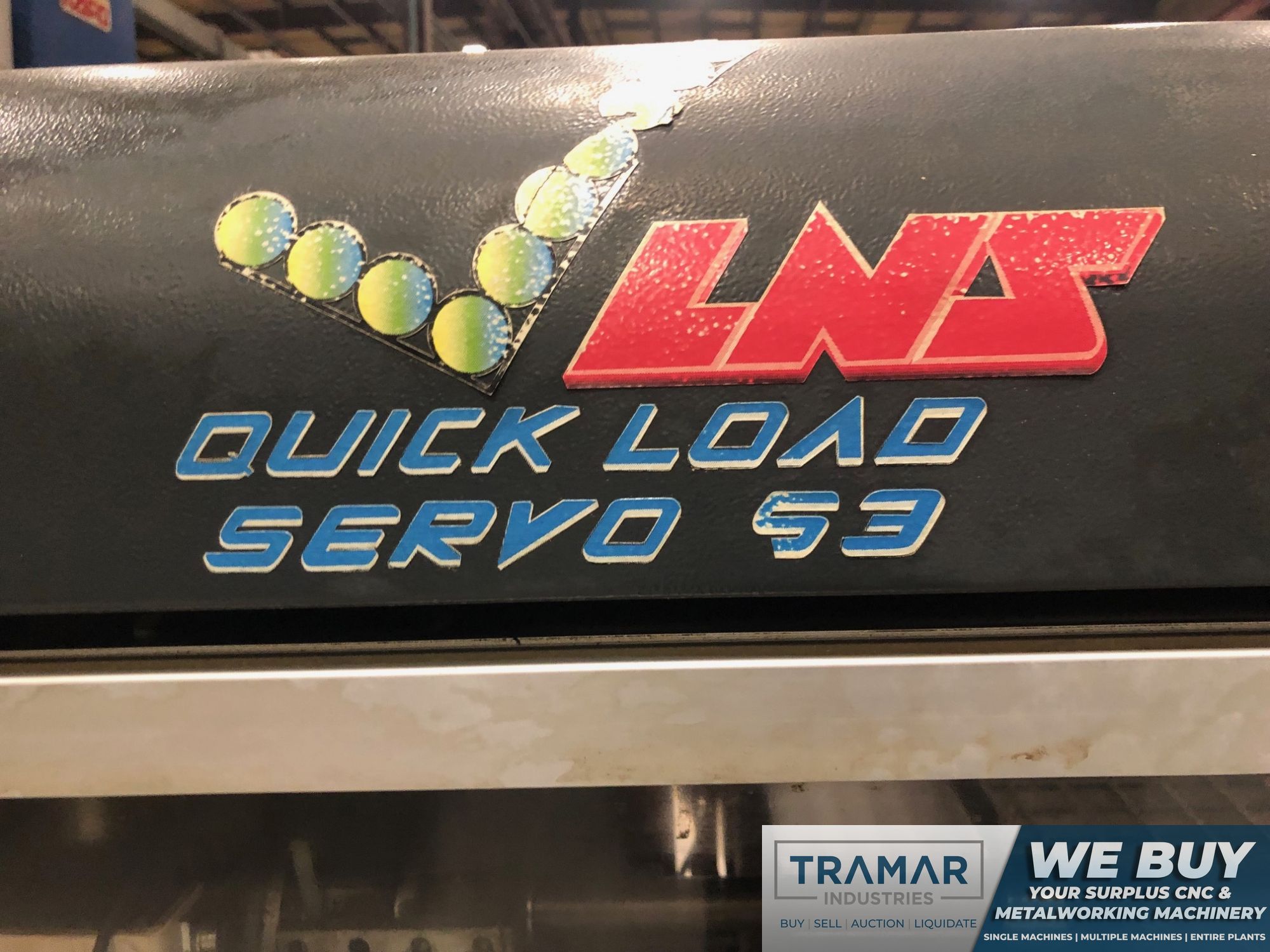

- Bar Feeder (LNS Quick Load Servo S3)
- Y Axis on Upper Turret
- Parts Catcher
- Manual Guide i
- High Speed Skip Function

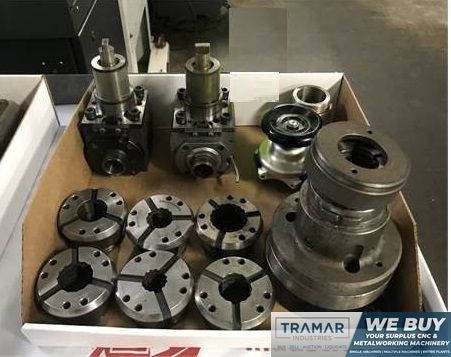

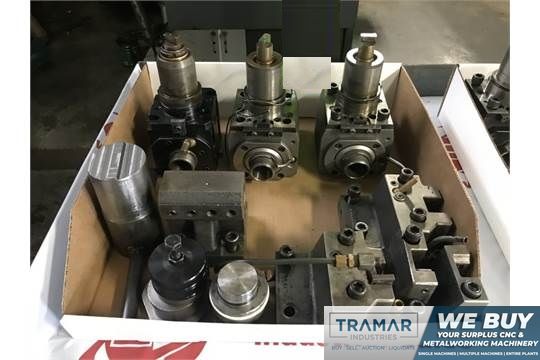

- Misc. Tooling Available

The Nakamura-tome WT-300 is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
