Doosan Puma MX-2500ST - Horizontal Lathes

Model: Puma MX-2500ST
Year: 2006
Stock #: 12764 Sold
Highlights:
Installed in 7/2,007

Image coming soon!

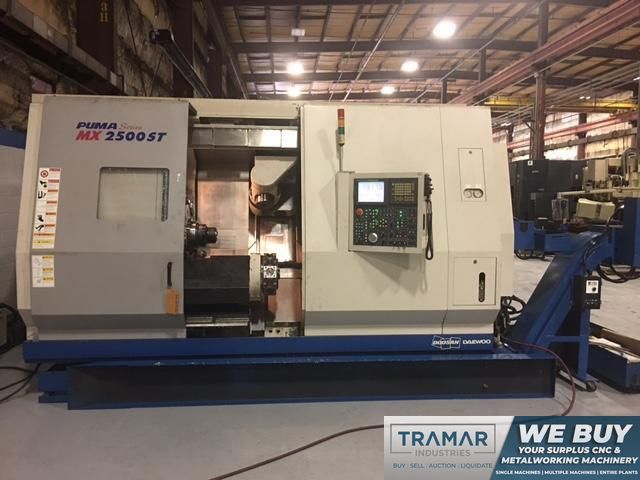

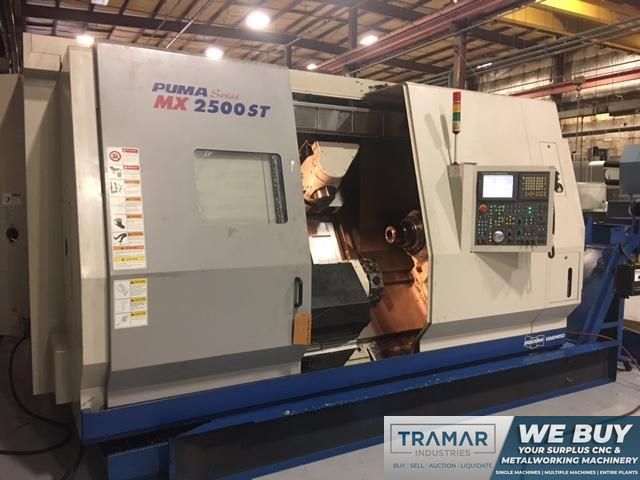

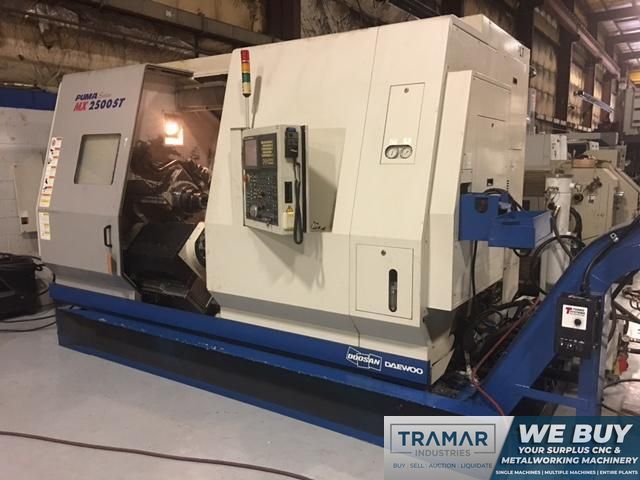

2006 DOOSAN Puma MX-2500ST
Machine Specifications
Year
2006

Equipped With:

Equipped With:

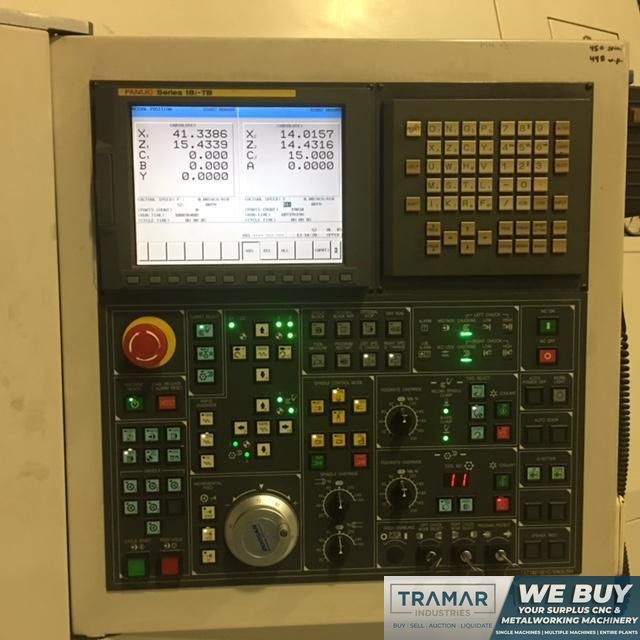

- Fanuc 18i-TB Control
- 40 Station ATC
- Parts Catcher/Parts Conveyor

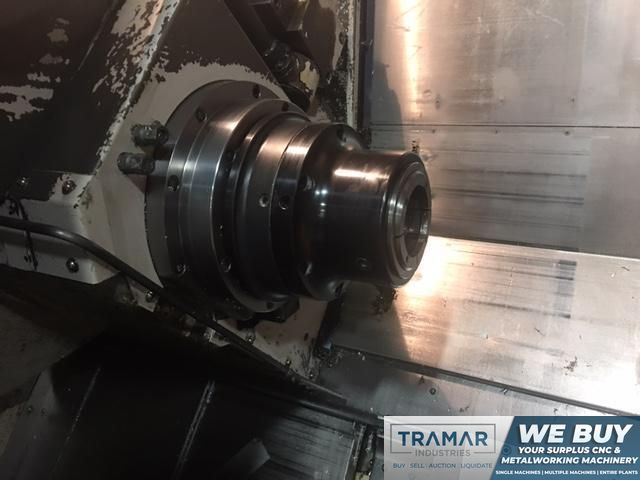

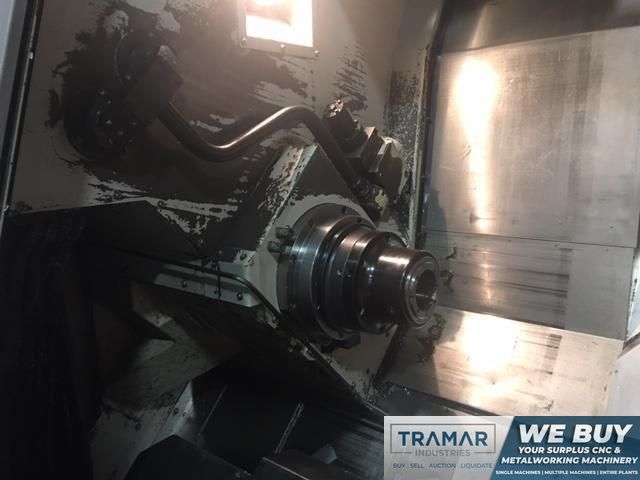

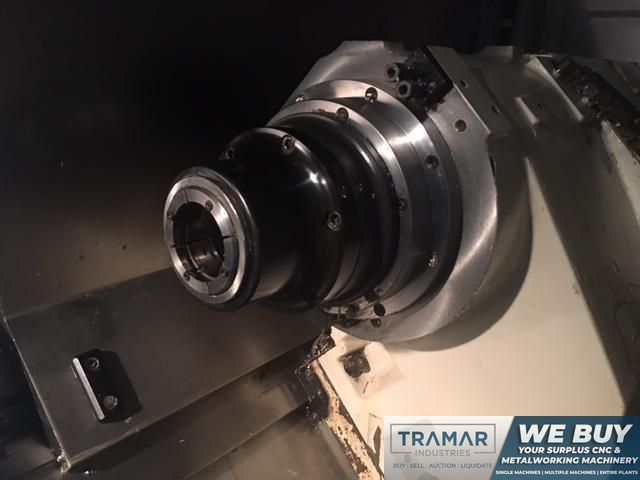

- (2) ATS S30 Dead Length Collet System
- (2) Cooljet High Pressure Coolant Systems
- Misc CAPTO C6 Tooling Available
- Tool Presetter
- High Precision Machining
- Manual Guide i
- Helical Interpolation
- Cylindrical Interpolation
- Polar Coordinate Interpolation
- Embedded Ethernet
- Graphic Function
- Look Ahead Control
- Tool Life Management
- Automatic Tool Offset
- Custom Macro B
- 400 Tool Offset Pairs
- 200 Registered Programs
- Ai High Precision Contour Control
- Available Manuals
- Machine Installed 7/2007



ATC 40

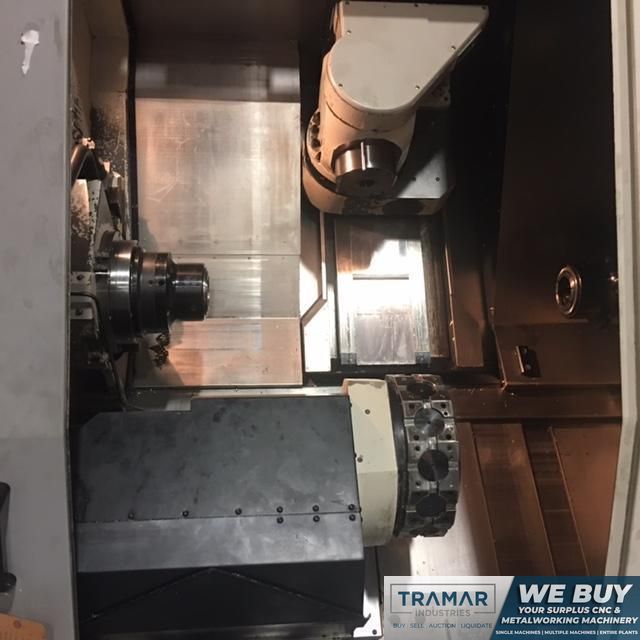

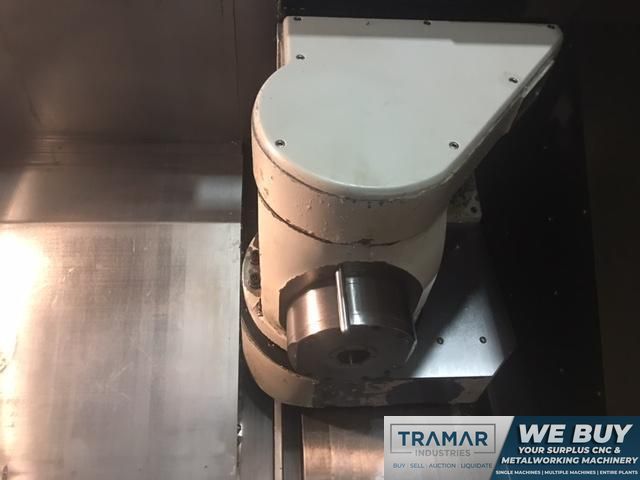

B-Axis, Head Tilt 240 Degrees
Bar Capacity 2.99
C Axis Index 0.001 Deg
Center Distance 52.9
Chuck Size Collet
Control Fanuc 18iTB
Machine Dimensions 178 x 91 x 102
Machine Weight 27500
Milling Spindle 10000
Milling Spindle Motor 20
Number of Axes 9
Rapid Traverse (X/Z) 945
Rapid Traverse (Y) 630
Spindle Motor Cont. 35
Spindle Nose A2-8
Spindle Speed 3500
Sub Spindle Motor 35 HP
Sub Spindle Speed 3500
Swing 29.5
Travel (A) 41.9
Travel (X) 21.9
Travel (X) Lower Turret 7.5
Travel (Y) 6.3
Travel (Z) 43.1
Travel (Z) Lower Turret 40.9
Turning Diameter 21.7

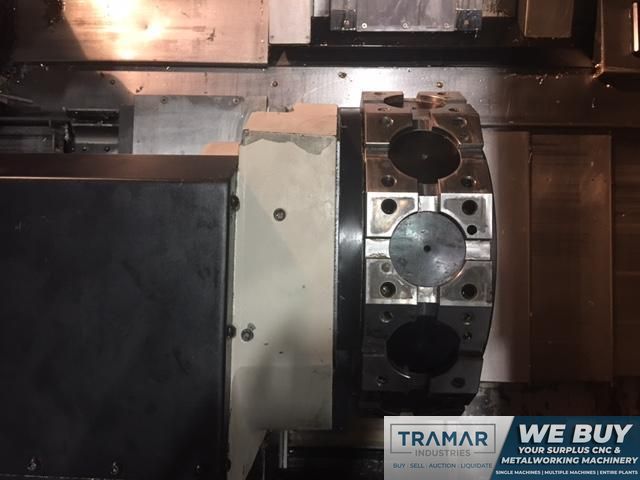

Turret Stations 12

The Doosan Puma MX-2500ST is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
