Okuma Impact LU45 - Horizontal Lathes

Request Quote
Specifications Print Specs
Model: Impact LU45
Year: 2007
Stock #: 131075
Highlights:

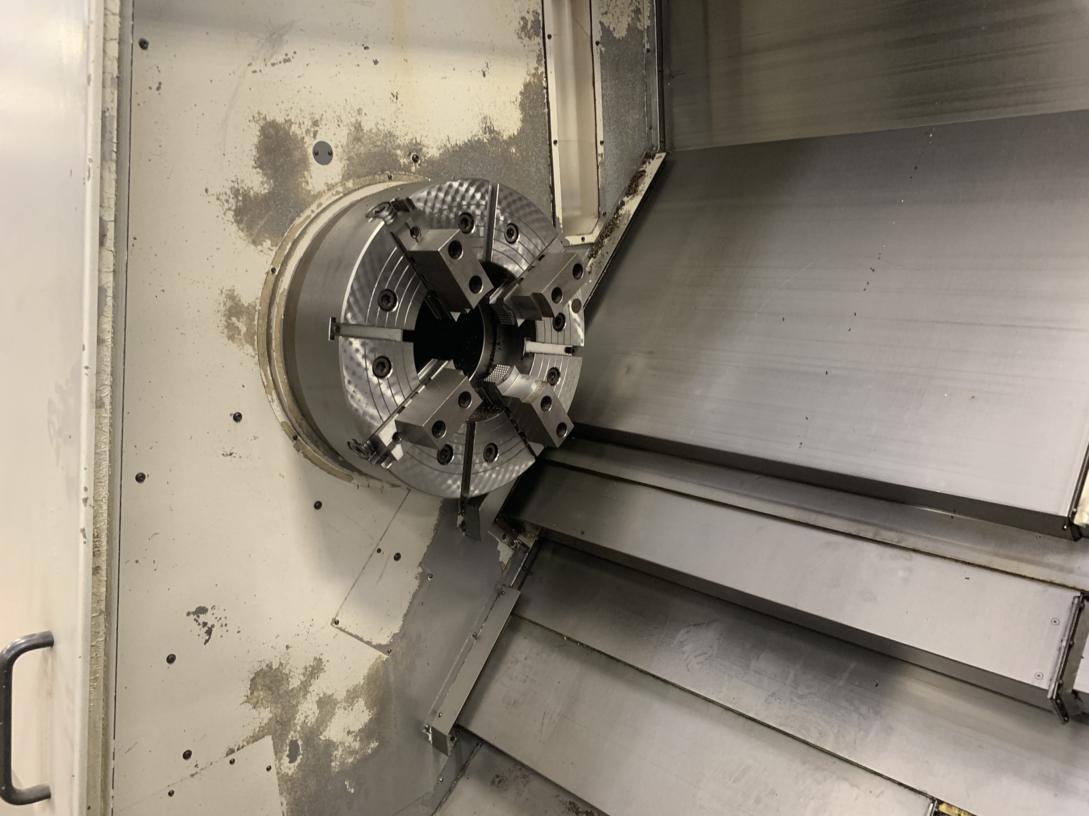

Bison 4 Jaw 25" Manual Chuck
Rear Chuck

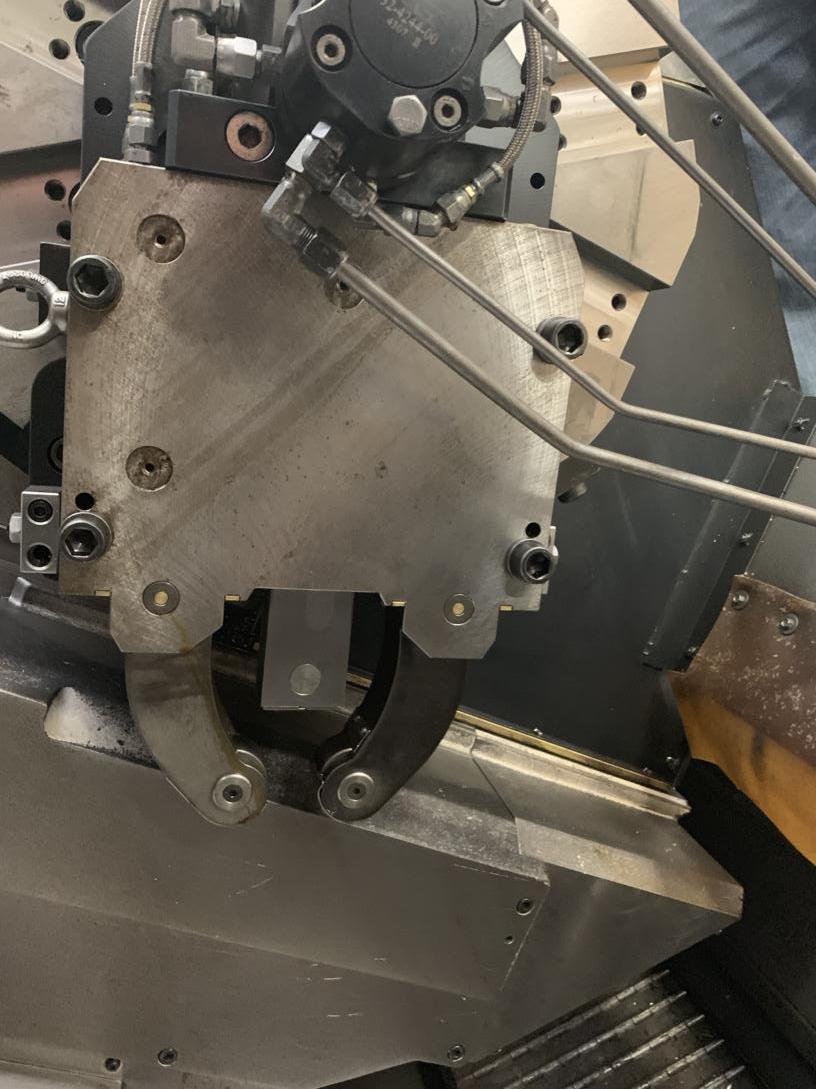

Hydraulic Steady Rest - SLU-Z 3.2 (1.97"-7.87")

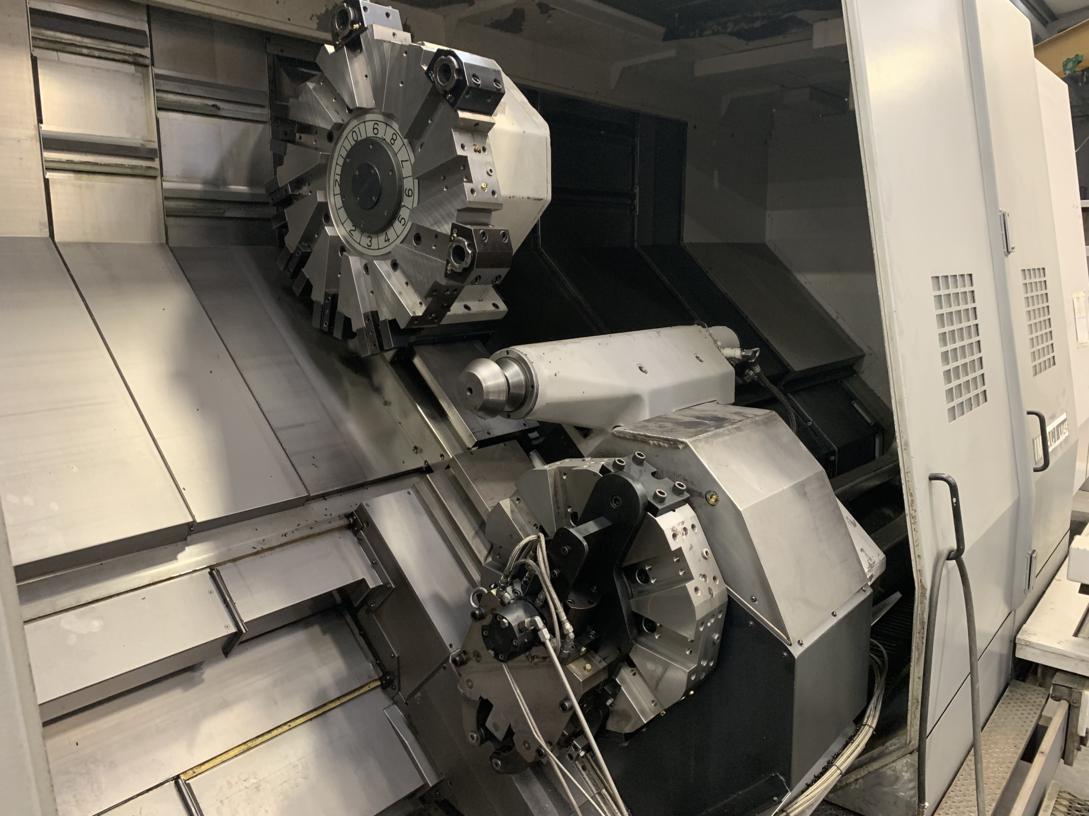

Upper & Lower Turrets

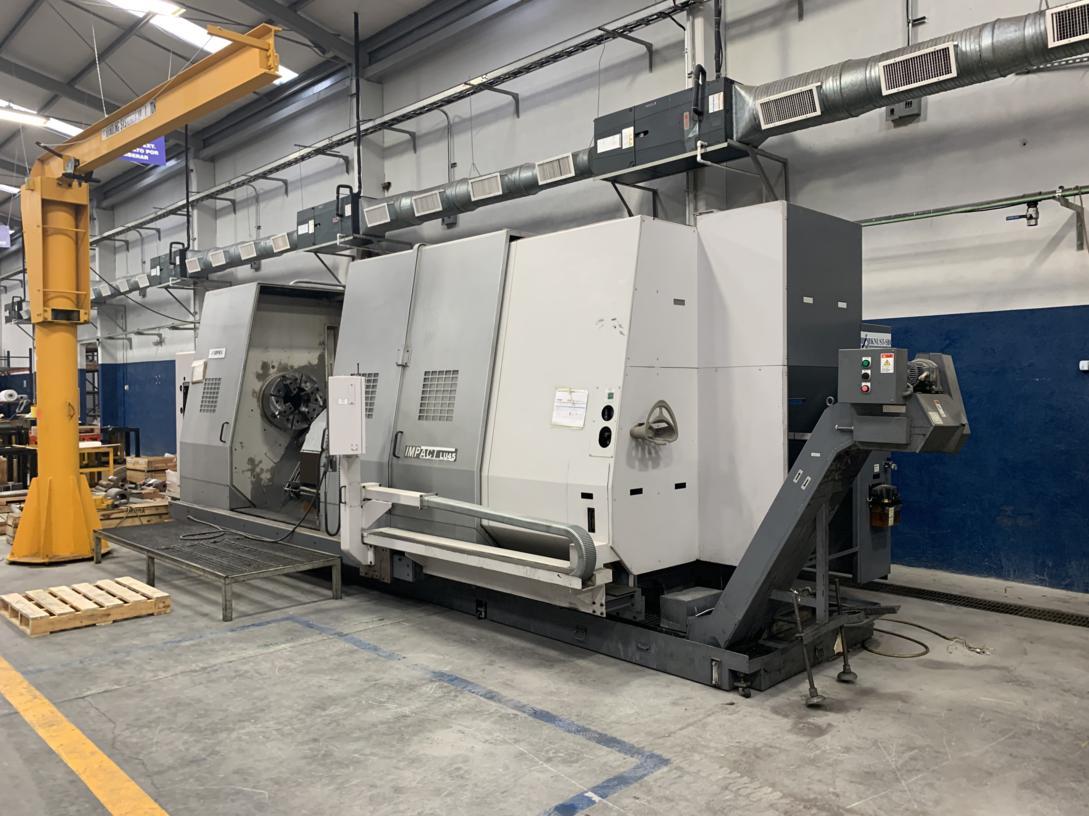

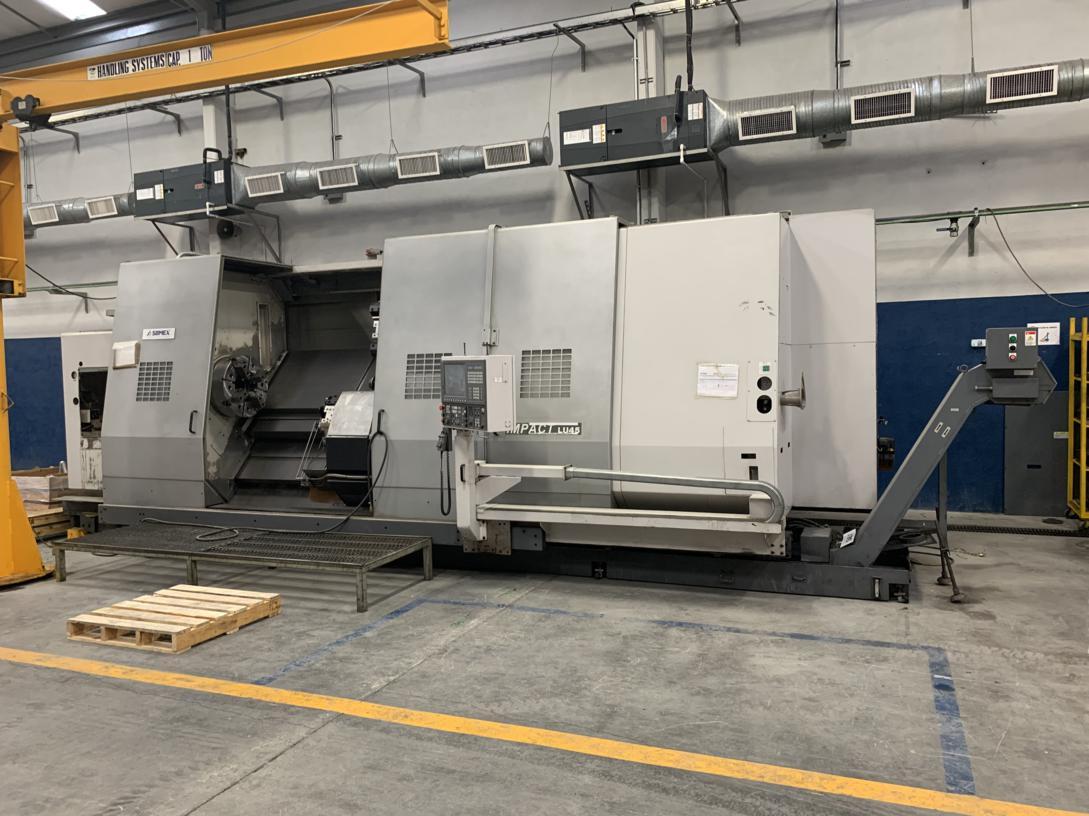

2007 Okuma Impact LU45/3000 - CNC Horizontal Lathe
Machine Specifications
Year
2007
Control Type

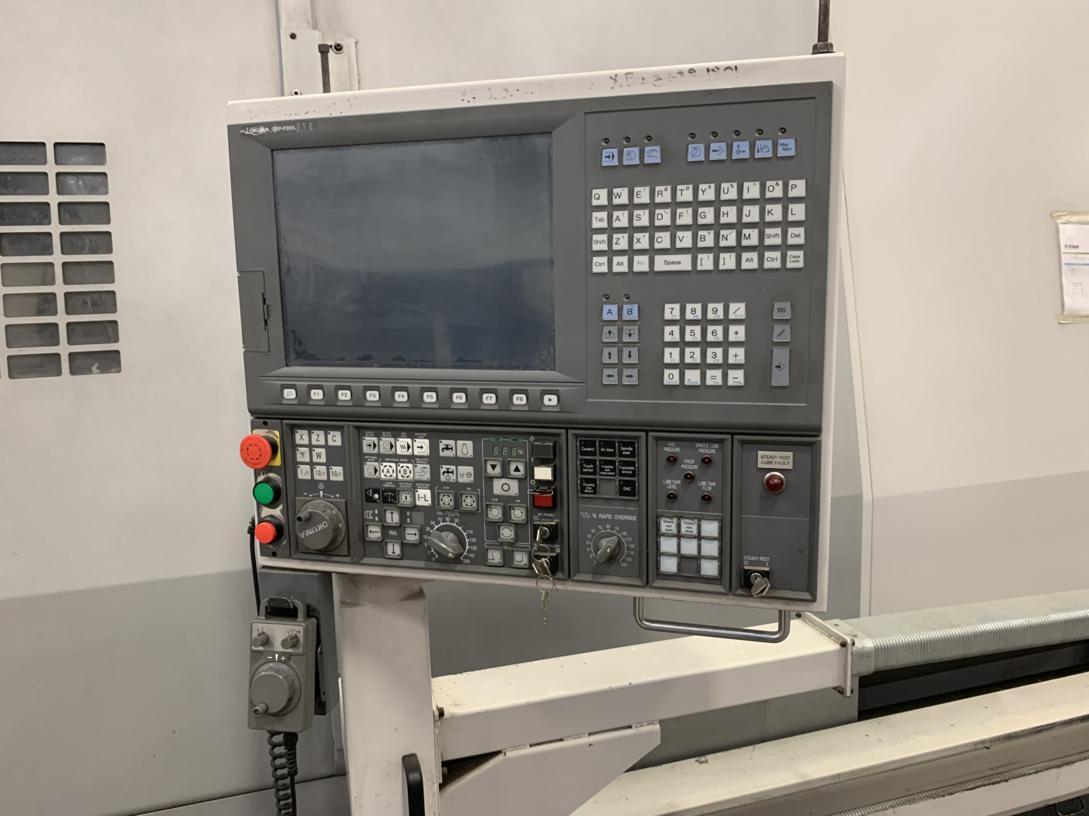

OSP P200L
Chuck Size
25"
Swing
33.07"
Turning Diameter
25.59"
Center Distance
118.11"
Bar Capacity
10"
X Axis Travel
17.32"
Z Axis Travel
121.65"
Spindle Speed (RPM)
2,800
Main Motor
60
Turret Capacity
12+10
Tailstock
yes
Y Axis
no
Weight
67,500 pounds
Sub Spindle
no
# Axis
4

Equipped With:

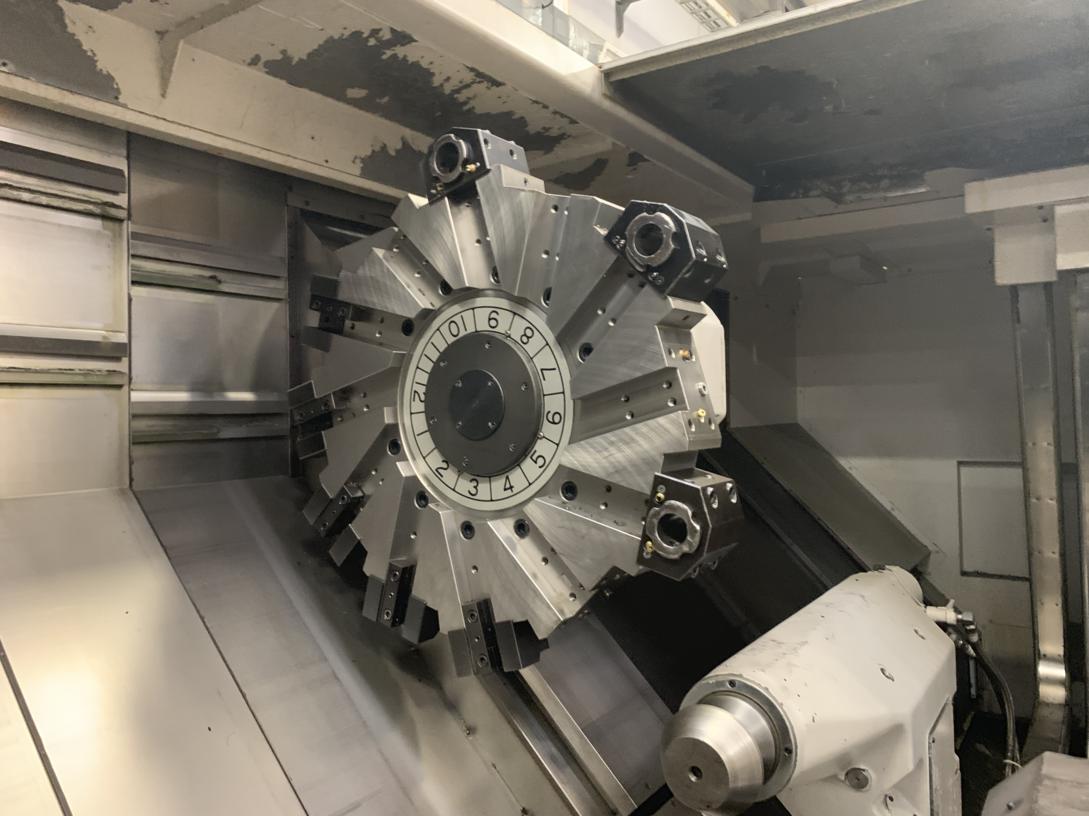

- Upper Turret - 12 Stations
- Lower Turret - 10 Stations
- SMW Hydraulic Steady Rest Model SLU-Z-3.2
       * Capacity: 1.98" - 7.87"
- Front & Rear Manual Chucks
- 10"+ Bar Capacity

The Okuma Impact LU45 is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
