Okuma Multus B400W - Lathes (3-Axis or More)

Share Machine
Specifications Print Specs
Model: Multus B400W
Year: 2008
Stock #: 13536 Sold
Highlights:
Okuma OSP-P200L Control
Tool Presetter
Live Tooling
Milling Spindle
Y Axis | Renishaw Probing

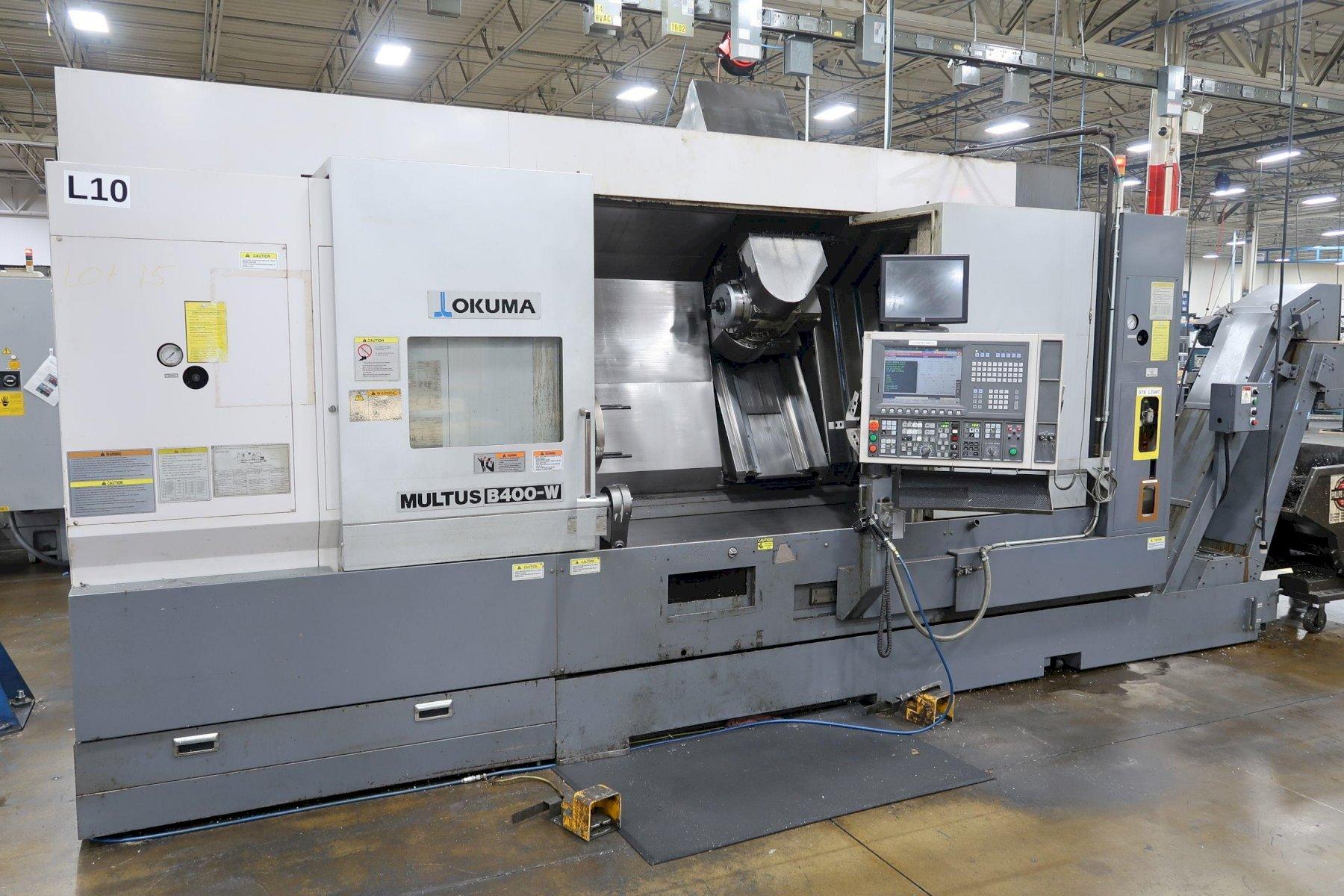

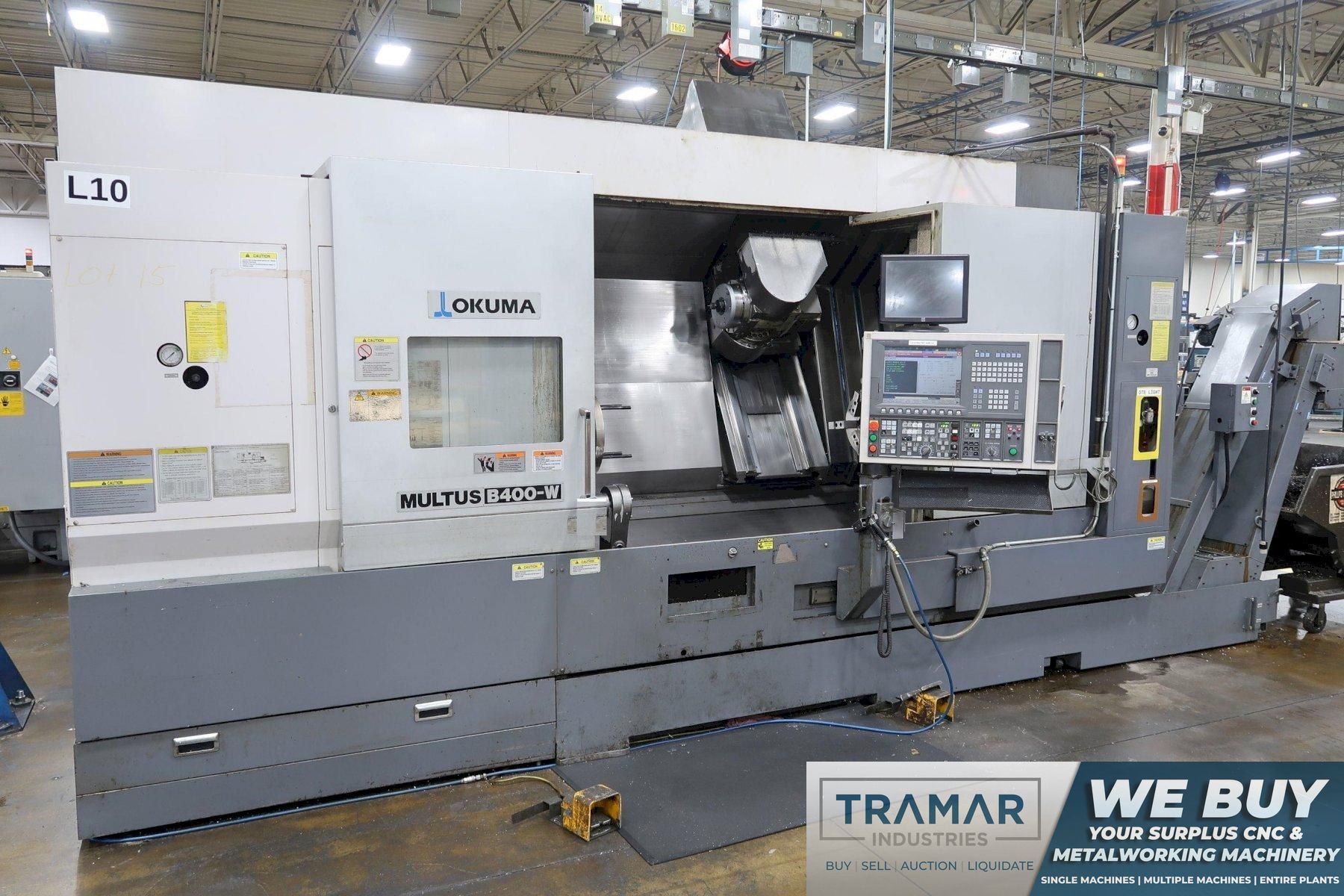

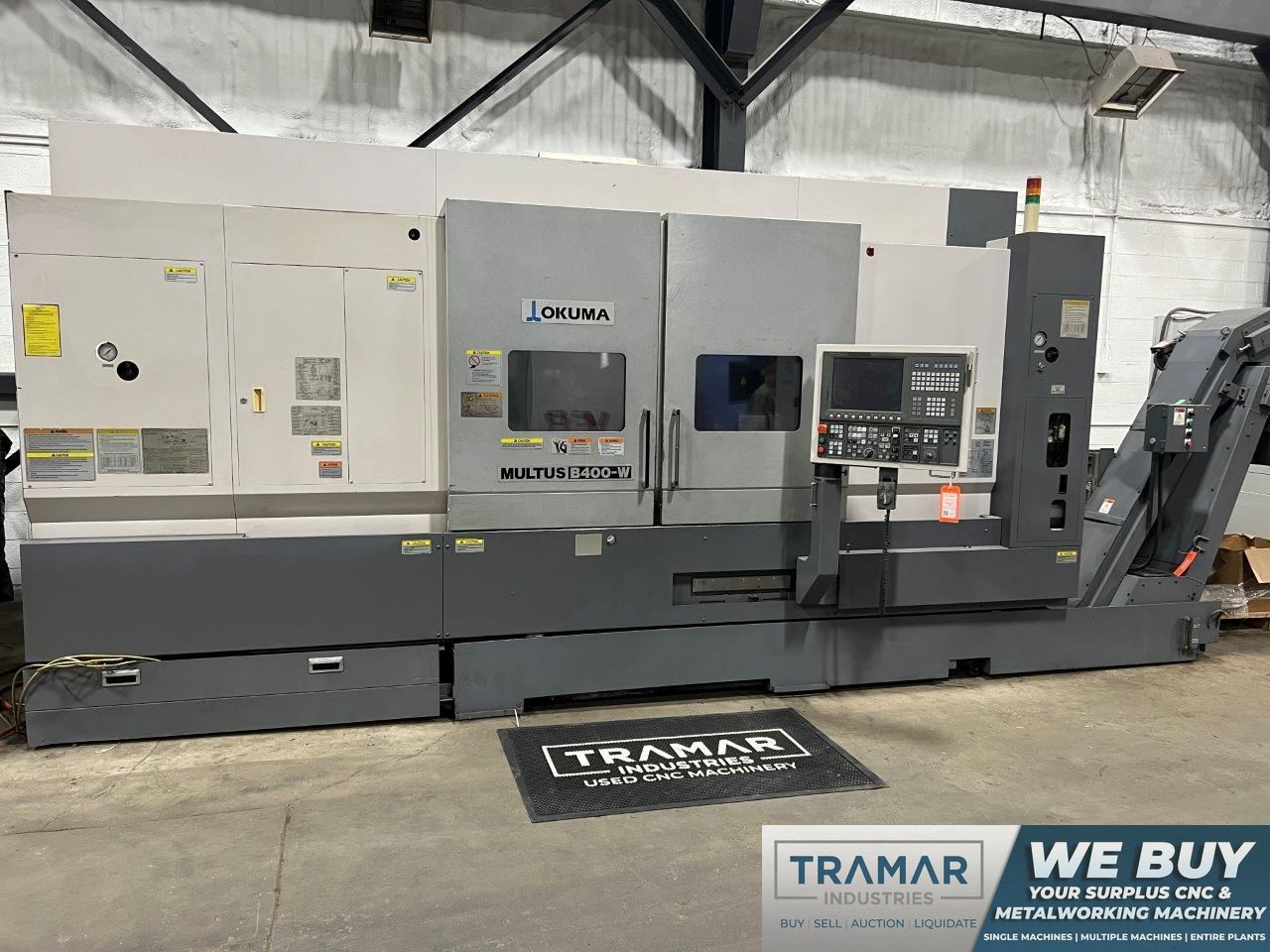

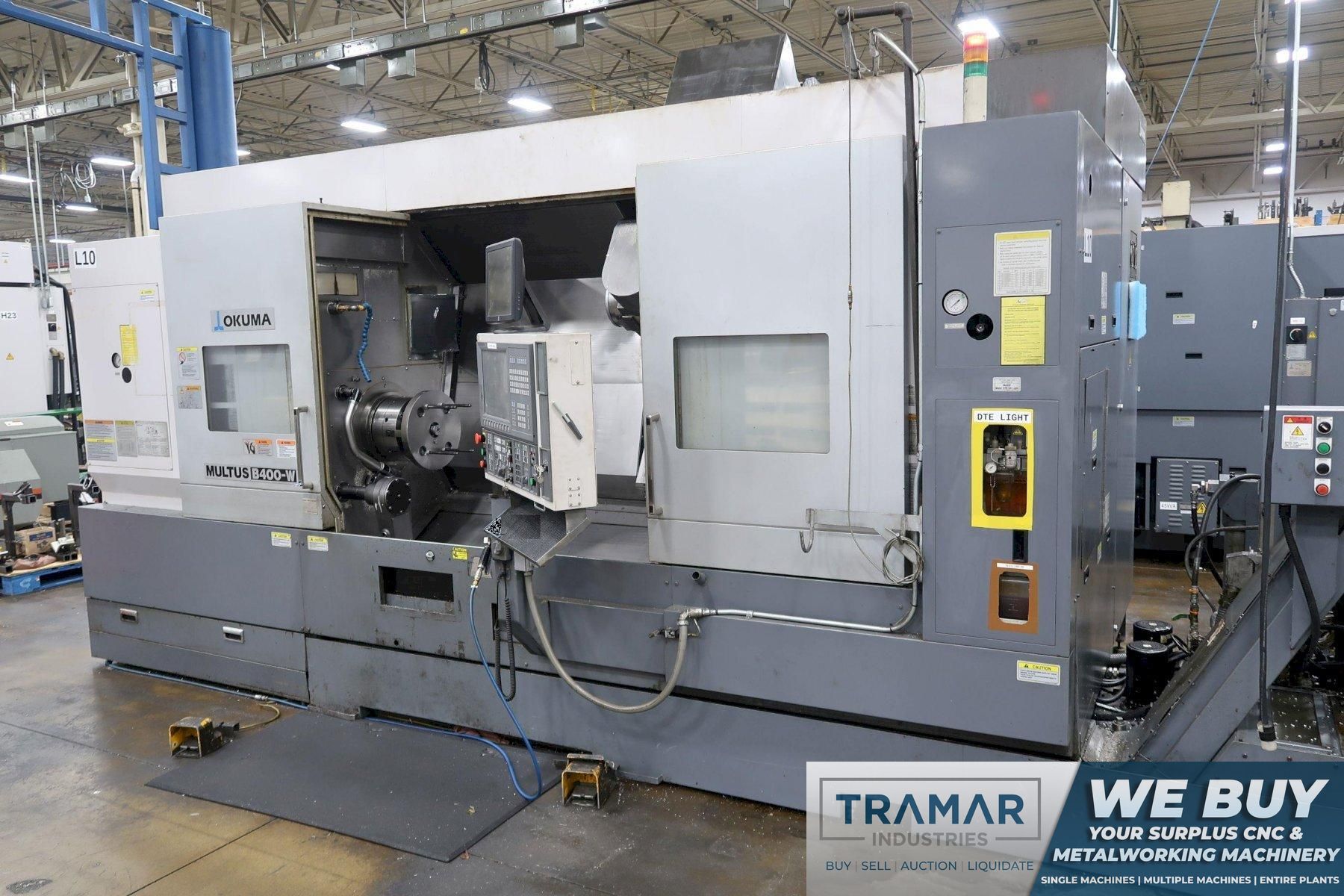

2008 Okuma Multus B400W - CNC Horizontal Lathe
Machine Videos
Machine Specifications
CNC Control
yes
Control Type
OSP-P200L
# Axis
6
Swing
27.95"
Turning Diameter
27.95"
Center Distance
59.06"

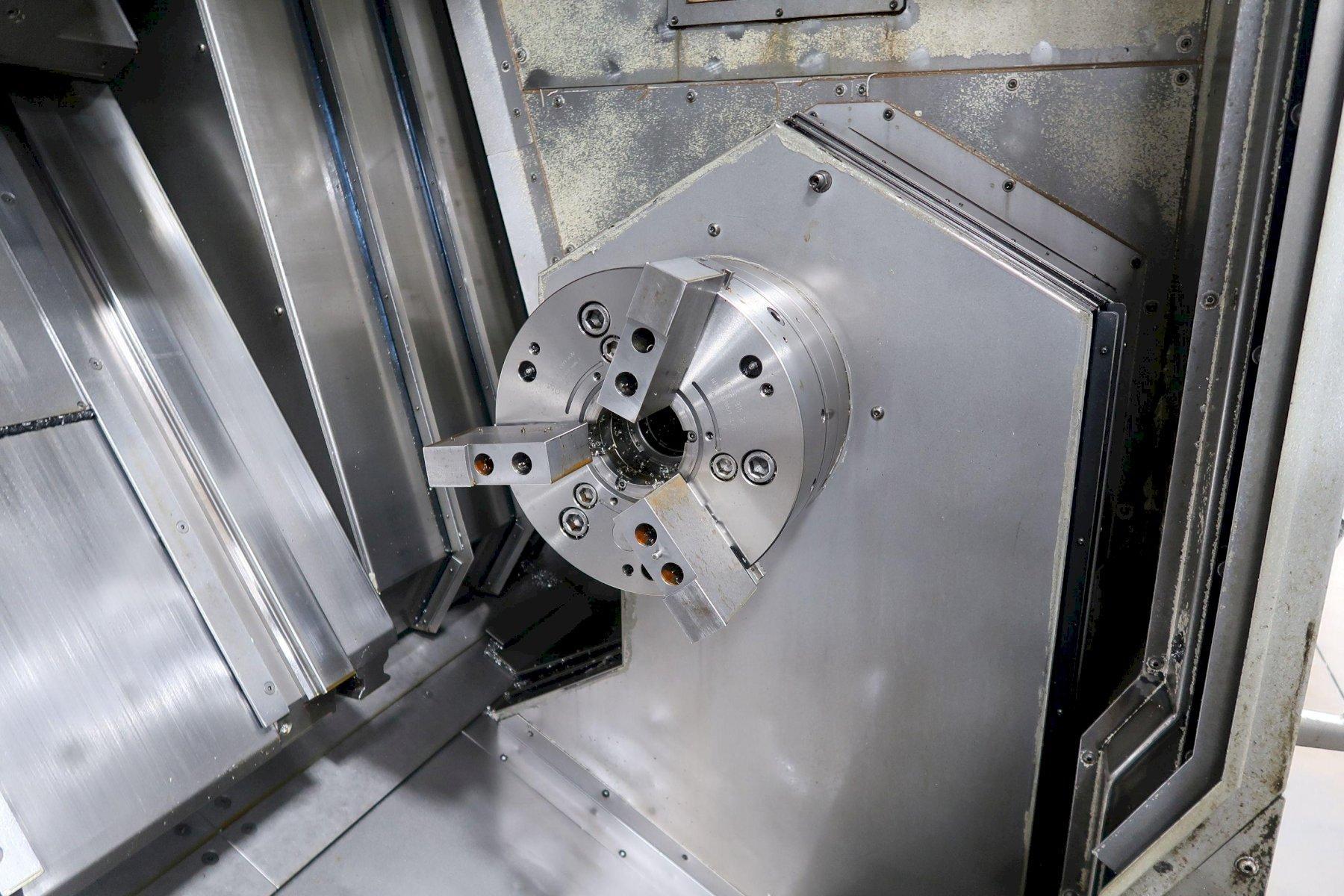

Chuck Size
12"
Bar Capacity
3.6"
X Axis Travel
27.17"
Y Axis Travel
9.06"
Z Axis Travel
60.83"
W Axis Travel
61.06"
B Axis Head Tilt
-30° to 195°
C Axis Index
0.001°
Rapid Traverse (X/Z/)
1,575 ipm
Rapid Traverse Y-Axis
1,024 ipm
Spindle Nose
A2-8
Spindle Speed (RPM)
2,800
Main Motor
40 hp
Live Tooling
yes
Live Tooling Spindle Taper
CAPTO C6
Live Tooling Speed
10,000 RPM
Live Tooling Motor
27 hp
Tailstock
no
Y Axis
yes

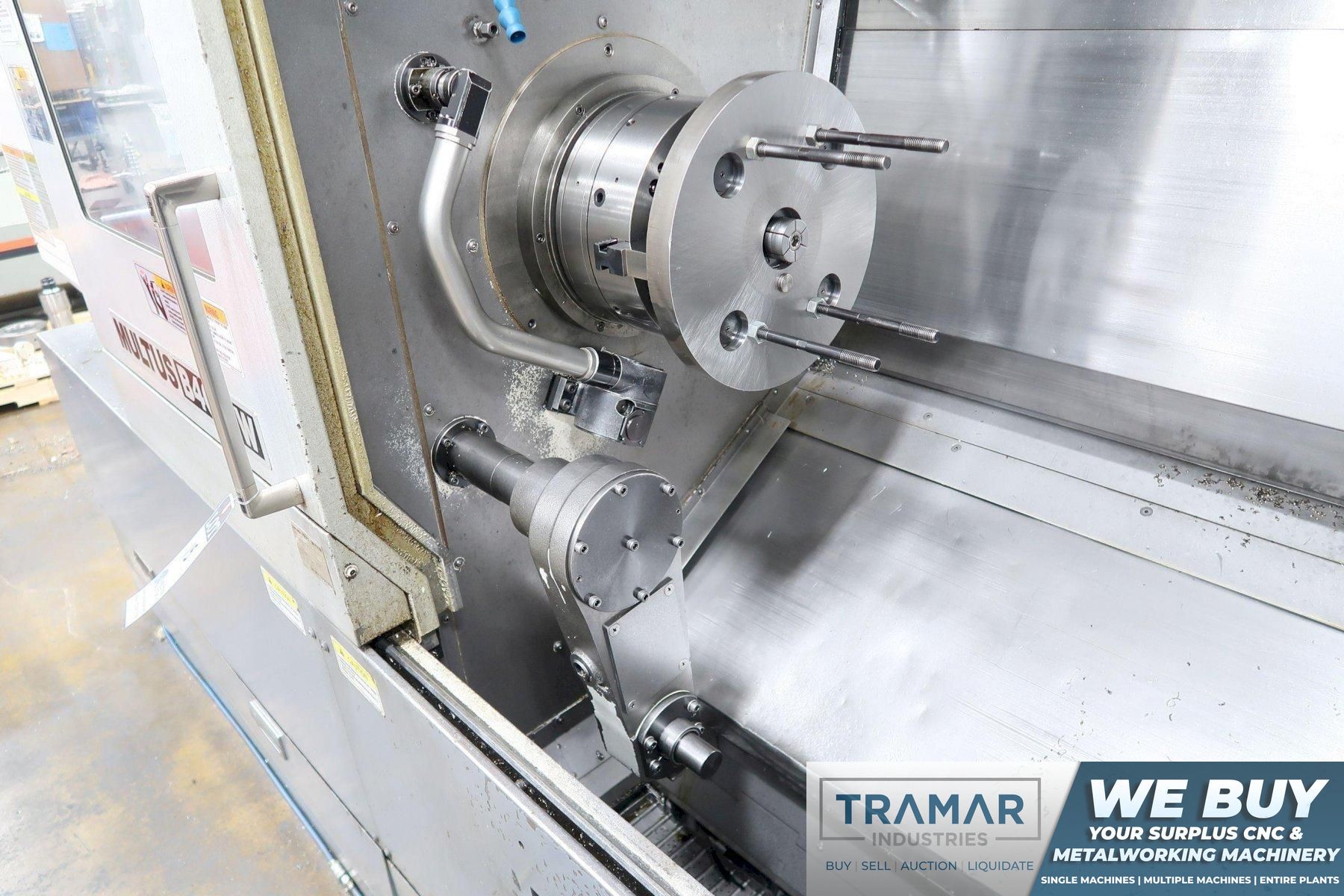

Sub Spindle
yes
Coolant Thru Spindle
yes

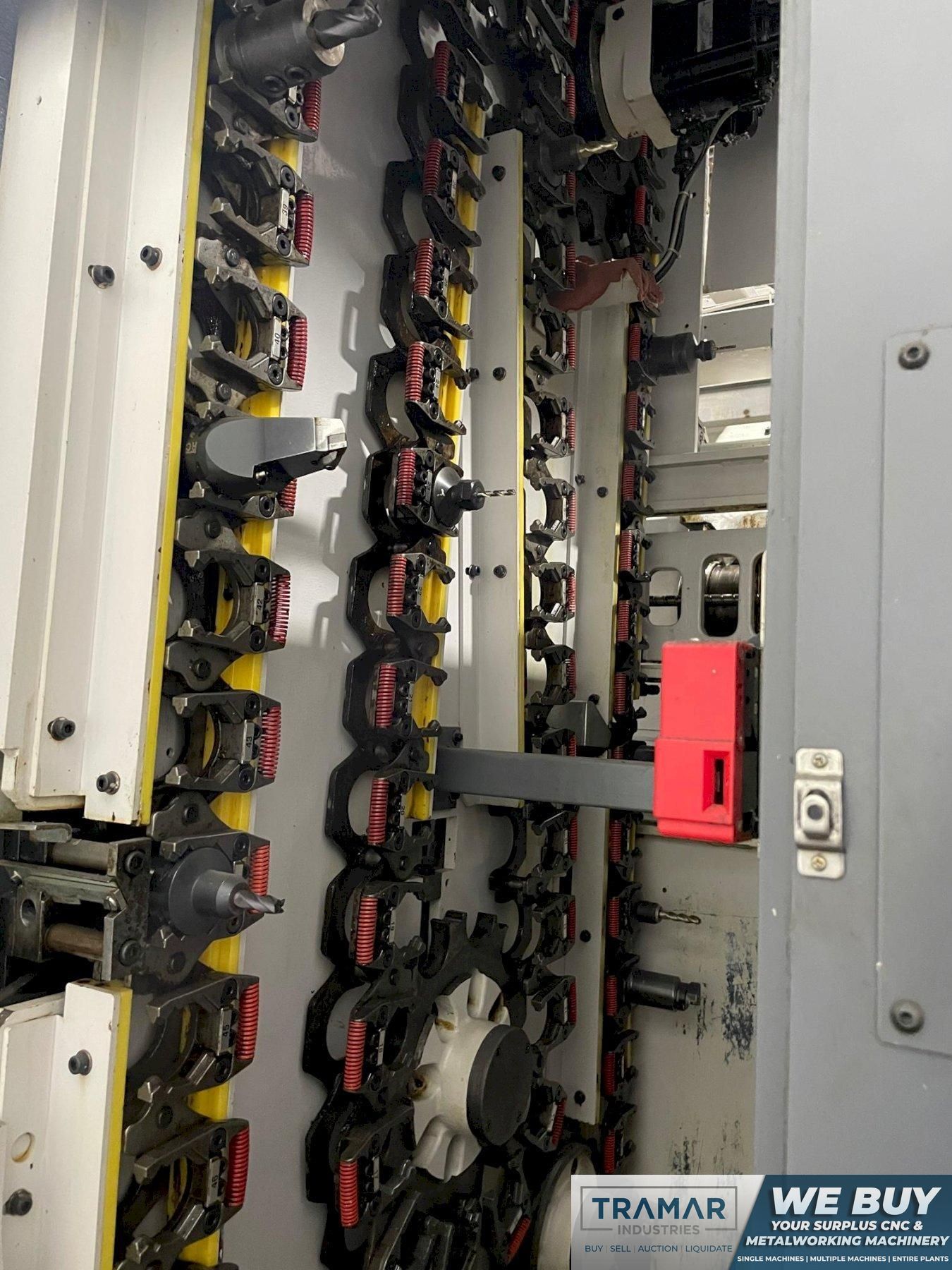

ATC Capacity
80
Dimensions
227" x 107" x 118"
Weight
31,250 pounds

Equipped With:

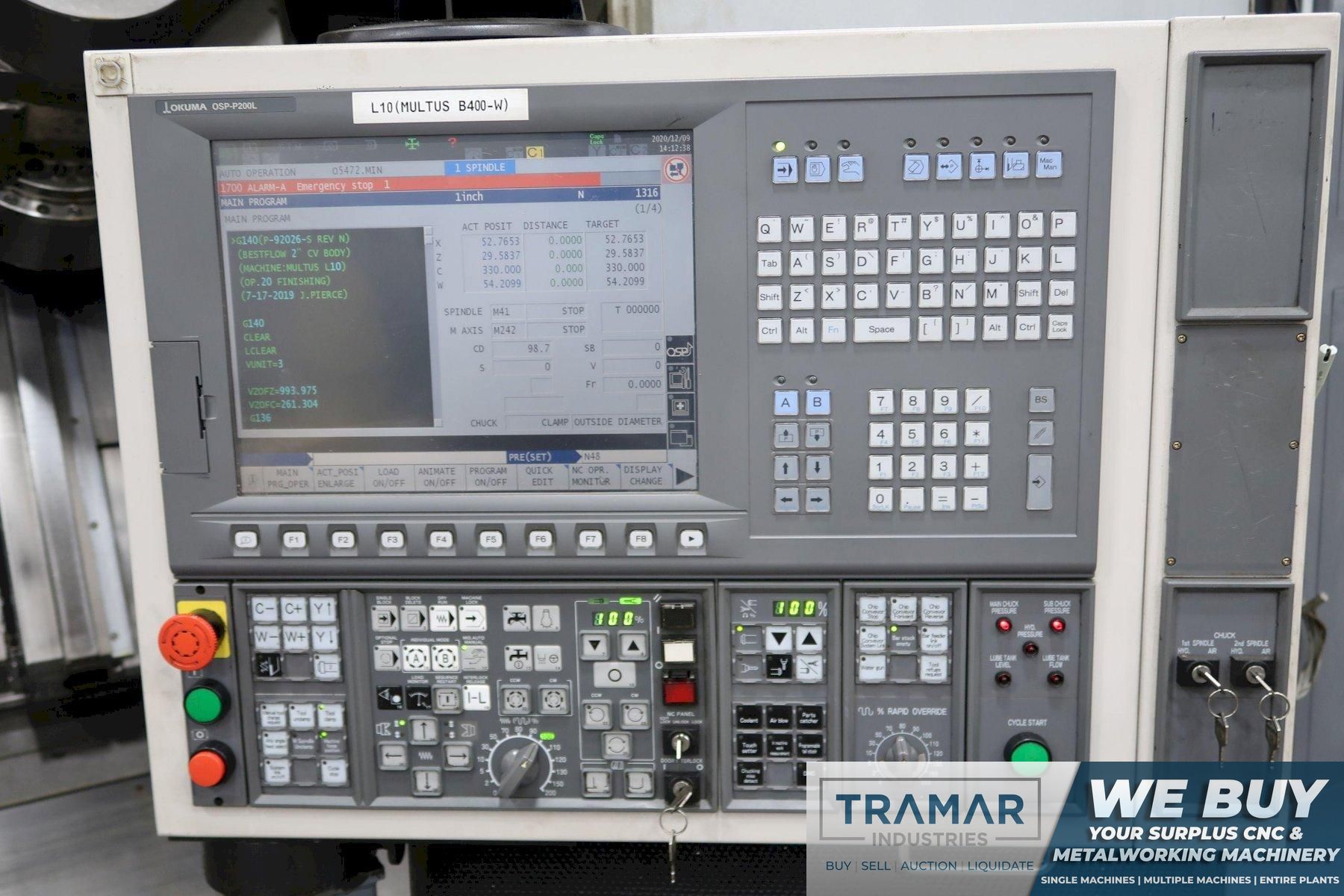

- Okuma OSP-P200L Control
- Tool Presetter

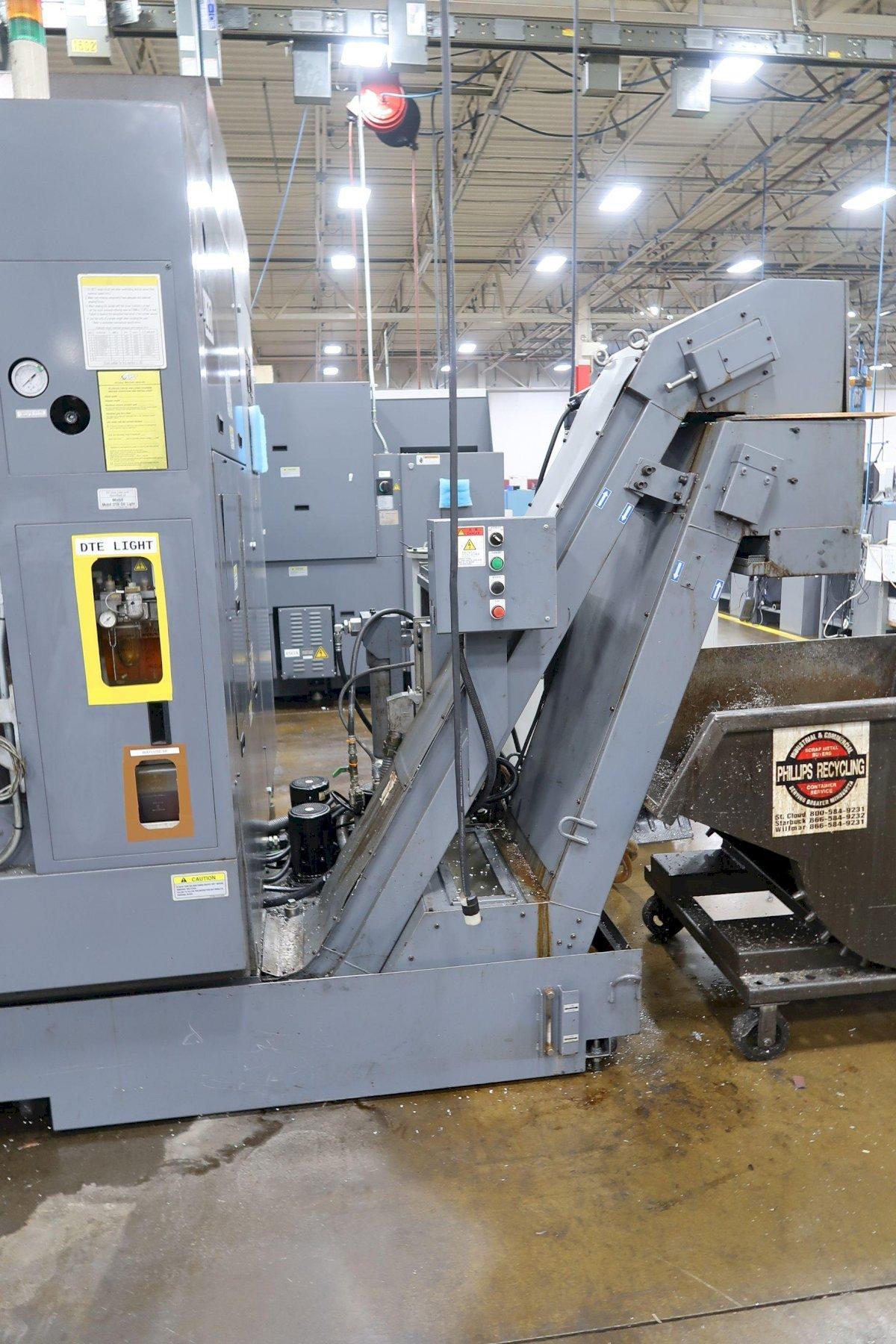

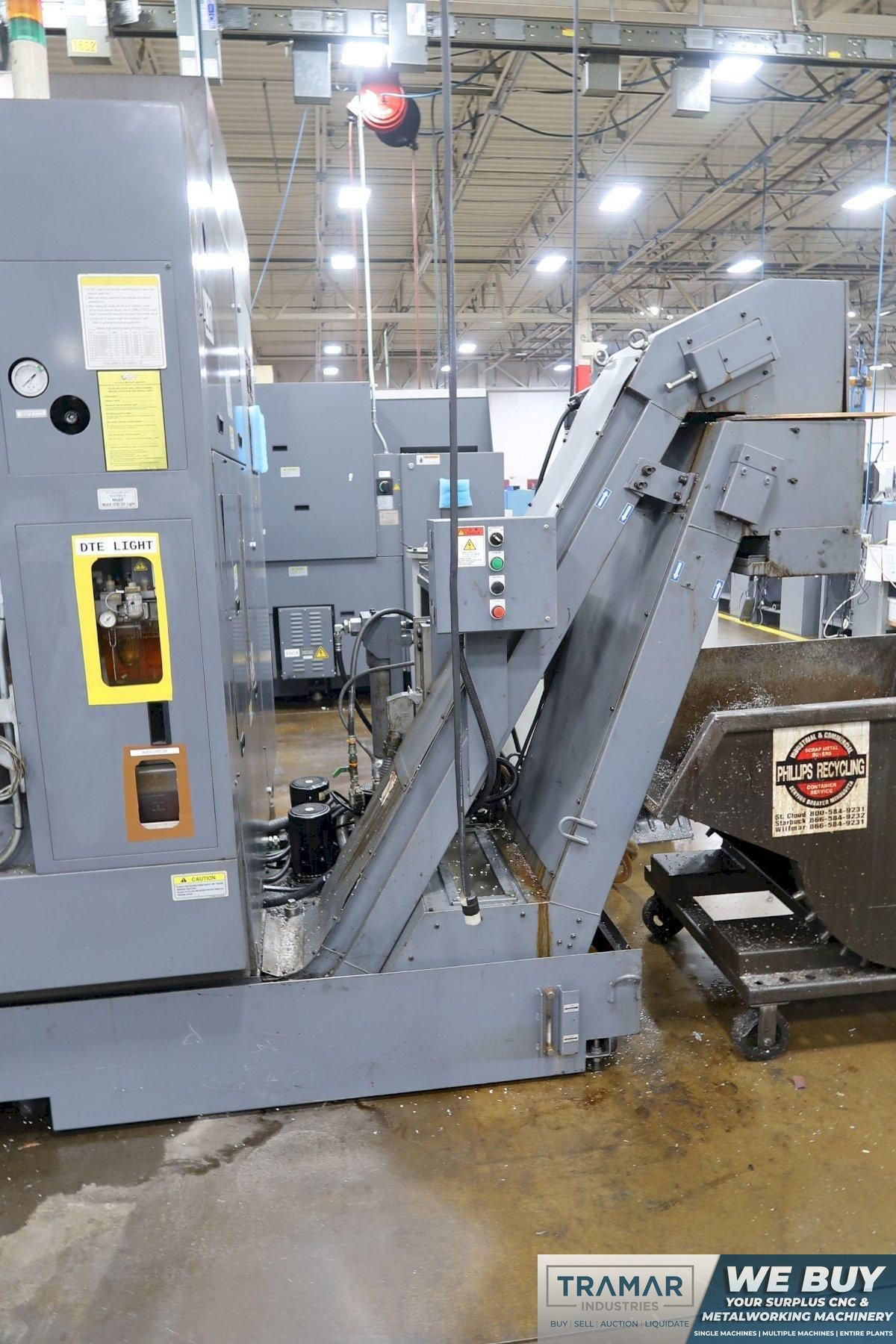

- Chip Conveyor
- Coolant Tank & Pumps

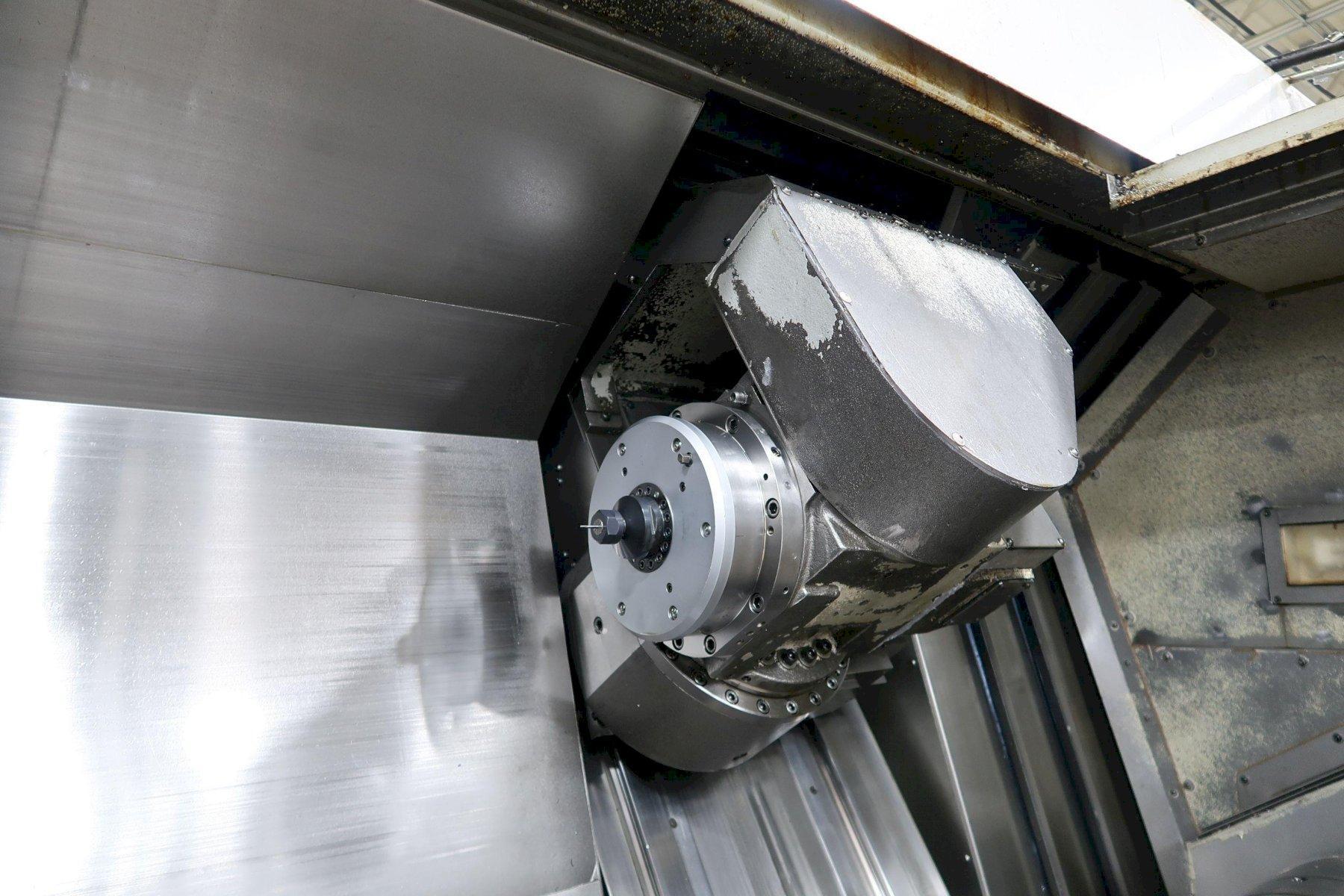

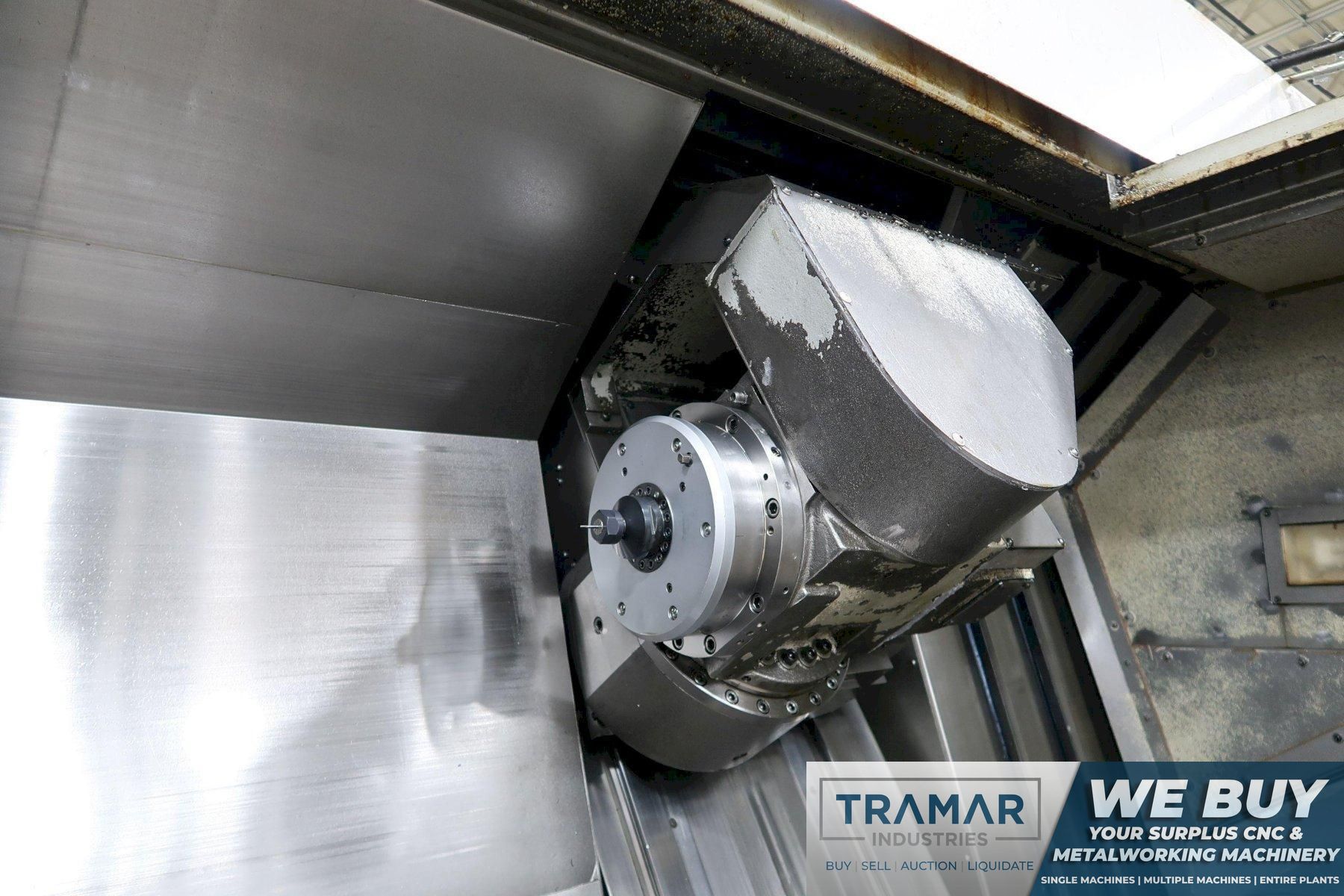

- CAPTO C6 Milling Spindle

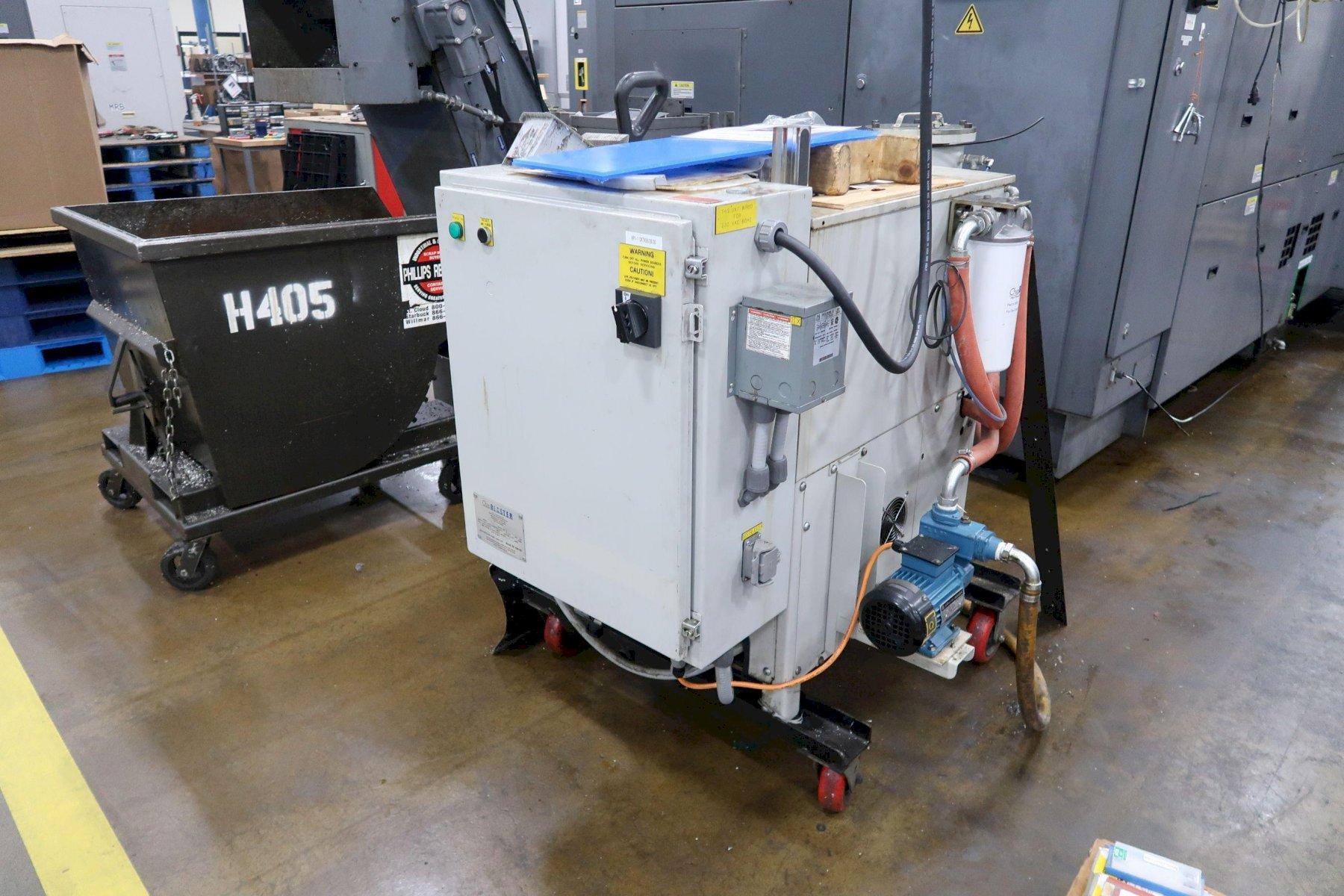

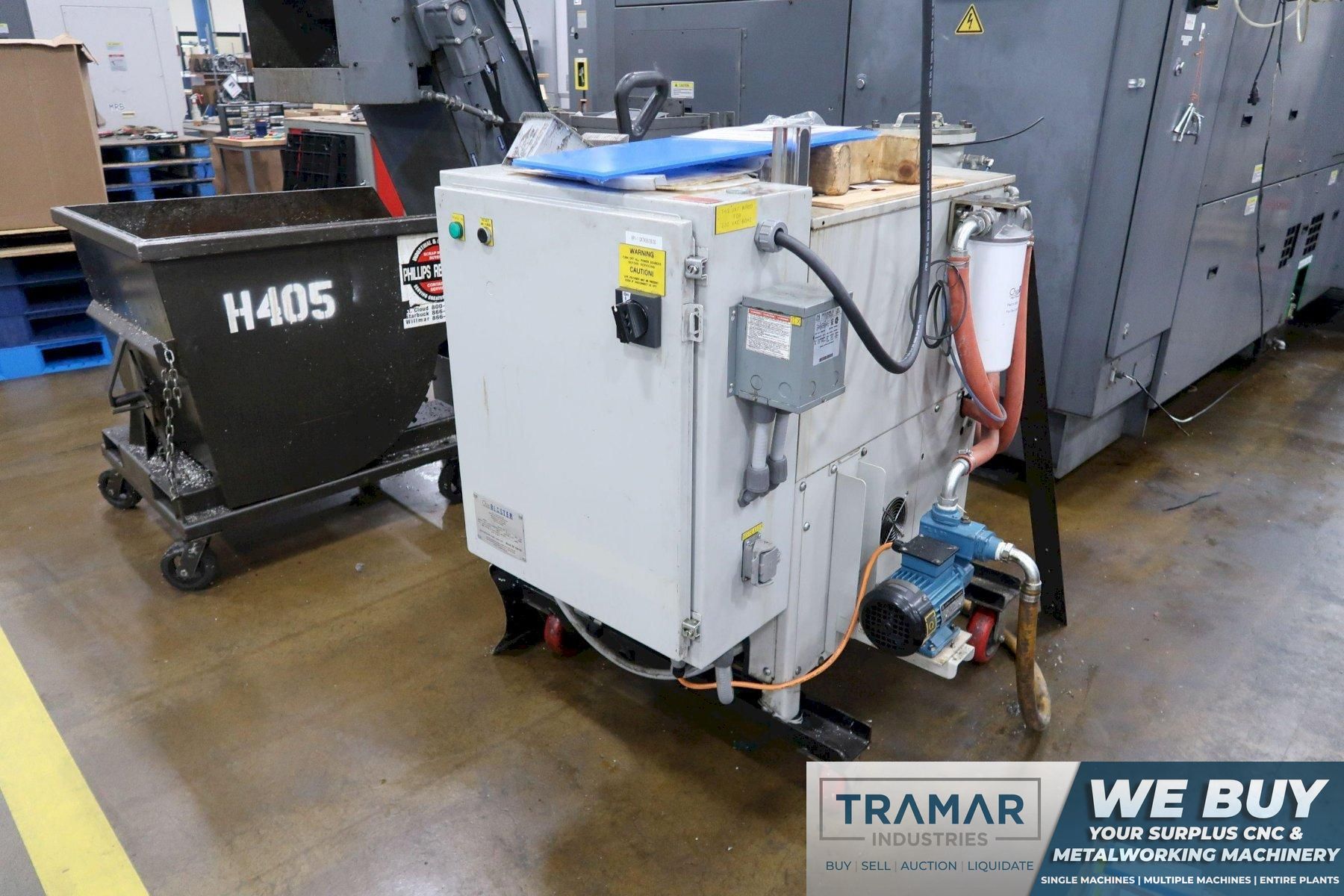

- Coolant Thru Spindle High Pressure

- B Axis 0.001°
- Renishaw Probing

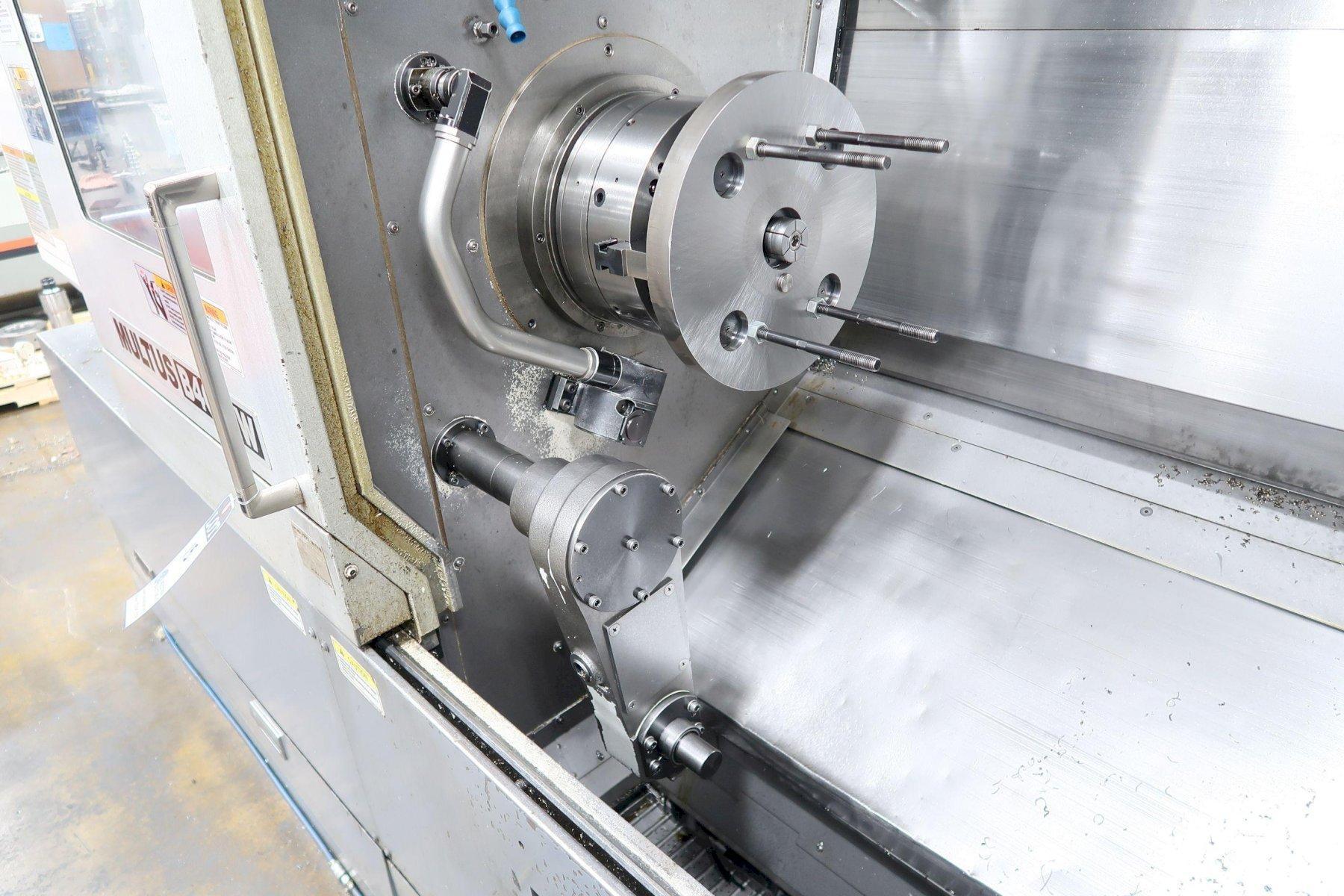

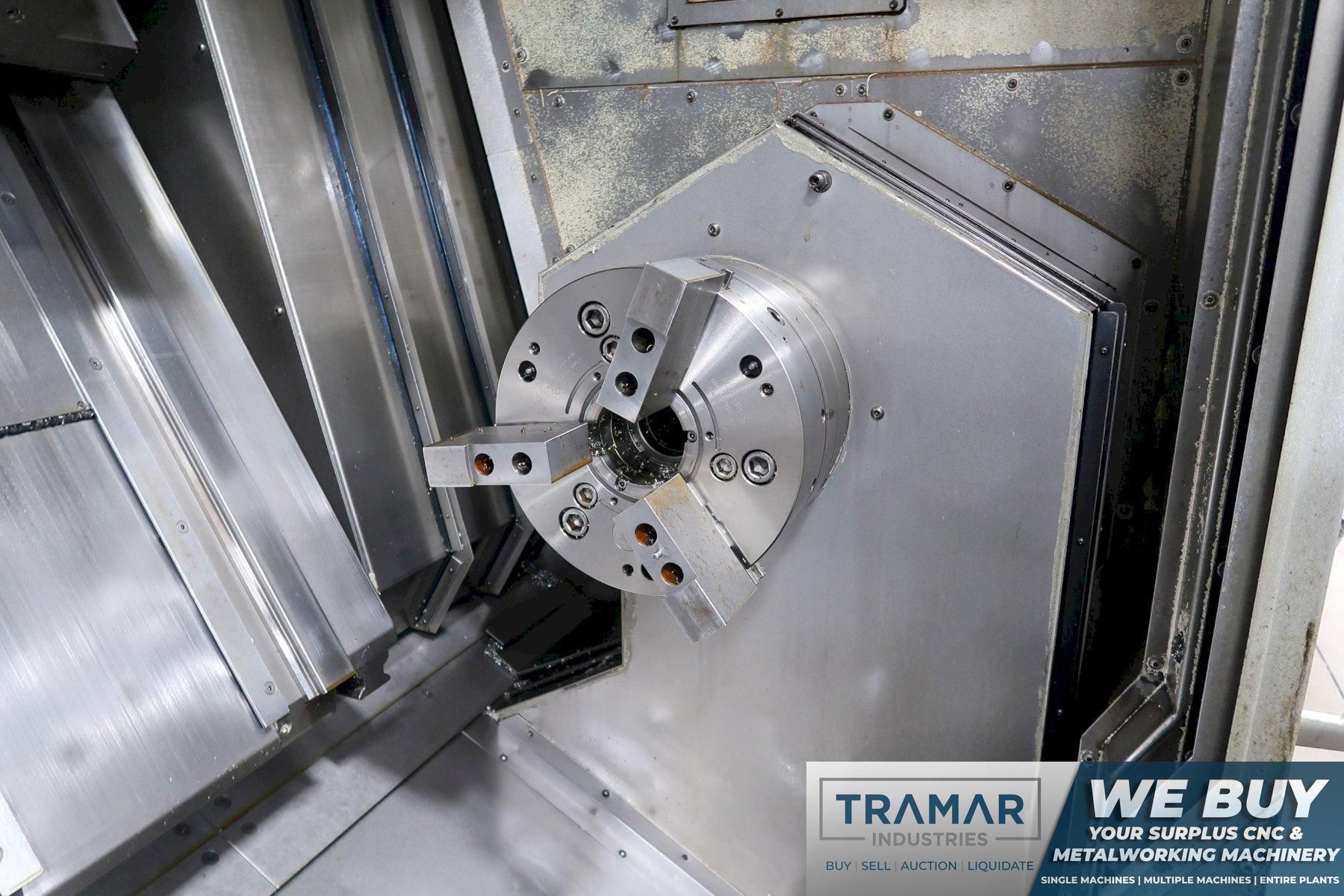

- Sub Spindle w/12" Chuck
- Glass Scales
- Bar Feeder Interface
- Tool Life Management

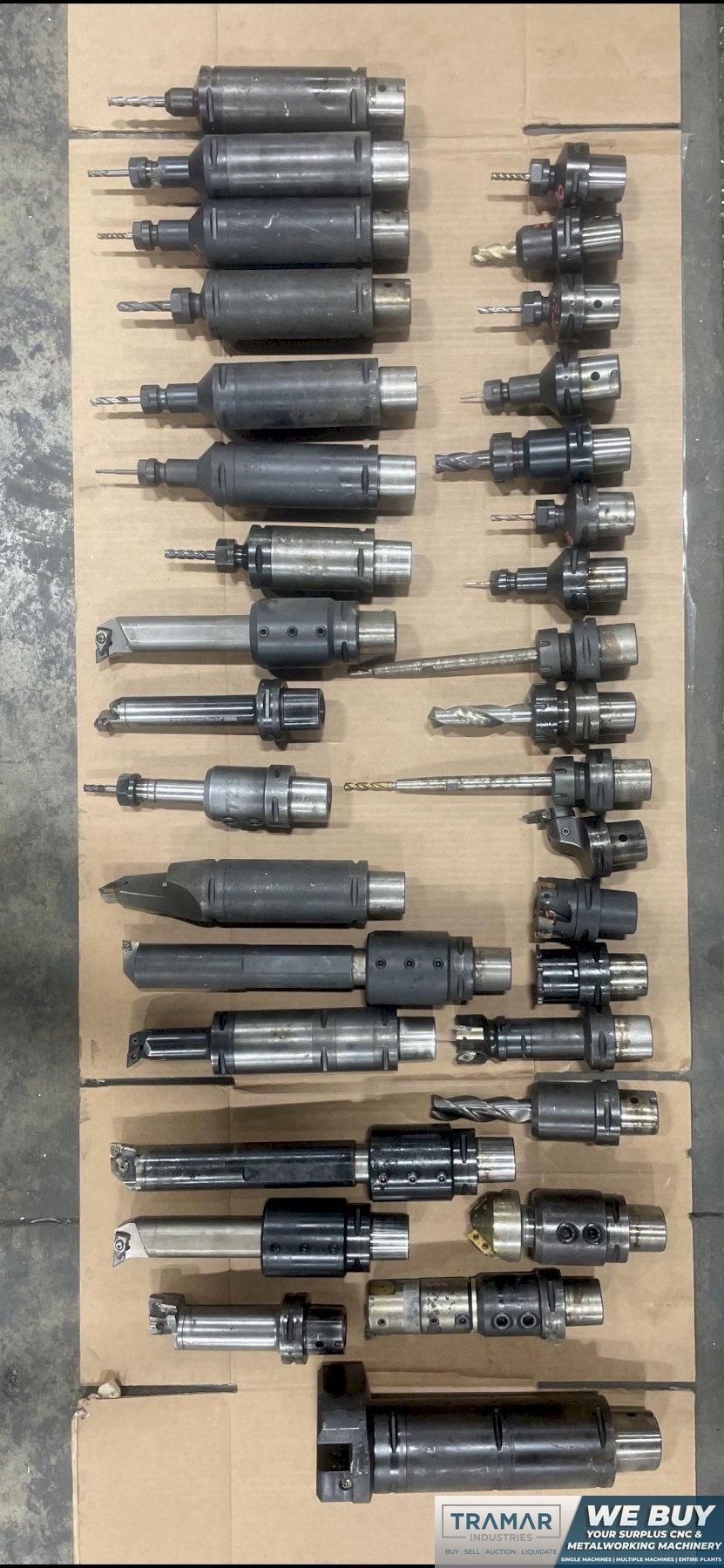

- Misc. Tooling Available

The Okuma Multus B400W is an exclusive part of our Lathes (3-Axis or More) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
