Haas ST-20 - Horizontal Lathes

Request Quote
Share Machine
Specifications Print Specs
Model: ST-20
Year: 2012
Stock #: 13557
Highlights:
Haas ST-20 CNC Lathe
Chip Conveyor
Tool Presetter
Parts Catcher
Tailstock

2012 Haas ST-20 CNC Horizontal Lathe
Machine Specifications
Year
2012
# Axis
2
Swing
21"
Turning Diameter
11.75"
Center Distance
22.5"
Chuck Size
8"
Bar Capacity
2.5"
X Axis Travel
8.4"
Z Axis Travel
22.5"
Rapid Traverse (X/Z)
945 ipm
Spindle Nose
A2-6
Spindle Speed
4,000 rpm
Main Motor
20 hp
Live Tooling
no

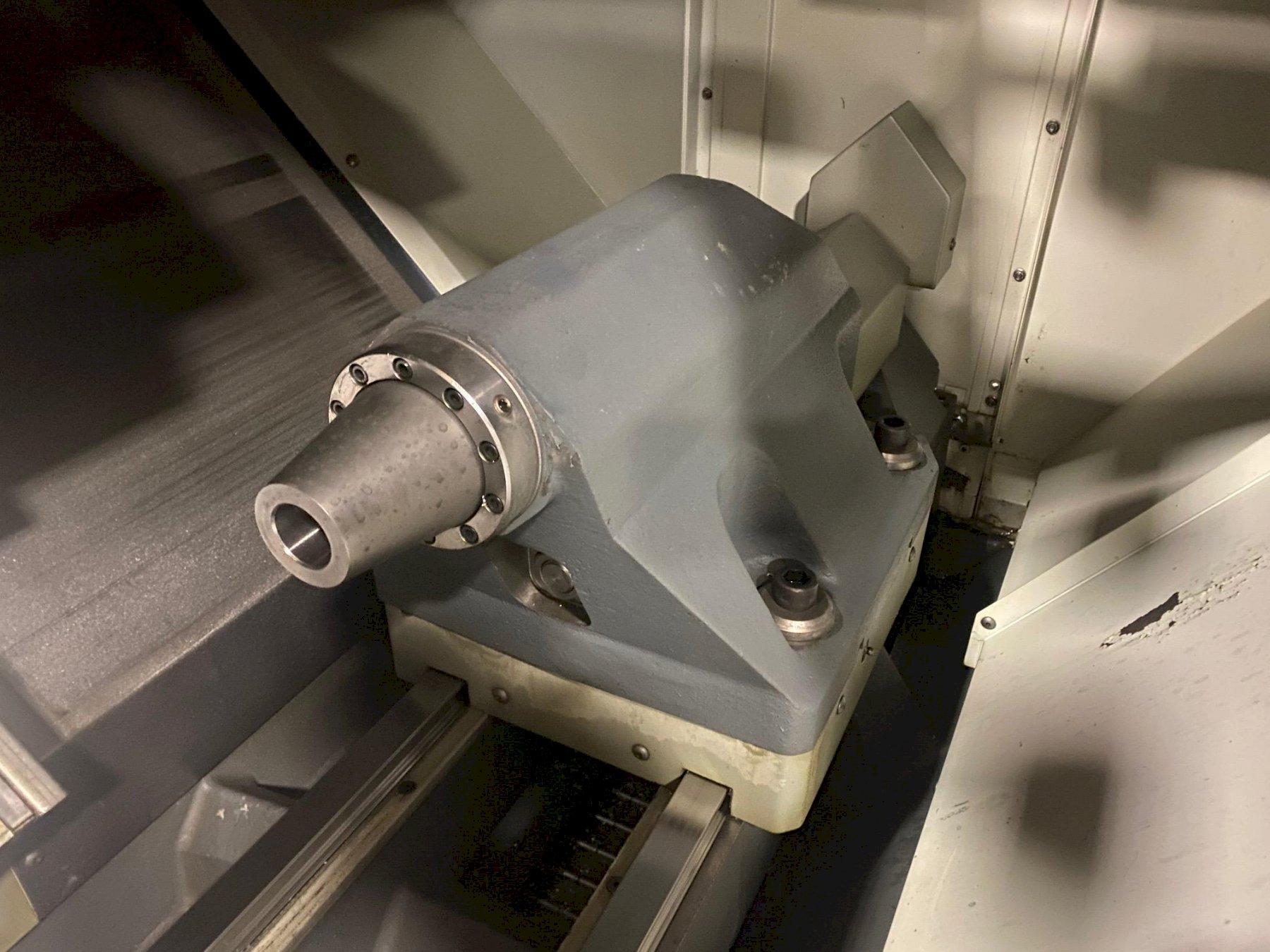

Tailstock
yes
Y Axis
no
Sub Spindle
no

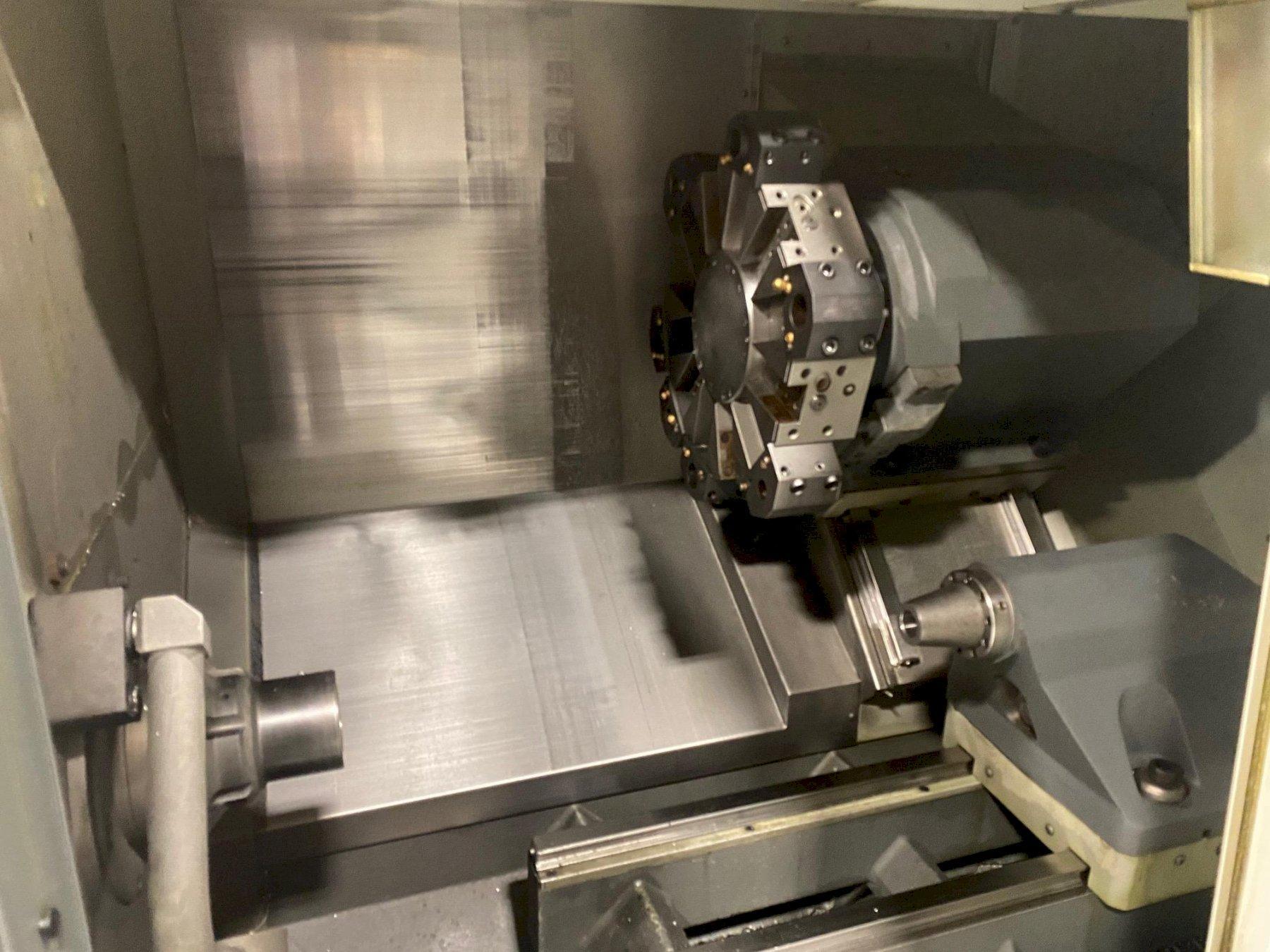

Turret Capacity
12
Machine Dimensions
143" x 90" x 87"
Machine Weight
8,820 pounds

Equipped With:

- Chip Conveyor

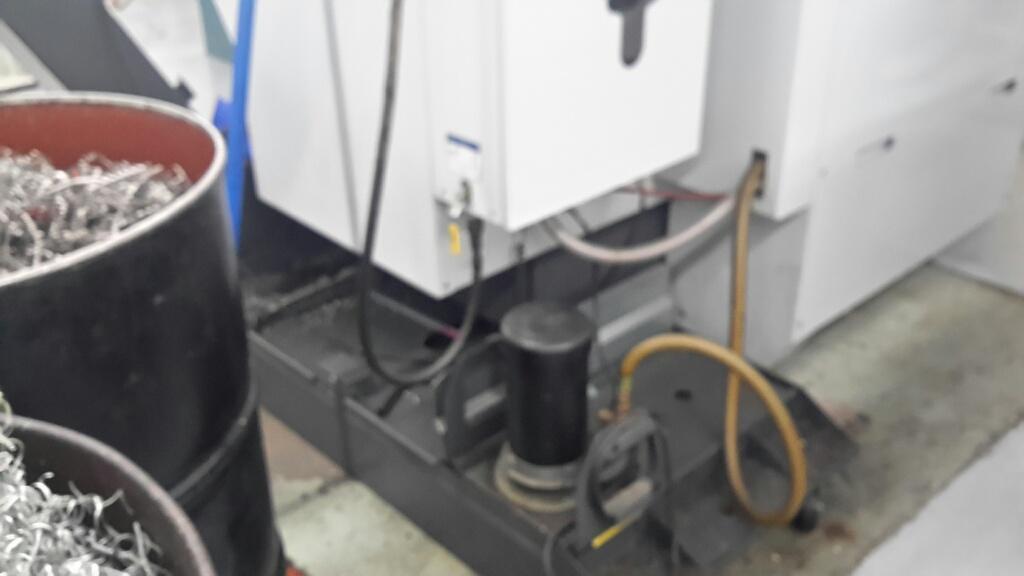

- Coolant Tank & Pump
- Tool Presetter
- Parts Catcher
- Collet Chuck on Spindle

The Haas ST-20 is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
